parking sensors INFINITI QX30 2018 Owners Manual

FCC Notice...................... .5-46
Cruise control ...................... .5-46
Cruise control operations ..............5-47
Intelligent Cruise Control (ICC) system (Full speed
range) (if equipped) ................... .5-49
ICC system operation ............... .5-50
ICC switch (cruise control lever) ..........5-51
ICC system display and indicators .........5-52
Operating ICC .................... .5-53
ICC Limitations ................... .5-57
Tips for driving with the ICC system .......5-58
System temporarily unavailable ..........5-61
System maintenance ................ .5-62
Forward emergency braking (FEB) system (if
equipped) ......................... .5-63
FEB system operation ............... .5-64
Turning the FEB system on/off ..........5-66
FEB system limitations ............... .5-67
System temporarily unavailable ..........5-68
System maintenance ................ .5-69
FCC Notice ...................... .5-69
Active sound enhancement ...............5-70
Active sound enhancement .............5-70
Intelligent Parking Assist (IPA) (if equipped) .....5-71
Important safety notes ................5-71
Detecting parking spaces ..............5-72
Parking ........................ .5-73Exiting a parking space
...............5-74
Canceling IPA .................... .5-76
Camera Aiding Sonar (parking sensor) function
(if equipped) ....................... .5-76
Sonar function overview ...............5-78
Range of the sensors ................ .5-82
Sonar function OFF switch .............5-82
Sonar function settings ...............5-83
Sonar function limitations ..............5-83
Problems with sonar function ..........
.5-84
System

maintenance ................ .5-85
Break-in schedule .................... .5-85
Fuel efficient driving tips ................5-86
Increasing fuel economy ................ .5-87
Four-Wheel Drive (4WD) (if equipped) ........5-87
Parking .......................... .5-88
Switching off the engine ..............5-89
Extended parking .................. .5-90
Electric power steering system ............5-90
Brake system ....................... .5-91
Brake precautions .................. .5-91
Anti-lock Braking System (ABS) ..........5-92
Vehicle Dynamic Control (VDC) system .......5-93
Traction Control System (TCS) ...........5-95
Characteristics of VDC ...............5-95
EBD (electronic brake force distribution) . . . .5-96
Steer Control ..................... .5-96

Use IPA for parking spaces that are:
•Parallel or at right angles to the direction
of travel.
•On straight roads, not bends.
•On the same level as the road, e. g. not on
the sidewalk.
For vehicles with the towbar folded out, the
minimum length for parking spaces is slightly
longer.
If you have attached a trailer to your vehicle,
you may not use IPA. Once the electrical
connection is established between your ve-
hicle and the trailer, IPA is no longer available.
The sonar function is deactivated for the rear
area
DETECTING PARKING SPACES
The IPA system can only be used to park in
spaces that have vehicles directly on either
side of the parking space.
Objects located above the height range of
IPA will not be detected when the parking
space is measured. These are not taken into
account when the parking procedure is calcu-
lated, e. g. overhanging loads, tail sections or
loading ramps of goods vehicles.
WARNING
If there are objects above the detection
range, IPA may steer too early. This could
cause a collision. There is a risk of an acci-
dent.
If objects are located above the detection
range, stop and switch off the IPA.
For further information on the detection
range see "Range of the sensors" later in this
section.
IPA does not assist you parking in spaces at
right angles to the direction of travel if:
•Two parking spaces are located directly
next to one another.
•The parking space is directly next to a low
obstacle such as a low curb.
•You forward park.
IPA does not assist you parking in spaces that
are parallel or at right angles to the direction
of travel if:
•The parking space is on a curb.
•The system reads the parking space as
being blocked, for example, by foliage or
grass paving blocks.
•The area is too small for the vehicle to
maneuver into.
•The parking space is bordered by an ob-
stacle, e.g. a tree, a post or a trailer.
5-72Starting and driving

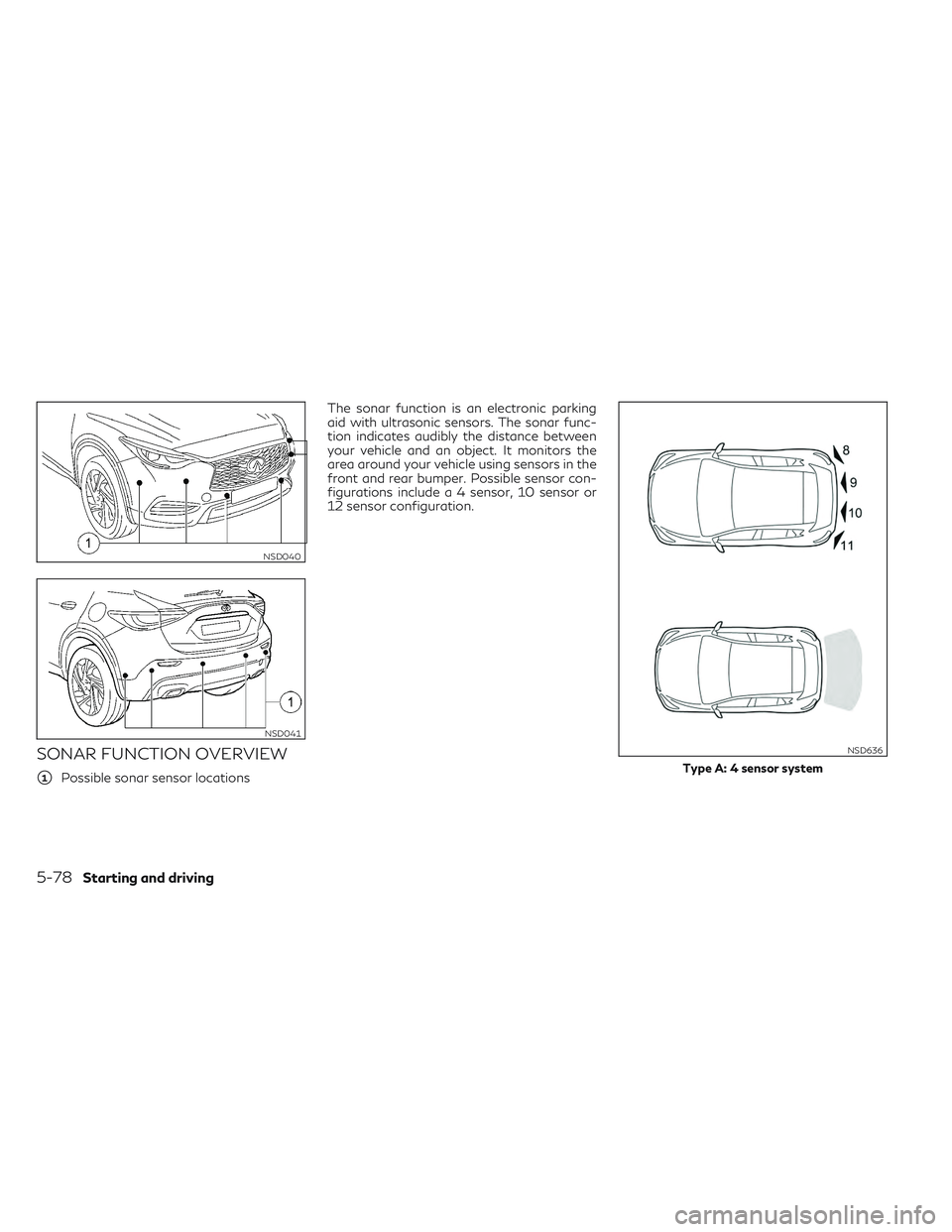

SONAR FUNCTION OVERVIEW
1Possible sonar sensor locationsThe sonar function is an electronic parking
aid with ultrasonic sensors. The sonar func-
tion indicates audibly the distance between
your vehicle and an object. It monitors the
area around your vehicle using sensors in the
front and rear bumper. Possible sensor con-
figurations include a 4 sensor, 10 sensor or
12 sensor configuration.
NSD040
NSD041
NSD636
Type A: 4 sensor system
5-78Starting and driving

M
Maintenance...................9-2
General maintenance .........9-2,9-5
Log......................9-15
Precautions ..................8-2
Requirements .................9-2
Schedules ...................9-7
Seat belts ..................1-16
Standard maintenance ..........9-10
Maplights ...................2-86
Meters and gauges ...............2-4
Engine coolant temperature ........2-6
Fuel.......................2-7
Overview ...................0-8
Speedometer .................2-5
Tachometer ..................2-6
Mirrors .....................3-18
Anti-glare rear view mirror ........3-18
Exterior rear view mirrors .........3-18
Interior rear view mirrors .........3-18
Vanity mirror ................3-18
Vanity mirror lights .............2-87
Mobile Apps .................4-104
Monitorsystem................4-135 Troubleshooting .............4-135
Moving object detection (MOD) ......4-38
O
Oil........................10-2
Capacities and recommendations ....10-2
Changing engine oil .............8-5
Changing engine oil filter ..........8-6
Checking engine oil level ..........8-5
Overheating ..................6-13
Engine ....................6-13
Engine coolant temperature gauge ....2-6
Overview .....................0-6
Cockpit .................0-6,2-2
Engine compartment .........0-9,8-3
Exterior....................0-3
Interior.....................0-5
Seats, Seat belts, Supplemental restraint
system .....................0-2
P
Parcelshelf...................2-84
Installation .................2-84
Removal ...................2-84
Parking.....................5-88 Brake.....................5-27
Parking sensor system ...........5-76
Sonar function ...............5-76
Parkingsensors................5-82 OFF switch .................5-82 Phone
......................4-88
Duringacall.................4-89
Favorites ...................4-97
Makingacall................4-88
Phonebook ................. 4-97
Receiving a call ...............4-89
Selection...................4-88
Settings................... 4-94
Power .......................3-6
Door lock switch ...............3-6
Outlet .................... 2-78
Seat adjustment ...............1-3
Steering...................5-90
Windows ................... 2-73
Precautions ...................4-53
Audio .....................4-53
Boosterseats................1-35
Brake.....................5-91
Childrestraints...............1-20
Intelligent Parking Assist (IPA) ......5-71
Maintenance .................8-2
Safety.....................4-2
Seat belt usage ...............1-10
Starting and driving .............5-4
Supplemental Restraint System .....1-38
Tire Pressure Monitoring System
(TPMS) .....................5-5
Pregnant women ................1-12
Protection ....................7-7 Corrosion...................7-7
Index11-5
