remote control INFINITI QX30 2018 Owners Manual

1. Rear armrest* (P.1-7)
2. Rear personal lights (P.2-87)
3. Overhead control panel (P.2-76)
4. Sunshade switch* (P.2-76)
5. Sun visor (P.2-18)
6. Security system buttons (P.3-59)
7. Interior rear-view mirror (P.3-18)8. Door handle (P.3-6)
9. Door armrest
— Power windows controls (P.2-73)
— Exterior rear view mirror remote control
switch (P.2-18)
10. Front cup holders (P.2-80)
11. Air conditioner controls (P.4-43) 12. Glove box/storage (P.2-79)
*: if equipped
NIC2701
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1Locks the vehicle.
2Unlocks the vehicle.
3Panic button.
WARNING
•Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
•The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure that the buttons are not op-
erated unintentionally when the unit is
stored for a flight. The Intelligent Key system can operate all the
door locks using the remote control function
or touching the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or
conditions may affect the Intelligent Key sys-
tem operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
•Be sure to carry the Intelligent Key with
you when operating the vehicle.
•Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions:
•When operating near a location where
strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
•When in possession of wireless equip-
ment, such as a cellular telephone, trans-
ceiver or a CB radio.
•When the Intelligent Key is in contact with
or covered by metallic materials.
•When any type of radio wave remote con-
trol is used nearby.
•When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter.
•When the vehicle is parked near a parking
meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery's life is approximately two years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is low, an
indicator illuminates in the vehicle informa-
tion display. For additional information, refer
to "Safety systems" in the "2. Instruments and
controls" section.
NPA1493
INFINITI INTELLIGENT KEY SYSTEM
3-8Pre-driving checks and adjustments

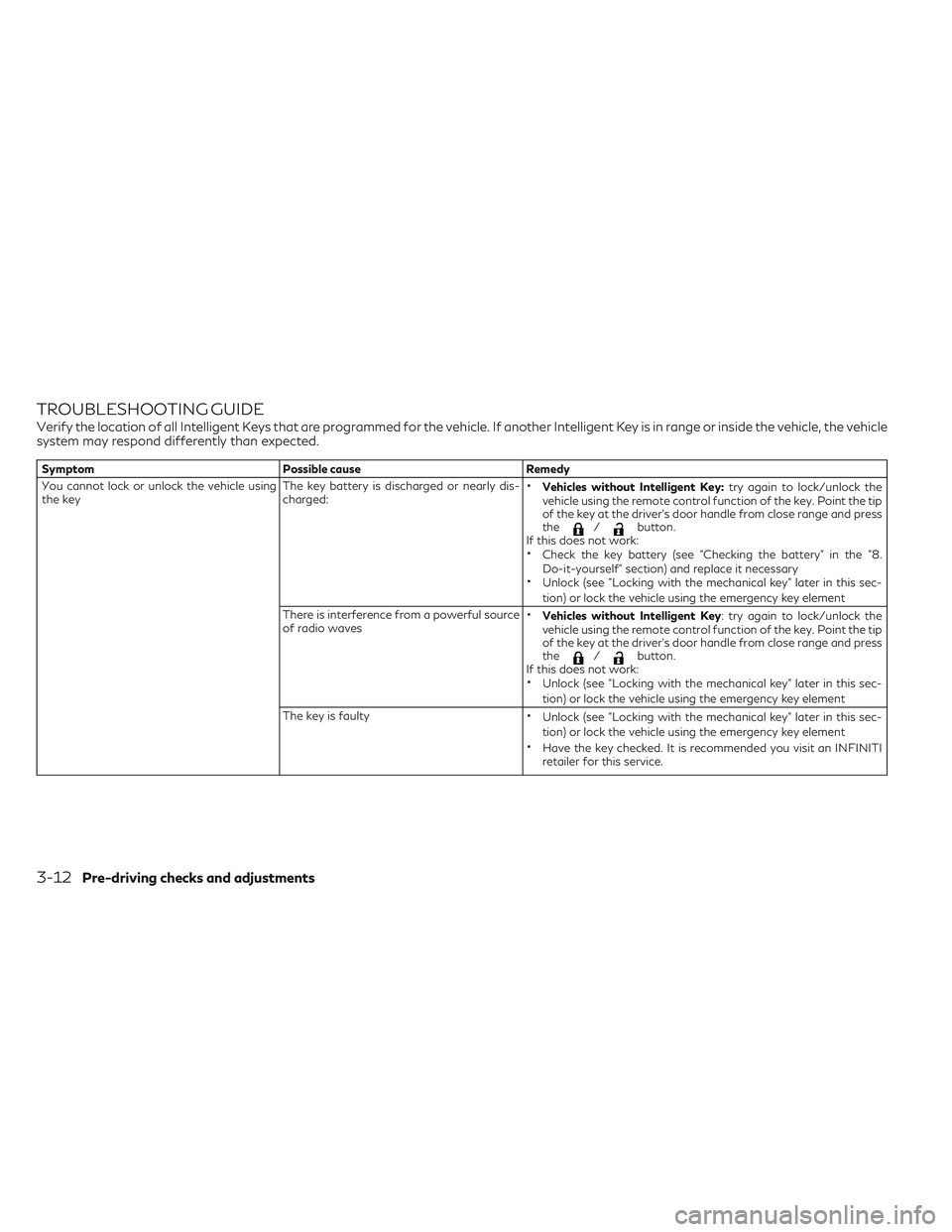

TROUBLESHOOTING GUIDE
Verify the location of all Intelligent Keys that are programmed for the vehicle. If another Intelligent Key is in range or inside the vehicle, the vehicle
system may respond differently than expected.
SymptomPossible cause Remedy
You cannot lock or unlock the vehicle using
the key The key battery is discharged or nearly dis-
charged:
•Vehicles without Intelligent Key:
try again to lock/unlock the
vehicle using the remote control function of the key. Point the tip
of the key at the driver's door handle from close range and press
the
/button.
If this does not work:
•Check the key battery (see "Checking the battery" in the "8.
Do-it-yourself" section) and replace it necessary
•Unlock (see "Locking with the mechanical key" later in this sec-
tion) or lock the vehicle using the emergency key element
There is interference from a powerful source
of radio waves
•Vehicles without Intelligent Key: try again to lock/unlock the
vehicle using the remote control function of the key. Point the tip
of the key at the driver's door handle from close range and press
the
/button.
If this does not work:
•Unlock (see "Locking with the mechanical key" later in this sec-
tion) or lock the vehicle using the emergency key element
The key is faulty
•Unlock (see "Locking with the mechanical key" later in this sec-
tion) or lock the vehicle using the emergency key element
•Have the key checked. It is recommended you visit an INFINITI
retailer for this service.
3-12Pre-driving checks and adjustments

SymptomPossible cause Remedy
You can no longer lock or unlock the vehicle
using Intelligent Key The key battery is discharged or nearly dis-
charged
•Check the key battery (see "Checking the battery" in the "8.
Do-it-yourself" section) and replace it necessary
If this does not work:
•Unlock (see "Locking with the mechanical key" later in this sec-
tion) or lock the vehicle using the emergency key element
There is interference from a powerful source
of radio waves
•Unlock (see "Locking with the mechanical key" later in this sec-
tion) or lock the vehicle using the emergency key element
There is a fault with the Intelligent Key sys-
tem
•Lock/unlock the vehicle using the remote control function of the
key.
•Have the vehicle and key checked. It is recommended you visit an
INFINITI retailer for this service.
If the vehicle can also not be locked/unlocked using the remote
control function
•Unlock (see "Locking with the mechanical key" later in this sec-
tion) or lock the vehicle using the emergency key element
•Have the vehicle and key checked. It is recommended you visit an
INFINITI retailer for this service.
The engine cannot be started using the key The on-board voltage is too low
•Switch off non-essential consumers, e. g. seat heating or interior
lighting, and try to start the engine again
If this does not work:
•Check the starter battery and charge it if necessary (see "Battery"
in the "8. Do-it-yourself" section)
or
•Jump-start the vehicle (see "Jump starting" in the "6. In case of
emergency" section)
or
•Have the system checked. It is recommended you consult an
INFINITI retailer.
Pre-driving checks and adjustments3-13

Adjusting
The outside rear view mirror remote control
will operate only when the ignition switch is in
the ACC or ON position.
1. Move the switch to select the left
1or
right mirror
2.
2. Adjust each mirror to the desired position using the large switch
3.
Defogging
The exterior rear view mirrors will be heated
when the rear window defogger switch is
operated.
WARNING
•Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
•Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Folding
Manual type (if equipped):
Fold the outside rear-view mirror by pushing
it towards the rear of the vehicle.
Remote control type (if equipped):
The exterior rear view mirror remote control
operates when the ignition switch is in the
ACC or ON position.
Briefly press button
1. Both exterior mirrors
fold in or out.
Power folding outside mirrors (if so
equipped)
CAUTION
•Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.
•Do not drive with the mirrors stored.
You will be unable to see behind the
vehicle.
The exterior rear-view mirrors automatically
unfold when the ignition is switched on or
when the vehicle doors are unlocked. Use the
[Fold Mirrors in when Locking] option under
the [CONVENIENCE] menu of the Vehicle
NIC2636NIC2638
Pre-driving checks and adjustments3-19

Windows Media Player:
This product is protected by certain intellec-
tual property right of Microsoft. Use or dis-
tribution of such technology outside of this
product is prohibited without a license from
Microsoft.
Bluetooth® Audio player
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
DENSO CORPORATION is under license.
Other trademarks and trade names are those
of their respective owners.
•Some Bluetooth® streaming audio de-
vices may not be recognized by the in-
vehicle audio system.
•It is necessary to set up the wireless con-
nection between a compatible Bluetooth®
streaming audio device and the in-vehicle
Bluetooth® module before using the
Bluetooth® streaming audio.
•The Bluetooth® streaming audio may be
stopped under the following conditions: – When receiving a hands-free call
– When checking the connection to the hands-free phone
– When connecting the hands-free phone or the audio device – When downloading a phonebook
memory from a connected cellular
phone
•Do not place a Bluetooth® streaming au-
dio device in an area surrounded by metal
or far away from the in-vehicle
Bluetooth® module to prevent tone qual-
ity degradation and wireless connection
disruption.
•While an audio device is connected
through Bluetooth® wireless connection,
the battery of the device may discharge
quicker than usual.
•This system supports the Bluetooth® Ad-
vanced Audio Distribution Profile (A2DP)
and Audio/Video Remote Control Profile
(AVRCP).
•Wireless LAN (Wi-Fi) and the Bluetooth®
functions share the same frequency band
(2.4 GHz). Using the Bluetooth® and the
wireless LAN functions at the same time
may slow down or disconnect the commu-
nication and cause undesired noise. It is
recommended that you turn off the wire-
less LAN (Wi-Fi) when using the
Bluetooth® functions.
Display screen, heater and air conditioner, and audio system4-63

If you lock the vehicle with the key's remote
control or with the Intelligent Key, after a
short time:
•You will not be able to switch on the igni-
tion with the push-button ignition switch.
•You will not be able to start the engine
with the push-button ignition switch until
the vehicle is unlocked again.
If you lock the vehicle centrally using the but-
ton on the front door (see "Locking with in-
side door knob" in the "3. Pre-driving checks
and adjustments" section). you can continue
to start the engine with the push-button ig-
nition switch.
KEY POSITIONS WITH THE
PUSH-BUTTON IGNITION
SWITCH
1Start/Stop button
2Ignition lock
When you switch on the ignition, all of the
indicator lights in the combination meter light
up. For further information on situations
where an indicator light either fails to go out
after starting the engine or lights up while
driving see "Warning lights, indicator lights
and audible reminders" in the "2. Instruments
and controls" section.
If the push-button ignition switch
1has not
yet been pressed, this corresponds to the key
being removed from the ignition.
To switch on the power supply (accessory
mode): press the push-button ignition switch
1once without depressing the brake pedal.
The power supply is switched on. You can
now activate the windshield wipers, for ex-
ample.
The power supply is switched off again if the
driver's door is opened and you press the
push-button ignition switch
1twice when in
this position.
To switch on the ignition: press the push-
button ignition switch
1twice without de-
pressing the brake pedal. The ignition is
switched on.
The ignition is switched off if the driver's door
is opened and you press the push-button
ignition switch
1when in this position.
REMOVING THE START/STOP
BUTTON
You can remove the start/stop button from
the ignition lock and start the vehicle as nor-
mal using the key.
You can only switch between push-button
ignition switch mode and key operation when
the vehicle is stationary.
You must also engage park position P (Park).
Remove the start/stop button
1from igni-
tion lock
2.
NPA1484
Starting and driving5-17
