The Idle Stop/Start function switches the
engine off automatically if the vehicle is
stopped under certain conditions.
When pulling away again, the engine starts
automatically. The Idle Stop/Start function
thereby helps you to reduce the fuel con-
sumption and emissions of your vehicle.
WARNING
If the engine is switched off automatically
and you exit the vehicle, the engine is re-
started automatically. The vehicle may be-
gin moving There is a risk of accident and
injury.
If you wish to exit the vehicle, always turn
off the ignition and secure the vehicle
against rolling away.If the
Idle Stop/Start symbol is shown
in green in the vehicle information display,
the Idle Stop/Start function switches the
engine off automatically once the vehicle
stops moving.
The Idle Stop/Start function is automatically
activated each time you start the engine with
the ignition switch.
If the Idle Stop/Start function has been manu-
ally deactivated (see"Deactivating/activating
the Idle Stop/Start function" later in this sec-
tion) or a malfunction has caused the system
to be deactivated, the
Idle Stop/Start
symbol is not displayed.
AUTOMATIC ENGINE
SWITCH-OFF
The Idle Stop/Start function is operational
and theIdle Stop/Start symbol is dis-
played in green in the vehicle information dis-
play, if:
•The indicator light in the Idle Stop/Start
button is lit green.
•The outside temperature is within the
range that is suitable for the system.
•The engine is at normal operating tem-
perature.
•The set temperature for the vehicle interior
has been reached.
•The battery is sufficiently charged.
•The system detects that the windshield is
not misted up when the air-conditioning
system is switched on.
•The hood is closed.
•The driver's door is closed and the driver's
seat belt is fastened.
If the conditions for automatic engine
switch-off are not all fulfilled, the
Idle
Stop/Start symbol is shown in yellow.
NSD620
Idle Stop/Start symbol
IDLE STOP/START SYSTEM (IF
EQUIPPED)
Starting and driving5-29

All of the vehicle's systems remain active when
the engine is switched off automatically.
The engine can be switched off automatically
a maximum of four times (initial stop, then
three subsequent stops) in succession. The
Idle Stop/Start symbol is shown in yel-
low in the vehicle information display after
the engine has been started automatically
for the fourth time. When the
Idle
Stop/Start symbol is shown in green in the
vehicle information display, automatic engine
switch-off is again possible.
NOTE
If the hood is opened while the engine is run-
ning and the Idle Stop/Start function is op-
erational, the engine will switch off auto-
matically.
If the vehicle is brought to a standstill in D or
N, the Idle Stop/Start function switches off
the engine automatically.
AUTOMATIC ENGINE START
The engine is started automatically if:
•You switch off the Idle Stop/Start function
by pressing the Idle Stop/Start button.
•You engage Reverse R or Drive D.
•You unfasten your seat belt or open the
driver's door.
•The vehicle starts to roll.
•The brake system requires this.
•The temperature in the vehicle interior de-
viates from the set range.
•The system detects moisture on the wind-
shield when the air-conditioning system is
switched on.
•The battery's charge status is too low.
The engine is started automatically if you:
•Release the brake pedal in transmission
position D (Drive) or N (Neutral).
•Depress the accelerator pedal.
•Move the transmission out of position P
(Park).
Shifting the transmission to position P (Park)
does not start the engine.
If you
shift the transmission from R (Reverse)
to D (Drive), the Idle Stop/Start function is
available again once the
Idle Stop/Start
symbol reappears in green in the vehicle infor-
mation display.
DEACTIVATING/ACTIVATING
THE IDLE STOP/START
FUNCTION
•To deactivate:press Idle Stop/Start but-
ton
1. Indicator light2and theIdle
Stop/Start symbol in the vehicle informa-
tion display turn off.
•To activate:press Idle Stop/Start button
1. Indicator light2lights up. If all condi-
tions for automatic engine switch-off (see
"Automatic engine switch-off" earlier in
this section) are fulfilled, the
Idle
Stop/Start symbol is shown in green in the
vehicle information display.
NIC2633
5-30Starting and driving

If not all conditions for automatic engine
switch-off are met, theIdle Stop/
Start symbol is lit yellow in the vehicle infor-
mation display. If this is the case, the Idle
Stop/Start function is not active.
If indicator light2on Idle Stop/Start button
1is off, the Idle Stop/Start function has
been deactivated manually or as the result of
a malfunction. The engine will then not be
switched off automatically when the vehicle
stops.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the LDW system
could result in serious personal injury or
death. The LDW system will not steer the
vehicle or prevent loss of control. It is the
driver’s responsibility to stay alert, drive
safely, keep the vehicle in the traveling
lane, and be in control of the vehicle at all
times.
The LDW system warns the driver with a
warning light and intermittent steering vibra-
tion that the vehicle is beginning to leave the
traveling lane.The LDW system uses a camera
1installed
behind the windshield to monitor the lane
markers of your traveling lane.
NSD644
LANE DEPARTURE WARNING (LDW)
SYSTEM (IF EQUIPPED)
Starting and driving5-31

LDW SYSTEM OPERATION
1Steering wheel mounted controls
2Vehicle information display
ADisplay area
BMenu barThe LDW system operates at speeds of ap-
proximately 40 MPH (60 km/h) and above,
when the lane markings are clear.If the system detects that the vehicle's front
wheel has passed over the lane marking, a
warning will be provided. It will warn you by
means of intermittent vibration through the
steering wheel for up to 1.5 seconds and a
visual alert.
NOTE
The LDW system is designed not to warn
when you operate the lane change signal and
change traveling lanes in the direction of the
signal.
No warning vibration occurs if you activate
the turn signals. In this event, the warnings
are suppressed for a certain period of time.
NSD626
5-32Starting and driving

HOW TO ENABLE/DISABLE THE
LDW SYSTEM
1. Press theorbutton on the
steering wheel
1to select the [Drive-
Assist] menu on the Menu bar
B.
2. Press the
orbutton to select
[Lane Departure Warning].
3. Press thebutton on the steering
wheel
1. The current selection is dis-
played.
4. Press theto confirm.
5. Press the
orbutton to set
[Off], [Standard] or [Adaptive].6. Press thebutton to save the setting.
When the LDW is activated, the vehicle
information display shows the lane mark-
ings as bright lines in the assistance
graphic in the display area
A
When [Standard] is selected, no warning vi-
bration occurs if:
•You have switched on the turn signals. In
this event, the warnings are suppressed
for a certain period of time.
•A driving safety system intervenes, such as
ABS, brake assist system (BAS) or VDC.
When [Adaptive] is selected, no warning vi-
bration occurs if:
•You have switched on the turn signals. In
this case the warnings are suppressed for
a certain period of time.
•A driving system intervenes, such as ABS,
BAS or VDC.
•You accelerate forcefully.
•You brake forcefully.
•You steer actively, for example, swerve to
avoid an obstacle or change lane quickly.
•You cut the corner on a sharp bend.
The system may detect certain conditions
and warns you accordingly.The warning vibration occurs earlier if:
•You approach the outer lane marking on a
bend.
•The road has very wide lanes, for example,
a freeway.
•The system detects solid lane markings.
The warning vibration occurs later if:
•The road has narrow lanes.
•You cut across a corner on a bend.
LDW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the LDW system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
•This system is only a warning device to
inform the driver of a potential unin-
tended lane departure. It will not steer
the vehicle or prevent loss of control. It
is the driver’s responsibility to stay
alert, drive safely, keep the vehicle in the
traveling lane, and be in control of the
vehicle at all times.
NSD599
Assistance graphic
Starting and driving5-33

•The system will not operate at speeds be-
low approximately 40 MPH (60 km/h) or
if it cannot detect lane markers.
•The LDW system is primarily intended
for use on well-developed freeways or
highways. It may not detect the lane
markers in certain roads, weather or
driving conditions.
•Do not use the LDW system under the
following conditions as it may not func-
tion properly:
–During bad weather (rain, fog, snow,
etc.).
–When driving on slippery roads, such
as on ice or snow, etc.
–When driving on winding or uneven
roads.
–When there is a lane closure due to
road repairs.
–When driving in a makeshift or tem-
porary lane.
–When driving on roads where the lane
width is too narrow.
–When driving without normal tire
conditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, non-standard
wheels).–When the vehicle is equipped with
non-original brake parts or suspen-
sion parts.
•The camera may not detect lane markers
in the following situations and the LDW
system may not operate properly.
–On roads where there are multiple
parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; or lane mark-
ers covered with water, dirt, snow,
etc.
–On roads where the discontinued lane
markers are still detectable.
–On roads where there are sharp
curves.
–On roads where there are sharply
contrasting objects, such as shad-
ows, snow, water, wheel ruts, seams
or lines remaining after road repairs.
(The LDW system could detect these
items as lane markers.)
–On roads where the traveling lane
merges or separates.
–When the vehicle’s traveling direc-
tion does not align with the lane
marker.–When traveling close to the vehicle in
front of you, which obstructs the lane
camera unit detection range.
–When rain, snow or dirt adheres to
the windshield in front of the lane
camera unit.
–When the headlights are not bright
due to dirt on the lens or if the aiming
is not adjusted properly.
–When strong light enters the lane
camera unit. (For example, the light
directly shines on the front of the ve-
hicle at sunrise or sunset.)
–When a sudden change in brightness
occurs. (For example, when the ve-
hicle enters or exits a tunnel or under
a bridge.)
–When there is poor visibility. (For ex-
ample, due to insufficient illumina-
tion of the road, or due to snow, rain,
fog or spray.
–When there is glare. (For example,
from oncoming traffic, the sun or re-
flection when the road is wet).
5-34Starting and driving

1Steering wheel mounted controls
2Vehicle information display
ADisplay area
BMenu bar
LDW SYSTEM TEMPORARILY
UNAVAILABLE
Under the following conditions, the LDW
system will be canceled automatically, and
the message [Lane Departure Warning Cur-
rently Unavailable See Operator's Manual] isdisplayed in the vehicle information display
2. The LDW system is temporarily unavail-
able.
•The windshield is dirty in the camera's field
of vision.
•Visibility is impaired due to heavy rain,
snow or fog.
•There have been no lane markings for an
extended period.
•The lane markings are worn, dark, or cov-
ered by dirt or snow, etc.
Action to take:When the above conditions
no longer exist, the message goes out and the
LDW system is operational again. If the mes-
sage continues to appear, stop the vehicle in
a safe location, press the P (Park) button , and
clean the windshield.
SYSTEM MALFUNCTION
If the LDW system malfunctions, it will cancel
automatically, and the message [Lane De-
parture Warning Inoperative] will appear.
Action to take:Stop the vehicle in a safe
location, engage P (Park), turn the engine off
and restart the engine. If the message contin-
ues to appear, have the system checked. It is
recommended you visit an INFINITI retailer
for this service.
NSD626
Starting and driving5-35

SYSTEM MAINTENANCE
The lane camera unit1for the LDW system
is located above the inside mirror.
To ensure the proper operation of the LDW
system and prevent a system malfunction, be
sure to observe the following:
•Always keep the windshield clean.
•Do not attach a sticker (including transpar-
ent material) or install an accessory near
the camera unit.
•Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.
•Do not strike or damage the areas around
the camera unit. Do not touch the camera
lens or remove parts from the camera unit.
If the camera unit is damaged due to an
accident, it is recommended you contact
an INFINITI retailer.WARNING
Failure to follow the warnings and instruc-
tions for proper use of the BSW system
could result in serious injury or death.
•The Blind Spot Warning (BSW) system
is not a replacement for proper driving
procedure and is not designed to pre-
vent contact with vehicles or objects.
When changing lanes, always use the
side and rear mirrors and turn and look in
the direction you will move to ensure it is
safe to change lanes. Never rely solely
on the BSW system.
The Blind Spot Warning (BSW) system can
help alert the driver of other vehicles in adja-
cent lanes when changing lanes.
NSD644
BLIND SPOT WARNING (BSW)
SYSTEM (IF EQUIPPED)
5-36Starting and driving

The BSW system uses radar sensorsAin-
stalled near the rear bumper to detect other
vehicles beside your vehicle in an adjacent
lane.The radar sensors can detect vehicles on ei-
ther side of your vehicle within the detection
zone shown as illustrated. This detection
zone starts from the outside mirror of your
vehicle and extends approximately 10 ft (3 m)
behind the rear bumper, and approximately
10 ft (3 m) sideways.
NAA1727SSD1030Z
Detection zone
Starting and driving5-37

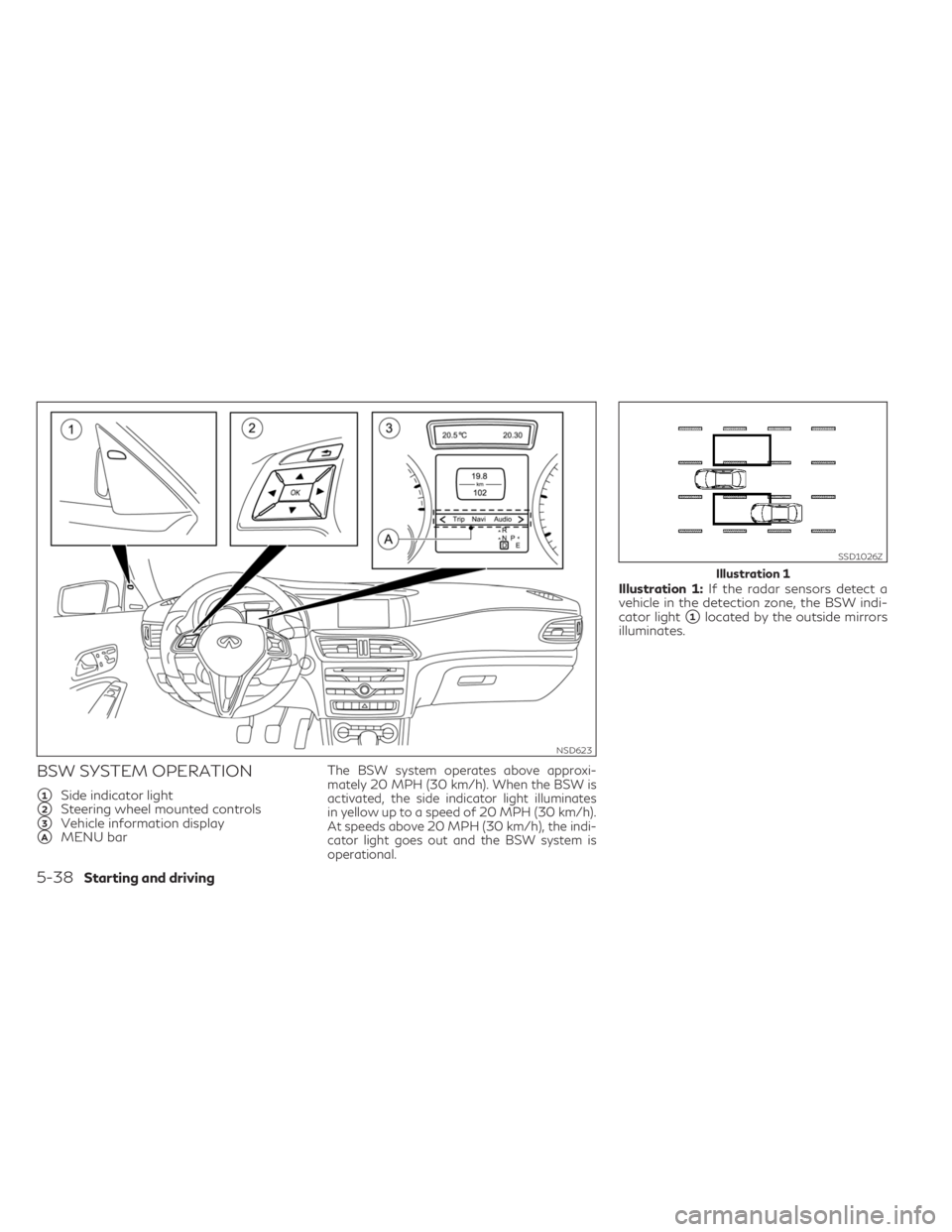

BSW SYSTEM OPERATION
1Side indicator light
2Steering wheel mounted controls
3Vehicle information display
AMENU bar
The BSW system operates above approxi-
mately 20 MPH (30 km/h). When the BSW is
activated, the side indicator light illuminates
in yellow up to a speed of 20 MPH (30 km/h).
At speeds above 20 MPH (30 km/h), the indi-
cator light goes out and the BSW system is
operational.
Illustration 1:If the radar sensors detect a
vehicle in the detection zone, the BSW indi-
cator light
1located by the outside mirrors
illuminates.
NSD623
SSD1026Z
Illustration 1
5-38Starting and driving
