fog light INFINITI QX50 2016 Quick Reference Guide

11

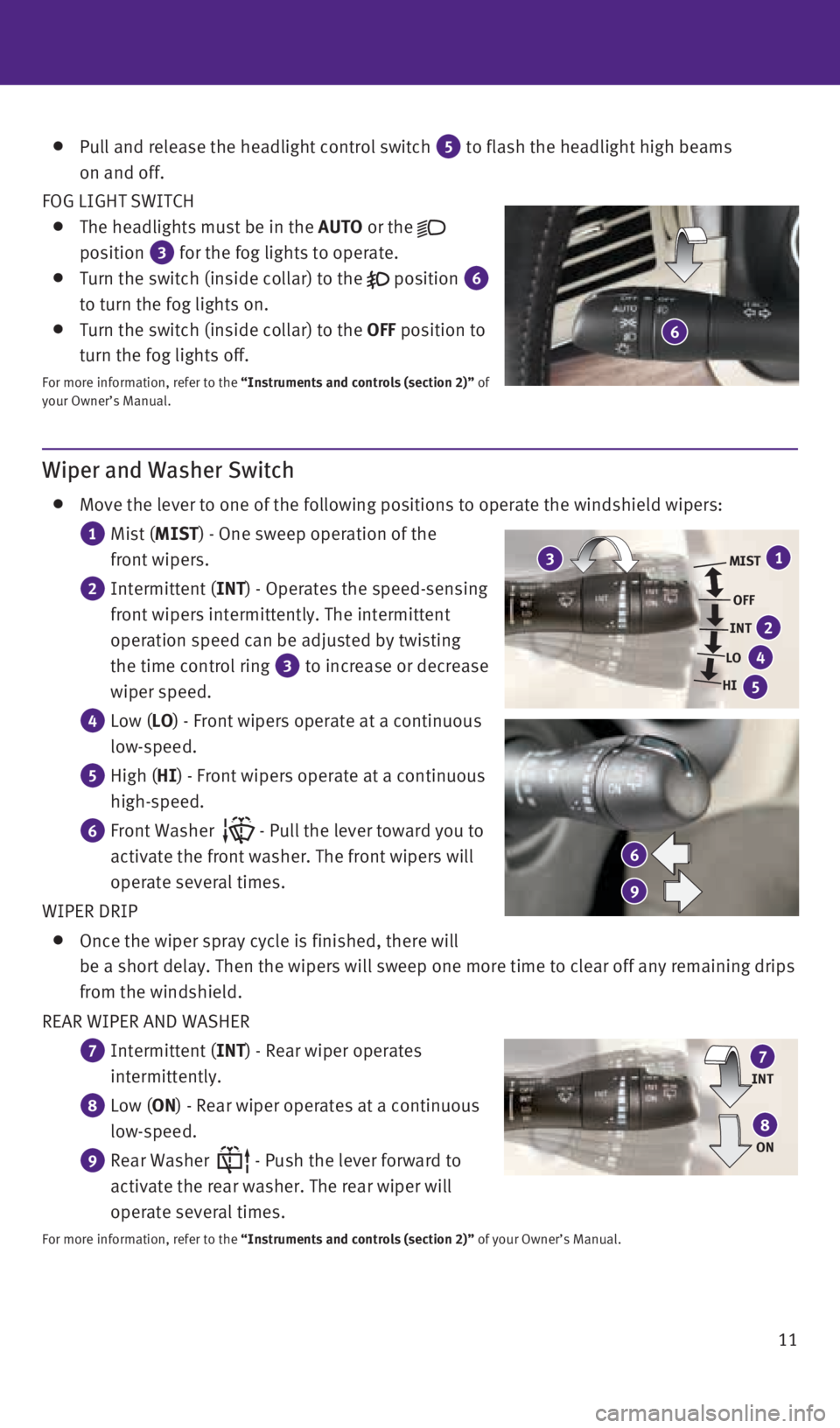

Wiper and Washer Switch
Move the lever to one of the following positions to operate the windshie\
ld wipers:

1 Mist (MIST) - One sweep operation of the
front wipers.

2 Intermittent (INT) - Operates the speed-sensing
front wipers intermittently. The intermittent
operation speed can be adjusted by twisting
the time control ring
3 to increase or decrease
wiper speed.

4 Low (LO) - Front wipers operate at a continuous
low-speed.

5 High (HI) - Front wipers operate at a continuous
high-speed.

6 Front Washer - Pull the lever toward you to
activate the front washer. The front wipers will
operate several times.
WIPER DRIP

Once the wiper spray cycle is finished, there will
be a short delay. Then the wipers will sweep one more time to clear off \
any remaining drips
from the windshield.
REAR WIPER AND WASHER

7 Intermittent (INT) - Rear wiper operates
intermittently.

8 Low (ON) - Rear wiper operates at a continuous
low-speed.

9 Rear Washer - Push the lever forward to
activate the rear washer. The rear wiper will
operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
Pull and release the headlight control switch 5 to flash the headlight high beams
on and off.
FOG LIGHT SWITCH

The headlights must be in the AUTO or the
position
3 for the fog lights to operate.
Turn the switch (inside collar) to the position 6
to turn the fog lights on.

Turn the switch (inside collar) to the OFF position to
turn the fog lights off.
For more information, refer to the “Instruments and controls (section 2)” of
your Owner’s Manual.
6
MIST
OFF
INT
LO
HI1
2
3
4
5
INT7
ON8
6
9
2128163_16b_QX50_US_pQRG_091515.indd 119/15/15 2:55 PM

13
4 DEFROSTING FRONT AND SIDE WINDOWS

Press the front defroster button to turn the system on. The A/C automatically turns on
when the front defroster mode is selected. This feature removes humidity\
from the air.

Turn the temperature control dial 1 to set the desired temperature.

To defrost the front and side windows quickly, set the temperature contr\
ols and fan
speed controls to their maximum settings.
5 MODE BUTTON

Press the MODE button to cycle through the following air flow outlets:

Air flows from the center and side vents.

Air flows from the center, side and foot vents.

Air flows mainly from the foot vents.

Air flows from the front defroster and foot vents.
6 DEFROSTING REAR WINDOW AND OUTSIDE MIRRORS

Press the rear window defroster switch to turn the system on or off.

This function automatically turns off after approximately 15 minutes.
7 INTAKE AIR CONTROL BUTTON
AIR RECIRCULATION

Press the intake air control button to recirculate interior air inside t\
he vehicle. The
indicator light on the
side will illuminate. This system is used to avoid outside
odors and to help adjust the inside vehicle temperature more effectively\
.

The air recirculation mode cannot be activated when the climate control \
system is in the
front defroster mode
or front defroster and foot vent mode .
OUTSIDE AIR CIRCULATION

Press the intake air control button again to draw outside air into the p\
assenger
compartment. The indicator light on the
side will illuminate.
AUTOMATIC INTAKE AIR CONTROL

In the automatic mode, the intake air will be controlled automatically. \
To manually
control the intake air, press the intake air control button. To return t\
o the automatic
control mode, press the intake air control button for about 2 seconds.
8 A/C BUTTON

Press the A/C button to turn the air conditioner system on or off. This system helps \
cool
and dehumidify the air inside the cabin and defog the windows.
9 OFF BUTTON

Press the OFF button to turn the climate control system off.
For more information, refer to the “Instruments and controls (section 2)” and the “Monitor, climate, audio, phone and voice
recognition systems (section 4)” of your Owner’s Manual.
