WARNING
∙ Failure to follow the warnings and in-structions for proper use of the Moving
Object Detection system could result in
serious injury or death.
∙ The MOD system is not a substitute for proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirrors
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.
∙ The system is deactivated at speeds above 6 mph (10 km/h). It is reactivated
at lower speeds.
∙ The MOD system is not designed to de- tect surrounding stationary objects.
The MOD system can inform the driver of
moving objects near the vehicle when back-
ing out of garages, maneuvering in parking
lots and in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown in the display.
MOD SYSTEM OPERATION
The MOD system will turn on automatically
under the following conditions: ∙ When the shift lever is in the R (Reverse) position. When activating the Around
View® Monitor, the guide lines, the icons
and the messages may not be displayed
immediately.
∙ When the
CAMERA button is
pressed to activate the camera view on
the display.
∙ When vehicle speed decreases below ap- proximately 6 mph (10 km/h) and the
camera screen is shown in the upper dis-
play. The MOD system operates in the following
conditions when the camera view is dis-
played:
∙ When the shift lever is in the P (Park) or N (Neutral) position and the vehicle is
stopped, the MOD system detects mov-
ing objects in the bird’s-eye view. The
MOD system will not operate if the out-
side mirrors are moving in or out, in the
stowed position, or if either front door is
opened.
Front and bird’s-eye views
LHA5241
4-30Monitor, climate, audio, phone and voice recognition systems

NOTE:
While the sonar (if so equipped) is beeping,
the MOD system does not chime.
In the bird’s-eye view, the yellow frame
1is
displayed on each camera image (front, rear,
right, left) depending on where moving ob-
jects are detected.
The yellow frame
2is displayed on each
view in the front view and rear view modes. A blue or green MOD icon
3is displayed in
the view where the MOD system is operative.
A gray MOD icon is displayed in the view
where the MOD system is not operative.
If the MOD system is turned off, the MOD
icon
3is not displayed.
TURNING MOD ON AND OFF
1. Press the MENU button beneath the lower display.
2. Touch the “Settings” key
3. Touch the “Camera’ key then the “Cam- era” key again.
4. Touch “MOD” on the menu screen to switch between on and off.
You can also turn MOD on and off by touch-
ing the “
” key4on the upper display.
When MOD is on, the indicator will turn yel-
low. When MOD is off, the indicator will turn
black.
When the sonar or MOD system is com-
pletely turned off from the setting menu, the
“
” will turn black.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in ac-
cordance with these system limitations
could result in serious injury or death.
∙ Do not use the MOD system when tow- ing a trailer. The system may not function
properly.
∙ Excessive noise (for example, audio sys- tem volume or open vehicle window) will
interfere with the chime sound, and it
may not be heard.
∙ The MOD system performance will be limited according to environmental con-
ditions and surrounding objects such as:
– When there is low contrast between background and the moving objects.
– When there is a blinking source of light.
– When strong light such as another ve- hicle’s headlight or sunlight is present.
– When camera orientation is not in its usual position, such as when a mirror is
folded.
Rear-wide view
LHA5292
4-32Monitor, climate, audio, phone and voice recognition systems

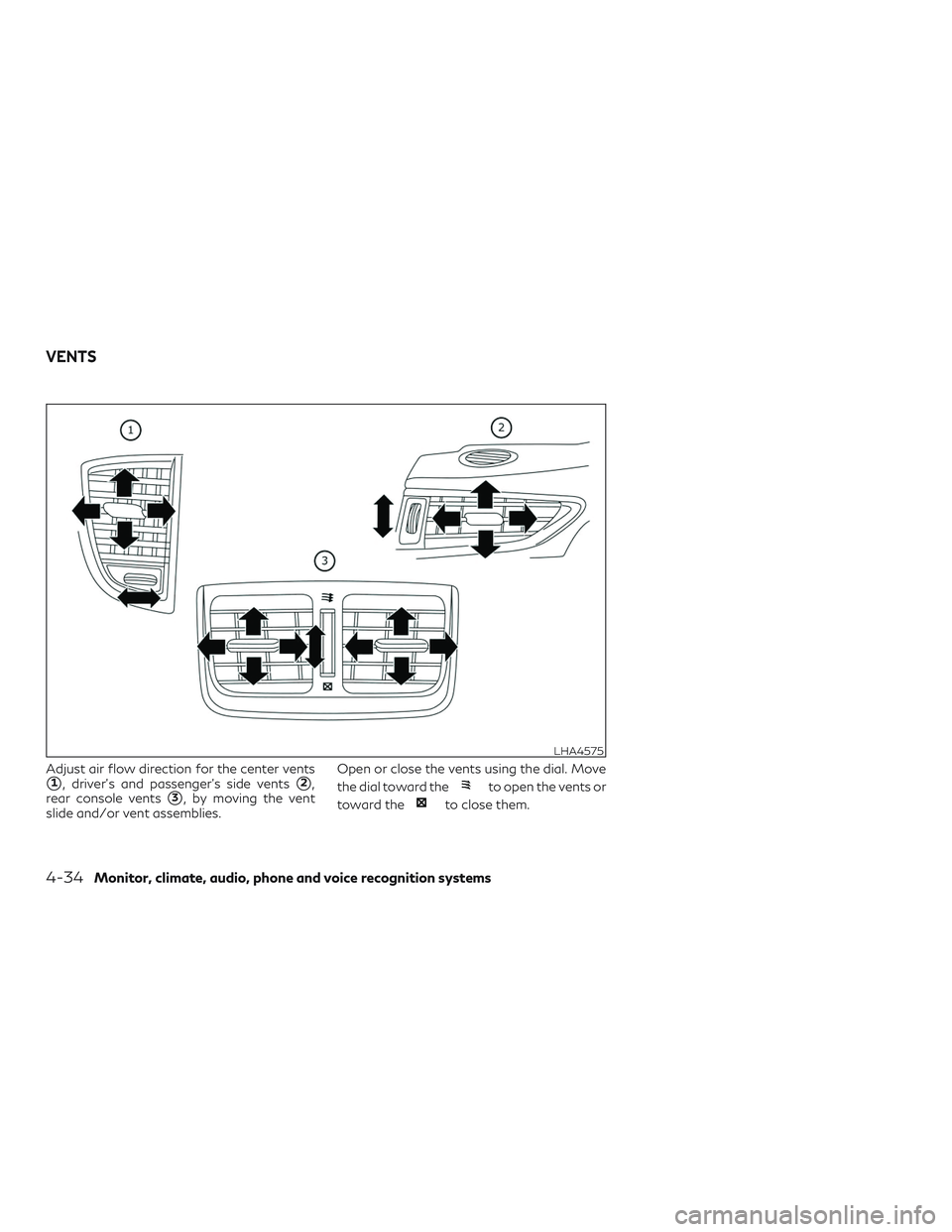

Adjust air flow direction for the center vents
1, driver’s and passenger’s side vents2,
rear console vents
3, by moving the vent
slide and/or vent assemblies. Open or close the vents using the dial. Move
the dial toward theto open the vents or
toward the
to close them.
LHA4575
VENTS
4-34Monitor, climate, audio, phone and voice recognition systems

5 Starting and driving
Precautions when starting and driving.............5-4
Exhaust gas (carbon monoxide) ................5-4
Three-way catalyst ............................5-4
Tire Pressure Monitoring System (TPMS) .......5-5
On-pavement and off-road driving
precautions ...................................5-9
Avoiding collision and rollover ..................5-9
Off-road recovery .............................5-9
Rapid air pressure loss ....................... 5-10
Drinking alcohol/drugs and driving ...........5-10
Driving safety precautions ....................5-11
Intelligent All-Wheel Drive (AWD) driving
safety precautions (if so equipped) ...........5-13
Push-button ignition switch ....................5-13
Operating range ............................ 5-14
Push-button ignition switch positions .........5-15
Emergency engine shut off ..................5-16
INFINITI Intelligent Key battery
discharge ................................... 5-16
INFINITI Vehicle Immobilizer System ..........5-17
Before starting the engine .......................5-17
Starting the engine .............................. 5-17
Remote Engine Start (if so equipped) .........5-18
Driving the vehicle .............................. 5-19Continuously Variable Transmission
(CVT)
....................................... 5-19
Electronic parking brake ........................ 5-24
Automatic operation ........................ 5-24
Manual operation ........................... 5-25
When towing a trailer ....................... 5-26
Automatic brake hold ........................... 5-26
How to activate/deactivate the
automatic brake hold function ...............5-27
How to use the automatic brake hold
function .................................... 5-28
INFINITI Drive Mode Selector ..................5-29
Standard mode ............................. 5-29
Sport mode ................................. 5-29
Personal mode .............................. 5-29
ECO mode .................................. 5-30
Traffic Sign Recognition (TSR) (if so equipped). . . 5-32 System operation ........................... 5-33
Turning

the Traffic Sign Recognition
(TSR) system on and off .....................5-34
System temporarily unavailable ..............5-34
System malfunction ......................... 5-34
System maintenance ........................ 5-35
Lane Departure Warning (LDW) ................5-35

CAUTION
∙ Do not use leaded gasoline. Depositsfrom leaded gasoline will seriously reduce
the three-way catalyst’s ability to help
reduce exhaust pollutants.
∙ Keep your engine tuned up. Malfunctions in the ignition, fuel injection, or electrical
systems can cause over rich fuel flow into
the three-way catalyst, causing it to
overheat. Do not keep driving if the en-
gine misfires, or if noticeable loss of per-
formance or other unusual operating
conditions are detected. Have the vehicle
inspected promptly. It is recommended
that you visit an INFINITI retailer for this
service.
∙ Avoid driving with an extremely low fuel level. Running out of fuel could cause the
engine to misfire, damaging the three-
way catalyst.
∙ Do not race the engine while warming it up.
∙ Do not push or tow your vehicle to start the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label.
(If your vehicle has tires of a different size
than the size indicated on the vehicle placard
or tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitor-
ing System (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check all your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability. Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The
TPMS malfunction indicator is combined with
the low tire pressure telltale. When the system
detects a malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence will
continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the mal-
function indicator is illuminated, the system
may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions may
occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one
or more tires or wheels on your vehicle to en-
sure that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
Starting and driving5-5

INFINITI is committed to safe driving. How-
ever, you must choose not to drive under the
influence of alcohol. Every year thousands of
people are injured or killed in alcohol-related
accidents. Although the local laws vary on
what is considered to be legally intoxicated,
the fact is that alcohol affects all people dif-
ferently and most people underestimate the
effects of alcohol.
Remember, drinking and driving don’t mix!
And that is true for drugs, too (over-the-
counter, prescription, and illegal drugs). Don’t
drive if your ability to operate your vehicle is
impaired by alcohol, drugs, or some other
physical condition.
DRIVING SAFETY PRECAUTIONS
Your INFINITI is designed for both normal
and off-road use. However, avoid driving in
deep water or mud as your INFINITI is mainly
designed for leisure use, unlike a conventional
off-road vehicle.
Remember that 2-Wheel Drive (2WD) mod-
els are less capable than All-Wheel Drive
(AWD) models for rough road driving and
extrication when stuck in deep snow or mud,
or the like.Please observe the following precautions:
WARNING
∙ Spinning the front wheels on slippery
surfaces may cause the AWD warning
message to display and the AWD system
to automatically switch from the AWD to
the 2WD mode. This could reduce the
traction. Be especially careful when tow-
ing a trailer (AWD models).
∙ Drive carefully when off the road and avoid dangerous areas. Every person
who drives or rides in this vehicle should
be seated with their seat belt fastened.
This will keep you and your passengers in
position when driving over rough terrain.
∙ Do not drive across steep slopes. Instead drive either straight up or straight down
the slopes. Off-road vehicles can tip over
sideways much more easily than they can
forward or backward.
∙ Many hills are too steep for any vehicle. If you drive up them, you may stall. If you
drive down them, you may not be able to
control your speed. If you drive across
them, you may roll over. ∙ Do not shift gears while driving on down-
hill grades as this could cause loss of con-
trol of the vehicle.
∙ Stay alert when driving to the top of a hill. At the top there could be a drop-off
or other hazard that could cause an
accident.
∙ If your engine stalls or you cannot make it to the top of a steep hill, never attempt to
turn around. Your vehicle could tip or roll
over. Always back straight down in R
(Reverse) gear and apply brakes to con-
trol your speed.
∙ Heavy braking going down a hill could cause your brakes to overheat and fade,
resulting in loss of control and an acci-
dent. Apply brakes lightly and use a low
gear to control your speed.
∙ Unsecured cargo can be thrown around when driving over rough terrain. Prop-
erly secure all cargo so it will not be
thrown forward and cause injury to you
or your passengers.
∙ Secure heavy loads in the cargo area as far forward and as low as possible. Do not
equip the vehicle with tires larger than
specified in this manual. This could cause
your vehicle to roll over.
Starting and driving5-11

∙ Remember not to drive at high speeds forextended periods of time in lower than
8th gear. This reduces fuel economy.
When shifting up
Use the + (up) side paddle shifter. (Shifts to
higher range.)
When shifting down
Use the (down) side paddle shifter. (Shifts
to lower range.)
∙ The transmission will automatically downshift the gears. (For example, if you
select the 3rd range, the transmission will
shift down between the 3rd and 1st
gears.)
∙ Moving the shift lever rapidly to the same side twice will shift the ranges in succes-
sion.
When canceling the manual shift mode
Move the shift lever to the D (Drive) position
to return the transmission to the normal driv-
ing mode. ∙ In the manual shift mode, the transmis-
sion may not shift to the selected gear.
This helps maintain driving performance
and reduces the chance of vehicle dam-
age or loss of control. ∙
When this situation occurs, the Continu-
ously Variable Transmission (CVT) posi-
tion indicator will blink and the chime
will sound.
∙ In the manual shift mode, the transmis-
sion may shift up automatically to a
higher range than selected if the engine
speed is too high. When the vehicle
speed decreases, the transmission auto-
matically shifts down and shifts to 1st
gear before the vehicle comes to a stop.
∙ CVT operation is limited to automatic drive mode when CVT fluid temperature
is extremely low even if manual shift
mode is selected. This is not a malfunc-
tion. When CVT fluid warms up, manual
mode can be selected.
∙ When the CVT fluid temperature is high, the shift range may upshift in lower rpm
than usual. This is not a malfunction.
Accelerator downshift
— in D (Drive) position —
For passing or hill climbing, depress the ac-
celerator pedal to the floor. This shifts the
transmission down into a lower gear, de-
pending on the vehicle speed.
High fluid temperature protection
mode
This transmission has a high fluid tempera-
ture protection mode. If the fluid temperature
becomes too high (for example, when climb-
ing steep grades in high temperatures with
heavy loads, such as when towing a trailer),
engine power and, under some conditions,
vehicle speed will be decreased automatically
to reduce the chance of transmission dam-
age. Vehicle speed can be controlled with the
accelerator pedal, but the engine and vehicle
speed may be limited.
Fail-safe
When the fail-safe operation occurs, the
Continuously Variable Transmission will not
be shifted into the selected driving position.
If the vehicle is driven under extreme condi-
tions, such as excessive wheel spinning and
subsequent hard braking, the fail-safe sys-
tem may be activated. The Malfunction Indi-
cator Light (MIL) may come on to indicate
the fail-safe mode is activated. For addi-
tional information, refer to “Malfunction In-
dicator Light (MIL)” in the “Instruments and
controls” section of this manual. This will oc-
cur even if all electrical circuits are function-
ing properly. In this case, place the ignition
Starting and driving5-23

∙When the electronic parking brake is fre-
quently applied and released in a short
period of time, the parking brake may
not operate in order to prevent the park-
ing brake system from overheating. If
this occurs, operate the electronic park-
ing brake switch again after waiting ap-
proximately 1 minute.
∙ If the electronic parking brake must be
applied while driving in an emergency,
pull up and hold the parking brake
switch. When you release the parking
brake switch, the parking brake will be
released.
∙ While pulling up the electronic parking
brake switch during driving, the parking
brake is applied and a chime sounds. The
electronic parking brake indicator light
(red) in the meter and in the parking
brake switch illuminates. This does not
indicate a malfunction. The electronic
parking brake indicator light (red) in the
meter and in the parking brake switch
turns off when the parking brake is re-
leased. ∙
When pulling the electronic parking
brake switch up with the ignition switch
in the OFF or AUTO ACC position, the
parking brake switch indicator light will
continue to illuminate for a short period
of time.
WHEN TOWING A TRAILER
Depending on the weight of the vehicle and
trailer and the steepness of the slope, there
may be a tendency for the vehicle to move
backwards when starting from a standstill.
When this occurs, you can use the parking
brake switch in the same way as a conven-
tional lever type parking brake.
Before starting on sloping roads when tow-
ing a trailer, be sure to read the following to
prevent the vehicle from moving backwards
unintentionally.
∙ Release the parking brake switch as soon as the engine is delivering enough torque
to the wheels. The automatic brake hold function maintains
the braking force without the driver having to
depress the brake pedal when the vehicle is
stopped at a traffic light or intersection. As
soon as the driver depresses the accelerator
pedal again, the automatic brake hold func-
tion is deactivated and the braking force is
released. The operating status of the auto-
matic brake hold can be displayed on the
vehicle information display.
WARNING
∙ The automatic brake hold function is not
designed to hold the vehicle on a steep hill
or slippery road. Never use the automatic
brake hold when the vehicle is stopped on
a steep hill or slippery road. Failure to do
so may cause the vehicle to move.
∙ When the automatic brake hold function is activated but fails to maintain the ve-
hicle at a standstill, depress the brake
pedal to stop the vehicle. If the vehicle
unexpectedly moves due to outside con-
ditions, the chime may sound and auto-
matic brake hold warning may illuminate
in the vehicle information display.
∙ Be sure to deactivate the automatic brake hold function when using a car
wash or towing your vehicle.
AUTOMATIC BRAKE HOLD
5-26Starting and driving

∙ The system will not operate at speeds be-low approximately 37 mph (60 km/h) or
if it cannot detect lane markers.
∙ Do not use the LDW system under the following conditions as it may not func-
tion properly:
– During bad weather (rain, fog, snow, etc.).
– When driving on slippery roads, such as on ice or snow.
– When driving on winding or uneven roads.
– When there is a lane closure due to road repairs.
– When driving in a makeshift or tempo- rary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear, low
tire pressure, installation of spare tire,
tire chains, nonstandard wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
– When you are towing a trailer or other vehicle. The system may not function properly under
the following conditions:
∙ On roads where there are multiple paral- lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; or lane markers covered with
water, dirt, snow, etc.
∙ On roads where the discontinued lane markers are still detectable.
∙ On roads where there are sharp curves.
∙ On roads where there are sharply con- trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDW system
could detect these items as lane markers.)
∙ On roads where the traveling lane merges or separates.
∙ When the vehicle’s traveling direction does not align with the lane marker.
∙ When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
∙ When rain, snow, dirt or an object ad- heres to the windshield in front of the
lane camera unit. ∙ When the headlights are not bright due to
dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
∙ When a sudden change in brightness oc- curs. (For example, when the vehicle en-
ters or exits a tunnel or under a bridge.)
SYSTEM TEMPORARILY
UNAVAILABLE
If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then started, the
LDW system may be deactivated automati-
cally and the following message will appear in
the vehicle information display: “Not avail-
able: High Camera Temp.”
When the interior temperature is reduced, the
LDW system will resume operating auto-
matically.
5-38Starting and driving

LDP SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for the
LDP system. Failure to follow the warnings
and instructions for proper use of the LDP sys-
tem could result in serious injury or death.
∙ The LDP system may activate if youchange lanes without first activating
your turn signal or, for example, if a con-
struction zone directs traffic to cross an
existing lane marker. If this occurs you
may need to apply corrective steering to
complete your lane change.
∙ Because the LDP may not activate under the road, weather, and lane marker con-
ditions described in this section, it may
not activate every time your vehicle be-
gins to leave its lane and you will need to
apply corrective steering.
∙
The LDP system will not operate at speeds
below approximately 37 mph (60 km/h) or
if it cannot detect lane markers.
∙ Do not use the LDP system under the fol- lowing conditions as it may not function
properly:
– During bad weather (rain, fog, snow, etc.). – When driving on slippery roads, such
as on ice or snow.
– When driving on winding or uneven roads.
– When there is a lane closure due to road repairs.
– When driving in a makeshift or tempo- rary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear, low
tire pressure, installation of spare tire,
tire chains, non-standard wheels).
– When the vehicle is equipped with nonoriginal brake parts or suspension
parts.
– When you are towing a trailer or other vehicle.
The system may not function properly un-
der the following conditions:
∙ On roads where there are multiple paral- lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; or lane markers covered with
water, dirt, snow, etc. ∙ On roads where discontinued lane mark-
ers are still detectable.
∙ On roads where there are sharp curves.
∙ On roads where there are sharply con- trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDP system
could detect these items as lane
markers.)
∙ On roads where the traveling lane merges or separates.
∙ When the vehicle’s traveling direction does not align with the lane marker.
∙ When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
∙ When rain, snow or dirt adheres to the windshield in front of the lane camera
unit.
∙ When the headlights are not bright due to dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
Starting and driving5-43
