•Do not use fuel that contains the octane
booster methylcyclopentadienyl manga-
nese tricarbonyl (MMT). Using fuel con-
taining MMT may adversely affect ve-
hicle performance and vehicle emissions.
Not all fuel dispensers are labeled to in-
dicate MMT content, so you may have to
consult your gasoline retailer for more
details. Note that Federal and California
laws prohibit the use of MMT in refor-
mulated gasoline.
• U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and black
label with the common abbreviation or
the appropriate percentage for that
region.
Gasoline specifications
INFINITI recommends using gasoline that
meets the World-Wide Fuel Charter
(WWFC) specifications where it is available.
Many of the automobile manufacturers de-
veloped this specification to improve emis-
sion control system and vehicle performance.
Ask your service station manager if the gaso-
line meets the WWFC specifications.
Reformulated gasoline
Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are spe-
cially designed to reduce vehicle emissions.
INFINITI supports efforts towards cleaner air
and suggests that you use reformulated
gasoline when available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and
methanol with or without advertising their
presence. INFINITI does not recommend the
use of fuels of which the oxygenate content
and the fuel compatibility for your INFINITI
cannot be readily determined. If in doubt, ask
your service station manager.
If you use oxygenate-blend gasoline, please
take the following precautions as the usage
of such fuels may cause vehicle performance
problems and/or fuel system damage.
• The fuel should be unleaded and have an
octane rating no lower than that recom-
mended for unleaded gasoline.
• If an oxygenate-blend other than metha-
nol blend is used, it should contain no more
than 15% oxygenate. •
If a methanol blend is used, it should con-
tain no more than 5% methanol (methyl
alcohol, wood alcohol). It should also con-
tain a suitable amount of appropriate co-
solvents and corrosion inhibitors. If not
properly formulated with appropriate co-
solvents and corrosion inhibitors, such
methanol blends may cause fuel system
damage and/or vehicle performance prob-
lems. At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in INFINITI
vehicles.
If any driveability problems such as engine
stalling and difficult hot-starting are experi-
enced after using oxygenate-blend fuels, im-
mediately change to a non-oxygenate fuel or
a fuel with a low blend of MTBE.
Take care not to spill gasoline during refuel-
ing. Gasoline containing oxygenates can
cause paint damage.
E–15 fuel
E-15 fuel is a mixture of approximately 15%
fuel ethanol and 85% unleaded gasoline.
E-15 can only be used in vehicles designed to
run on E-15 fuel. U.S. government regula-
tions require fuel ethanol dispensing pumps
to be identified with small, square, orange
10-4Technical and consumer information

CAUTION
Damage to engine caused by improper
maintenance or use of incorrect oil and fil-
ter quality and/or viscosity is not covered
by the INFINITI New Vehicle Limited
Warranty.
Your engine was filled with a high-quality
engine oil when it was built. You do not have
to change the oil before the first recom-
mended change interval. Oil and filter change
intervals depend upon how you use your
vehicle.
Operation under the following conditions
may require more frequent oil and filter
changes:
• repeated short distance driving at cold out- side temperatures
• driving in dusty conditions
• extensive idling
• towing a trailer
• stop and go commuting
For additional information on maintenance
schedules, see “Maintenance and schedules”
(P. 9-2).AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS
The air conditioner system in your INFINITI
vehicle must be charged with the refrigerant
HFO-1234yf (R-1234yf) and the oil, Genu-
ine NISSAN A/C System Oil Type ND-OIL12
or the exact equivalents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replacement
of all air conditioner system components.
The refrigerant HFO-1234yf (R-1234yf) in
your INFINITI vehicle does not harm the
earth's ozone layer. Although this refrigerant
does not affect the earth's atmosphere, cer-
tain government regulations require the re-
covery and recycling of any refrigerant during
automotive air conditioner system service. An
INFINITI retailer has the trained technicians
and equipment needed to recover and recycle
your air conditioner system refrigerant.
It is recommended that you visit an INFINITI
retailer when servicing your air conditioner
system.
Technical and consumer information10-7

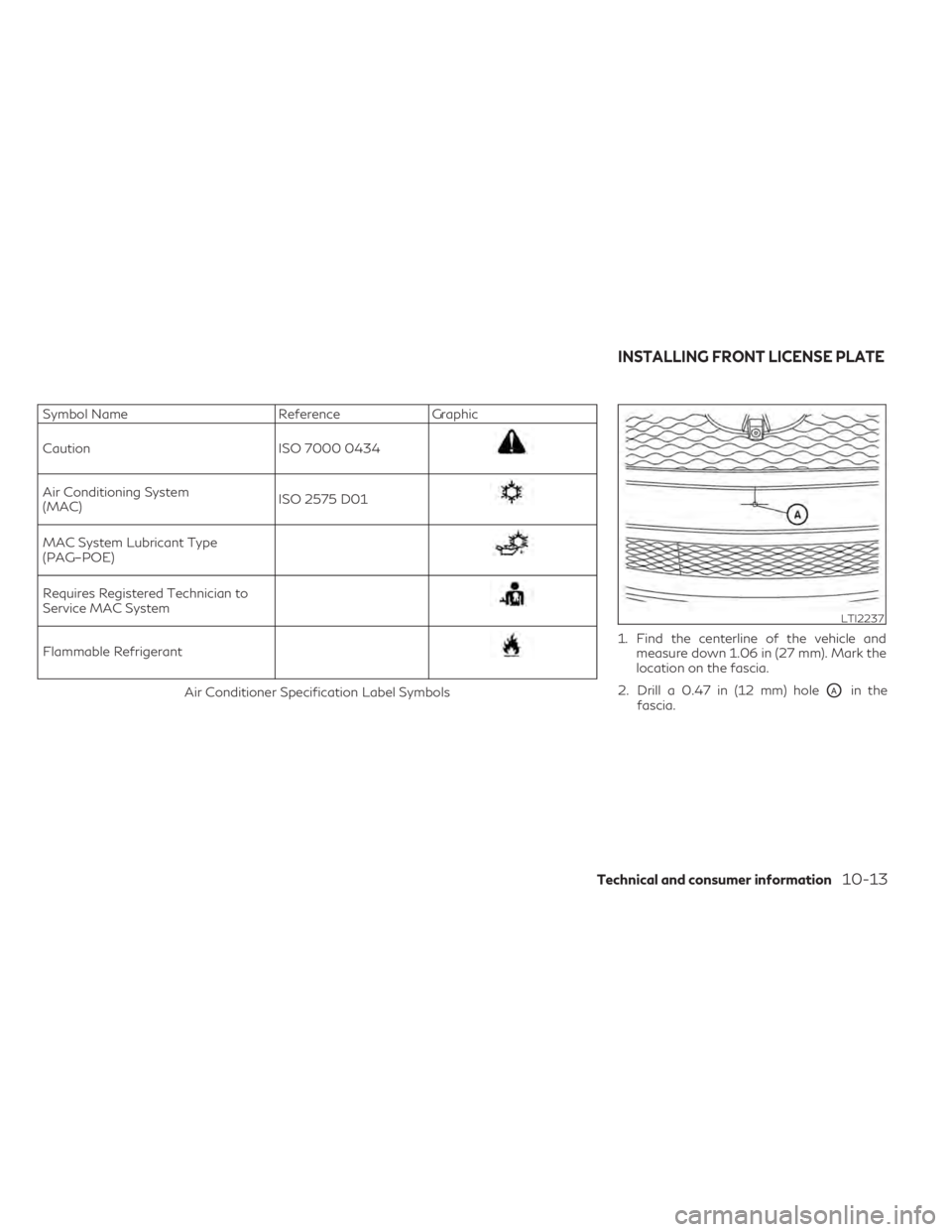

Symbol NameReferenceGraphic
Caution ISO 7000 0434
Air Conditioning System
(MAC)ISO 2575 D01
MAC System Lubricant Type
(PAG–POE)
Requires Registered Technician to
Service MAC System
Flammable Refrigerant
Air Conditioner Specification Label Symbols 1. Find the centerline of the vehicle and
measure down 1.06 in (27 mm). Mark the
location on the fascia.
2. Drill a 0.47 in (12 mm) holeOAin the
fascia.
LTI2237
INSTALLING FRONT LICENSE PLATE
Technical and consumer information10-13

• Avoid towing a trailer for your vehicle's first500 miles (805 km).
• For the first 500 miles (805 km) that you do tow, do not drive over 50 mph (80
km/h).
• Have your vehicle serviced more often than at intervals specified in the recommended
maintenance schedule in “Maintenance and
schedules” (P. 9-2).
• When making a turn, your trailer wheels will be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
• Crosswinds and rough roads will adversely affect vehicle/trailer handling, possibly
causing vehicle sway. When being passed
by larger vehicles, be prepared for possible
changes in crosswinds that could affect
vehicle handling.
Do the following if the trailer begins to sway:
1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions al-
low. This combination will help stabilize
the vehicle
– Do not correct trailer sway by steering or applying the brakes. 2. When the trailer sway stops, gently apply
the brakes and pull to the side of the road
in a safe area.
3. Try to rearrange the trailer load so it is balanced as described in this section.
• Be careful when passing other vehicles. Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer
must also pass the other vehicle before you
can safely change lanes.
• Downshift the transmission to a lower gear for engine braking when driving down
steep or long hills. This will help slow the
vehicle without applying the brakes.
• Avoid holding the brake pedal down too long or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
• Increase your following distance to allow for greater stopping distances while tow-
ing a trailer. Anticipate stops and brake
gradually.
• INFINITI recommends that the cruise con- trol not be used while towing a trailer.
• Some states or provinces have specific regulations and speed limits for vehicles
that are towing trailers. Obey the local
speed limits. • Check your hitch, trailer wiring harness
connections, and trailer wheel lug nuts af-
ter 50 miles (80 km) of travel and at every
break.
• When launching a boat, don't allow the water level to go over the exhaust tail pipe
or rear bumper.
• Make sure you disconnect the trailer lights before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, final drive gear oil
should be replaced and transmission oil/
fluid should be changed more frequently. For
additional information, see“ Do-it-yourself”
(P. 8-2).
FLAT TOWING FOR ALL–WHEEL
DRIVE VEHICLE (if so equipped)
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when towing
a vehicle behind a recreational vehicle, such
as a motor home.
10-28Technical and consumer information

CAUTION
• Failure to follow these guidelines can re-
sult in severe transmission damage.
• Never flat tow your All-wheel drive
(AWD) vehicle.
• DO NOT tow your All-wheel drive
(AWD) vehicle with any wheels on the
ground. Doing so may cause serious and
expensive damage to the powertrain.
• For emergency towing procedures see
“Towing recommended by INFINITI”
(P. 6-8).
FLAT TOWING FOR FRONT
WHEEL DRIVE VEHICLE (if so
equipped)
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when towing
a vehicle behind a recreational vehicle, such
as a motor home.
CAUTION
• Failure to follow these guidelines can re-
sult in severe transmission damage.
• Whenever flat towing your vehicle, al-
ways tow forward, never backward. •
Never tow your front wheel drive vehicle
with the front tires on the ground. Doing
so may cause serious and expensive dam-
age to the powertrain.
• DO NOT tow your front wheel drive con-
tinuously variable transmission vehicle
with all four wheels on the ground (flat
towing). Doing so WILL DAMAGE inter-
nal transmission parts due to lack of
transmission lubrication.
• For emergency towing procedures see
“Towing recommended by INFINITI”
(P. 6-8).
Continuously Variable Transmission
To tow a vehicle equipped with a continu-
ously variable transmission, an appropriate
vehicle dolly MUSTbe placed under the
towed vehicle's drive wheels. Alwaysfollow
the dolly manufacturer's recommendations
when using their product.
NOTE:
It the battery is completely drained the
transmission will not manually shift to other
positions. DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform
to federal safety requirements in addition to
these grades.
Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one and
one-half (1 1/2) times as well on the govern-
ment course as a tire graded 100. The rela-
tive performance of tires depends upon the
actual conditions of their use, however, and
may depart significantly from the norm due
to variations in driving habits, service prac-
tices and differences in road characteristics
and climate.
UNIFORM TIRE QUALITY GRADING
Technical and consumer information10-29

NISSAN and third parties entrusted by
NISSAN may use the data recorded for the
purpose of improving NISSAN's vehicle
safety performance.
NISSAN and third parties entrusted by
NISSAN will not disclose/provide the re-
corded data to a third party except:
• With the consent of the vehicle owner orwith the consent of the lessee In response
to an official request by the police, a court
of law or a government office.
• For use as part of NISSAN's defense of litigation
• For research purposes where the data is not tied to a specific vehicle or vehicle
owner Genuine INFINITI Service Manuals for this
model year and prior can be purchased. A
Genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at INFINITI retailers. Genuine
INFINITI Owner’s Manuals can also be
purchased.
For USA
For current pricing and availability of Genuine
INFINITI Service Manuals, contact:
www.infiniti-techinfo.com
For current pricing and availability of Genuine
INFINITI Owner's Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a Genuine INFINITI
Service Manual or Owner’s Manual, for this
model year and prior, please contact your
nearest INFINITI retailer. For the phone num-
ber and location of an INFINITI retailer in
your area call the INFINITI Satisfaction Cen-
ter at 1-800-361-4792 and a bilingual
INFINITI representative will assist you.
OWNER'S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information10-33

MirrorAutomatic anti-glare inside mirror. . .3-34Outside mirrors.............. .3-34Rearview................. .3-33Vanity mirror................3-33Mirrors.................... .3-33Moonroof................2-66, 7-5Moving Object Detection (MOD)......4-28
O
Octane rating (See fuel octane rating). . .10-5Odometer................... .2-5Oil
Capacities and recommended
fuel/lubricants
.............. .10-2Changing engine oil.............8-6Changing engine oil filter..........8-6Checking engine oil level..........8-6Engine oil.................. .8-6Engine oil and oil filter
recommendation..............10-6Engine oil viscosity.............10-6Outside mirrors............... .3-34Overhead sunglasses holder.........2-53Overheat
If your vehicle overheats..........6-7Owner's manual order form........10-33Owner's manual/service manual order
information................. .10-33
P
Parking
Parking/parking on hills.........5-148Parking brake..........2-11, 2-13, 2-17Personal lights................ .2-69Power
Power door locks............. .3-5Power outlet............... .2-48Power rear windows...........2-64Power steering system. . . .5-149, 5-150Power windows............. .2-63Rear power windows...........2-64Power outlet................. .2-48Power steering...........5-149, 5-150Precautions
Maintenance precautions.........8-2On-pavement and off-road driving
precautions................. .5-8Precautions on booster
seats.........1-22, 1-29, 1-34, 1-38Precautions on child
restraints.......1-22, 1-29, 1-34, 1-38Precautions on seat belt usage......1-11Precautions on supplemental restraint
system................... .1-41Precautions when starting and
driving.................5-4, 5-10Predictive Forward Collision Warning
(PFCW)................... .5-133ProPILOT Assist................5-77Push starting.................. .6-7
R
Radio
Car phone or CB radio..........4-43Rain sensor.................. .2-33Readiness for inspection maintenance (I/M)
test..................... .10-32Rear Automatic Braking (RAB)......5-118Rear Cross Traffic Alert (RCTA).......5-67Rear Door Alert................2-23Rear power sunshade............2-65Rear power windows............ .2-64Rear window defroster, outside mirror
defroster, and wiper deicer switch.....2-35Rear window wiper and washer
switches................... .2-34Rearview mirror................3-33RearView Monitor...............4-3Recommended Fluids.............10-2Recorders
Event Data............... .10-32Refrigerant recommendation........10-7Registering a vehicle in another
country................... .10-10Remote Engine Start.........3-18, 5-17Reporting safety defects (US only). . . .10-31Roadside assistance program.........6-2Roof rack................2-56, 2-57
S
Safety
Child safety rear door lock.........3-6
11-5

Child seat belts. . .1-22, 1-29, 1-34, 1-38Reporting safety defects (US only). .10-31SeatMemory seat........... .3-36, 3-38Seat adjustment
Front power seat adjustment.......1-3Second row bench seats..........1-4Seat beltChild safety................ .1-20Infants and small children........1-20Injured person................1-14Larger children...............1-21Precautions on seat belt usage......1-11Pregnant women..............1-14Seat belt extenders............1-19Seat belt maintenance...........1-19Seat belts.............. .1-11, 7-7Three-point type with retractor.....1-15Seat belt extenders..............1-19Seat belt warning light........1-14, 2-12Seatback pockets.............. .2-51Seats
2nd row bench seat adjustment......1-4Adjustment................. .1-2Armrests................... .1-5Front seats..................1-2Heated seats................2-43Seats/floor mats................7-6Security indicator light............2-12Security system
(INFINITI vehicle immobilizer system),
engine start
..........2-30, 3-4, 5-16Security systemsVehicle security system..........2-29
Self-adjusting brakes............ .8-19Service manual order form.........10-33Servicing air conditioner...........4-42Spark plug replacement...........8-15Spark plugs.................. .8-15Specifications.................10-8Speedometer................. .2-5Speedometer and odometer.........2-4SRS warning label...............1-60Stability control...............5-154Standard maintenance.............9-9Starting
Before starting the engine........5-16Jump starting............ .6-5, 8-14Precautions when starting and
driving................ .5-4, 5-10Push starting.................6-7Starting the engine.............5-16Starting the engine............. .5-16Steering
Power steering system. . . .5-149, 5-150Steering Assist switch
(for vehicles with ProPILOT Assist). . . .2-45Steering wheel................ .3-31Stop light................... .8-25Storage.................... .2-50Storage tray..............2-51, 2-52Sun visors................... .3-32Sunglasses case................2-53Sunglasses holder...............2-53Sunroof................. .2-66, 7-5Supplemental air bag warning labels. . . .1-60Supplemental air bag warning
light.................. .1-61, 2-12
Supplemental front impact air bag
system.................... .1-48Supplemental restraint system
Information and warning labels.....1-60Precautions on supplemental restraint
system................... .1-41Supplemental restraint system
(Supplemental air bag system)........1-41Switch
Autolight switch............. .2-36Automatic power window switch. . . .2-64Fog light switch..............2-42Hazard warning flasher switch......6-2Headlight aiming control.........2-40Headlight and turn signal switch. . . .2-36Instrument brightness control......2-41Power door lock switch...........3-5Rear window wiper and washer
switches.................. .2-34Turn signal switch.............2-41
T
Tachometer.................. .2-6Temperature gauge
Engine coolant temperature gauge. . . .2-6Theft(INFINITI vehicle immobilizer system),
engine start
..........2-30, 3-4, 5-16Three-way catalyst.............. .5-4Tire
Flat tire................... .6-3Tire and Loading Information label. .10-12
11-6
