engine coolant INFINITI QX50 2022 Owner's Guide

* Maintenance items and intervals with“*”
are recommended by INFINITI for reliable
vehicle operation. The owner need not per-
form such maintenance in order to maintain
the emission warranty or manufacturer recall
liability. Other maintenance items and inter-
vals are required.78,750 miles/(126,000 km)/
126 months
Perform at number of miles, kilometers or
months, whichever comes first.
Standard maintenance:
Inspections:
• Horn, lights, signals, wipers, rear hatch/hood lift supports
• All fluids inspected (engine, wiper, brake, power steering, coolant)
• Engine drive belts and hose inspections
• Engine air filter
• Suspension components (shocks, sub- frame, tie rods)
• Differential and fluid (AWD models)
• Battery terminals and cables, battery test
• Tire pressure, treadwear and depth
Essentials:
• Replace in-cabin microfilter
• Replace Intelligent Key battery
Severe use maintenance:
Inspections:
• Brake pads & rotors
• Exhaust system
• Propeller shaft (AWD models) • Drive shaft boots
• Steering gear & linkage
• Axle & suspension parts
9-22Maintenance and schedules

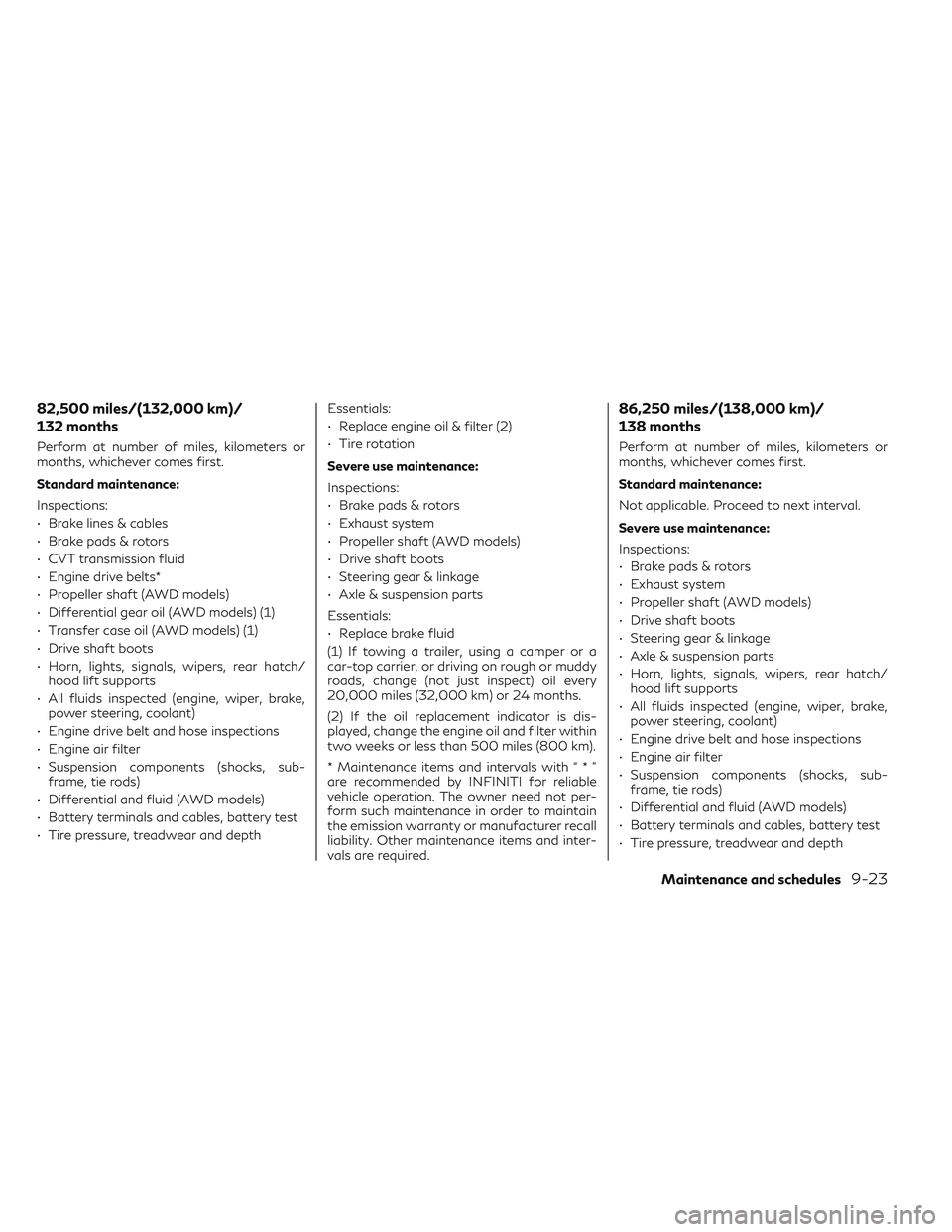

82,500 miles/(132,000 km)/
132 months
Perform at number of miles, kilometers or
months, whichever comes first.
Standard maintenance:
Inspections:
• Brake lines & cables
• Brake pads & rotors
• CVT transmission fluid
• Engine drive belts*
• Propeller shaft (AWD models)
• Differential gear oil (AWD models) (1)
• Transfer case oil (AWD models) (1)
• Drive shaft boots
• Horn, lights, signals, wipers, rear hatch/hood lift supports
• All fluids inspected (engine, wiper, brake, power steering, coolant)
• Engine drive belt and hose inspections
• Engine air filter
• Suspension components (shocks, sub- frame, tie rods)
• Differential and fluid (AWD models)
• Battery terminals and cables, battery test
• Tire pressure, treadwear and depth Essentials:
• Replace engine oil & filter (2)
• Tire rotation
Severe use maintenance:
Inspections:
• Brake pads & rotors
• Exhaust system
• Propeller shaft (AWD models)
• Drive shaft boots
• Steering gear & linkage
• Axle & suspension parts
Essentials:
• Replace brake fluid
(1) If towing a trailer, using a camper or a
car-top carrier, or driving on rough or muddy
roads, change (not just inspect) oil every
20,000 miles (32,000 km) or 24 months.
(2) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).
* Maintenance items and intervals with“*”
are recommended by INFINITI for reliable
vehicle operation. The owner need not per-
form such maintenance in order to maintain
the emission warranty or manufacturer recall
liability. Other maintenance items and inter-
vals are required.
86,250 miles/(138,000 km)/
138 months
Perform at number of miles, kilometers or
months, whichever comes first.
Standard maintenance:
Not applicable. Proceed to next interval.
Severe use maintenance:
Inspections:
• Brake pads & rotors
• Exhaust system
• Propeller shaft (AWD models)
• Drive shaft boots
• Steering gear & linkage
• Axle & suspension parts
• Horn, lights, signals, wipers, rear hatch/
hood lift supports
• All fluids inspected (engine, wiper, brake, power steering, coolant)
• Engine drive belt and hose inspections
• Engine air filter
• Suspension components (shocks, sub- frame, tie rods)
• Differential and fluid (AWD models)
• Battery terminals and cables, battery test
• Tire pressure, treadwear and depth
Maintenance and schedules9-23

90,000 miles/(144,000 km)/
144 months
Perform at number of miles, kilometers or
months, whichever comes first.
Standard maintenance:
Inspections:
• Brake lines & cables
• Brake pads & rotors
• CVT transmission fluid
• Engine drive belts*
• Fuel tank vapor vent system*
• Fuel lines/connections*
• Exhaust system
• Propeller shaft (AWD models)
• Steering gear and linkage
• Axle & suspension parts
• Differential gear oil (AWD models) (1)
• Transfer case oil (AWD models) (1)
• Drive shaft boots
• Horn, lights, signals, wipers, rear hatch/hood lift supports
• All fluids inspected (engine, wiper, brake, power steering, coolant)
• Engine drive belt and hose inspections
• Engine air filter • Suspension components (shocks, sub-
frame, tie rods)
• Differential and fluid (AWD models)
• Battery terminals and cables, battery test
• Tire pressure, treadwear and depth
Essentials:
• Replace engine oil & filter (2)
• Replace engine air filter (3)
• Replace brake fluid
• Replace in-cabin microfilter
• Replace Intelligent Key battery
• Tire rotation
Severe use maintenance:
Inspections:
• Brake pads & rotors
• Exhaust system
• Propeller shaft (AWD models)
• Drive shaft boots
• Steering gear & linkage
• Axle & suspension parts
Essentials:
• Replace brake fluid (1) If towing a trailer, using a camper or a
car-top carrier, or driving on rough or muddy
roads, change (not just inspect) oil every
20,000 miles (32,000 km) or 24 months.
(2) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).
(3) If operating mainly in dusty conditions,
more frequent maintenance may be required.
* Maintenance items and intervals with“*”
are recommended by INFINITI for reliable
vehicle operation. The owner need not per-
form such maintenance in order to maintain
the emission warranty or manufacturer recall
liability. Other maintenance items and inter-
vals are required.
9-24Maintenance and schedules

Additional information
NOTE FOR ENGINE COOLANT *:
(1) First replacement interval is 105,000
miles (168,000 km) or 84 months. After
first replacement, replace every 75,000
miles (120,000 km) or 60 months.
(2) Use only Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent
with proper mixture ratio of 50%
antifreeze and 50% demineralized or
distilled water. Mixing any other type of
coolant or the use of non-distilled water
may reduce the life expectancy of the
factory fill coolant.
* Maintenance items and intervals with “ *
” are recommended by INFINITI for
reliable vehicle operation. The owner need
not perform such maintenance in order to
maintain the emission warranty or
manufacturer recall liability. Other
maintenance items and intervals are
required.
NOTE FOR SPARK PLUGS:
(1) Replace every 105,000 miles
(168,000 km)
(2) Replace spark plug when the plug gap
exceeds 0.045 in (1.25 mm) even if within
specified replacement mileage.
Maintenance and schedules9-25

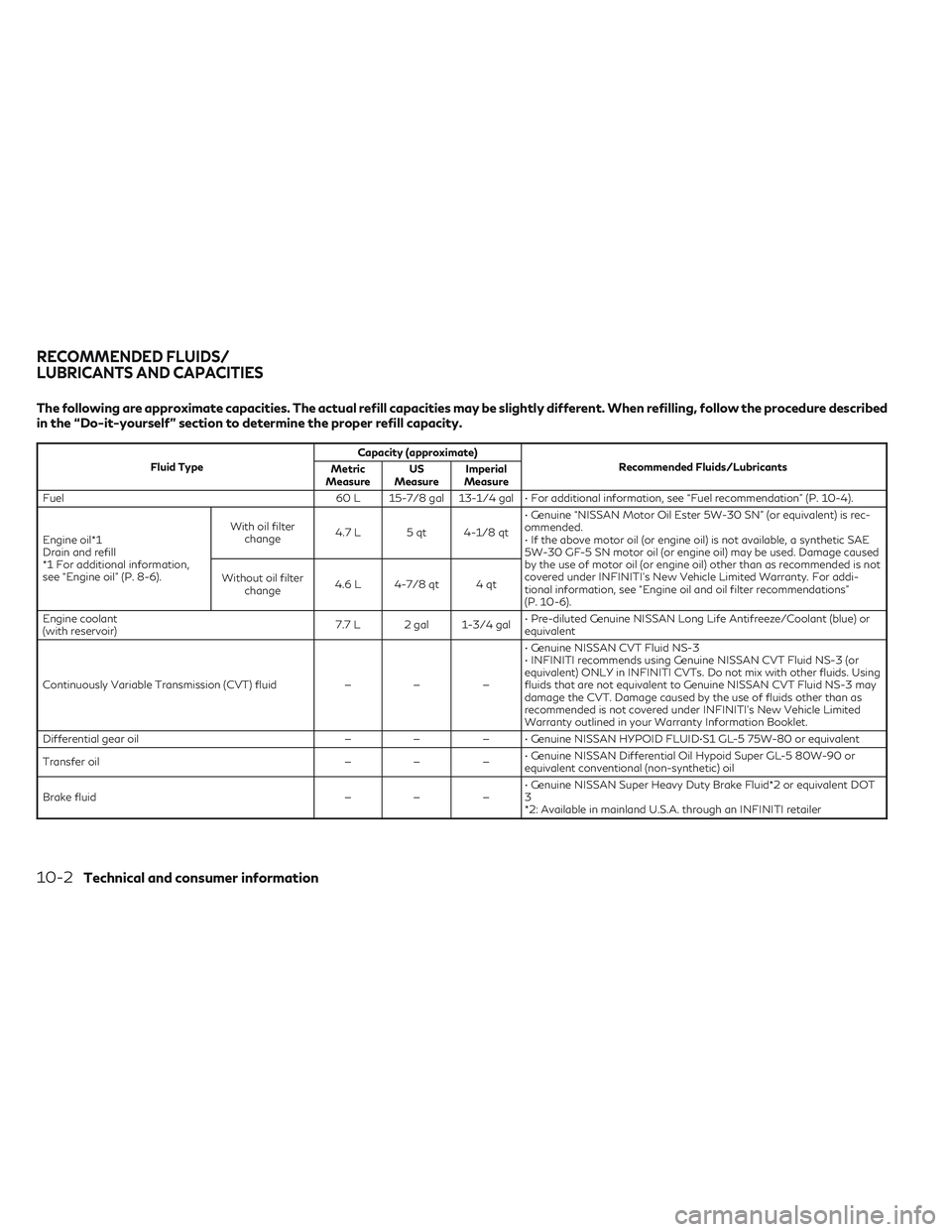

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure described
in the “Do-it-yourself” section to determine the proper refill capacity.
Fluid TypeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Fuel 60 L 15-7/8 gal 13-1/4 gal • For additional information, see “Fuel recommendation” (P. 10-4).
Engine oil*1
Drain and refill
*1 For additional information,
see “Engine oil” (P. 8-6). With oil filter
change 4.7 L 5 qt 4-1/8 qt • Genuine “NISSAN Motor Oil Ester 5W-30 SN” (or equivalent) is rec-
ommended.
• If the above motor oil (or engine oil) is not available, a synthetic SAE
5W-30 GF-5 SN motor oil (or engine oil) may be used. Damage caused
by the use of motor oil (or engine oil) other than as recommended is not
covered under INFINITI’s New Vehicle Limited Warranty. For addi-
tional information, see “Engine oil and oil filter recommendations”
(P. 10-6).
Without oil filter
change 4.6 L 4-7/8 qt 4 qt
Engine coolant
(with reservoir) 7.7 L 2 gal 1-3/4 gal• Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent
Continuously Variable Transmission (CVT) fluid —— —• Genuine NISSAN CVT Fluid NS-3
• INFINITI recommends using Genuine NISSAN CVT Fluid NS-3 (or
equivalent) ONLY in INFINITI CVTs. Do not mix with other fluids. Using
fluids that are not equivalent to Genuine NISSAN CVT Fluid NS-3 may
damage the CVT. Damage caused by the use of fluids other than as
recommended is not covered under INFINITI’s New Vehicle Limited
Warranty outlined in your Warranty Information Booklet.
Differential gear oil —— — • Genuine NISSAN HYPOID FLUID•S1 GL-5 75W-80 or equivalent
Transfer oil —— —• Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or
equivalent conventional (non-synthetic) oil
Brake fluid —— —• Genuine NISSAN Super Heavy Duty Brake Fluid*2 or equivalent DOT
3
*2: Available in mainland U.S.A. through an INFINITI retailer
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
10-2Technical and consumer information

• Check your hitch, trailer tire pressure, ve-hicle tire pressure, trailer light operation,
and trailer wheel lug nuts every time you
attach a trailer to the vehicle.
• Be certain your rearview mirrors conform to all federal, state or local regulations. If
not, install any mirrors required for towing
before driving the vehicle.
• Determine the overall height of the vehicle and trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of
the vehicle's behavior, you should practice
turning, stopping and backing up in an area
which is free from traffic. Steering stability
and braking performance will be somewhat
different than under normal driving
conditions.
• Always secure items in the trailer to preventload shift while driving.
• Lock the trailer hitch coupler with a pin or lock to prevent the coupler from inadver-
tently becoming unlatched.
• Avoid abrupt starts, acceleration or stops.
• Avoid sharp turns or lane changes.
• Always drive your vehicle at a moderate speed. • When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift position to the P
(Park) position before blocking the wheels
and applying the parking brake, transmis-
sion damage could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the down- hill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks
absorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park).
6. Turn off the engine. To drive away:
1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer
are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks.
• While going downhill, the weight of the trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descend-
ing a hill, as this reduces their effectiveness
and could cause overheating. Shifting to a
lower gear instead provides “engine brak-
ing” and reduces the need to brake as
frequently.
• If the engine coolant temperature rises to a high temperature, see “If your vehicle over-
heats” (P. 6-7).
• Trailer towing requires more fuel than nor- mal circumstances.
Technical and consumer information10-27

LATCH (Lower Anchors and Tethers for
CHildren) System..............1-24Precautions on child
restraints.......1-22, 1-29, 1-34, 1-38Top tether strap anchor point
locations.................. .1-27Child safety rear door lock...........3-6Cleaning exterior and interior......7-2, 7-4Climate control seat switch.........2-44Cold weather driving........... .5-152Console box................. .2-56Continuously Variable Transmission
(CVT)..................... .5-18Continuously Variable Transmission (CVT)
fluid.....................8-10Driving with Continuously Variable
Transmission (CVT)............5-18Controls
Heater and air conditioner controls. . .4-36CoolantCapacities and recommended
fuel/lubricants
.............. .10-2Changing engine coolant..........8-5Checking engine coolant level.......8-5Engine coolant temperature gauge. . . .2-6Corrosion protection..............7-7Cup holders.................. .2-57
D
Dimensions and weights...........10-9Dimmer switch for instrument panel. . . .2-42Door locks................... .3-4
Drive belt....................8-15Driving
Cold weather driving.......... .5-152Driving with Continuously Variable
Transmission (CVT)........... .5-18Precautions when starting and
driving................ .5-4, 5-10Driving the vehicle...............5-18Dual power moonroof............2-69
E
E-call (SOS) Button............. .2-51Economy - fuel............... .5-131Electronic parking brake...........5-23Emergency engine shutoff.......5-15, 6-3Emission control information label. . . .10-11Emission control system warranty. . . .10-30Engine
Before starting the engine........5-16Capacities and recommended
fuel/lubricants.............. .10-2Changing engine coolant..........8-5Changing engine oil.............8-6Changing engine oil filter..........8-6Checking engine coolant level.......8-5Checking engine oil level..........8-6Engine compartment check locations. .8-3Engine coolant temperature gauge. . . .2-6Engine cooling system...........8-4Engine oil.................. .8-6Engine oil and oil filter
recommendation..............10-6
Engine oil pressure warning light. . . .2-11Engine oil viscosity.............10-7Engine serial number...........10-11Engine specifications...........10-8Starting the engine............ .5-16Engine coolant temperature gauge. . . . .2-6Event Data recorders............10-33Exhaust gas (Carbon monoxide).......5-4Explanation of maintenance items......9-2Explanation of scheduled maintenance
items...................... .9-5Extended storage switch...........2-53
F
F.M.V.S.S. certification label........10-11Flashers (See hazard warning flasher
switch)..................... .6-2Flat tire......................6-3Floor mat positioning aid...........7-6Fluid
Brake fluid................ .8-10Capacities and recommended
fuel/lubricants...............10-2Continuously Variable Transmission (CVT)
fluid.................... .8-10Engine coolant................8-4Engine oil.................. .8-6Windshield-washer fluid.........8-11Fog light switch................2-43Forward Driving Aids
System Temporarily Unavailable. . . .2-26
11-2

Forward Emergency Braking (FEB) with
Pedestrian Detection system. . .2-13, 5-108Front air bag system (See supplemental
restraint system)................1-49Front and rear sonar system........5-146Front and rear sonar system switch. . . .2-47Front power seat adjustment.........1-3Front seats................... .1-2Front-door pocket..............2-54Fuel
Capacities and recommended
fuel/lubricants
.............. .10-2Fuel economy...............5-131Fuel gauge................. .2-7Fuel octane rating.............10-6Fuel recommendation...........10-4Fuel-filler door and cap..........3-29Loose fuel cap warning..........2-22Fuel efficient driving tips..........5-130Fuel gauge................... .2-7Fuel-filler door.................3-28Fuses..................... .8-20Fusible links..................8-21
G
Garage door opener, HomeLink® Universal
Transceiver. . .2-73, 2-74, 2-75, 2-76, 2-77Gas cap.................... .3-29Gauge
Engine coolant temperature gauge. . . .2-6Fuel gauge................. .2-7Odometer.................. .2-5
Speedometer..............2-4, 2-5Tachometer................. .2-6Trip odometer................2-5General maintenance..............9-2Glove box................... .2-56Glove box lock.................2-56Grocery hooks.................2-59
H
Hazard warning flasher switch........6-2Head restraints.................1-7Head Up Display (HUD)...........2-48Headlight aiming control...........2-41Headlight and turn signal switch......2-36Headlight switch.............. .2-36Headlights.................. .8-24Headlights, aiming control..........2-41Heated 2nd row seat switches.......2-46Heated mirrors.................3-36Heated seats................. .2-45Heater
Heater and air conditioner (automatic)
(if so equipped)
.............. .4-35Heater and air conditioner controls. . .4-36Heater operation..............4-37Heater and air conditioner (automatic). .4-35Heater and air conditioner settings. . . .4-42Hill start assist system...........5-145HomeLink® Universal
Transceiver. . .2-73, 2-74, 2-75, 2-76, 2-77Hood..................... .3-21
Hook
Luggage hook.............. .2-59Horn...................... .2-44
I
Ignition switch
Push-button ignition switch.......5-13Immobilizer system............. .5-16Important vehicle information label. . . .10-11In-cabin microfilter..............8-16Increasing fuel economy..........5-131Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)
............... .2-9, 2-10INFINITI Drive Mode Selector.......5-28INFINITI Intelligent Key System. . . .3-2, 3-6INFINITI InTouch™ Owner's Manual. . . .4-2INFINITI Vehicle Immobilizer
System..............2-30, 3-4, 5-16Inside automatic anti-glare mirror.3-33, 3-34Instrument brightness control........2-42Instrument panel.............0-6, 2-2Instrument panel dimmer switch......2-42Intelligent All-Wheel Drive (AWD). . . . .5-131Intelligent Cruise Control (ICC)
(for vehicles with ProPILOT Assist). . . .5-82Intelligent Key system
Key operating range............ .3-8Key operation............... .3-9Mechanical key................3-3Remote keyless entry operation.....3-13Troubleshooting guide..........3-16
11-3

Rear bench seats...............1-5Seat belt
Child safety................ .1-20Infants and small children.....1-20, 1-21Injured person................1-15Larger children...............1-21Precautions on seat belt usage.....1-12Pregnant women..............1-16Seat belt extenders............1-19Seat belt maintenance...........1-19Seat belts.............. .1-12, 7-7Three-point type with retractor.....1-16Seat belt extenders..............1-19Seat belt warning light........1-15, 2-12Seatback pockets.............. .2-54Seats
Adjustment................. .1-2Armrests................... .1-5Front seats..................1-2Heated seats................2-45Rear bench seat...............1-5Seats/floor mats............... .7-6Security indicator light............2-12Security system
(INFINITI vehicle immobilizer system),
engine start
..........2-30, 3-4, 5-16Security systemsVehicle security system..........2-29Self-adjusting brakes............ .8-19Service manual order form.........10-34Servicing air conditioner...........4-43Spark plug replacement...........8-15Spark plugs.................. .8-15Specifications.................10-8
Speedometer...............2-4, 2-5SRS warning label...............1-62Stability control...............5-140Standard maintenance.............9-9Starting
Before starting the engine........5-16Jump starting............ .6-5, 8-14Precautions when starting and
driving................ .5-4, 5-10Push starting.................6-7Starting the engine.............5-16Starting the engine............. .5-16Steering
Power steering system. . . .5-135, 5-136Steering Assist switch (for vehicles with
ProPILOT Assist).............. .2-47Steering wheel................ .3-31Stop light................... .8-25Storage.................... .2-54Storage tray..................2-55Sun visors................... .3-32Sunglasses case................2-56Sunglasses holder...............2-56Sunroof................. .2-69, 7-5Supplemental air bag warning labels. . . .1-62Supplemental air bag warning
light.................. .1-62, 2-12Supplemental front impact air bag
system.................... .1-49Supplemental restraint system
Information and warning labels.....1-62Precautions on supplemental restraint
system................... .1-41
Supplemental restraint system
(Supplemental air bag system)........1-41Switch
Autolight switch............. .2-36Automatic power window switch. . . .2-67Fog light switch..............2-43Hazard warning flasher switch......6-2Headlight aiming control.........2-41Headlight and turn signal switch. . . .2-36Instrument brightness control......2-42Power door lock switch...........3-5Rear window wiper and washer
switches.................. .2-34Turn signal switch.............2-42
T
Tachometer.................. .2-6Temperature gauge
Engine coolant temperature gauge. . . .2-6Theft(INFINITI vehicle immobilizer system),
engine start
..........2-30, 3-4, 5-16Three-way catalyst.............. .5-4Tire
Flat tire................... .6-3Tire and Loading Information label. .10-12Tire chains.................8-38Tire pressure................8-27Tire rotation................8-38Types of tires................8-35Uniform tire quality grading......10-29Wheel/tire size...............10-9
11-6
