INFINITI QX50 2023 Owner's Manual

FRONT POWER SEAT
ADJUSTMENT
Operating tips
• The power seat motor has an auto-resetoverload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
• Do not operate the power seat switch for a long period of time when the engine is off.
This will discharge the battery.
For additional information, see “Memory
seat” (P. 3-37).
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. For additional information, see
“Precautions on seat belt usage” (P. 1-12).
Also, the seatback can be reclined to allow
occupants to rest when the vehicle is parked.
LRS3531LRS3530
Safety-Seats, seat belts and supplemental restraint system1-3

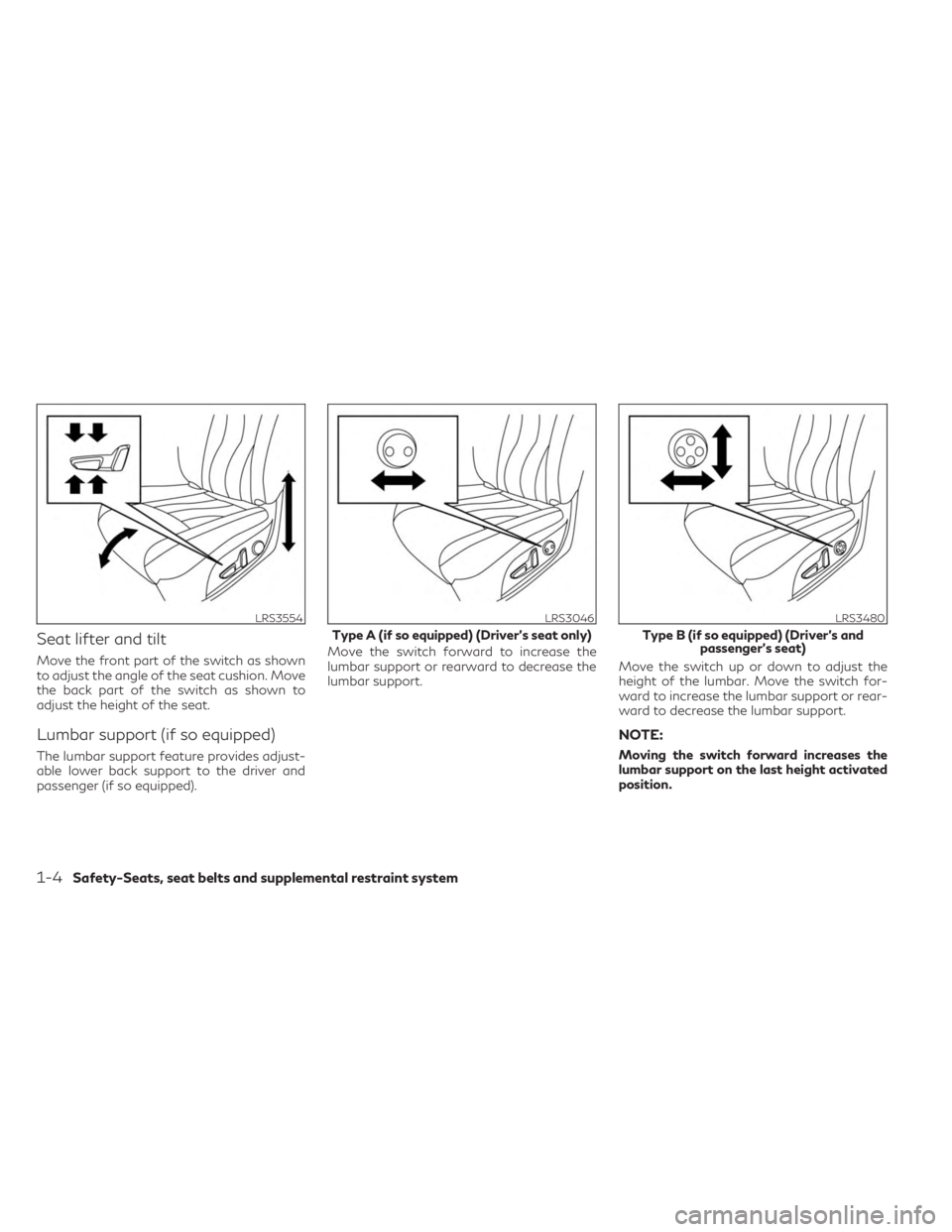

Seat lifter and tilt
Move the front part of the switch as shown
to adjust the angle of the seat cushion. Move
the back part of the switch as shown to
adjust the height of the seat.
Lumbar support (if so equipped)
The lumbar support feature provides adjust-
able lower back support to the driver and
passenger (if so equipped).Move the switch forward to increase the
lumbar support or rearward to decrease the
lumbar support.
Move the switch up or down to adjust the
height of the lumbar. Move the switch for-
ward to increase the lumbar support or rear-
ward to decrease the lumbar support.
NOTE:
Moving the switch forward increases the
lumbar support on the last height activated
position.
LRS3554LRS3046
Type A (if so equipped) (Driver’s seat only)
LRS3480
Type B (if so equipped) (Driver’s and
passenger’s seat)
1-4Safety-Seats, seat belts and supplemental restraint system

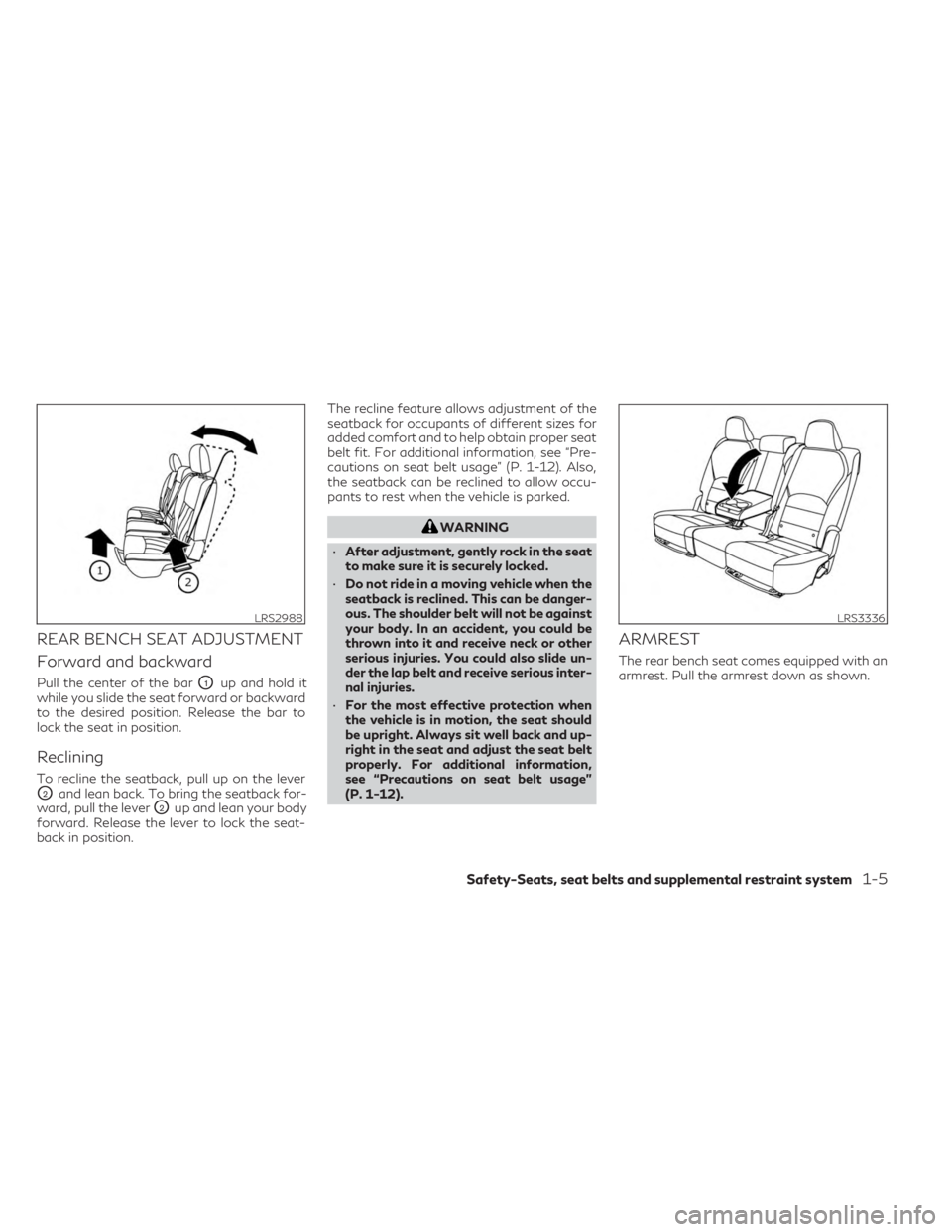

REAR BENCH SEAT ADJUSTMENT
Forward and backward
Pull the center of the barO1up and hold it
while you slide the seat forward or backward
to the desired position. Release the bar to
lock the seat in position.
Reclining
To recline the seatback, pull up on the lever
O2and lean back. To bring the seatback for-
ward, pull the lever
O2up and lean your body
forward. Release the lever to lock the seat-
back in position. The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, see “Pre-
cautions on seat belt usage” (P. 1-12). Also,
the seatback can be reclined to allow occu-
pants to rest when the vehicle is parked.
WARNING
• After adjustment, gently rock in the seat
to make sure it is securely locked.
• Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.
• For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat and adjust the seat belt
properly. For additional information,
see “Precautions on seat belt usage”
(P. 1-12).
ARMREST
The rear bench seat comes equipped with an
armrest. Pull the armrest down as shown.
LRS2988LRS3336
Safety-Seats, seat belts and supplemental restraint system1-5

FLEXIBLE SEATING
WARNING
• Never allow anyone to ride in the cargo
area or on the rear seats when they are in
the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.
• Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
• Do not allow more than one person to use
the same seat belt.
• Do not fold down the rear seats when
occupants are in the rear seat area or any
luggage is on the rear seats.
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet
to get caught or pinched in the seat.
• Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace and adjust
them properly if they have been removed
for any reason. •
If the head restraints/headrests are
removed for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident.
• When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position.
If they are not completely secured, pas-
sengers may be injured in an accident or
sudden stop.
• Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured cargo
could cause personal injury.
Folding the rear bench seat
To fold the rear bench seat flat for maximum
cargo hauling:
1. Remove any object from the rear seat sit- ting area
2.
Move each side of the rear seat completely
backwards. For additional information, see
“Forward and backward” (P. 1-5).
3.Make sure that the head restraints/
headrests are lowered. For additional infor-
mation, see “Lower” (P. 1-11).
LRS3047
Rear seat shown
1-6Safety-Seats, seat belts and supplemental restraint system

4. Stow the rear seat belts in the seat belthooks found on the sides of the vehicle.
5. Lift up on the recline lever on the side of the outboard seats or pull the lever on
either side of the cargo area to fold the
seatbacks flat.
• If one of the rear seatbacks does not fold flat completely, move the corre-
sponding front power seat forward,
push up the seatback until it latches in
place and remove the head restraints/
headrests. For additional information,
see “Remove” (P. 1-9). 6. To return the rear bench seats to a seating
position, push up on the seatback until it
latches in place.
WARNING
Head restraints/headrests supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalk, ex-
cept for genuine INFINITI accessories spe-
cifically tested for use with the vehicle’s
head restraint/headrest stalk. Do not re-
move the head restraint/headrest. Do not
use the seat if the head restraint/headrest
has been removed. If the head restraint/
headrest was removed, reinstall and prop-
erly adjust the head restraint/headrest
before an occupant uses the seating posi-
tion. Failure to follow these instructions
can reduce the effectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.
LRS3008
Cargo area shown
HEAD RESTRAINTS/HEADRESTS
Safety-Seats, seat belts and supplemental restraint system1-7

The illustration shows the seating positions
equipped with head restraints/headrests.
Indicates the seating position is equipped
with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable). • Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.
• Adjustable head restraints/headrests have multiple notches along the stalk(s) to lock
them in a desired adjustment position.
• The non-adjustable head restraints/ headrests have a single locking notch to
secure them to the seat frame.
• Proper Adjustment: – For the adjustable type, align the headrestraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
– If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest
position.
• If the head restraint/headrest has been re- moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
LRS2403LRS2300
1-8Safety-Seats, seat belts and supplemental restraint system

NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
REMOVE
Use the following procedure to remove the
head restraint/headrest:
1. Pull the head restraint/headrest up to thehighest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose in
the vehicle. 5. Reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position.
LRS2299LRS2302
Safety-Seats, seat belts and supplemental restraint system1-9

INSTALL
1. Align the head restraint/headrest stalkswith the holes in the seat. Make sure that
the head restraint/headrest is facing the
correct direction. The stalk with the notch
(notches)
O1must be installed in the hole
with the lock knob
O2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears.
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position. For non-adjustable head restraint/headrest
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
LRS2303WRS0134LRS2351
1-10Safety-Seats, seat belts and supplemental restraint system

Raise
To raise the head restraint/headrest, pull it
up.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
Lower
To lower, push and hold the lock knob and
push the head restraint/headrest down.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in the
notch before riding in that designated seating
position.
LRS2305LRS2306
Safety-Seats, seat belts and supplemental restraint system1-11

PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly
adjusted and you are sitting upright and well
back in your seat with both feet on the floor,
your chances of being injured or killed in a
collision and/or the severity of injury may be
greatly reduced. INFINITI strongly encour-
ages you and all of your passengers to buckle
up every time you drive, even if your seating
position includes a supplemental air bag.Most U.S. states and Canadian provinces or
territories specify that seat belts be worn at
all times when a vehicle is being driven.
SSS0136
SEAT BELTS
1-12Safety-Seats, seat belts and supplemental restraint system
