ABS INFINITI QX56 2004 Factory Service Manual

CAN SYSTEM (TYPE 1)
LAN-21
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Work FlowUKS0018G
1. When there are no indications of “AUTO DRIVE POS.”, “BCM” or “IPDM E/R” on “SELECT SYSTEM” dis-
play of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “AUTO DRIVE POS.”, “BCM”, “ABS”
and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “AUTO DRIVE POS.”, “BCM”,
“ABS” and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-23, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG” or “UNKWN” in the check sheet table. Refer to LAN-23,
"CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
6. Check CAN communication line of the navigation system. Refer to AV-131, "
CAN Communication Line
Check" .
7. Attach the CAN DIAG SUPPORT MONITOR check sheet onto the check sheet. Refer to LAN-23,
"CHECK SHEET" .
PKIA2093E
PKIA8260E
PKIA8343E

CAN SYSTEM (TYPE 1)
LAN-37
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56

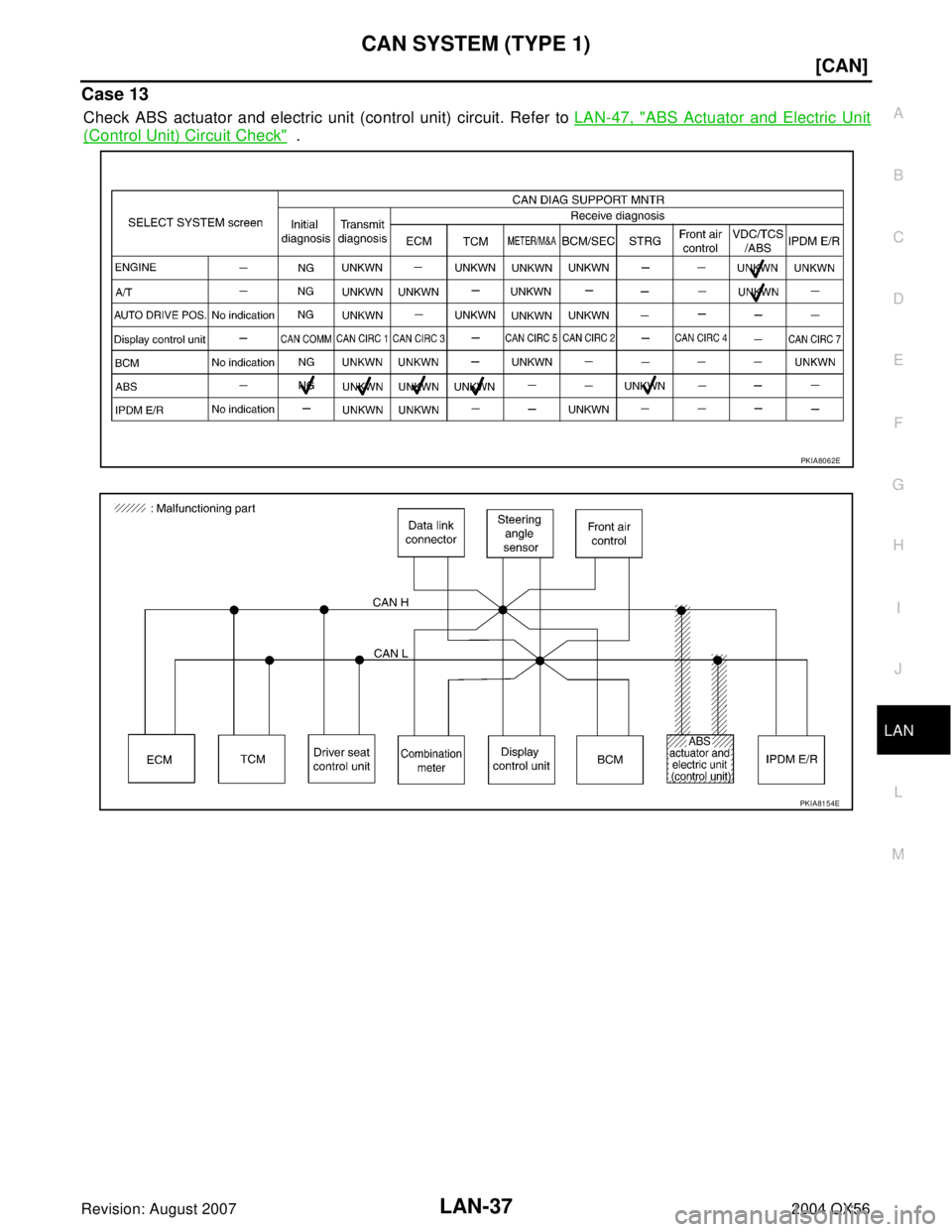

Case 13
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-47, "ABS Actuator and Electric Unit
(Control Unit) Circuit Check" .
PKIA8062E
PKIA8154E

CAN SYSTEM (TYPE 1)
LAN-47
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Front Air Control Circuit CheckUKS0018T
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of front air control for damage, bend and loose connection (unit side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect front air control connector.
2. Check resistance between front air control harness connector
M50 terminals 34 (W) and 35 (R).
OK or NG
OK >> Replace front air control.
NG >> Repair harness between front air control and data link
connector.
ABS Actuator and Electric Unit (Control Unit) Circuit CheckUKS0018U
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose
connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (con-
trol unit) harness connector E125 terminals 11 (W) and 15 (R).
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Repair harness between ABS actuator and electric unit
(control unit) and harness connector E152. 34 (W) - 35 (R) : Approx. 54 - 66Ω
PKIA8136E
11 (W) - 15 (R) : Approx. 54 - 66Ω
SKIA6872E

LAN-48
[CAN]
CAN SYSTEM (TYPE 1)
Revision: August 20072004 QX56
IPDM E/R Circuit CheckUKS0018V
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of IPDM E/R for damage, bend and loose connection (control module side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E122
terminals 39 (W) and 40 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector E152.
CAN Communication Circuit CheckUKS0018W
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.39 (W) - 40 (R) : Approx. 108 - 132Ω
PKIA8141E

CAN SYSTEM (TYPE 2)
LAN-55
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Work FlowUKS001N7
1. When there are no indications of “AUTO DRIVE POS.”, “BCM” or “IPDM E/R” on “SELECT SYSTEM” dis-
play of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ICC”, “AUTO DRIVE POS.”, “BCM”,
“ABS” and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ICC”, “AUTO DRIVE POS.”,
“BCM”, “ABS” and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-57, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG” or “UNKWN” in the check sheet table. Refer to LAN-57,
"CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
6. Check CAN communication line of the navigation system. Refer to AV-131, "
CAN Communication Line
Check" .
7. Attach the CAN DIAG SUPPORT MONITOR check sheet onto the check sheet. Refer to LAN-57,
"CHECK SHEET" .
PKIA2093E
PKIA8260E
PKIA8343E

CAN SYSTEM (TYPE 2)
LAN-75
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Case 17
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-87, "ABS Actuator and Electric Unit
(Control Unit) Circuit Check" .
PKIA8105E
PKIA8816E

CAN SYSTEM (TYPE 2)
LAN-87
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Front Air Control Circuit CheckUKS001NJ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of front air control for damage, bend and loose connection (unit side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect front air control connector.
2. Check resistance between front air control harness connector
M50 terminals 34 (W) and 35 (R).
OK or NG
OK >> Replace front air control.
NG >> Repair harness between front air control and data link
connector.
ABS Actuator and Electric Unit (Control Unit) Circuit CheckUKS001NK
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose
connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (con-
trol unit) harness connector E125 terminals 11 (W) and 15 (R).
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Repair harness between ABS actuator and electric unit
(control unit) and harness connector E152. 34 (W) - 35 (R) : Approx. 54 - 66Ω
PKIA8136E
11 (W) - 15 (R) : Approx. 54 - 66Ω
SKIA6872E

LAN-88
[CAN]
CAN SYSTEM (TYPE 2)
Revision: August 20072004 QX56
IPDM E/R Circuit CheckUKS001NL
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of IPDM E/R for damage, bend and loose connection (control module side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E122
terminals 39 (W) and 40 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector E152.
CAN Communication Circuit CheckUKS001NM
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–ICC sensor
–ICC unit
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.39 (W) - 40 (R) : Approx. 108 - 132Ω
PKIA8141E

CAN SYSTEM (TYPE 3)
LAN-95
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Work FlowUKS0019V
1. When there are no indications of “AUTO DRIVE POS.”, “BCM” or “IPDM E/R” on “SELECT SYSTEM” dis-
play of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “AUTO DRIVE POS.”, “BCM”, “ALL
MODE AWD/4WD”, “ABS” and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “AUTO DRIVE POS.”, “BCM”,
“ALL MODE AWD/4WD”, “ABS” and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-97, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG” or “UNKWN” in the check sheet table. Refer to LAN-97,
"CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
6. Check CAN communication line of the navigation system. Refer to AV-131, "
CAN Communication Line
Check" .
7. Attach the CAN DIAG SUPPORT MONITOR check sheet onto the check sheet. Refer to LAN-97,
"CHECK SHEET" .
PKIA2093E
PKIA8260E
PKIA8343E

LAN-112
[CAN]
CAN SYSTEM (TYPE 3)
Revision: August 20072004 QX56
Case 14
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-123, "ABS Actuator and Electric Unit
(Control Unit) Circuit Check" .
PKIA8082E
PKIA8169E
