EM-2Revision: August 20072004 QX56 CAMSHAFT ............................................................... 43
Removal and Installation ........................................ 43
REMOVAL ........................................................... 43
INSPECTION AFTER REMOVAL ........................ 47
INSTALLATION .................................................... 49
Valve Clearance ...................................................... 52
INSPECTION ....................................................... 52
ADJUSTMENT .................................................... 54
OIL SEAL .................................................................. 56
Removal and Installation of Valve Oil Seal ............. 56
REMOVAL ........................................................... 56
INSTALLATION .................................................... 56
Removal and Installation of Front Oil Seal ............. 57
REMOVAL ........................................................... 57
INSTALLATION .................................................... 57
Removal and Installation of Rear Oil Seal .............. 57
REMOVAL ........................................................... 57
INSTALLATION .................................................... 58
CYLINDER HEAD ..................................................... 59
On-Vehicle Service ................................................. 59
CHECKING COMPRESSION PRESSURE ......... 59
Removal and Installation ........................................ 60
REMOVAL ........................................................... 60
INSPECTION AFTER REMOVAL ........................ 61
INSTALLATION .................................................... 61
Disassembly and Assembly .................................... 62
DISASSEMBLY ................................................... 62
ASSEMBLY ......................................................... 63
Inspection After Disassembly ................................. 64
CYLINDER HEAD DISTORTION ........................ 64
VALVE DIMENSIONS .......................................... 65
VALVE GUIDE CLEARANCE .............................. 66
VALVE GUIDE REPLACEMENT ......................... 66
VALVE SEAT CONTACT ..................................... 68
VALVE SEAT REPLACEMENT ........................... 68
VALVE SPRING SQUARENESS ......................... 69
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD ............................... 69
ENGINE ASSEMBLY ................................................ 70
Removal and Installation ........................................ 70
REMOVAL ........................................................... 70
INSTALLATION .................................................... 71
INSPECTION AFTER INSTALLATION ................ 72
CYLINDER BLOCK ................................................... 73
Disassembly and Assembly .................................... 73
DISASSEMBLY ................................................... 74ASSEMBLY ..........................................................77
How to Select Piston and Bearing ..........................82
DESCRIPTION ....................................................82
HOW TO SELECT PISTON .................................83
HOW TO SELECT CONNECTING ROD BEAR-
ING .......................................................................84
HOW TO SELECT MAIN BEARING ....................85
Inspection After Disassembly ..................................89
CRANKSHAFT END PLAY ..................................89
CONNECTING ROD SIDE CLEARANCE ...........89
PISTON AND PISTON PIN CLEARANCE ...........89
PISTON RING SIDE CLEARANCE .....................90
PISTON RING END GAP ....................................90
CONNECTING ROD BEND AND TORSION .......91
CONNECTING ROD BEARING (BIG END) ........91
CONNECTING ROD BUSHING OIL CLEAR-
ANCE (SMALL END) ...........................................91
CYLINDER BLOCK DISTORTION ......................92
MAIN BEARING HOUSING INSIDE DIAMETER ...93
PISTON TO CYLINDER BORE CLEARANCE ....93
CRANKSHAFT JOURNAL DIAMETER ...............94
CRANKSHAFT PIN DIAMETER ..........................95
OUT-OF-ROUND AND TAPER OF CRANK-
SHAFT .................................................................95
CRANKSHAFT RUNOUT ....................................95
CONNECTING ROD BEARING OIL CLEAR-
ANCE ...................................................................95
MAIN BEARING OIL CLEARANCE .....................96
CRUSH HEIGHT OF MAIN BEARING ................97
CRUSH HEIGHT OF CONNECTING ROD
BEARING .............................................................97
MAIN BEARING CAP BOLT DIAMETER .............97
CONNECTING ROD BOLT DIAMETER ..............98
SERVICE DATA AND SPECIFICATIONS (SDS) ......99
Standard and Limit ..................................................99
GENERAL SPECIFICATIONS .............................99
DRIVE BELTS ......................................................99
EXHAUST MANIFOLD ........................................99
CAMSHAFT AND CAMSHAFT BEARING ......... 100
CYLINDER HEAD .............................................. 102
CYLINDER BLOCK ............................................ 104
PISTON, PISTON RING AND PISTON PIN ...... 105
CONNECTING ROD .......................................... 105
CRANKSHAFT ................................................... 106
MAIN BEARING ................................................. 107

EM-38Revision: August 2007
TIMING CHAIN
2004 QX56
10. Remove the oil pump drive spacer.

Hold and remove the flat space of the oil pump drive spacer
by pulling it forward.
11. Remove the oil pump. Refer to LU-13, "
Removal and Installation" .
12. Remove the chain tensioner on the left bank using the following steps.
NOTE:
To remove the timing chain and associated parts, start with those on the left bank. The procedure for
removing parts on the right bank is omitted because it is the same as that for the left bank.
a. Squeeze the return-proof clip ends using suitable tool and push
the plunger into the tensioner body.
b. Secure the plunger using stopper pin.

Stopper pin is made from hard wire approximately 1 mm (0.04
in) in diameter.
c. Remove the bolts and chain tensioner.
WAR NIN G:
Plunger, spring, and spring seat pop out when (squeezing)
return-proof clip without holding plunger head. It may
cause serious injuries. Always hold plunger head when
removing.
NOTE:

Stop the plunger in the fully extended position by using the
return-proof clip 1 if the stopper pin is removed.

Push the plunger 2 into the tensioner body while squeezing
the return-proof clip 1. Secure it using stopper pin 3.
13. Remove the chain tension guide and slack guide.
14. Remove the timing chain and crankshaft sprocket.
15. Loosen the camshaft sprocket bolts as shown and remove the
camshaft sprocket.
CAUTION:
To avoid interference between valves and pistons, do not
turn crankshaft or camshaft when timing chain is discon-
nected.
16. Repeat the same procedure to remove the right timing chain and
associated parts.
KBIA2512E
KBIA2479E
KBIA2483E
KBIA2513E

EM-40Revision: August 2007
TIMING CHAIN
2004 QX56
2. Install camshaft sprockets.

Install intake and exhaust camshaft sprocket by selectively
using the groove of dowel pin according to the bank (common
part used for both banks).

Lock the hexagonal part of camshaft in the same way as for
removal, and tighten bolts.
3. Install crankshaft sprockets for both banks.

Install each crankshaft sprocket so that its flange side (the
larger diameter side without teeth) faces in the direction as
shown.
NOTE:
The same parts are used but facing directions are different.
4. Install timing chains and associated parts.

Align the mating mark on each sprocket and the timing chain for installation.
CAUTION:

Before installing chain tensioner, it is possible to change the position of mating mark on tim-
ing chain and each sprocket. After the mating marks are aligned, keep them aligned by hold-
ing them by hand.

Install slack guides and tension guides onto correct side by checking with identification mark on sur-
face.

Install chain tensioner with plunger locked in with stopper pin.
CAUTION:

Before and after the installation of chain tensioner, make sure that the mating mark on timing
chain is not out of alignment.

After installing chain tensioner, remove the stopper pin to release tensioner. Make sure ten-
sioner is released.

To avoid chain-link skipping of timing chain, never move crankshaft or camshafts until front
cover is installed.
5. In the same way as for right bank, install the timing chain and associated parts on the left side.
6. Install the oil pump.
7. Install the oil pump drive spacer as follows:

Install so that the front mark on the front edge of oil pump
drive spacer faces the front of the engine.

Insert oil pump drive spacer according to the directions of the
crankshaft key and the two flat surfaces of oil pump inner
rotor.

If the positional relationship does not allow the insertion,
rotate oil pump inner rotor to allow the oil pump drive spacer
to be inserted.
KBIA2480E
KBIA2515E
KBIA2490E

EM-44Revision: August 2007
CAMSHAFT
2004 QX56

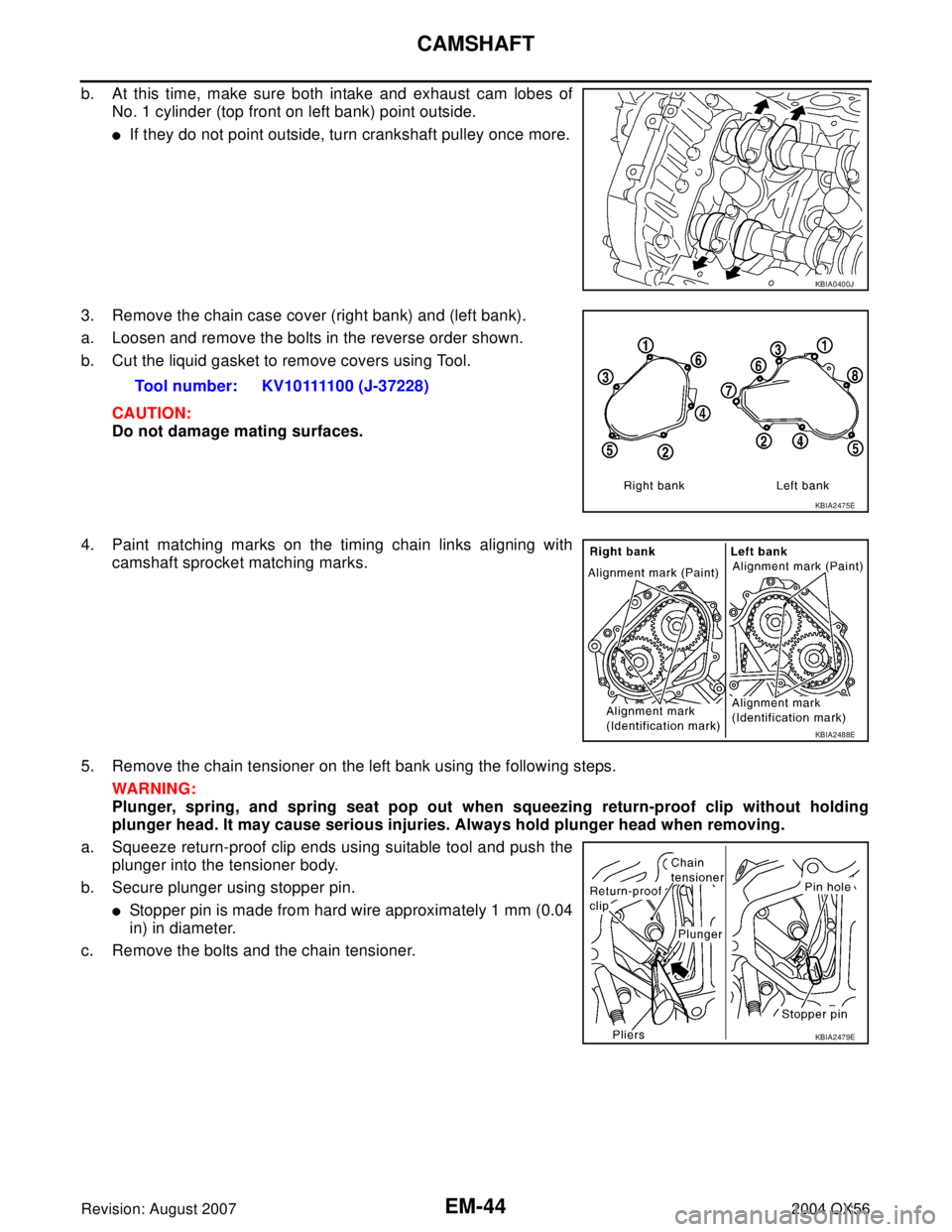

b. At this time, make sure both intake and exhaust cam lobes of
No. 1 cylinder (top front on left bank) point outside.

If they do not point outside, turn crankshaft pulley once more.
3. Remove the chain case cover (right bank) and (left bank).
a. Loosen and remove the bolts in the reverse order shown.
b. Cut the liquid gasket to remove covers using Tool.
CAUTION:
Do not damage mating surfaces.
4. Paint matching marks on the timing chain links aligning with
camshaft sprocket matching marks.
5. Remove the chain tensioner on the left bank using the following steps.
WAR NIN G:
Plunger, spring, and spring seat pop out when squeezing return-proof clip without holding
plunger head. It may cause serious injuries. Always hold plunger head when removing.
a. Squeeze return-proof clip ends using suitable tool and push the
plunger into the tensioner body.
b. Secure plunger using stopper pin.

Stopper pin is made from hard wire approximately 1 mm (0.04
in) in diameter.
c. Remove the bolts and the chain tensioner.
KBIA0400J
Tool number: KV10111100 (J-37228)
KBIA2475E
KBIA2488E
KBIA2479E

CAMSHAFT
EM-45
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
NOTE:

Stop plunger in the fully extended position using return-proof clip
1 if stopper pin is removed.

Push the plunger 2 into the tensioner body while squeezing the
return-proof clip 1. Secure it using stopper pin 3.
6. Remove the right chain tensioner cover from the front cover
using Tool.
CAUTION:
Use care not to damage mating surfaces.
7. Remove chain tensioner on right bank using the following steps.
WAR NIN G:
Plunger, spring, and spring seat pop out when squeezing return-proof clip without holding
plunger head. It may cause serious injuries. Always hold plunger head when removing.
a. Squeeze return-proof clip ends using suitable tool and push the
plunger into the tensioner body.
b. Secure plunger using stopper pin.

Stopper pin is made from hard wire approximately 1 mm (0.04
in) in diameter.
c. Remove the bolts and the right bank chain tensioner.
NOTE:
If it is difficult to push plunger on right bank chain tensioner,
remove the plunger under extended condition.
KBIA2483E
Tool number : KV10111100
KBIA2521E
KBIA2479E
KBIA2484E

CAMSHAFT
EM-47
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
INSPECTION AFTER REMOVAL
Camshaft Runout
1. Put V block on precise flat work bench, and support No. 1 and
No. 5 journal of camshaft.
2. Set dial gauge vertically to No. 3 journal.
3. Turn camshaft to one direction with hands, and measure cam-
shaft runout on dial gauge.

1/2 of runout is bend.

If measurement exceeds specification, replace camshaft.
Camshaft Cam Height

Measure camshaft cam height.

If measurement is not within the specifications, replace cam-
shaft.
Camshaft Journal Clearance
Camshaft Journal Diameter

Measure diameter of camshaft journal.
Camshaft Bracket Inner Diameter

Tighten camshaft bracket bolt to specified torque.

Measure inner diameter of camshaft bracket.
Calculation of Camshaft Journal Clearance
(Journal clearance) = (camshaft bracket inner diameter) – (camshaft
journal diameter)

If measurement is not within specification, replace either or both
camshaft and cylinder head.
NOTE:
Inner diameter of camshaft bracket is manufactured together with cylinder head. Replace the whole cylin-
der head assembly.Camshaft runout : Less than 0.02 mm (0.0008 in)
EMK0641D
Standard cam height
(intake & exhaust): 44.465 - 44.655 mm
(1.7506 - 1.7581 in)
Cam wear limit
(intake & exhaust): 0.02 mm (0.0008 in)
PBIC0039E
Standard diameter : 25.953 - 25.970 mm
(1.0218 - 1.0224 in)
PBIC0040E
Standard : 26.000 - 26.021 mm (1.0236 - 1.0244 in)
Standard : 0.030 - 0.068 mm (0.0012 - 0.0027 in)
PBIC1645E

CAMSHAFT
EM-49
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
Valve Lifter Clearance
Valve Lifter Diameter

Measure diameter of valve lifter using suitable tool.
Valve Lifter Hole Diameter

Measure diameter of valve lifter hole of cylinder head using suit-
able tool.
Calculation of Valve Lifter Clearance
(Valve lifter clearance) = (valve lifter hole diameter) – (valve lifter
diameter)

If measurement is not within specification, referring to each
specification of valve lifter diameter and hole diameter, replace
either or both valve lifter and cylinder head.
INSTALLATION
1. Install valve lifters if removed.

Install removed parts in their original locations.
2. Install camshafts. Refer to the table below for identification of
right and left bank, and intake and exhaust.

Install so that dowel pin at the front of camshaft face is in the
direction shown.Standard : 33.977 - 33.987 mm (1.3377 - 1.3381 in)
JEM798G
Standard : 34.000 - 34.016 mm (1.3386 - 1.3392 in)
Standard : 0.013 - 0.039 mm (0.0005 - 0.0015 in)
PBIC0043E
Bank INT EXHIdentification
paint (front)Identification
paint (rear)Identification
rib
RHINT White — Yes.
EXH — Light blue Yes.
LHINT White — No.
EXH — Light blue No.
KBIA2523E
KBIA2524E

CYLINDER HEAD
EM-59
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
CYLINDER HEADPFP:11041
On-Vehicle ServiceEBS00ILS
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then stop engine.
2. Release fuel pressure. Refer to EC-46, "
FUEL PRESSURE RELEASE" .
a. Remove fuel pump fuse, and start engine.
Refer to PG-78, "
FUSE AND RELAY BOX" or fuel pump fuse location.

Let fuel pump fuse removed until the end of step 7.
b. After engine stalls, crank it two or three times to release all fuel pressure.
3. Remove ignition coil and spark plug from each cylinder.
Refer to EM-27, "
REMOVAL" .
4. Connect engine tachometer (not required in use of CONSULT-II).
5. Install compression tester with Tool into spark plug hole.
6. With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and engine rpm. Perform these steps to check each cyl-
inder.
Unit: kPa (kg/cm2 , psi) /rpm
CAUTION:
Always use a fully charged battery to obtain specified engine speed.

If the engine speed is out of specified range, check battery liquid for proper gravity. Check engine
speed again with normal battery gravity.

If compression pressure is below minimum value, check valve clearances and parts associated with
combustion chamber (valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure compression pressure again.

If some cylinders have low compression pressure, pour small amount of engine oil into the spark plug
hole of the cylinder to re-check it for compression.
–If the added engine oil improves the compression, the piston rings may be worn out or damaged. Check
the piston rings and replace if necessary.
–If the compression pressure remains at low level despite the addition of engine oil, the valves may be
malfunctioning. Check the valves for damage. Replace the valve or valve seat accordingly.

If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, the gaskets may be leaking, or valve in adjacent cylinders may
be damaged. Inspect and repair as required.
7. After inspection is complete, install removed parts. Installation is in the reverse order of removal.
8. Start engine, and confirm that engine runs smoothly.
9. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-71, "
TROUBLE DIAGNOSIS" . Tool number : EG15050500 (J-45402)
WBIA0605E
Standard MinimumDeference limit
between cylinders
1,520 (15.5, 220) / 200 1,324 (13.5, 192) / 200 98 (1.0, 14) / 300

CYLINDER HEAD
EM-61
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: August 20072004 QX56
INSPECTION AFTER REMOVAL
Cylinder Head Bolts Diameter

Cylinder head bolts are tightened by plastic zone tightening
method. Whenever the size difference between d1 and d2
exceeds the limit, replace the bolts with new one.

If reduction of diameter appears in a position other than d2, use
it as d2 point.
INSTALLATION
1. Install cylinder head gasket.
2. Install cylinder head. Follow the steps below and tighten the
bolts in the numerical order shown.
CAUTION:

If cylinder head bolts are re-used, check their diameters
before installation. Refer to EM-61, "
Cylinder Head Bolts
Diameter" .
a. Apply engine oil to threads and seating surface of bolts.
b. Measure tightening angle using Tool.
CAUTION:
Measure tightening angle using Tool. Do not measure visu-
ally.
3. Installation of the remaining components is in the reverse order of removal.Limit (d1 - d2) : 0.18 mm (0.0071 in)
KBIA0189E
Step a : 98.1 N·m (10 kg-m, 72 ft-lb)
Step b :Loosen in the reverse order of tightening.
Step c : 44.1 N·m (4.5 kg-m, 33 ft-lb)
PBIC0068E
Tool number : KV10112100 (BT-8653-A)
Step d : 60° clockwise
Step e : 60° clockwise
WBIA0603E

EM-66Revision: August 2007
CYLINDER HEAD
2004 QX56
VALVE GUIDE CLEARANCE
Valve Stem Diameter
Measure diameter of valve stem using suitable tool.
Valve Guide Inside Diameter
Measure inside diameter of valve guide using suitable tool.
Valve Guide Clearance

(Valve guide clearance) = (Valve guide inside diameter) – (Valve stem diameter).

If the calculated value exceeds the limit, replace valve and/or valve guide. When the valve guide must be
replaced, refer to EM-66, "
VALVE GUIDE REPLACEMENT" .
VALVE GUIDE REPLACEMENT
When valve guide is removed, replace with oversized (0.2 mm, 0.008 in) valve guide.
1. To remove valve guide, heat cylinder head to 110° to 130°C
(230° to 266°F) by soaking in heated oil. Standard
Intake : 5.965 - 5.980 mm (0.2348 - 0.2354 in)
Exhaust : 5.955 - 5.970 mm (0.2344 - 0.2350 in)
SEM 93 8C
Standard
Intake and Exhaust : 6.000 - 6.018 mm (0.2362 - 0.2369 in)
Valve guide clearance:
Standard
Intake : 0.020 - 0.053 mm (0.0008 - 0.0021 in)
Exhaust : 0.030 - 0.063 mm (0.0012 - 0.0025 in)
Limit
Intake : 0.08 mm (0.0031 in)
Exhaust : 0.09 mm (0.0035 in)
SEM 00 8A
