ENGINE COOLING FAN
CO-13
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: August 20072004 QX56
ENGINE COOLING FANPFP:21140
Removal and Installation (Crankshaft Driven Type)EBS00I51
REMOVAL
1. Remove air duct. Refer to EM-14, "REMOVAL" .
2. Remove the engine front undercover using power tool.
3. Remove the lower radiator shroud. Refer to CO-10, "
RADIATOR" .
4. Remove cooling fan.
INSPECTION AFTER REMOVAL
Fan Coupling
Inspect fan coupling for oil leakage and bimetal conditions.
Fan Bracket

Visually check that there is no significant looseness in the fan
bracket shaft, and that it turns smoothly by hand.

If there are any unusual concerns, replace the cooling fan pulley.
INSTALLATION
Installation is in the reverse order of removal.

Install cooling fan with its front mark “F” facing front of engine. Refer to CO-13, "Removal and Installation
(Crankshaft Driven Type)" .
INSPECTION AFTER INSTALLATION

Check for leaks of the engine coolant. Refer to CO-8, "CHECKING COOLING SYSTEM FOR LEAKS" .

Start and warm up the engine. Visually make sure that there are no leaks of the engine coolant.
1. Cooling fan 2. Fan coupling 3. Fan bracket
4. Cooling fan pulley
WBIA0632E
SL C0 72
WBIA0418E

THERMOSTAT AND WATER PIPING
CO-17
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: August 20072004 QX56

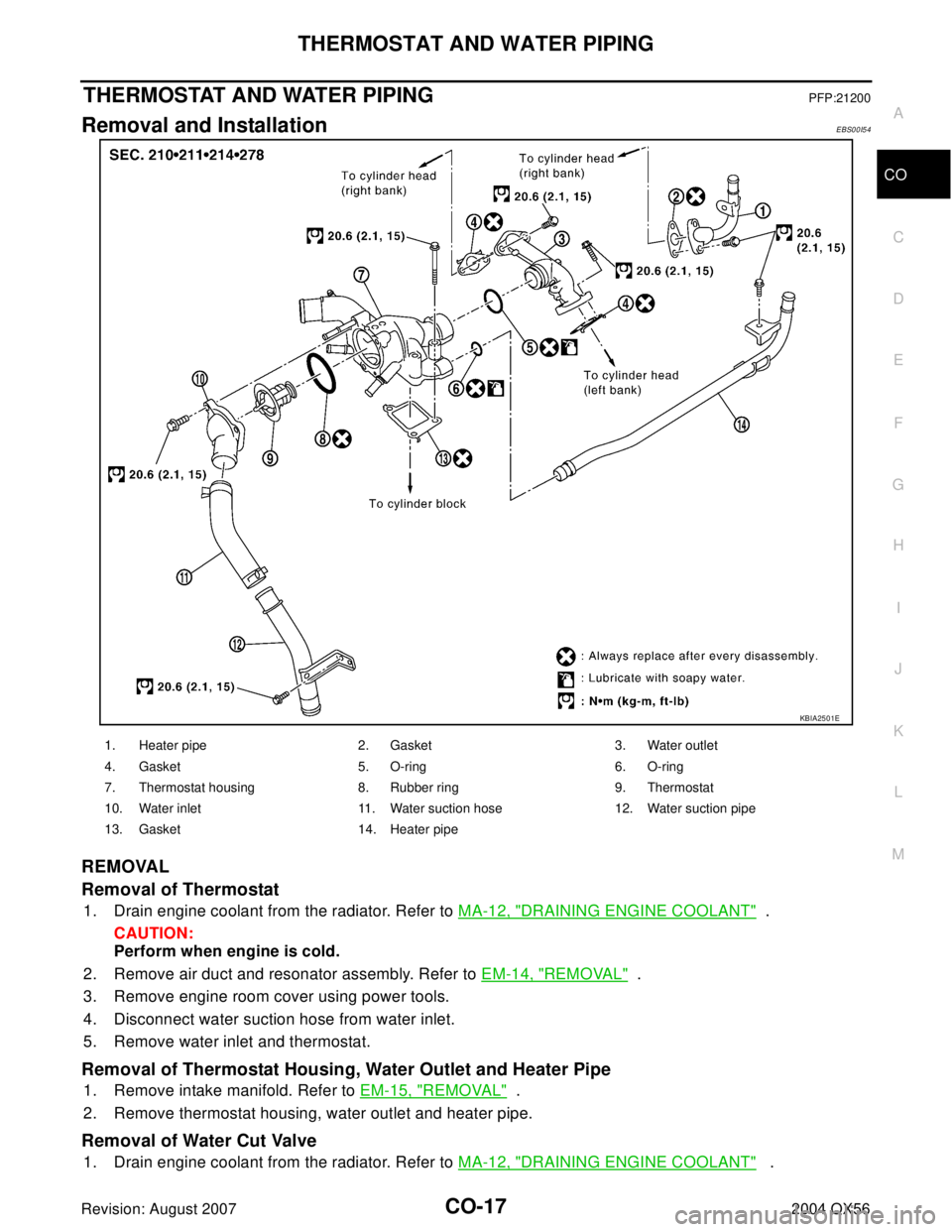

THERMOSTAT AND WATER PIPINGPFP:21200
Removal and InstallationEBS00I54
REMOVAL
Removal of Thermostat
1. Drain engine coolant from the radiator. Refer to MA-12, "DRAINING ENGINE COOLANT" .
CAUTION:
Perform when engine is cold.
2. Remove air duct and resonator assembly. Refer to EM-14, "
REMOVAL" .
3. Remove engine room cover using power tools.
4. Disconnect water suction hose from water inlet.
5. Remove water inlet and thermostat.
Removal of Thermostat Housing, Water Outlet and Heater Pipe
1. Remove intake manifold. Refer to EM-15, "REMOVAL" .
2. Remove thermostat housing, water outlet and heater pipe.
Removal of Water Cut Valve
1. Drain engine coolant from the radiator. Refer to MA-12, "DRAINING ENGINE COOLANT" .
KBIA2501E
1. Heater pipe 2. Gasket 3. Water outlet
4. Gasket 5. O-ring 6. O-ring
7. Thermostat housing 8. Rubber ring 9. Thermostat
10. Water inlet 11. Water suction hose 12. Water suction pipe
13. Gasket 14. Heater pipe

SERVICE DATA AND SPECIFICATIONS (SDS)
CO-19
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: August 20072004 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00I55
ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: (US gal, Imp gal)
THERMOSTAT
RADIATOR
Unit: kPa (kg/cm2 , psi)
Engine coolant capacity (With reservoir tank) (MAX level) 14.4 (3 3/4, 3 1/8)
Valve opening temperature 80 - 84°C (176 - 183°F)
Maximum valve lift More than 10 mm/95°C (0.39 in/203°F)
Valve closing temperature 77°C (171°F) or higher
Reservoir cap relief pressure Standard 95 - 125 (0.97- 1.28, 14 - 18)
Leakage test pressure 137 (1.4, 20)

EC-20Revision: August 2007
PREPARATION
2004 QX56
PREPARATIONPFP:00002
Special Service ToolsUBS00GZ9
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool nameDescription
EG17650301
(J-33984-A)
Radiator cap tester
adapterAdapting radiator cap tester to radiator cap and ra-
diator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV10117100
(J-36471-A)
Heated oxygen sensor
wrenchLoosening or tightening heated oxygen sensors
with 22 mm (0.87 in) hexagon nut
KV10114400
(J-38365)
Heated oxygen sensor
wrenchLoosening or tightening heated oxygen sensors
a: 22 mm (0.87 in)
(J-44626)
Air fuel ratio (A/F) sen-
sor wrenchLoosening or tightening air fuel ratio (A/F) sensor 1
(J-44321)
Fuel pressure gauge
kitChecking fuel pressure
(J-44321-6)
Fuel pressure adapterConnecting fuel pressure gauge to quick connec-
tor type fuel lines.
(J-45488)
Quick connector re-
leaseRemove fuel tube quick connectors in engine
room.
S-NT564
S-NT379
S-NT636
LEM054
LEC642
LBIA0376E
PBIC0198E

TROUBLE DIAGNOSIS
EC-87
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
1 - 6: The numbers refer to the order of inspection.Cooling Radiator/Hose/Radiator filler cap
55555 55 45CO-10
Thermostat 5CO-17
Water pum pCO-15
Water galleryCO-6
Cooling fan
5EC-410
Coolant level (Low)/Contami-
nated coolantCO-8
IVIS (Infinti Vehicle Immobilizer System —
NATS)11EC-63 or
BL-138
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

EC-180Revision: August 2007
DTC P0125 ECT SENSOR
2004 QX56
3. CHECK THERMOSTAT OPERATION
When the engine is cold [lower than 70°C (158°F)] condition, grasp lower radiator hose and confirm the engine
coolant does not flow.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace thermostat. Refer to CO-17, "
THERMOSTAT AND WATER PIPING" .
4. CHECK INTERMITTENT INCIDENT
Refer to EC-127, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionUBS00H22
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.

*: This data is reference value and is measured between ECM terminal 73
(Engine coolant temperature sensor) and ground.
2. If NG, replace engine coolant temperature sensor.
Removal and InstallationUBS00H23
ENGINE COOLANT TEMPERATURE SENSOR
Refer to CO-17, "THERMOSTAT AND WATER PIPING" .
PBIB2064E
Engine coolant
temperature°C (°F)Voltage* V Resistance kΩ
20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF 0 12 P

DTC P1217 ENGINE OVER TEMPERATURE
EC-411
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: August 20072004 QX56
On Board Diagnosis LogicUBS00H8V
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-8, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-8, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-11, "
ANTI-FREEZE COOLANT MIXTURE
RATIO" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckUBS00H8W
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WA RN ING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-415,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-415,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)

Cooling fan does not operate properly (Over-
heat).

Cooling fan system does not operate prop-
erly (Overheat).

Engine coolant was not added to the system
using the proper filling method.

Engine coolant is not within the specified
range.

Harness or connectors
(The cooling fan circuit is open or
shorted.)

Cooling fan

Radiator hose

Radiator

Radiator cap

Water pump

Thermostat
For more information, refer to EC-418,
"Main 12 Causes of Overheating" .
SEF 6 21 W

EC-412Revision: August 2007
DTC P1217 ENGINE OVER TEMPERATURE
2004 QX56
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-415, "
Diagnostic Procedure" .
WITH GST
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-415,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-415,
"Diagnostic Procedure" .
3. Disconnect engine coolant temperature sensor harness connec-
tor.
4. Connect 150Ω resistor to engine coolant temperature sensor
harness connector.
5. Start engine and make sure that cooling fan operates at higher
speed than low speed.
Be careful not to overheat engine.
6. If NG, go to EC-415, "
Diagnostic Procedure" .
SEF 6 46 X
SEF 6 21 W
SEF 8 82 V

EC-416Revision: August 2007
DTC P1217 ENGINE OVER TEMPERATURE
2004 QX56
4. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 5.
NG >> Check the following for leak. Refer to CO-8, "
CHECK-
ING COOLING SYSTEM FOR LEAKS" .

Hose

Radiator

Wate r p ump
5. CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 6.
NG >> Replace radiator cap.
6. CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5°C (9°F) below valve opening tem-
perature.
For details, refer to CO-17, "
THERMOSTAT AND WATER PIP-
ING" .
OK or NG
OK >> GO TO 7.
NG >> Replace thermostat
7. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-169, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace engine coolant temperature sensor.Testing pressure: 157 kPa (1.6 kg/cm
2 , 23 psi)
PBIC1528E
Radiator cap relief
pressure:59 - 98 kPa (0.6 - 1.0 kg/cm2
, 9 - 14 psi)
SL C7 55 A
Valve opening temperature: 82°C (180°F) [standard]
Valve lift: More than 10.0 mm/95°C
(0.394 in/203°F)
SL C3 43

EC-418Revision: August 2007
DTC P1217 ENGINE OVER TEMPERATURE
2004 QX56
5. CHECK INTERMITTENT INCIDENT
Perform EC-127, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness connectors.
Main 12 Causes of OverheatingUBS00H8Z
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-4, "
OVERHEATING CAUSE ANALYSIS" . Engine Step Inspection item Equipment Standard Reference page
OFF 1

Blocked radiator

Blocked condenser

Blocked radiator grille

Blocked bumper

Visual No blocking —
2

Coolant mixture
Coolant tester 50 - 50% coolant mixtureMA-10, "RECOM-
MENDED FLUIDS AND
LUBRICANTS"
3
Coolant level
Visual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckCO-8, "Changing Engine
Coolant"
4
Radiator cap
Pressure tester 59 - 98 kPa
(0.6 - 1.0 kg/cm2 , 9 - 14
psi) (Limit)CO-8, "
CHECKING RES-
ERVOIR CAP"
ON*25
Coolant leaks
Visual No leaksCO-8, "CHECKING
COOLING SYSTEM FOR
LEAKS"
ON*26
Thermostat
Touch the upper and
lower radiator hosesBoth hoses should be hotCO-17, "THERMOSTAT
AND WATER PIPING"
ON*17
Cooling fan
CONSULT-II Operating See trouble diagnosis for
DTC P1217 (EC-410,
"DTC P1217 ENGINE
OVER TEMPERA-
TURE" ).
OFF 8

Combustion gas leak
Color checker chemical
tester 4 Gas analyzerNegative —
ON*
39
Coolant temperature
gauge
Visual Gauge less than 3/4
when driving—

Coolant overflow to
reservoir tank
Visual No overflow during driving
and idlingCO-8, "Changing Engine
Coolant"
OFF*410
Coolant return from
reservoir tank to radia-
tor
Visual Should be initial level in
reservoir tankCO-8, "Changing Engine
Coolant"
OFF 11
Cylinder head
Straight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)EM-64, "Inspection After
Disassembly"
12
Cylinder block and pis-
tons
Visual No scuffing on cylinder
walls or pistonEM-89, "Inspection After
Disassembly"
