Revision: August 20072004 QX56 FRONT CASE ......................................................... 131
Inspection ............................................................. 131
PLANETARY CARRIER .................................... 131
SUN GEAR ....................................................... 131
INTERNAL GEAR ............................................. 131
SHIFT ROD COMPONENTS ............................ 131
CENTER CASE ...................................................... 133
Inspection ............................................................. 133
BEARINGS ........................................................ 133
SUB-OIL PUMP ................................................ 133
MAIN OIL PUMP ............................................... 133
MAINSHAFT ..................................................... 133
CONTROL VALVE ............................................ 134
CLUTCH ............................................................ 134
FRONT CASE ......................................................... 136
Assembly .............................................................. 136
PLANETARY CARRIER, SUN GEAR AND
INTERNAL GEAR ............................................. 136
SHIFT ROD ASSEMBLY ................................... 139CENTER CASE .......................................................140
Assembly ..............................................................140
OIL FILTER ........................................................140
SUB OIL PUMP .................................................140
MAIN OIL PUMP ...............................................141
CONTROL VALVE .............................................142
CLUTCH PISTON ..............................................144
MAINSHAFT AND CLUTCH DRUM ..................145
FRONT DRIVE SHAFT AND DRIVE CHAIN .....148
ASSEMBLY .............................................................149
Final Assembly .....................................................149
SERVICE DATA AND SPECIFICATIONS (SDS) ....153
General Specifications ..........................................153
Inspection and Adjustment ...................................153
CLEARANCE BETWEEN INNER GEAR AND
OUTER GEAR ...................................................153
CLUTCH ............................................................153
PINION GEAR END PLAY ................................153
CLEARANCE BETWEEN SHIFT FORK AND
SLEEVE ............................................................153
SELECTIVE PARTS ..........................................153

TF-4
PREPARATION
Revision: August 20072004 QX56
PREPARATIONPFP:00002
Special Service ToolsEDS0017H
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool nameDescription
ST30021000
(—)
PullerRemoving carrier bearing
a: 110 mm (4.33 in) dia.
b: 68 mm (2.68 in) dia.
ST30031000
(—)
PullerRemoving front drive shaft bearing
a: 90 mm (3.54 in) dia.
b: 50 mm (1.97 in) dia.
ST30720000
(J-25405)
DriftInstalling mainshaft front bearing and oil seal
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.
ST33220000
(—)
DriftInstallation needle bearings
a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.
KV40100621
(J-25273)
DriftInstalling front drive shaft front and rear bear-
ing
a: 76 mm (2.99 in) dia.
b: 69 mm (2.72 in) dia.
ST30032000
(J-26010-01)
BaseInstalling front drive shaft bearing
a: 38 mm (1.50 in) dia.
b: 80 mm (3.15 in) dia.
ST33052000
(—)
AdapterRemoving front drive shaft bearing
a: 28 mm (1.10 in) dia.
b: 22 mm (0.87 in) dia.
NT411
NT411
NT658
ZZA1046D
NT086
NT660
NT431

PREPARATION
TF-7
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56

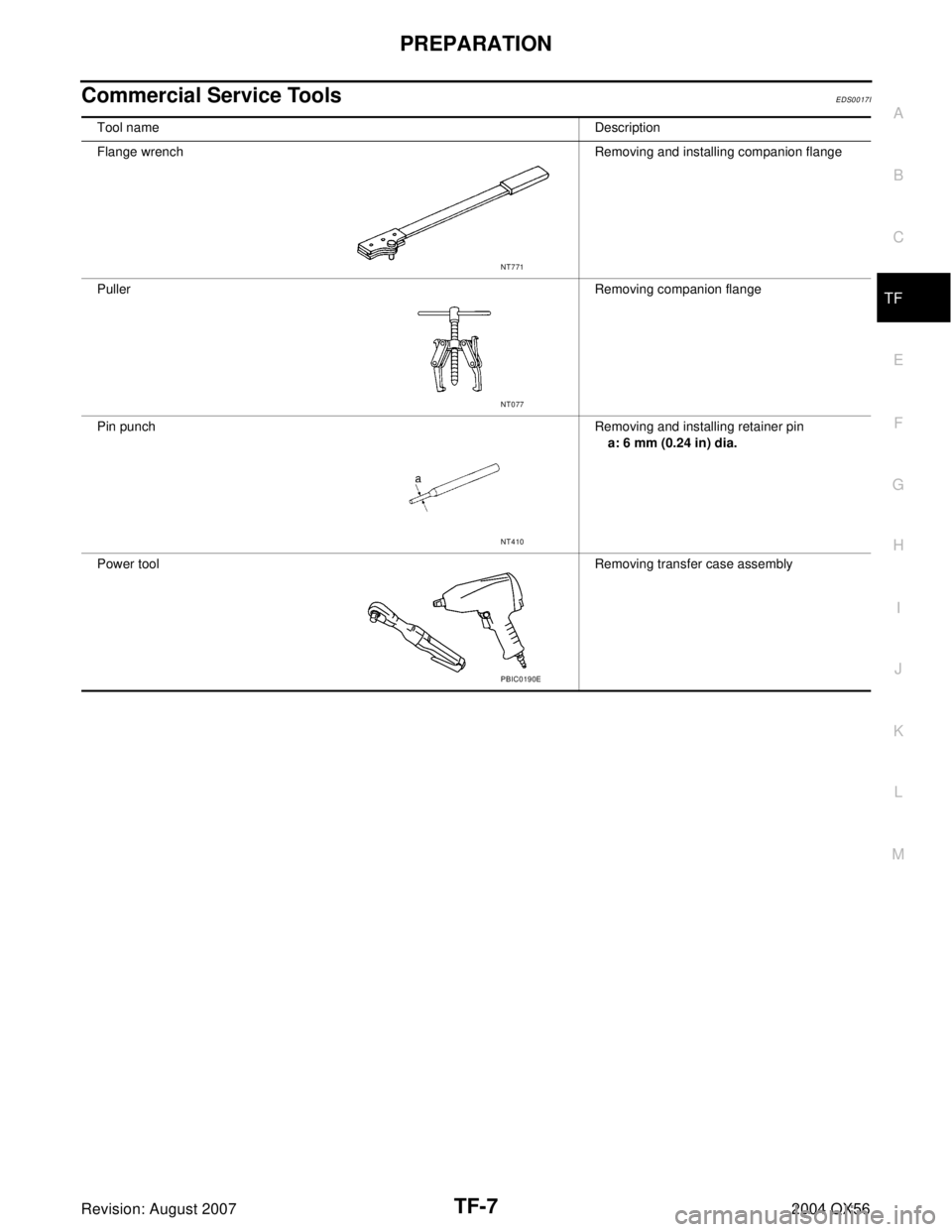

Commercial Service ToolsEDS0017I
Tool nameDescription
Flange wrench Removing and installing companion flange
PullerRemoving companion flange
Pin punchRemoving and installing retainer pin
a: 6 mm (0.24 in) dia.
Power toolRemoving transfer case assembly
NT771
NT077
NT410
PBIC0190E

TF-8
PRECAUTIONS
Revision: August 20072004 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EDS0017J
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WAR NIN G:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
PrecautionsEDS0017K

Before connecting or disconnecting the transfer control
unit harness connector, turn ignition switch OFF and dis-
connect negative battery terminal. Failure to do so may
damage the transfer control unit. Because battery voltage is
applied to transfer control unit even if ignition switch is
turned off.

When connecting or disconnecting pin connectors into or
from transfer control unit, take care not to damage pin ter-
minals (bend or break).
Make sure that there are not any bends or breaks on trans-
fer control unit pin terminal, when connecting pin connec-
tors.

Before replacing transfer control unit, perform transfer con-
trol unit input/output signal inspection and make sure
whether transfer control unit functions properly or not. (See
page TF-55
.)
SEF 2 89 H
SEF 2 91 H
MEF040DB

PRECAUTIONS
TF-9
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56
Service NoticeEDS0017L
1. Before proceeding with disassembly, thoroughly clean the outside of the all-mode 4WD transfer. It is
important to prevent the internal parts from becoming contaminated by dirt or other foreign matter.
2. Disassembly should be done in a clean work area.
3. Use lint-free cloth or towels for wiping parts clean. Common shop rags can leave fibers that could interfere
with the operation of the all-mode 4WD transfer.
4. Place disassembled parts in order for easier and proper assembly.
5. All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or
reassembly.
6. Gaskets, seals and O-rings should be replaced any time the all-mode 4WD transfer is disassembled.
7. It is very important to perform functional tests whenever they are indicated.
8. The valve body contains precision parts and requires extreme care when parts are removed and serviced.
Place removed parts in a parts rack in order to replace them in correct positions and sequences. Care will
also prevent springs and small parts from becoming scattered or lost.
9. Properly installed valves, sleeves, plugs, etc. will slide along bores in valve body under their own weight.
10. Before assembly, apply a coat of recommended ATF to all parts. Apply petroleum jelly to protect O-rings
and seals, and to hold bearings and washers in place during assembly. Do not use grease.
11. Extreme care should be taken to avoid damage to O-rings, seals and gaskets when assembling.
12. After overhaul, refill the transfer with new ATF.
13. When the all-mode 4WD transfer drain plug is removed, only some of the fluid is drained. Old all-mode
4WD transfer fluid will remain in torque converter and ATF cooling system. Always follow the proper pro-
cedure. Refer to MA-24, "
Changing Transfer Fluid" .
Wiring Diagrams and Trouble DiagnosisEDS001CE
When you read wiring diagrams, refer to the following:

GI-15, "How to Read Wiring Diagrams" .

PG-4, "POWER SUPPLY ROUTING CIRCUIT" for power distribution circuit.
When you perform trouble diagnosis, refer to the following:

GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES".

GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident".

TF-44
TROUBLE DIAGNOSIS — INTRODUCTION
Revision: August 20072004 QX56
TROUBLE DIAGNOSIS — INTRODUCTIONPFP:00000
IntroductionEDS0017W
DESCRIPTION
When a malfunction (indicated by the 4WD warning lamp illumination) occurs, collect information first from the
customer about how the malfunction occurs. Then, proceed with the diagnosis presuming it is the cause. Also
inspect the electrical system, paying close attention to other possibilities such as fluid level and leaks.
All-mode 4WD transfer is controlled by transfer control unit and sensors.
If a malfunction occurs in the all-mode 4WD system, the 4WD warning lamp lights up to inform of the system
malfunction. There are two ways to identify the cause of the malfunction.
1. Performing the self-diagnosis. (The 4WD warning lamp will indicate what kind of malfunction has occurred
by flickering.)
2. Performing diagnosis using CONSULT-II.
DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS

WHAT ..... Vehicle model

WHEN..... Date, Frequencies

WHERE..... Road conditions

HOW..... Operating conditions, Symptoms
Diagnostic Worksheet
Information sheet from customer
Customer name MR/MS Model & Year VIN
Transfer model
AT X 1 4 BEngine Mileage
Incident Date Manuf. Date In Service Date
Frequency❏ Continuous ❏ Intermittent ( times a day)
Symptoms❏ 4WD shift indicator lamp does not turn on.
❏ 4WD warning lamp does not turn on.
❏ 4WD shift indicator lamp does not turn off.
❏ ATP warning lamp does not turn on.
❏ 4LO indicator lamp does not turn on.
❏ 4WD shift indicator lamp does not indicate “4H”.
❏ 4WD shift indicator lamp repeats flicking.
❏ Tight corner braking symptom occurs.
❏ 4WD system does not operate.
❏ Others.
4WD warning lamp❏ Continuously lit❏ Not lit
1.❏ Listen to customer complaints.TF-47
2.❏ Check transfer fluid.TF-47
❏ Leakage
❏ Fluid condition
❏ Fluid level
3.❏ Road testingTF-47
❏ 1. Check before engine is started.
❏ 2. Check at idle.
❏ 3. Cruise test
4.❏ Perform self-diagnosis NG items (with CONSULT-II and without CONSULT-II).TF-31
, TF-28

SERVICE DATA AND SPECIFICATIONS (SDS)
TF-153
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: August 20072004 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsEDS0031B
Inspection and AdjustmentEDS0031C
CLEARANCE BETWEEN INNER GEAR AND OUTER GEAR
Unit: mm (in)
CLUTCH
Unit: mm (in)
PINION GEAR END PLAY
Unit: mm (in)
CLEARANCE BETWEEN SHIFT FORK AND SLEEVE
Unit: mm (in)
SELECTIVE PARTS
Sub-oil Pump
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Main Oil Pump
Unit: mm (in) Applied modelVK56DE
Transfer modelATX14B
Fluid capacity (Approx.)
(US qt, lmp qt)3.0 (3-1/8, 2-5/8)
Gear ratioHigh 1.000
Low 2.596
Number of teethPlanetary
gearSun gear 57
Internal gear 91
Front drive sprocket 38
Front drive shaft 38
Item Specification
Sub-oil pump 0.015 - 0.035 (0.0006 - 0.0014)
Main oil pump 0.015 - 0.035 (0.0006 - 0.0014)
Item Limit value
Drive plate1.4 (0.055)
Item Standard
Pinion gear end play 0.1 - 0.7 (0.004 - 0.028)
Item Standard
Shift fork and sleeve Less than 0.36 (0.0142)
Gear thicknessPart number*
Inner gear Outer gear
9.27 - 9.28 (0.3650 - 0.3654) 31346 0W462 31347 0W462
9.28 - 9.29 (0.3654 - 0.3657) 31346 0W461 31347 0W461
9.29 - 9.30 (0.3657 - 0.3661) 31346 0W460 31347 0W460
Gear thicknessPart number*
Inner gear Outer gear
8.27 - 8.28 (0.3256 - 0.3260) 31346 7S112 31347 7S112
8.28 - 8.29 (0.3260 - 0.3264) 31346 7S111 31347 7S111
8.29 - 8.30 (0.3264 - 0.3268) 31346 7S110 31347 7S110

TF-154
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: August 20072004 QX56
*: Always check with the Parts Department for the latest parts information.
Control Valve
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Control Valve Spring
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Return Spring
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.Mounting position
(Part name)Part number* Outer dia. Overall length
L1
(2-4 shift valve)31772 21X00 8.0 (0.315) 38.5 (1.516)
L2
(Clutch valve)31772 80X11 10.0 (0.394) 40.0 (1.575)
L4
(Pilot valve)31772 80X11 10.0 (0.394) 40.0 (1.575)
L5
(Regulator valve)31741 0W410 12.0 (0.472) 68.0 (2.677)
Mounting position
(Part name)Part number* Free length Outer dia. Overall length
L1
(2-4 shift valve spring)31742 2W500 31.85 (1.2539) 7.0 (0.276) 0.6 (0.024)
L2
(Clutch valve spring)31742 2W505 40.6 (1.598) 8.9 (0.350) 0.7 (0.028)
L4
(Pilot valve spring)31742 0W410 28.1 (1.106) 9.0 (0.354) 1.2 (0.047)
L5
(Regulator valve spring)31742 2W515 39.7 (1.563) 11.0 (0.433) 1.3 (0.051)
Stamped mark Part number* Free length
1 31521 7S111 42.7 (1.168)
2 31521 7S112 43.1 (1.697)
3 31521 7S113 43.6 (1.717)
4 31521 7S114 44.0 (1.731)
Stamped mark Part number* Free length Outer dia. Overall length
L1
(2-4 shift valve spring)31742 2W500 31.85 (1.2539) 7.0 (0.276) 0.6 (0.024)
L2
(Clutch valve spring)31742 2W505 40.6 (1.598) 8.9 (0.350) 0.7 (0.028)
L4
(Pilot valve spring)31742 0W410 28.1 (1.106) 9.0 (0.354) 1.2 (0.047)
L5
(Regulator valve spring)31742 2W515 39.7 (1.563) 11.0 (0.433) 1.3 (0.051)

WT-1
ROAD WHEELS & TIRES
E SUSPENSION
CONTENTS
C
D
F
G
H
I
J
K
L
M
SECTION WT
A
B
WT
Revision: August 20072004 QX56 PREPARATION ........................................................... 2
Special Service Tool ................................................. 2
Commercial Service Tools ........................................ 2
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 3
NVH Troubleshooting Chart ..................................... 3
WHEEL ....................................................................... 4
Inspection ................................................................. 4
WHEEL AND TIRE ASSEMBLY ................................. 5
Balancing Wheels .................................................... 5
REMOVAL ............................................................. 5
WHEEL BALANCE ADJUSTMENT ...................... 5
Rotation .................................................................... 6
LOW TIRE PRESSURE WARNING SYSTEM ............ 7
System Components ................................................ 7
System Description .................................................. 7
TRANSMITTER ..................................................... 7
REMOTE KEYLESS ENTRY RECEIVER ............. 7
BCM (BODY CONTROL MODULE) ...................... 8
LOW TIRE PRESSURE WARNING LAMP AND
BUZZER ................................................................ 8
DISPLAY UNIT ...................................................... 8
CAN COMMUNICATION ............................................ 9
System Description .................................................. 9
TROUBLE DIAGNOSES .......................................... 10
Wiring Diagram — T/WARN — .............................. 10
Terminal and Reference Value (BCM) .................... 12
ID Registration Procedure ...................................... 13
ID REGISTRATION WITH TRANSMITTER
ACTIVATION TOOL ............................................ 13
ID REGISTRATION WITHOUT TRANSMITTER
ACTIVATION TOOL ............................................ 14
Transmitter Wake Up Operation ............................. 15
............................................................................ 15
CONSULT-II Function (BCM) ................................. 16
Self-Diagnosis ........................................................ 17
DESCRIPTION .................................................... 17
FUNCTION .......................................................... 17CONSULT-II ......................................................... 17
How to Perform Trouble Diagnosis for Quick and
Accurate Repair ...................................................... 19
INTRODUCTION ................................................. 19
WORK FLOW ...................................................... 19
Preliminary Check .................................................. 20
Malfunction Code/Symptom Chart .......................... 21
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC
ITEMS ........................................................................ 23
Inspection 1: Transmitter or Control Unit (BCM) ..... 23
MALFUNCTION CODE NO. 21, 22, 23 OR 24 ... 23
Inspection 2: Transmitter - 1 ................................... 23
MALFUNCTION CODE NO. 31, 32, 33, 34, 41,
42, 43, 44, 45, 46, 47 OR 48 ............................... 23
Inspection 3: Transmitter - 2 ................................... 24
MALFUNCTION CODE NO. 35, 36, 37 OR 38 ... 24
Inspection 4: Vehicle Speed Signal ........................ 25
MALFUNCTION CODE NO. 52 ........................... 25
TROUBLE DIAGNOSIS FOR SYMPTOMS .............. 26
Inspection 1: Low Tire Pressure Warning Lamp
Does Not Come On When Ignition Switch Is Turned
On ........................................................................... 26
Inspection 2: Low Tire Pressure Warning Lamp
Stays On When Ignition Switch Is Turned On ......... 26
Inspection 3: Low Tire Pressure Warning Lamp
Flashes When Ignition Switch Is Turned On .......... 28
Inspection 4: Hazard Warning Lamp Flashes When
Ignition Switch Is Turned On .................................. 29
Inspection 5: “TIRE PRESSURE” Information In
Display Unit Does Not Exist .................................... 30
Inspection 6: ID Registration Cannot Be Completed ... 30
REMOVAL AND INSTALLATION ............................. 31
Transmitter (Pressure Sensor) ............................... 31
REMOVAL ........................................................... 31
INSTALLATION ................................................... 31
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 33
Road Wheel ............................................................ 33
Tire ......................................................................... 33

WT-2
PREPARATION
Revision: August 20072004 QX56
PREPARATIONPFP:00002
Special Service ToolEES00120
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsEES00121
Tool number
(Kent-Moore No.)
Tool nameDescription
(J-45295)
Transmitter activation toolID registration
LEIA0035E
Tool nameDescription
Power toolRemoving wheel nuts
PBIC0190E
