NAVIGATION SYSTEM
AV-101
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: August 20072004 QX56
On Board Self-Diagnosis FunctionEKS007LT
DESCRIPTION

Diagnosis function consists of the self-diagnosis mode performed automatically and the CONFIRMATION/
ADJUSTMENT mode operated manually.

Self-diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the LCD screen.

CONFIRMATION/ADJUSTMENT mode is used to perform trouble diagnosis that require operation and
judgment by an operator (trouble that cannot be automatically judged by the system), to check/change the
set value, and to display the History of Errors of the navigation system.
DIAGNOSIS ITEM
NOTE:
Make the status that is set by D/N function be shown.
Self-Diagnosis Mode (DCU)EKS007LU
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system off.
Mode Description
Self-diagnosis (DCU) Display control unit diagnosis.
Self-diagnosis (NAVI)

NAVI Control unit diagnosis (DVD-ROM drive) will not be diagnosed
when no map DVD-ROM is in it.

Analyzes connection between the NAVI control unit and the GPS
antenna and operation of each unit.
CONFIRMATION/
ADJUSTMENTDisplay diagnosisIn display control unit mode, color tone and shading of the screen can be
checked by the display of a color bar and a gray scale.
Vehicle signalsIn display control unit mode, analyzes the following vehicle signals: Vehi-
cle speed signal, light signal
NOTE , ignition switch signal, and reverse sig-
nal.
Auto Climate Control A/C self-diagnosis of A/C system.
NavigationDisplay diagnosisIn NAVI C/U mode, color tone and shading of the screen can be checked
by the display of a color bar and a gray scale.
Vehicle signalsIn NAVI C/U mode, analyzes the following vehicle signals: Vehicle speed
signal, light signal, ignition switch signal, and reverse signal.
History of ErrorsDiagnosis results previously stored in the memory (before turning ignition
switch ON) are displayed in this mode. Time and location when/where the
errors occurred are also displayed.
Naviga-
tionDisplay Lon-
gitude & Lat-
itudeDisplay the map. Use the joystick to adjust position. Longitude and latitude
will be displayed.
Speed Cali-
brationUnder ordinary conditions, the navigation system distance measuring
function will automatically compensate for minute decreases in wheel and
tire diameter caused by tire wear or low-pressure. Speed calibration imme-
diately restores system accuracy in cases such as when distance calibra-
tion is needed because of the use of tire chains in inclement weather.
Angle
adjustmentCorrects difference between actual turning angle of a vehicle and turning
angle of the car mark on the display.
Initialize
LocationThis mode is for initializing the current location. Use when the vehicle is
transported a long distance on a trailer, etc.
CAN DIAG SUPPORT MONITOR Display status of CAN communication.

BCS-8
BCM (BODY CONTROL MODULE)
Revision: August 20072004 QX56
CAN Communication System DescriptionEKS007GF
Refer to LAN-5, "CAN COMMUNICATION" .
Power supply (BAT) to power window and
sunroofBattery power supply Power supply to power window and sunroof system
Panic alarm

Key switch

KeyfobIPDM E/R
Auto light system

Auto light sensor

Combination switchIPDM E/R
Battery saver control

Ignition switch

Combination switch

Front door switch LH

Front door switch RHIPDM E/R
Headlamp Combination switch IPDM E/R
Tail lamp Combination switch IPDM E/R
Fog lamp Combination switch IPDM E/R
Turn signal lamp Combination switch

Turn signal lamp

Combination meter
Hazard lamp Hazard switch

Turn signal lamp

Combination meter
Room lamp timer

Key switch

Keyfob

Main power window and door
lock/unlock switch

Front door lock assembly LH
(key cylinder switch)

All door switchInterior room lamp
Key warning chime

Key switch

Front door switch LHCombination meter (warning buzzer)
Light warning chime

Combination switch

Key switch

Front door switch LHCombination meter (warning buzzer)
Vehicle-speed-sensing intermittent wiper

Combination switch

Combination meterIPDM E/R
Rear window defogger Rear window defogger switch IPDM E/R
Air conditioner switch signal Front air control ECM
Blower fan switch signal Front air control ECM
Low tire pressure warning system Remote keyless entry receiver

Combination meter

Display control unit
Trailer tow Combination switch Trailer turn signal lamp
Vehicle security system

Remote keyless entry receiver
(Keyfob)

Main power window and door
lock/unlock switch

Power window and door lock/
unlock switch RH

Front door lock assembly LH
(key cylinder switch)

All door switch

Glass hatch ajar switch

IPDM E/R

Security indicator lamp System Input Output

LT-3
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56 COMBINATION SWITCH READING FUNCTION . 109
EXTERIOR LAMP BATTERY SAVER CONTROL . 109
CAN Communication System Description ............ 109
Schematic ............................................................. 110
Wiring Diagram — TAIL/L — ................................ . 111
Terminals and Reference Values for BCM ............ 114
Terminals and Reference Values for IPDM E/R .... 115
How to Proceed With Trouble Diagnosis ............... 115
Preliminary Check ................................................. 116
CHECK POWER SUPPLY AND GROUND CIR-
CUIT ................................................................... 116
CONSULT-II Functions .......................................... 117
Parking, License Plate and/or Tail Lamps Do Not
Illuminate ............................................................... 117
Parking, License Plate and Tail Lamps Do Not Turn
OFF (After Approx. 10 Minutes) ........................... 120
Front Parking Lamp .............................................. 121
BULB REPLACEMENT ..................................... 121
Tail Lamp .............................................................. 121
BULB REPLACEMENT ..................................... 121
License Plate Lamp .............................................. 121
BULB REPLACEMENT ..................................... 121
REAR COMBINATION LAMP ................................ 122
Bulb Replacement (Turn Signal) .......................... 122
Removal and Installation ...................................... 122
.......................................................................... 122
TRAILER TOW ....................................................... 123
Component Parts and Harness Connector Location . 123
System Description .............................................. 123
TRAILER TAIL LAMP OPERATION .................. 124
TRAILER BRAKE, TURN SIGNAL AND HAZARD
LAMP OPERATION .......................................... 124
TRAILER BRAKE OPERATION ........................ 124
TRAILER POWER SUPPLY OPERATION ........ 124
Schematic ............................................................ 125
Wiring Diagram — T/TOW — ............................... 126
INTERIOR ROOM LAMP ........................................ 129
Component Parts and Harness Connector Location . 129
System Description .............................................. 130POWER SUPPLY AND GROUND ....................130
SWITCH OPERATION ......................................131
ROOM LAMP TIMER OPERATION ..................131
INTERIOR LAMP BATTERY SAVER CONTROL .132
Schematic .............................................................133
Wiring Diagram — INT/L — ..................................135
Terminals and Reference Values for BCM ............142
How to Proceed With Trouble Diagnosis ..............142
Preliminary Check ................................................143
INSPECTION FOR POWER SUPPLY AND
GROUND CIRCUIT ...........................................143
CONSULT-II Function (BCM) ...............................144
CONSULT-II OPERATION .................................144
WORK SUPPORT .............................................145
DATA MONITOR ...............................................145
ACTIVE TEST ...................................................146
Room/Map Lamp Control Does Not Operate .......146
Personal Lamp Control Does Not Operate (Room/
Map Lamps Operate) ............................................148
All Step/Foot/Puddle Lamps Do Not Operate .......149
All Interior Room Lamps Do Not Operate .............150
Ignition Keyhole Illumination Control Does Not
Operate .................................................................150
ILLUMINATION .......................................................152
Component Parts and Harness Connector Location .152
System Description ...............................................152
ILLUMINATION OPERATION BY LIGHTING
SWITCH ............................................................153
EXTERIOR LAMP BATTERY SAVER CONTROL .154
CAN Communication System Description ............154
Schematic .............................................................155
Wiring Diagram — ILL — ......................................158
Removal and Installation ......................................169
ILLUMINATION CONTROL SWITCH ................169
BULB SPECIFICATIONS ........................................170
Headlamp .............................................................170
Exterior Lamp .......................................................170
Interior Lamp/Illumination .....................................170

TRAILER TOW
LT-123
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56

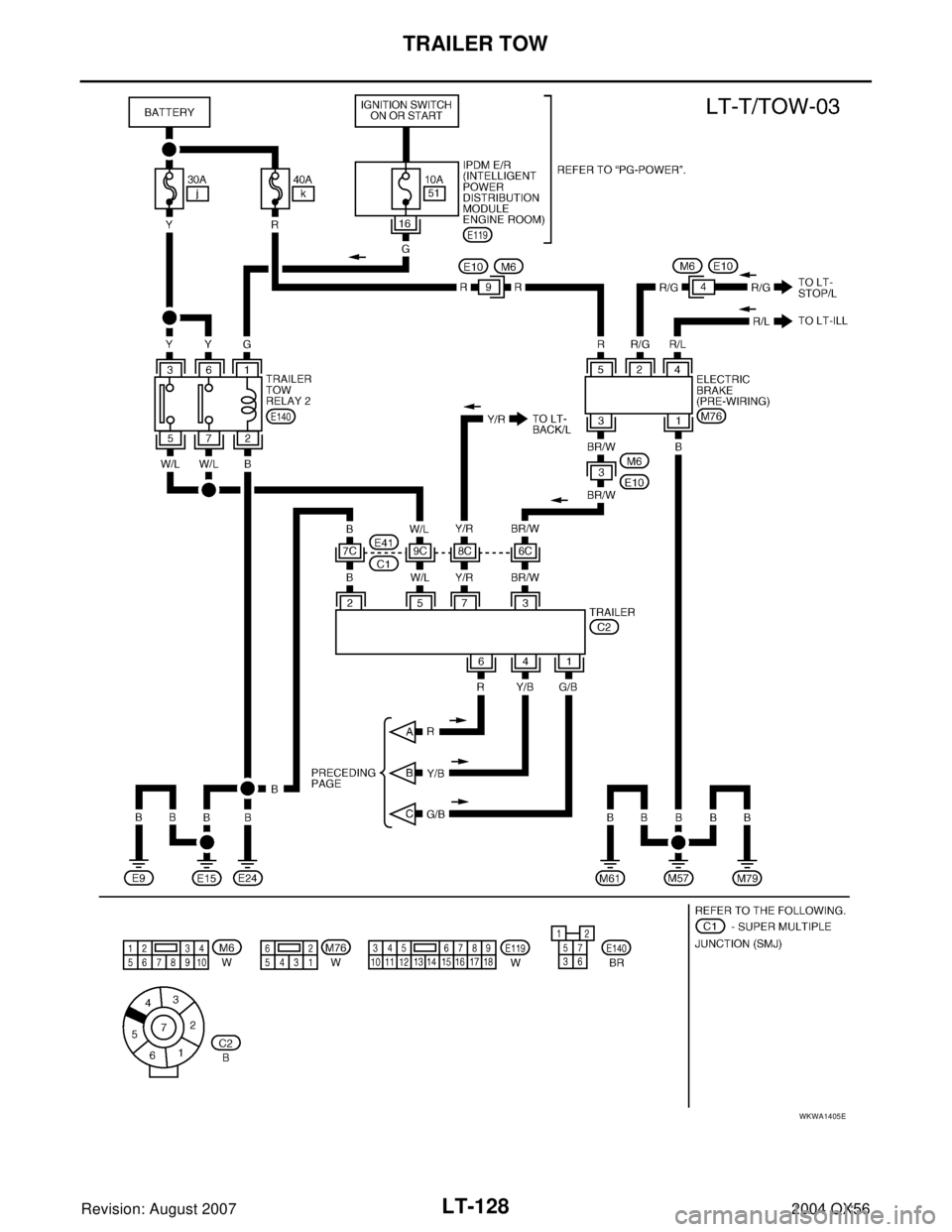

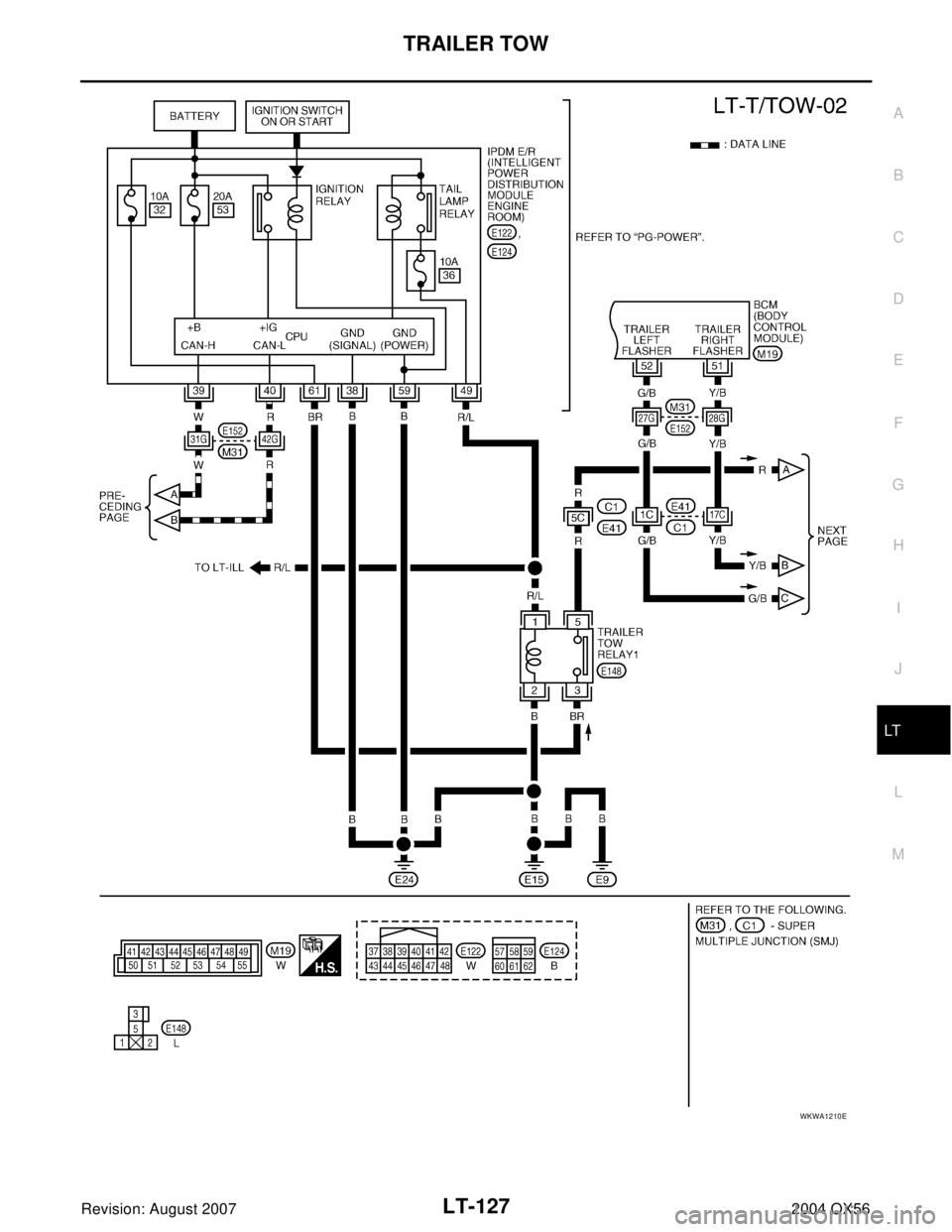

TRAILER TOWPFP:93020
Component Parts and Harness Connector LocationEKS007CT
System DescriptionEKS007CU
Power is supplied at all times

through 50A fusible link (letter f , located in the fuse and fusible link box)

to BCM (body control module) terminal 70, and

through 10A fuse [No. 32, located in the IPDM E/R (intelligent power distribution module engine room)]

through IPDM E/R terminal 61

to trailer tow relay 1 terminal 3, and

through 20A fuse (No. 53, located in the IPDM E/R)

to CPU of the IPDM E/R, and

through 30A fusible link (letter j , located in the fuse and fusible link box)

to trailer tow relay 2 terminals 3 and 6, and

through 40A fusible link (letter k , located in the fuse and fusible link box)

to electric brake (pre-wiring) terminal 5.
With the ignition switch in the ON or START position, power is supplied
WKIA3398E

LT-124
TRAILER TOW
Revision: August 20072004 QX56

through 10A fuse (No. 59, located in the fuse and relay box)

to BCM terminal 38, and

through 10A fuse (No. 51, located in the IPDM E/R)

to trailer tow relay 2 terminal 1.
Ground is supplied

to BCM terminal 67 and

to electric brake (pre-wiring) terminal 1

through grounds M57, M61 and M79, and

to IPDM E/R terminals 38 and 59

to trailer tow relay 1 terminal 2

to trailer tow relay 2 terminal 2 and

to trailer connector terminal 2

through grounds E9, E15 and E24.
TRAILER TAIL LAMP OPERATION
The trailer tail lamps are controlled by the trailer tow relay 1.
With the lighting switch in the parking and tail lamp ON (1ST) position, AUTO position (and the auto light sys-
tem is activated) or headlamp ON (2ND) position, power is supplied

through the tail lamp relay, located in the IPDM E/R

through 10A fuse (No. 36, located in the IPDM E/R)

through IPDM E/R terminal 49

to trailer tow relay 1 terminal 1.
When energized, trailer tow relay 1 supplies tail lamp power to trailer connector terminal 6.
TRAILER BRAKE, TURN SIGNAL AND HAZARD LAMP OPERATION
The trailer brake, turn signal and hazard lamps are all controlled by the BCM. When the brake pedal is
depressed, the BCM receives stop lamp switch signal through CAN communication. If the brake pedal is
depressed or either turn signal or the hazard lamps are turned on, the BCM supplies voltage to the trailer
lamps to make them flash or turn on.
Left trailer brake, turn signal and hazard lamp output is supplied

through BCM terminal 52

to trailer connector terminal 1.
Right trailer brake, turn signal and hazard lamp output is supplied

through BCM terminal 51

to trailer connector terminal 4.
TRAILER BRAKE OPERATION
The trailer brake is controlled by the electric brake. The electric brake receives stop lamp switch signal at elec-
tric brake (pre-wiring) terminal 2 when the brake pedal is depressed.
When the brake pedal is depressed, power is supplied by the electric brake

through electric brake (pre-wiring) terminal 3

to trailer connector terminal 3.
TRAILER POWER SUPPLY OPERATION
The trailer power supply is controlled by the trailer tow relay 2.
When the ignition switch is in the ON or START position, power is supplied

through 10A fuse (No. 51, located in the IPDM E/R)

to IPDM E/R terminal 16

to trailer tow relay 2 terminal 1.
When energized, the trailer tow relay 2 supplies power

through trailer tow relay 2 terminals 5 and 7

to trailer connector terminal 5.

TRAILER TOW
LT-125
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
SchematicEKS007CV
WKWA3120E

LT-126
TRAILER TOW
Revision: August 20072004 QX56
Wiring Diagram — T/TOW —EKS007CW
WKWA3121E

TRAILER TOW
LT-127
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
WKWA1210E

LT-128
TRAILER TOW
Revision: August 20072004 QX56
WKWA1405E

MA-6
PERIODIC MAINTENANCE
Revision: August 20072004 QX56
PERIODIC MAINTENANCEPFP:00026
Introduction of Periodic MaintenanceELS00100
Two different maintenance schedules are provided, and should be used, depending upon the conditions in
which the vehicle is mainly operated. After 60,000 miles (96,000 km) or 48 months, continue the periodic
maintenance at the same mileage or time intervals, whichever comes first.
Maintenance For Off-road Driving (4WD only)ELS0012H
After driving the vehicle off-road through sand, mud, or water; more frequent maintenance may be required for
the following items:
Brake pads and rotors
Brake lines and hoses
Rear final drive oil, transmission fluid, and transfer fluid
Steering linkage
Drive shafts
Engine air cleaner filter
In-cabin microfilters
Schedule 1ELS00101
EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: R = Replace. I = Inspect. Correct or replace if necessary. [ ]: At the mileage intervals only Schedule 1Follow Periodic Maintenance Schedule 1 if your driving habits frequently includes
one or more of the following driving conditions:

Repeated short trips of less than 5 miles (8 km).

Repeated short trips of less than 10 miles (16 km) with outside temperatures
remaining below freezing.

Operating in hot weather in stop-and-go “rush hour” traffic.

Extensive idling and/or low speed driving for long distances, such as police,
taxi or door-to-door delivery use.

Driving in dusty conditions.

Driving on rough, muddy, or salt spread roads.

Towing a trailer or using a car-top carrier.Emission Control Sys-
tem MaintenanceMA-6
Chassis and Body
MaintenanceMA-6
Schedule 2Follow Periodic Maintenance Schedule 2 if none of the driving conditions shown
in Schedule 1 apply to the driving habits.Emission Control Sys-
tem MaintenanceMA-8Chassis and Body
MaintenanceMA-8
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
Section -
Page or -
Content Title Perform at number of miles,
kilometers or months, which-
ever comes first.Miles x 1,000
(km x 1,000)
Months3.75
(6)
37.50
(12)
611 . 2 5
(18)
915
(24)
1218.75
(30)
1522.5
(36)
1826.25
(42)
2130
(48)
24
Drive belts NOTE (1)MA-12
Air cleaner filter NOTE (2) [R]MA-15
EVAP vapor linesI*MA-19
Fuel linesI*MA-15
Fuel filter NOTE (3)—
Engine coolant NOTE (4)MA-12
Engine oil R R RRRRRRMA-16
Engine oil filter R R RRRRRRMA-16
Spark plugs (double PLATI-
NUM-TIPPED type)Replace every 105,000 miles (169,000 km).MA-17
Intake and exhaust valve
clearance*NOTE (5)EM-52
