PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EJS003WO
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Working with HFC-134a (R-134a)EJS003WP
WARNING:

CFC-12 (R-12) refrigerant and HFC-134a (R-134a) refrigerant are not compatible. If the refrigerants
are mixed compressor failure is likely to occur. Refer to AT C - 5 , "
Contaminated Refrigerant" . To
determine the purity of HFC-134a (R-134a) in the vehicle and recovery tank, use recovery/recycling
equipment and refrigerant identifier.

Use only specified oil for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components.
If oil other than that specified is used, compressor failure is likely to occur.

The specified HFC-134a (R-134a) oil rapidly absorbs moisture from the atmosphere. The following
handling precautions must be observed:
–When removing refrigerant components from a vehicle, immediately cap (seal) the component to
minimize the entry of moisture from the atmosphere.
–When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just
before connecting the components. Connect all refrigerant loop components as quickly as possi-
ble to minimize the entry of moisture into system.
–Only use the specified oil from a sealed container. Immediately reseal containers of oil. Without
proper sealing, oil will become moisture saturated and should not be used.
–Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.
Remove HFC-134a (R-134a) from the A/C system using certified service equipment meeting
requirements of SAE J2210 [HFC-134a (R-134a) recycling equipment], or J2209 [HFC-134a (R-134a)
recovery equipment]. If accidental system discharge occurs, ventilate work area before resuming
service. Additional health and safety information may be obtained from refrigerant and oil manu-
facturers.
–Do not allow oil, NISSAN A/C System Oil Type S (DH-PS) or equivalent, to come in contact with sty-
rofoam parts. Damage may result.
Contaminated RefrigerantEJS003WQ
If a refrigerant other than pure HFC-134a (R-134a) is identified in a vehicle, your options are:

Explain to the customer that environmental regulations prohibit the release of contaminated refrigerant
into the atmosphere.

Explain that recovery of the contaminated refrigerant could damage your service equipment and refriger-
ant supply.

Suggest the customer return the vehicle to the location of previous service where the contamination may
have occurred.

TROUBLE DIAGNOSISATC-121
C
DE
F
G H
I
K L
M A
B
AT C
Revision: November 2009 2006 QX56
Insufficient CoolingEJS003XW
SYMPTOM: Insufficient cooling
INSPECTION FLOW
*1ATC-58, "Operational Check
(Front)"
*2 ATC-56, "A/C System Self-diagno-
sis Function"
*3AT C - 5 7 , "SELF-DIAGNOSIS CODE
CHART"
*4EC-473, "SYSTEM DESCRIPTION"*5 AT C - 5 , "Contaminated Refrigerant"*6ATC-122, "PERFORMANCE TEST
DIAGNOSES"
*7ATC-124, "Test Reading"*8 EM-13, "Checking Drive Belts"*9ATC-132, "Water Valve Circuit"
WJIA1790E

TROUBLE DIAGNOSISATC-123
C
DE
F
G H
I
K L
M A
B
AT C
Revision: November 2009 2006 QX56

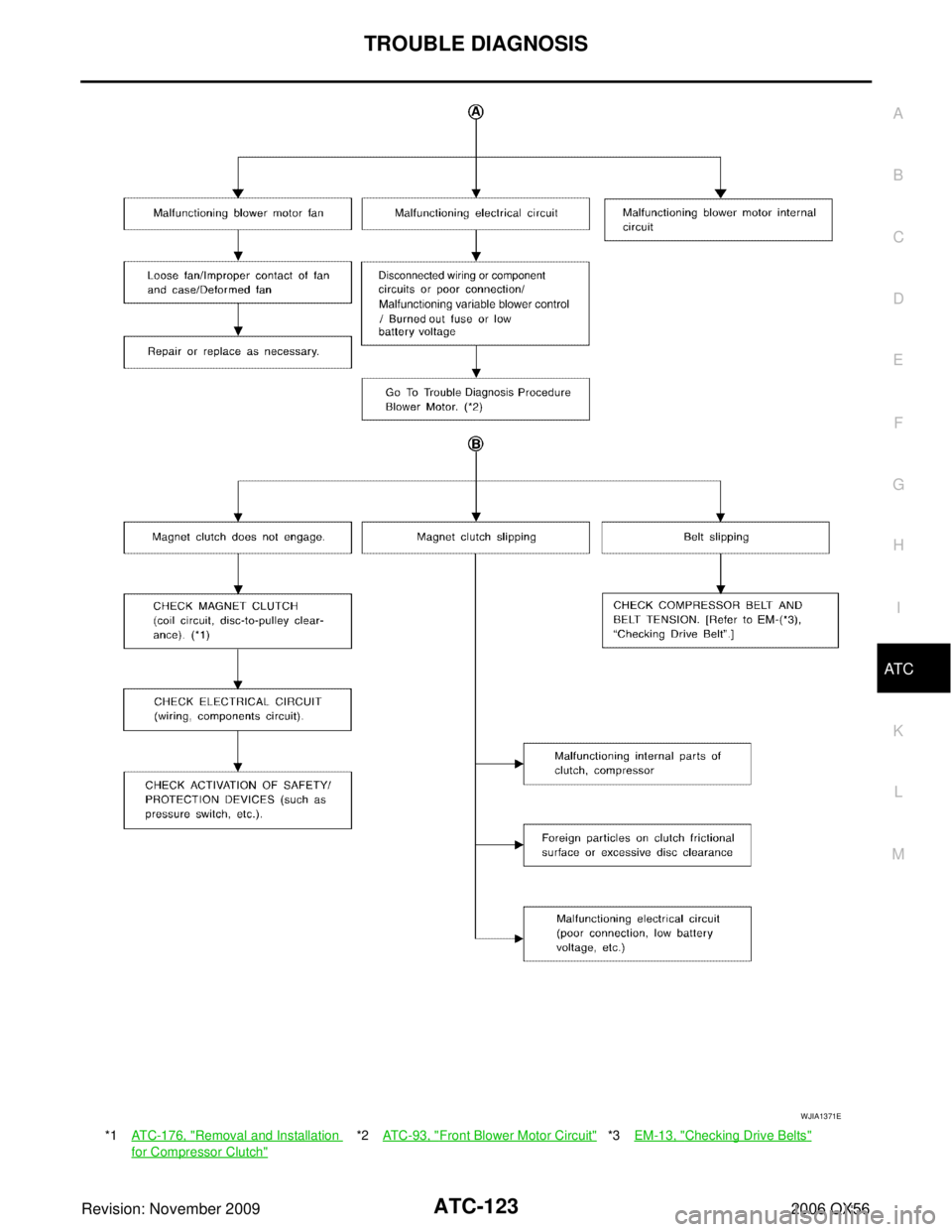

*1ATC-176, "Removal and Installation

for Compressor Clutch"
*2ATC-93, "Front Blower Motor Circuit"*3 EM-13, "Checking Drive Belts"
WJIA1371E

ATC-128
TROUBLE DIAGNOSIS
Revision: November 20092006 QX56
Insufficient HeatingEJS003XX
SYMPTOM: Insufficient heating
INSPECTION FLOW
*1ATC-58, "Operational Check (Front)"
or AT C - 6 0 , "
Operational Check
(Rear)"
*2 AT C - 7 0 , "Air Mix Door Motor Circuit"*3ATC-56, "A/C System Self-diagno-
sis Function"
*4 ATC-57, "SELF-DIAGNOSIS CODE
CHART"
*5AT C - 9 3 , "Front Blower Motor Circuit"*6EC-192, "DTC P0117, P0118 ECT
SENSOR"
*7 EM-13, "Checking Drive Belts"*8ATC-132, "Water Valve Circuit"
WJIA1889E

TROUBLE DIAGNOSISATC-129
C
DE
F
G H
I
K L
M A
B
AT C
Revision: November 2009 2006 QX56
NoiseEJS003XY
SYMPTOM: Noise
INSPECTION FLOW
*1ATC-175, "REMOVAL".* 2ATC-176, "INSTALLATION".*3 AT C - 2 2 , "Maintenance of Oil Quan-
tity in Compressor".
*4 AT C - 5 8 , "
Operational Check (Front)"
or ATC-60, "
Operational Check
(Rear)" . *5
EM-13, "
Checking Drive Belts".
WJIA2293E

REFRIGERANT LINESATC-175
C
DE
F
G H
I
K L
M A
B
AT C
Revision: November 2009 2006 QX56
Removal and Installation for CompressorEJS003YT
A/C Compressor Mounting
REMOVAL
1. Discharge the refrigerant. Refer to ATC-171, "HFC-134a (R-134a) Service Procedure" .
2. Remove the front right wheel and tire assembly. Refer to WT-7, "
Rotation" .
3. Remove the engine under cover and the splash shield using power tool.
4. Remove the engine air cleaner and air ducts. Refer to EM-15, "
AIR CLEANER AND AIR DUCT" .
5. Remove the drive belt. Refer to EM-13, "
DRIVE BELTS" .
6. Disconnect the compressor electrical connector.
7. Disconnect the high-pressure flexible hose and low-pressure flexible hose from the compressor. CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
8. Remove the compressor bolts and nut using power tools.
WJIA0958E

ATC-178
REFRIGERANT LINES
Revision: November 20092006 QX56
2. Install the magnet coil harness clip using a screwdriver.
3. Install the pulley assembly using Tool and a wrench, then install
the snap ring using snap ring pliers.
4. Install the clutch disc on the compressor shaft, together with the original shim(s). Press the clutch disc down by hand.
5. Install the clutch pulley bolt using Tool, to prevent the clutch disc from turning and tighten the bolt to specification.
CAUTION:
After tightening the clutch pulley bolt, check that the clutch
pulley rotates smoothly.
6. Check the pulley clearance all the way around the clutch disc as shown.
7. If the specified clearance is not obtained, replace the adjusting spacer to readjust.
8. Connect the compressor electrical connector.
9. Install the drive belt. Refer to EM-13, "
DRIVE BELTS" .
10. Install the engine under cover and the splash shield. Tool number : — (J-38873-A)
WJIA1016E
WHA184
Tool number : J-44614
WHA229
Clutch disc-to-pulley clearance : 0.3 - 0.6 mm
(0.012 - 0.024 in)
WHA194

ATC-182
REFRIGERANT LINES
Revision: November 20092006 QX56
5. Remove the front and rear bumper fascia. Refer to EI-13, "FRONT BUMPER" (front), EI-15, "REAR
BUMPER" (rear).
6. Reposition the front fender protector out of the way. Refer to EI-23, "
FENDER PROTECTOR" .
7. Disconnect the chassis harness connector.
8. Remove the spare wheel and tire.
9. Remove the tailpipe and tailpipe hanger bracket. Refer to EX-3, "
Removal and Installation" .
10. Remove the seatbelt latch anchor. Refer to RSU-26, "
Components" .
11. Remove the front floor heat shield.
12. Disconnect each end of the underfloor rear high- and low-pressure A/C and heater core pipes. Refer to ATC-173, "
Components" .
CAUTION:
Cap or wrap the joint of the pipes with suitable material such as vinyl tape to avoid the entry of air.
13. Set two suitable jacks at the RH body mount points to support the vehicle body when it is separated from the RH side of the frame.
14. Remove the RH body mount bolts. Refer to BL-159, "
Body Mounting" .
15. Use the vehicle hoist to lower the RH side of the frame from the RH side of the body [approximately 305 mm (12 in)] until there is sufficient clearance to remove the underfloor rear high- and low-pressure A/C
and heater core pipes from between the body and the frame.
16. Remove the underfloor rear high- and low-pressure A/C and heater core pipes from the back of the vehi- cle.
INSTALLATION
Installation is in the reverse order of removal.
Refer to ATC-173, "
Components" .
CAUTION:

Replace the O-ring of the high/low-pressure pipe with a new one, then apply compressor oil to it
when installing it.

After charging refrigerant, check for leaks.
Removal and Installation for Refrigerant Pressure SensorEJS003YZ
REMOVAL
1. Discharge the refrigerant. Refer to ATC-171, "HFC-134a (R-134a) Service Procedure" .
2. Disconnect the refrigerant pressure sensor electrical connector and remove the refrigerant pressure sensor from the condenser.
CAUTION:
Be careful not to damage the condenser fins.
INSTALLATION
Installation is in the reverse order of removal.
Refer to ATC-173, "
Components" .
CAUTION:

Be careful not to damage the condenser fins.

Replace the O-ring of the refrigerant pressure sensor with a new one, then apply compressor oil to
it when installing it.

After charging refrigerant, check for leaks.
Removal and Installation for CondenserEJS003Z0
REMOVAL
1. Discharge the refrigerant. Refer to ATC-171, "HFC-134a (R-134a) Service Procedure" .
LJIA0145E

SERVICE DATA AND SPECIFICATIONS (SDS)ATC-191
C
DE
F
G H
I
K L
M A
B
AT C
Revision: November 2009 2006 QX56
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Service Data and Specifications (SDS)EJS003Z9
COMPRESSOR
OIL
REFRIGERANT
ENGINE IDLING SPEED
Refer to EC-76, "Idle Speed and Ignition Timing Check" .
BELT TENSION
Refer to MA-13, "Checking Drive Belts" .
Make ZEXEL VALEO CLIMATE CONTROL
Model DKS-17D
Ty p e Swash plate
Displacement 175.5 cm
3 (10.7 in3 ) / revolution
Cylinder bore \b stroke 30.5 mm (1.20 in) x 24.0 mm (0.94 in)
Direction of rotation Clockwise (viewed from drive end)
Drive belt Poly V
NameNISSAN A/C System Oil Type S (DH-PS)
Part number KLH00-PAGS0
Capacity 290 m (9.8 US fl oz, 10.2 Imp fl oz)
Ty p eHFC 134a (R-134a)
Capacity 1.08 ± 0.05 kg (2.38 ± 0.11 oz)
