DESTINATION, PASSING POINTS, AND MENU ITEMS CANNOT BE SELECTED/SET
VOICE GUIDE
SymptomCause Remedy
Destination cannot be set. Destination to be set is on an expressway. Set the destination on an ordinary road.
Passing point is not searched
when re-searching the route. The vehicle has already passed the passing point,
or the system judged so. To include the passing points that have been
passed into the route again, set the route
again.
Route information will not be dis-
played. Route searching has not been done.
Set the destination and perform route
searching.
Vehicle mark is not on the recommended route. Drive on the recommended route.
Route guide is turned OFF. Turn route guide ON.
Route information is not available on the dark
green route. System is not malfunctioning.
After the route searching, no guide
sign will appear as the vehicle
goes near the entrance/exit to the
toll road. Vehicle mark is not on the recommended route.
(On the display, only guide signs related to the
recommended route will be shown.)
Drive on the recommended route.
Automatic route searching is not
possible. Vehicle is driving on a highway (gray route), or no
recommended route is available. Drive on a road to be searched. Or re–
search the route manually. In this case, how-
ever, the whole route will be searched.
Performed automatic detour
search (or detour search). How-
ever, the result is the same as that
of the previous search. Performed search with every condition consid-
ered. However, the result is the same as that of
the previous search.
System is not malfunctioning.
Passing points cannot be set. More than five passing points were set. Passing points can be set up to five. To stop
at more than five points, perform sharing in
several steps.
When setting the route, the start-
ing point cannot be selected. The current vehicle location is always set as the
starting point of a route. System is not malfunctioning.
Some menu items cannot be
selected. The vehicle is being driven.
Stop the vehicle at a safe place and then
operate the system.
Symptom Cause Remedy
Voice guide will not operate. Note: Voice guide is only available at intersections that satisfy certain conditions (indicated by
on
the map). Therefore, guidance may not be given
even when the route on the map changes direc-
tion. System is not malfunctioning.
The vehicle is not on the recommended route. Return to the recommended route or re- search the route.
Voice guide is turned OFF. Turn voice guide ON.
Route guide is turned OFF. Turn route guide ON.
Voice guide does not match the
actual road pattern. Voice guide may vary with the direction to which
the vehicle is turned and the connection of the
road to other roads. Drive in conformity to the actual traffic rules.

AV-160
NAVIGATION SYSTEM
Revision: November 20092006 QX56
ROUTE SEARCH
NOTE:
Except for the ordinance-designated cities. (Malfunctioning areas may be changed in the updated map disc.)Symptom
Cause Remedy
No route is shown. No road to be searched is found around the des-
tination. Find wider road (orange road or wider)
nearby and reset the destination and passing
points onto it. Take care of the traveling
direction when there are separate up and
down roads.
Starting point and the destination are too close. Set the destination at more distant point.
Conditional traffic regulation (day of the week/
time of the day) is set at the area around the cur-
rent location or the destination. Turn the time-regulating search conditions
OFF. Turn
“Avoid regulation time” in the
search conditions OFF.
Indicated route is intermittent. In some areas, highways (gray routes) are not used for the search
(Note) Therefore, the route to
the current location or the passing points may be
intermittent. System is not malfunctioning.
When the vehicle has passed the
recommended route, it is deleted
from the screen. A recommended route is controlled by each sec-
tion. When the vehicle has passed the passing
point 1, then the map data from the starting point
up to the passing point 1 will be deleted. (The
data may remain undeleted in some areas.) System is not malfunctioning.
Detouring route is recommended. In some areas, highways (gray routes) are not used for the search. (Note). Therefore, detour
route may be recommended. Set the route closer to the basic route (gray
route).
A detour route may be shown when some traffic
regulation (one-way traffic, etc.) is set at the area
around the starting point or the destination. Slightly move the starting point or the desti-
nation, or set the passing point on the route
of your choice.
In the area where highways (gray routes) are
used for the search, left turn has priority around
the current location and the destination (passing
points). For this reason, the recommended route
may be detouring. System is not malfunctioning.
Landmarks on the map do not
match the actual ones. This can be happen due to omission or error in
the map data. As a rule, an updated map DVD-ROM will be
released once a year. Wait until the latest
map has become available.
Recommended route is far from
the starting point, passing points,
and destination. Starting point, passing points, and destination of
the route guide were set far from the desired
points because route searching data around
these area were not stored. Reset the destination onto the road nearby. If
this road is one of the highways (gray
routes), an ordinary road nearby may be dis-
played as the recommended route.

NAVIGATION SYSTEMAV-161
C
DE
F
G H
I
J
L
M A
B
AV
Revision: November 2009 2006 QX56
EXAMPLES OF CURRENT-LOCATION MARK DISPLACEMENT
Vehicle's travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle
is driven in the following manner, an error will occur in the vehicle's current location display. If correct location
has not been restored after driving the vehicle for a while, perform location correction.
SEL698V

AV-162
NAVIGATION SYSTEM
Revision: November 20092006 QX56
Cause (condition)–: While driving ooo: Display Driving condition Remarks (correction, etc.)
Road config-
uration Y
–intersections
At a Y intersection or similar gradual divi-
sion of roads, an error in the direction of
travel deduced by the sensor may result in
the current-location mark appearing on the
wrong road.
If after travelling about 10 km (6
miles) the correct location has
not been restored, perform
location correction and, if nec-
essary, direction correction.
Spiral roads
When driving on a large, continuous spiral
road (such as loop bridge), turning angle
error is accumulated and the vehicle mark
may deviate from the correct location.
Straight roads When driving on a long, straight road and
slow curve without stopping, map-match-
ing does not work effectively enough and
distance errors may accumulate. As a
result, the vehicle mark may deviate from
the correct location when the vehicle is
turned at a corner.
Zigzag roads When driving on a zigzag road, the map
may be matched to other roads in the simi-
lar direction nearby at every turn, and the
vehicle mark may deviate from the correct
location.
Roads laid out in a grid pattern When driving where roads are laid out in a
grid pattern, or where many roads are run-
ning in the similar direction nearby, the
map may be matched to them by mistake
and the vehicle mark may deviate from the
correct location.
Parallel roads When two roads are running in parallel
(such as highway and sideway), the map
may be matched to the other road by mis-
take and the vehicle mark may deviate
from the correct location.
ELK0192D
ELK0193D
ELK0194D
ELK0195D
ELK0196D
ELK0197D

NAVIGATION SYSTEMAV-163
C
DE
F
G H
I
J
L
M A
B
AV
Revision: November 2009 2006 QX56
PlaceIn a parking lot
When driving in a parking lot, or other loca-
tion where there are no roads on the map,
matching may place the vehicle mark on a
nearby road. When the vehicle returns to
the road, the vehicle mark may have devi-
ated from the correct location.
When driving in circle or turning the steer-
ing wheel repeatedly, direction errors accu-
mulate, and the vehicle mark may deviate
from the correct location.
If after travelling about 10 km (6
miles) the correct location has
not been restored, perform
location correction and, if nec-
essary, direction correction.
Turntable
When the ignition switch is OFF, the navi-
gation system cannot get the signal from
the gyroscope (angular speed sensor).
Therefore, the displayed direction may be
wrong and the correct road may not be
easily returned to after rotating the vehicle
on a turntable with the ignition OFF.
Slippery roads On snow, wet roads, gravel, or other roads
where tires may slip easily, accumulated
mileage errors may cause the vehicle mark
to deviate from the correct road.
Slopes When parking in sloped garages, when
travelling on banked roads, or in other
cases where the vehicle turns when tilted,
an error in the turning angle will occur, and
the vehicle mark may deviate from the
road.
Map data Road not displayed on the map screen
When driving on new roads or other roads
not displayed on the map screen, map
matching does not function correctly and
matches the location to a nearby road.
When the vehicle returns to a road which is
on the map, the vehicle mark may deviate
from the correct road.
Different road pattern
(Changed due to repair) If the road pattern stored in the map data
and the actual road pattern are different,
map matching does not function correctly
and matches the location to a nearby road.
The vehicle mark may deviate from the
correct road.
Vehicle Use of tire chains When tire chains are used, the mileage is
not correctly detected, and the vehicle
mark may deviate from the correct road.Drive the vehicle for a while. If
the distance still deviates,
adjust it by using the distance
adjustment function. (If the tire
chain is removed, recover the
original value.)
Cause (condition)
–: While driving ooo: Display Driving conditionRemarks (correction, etc.)
SEL709V
SEL710V
SEL699V
ELK0201D

AV-164
NAVIGATION SYSTEM
Revision: November 20092006 QX56
CURRENT-LOCATION MARK SHOWS A POSITION WHICH IS COMPLETELY WRONG
In the following cases, the current-location mark may appear on completely different position in the map
depending on the GPS satellite signal receiving conditions. In this case, perform location correction and direc-
tion correction.

When location correction has not been done
–If the receiving conditions of the GPS satellite signal is poor, or if the current-location mark becomes out of
place, it may move to a completely different location and not come back if location correction is not done.
The position will be corrected if the GPS signal can be received.

When the vehicle has traveled by ferry, or when the vehicle has been towed
–Because calculation of the current location cannot be done when travelling with the ignition OFF, for
example when traveling by ferry or when being towed, the location before travel is displayed. If the precise
location can be detected with GPS, the location will be corrected.
CURRENT-LOCATION MARK JUMPS
In the following cases, the current-location mark may appear to jump as a result of automatic correction of the
current location.

When map-matching has been done
–If the current location and the current-location mark are different when map-matching is done, the current-
location mark may seem to jump. At this time, the location may be “corrected” to the wrong road or to a
location which is not on a road.

When GPS location correction has been done
–If the current location and the current-location mark are different when the location is corrected using GPS
measurements, the current-location mark may seem to jump. At this time, the location may be “corrected”
to a location which is not on a road.
Precautions
for driving Just after the engine is started
If the vehicle is driven just after the engine
is started when the gyroscope (angular
speed sensor) correction is not completed,
the vehicle can lose its direction and may
have deviated from the correct location. Wait for a short while before
driving after starting the engine.
Continuous driving without stopping When driving long distances without stop- ping, direction errors may accumulate, and
the current-location mark may deviate from
the correct road. Stop and adjust the orientation.
Abusive driving Spinning the wheels or engaging in other
kinds of abusive driving may result in the
system being unable perform correct
detection, and may cause the vehicle mark
to deviate from the correct road. If after travelling about 10 km (6
miles) the correct location has
not been restored, perform
location correction and, if nec-
essary, direction correction.
How to cor-
rect location Position correction accuracy
If the accuracy of location settings is poor,
accuracy may be reduced when the correct
road cannot be found, particularly in places
where there are many roads. Enter in the road displayed on
the screen with an accuracy of
approx. 1mm.
Caution: Whenever possible,
use detailed map for the cor-
rection.
Direction when location is corrected
If the accuracy of location settings during
correction is poor, accuracy may be
reduced afterwards. Perform direction correction.
Cause (condition)
–: While driving ooo: Display Driving conditionRemarks (correction, etc.)
SEL701V
SEL702V

NAVIGATION SYSTEMAV-165
C
DE
F
G H
I
J
L
M A
B
AV
Revision: November 2009 2006 QX56
CURRENT-LOCATION MARK IS IN A RIVER OR SEA
The navigation system moves the current-location mark with no distinction between land and rivers or sea. If
the location mark is somehow out of place, it may appear that the vehicle is driving in a river or the sea.
WHEN DRIVING ON SAME ROAD, SOMETIMES CURRENT-LOCATION MARK IS IN RIGHT
PLACE AND SOMETIMES IT IS WRONG PLACE
The conditions of the GPS antenna (GPS data) and gyroscope (angular speed sensor) change gradually.
Depending on the road traveled and the operation of the steering wheel, the location detection results will be
different. Therefore, even on a road on which the location has never been wrong, conditions may cause the
vehicle mark to deviate.
LOCATION CORRECTION BY MAP-MATCHING IS SLOW

The map-matching function needs to refer to the data of the surrounding area. It is necessary to drive
some distance for the function to work.

Because map-matching operates on this principle, when there are many roads running in similar direc-
tions in the surrounding area, no matching determination may be made. The location may not be cor-
rected until some special feature is found.
ALTHOUGH GPS RECEIVING DISPLAY IS GREEN, VEHICLE MARK DOES NOT RETURN TO
CORRECT LOCATION

The GPS accuracy has an error of approximately 10 m (30 ft). In some cases the current-location mark
may not be on the correct street, even when GPS location-correction is done.

The navigation system compares the results of GPS location detection with the results from map-match-
ing location detection. The one which is determined to have higher accuracy is used.

GPS location correction may not be performed when the vehicle is stopped.
NAME OF CURRENT PLACE IS NOT DISPLAYED
The current place name may not be displayed if there are no place names displayed on the map screen.
CONTENTS OF DISPLAY DIFFER FOR BIRDVIEW™ AND THE (FLAT) MAP SCREEN
Difference of the BIRDVIEW™ screen from the flat map screen are as follows.

The current place name displays names which are primarily in the direction of vehicle travel.

The amount of time before the vehicle travel or turn angle is updated on the screen is longer than for the
(flat) map display.

The conditions for display of place names, roads, and other data are different for nearby areas and for
more distant areas.

Some thinning of the character data is done to prevent the display becoming too complex. In some cases
and in some locations, the display contents may differ.

The same place name, street name, etc. may be displayed multiple times.

AV-166
NAVIGATION SYSTEM
Revision: November 20092006 QX56

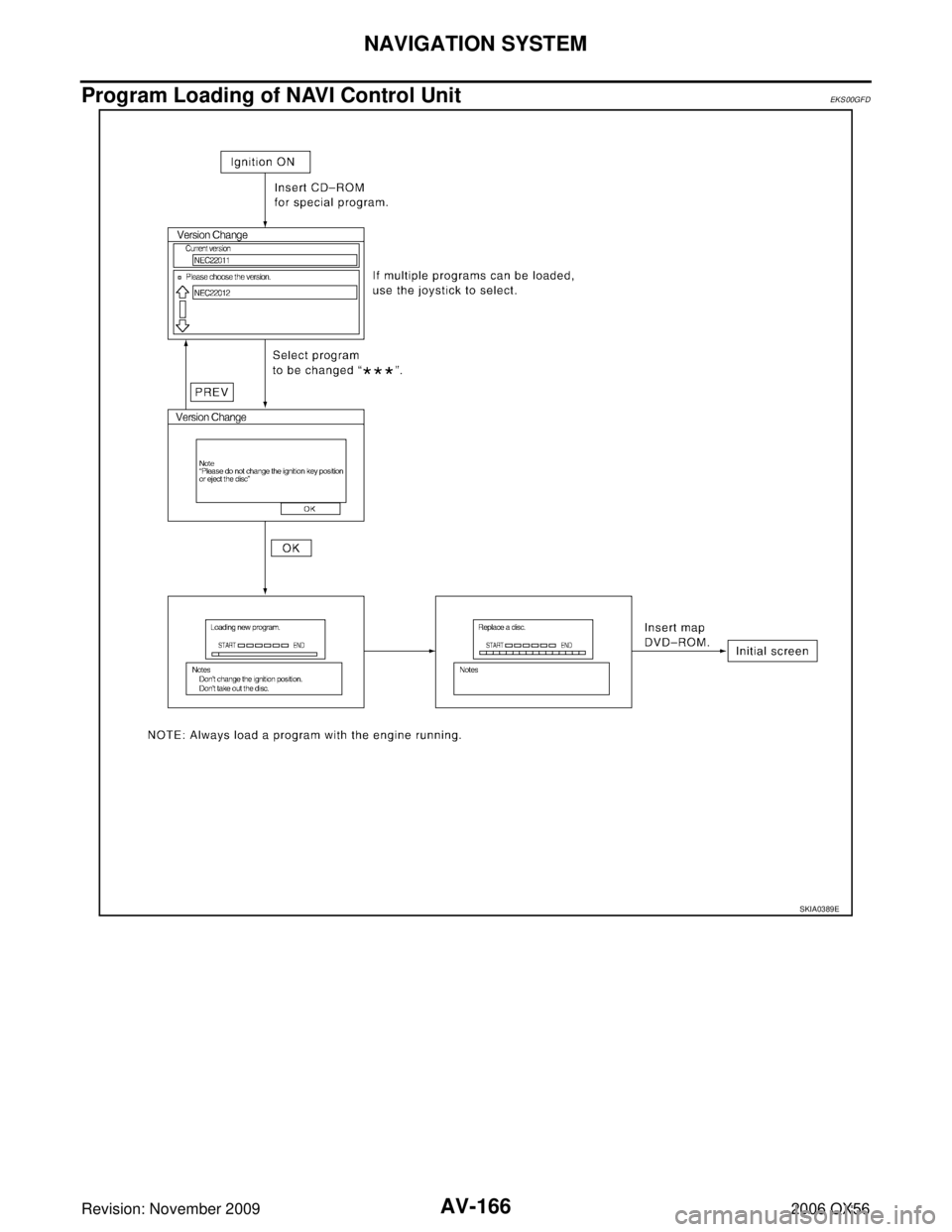

Program Loading of NAVI Control UnitEKS00GFD
SKIA0389E

NAVIGATION SYSTEMAV-167
C
DE
F
G H
I
J
L
M A
B
AV
Revision: November 2009 2006 QX56
Removal and InstallationEKS00GFE
AV S W I T C H
Refer to AV- 5 5 , "AV SWITCH" .
DISPLAY CONTROL UNIT
Removal
1. Remove display unit. Refer to AV- 1 6 7 , "DISPLAY UNIT" .
2. Remove display control unit.
Installation
Installation is in reverse order of removal.
DISPLAY UNIT
Removal
1. Remove center console. Refer to IP-16, "Center Console" .
2. Remove cluster lid D. Refer to IP-12, "
CLUSTER LID D" .
3. Disconnect center speaker connector.
4. Disconnect display unit connectors.
5. Remove display unit.
6. Remove display unit brackets.
Installation
Installation is in reverse order of removal.
GPS ANTENNA
Removal
1. Remove center console. Refer to IP-16, "Center Console" .
2. Remove cluster lid D. Refer to IP-12, "
CLUSTER LID D" .
3. Disconnect center speaker.
4. Remove defroster grille. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
WKIA1512E
WKIA1512E

AV-168
NAVIGATION SYSTEM
Revision: November 20092006 QX56
5. Disconnect GPS antenna connector.
6. Remove GPS antenna.
Installation
Installation is in the reverse order of removal.
NAVI CONTROL UNIT
Removal
CAUTION:
To avoid damage, eject map DVD-ROM before removing the NAVI control unit.
1. Disconnect negative battery cable.
2. Remove front passenger seat. Refer to SE-91, "
Removal and Installation" .
3. Remove NAVI control unit kick shield screws (A).
4. Remove NAVI control unit kick shield (1).
5. Disconnect NAVI control unit connectors.
6. Remove NAVI control unit screws (B).
7. Remove NAVI control unit (2).
Installation
Installation is in the reverse order of removal.
STEERING WHEEL AUDIO CONTROL SWITCHES
Refer to AV- 5 9 , "STEERING WHEEL AUDIO CONTROL SWITCHES" .
WKIA1509E
WKIA1508E
WKIA4354E
