Page 182 of 4083
AV
AV-1
DRIVER INFORMATION & MULTIMEDIA
C
DE
F
G H
I
J
K L
M B
SECTION AV
A
O P
CONTENTS
AUDIO, VISUAL & NAVIGATION SYSTEM
AUDIO SYSTEM
BASIC INSPECTION ....... .............................
5
DIAGNOSIS AND REPAIR WORKFLOW ..... .....5
Work Flow ........................................................... ......5
INSPECTION AND ADJUSTMENT .....................7
REAR VIEW MONITOR GUIDING LINE ADJUST-
MENT ..................................................................... ......
7
REAR VIEW MONITOR GUIDING LINE ADJUST-
MENT : Description ...................................................
7
REAR VIEW MONITOR GUIDING LINE ADJUST-
MENT : Special Repair Requirement ........................
7
FUNCTION DIAGNOSIS ...............................9
AUDIO SYSTEM ............................................. .....9

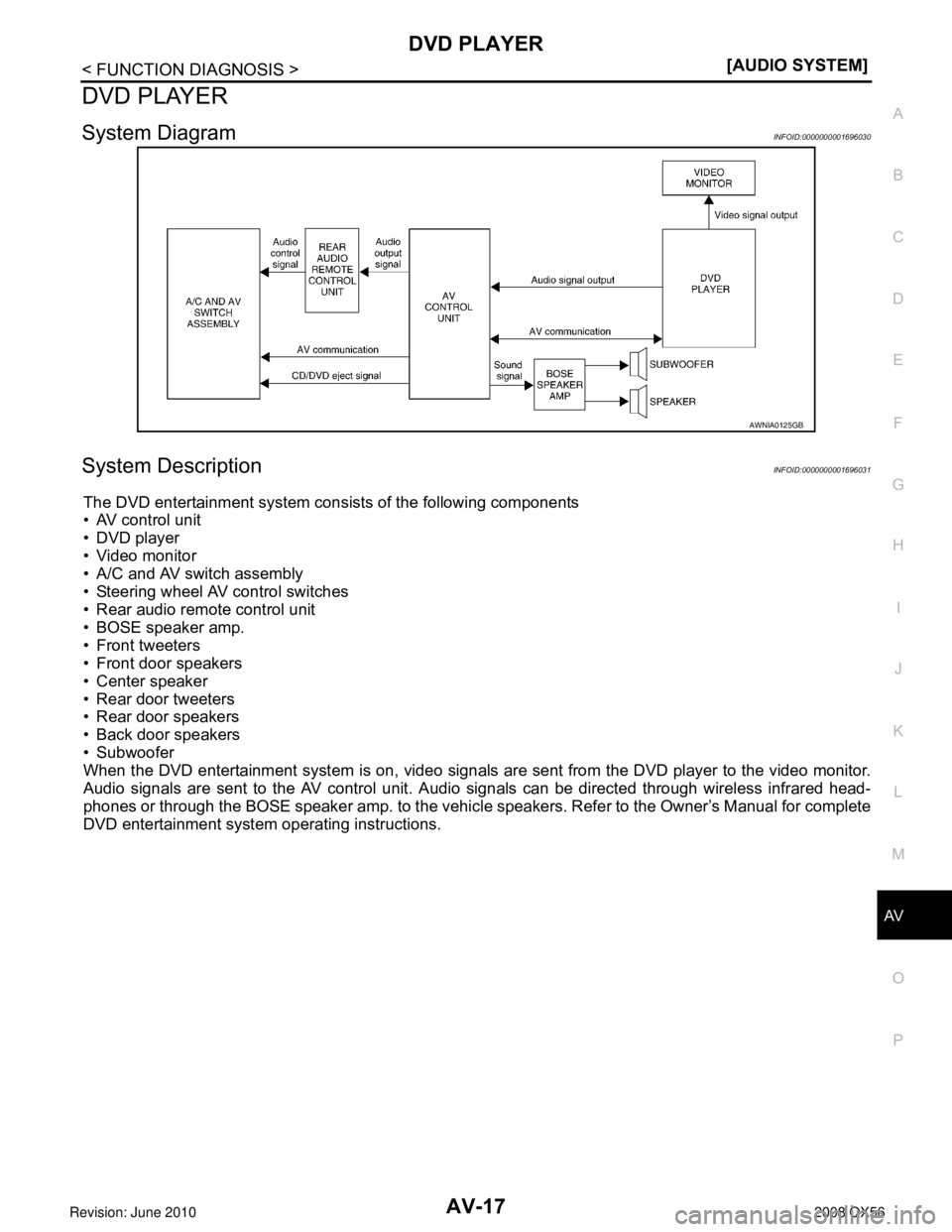

System Diagram .................................................. ......9
System Description ...................................................9
Component Parts Location ......................................11
Component Description ...........................................12
NAVIGATION SYSTEM ......................................13
System Diagram .................................................. ....13
System Description .................................................13
Component Parts Location ......................................15
Component Description ...........................................15
REAR VIEW MONITOR SYSTEM ......................16
System Diagram .................................................. ....16
System Description .................................................16
Component Parts Location ......................................16
Component Description ...........................................16
DVD PLAYER .....................................................17
System Diagram .................................................. ....17
System Description .................................................17
Component Parts Location ......................................18
Component Description ...........................................18
HANDS-FREE PHONE SYSTEM ......................20
System Diagram .................................................. ....20
System Description ..................................................20
Component Parts Location ......................................20
Component Description ...........................................20
DIAGNOSIS SYSTEM (AV CONTROL UNIT) ...22
AV CONTROL UNIT .............................................. ....22
AV CONTROL UNIT : Diagnosis Description ..........22
AV CONTROL UNIT : CONS ULT-III Function .........33
A/C AND AV SWITCH ASSEMBLY ...................... ....35
A/C AND AV SWITCH ASSEMBLY : Component
Function Check ........................................................
35
COMPONENT DIAGNOSIS .........................36
U1000 CAN COMM CIRCUIT ...........................36
Description ........................................................... ....36
DTC Logic ................................................................36
Diagnosis Procedure ..............................................36
U1010 CONTROL UNIT (CAN) .........................37
Description ...............................................................37
DTC Logic ................................................................37
Diagnosis Procedure ...............................................37
U1200 AV CONTROL UNIT ..............................38
Description ...............................................................38
DTC Logic ................................................................38
U1201 AV CONTROL UNIT ..............................39
Description ...............................................................39
DTC Logic ................................................................39
U1204 GPS COMM ...........................................40
Description ...............................................................40
DTC Logic ................................................................40
U1205 GPS ROM ..............................................41
Description ...............................................................41
DTC Logic ................................................................41
Revision: March 2010 2008 QX56
Page 183 of 4083
AV-2
U1206 GPS RAM ...............................................42
Description ........................................................... ...42
DTC Logic ...............................................................42
U1207 GPS RTC ................................................43
Description ........................................................... ...43
DTC Logic ...............................................................43
U1216 AV CONTROL UNIT ...............................44
Description ........................................................... ...44
DTC Logic ...............................................................44
U1217 AV CONTROL UNIT ...............................45
Description ........................................................... ...45
DTC Logic ...............................................................45
U1218 AV CONTROL UNIT ...............................46
Description ........................................................... ...46
DTC Logic ...............................................................46
U1219 AV CONTROL UNIT ...............................47
Description ........................................................... ...47
DTC Logic ...............................................................47
U121A AV CONTROL UNIT ..............................48
Description ........................................................... ...48
DTC Logic ...............................................................48
U121B AV CONTROL UNIT ..............................49
Description ........................................................... ...49
DTC Logic ...............................................................49
U121C AV CONTROL UNIT ..............................50
Description ........................................................... ...50
DTC Logic ...............................................................50
U121D AV CONTROL UNIT ..............................51
Description ........................................................... ...51
DTC Logic ...............................................................51
U121E AV CONTROL UNIT ..............................52
Description ........................................................... ...52
DTC Logic ...............................................................52
U121F AV CONTROL UNIT ..............................53
Description ........................................................... ...53
DTC Logic ...............................................................53
Diagnosis Procedure ..............................................53
U1220 AV CONTROL UNIT ...............................54
Description ........................................................... ...54
DTC Logic ...............................................................54
U1243 DISPLAY UNIT .......................................55
Description ........................................................... ...55
DTC Logic ...............................................................55
Diagnosis Procedure ..............................................55
U1244 GPS ANTENNA ......................................57
Description ........................................................... ...57
DTC Logic ...............................................................57
Diagnosis Procedure ..............................................57
U1250 CAMERA CONTROL UNIT ....................58
Description ........................................................... ...58
DTC Logic ...............................................................58
Diagnosis Procedure ...............................................58
U1258 SATELLITE RADIO ANTENNA .............60
Description ........................................................... ...60
DTC Logic ...............................................................60
Diagnosis Procedure ...............................................60
U1300 AV COMM CIRCUIT ............................ ...61
Description ........................................................... ...61
U1310 AV CONTROL UNIT ..............................62
Description ........................................................... ...62
DTC Logic ...............................................................62
POWER SUPPLY AND GROUND CIRCUIT .....63
AV CONTROL UNIT ............................................... ...63
AV CONTROL UNIT : Diagnosis Procedure ...........63
DISPLAY UNIT ....................................................... ...64
DISPLAY UNIT : Diagnosis Procedure ...................64
A/C AND AV SWITCH ASSEMBLY ..........................65
A/C AND AV SWITCH ASSEMBLY : Diagnosis
Procedure ............................................................ ...
65
BOSE SPEAKER AMP .............................................66
BOSE SPEAKER AMP : Diagnosis Procedure .... ...66
WOOFER ................................................................ ...66
WOOFER : Diagnosis Procedure ...........................66
REAR VIEW CAMERA CONTROL UNIT ............... ...67
REAR VIEW CAMERA CONTROL UNIT : Diagno-
sis Procedure ..........................................................
67
REAR VIEW CAMERA ........................................... ...68
REAR VIEW CAMERA : Diagnosis Procedure .......68
DVD PLAYER ......................................................... ...69
DVD PLAYER : Diagnosis Procedure .....................69
VIDEO MONITOR ................................................... ...70
VIDEO MONITOR : Diagnosis Procedure ..............70
MICROPHONE ....................................................... ...71
MICROPHONE : Diagnosis Procedure ...................71
RGB (R: RED) SIGNAL CIRCUIT .....................73
Description ........................................................... ...73
Diagnosis Procedure ...............................................73
RGB (G: GREEN) SIGNAL CIRCUIT ................74
Description ........................................................... ...74
Diagnosis Procedure ...............................................74
RGB (B: BLUE) SIGNAL CIRCUIT ...................75
Description ........................................................... ...75
Diagnosis Procedure ...............................................75
RGB SYNCHRONIZING SIGNAL CIRCUIT ......76
Revision: March 2010 2008 QX56
Page 184 of 4083
AV
AV-3
C
DE
F
G H
I
J
K L
M B
A
O P
Description ..........................................................
....
76
Diagnosis Procedure ...............................................76
RGB AREA (YS) SIGNAL CIRCUIT ..................77
Description .......................................................... ....77
Diagnosis Procedure ...............................................77
HORIZONTAL SYNCHRONIZING (HP) SIG-
NAL CIRCUIT ................................................. ....
78
Description .......................................................... ....78
Diagnosis Procedure ...............................................78
VERTICAL SYNCHRONIZING (VP) SIGNAL
CIRCUIT ......................................................... ....
79
Description .......................................................... ....79
Diagnosis Procedure ...............................................79
FRONT DOOR SPEAKER .................................80
Description .......................................................... ....80
Diagnosis Procedure ...............................................80
FRONT TWEETER .............................................83
Description .......................................................... ....83
Diagnosis Procedure ...............................................83
CENTER SPEAKER ...........................................86
Description .......................................................... ....86
Diagnosis Procedure ...............................................86
REAR DOOR SPEAKER ....................................88
Description .......................................................... ....88
Diagnosis Procedure ...............................................88
REAR DOOR TWEETER ...................................91
Description .......................................................... ....91
Diagnosis Procedure ...............................................91
BACK DOOR SPEAKER ...................................94
Description .......................................................... ....94
Diagnosis Procedure ...............................................94
SUBWOOFER ....................................................97
Description .......................................................... ....97
Diagnosis Procedure ...............................................97
AMP ON SIGNAL CIRCUIT .............................100
Description .......................................................... ..100
Diagnosis Procedure .............................................100
STEERING SWITCH ........................................101
Description .......................................................... ..101
Diagnosis Procedure .............................................101
MICROPHONE SIGNAL CIRCUIT ...................103
Description .......................................................... ..103
Diagnosis Procedure .............................................103
ECU DIAGNOSIS .......................................105
AV CONTROL UNIT ....................................... ..105
Reference Value ................................................. ..105
Wiring Diagram .....................................................111
DTC Index ........................................................... ..139
DISPLAY UNIT ................................................141
Reference Value ....................................................141
BOSE SPEAKER AMP ...................................144
Reference Value ....................................................144
REAR VIEW CAMERA CONTROL UNIT .......147
Reference Value ....................................................147
DVD PLAYER ..................................................149
Reference Value ....................................................149
SYMPTOM DIAGNOSIS ............................151
MULTI AV SYSTEM ........................................151
Symptom Table ................................................... ..151
NORMAL OPERATING CONDITION .............153
Description .............................................................153
PRECAUTION ............................................161
PRECAUTIONS ...............................................161
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ..
161
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .................................
161
PREPARATION .........................................163
PREPARATION ...............................................163
Commercial Service Tools ................................... ..163
ON-VEHICLE REPAIR ...............................164
AV CONTROL UNIT ........................................164
Removal and Installation ..................................... ..164
DISPLAY UNIT ................................................166
Removal and Installation .......................................166
FRONT TWEETER ..........................................167
Removal and Installation .......................................167
CENTER SPEAKER ........................................168
Removal and Installation .......................................168
FRONT DOOR SPEAKER ..............................169
Removal and Installation .......................................169
REAR DOOR SPEAKER ................................170
Removal and Installation .......................................170
BACK DOOR SPEAKER ................................171
Removal and Installation .......................................171
SUBWOOFER .................................................172
Removal and Installation .......................................172
DVD PLAYER ..................................................173
Removal and Installation .......................................173
Revision: March 2010 2008 QX56
Page 198 of 4083
![INFINITI QX56 2008 Factory Service Manual AV
DVD PLAYERAV-17
< FUNCTION DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
DVD PLAYER
System DiagramINFOID:0000000001696030
System DescriptionINFOID:0000000001696031
The DVD entertainment](/img/42/57030/w960_57030-197.png "INFINITI QX56 2008 Factory Service Manual AV
DVD PLAYERAV-17
< FUNCTION DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
DVD PLAYER
System DiagramINFOID:0000000001696030
System DescriptionINFOID:0000000001696031
The DVD entertainment")
AV
DVD PLAYERAV-17
< FUNCTION DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
DVD PLAYER
System DiagramINFOID:0000000001696030
System DescriptionINFOID:0000000001696031
The DVD entertainment system consists of the following components
• AV control unit
• DVD player
• Video monitor
• A/C and AV switch assembly
• Steering wheel AV control switches
• Rear audio remote control unit
• BOSE speaker amp.
• Front tweeters
• Front door speakers
• Center speaker
• Rear door tweeters
• Rear door speakers
• Back door speakers
• Subwoofer
When the DVD entertainment system is on, video signals are sent from the DVD player to the video monitor.
Audio signals are sent to the AV control unit. Audio signals can be directed through wireless infrared head-
phones or through the BOSE speaker amp. to the vehicle speakers. Refer to the Owner’s Manual for complete
DVD entertainment system operating instructions.
AWNIA0125GB
Revision: March 2010 2008 QX56
Page 199 of 4083
![INFINITI QX56 2008 Factory Service Manual AV-18
< FUNCTION DIAGNOSIS >[AUDIO SYSTEM]
DVD PLAYER
Component Parts Location
INFOID:0000000001696032
Component DescriptionINFOID:0000000001696033
1. Steering wheel audio control switches 2. AV contr](/img/42/57030/w960_57030-198.png "INFINITI QX56 2008 Factory Service Manual AV-18
< FUNCTION DIAGNOSIS >[AUDIO SYSTEM]
DVD PLAYER
Component Parts Location
INFOID:0000000001696032
Component DescriptionINFOID:0000000001696033
1. Steering wheel audio control switches 2. AV contr")
AV-18
< FUNCTION DIAGNOSIS >[AUDIO SYSTEM]
DVD PLAYER
Component Parts Location
INFOID:0000000001696032
Component DescriptionINFOID:0000000001696033
1. Steering wheel audio control switches 2. AV control unit M42, M43, M44, M45, M97, M124, M1253. A/C and AV switch assembly M98
4. DVD player M205 (located in center console) 5. Rear audio remote control unit R204 6. Video monitor R202
ALNIA0844ZZ
Part name
Description
DVD player • Outputs DVD video to video monitor
• Outputs DVD audio to the AV control unit
Video monitor • Receives and displays the DVD video signal
AV control unit • Controls audio system and DVD entertainment system functions
BOSE speaker amp. • Recieves audio signals from the AV control unit
• Outputs amplified audio signals to the speakers
A/C and AV switch assembly • All audio and A/C operations can be operated
• Switch signal is output to the AV control unit and A/C auto amp
Rear audio remote control unit • Audio and DVD functions can be operated
• Switch signal is output to the AV control unit
• Receives audio signal from AV control unit for headphones
Steering wheel audio control switches • Audio operation can be operated
• Steering switch signal (operation signal) is output to AV control unit
Front door speakers • Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds
Front tweeters • Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds
Center speaker • Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds
Revision: March 2010
2008 QX56
Page 200 of 4083
![INFINITI QX56 2008 Factory Service Manual AV
DVD PLAYERAV-19
< FUNCTION DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
Rear door tweeters • Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds
Rear door speake](/img/42/57030/w960_57030-199.png "INFINITI QX56 2008 Factory Service Manual AV
DVD PLAYERAV-19
< FUNCTION DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
Rear door tweeters • Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds
Rear door speake")
AV
DVD PLAYERAV-19
< FUNCTION DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
Rear door tweeters • Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds
Rear door speakers • Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds
Back door speakers • Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds
Subwoofer • Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds
Part name
Description
Revision: March 2010 2008 QX56
Page 206 of 4083
![INFINITI QX56 2008 Factory Service Manual AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)AV-25
< FUNCTION DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
Area with yellow connection lines DescriptionPossible malfunction location / Action
to t](/img/42/57030/w960_57030-205.png "INFINITI QX56 2008 Factory Service Manual AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)AV-25
< FUNCTION DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
Area with yellow connection lines DescriptionPossible malfunction location / Action
to t")
AV
DIAGNOSIS SYSTEM (AV CONTROL UNIT)AV-25
< FUNCTION DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
Area with yellow connection lines DescriptionPossible malfunction location / Action
to take
AV control unit malfunction is detect-
ed Replace the AV control unit. Refer to
AV- 1 6 4 , "
Removal and Installation".
Poor connection is detected for the
display unit • Harness or connector
• AV control unit
• Display unit
Switch malfunction is dectected Perform A/C and AV switch assembly
diagnostics. Refer to AV- 3 5 , "
A/C
AND AV SWITCH ASSEMBLY : Com-
ponent Function Check".
Poor connection is detected for the
DVD player. • Harness or connector
• AV control unit
• DVD player
ALNIA0214GB
ALNIA0207GB
ALNIA0212GB
ALNIA0213GB
Revision: March 2010
2008 QX56
Page 250 of 4083
![INFINITI QX56 2008 Factory Service Manual AV
POWER SUPPLY AND GROUND CIRCUITAV-69
< COMPONENT DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
3. Check voltage between rear view camera control unit harness connector B73 and ground.
Is](/img/42/57030/w960_57030-249.png "INFINITI QX56 2008 Factory Service Manual AV
POWER SUPPLY AND GROUND CIRCUITAV-69
< COMPONENT DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
3. Check voltage between rear view camera control unit harness connector B73 and ground.
Is")
AV
POWER SUPPLY AND GROUND CIRCUITAV-69
< COMPONENT DIAGNOSIS > [AUDIO SYSTEM]
C
D
E
F
G H
I
J
K L
M B A
O P
3. Check voltage between rear view camera control unit harness connector B73 and ground.
Is voltage reading approximately 6 volts?
YES >> Inspection End.
NO >> Replace rear view camera control unit. Refer to AV-184,
"Removal and Installation".
4.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear view camera harness connector.
3. Check continuity between rear view camera harness connector D504 terminal 2 and ground.
Does continuity exist?
YES >> Inspection End.
NO >> Repair harness or connector.
DVD PLAYER
DVD PLAYER : Diagnosis ProcedureINFOID:0000000001696104
1.CHECK FUSE
Check that the DVD player fuse is not blown.
Is the fuse OK?
YES >> GO TO 2
NO >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
2.POWER SUPPLY CIRCUIT CHECK
1. Disconnect DVD player connector M205.
2. Check voltage between the DVD player connector M205 and ground.
Are the voltage results as specified?
YES >> GO TO 3
NO >> • Check connector housings for disconnected or loose terminals. • Repair harness or connector.
Signal name Connector
No. Te r m i n a l
No. Transmission
position Value (Approx.)
Camera ON signal B73 8 Reverse 6V
ALLIA0247ZZ
Signal nameContinuity
Ground Yes
ALLIA0248ZZ
UnitTerminal Signal name Fuse No.
DVD player 21
Battery power 31
24 Ignition switch ACC or ON 4
(+)
(-) OFF ACC ON
Connector Terminal
M205 21
Ground Batter
voltage Battery
voltage Battery
voltage
24 0VBattery
voltage Battery
voltage
ALNIA0325GB
Revision: March 2010 2008 QX56
Page 251 of 4083
![INFINITI QX56 2008 Factory Service Manual AV-70
< COMPONENT DIAGNOSIS >[AUDIO SYSTEM]
POWER SUPPLY AND GROUND CIRCUIT
3.GROUND CIRCUIT CHECK
1. Ignition OFF.
2. Check continuity between DVD player harness connector M205 terminal 5 and ground.](/img/42/57030/w960_57030-250.png "INFINITI QX56 2008 Factory Service Manual AV-70
< COMPONENT DIAGNOSIS >[AUDIO SYSTEM]
POWER SUPPLY AND GROUND CIRCUIT
3.GROUND CIRCUIT CHECK
1. Ignition OFF.
2. Check continuity between DVD player harness connector M205 terminal 5 and ground.")
AV-70
< COMPONENT DIAGNOSIS >[AUDIO SYSTEM]
POWER SUPPLY AND GROUND CIRCUIT
3.GROUND CIRCUIT CHECK
1. Ignition OFF.
2. Check continuity between DVD player harness connector M205 terminal 5 and ground.
Are the continuity results as specified?
YES >> Inspection End.
NO >> Repair DVD player ground.
VIDEO MONITOR
VIDEO MONITOR : Diagnosis ProcedureINFOID:0000000001696105
1.CHECK POWER SUPPLY CIRCUIT
Check voltage between video monitor harness connector R202 and
ground.
Does specified voltage exist?
YES >> GO TO 3
NO >> GO TO 2
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the video monitor connector R202 and the DVD player connector M205.
3. Check continuity between the video monitor harness connector R202 (A) and the DVD player connector M205 (B).
4. Check continuity between video monitor harness connector R202 (A) and ground.
Are continuity test results as specified?
YES >> Check DVD player power and ground supply. Refer to AV-63, "AV CONTROL UNIT : Diagnosis
Procedure".
NO >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
(+) (-) Continuity
Connector Terminal
M205 5 Ground Yes
ALNIA0326GB
Signal name Connector
No. Te r m i n a l
No. Ignition switch
position Value (Approx.)
Display B+ R202 11
ACC 12V
12
ALNIA0328GB
AB Continuity
Connector Terminal Connector Terminal
R202 11
M205 9
Ye s
12 25
A -Contin u it y
Connector Terminal
R202 11
Ground No
12
ALNIA0327GB
Revision: March 2010 2008 QX56
Page 289 of 4083
![INFINITI QX56 2008 Factory Service Manual AV-108
< ECU DIAGNOSIS >[AUDIO SYSTEM]
AV CONTROL UNIT
28
(W/L) Ground Horizontal synchronizing
(HP) signal InputIgnition
switch ON —
29
(O/L) Ground Vertical synchronizing (VP)
signal
InputIgni](/img/42/57030/w960_57030-288.png "INFINITI QX56 2008 Factory Service Manual AV-108
< ECU DIAGNOSIS >[AUDIO SYSTEM]
AV CONTROL UNIT
28
(W/L) Ground Horizontal synchronizing
(HP) signal InputIgnition
switch ON —
29
(O/L) Ground Vertical synchronizing (VP)
signal
InputIgni")
AV-108
< ECU DIAGNOSIS >[AUDIO SYSTEM]
AV CONTROL UNIT
28
(W/L) Ground Horizontal synchronizing
(HP) signal InputIgnition
switch ON —
29
(O/L) Ground Vertical synchronizing (VP)
signal
InputIgnition
switch On —
30
(V) Ground Communication signal
(CONT
→DISP) OutputIgnition
switch ON When adjusting display-
brightness
31
(LG) Ground
Communication signal
(DISP→CONT) InputIgnition
switch
ON When adjusting display-
brightness
32 — Shield — —— —
39
(W) 55
(B) DVD audio signal LH Input Ignition
switch ON When DVD player is oper-
ating
40
(R) 56
(G) DVD audio signal RH Input Ignition
switch
ON When DVD player is oper-
ating
45
(SB) Ground CD/DVD eject signal Input — Pressing the eject switch
0V
Except for above 3.3V
46 — Shield — —— —
Terminal
(Wire color) Description
ConditionReference value
(Approx.)
+ – Signal nameInput/
Output
SKIB3601E
SKIB3598E
PKIB5039J
PKIB5039J
SKIB3609E
SKIB3609E
Revision: March 2010 2008 QX56
