INFINITI QX56 2010 Factory Service Manual

SEC-90
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
INTELLIGENT KEY UNIT
Reference Value - Intelligent Key UnitINFOID:0000000005282715
TERMINAL LAYOUT
PHYSICAL VALUES
WIIA1168E
Te r m i n a lWire
Color Item Condition
Voltage (V)Approx.
Ignition
Switch Po- sition Operation or Conditions
1L/Y Steering lock sole-
noid power supply LOCK
— 5
2 L CAN-H —— —
3 P CAN-L —— —
4GR Intelligent Key warn-
ing buzzer (front of
vehicle) LOCK
Operate door request
switch. Buzzer OFF
Battery voltage
Buzzer ON 0
5B/W Front door request
switch LH —Press front door request switch LH.
0
Other than above Battery voltage
6 G/R Ignition switch (ON) ON —Battery voltage
7 B/R Key switch LOCKInsert mechanical key into ignition key
cylinder.
Battery voltage
Remove mechanical key from ignition
key cylinder. 0
8G Remote keyless en-
try receiver ground
—— 0
9GR Remote keyless en-
try receiver signal —When remote keyless entry receiver re-
ceives signal from keyfob.
Stand-by
11 Y Power source (Fuse) — —Battery voltage
12 B Ground —— 0
OCC3879D
Revision: April 20092010 QX56

INTELLIGENT KEY UNITSEC-91
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
13 B/W Inside key antenna 3
(front of center con-
sole) (+) signal
LOCK Any door open → all doors closed
14 W/G Inside key antenna 3
(front of center con-
sole) (-) signal
15 G Inside key antenna 1
(rear of center con-
sole) (+) signal
LOCK Any door open → all doors closed
16 L Inside key antenna 1
(rear of center con-
sole) (-) signal
17 W/L Rear bumper anten-
na (+) signal
LOCK Lift back door handle (close switch).
18 W/R Rear bumper anten-
na (-) signal
19 P Front outside anten-
na LH (+) signal
LOCK Press front door request switch LH.
20 V Front outside anten-
na LH (-) signal
21 B/W Remote keyless en-
try receiver RSSI sig-
nal ——
23 L/W Power back door out-
put —Power liftgate switch ON.
0
Power liftgate switch OFF. Battery voltage
25 P/L Front door request
switch RH —Press front door request switch RH.
0
Other than above Battery voltage
27 R/B Ignition knob switch — Press ignition switch.
Battery voltage
Return ignition switch to LOCK position. 0
28 R Unlock sensor
(driver side) —Door (driver si
de) is locked. 5
Door (driver side ) is unlocked. 0
29 LG/W Back door open
switch input —Back door handle switch ON.
0
Back door handle switch OFF. Battery voltage
Te r m i n a l
Wire
Color Item Condition
Voltage (V)Approx.
Ignition
Switch Po-
sition Operation or Conditions
PIIB7441E
PIIB7441E
SIIA1910J
SIIA1910J
PIIA2344E
Revision: April 20092010 QX56

SEC-92
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
30 G/BRemote keyless en-
try receiver power
supply
—— 5
32 L/O Steering lock sole-
noid communication
signal LOCKWhen Intelligent Key is inside vehicle,
press ignition knob switch.
Other than above
5
33 W Rear parcel shelf an-
tenna (+) signal
LOCKPress ignition knob switch: ON (Ignition
knob switch)
34 BR Rear parcel shelf an-
tenna (-) signal
35 O Inside key antenna 2
(luggage compart-
ment) (+) signal
LOCK Back door open → all doors closed
36 R Inside key antenna 2
(luggage compart-
ment) (-) signal
37 LG Front outside anten-
na (+) signal RH
LOCK Press front door request switch RH.
38 B/Y Front outside anten-
na (-) signal RH
39 L/R P range switch —Selector lever is in “P” position.
0
Other than above Battery voltage
40 V AS select unlock out-
put
—UNLOCK with rear door locks disabled.
0
Other than above Battery voltage
Te r m i n a l
Wire
Color Item Condition
Voltage (V)Approx.
Ignition
Switch Po-
sition Operation or Conditions
SIIA1911J
PIIB7441E
PIIB7441E
SIIA1910J
Revision: April 20092010 QX56

INTELLIGENT KEY UNITSEC-93
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
Reference Value - Steering Lock SolenoidINFOID:0000000005147138
TERMINAL LAYOUT
PHYSICAL VALUES
WIIA1169E
Te r m i n a l Wire
Color Signal Designation Condition
Voltage (V)Approx.
Ignition
Switch Posi- tion Operation or Conditions
1 G/Y Power source (fuse) LOCK —Battery voltage
2L/Y Steering lock solenoid
power supply LOCK
— 5
3L/O Steering lock solenoid
communication signal
LOCKWhen Intelligent Key is inside ve-
hicle, press ignition knob switch.
Other than the above
5
4B Steering lock solenoid
ground —— 0
SIIA1911J
Revision: April 20092010 QX56

SEC-94
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -
INFOID:0000000005147139
ABKWA0448GB
Revision: April 20092010 QX56

INTELLIGENT KEY UNITSEC-95
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ABKWA0449GB
Revision: April 20092010 QX56

SEC-96
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
ABKWA0450GB
Revision: April 20092010 QX56

INTELLIGENT KEY UNITSEC-97
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ABKIA1335GB
Revision: April 20092010 QX56

SEC-98
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT

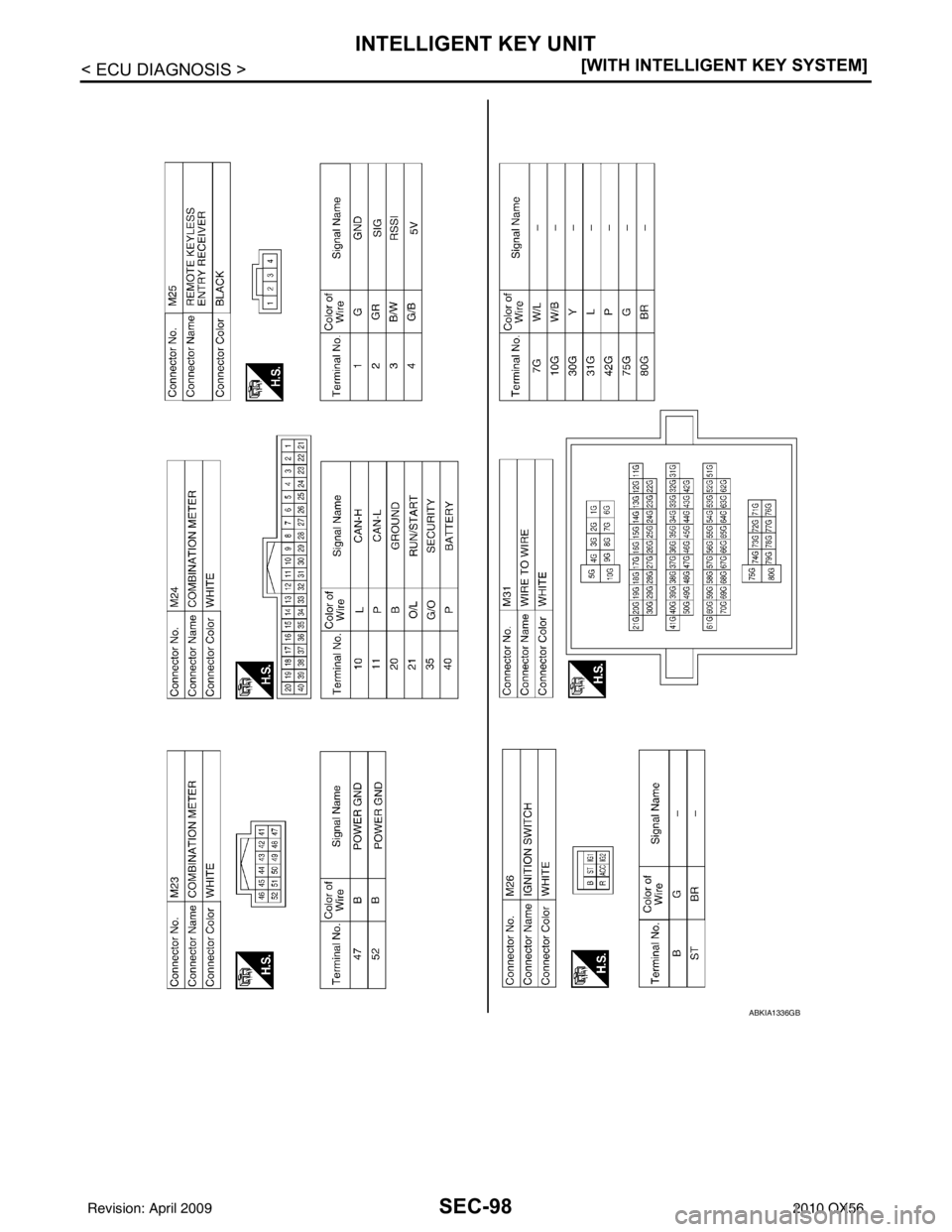

ABKIA1336GB
Revision: April 20092010 QX56

INTELLIGENT KEY UNITSEC-99
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ABKIA1641GB
Revision: April 20092010 QX56
