INFINITI QX60 2014 Owner's Manual

ROOF RACK (if so equipped)
Genuine NISSAN accessory cross bars are avail-
able through your INFINITI retailer. Contact an
INFINITI retailer for crossbar or other equipment
information.
Always distribute the luggage evenly on the cross
bars (if so equipped) . Do not load more than
150 lb (68 kg) on the cross bars (if so equipped) .
Observe the maximum load limit shown on the
cross bars (if so equipped) or roof carriers when
you attach them on the roof cross bars (if so
equipped) . Contact an INFINITI retailer for cross-
bar or other equipment information.Do not apply any load directly to the roof side
rails. Cross bars (if so equipped) must be in-
stalled before applying load/cargo/luggage to
the roof of the vehicle.
Be careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear) . The GVWR and GAWR are located on the
F.M.V.S.S. or C.V. M.S.S. certification label (lo-
cated on the driver’s door pillar) . For more infor-
mation regarding GVWR and GAWR, see “Ve-
hicle loading information” in the “Technical and
customer information” section.
WARNING
●Drive extra carefully when the vehicle is
loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
cross bars (if so equipped) .
●Heavy loading of the cross bars (if so
equipped) has the potential to affect the
vehicle stability and handling during
sudden or unusual handling
maneuvers.
●Roof rack cross bars (if so equipped)
should be evenly distributed.●Do not exceed maximum roof rack cross
bars (if so equipped) load.
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
CAUTION
Always install the cross bars (if so
equipped) onto the roof side rails before
loading cargo of any kind. Loading cargo
directly onto the roof side rails or the
vehicle’s roof may cause vehicle damage.
LIC2368
Instruments and controls2-49

POWER WINDOWS
WARNING
●Make sure that all passengers have
their hands, etc. inside the vehicle while
it is in motion and before closing the
windows. Use the window lock switch to
prevent unexpected use of the power
windows.
●Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls and become
trapped in a window. Unattended chil-
dren could become involved in serious
accidents.
The power windows operate when the ignition
switch is placed in the ON position, or for a
period of time after the ignition switch is placed in
the OFF position. If the driver’s or passenger’s
door is opened during this period of time, the
power to the windows is canceled.
1. Driver side automatic switch
2. Front passenger side automatic switch
3. Left rear passenger automatic switch
4. Right rear passenger automatic switch
5. Window lock button
Driver’s side power window switch
The driver’s side control panel is equipped with
switches to open or close the front and rear
passenger windows.
The window can be partially opened by pushing
the switch down lightly until the desired window
position is reached
A. To close the window
partially, pull the switch up until the desired win-
dow position is reached
B.
Locking passengers’ windows
When the window lock buttonCis depressed,
only the driver’s side window can be opened or
closed. Push it again to cancel the window lock
function.
SIC4352
WINDOWS
2-50Instruments and controls

Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window partially, push the switch down lightly
until the desired window position is reached. To
close the window partially, pull the switch up until
the desired window position is reached.
Rear power window switch
The rear power window switches open or close
only the corresponding windows. To partially
open the window, push the switch down lightly
until the desired window position is reached. To
partially close the window, pull the switch up
lightly until the desired window position is
reached.
Automatic operation
To fully open a window, press the window switch
down to the second detent and release it; it need
not be held. The window automatically opens all
the way. To stop the window, lift the switch up
while the window is opening.
To fully close a window, pull the switch up to the
second detent and release it; it need not be held.
To stop the window, press the switch down while
the window is closing.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
SIC4353LIC0410LIC0410
Instruments and controls2-51

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact an INFINITI retailer to re-initialize
the power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.
AUTOMATIC MOONROOF
The moonroof will only operate when the ignition
switch is placed in the ON position. The auto-
matic moonroof is operational for a period of time,
even if the ignition switch is placed in the ACC or
OFF position. If the driver’s door or the front
passenger’s door is opened during this period of
time, the power to the moonroof is canceled.
Sliding the moonroof
To fully open or close the moonroof, push the
switch to the open
2or close1position and
release it; it need not be held. The roof willautomatically open or close all the way. To stop
the roof, push the switch once more while it is
opening or closing.
Tilting the moonroof
To tilt up, first close the moonroof, then push the
switch to the tilt up position
1and release it; it
need not be held. To tilt down the moonroof, push
the switch to the tilt down position
2.
Restarting the moonroof switch
If the moonroof does not operate properly, per-
form the following procedure to initialize the
moonroof operation system.
1. If the moonroof is open, close it fully by
repeatedly pushing the moonroof switch to
the close position
1to tilt the moonroof up.
2. Push and hold the switch to the close posi-
tion
1.
3. Release the moonroof switch after the
moonroof moves slightly up and down.
4. Push and hold the switch to the open posi-
tion
2to fully tilt the moonroof down.
5. Check if the moonroof switch operates nor-
mally.
SIC4355
MOONROOF
2-52Instruments and controls

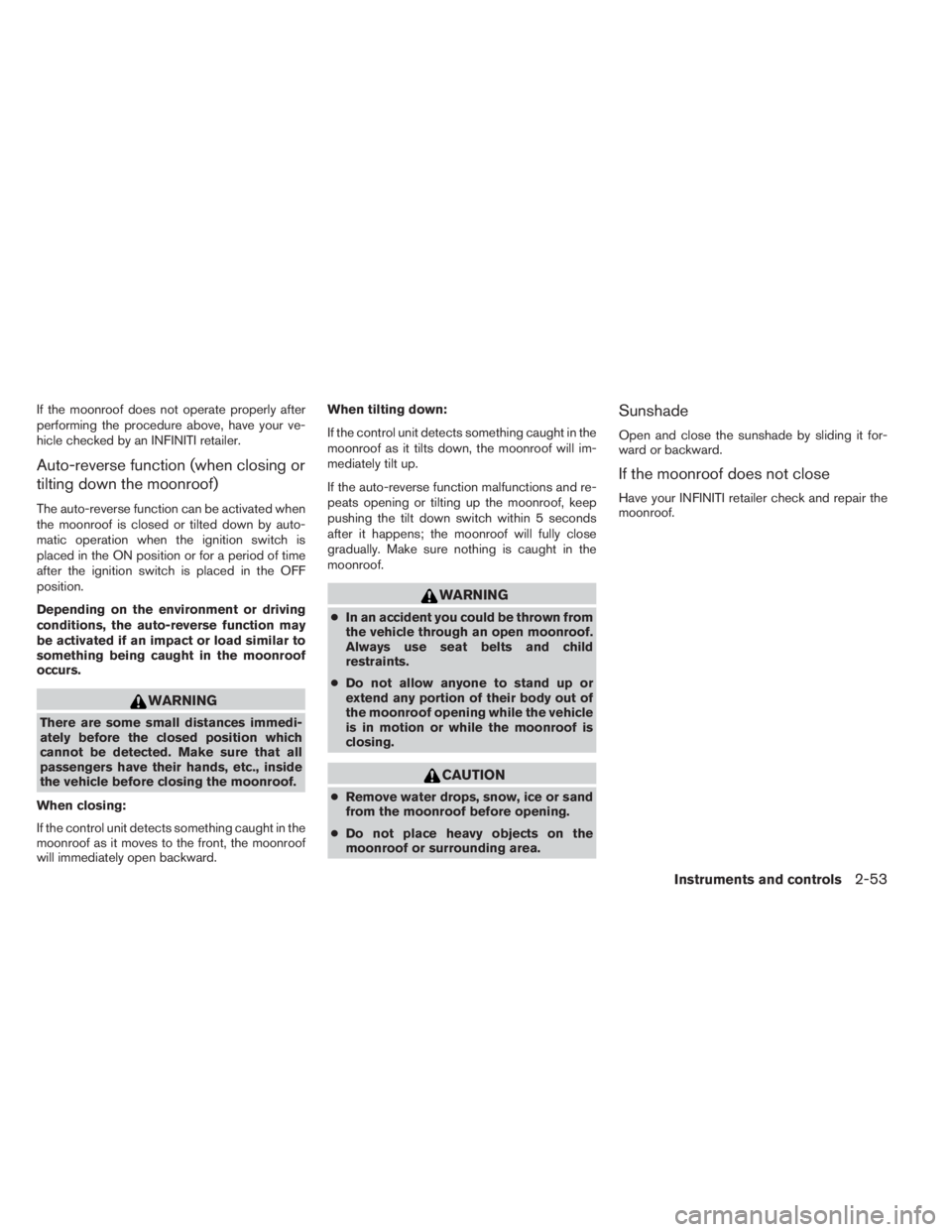

If the moonroof does not operate properly after
performing the procedure above, have your ve-
hicle checked by an INFINITI retailer.
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
When closing:
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.When tilting down:
If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.
If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds
after it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.
WARNING
●In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
●Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
●Remove water drops, snow, ice or sand
from the moonroof before opening.
●Do not place heavy objects on the
moonroof or surrounding area.
Sunshade
Open and close the sunshade by sliding it for-
ward or backward.
If the moonroof does not close
Have your INFINITI retailer check and repair the
moonroof.
Instruments and controls2-53

PANORAMIC SUNSHADE (if so
equipped)
The panoramic sunshade operates when the ig-
nition switch is in the ON position. The sunshade
switch is located near the roof console. When
opening or closing the sunshade the switch need
not be held.
To open the sunshade:
●To fully open the sunshade, push the switch
1toward the open position.
To close the sunshade:
●To fully close the sunshade, push the switch
2toward the close position.
WARNING
●To avoid personal injury, keep your
hands, fingers and head away from the
sunshade arm, the arm rail and sun-
shade inlet port.
●Do not allow children near the rear sun-
shade system. They could be injured.
●Do not place objects on or near the rear
sunshade. This could cause improper
operation or damage it.
●Do not pull or push the rear sunshade.
This could cause improper operation or
damage it.
CAUTION
●Do not place objects (such as newspa-
pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.
●Do not push the sunshade arm with
your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.●Do not put any object into the sunshade
inlet port as this may result in improper
operation or damage the sunshade.
●Do not hang any object on the arm rail
as this may result in improper operation
or damage the sunshade.
●Do not forcefully pull the sunshade. Do-
ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.
LIC2228
2-54Instruments and controls

When the ON switch1is pressed, the footwell
lights, step lights, map lights and rear personal
lights will automatically turn on and stay on for a
period of time when:
●The doors are unlocked by the Intelligent
Key, a key or the request switch while all
doors are closed and the ignition switch is in
the OFF position.
●The driver’s door is opened and then closed
while the key is removed from the ignition
switch.
●When individually pushed.When the OFF switch
2is pushed, the interior
lights do not illuminate even when pushed.
NOTE:
The footwell lights and step lights illumi-
nate when the driver and passenger doors
are open regardless of the interior light
switch position. These lights will turn off
automatically after a period of time while
doors are open to prevent the battery from
becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
CONSOLE LIGHT
The console light1will turn on whenever the
parking lights or headlights are illuminated.
The console light brightness can be adjusted
with the illumination brightness control.
SIC4357LIC2213
INTERIOR LIGHT
Instruments and controls2-55

To turn on the personal lights, press and release
the switch
1.
To turn the personal lights off, press and release
the switch
1.To turn the map lights on, press the switches. To
turn them off, press the switches again.CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.The cargo light on the overhead trim has a three-
position switch. To operate, push the switch to
the desired position.1ON: The light is illuminated.
2DOOR: The light illuminates when the lift-
gate is opened. The light turns off when the
liftgate is closed.
3OFF: The light does not illuminate regardless
of liftgate position or lock status.
LIC1413SIC4356SIC2063A
PERSONAL LIGHTS MAP LIGHTS CARGO LIGHT
2-56Instruments and controls

CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.The HomeLink® Universal Transceiver provides
a convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink® Universal Transceiver:
●Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and se-
curity systems.
●Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink® will retain all program-
ming.
When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases) .
Upon sale of the vehicle, the programmed
HomeLink® Universal Transceiver buttons
should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink®” later in this section.
WARNING
●Do not use the HomeLink® Universal
Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982) . A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
●During the programming procedure
your garage door or security gate will
open and close (if the transmitter is
within range) . Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.
●Your vehicle’s engine should be turned
off while programming the HomeLink®
Universal Transceiver.
HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)
Instruments and controls2-57

PROGRAMMING HOMELINK®
If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.
NOTE:
Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink®
for quicker programming and accurate
transmission of the radio-frequency.
1. Position the end of your hand-held transmit-
ter 1–3 inches (2–8 cm) away from the
HomeLink® surface, keeping the
HomeLink® indicator light
1in view.2. Using both hands, simultaneously press and
hold the desired HomeLink® button and
handheld transmitter button. DO NOT re-
lease until the HomeLink® indicator light1
flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. (The rapid flashing indi-
cates successful programming.)
NOTE:
Some devices may require you to replace
Step 2 with the cycling procedure noted in
the “Programing HomeLink® for Canadian
customers and gate openers” section.3. Press and hold the programmed
HomeLink® button and observe the indica-
tor light.
●If the indicator light1is
solid/continuous, programming is
completeand your device should acti-
vate when the HomeLink® button is
pressed and released.
●If the indicator light
1blinksrapidly for
two seconds and then turns to a
solid/continuous light, continue
with Steps 4-6for a rolling code device.
A second person may make the following
steps easier. Use a ladder or other device.
LIC2365LIC2366
2-58Instruments and controls
