Overtaking other vehicles
Illustration 5: The Blind Spot Warning indicator
light illuminates if you overtake a vehicle and that
vehicle stays in the detection zone for approxi-
mately 3 seconds.
The radar sensors may not detect slower moving
vehicles if they are passed quickly.Illustration 6: If the driver activates the turn signal
while another vehicle is in the detection zone,
then the system chimes a sound (twice) and the
Blind Spot Warning indicator light flashes.Illustration 7: If the BSI system is on and your
vehicle approaches a lane marker while another
vehicle is in the detection zone the system
chimes a sound (three times) and the Blind Spot
Warning indicator light flashes. Then, the BSI
system slightly applies the brakes on the appro-
priate side to help return the vehicle back to the
center of the driving lane.
Illustration 5 – Overtaking another vehicle
SSD1033
Illustration 6 – Overtaking another vehicle
SSD1034
Illustration 7 – Overtaking another vehicle
LSD2072
Starting and driving5-41

NOTE:
Illustration 8: When overtaking several ve-
hicles in a row, the vehicles after the first
vehicle may not be detected if they are
traveling close together.Entering from the side
Illustration 9: The Blind Spot Warning indicator
light illuminates if a vehicle enters the detection
zone from either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detection
zone.Illustration 10: If the driver activates the turn
signal then the Blind Spot Warning indicator light
flashes and a chime will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
Blind Spot Warning indicator light will flash
but no chime will sound when another ve-
hicle is detected.
Illustration 8 – Overtaking several vehicles
SSD1036
Illustration 9 – Entering from the side
LSD2050
5-42Starting and driving

Illustration 11: If the BSI system is on and your
vehicle approaches the lane marker while another
vehicle is in the detection zone, the Blind Spot
Warning indicator light flashes and a chime will
sound three times. Then, the BSI system slightly
applies the brakes on the appropriate side to help
return the vehicle back to the center of the driving
lane.NOTE:
●Illustration 12: The BSI system will not oper-
ate if your vehicle is on a lane marker when
another vehicle enters the detection zone. In
this case only the BSW system operates.
●BSI braking will not operate or will stop
operating and only a warning chime will
sound under the following conditions.
– When the brake pedal is depressed.
– When the accelerator pedal is applied
during BSI operation.– When steering quickly.
– When the ICC, DCA, FCW or IBA warn-
ings sound.
– When the hazard warning flashers are
operated.
– When driving on a curve at a high speed.
Illustration 10 – Entering from the side
SSD1038
Illustration 11 – Entering from the side
SSD1094
Illustration 12 – Entering from the side
LSD2051
Starting and driving5-43

THE BACK-UP COLLISION
INTERVENTION (BCI) SYSTEM (if so
equipped)
WARNING
●The BCI system is not a replacement for
proper driving procedure, is not de-
signed to prevent contact with vehicles
or objects and does not provide full
brake power. When backing out of park-
ing space, always use the side and rear
mirrors and turn and look in the direc-
tion you will move. Never rely solely on
the BCI system.●There is a limitation to the detection
capability of the radar or the sonar. Us-
ing the BSI and BCI systems under
some road, ground, lane marker, traffic
or weather conditions could lead to im-
proper system operation. Always rely
on your own operation to avoid
accidents.
BCI SYSTEM OPERATION
The BCI systems can help alert the driver of an
approaching vehicle or objects behind the ve-
hicle when the driver is backing out of a parking
space.
When the shift position is R (Reverse) and the
vehicle speed is less than approximately 5 MPH
(8 km/h), the BCI system operates.The BCI system uses radar sensors
1installed
on both sides near the rear bumper to detect an
approaching vehicle and sonar sensors to detect
objects in the rear.
The radar sensors
1detect an approaching
vehicle from up to approximately 49 ft. (15 m)
away. The sonar sensors
2detect stationary
objects behind the vehicle up to approximately
4.9 feet (1.5 m)
3.
LSD2025LSD2026
5-44Starting and driving

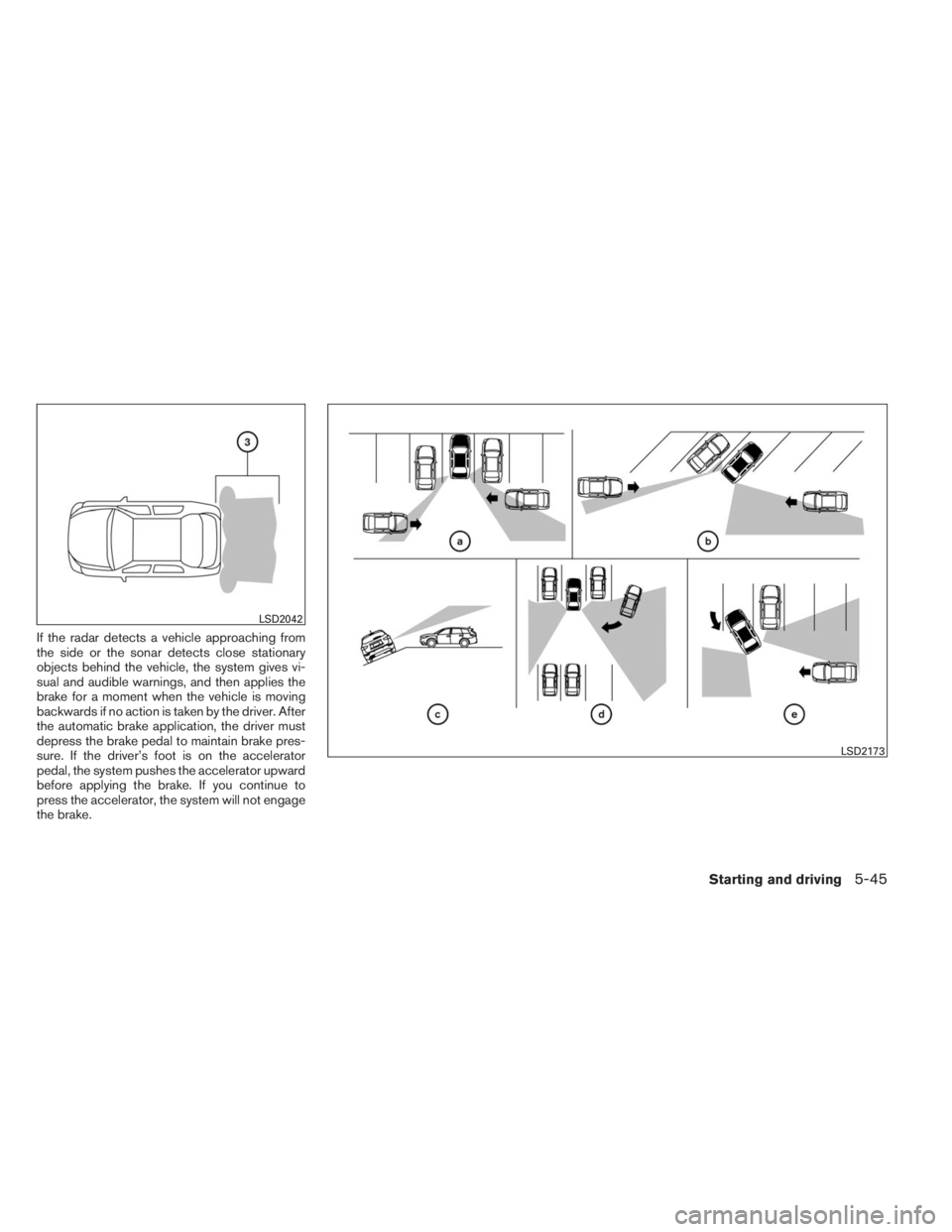

If the radar detects a vehicle approaching from
the side or the sonar detects close stationary
objects behind the vehicle, the system gives vi-
sual and audible warnings, and then applies the
brake for a moment when the vehicle is moving
backwards if no action is taken by the driver. After
the automatic brake application, the driver must
depress the brake pedal to maintain brake pres-
sure. If the driver’s foot is on the accelerator
pedal, the system pushes the accelerator upward
before applying the brake. If you continue to
press the accelerator, the system will not engage
the brake.
LSD2042
LSD2173
Starting and driving5-45

BCI system operation
WARNING
●Always check surroundings and turn to
check what is behind you before back-
ing up. The radar sensors detect ap-
proaching (moving) vehicles. The radar
sensors cannot detect every object such
as:
– Pedestrians, bicycles, motorcycles,
animals or child operated toy
vehicles
– A vehicle that passing at speeds
greater than approximately 15 MPH
(24 km/h)
●The radar sensors may not detect ap-
proaching vehicles in certain situations:
a. When a vehicle parked next to you ob-
structs the beam of the radar sensor.
b. When the vehicle is parked in an
angled parking space.
c. When the vehicle is parked on inclined
ground.
d. When an approaching vehicle turns
into your vehicle’s parking lot aisle.e. When the angle formed by your vehicle
and approaching vehicle is small
●The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice build up on the vehicle
– Frost up on the vehicle
– Dirt up on the vehicle
●Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles
●The sonar sensors detect stationary ob-
jects behind the vehicle. The sonar sen-
sor may not detect:
– Small or moving objects
– Wedge-shaped objects
– Object close to the bumper (less than
approximately 1 ft. (30 cm))– Thin objects such as rope, wire and
chain, etc.
●Do not use the BCI systems under the
following conditions because the sys-
tem may not function properly.
– When driving with a tire that is not
within normal tire conditions (e.g.
tire wear, low tire pressure, installa-
tion of spare tire, tire chains, non-
standard wheels) .
– When the vehicle is equipped with
non-original brake parts or suspen-
sion parts.
●Do not use the BCI systems when tow-
ing a trailer.
●Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.
When the shift lever is placed in R (Reverse)
position, the BCI ON appears in the vehicle infor-
mation display.
5-46Starting and driving

If the radar detects an approaching vehicle from
the side, the system chimes a sound (single
beep) , the Blind Spot Warning indicator light on
the side the approaching vehicle flashes and a
yellow rectangular frame appears in display “A”.NOTE:
●In the case of several vehicles approaching
in a row (Illustration 1) or in the opposite
direction (Illustration 2) , a chime may not be
sounded by the BCI system after the first
vehicle passes the sensors.
●The sonar system chime indicating there is a
object behind the vehicle has a higher prior-
ity than the BCI chime (single beep) indicat-
ing an approaching vehicle. If the BCI sys-
tem detects an object behind the vehicle
and an approaching vehicle at the same time
the following indications are provided:– The sonar system chime sounds
– The Blind Spot Warning indicator light on
the side of the approaching vehicle
flashes and
– A yellow rectangular frame appears in
display.
If an approaching vehicle or object behind the
vehicle is detected when your vehicle is backing
up, a red frame will appear in the displayAand
the system will chime 3 times. Then, the brakes
will be applied momentarily. After the automatic
brake application, the driver must depress the
brake pedal to maintain brake pressure.
LSD2134
Illustration 1
LSD2043
Illustration 2
LSD2044
Starting and driving5-47

If the driver’s foot is on the accelerator pedal, the
system moves the accelerator pedal upward be-
fore the braking is applied. However, if you con-
tinue to apply the accelerator, the system will not
engage the brakes.
NOTE:
The system does not operate if the object is
very close to the bumper.The BCI system automatically turns on every time
the engine is started.
The BCI system can be turned off temporarily by
pushing the BCI switch. The BCI OFF display
appears on the vehicle information display. When
the shift lever is placed into the R (Reverse)
position again the BCI system is turned on.
The BCI system can be turned off permanently by
setting in the vehicle information display.
1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button.
LSD2134LSD2030
5-48Starting and driving

2. Select “Back-up Collision Interv.”, and press
the ENTER button.
3. To set the BCI system to on or off, use the
buttons to navigate in the menu and use the
ENTER button to select or change an item.
BCI temporarily not available
If the following messages appear on the vehicle
information display, a chime will sound and the
BCI system will be turned off automatically.
●“Unavailable High Accelerator Temp. ” :
If the vehicle is parked in direct sunlight
under high temperature conditions (over ap-
proximately 104°F (40°C) and then started,
the BCI system may be deactivated auto-
matically and the “Unavailable High Accel-
erator Temp” message will appear in the
vehicle information display for a period of
time.
When the interior temperature is reduced,
turn off the BCI system and turn it on again.
●“Unavailable Side Radar Obstruction” :
When side radar blockage is detected.
When the blockage is removed, turn off the
BCI system and turn it on again.BCI malfunction
If the BCI system malfunctions, it will turn off
automatically, a chime will sound and the BCI
system warning light (orange) will illuminate.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
(orange) continues to illuminate, have the system
checked by an INFINITI retailer.
LSD2046
Starting and driving5-49

RADAR MAINTENANCE
The two radar sensors1for the BSW, BSI and
BCI systems are located near the rear bumper.
Always keep the area near the radar sensors
clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors.Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. Consult an INFINITI retailer if the
area around the radar sensors is damaged due to
a collision.
Lane camera maintenance
For information of camera maintenance, see
“Lane camera unit maintenance” in this section.
Sonar sensor maintenance
For information of sonar sensor maintenance, see
“Sensor maintenance” in this section.Radio frequency statement
This device complies with part 15 of the FCC
Rules and RSS-310 of Industry Canada.
Operation is subject to the following two condi-
tions:
1. This device may not cause harmful interfer-
ence.
2. This device must accept any interference
received, including interference that may
cause undesired operation.Frequency of operation: 24.05GHz — 24.25GHz
Field Strength: Not greater than 2.5V/m peak
(0.25V/m average) at a distance of 3 m.
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modi-
fications to this equipment. Such modifications
could void the user’s authority to operate the
equipment.
LSD2025
5-50Starting and driving
