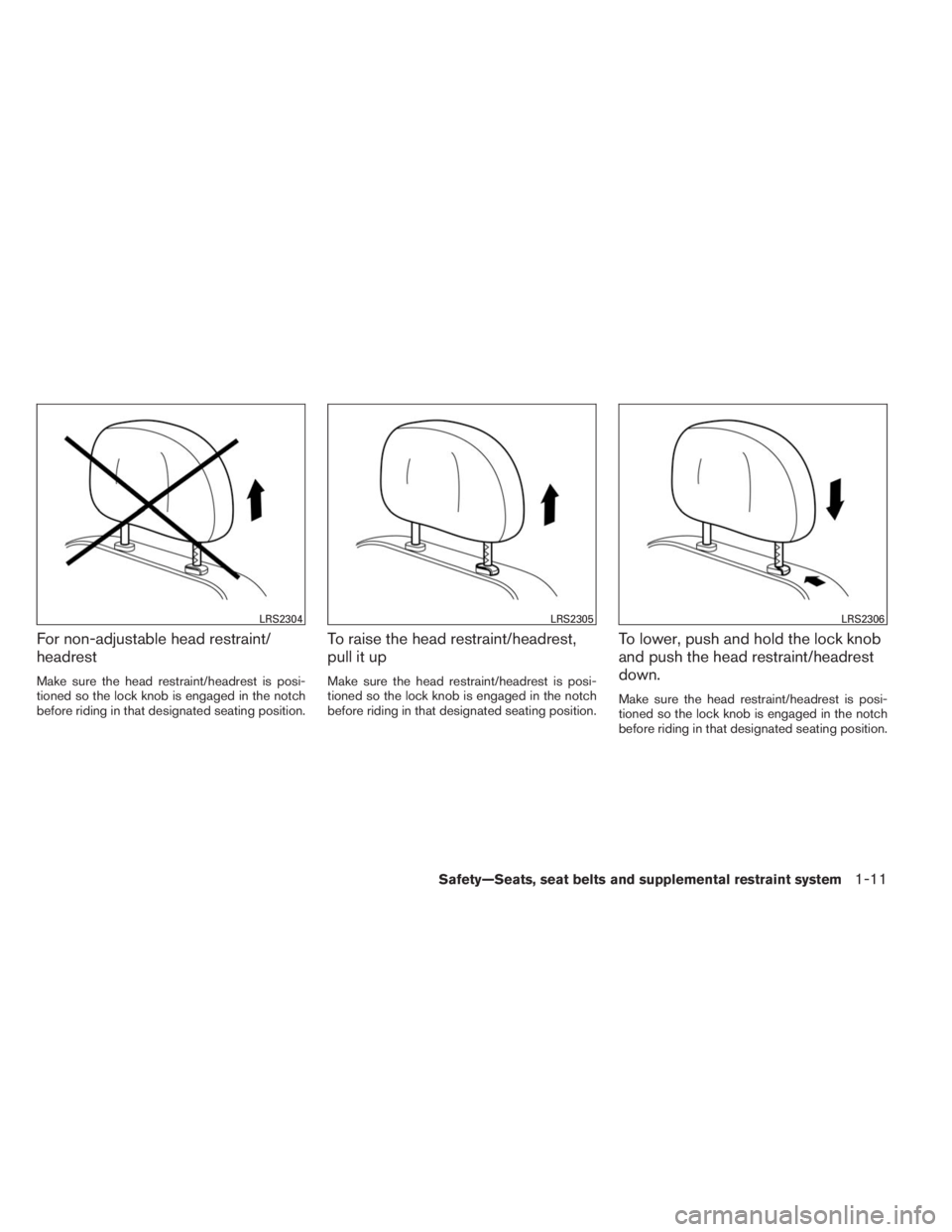

For non-adjustable head restraint/
headrest
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
To raise the head restraint/headrest,
pull it up
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
To lower, push and hold the lock knob
and push the head restraint/headrest
down.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
LRS2304LRS2305LRS2306
Safety—Seats, seat belts and supplemental restraint system1-11

2ND ROW HEAD RESTRAINTS/
HEADRESTS
WARNING
●Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjust the head
restraints/headrests properly, as speci-
fied in this section. Check the adjust-
ment after someone else uses the seat.
Do not attach anything to the head
restraint/headrest stalks. Do not use
the seat if the head restraint/headrest
has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to fol-
low these instructions can reduce the
effectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.The illustration shows the seating positions
equipped with head restraints/headrests. The
second row head restraints are removable and
adjustable.
Indicates the seating position is equipped with
a head restraint.
Indicates the seating position is equipped with
a headrest.
+ Indicates the seating position is not equipped
with a head restraint or headrest.
●Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.●Adjustable head restraints/headrests have
multiple notches along the stalk to lock them
in a desired adjustment position.
●The non-adjustable head
restraints/headrests have single locking
notches to secure them to the seat frame.
●Proper Adjustment:
– For the adjustable type, align the head
restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
– If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
●If the head restraint/headrest has been re-
moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position
LRS2308
1-12Safety—Seats, seat belts and supplemental restraint system

Adjustable head restraint/headrest
components
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
Non-adjustable head restraint/
headrest components
1. Removable head restraint/headrest
2. Single Notch
3. Lock knob
4. Stalks
Removable
Use the following procedure to remove the head
restraints/headrests
1. Pull the head restraint/headrest up to the
highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from
the seat.
4.
Store the head restraint/headrest properly in a
secure place so it is not loose in the vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
LRS2300LRS2299LRS2302
Safety—Seats, seat belts and supplemental restraint system1-13

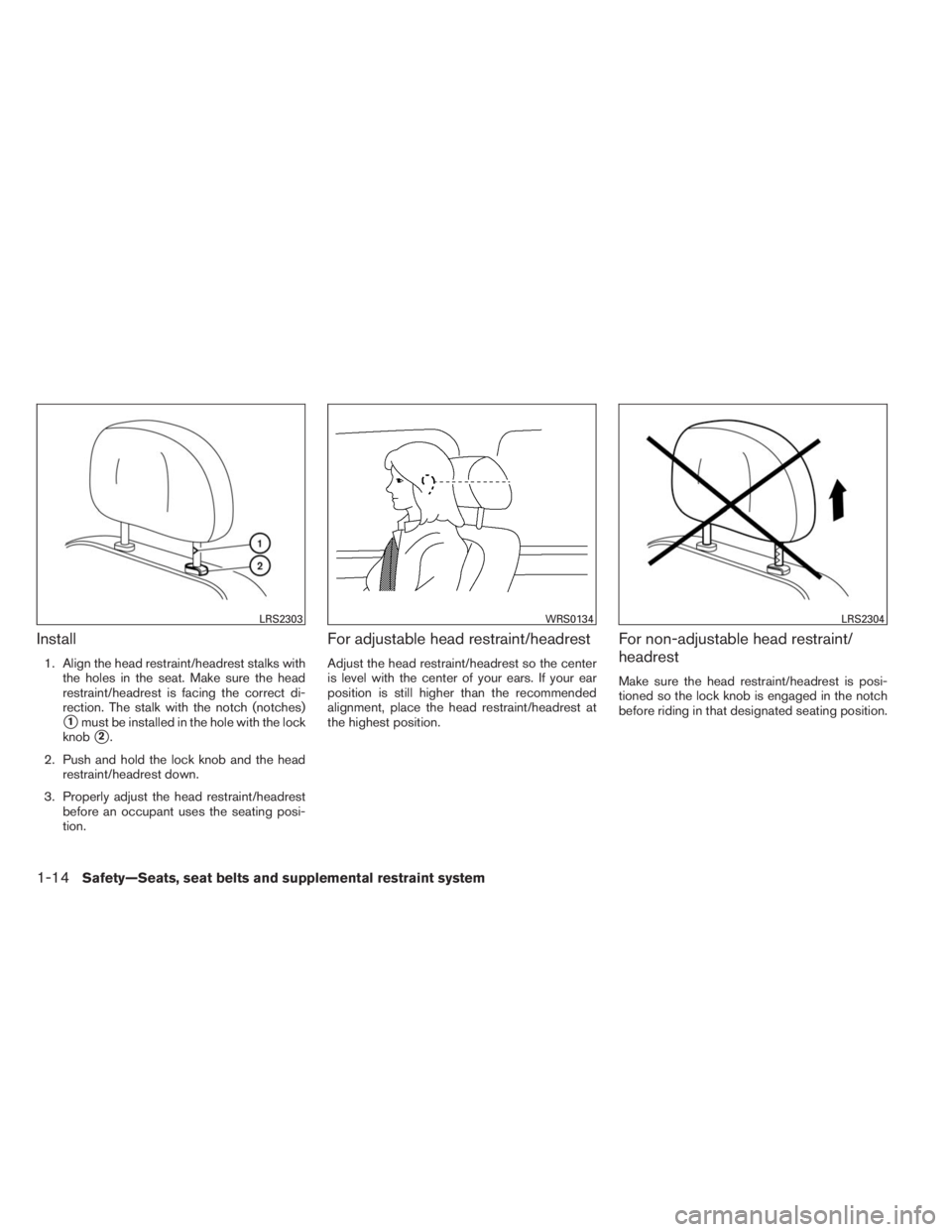

Install
1. Align the head restraint/headrest stalks with
the holes in the seat. Make sure the head
restraint/headrest is facing the correct di-
rection. The stalk with the notch (notches)
1must be installed in the hole with the lock
knob
2.
2. Push and hold the lock knob and the head
restraint/headrest down.
3. Properly adjust the head restraint/headrest
before an occupant uses the seating posi-
tion.
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.
For non-adjustable head restraint/
headrest
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
LRS2303WRS0134LRS2304
1-14Safety—Seats, seat belts and supplemental restraint system

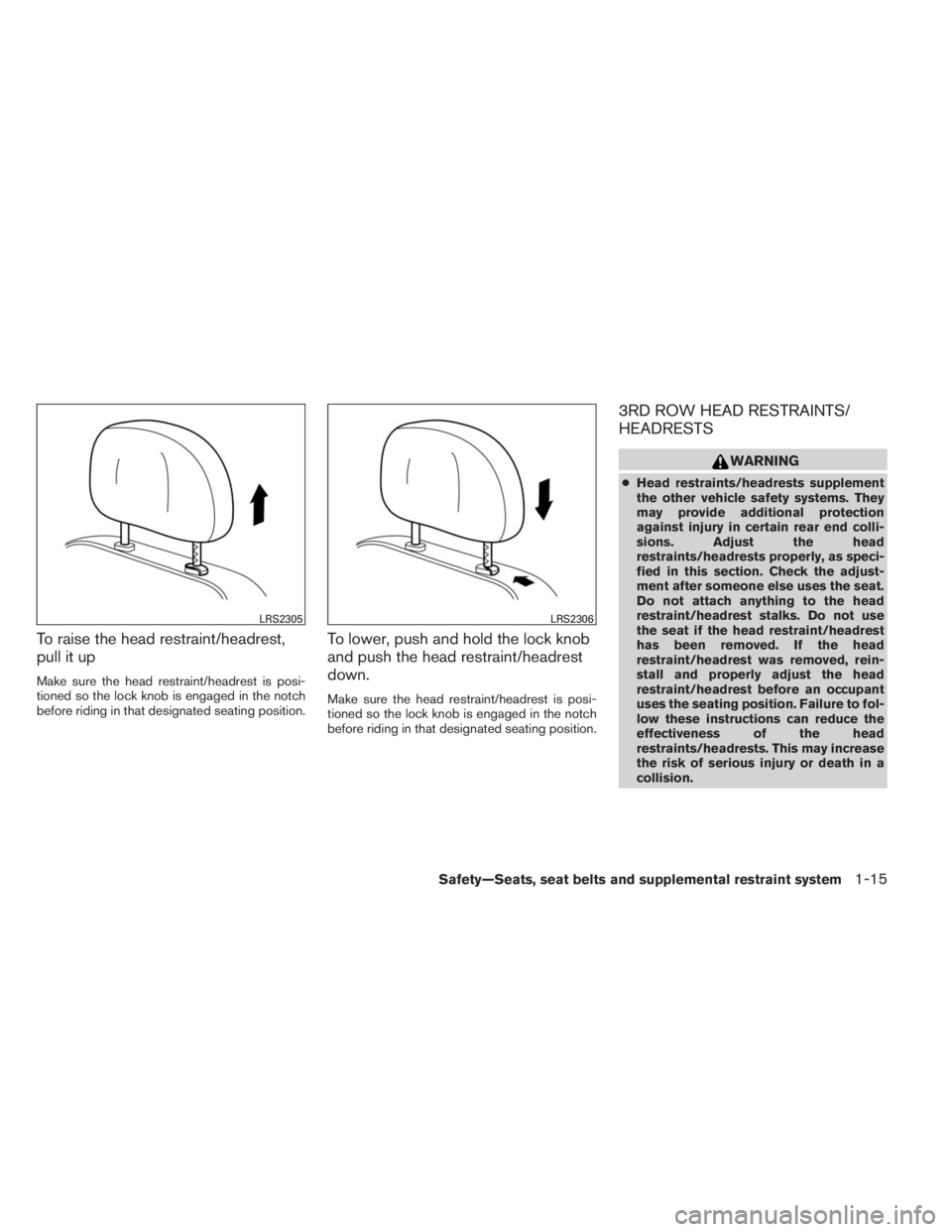

To raise the head restraint/headrest,
pull it up
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
To lower, push and hold the lock knob
and push the head restraint/headrest
down.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
3RD ROW HEAD RESTRAINTS/
HEADRESTS
WARNING
●Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjust the head
restraints/headrests properly, as speci-
fied in this section. Check the adjust-
ment after someone else uses the seat.
Do not attach anything to the head
restraint/headrest stalks. Do not use
the seat if the head restraint/headrest
has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to fol-
low these instructions can reduce the
effectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.
LRS2305LRS2306
Safety—Seats, seat belts and supplemental restraint system1-15

The illustration shows the seating positions
equipped with head restraints/headrests. The
third row head restraints are removable but not
adjustable.
Indicates the seating position is equipped with
a head restraint.
Indicates the seating position is equipped with
a headrest.
+ Indicates the seating position is not equipped
with a head restraint or headrest.
●Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.●Adjustable head restraints/headrests have
multiple notches along the post to lock them
in a desired adjustment position.
●The non-adjustable head
restraints/headrests have single locking
notches to secure them to the seat frame.
●Proper Adjustment:
– For the adjustable type, align the head
restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
– If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
●If the head restraint/headrest has been re-
moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.Adjustable head restraint/headrest
components
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knobs
4. Stalks
LRS2308LRS2310
1-16Safety—Seats, seat belts and supplemental restraint system

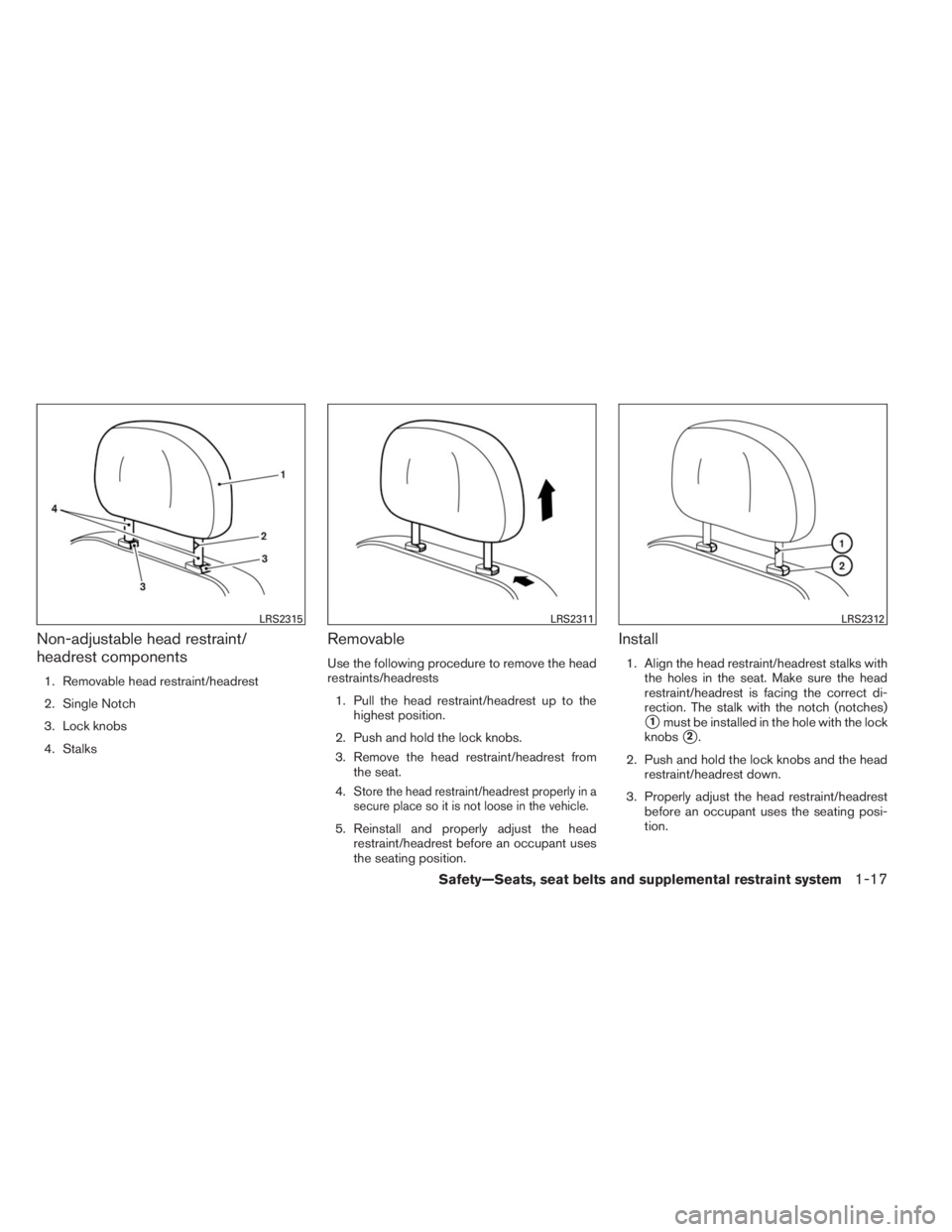

Non-adjustable head restraint/
headrest components
1. Removable head restraint/headrest
2. Single Notch
3. Lock knobs
4. Stalks
Removable
Use the following procedure to remove the head
restraints/headrests
1. Pull the head restraint/headrest up to the
highest position.
2. Push and hold the lock knobs.
3. Remove the head restraint/headrest from
the seat.
4.
Store the head restraint/headrest properly in a
secure place so it is not loose in the vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
Install
1. Align the head restraint/headrest stalks with
the holes in the seat. Make sure the head
restraint/headrest is facing the correct di-
rection. The stalk with the notch (notches)
1must be installed in the hole with the lock
knobs
2.
2. Push and hold the lock knobs and the head
restraint/headrest down.
3. Properly adjust the head restraint/headrest
before an occupant uses the seating posi-
tion.
LRS2315LRS2311LRS2312
Safety—Seats, seat belts and supplemental restraint system1-17

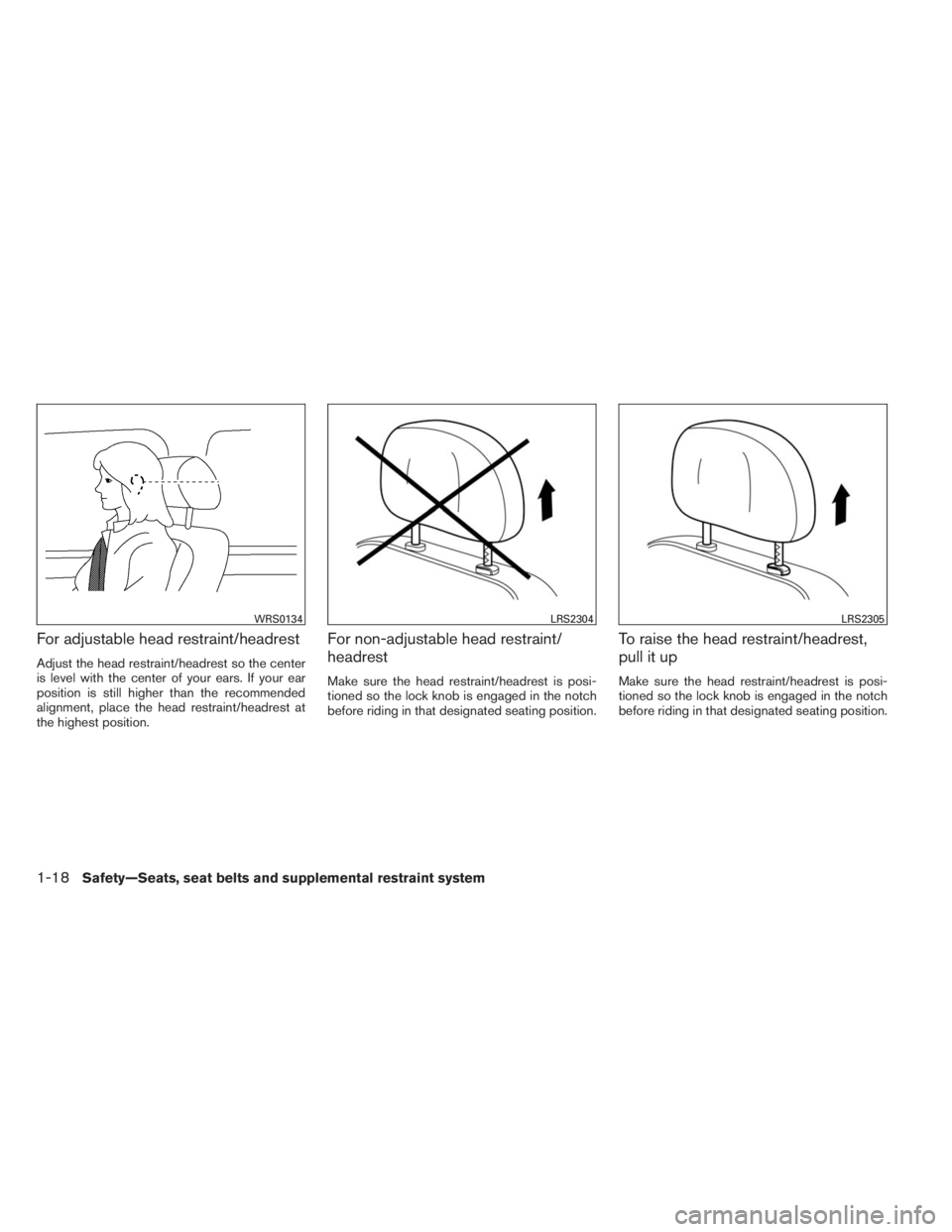

For adjustable head restraint/headrest
Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.
For non-adjustable head restraint/
headrest
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
To raise the head restraint/headrest,
pull it up
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
WRS0134LRS2304LRS2305
1-18Safety—Seats, seat belts and supplemental restraint system

To lower, push and hold the lock knob
and push the head restraint/headrest
down.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
Folding head restraints/headrests
To fold the head restraint/headrest, pull the strap
located on the rear of the head
restraint/headrest.
If the head restraint/headrest has been folded,
make sure that it is returned to the upright posi-
tion.
Make sure the head restraint/headrest is posi-
tioned so the lock knobs are engaged in the
notch before riding in that designated seating
position.
WARNING
When the seat is returned to the normal
seating position, the head
restraints/headrests must be returned to
the upright position to properly protect
vehicle occupants.
FLEXIBLE SEATING
WARNING
●Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.
●Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.
●Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seats.
LRS2306LRS2307
Safety—Seats, seat belts and supplemental restraint system1-19

●Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace and adjust
them properly if they have been re-
moved for any reason.
●If the head restraints/headrests are re-
moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident
●When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
●Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
Folding the 2nd row bench seat
To fold the 2nd row bench seat flat for maximum
cargo hauling:
1. Make sure that the head
restraints/headrests are lowered. For maxi-
mum cargo hauling, remove the center head
restraints/headrests. To remove the head
restraints/headrests, push and hold the lock
knob while moving the head
restraints/headrests in an upward direction.
Store the head restraints/headrests properly
so it is not loose in the vehicle.
2. Stow the 2nd row seat belts in the seat belt
hooks found on the sides of the vehicle.3. Lift up on the recline lever on the side of the
outboard seats to fold the seatbacks flat.
4. To return the 2nd row bench seats to a
seating position, push up on the seatback
until it latches in place.
LRS2144
1-20Safety—Seats, seat belts and supplemental restraint system
