INFINITI QX60 2014 Owners Manual

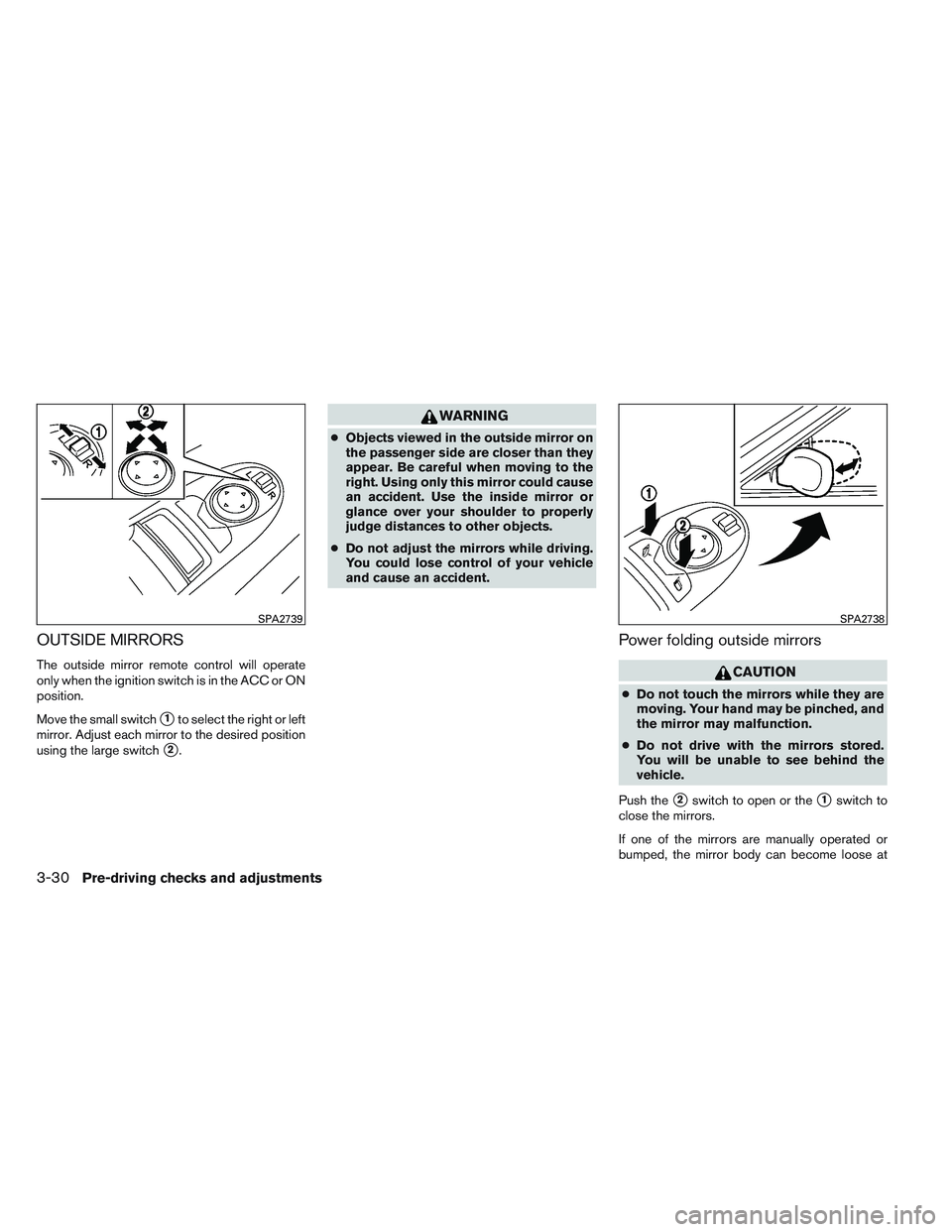

OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the right or left
mirror. Adjust each mirror to the desired position
using the large switch
2.
WARNING
● Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Power folding outside mirrors
CAUTION
● Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.
● Do not drive with the mirrors stored.
You will be unable to see behind the
vehicle.
Push the
2switch to open or the1switch to
close the mirrors.
If one of the mirrors are manually operated or
bumped, the mirror body can become loose at
SPA2739SPA2738
3-30Pre-driving checks and adjustments

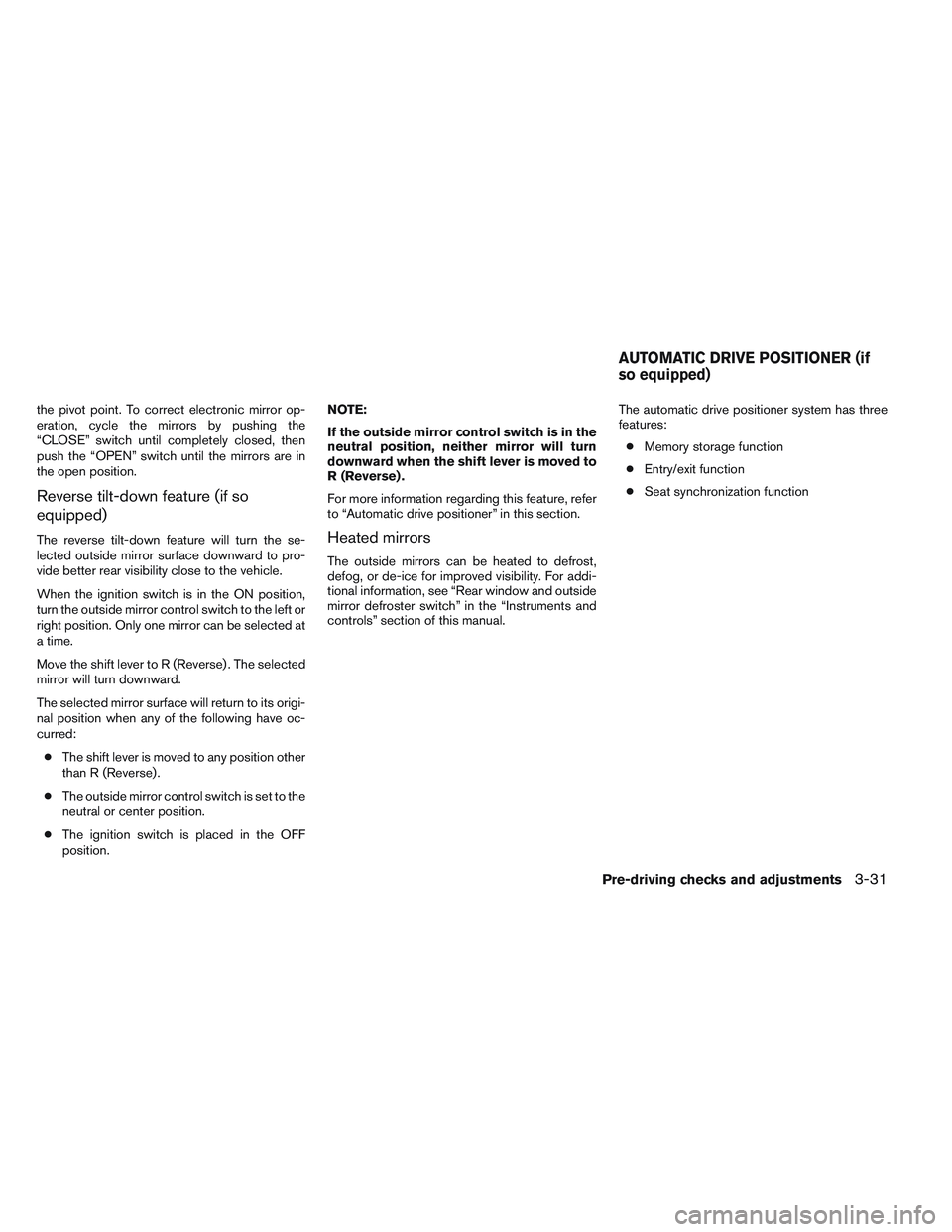

the pivot point. To correct electronic mirror op-
eration, cycle the mirrors by pushing the
“CLOSE” switch until completely closed, then
push the “OPEN” switch until the mirrors are in
the open position.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn the se-
lected outside mirror surface downward to pro-
vide better rear visibility close to the vehicle.
When the ignition switch is in the ON position,
turn the outside mirror control switch to the left or
right position. Only one mirror can be selected at
a time.
Move the shift lever to R (Reverse) . The selected
mirror will turn downward.
The selected mirror surface will return to its origi-
nal position when any of the following have oc-
curred:● The shift lever is moved to any position other
than R (Reverse) .
● The outside mirror control switch is set to the
neutral or center position.
● The ignition switch is placed in the OFF
position. NOTE:
If the outside mirror control switch is in the
neutral position, neither mirror will turn
downward when the shift lever is moved to
R (Reverse) .
For more information regarding this feature, refer
to “Automatic drive positioner” in this section.Heated mirrors
The outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, see “Rear window and outside
mirror defroster switch” in the “Instruments and
controls” section of this manual.
The automatic drive positioner system has three
features:
● Memory storage function
● Entry/exit function
● Seat synchronization function
AUTOMATIC DRIVE POSITIONER (if
so equipped)
Pre-driving checks and adjustments3-31

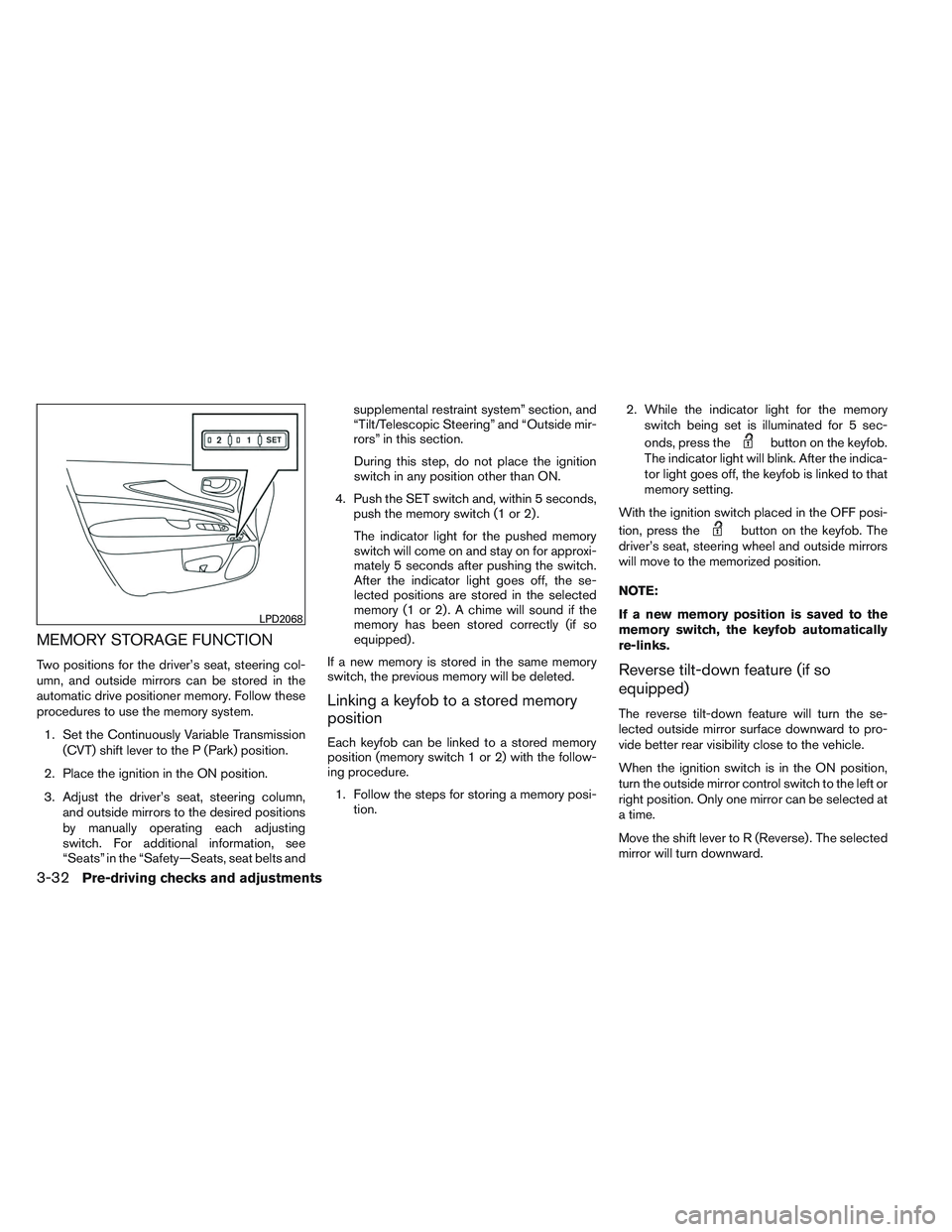

MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering col-
umn, and outside mirrors can be stored in the
automatic drive positioner memory. Follow these
procedures to use the memory system.1. Set the Continuously Variable Transmission (CVT) shift lever to the P (Park) position.
2. Place the ignition in the ON position.
3. Adjust the driver’s seat, steering column, and outside mirrors to the desired positions
by manually operating each adjusting
switch. For additional information, see
“Seats” in the “Safety—Seats, seat belts and supplemental restraint system” section, and
“Tilt/Telescopic Steering” and “Outside mir-
rors” in this section.
During this step, do not place the ignition
switch in any position other than ON.
4. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2) .
The indicator light for the pushed memory
switch will come on and stay on for approxi-
mately 5 seconds after pushing the switch.
After the indicator light goes off, the se-
lected positions are stored in the selected
memory (1 or 2) . A chime will sound if the
memory has been stored correctly (if so
equipped) .
If a new memory is stored in the same memory
switch, the previous memory will be deleted.
Linking a keyfob to a stored memory
position
Each keyfob can be linked to a stored memory
position (memory switch 1 or 2) with the follow-
ing procedure. 1. Follow the steps for storing a memory posi- tion. 2. While the indicator light for the memory
switch being set is illuminated for 5 sec-
onds, press the
button on the keyfob.
The indicator light will blink. After the indica-
tor light goes off, the keyfob is linked to that
memory setting.
With the ignition switch placed in the OFF posi-
tion, press the
button on the keyfob. The
driver’s seat, steering wheel and outside mirrors
will move to the memorized position.
NOTE:
If a new memory position is saved to the
memory switch, the keyfob automatically
re-links.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn the se-
lected outside mirror surface downward to pro-
vide better rear visibility close to the vehicle.
When the ignition switch is in the ON position,
turn the outside mirror control switch to the left or
right position. Only one mirror can be selected at
a time.
Move the shift lever to R (Reverse) . The selected
mirror will turn downward.
LPD2068
3-32Pre-driving checks and adjustments

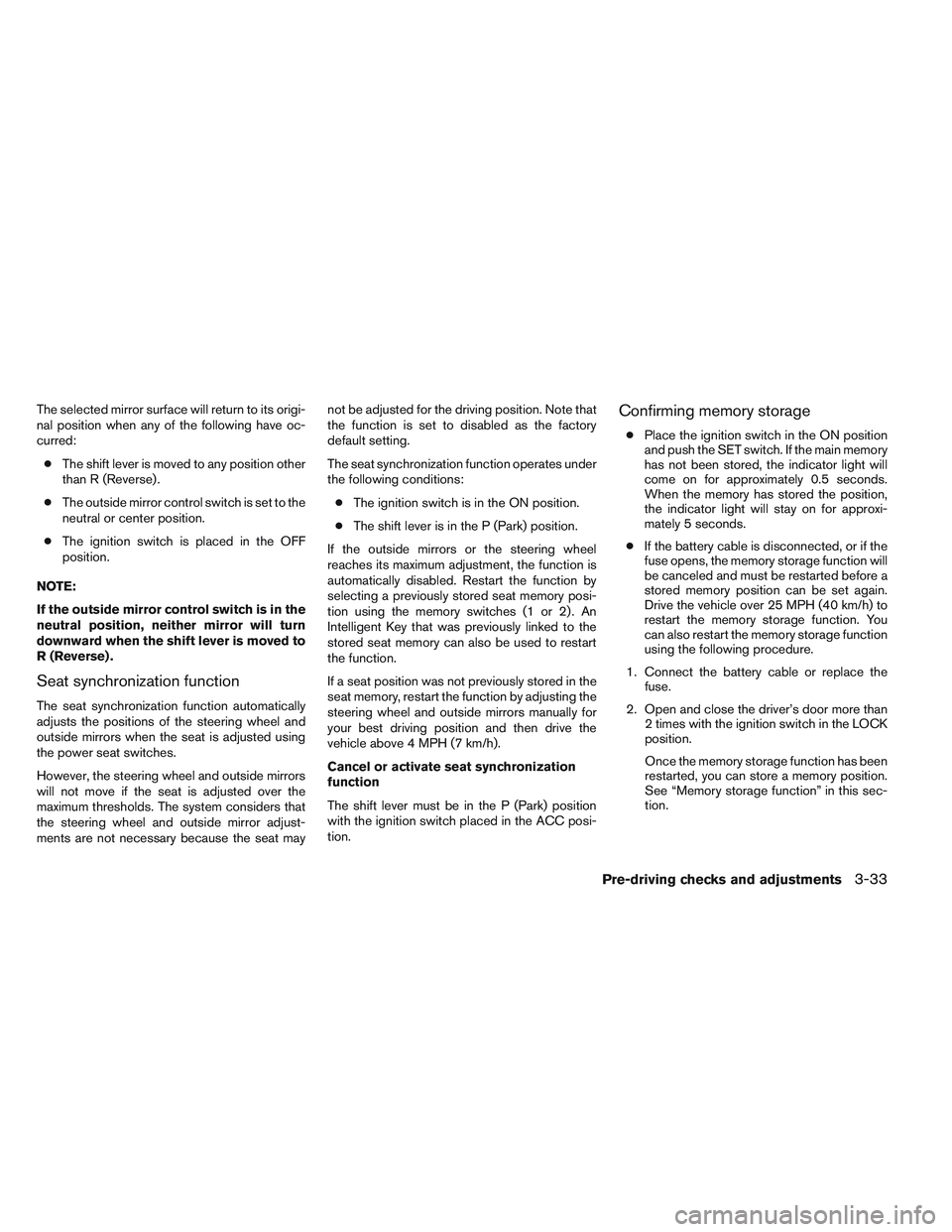

The selected mirror surface will return to its origi-
nal position when any of the following have oc-
curred:● The shift lever is moved to any position other
than R (Reverse) .
● The outside mirror control switch is set to the
neutral or center position.
● The ignition switch is placed in the OFF
position.
NOTE:
If the outside mirror control switch is in the
neutral position, neither mirror will turn
downward when the shift lever is moved to
R (Reverse) .
Seat synchronization function
The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mirrors
will not move if the seat is adjusted over the
maximum thresholds. The system considers that
the steering wheel and outside mirror adjust-
ments are not necessary because the seat may not be adjusted for the driving position. Note that
the function is set to disabled as the factory
default setting.
The seat synchronization function operates under
the following conditions:
● The ignition switch is in the ON position.
● The shift lever is in the P (Park) position.
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function is
automatically disabled. Restart the function by
selecting a previously stored seat memory posi-
tion using the memory switches (1 or 2) . An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in the
seat memory, restart the function by adjusting the
steering wheel and outside mirrors manually for
your best driving position and then drive the
vehicle above 4 MPH (7 km/h).
Cancel or activate seat synchronization
function
The shift lever must be in the P (Park) position
with the ignition switch placed in the ACC posi-
tion.
Confirming memory storage
● Place the ignition switch in the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 seconds.
When the memory has stored the position,
the indicator light will stay on for approxi-
mately 5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory storage function will
be canceled and must be restarted before a
stored memory position can be set again.
Drive the vehicle over 25 MPH (40 km/h) to
restart the memory storage function. You
can also restart the memory storage function
using the following procedure.
1. Connect the battery cable or replace the fuse.
2. Open and close the driver’s door more than 2 times with the ignition switch in the LOCK
position.
Once the memory storage function has been
restarted, you can store a memory position.
See “Memory storage function” in this sec-
tion.
Pre-driving checks and adjustments3-33

Selecting the memorized position
Set the shift lever to the P (Park) position, then:● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2) or
● Place the ignition switch in the ON position
and push the memory switch (1 or 2) .
The driver’s seat, steering column, and outside
mirrors will move to the memorized position with
the indicator light blinking, and then the light will
stay on for approximately 5 seconds.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
and automatic operation steering column will au-
tomatically move when the shift lever is in the P
(Park) position. This allows the driver to get into
and out of the driver’s seat more easily.
The driver’s seat will slide backward and the
steering column will move up: ● When the driver’s door is opened with the
ignition switch placed in the LOCK position.
● When the ignition switch is turned from
ACC to LOCK with the driver’s door open. The driver’s seat and steering wheel will return to
the previous position:
● When the driver’s door is closed with the
ignition switch placed in the LOCK position.
● When the ignition switch is turned from
ACC to ON while the shift lever is in the P
(Park) position.
The entry/exit function can be adjusted or can-
celed through the Vehicle Settings in the vehicle
information display by performing the following: ● Switch the Exit Seat Slide from ON to OFF.
● Switch the Exit Steering UP from ON to
OFF.
Restarting the entry/exit function
If the battery cable is disconnected or if the fuse
opens, the entry/exit function will be disabled.
Drive the vehicle over 25 MPH (40 km/h) to
restart the entry/exit function. You can also restart
the entry/exit function using the following proce-
dure.
1. Connect the battery cable or replace the fuse.
2. Open and close the driver’s door more than 2 times with the ignition switch in the LOCK
position.
The entry/exit function should now work properly.
SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memorized
settings can be available for each Intelligent Key.
● Climate control system
● Navigation system (if so equipped)
● Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s pre-
ferred settings. Lock the doors with the Intelligent
Key. Each Intelligent Key may be set with the
driver’s individual preferences. When a new In-
telligent Key is used, “Connection with the key
has been done” will be displayed on the screen
and the memorized settings are available.
To engage the memorized settings, perform the
following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
UNLOCK
button on the Intelligent
Key.
3. Place the ignition switch in the “ON” posi- tion. The settings linked to the Intelligent Key
will start.
3-34Pre-driving checks and adjustments

For further instructions on using the Climate con-
trol system see “Heater and air conditioner (au-
tomatic)” in “Monitor, climate, audio, phone and
voice recognition systems”.
For further instructions on using the Navigation
System, see the separate Navigation System
Owner’s Manual.
For further instructions on using the Audio sys-
tem, see “Audio system” in “Monitor, climate,
audio, phone and voice recognition systems”.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:● When the vehicle speed is above 4 MPH
(7 km/h).
● When any of the memory switches are
pushed while the automatic drive positioner
is operating.
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the seat has already been moved to
the memorized position.
● When no seat position is stored in the
memory switch. ●
When the shift lever is moved from P (Park)
to any other position.
● When the driver’s door remains open more
than 45 seconds and the ignition switch is
not in the ON position.
● The seat synchronization function is auto-
matically disabled if the outside mirrors or
steering wheel reaches its maximum adjust-
ment.
● The seat synchronization function will not
operate if the seat is adjusted over one of the
following maximum thresholds:
– Seat sliding: 3.0 in (76 mm)
– Seatback reclining: 9.1 degrees
– Seat lifter (rear side): 0.8 in (20 mm)
The entry/exit function can be adjusted or can-
celed through the Vehicle Settings in the vehicle
information display by performing the following: ● Switch the Exit Seat Slide from ON to OFF.
● Switch the Exit Steering UP from ON to
OFF.
Pre-driving checks and adjustments3-35

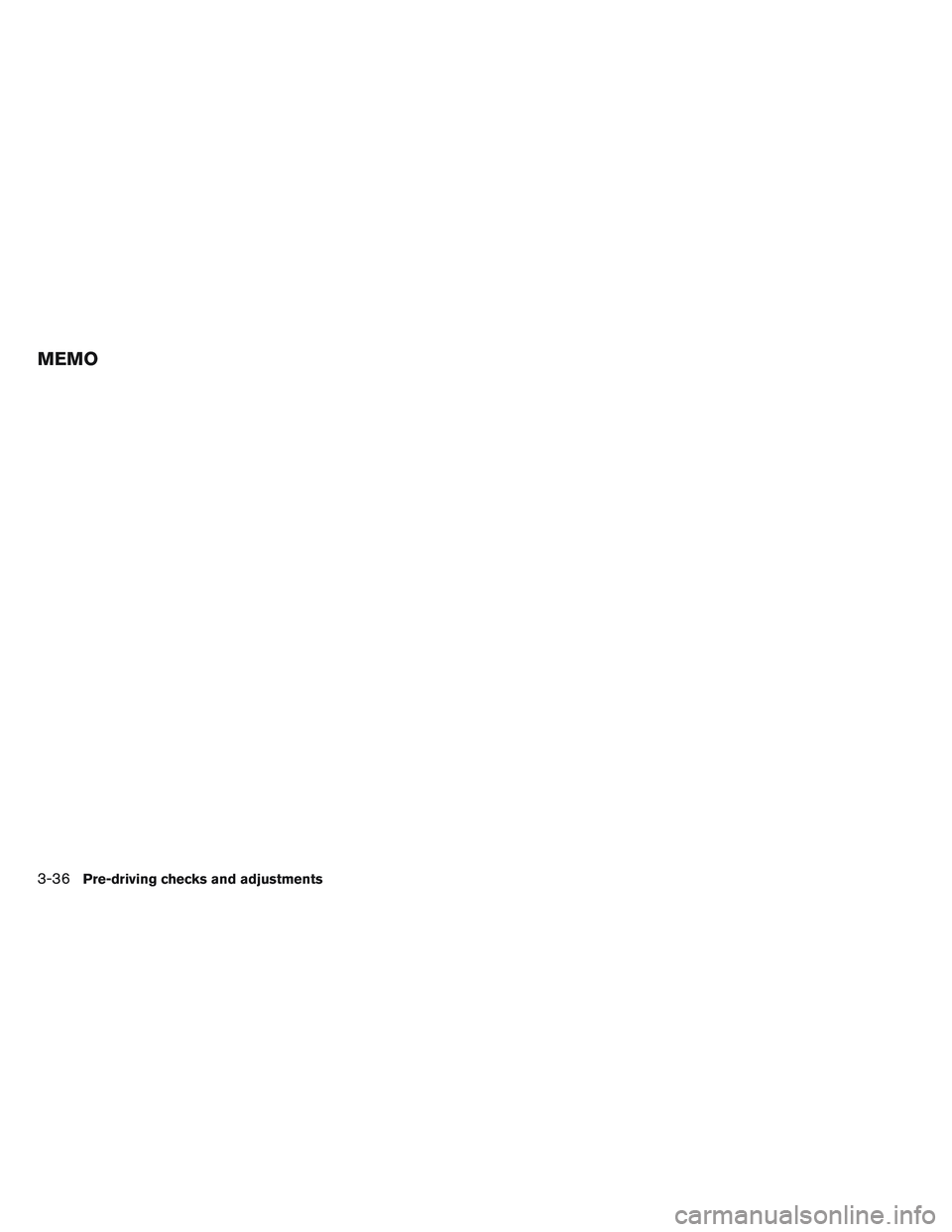

MEMO
3-36Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen without
Navigation System (if so equipped)..................4-4
How to use the INFINITI controller ................4-5
How to select menus on the screen ..............4-6
How to use the STATUS button ..................4-6
How to use the INFO button .....................4-6
How to use the SETTING button .................4-8
OFF button............................. 4-10
Control panel buttons — color screen with
Navigation System (if so equipped) .................4-11
How to use the INFINITI controller ...............4-12
How to use the touch screen ...................4-12
Menu options ................................. 4-14
How to select menus on the screen .............4-15
How to use the STATUS button .................4-15
How to use the INFO button ....................4-16
How to use the SETTING button ................4-18
OFF button............................. 4-21
Image viewer (if so equipped) ......................4-22
Using the image viewer ........................ 4-22
RearView Monitor (if so equipped) ..................4-24
How to read the displayed lines .................4-24
How to park with predicted course lines ..........4-25 Difference between predictive and actual
distances
..................................... 4-26
How to adjust the screen .......................4-28
Operating tips ................................. 4-28
Around View® Monitor (if so equipped) .............4-29
Available views ................................ 4-30
Difference between predictive and actual
distances ..................................... 4-35
How to switch the display ......................4-37
Parking Sensor (if so equipped) Rear Center
Sonar (if so equipped) ......................... 4-38
Moving Object Detection (MOD) ................4-40
How to adjust the screen view ..................4-42
Around View Monitor settings ...................4-43
View malfunction .............................. 4-44
Operating tips ................................. 4-45
Vents ........................................... 4-46
Heater and air conditioner (automatic) ..............4-47
Automatic operation ........................... 4-48
Manual operation .............................. 4-48
Operating tips ................................. 4-49
CLIMATE setting screen ........................ 4-50
Servicing air conditioner ........................... 4-53
Audio system .................................... 4-54

Radio........................................ 4-54
FM radio reception . . .......................... 4-54
AM radio reception . . .......................... 4-54
Satellite radio reception (if so equipped) .........4-55
Audio operation precautions ....................4-55
FM/AM/SAT radio with compact disc (CD)
player (if so equipped) ......................... 4-70
Digital Versatile Disc (DVD) Player
Operation (models with Navigation System) ......4-79
USB interface ................................. 4-82
iPod®* player operation ........................ 4-87
Bluetooth® streaming audio (if so equipped) .....4-91
CD care and cleaning .......................... 4-94
Steering wheel switch for audio control ..........4-94
Antenna ...................................... 4-96
Dual head restraint/headrest DVD system
(if so equipped) .................................. 4-96
System components ........................... 4-97
Before operating dual head restraint/
headrest DVD system ......................... 4-102
Playing a digital versatile disc (DVD) ............4-103
Operating tips ................................ 4-107
Care and maintenance ........................ 4-108
Car phone or CB radio . . ......................... 4-109Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped)
................4-109
Regulatory Information ........................ 4-111
Using the system ............................. 4-111
Control buttons .............................. 4-113
Getting started ............................... 4-114
List of voice commands ....................... 4-115
Voice Adaptation (VA) mode ...................4-120
Manual control ............................... 4-121
Troubleshooting guide ........................ 4-122
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ................4-123
Regulatory Information ........................ 4-125
Voice commands ............................. 4-125
Connecting

procedure ........................ 4-126
Vehicle Phonebook ........................... 4-127
Handset phonebook .......................... 4-128
Making a call ................................. 4-129
Receiving a call .............................. 4-130
During a call ................................. 4-130
Ending a call ................................. 4-131
Phone settings ............................... 4-131
Bluetooth settings ............................ 4-132

Call volume .................................. 4-133
INFINITI Voice Recognition System
(if so equipped) ................................. 4-134
INFINITI Voice Recognition Standard Mode ......4-134
Using the system ............................. 4-137
Before starting ............................... 4-137Giving voice commands
....................... 4-137
INFINITI Voice Recognition Alternate
Command Mode ............................. 4-142
Using the system ............................. 4-146
Speaker Adaptation function ...................4-149
Troubleshooting guide ........................ 4-150
