●When launching a boat, don’t allow the wa-
ter level to go over the exhaust tail pipe or
rear bumper.
● Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, final drive gear oil
should be replaced and transmission
oil/fluid should be changed more fre-
quently. For additional information, see the
“Maintenance and do-it-yourself” section
earlier in this manual.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
CAUTION
● Failure to follow these guidelines can
result in severe transmission damage.
● Whenever flat towing your vehicle, al-
ways tow forward, never backward.
● DO NOT tow any automatic transmis-
sion vehicle with all four wheels on the
ground (flat towing) . Doing so WILL
DAMAGE internal transmission parts
due to lack of transmission lubrication.
● For emergency towing procedures refer
to “Towing recommended by INFINITI”
in the “In case of emergency” section of
this manual.
Continuously Variable Transmission
To tow a vehicle equipped with a continuously
variable transmission, an appropriate vehicle
dolly MUST be placed under the towed vehicle’s
drive wheels. Alwaysfollow the dolly manufac-
turer’s recommendations when using their prod-
uct. DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, however,
and may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
Traction AA, A, B and C
The traction grades, from highest to lowest, are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.
UNIFORM TIRE QUALITY GRADING
9-28Technical and consumer information

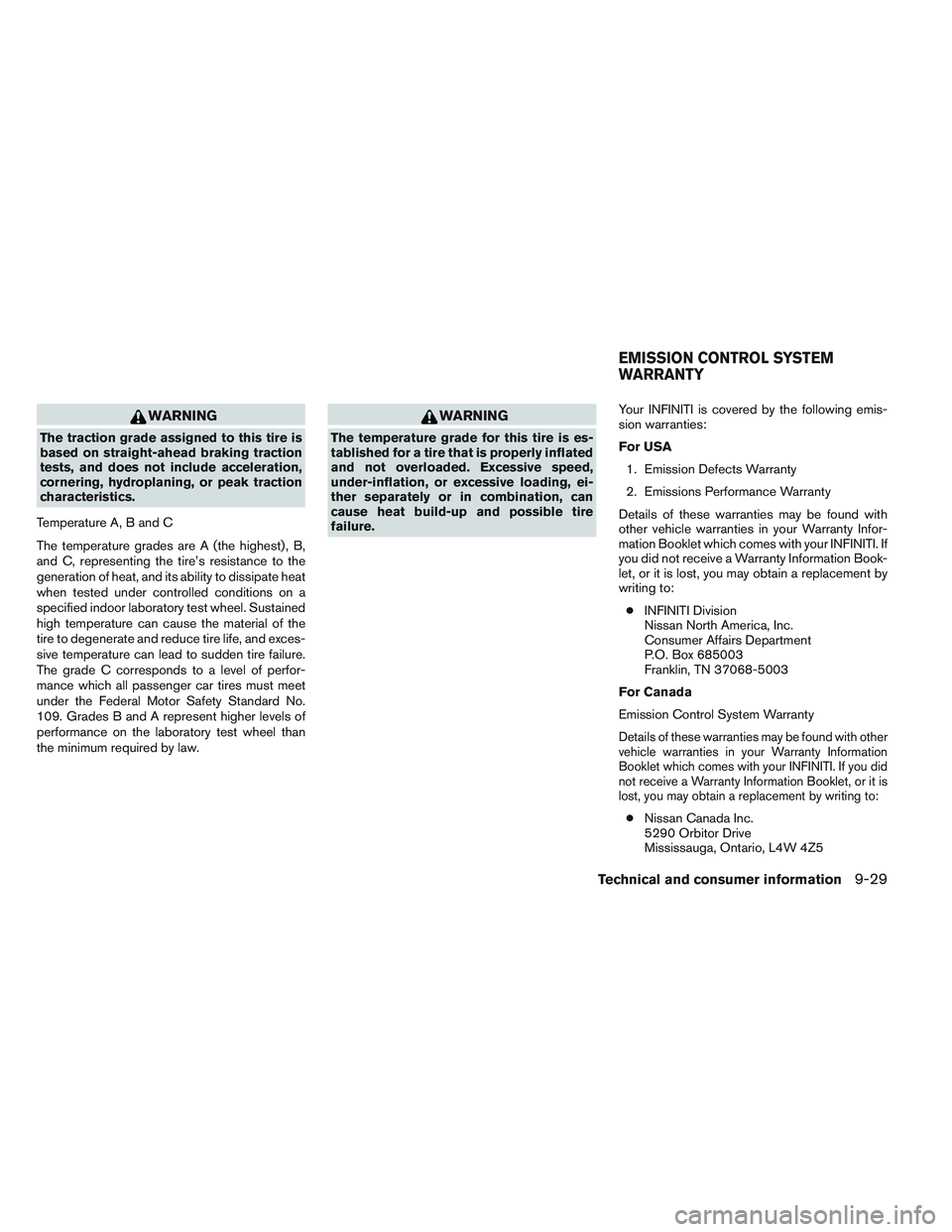

WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest) , B,
and C, representing the tire’s resistance to the
generation of heat, and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Safety Standard No.
109. Grades B and A represent higher levels of
performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in combination, can
cause heat build-up and possible tire
failure. Your INFINITI is covered by the following emis-
sion warranties:
For USA
1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty Infor-
mation Booklet which comes with your INFINITI. If
you did not receive a Warranty Information Book-
let, or it is lost, you may obtain a replacement by
writing to: ● INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada
Emission Control System Warranty
Details of these warranties may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your INFINITI. If you did
not receive a Warranty Information Booklet, or it is
lost, you may obtain a replacement by writing to:
● Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY
Technical and consumer information9-29

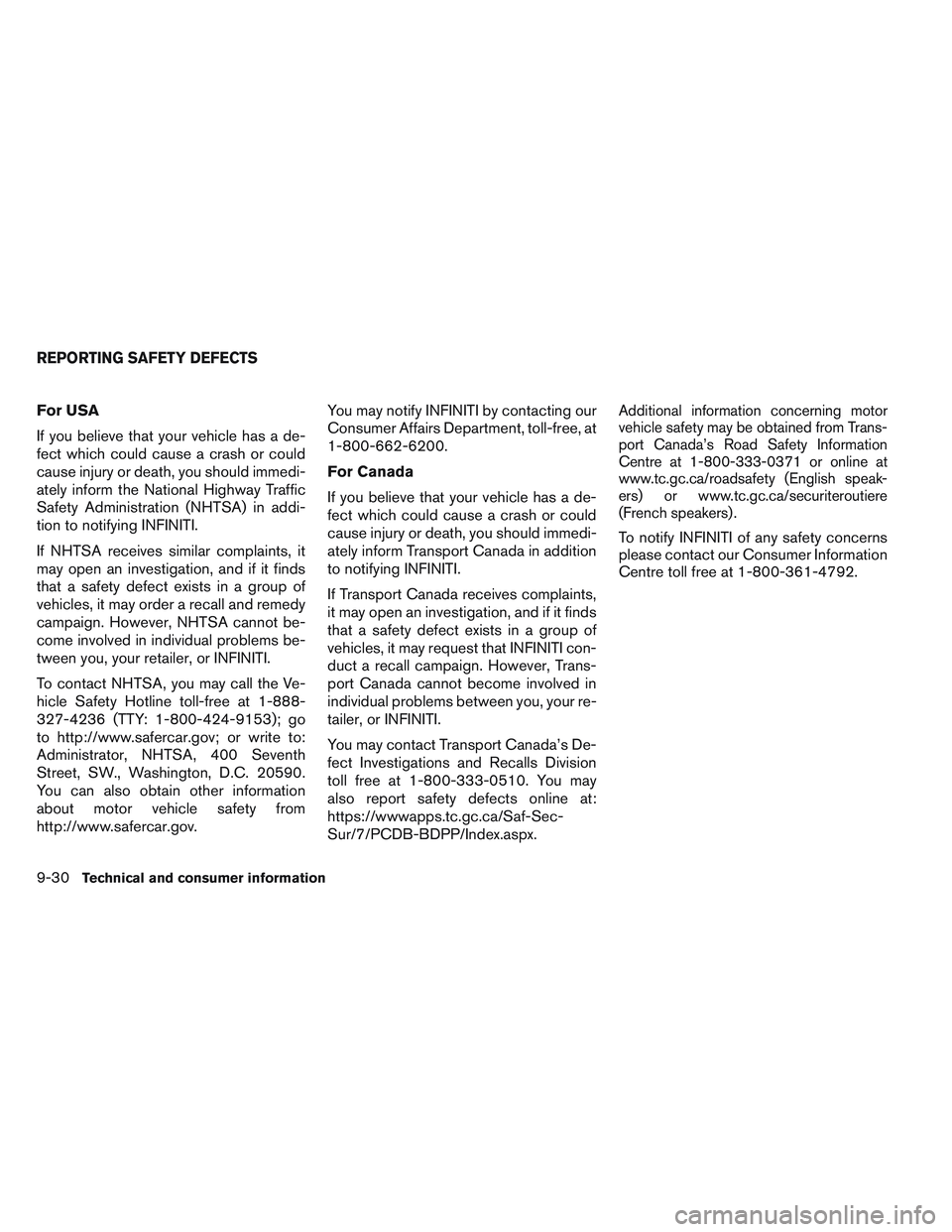

For USA
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying INFINITI.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your retailer, or INFINITI.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.You may notify INFINITI by contacting our
Consumer Affairs Department, toll-free, at
1-800-662-6200.
For Canada
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform Transport Canada in addition
to notifying INFINITI.
If Transport Canada receives complaints,
it may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that INFINITI con-
duct a recall campaign. However, Trans-
port Canada cannot become involved in
individual problems between you, your re-
tailer, or INFINITI.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division
toll free at 1-800-333-0510. You may
also report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/Index.aspx.Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
(French speakers) .
To notify INFINITI of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-361-4792.
REPORTING SAFETY DEFECTS
9-30Technical and consumer information

WARNING
A vehicle equipped with All -Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing) , or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer.
Using the wrong test equipment may re-
sult in transmission damage or unex-
pected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or the
battery is disconnected, the vehicle may be reset to
a “not ready” condition. Before taking the I/M test,
check the vehicle’s inspection/maintenance test
readiness condition. Place the ignition switch in the
ON position without starting the engine. If the
Malfunction Indicator Light (MIL) comes on steady
for 20 seconds and then blinks for 10 seconds , the
I/M test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”. Contact a INFINITI retailer to set the “ready
condition” or to prepare the vehicle for testing.This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as: ● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)
Technical and consumer information9-31

the type of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.Genuine INFINITI Service Manuals for this model
year and prior can be purchased. A genuine
INFINITI Service Manual is the best source of
service and repair information for your vehicle.
This manual is the same one used by the factory-
trained technicians working at INFINITI retailer-
ships. Genuine INFINITI Owner’s Manuals can
also be purchased.
For USA
For current pricing and availability of genuine
INFINITI Service Manuals, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of genuine
INFINITI Owner’s Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a genuine INFINITI Service
Manual or Owner’s Manual, for this model year
and prior, please contact your nearest INFINITI
retailer. For the phone number and location of an
INFINITI retailer in your area call the INFINITI
Satisfaction Center at 1-800-361-4792 and a
bilingual INFINITI representative will assist you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
9-32Technical and consumer information

10 Index
A
Aiming control, headlights ...........2-33
Air bag (See supplemental restraint
system) .....................1-53
Air bag system Front (See supplemental front impact
air bag system) ...............1-61
Airbagwarninglabels.............1-68
Airbagwarninglight...........1-69,2-11
Air cleaner housing filter ............8-18
Air conditioner Air conditioner service ...........4-53
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner controls ....4-48
Servicing air conditioner ..........4-53
Alarm system
(See vehicle security system) .........2-24
Anchor point locations .............1-37
Antenna.....................4-96
Anti-lock brake warning light ..........2-7
Anti-lock Braking System (ABS) ........5-95
Audible reminders ...............2-13
Audio system ..................4-54
Bluetooth®audio..............4-91
Compact disc (CD) player .........4-75
FM/AM/SAT radio with compact disc
(CD)player.................4-70
Audio System iPod®Player................4-87 Audio system
Radio ....................4-54
Steering wheel audio control switch . . .4-94
USB interface ................4-82
Autolight switch .................2-31
Automatic Automatic drive positioner .........3-31
Automatic power window switch .....2-51
Automatic anti-glare inside mirror .......3-29
Automatic door locks ..............3-6
B
Battery ......................8-14
Charge warning light .............2-8
Before starting the engine ...........5-16
Belt (See drive belt) ..............8-16
Block heater Engine ...................5-101
Bluetooth®audio................4-91
Bluetooth® hands-free phone
system .................4- 109, 4-123
Boosterseats..................1-49
Brake Anti-lock Braking System (ABS) ......5-95
Brake fluid ..................8-12
Brake light (See stop light) .........8-26
Brake system ................5-94
Brake warning light ..............2-8
Brake wear indicators ........2-13,8-20
Parking brake operation ..........5-21
Self-adjusting brakes ............8-20 Brakes
......................8-20
Break-inschedule ...............5-89
Brightness/contrast button .......4-10,4-21
Brightness control Instrument panel ..............2-34
Bulb check/instrument panel ..........2-7
Bulbreplacement................8-26
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargolight ...................2-56
Cargo (See vehicle loading information) . . .9-13
Car phone or CB radio ............4-109
CD care and cleaning .............4-94
CD player (See audio system) .........
4-75
Check tire pressure ...............2-23
Child restraints .......1-31,1-31,1-32,1-34
Precautions on child
restraints ........1-32,1-40,1-44,1-49
Top tether strap anchor point locations . .1-37
Child restraint with top tether strap ......1-37
Child safety rear door lock ............3-7
Chimes,audiblereminders...........2-13
Cleaning exterior and interior ..........7-2
C.M.V.S.S. certification label ..........9-10
Cold weather driving .............5-100
Compact disc (CD) player ...........4-75
Consolebox...................2-47
Continuously Variable Transmission (CVT) . .5-17

Continuously Variable Transmission
(CVT) fluid..................8-11
Driving with Continuously Variable
Transmission (CVT) .............5-17
Control panel buttons ..............4-11
Brightness/contrast button ......4-10,4-21
Enterbutton...............4-4,4-11
Without navigation system ..........4-4
Controls Audiocontrols(steeringwheel).......4-94
Heater and air conditioner controls .....4-48
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-8
Engine coolant temperature gauge .....2-5
Corrosionprotection ...............7-6
Cruisecontrol..................5-51
Cupholders...................2-45
D
Daytime running light system (Canada only) . .2-33
Defroster switch Rear window and outside mirror defroster
switch.....................2-30
Digital Versatile Disc (DVD) player .......4-79
Dimensionsandweights.............9-8
Dimmer switch for instrument panel ......2-34
Display controls
(seecontrolpanelbuttons) ........4-4,4-11
Door locks .....................3-4
Drive belt .....................8-16
Drive positioner, Automatic ...........3-31Driving
Cold weather driving ............5-100
Driving with Continuously Variable
Transmission (CVT) .............5-17
Precautions when starting and driving ....5-4
E
Economy - fuel ..................5-90
Emission control information label .......9-10
Emission control system warranty .......9-29
Engine Before starting the engine ..........5-16
Block heater ................5-101
Capacities and recommended
fuel/lubricants .................9-2
Changingenginecoolant...........8-8
Changingengineoil.............8-10
Changing engine oil filter ..........8-11
Checking engine coolant level ........8-8
Checking engine oil level ...........8-9
Engine compartment check locations ....8-6
Engine coolant temperature gauge .....2-5
Engine cooling system ............8-7
Engineoil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Engine serial number ............9-10
Engine specifications .............9-7
Starting the engine .............5-16
Enterbutton.................4-4,4-11
Eventdatarecorders ..............9-31
Exhaust gas (Carbon monoxide) .........5-4
Extended storage switch ............8-23
Eyeglass case ..................2-44 F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-12
Capacities and recommended
fuel/lubricants .................9-2
Continuously Variable Transmission
(CVT) fluid ..................8-11
Engine coolant .................8-7
Engine oil ...................8-9
P

ower steering fluid .............8-12
Windshield-washer fluid ...........8-13
F.M.V.S.S. certification label ...........9-10
Foglightswitch .................2-34
Front air bag system
(See supplemental restraint system) ......1-61
Front seats .....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-90
Fuel-filler door and cap ...........3-24
Fuelgauge...................2-6
Fuel octane rating ...............9-4
Fuel recommendation .............9-3
Loose fuel cap warning ...........2-24
Fuses.......................8-21
Fusiblelinks ...................8-21
10-2

G
Garage door opener, HomeLink® Universal
Transceiver....................2-57
Gascap .....................3-24
Gauge Engine coolant temperature gauge .....2-5
Fuel gauge ...................2-6
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
Generalmaintenance...............8-2
Glovebox.....................2-46
Gloveboxlock..................2-46
H
Hands-free phone system,
Bluetooth®...............4- 109, 4-123
Hazard warning flasher switch ..........6-2
Headlightandturnsignalswitch........2-30
Headlightcontrolswitch ............2-31
Headlights....................8-25
Headlights,aimingcontrol............2-33
Heated seats ............2-35,2-36,2-38
Heated steering wheel .............2-39
Heater Heater and air conditioner controls .....4-48
Heater operation ...............4-48
HomeLink® Universal Transceiver .......2-57
Hood release ...................3-20
Hook Luggage hook ................2-48 Horn .......................2-35
I
Ignition Switch Push-Button Ignition Switch ........5-12
Image viewer ...................4-22
Immobilizer system .............3-4,5-15
Important vehicle information label .......9-10
In-cabin microfilter ................8-18
Increasing fuel economy .............5-90
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).....................2-7
INFINITI vehicle immobilizer
system ................2-25,3-4,5-15
Inside automatic anti-glare mirror ........3-29
Instrument brightness control ..........2-34
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-34
Intelligent cruise control (ICC) system Brake assist .................5-53
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanicalkey ................3-3
Remote keyless entry operation .......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interiorlight....................2-55
iPod® Player ...................4-87
ISOFIX child restraints .............1-34 J
Jump starting ...................6-10
K
Keyfob battery replacement ...........8-23
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .......3-2,3-7
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control information label .....9-10
Engine serial number ............9-10
F

.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS) ..........1-68
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-34
License plate Installing the license plate ..........9-12
Liftgate......................3-20
Lift gate release .................3-23
Light Airbagwarninglight.........1-69, 2-11
Brake light (See stop light) .........8-26
Bulb check/instrument panel .........2-7
Bulbreplacement..............8-26
10-3

Chargewarninglight.............2-8
Foglightswitch ...............2-34
Headlight and turn signal switch......2-30
Headlightcontrolswitch ..........2-31
Headlights..................8-25
Interiorlight..................2-55
Lightbulbs..................8-25
Low tire pressure warning light ........2-8
Low windshield-washer fluid warning
light......................2-23
Passenger air bag and status light .....1-62
Security indicator light ............2-13
Warning/indicator lights and audible
reminders ...................2-7
Lights Maplights ..................2-56
Lock Child safety rear door lock ..........3-7
Door locks ...................3-4
Gloveboxlock................2-46
Lift gate release ...............3-23
Power door locks ...............3-6
Loose fuel cap warning .............2-24
Lowfuelwarninglight ..........2-10,2-22
Low tire pressure warning light ..........2-8
Low windshield-washer fluid warning light . . .2-23
Luggage hook ..................2-48
Luggage rack (see roof rack) ..........2-49
Luggage (See vehicle loading information) . .9-13
Luggage storage
(seevehicleloadinginformation)........2-48 M
Maintenance Generalmaintenance.............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seatbeltmaintenance............1-30
Underthehoodandvehicle .........8-4
Malfunction indicator light ............2-12
Maplights ....................2-56
Map pocket ....................2-43
Meters and gauges ................2-4
Instrument brightness control ........2-34
Mirror Automatic anti-glare inside mirror ......3-29
Outside mirror control ............3-30
Outside mirrors ...............3-30
Vanity mirror .................3-29
Moonroof .....................2-52
N
NISSAN voice recognition system ......4-134
O
Octane rating (See fuel octane rating) ......9-4
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changingengineoil.............8-10
Changing engine oil filter ..........8-11 Checking engine oil level
...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Outside mirror control ..............3-30
Outside mirrors .................3-30
Overheat If your vehicle overheats ...........6-12
Owner’s manual order form ...........9-32
Owner’s manual/service manual order
information ....................9-32
P
Parking Parking brake operation ...........5-21
Parking/parking on hills ...........5-93
Phone, Bluetooth® hands-free
system .................4- 109, 4-123
Power Power door locks ...............3-6
Power outlet ..............2-41,2-43
P

ower rear windows .............2-51
Power steering fluid .............8-12
Power steering system ...........5-94
Power windows ...............2-50
Rear power windows ............2-51
Power inverter switch ..............2-41
Precautions Maintenanceprecautions...........8-5
On-pavement and off-road driving
precautions ..................5-8
Precautions on child
restraints .........1-32,1-40,1-44,1-49
Precautions on seat belt usage .......1-23
10-4

Precautions on supplemental restraint
system ....................1-53
Precautions when starting and driving....5-4
Pre-tensioner seat belt system .........1-67
Push starting ...................6-12
R
Radio Car phone or CB radio...........4-109
FM/AM/SAT radio with compact disc
(CD) player ..................4-70
Steering wheel audio control switch ....4-94
Rainsensor....................2-28
Readiness for inspection maintenance
(I/M) test .....................9-31
Rear power windows ..............2-51
RearViewMonitor................4-24
Rear window and outside mirror defroster
switch .......................2-30
Rear window wiper and washer switches . . .2-29
Recorders Eventdata..................9-31
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-30
Roof rack .....................2-49
S
Safety Child safety rear door lock ..........3-7
Childseatbelts.....1-32,1-40,1-44,1-49
Reporting safety defects (US only) .....9-30Seat adjustment
Front power seat adjustment .........1-3
Second row bench seats ........1-5,1-7
Seatback pockets ................2-44
Seat belt Child safety ..................1-31
Infants and small children ..........1-31
Injured Person ................1-26
Largerchildren................1-32
Precautions on seat belt usage .......1-23
Pregnant women ...............1-26
Pre-tensioner seat belt system .......1-67
Seatbeltextenders .............1-30
Seatbeltmaintenance............1-30
Seatbelts...................1-23
Three-point type with retractor .......1-26
Seat belt warning light ..............2-11
Seats Adjustment ...................1-2
Automatic drive positioner ..........3-31
Frontseats...................1-2
Heatedseats..........2-35,2-36,2-38
Security indicator light ..............2-13
Security system (INFINITI vehicle immobilizer system) ,
engine start ...........2-25,3-4,5-15
Self-adjusting brakes ..............8-20
Service manual order form ...........9-32
Servicing air conditioner .............4-53
Sparkplugreplacement.............8-17
Speedometer ...................2-4
SRSwarninglabel................1-68
Starting Before starting the engine ..........5-16
Jump starting .................6-10
Precautions when starting and driving ....5-4Push starting
.................6-12
Starting the engine .............5-16
Steering Heated steering wheel ...........2-39
Power steering fluid .............8-12
Power steering system ...........5-94
Steering wheel audio control switch ......4-94
Stoplight.....................8-26
Storage......................2-43
Storagebin....................2-48
Sunglasses case .................2-44
Sunglasses holder ................
2-44
Sunroof (see Moonroof) .............2-52
Sun visors ....................3-28
Supplemental air bag warning labels ......1-68
Supplemental air bag warning light . . .1-69, 2-11
Supplemental front impact air bag system . . .1-61
Supplemental restraint system Information and warning labels .......1-68
Precautions on supplemental restraint
system ....................1-53
Supplemental restraint system
(Supplemental air bag system) .........1-53
Switch Autolight switch ...............2-31
Automatic power window switch ......2-51
Fog light switch ...............2-34
Hazard warning flasher switch ........6-2
Headlightaimingcontrol ..........2-33
Headlightandturnsignalswitch......2-30
Headlight control switch ..........2-31
Power door lock switch ............3-6
Power inverter switch ............2-41
Rear window and outside mirror defroster
switch .....................2-30
10-5
