INFINITI QX60 2015 User Guide

1. Folding 3rd row bench (P. 1-2)
2. Folding 2nd row bench (P. 1-2)
3. Roof-mounted curtain side-impact androllover supplemental air bag (P. 1-48)
4. Seat belts (P. 1-16)
5. Head restraints/headrests (P.1-11)
6. Supplemental front-impact air bags
(P.1-48)
7. Front seats (P. 1-2)
8. Occupant classification sensor
(weight sensor) (P.1-48)
9. Seat belt with pretensioner (P. 1-48)
10. Front seat-mounted side-impact supple-
mental air bag (P. 1-48)
11. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-26)
12. 2nd row seat top tether strap anchor
(located on bottom of seatback)
(P. 1-26)
13. 3rd row bench seat top tether strap
anchor (located on bottom of seatback)
(P. 1-26)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2032
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1. Front camera (P. 4-27)
2. Engine hood (P. 3-22)
3. Windshield wiper and washer switch,wiper blades (P. 2-27, 8-19)
4. Lane Departure Warning (LDW)
system/Lane Departure Prevention
(LDP) system (if so equipped)(P. 5-25)
5. Power windows (P. 2-53)
6. Door locks, INFINITI Intelligent Key,
keys (P. 3-5, 3-2)
7. Mirrors, side camera (P. 3-32, 4-27)
8. Tire pressure (P. 8-31)
9. Flat tire (P. 6-3)
10. Tire chains (P. 8-31)
11. Replacing bulbs (P. 8-26)
12. Headlight and turn signal switch
(P. 2-31)
13. Fog light switch (P. 2-31)
14. Corner sensors (if so equipped)
(P. 5-102)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2212
EXTERIOR FRONT
Illustrated table of contents0-3

1. Antenna (P.4-97)
2. Rear window wiper and washer switch(P. 2-30)
3. Corner sensors (if so equipped)
(P. 5-102)
4. Liftgate release (P. 3-23)
5. Rearview camera (P.4-21, 4-27)
6. Replacing bulbs (P. 8-26)
7. Fuel-filler cap, fuel recommendation
(P. 3-27, P. 9-2)
8. Fuel-filler door (P. 3-27)
9. Child safety rear door lock (P. 3-7)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2213
EXTERIOR REAR
0-4Illustrated table of contents

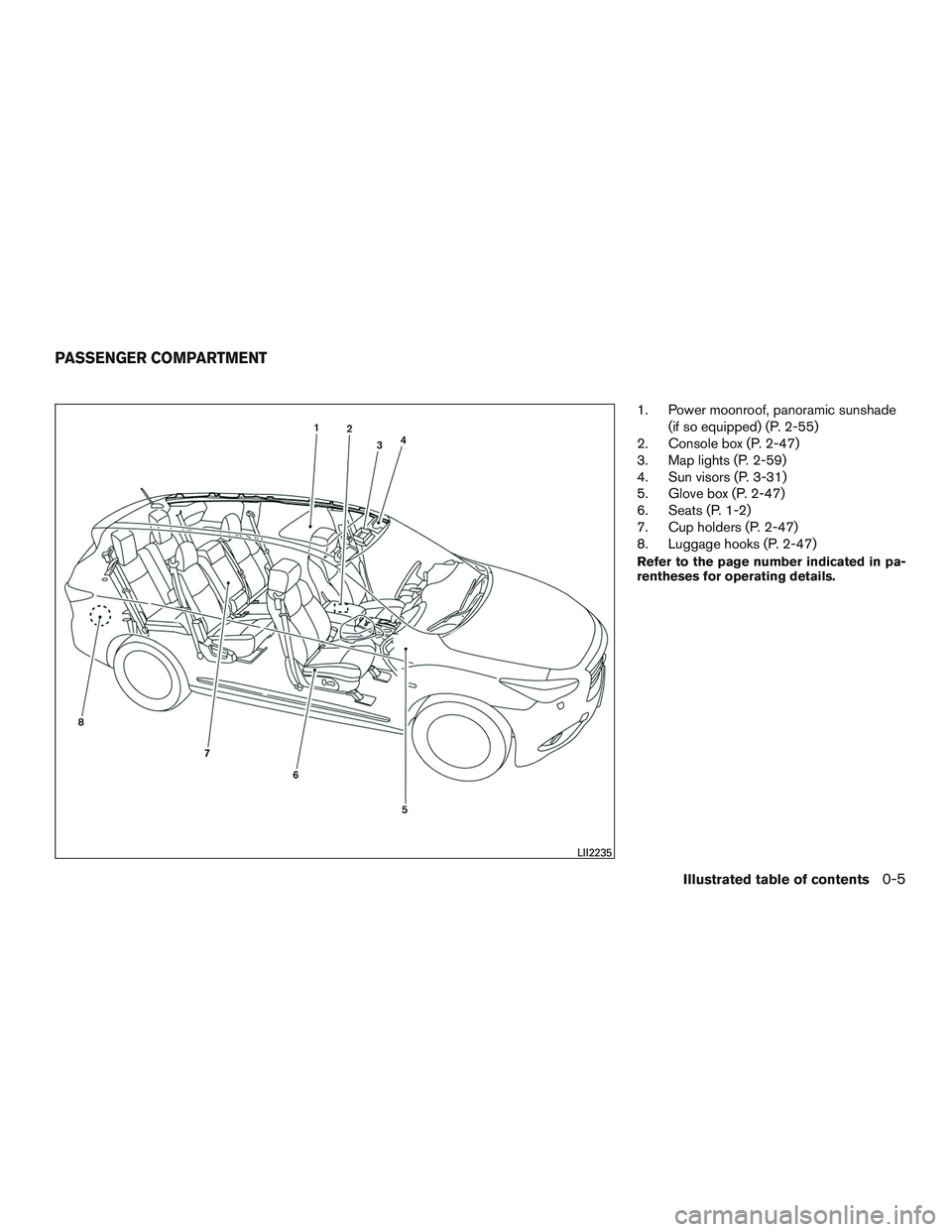

1. Power moonroof, panoramic sunshade(if so equipped) (P. 2-55)
2. Console box (P. 2-47)
3. Map lights (P. 2-59)
4. Sun visors (P. 3-31)
5. Glove box (P. 2-47)
6. Seats (P. 1-2)
7. Cup holders (P. 2-47)
8. Luggage hooks (P. 2-47)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2235
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vent (P. 4-44)
2. Headlight/fog light/turn signal switch(P. 2-31)
3. Instrument brightness control (P. 2-35) 4. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-4, 2-8, 2-16)
5. Driver supplemental air bag/Horn
(P. 1-48, P. 2-37) 6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-44)
7. Twin trip odometer reset switch (P. 2-5)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-27, P. 2-30)
9. Vent (P. 4-44)
10. Rear window and outside mirror
defroster switch (P. 2-31)
11. Display screen (P. 4-4, 4-10)
(if so equipped)
12. Automatic heater and air conditioning
controls (P. 4-45)
13. Vent (P. 4-44)
14. Front passenger supplemental air bag
(P. 1-48)
15. Vent (P. 4-44)
16. Glove box (P. 2-50)
17. Control Panel with Navigation System/
Control Panel without Navigation
System (P. 4-4, 4-10)
18. Power outlet (P.2-44)
19. Audio system controls (P. 4-53)
20. Shift lever (P. 5-17)
21. Front passenger air bag status light
(P. 1-48)
LIC2290
INSTRUMENT PANEL
0-6Illustrated table of contents

22. Hazard warning flasher switch (P. 6-2)
23. Push-button ignition switch (P. 5-12)
24. Cruise control main/set switches andIntelligent cruise control main/set
switches (if so equipped) (P. 5-51,
P.5-52)
25. Dynamic Driver Assistance switch
(if so equipped) (P. 5-72)
26. Tilt steering wheel control (P. 3-29)
27. Bluetooth® Hands-Free Phone System
(P. 4-109, 4-123)
28. Steering wheel switch for audio control
(P. 4-95)
29. Hood release (P. 3-22)
30. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-43)
Heated steering wheel switch
(if so equipped) (P. 2-41)
Headlight aiming control (P. 2-31)
Warning System switch
(if so equipped) (P. 6-2)
Power inverter switch (if so equipped)
(P. 2-44)
Liftgate opener switch (P. 3-23)
Power liftgate main switch (P. 3-23)
31. Control panel and Vehicle Information
Display switches (P. 4-4, 2-16)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

VQ35DE engine
1. Power steering fluid reservoir (P. 8-12)
2. Engine coolant reservoir (P. 8-7)
3. Drive belt location (P. 8-17)
4. Fuse box (P. 8-22)
5. Engine oil filler cap (P. 8-9)
6. Brake fluid reservoir (P. 8-13)
7. Air cleaner (P. 8-18)
8. Fuse box (P. 8-22)
9. Fuse box/fusible links (P. 8-22)
10. Fuse box (P. 8-22)
11. Battery (P. 8-14)
12. Engine oil dipstick (P. 8-9)
13. Radiator cap (P. 8-7)
14. Windshield-washer fluid reservoir
(P. 8-14)
Refer to the page number indicated in pa-
rentheses for operating details.
LDI2498
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

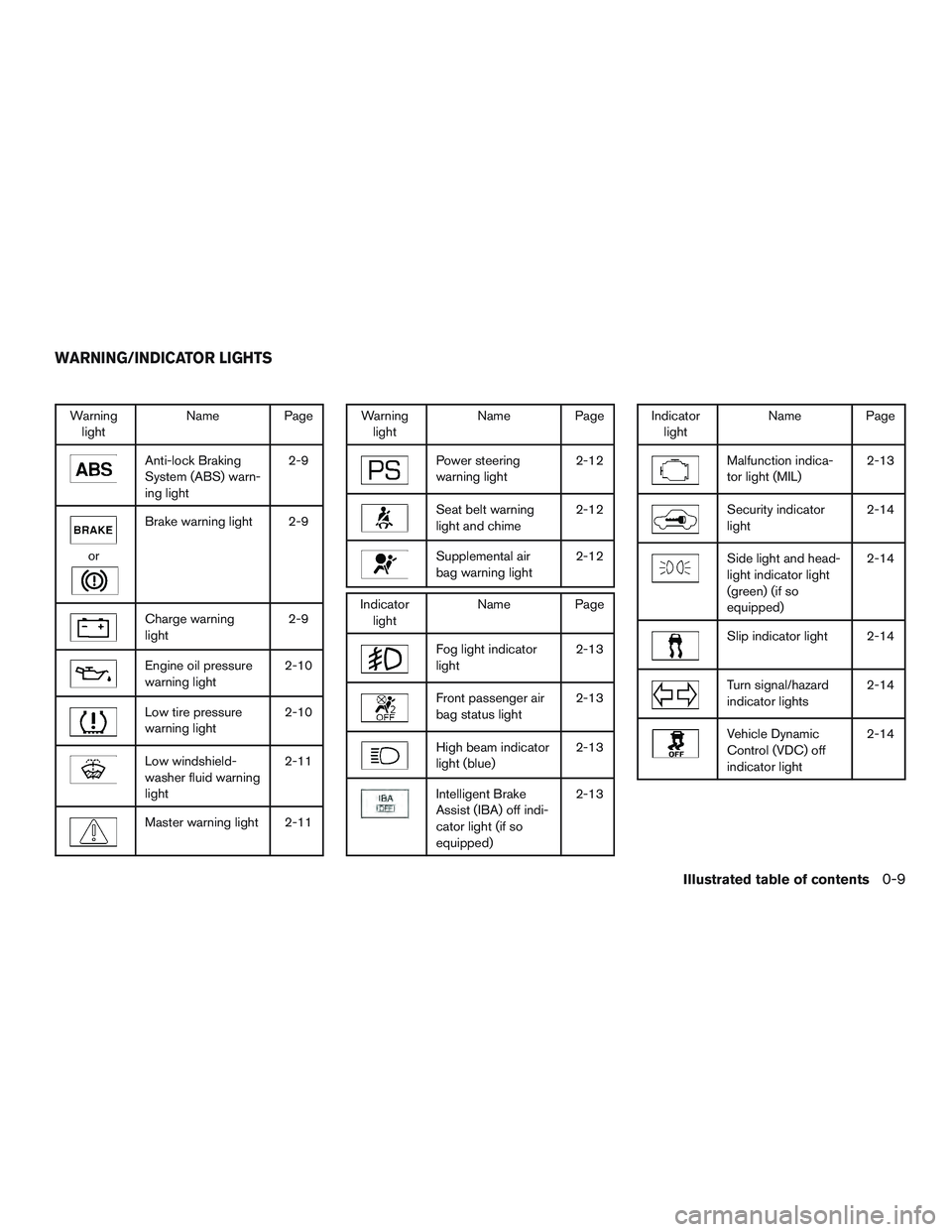

Warninglight Name Page
Anti-lock Braking
System (ABS) warn-
ing light 2-9
or
Brake warning light 2-9
Charge warning
light
2-9
Engine oil pressure
warning light2-10
Low tire pressure
warning light2-10
Low windshield-
washer fluid warning
light2-11
Master warning light 2-11
Warning
light Name Page
Power steering
warning light 2-12
Seat belt warning
light and chime2-12
Supplemental air
bag warning light2-12
Indicator
light Name Page
Fog light indicator
light 2-13
Front passenger air
bag status light2-13
High beam indicator
light (blue)2-13
Intelligent Brake
Assist (IBA) off indi-
cator light (if so
equipped)2-13
Indicator
light Name Page
Malfunction indica-
tor light (MIL) 2-13
Security indicator
light2-14
Side light and head-
light indicator light
(green) (if so
equipped)2-14
Slip indicator light 2-14
Turn signal/hazard
indicator lights
2-14
Vehicle Dynamic
Control (VDC) off
indicator light2-14
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

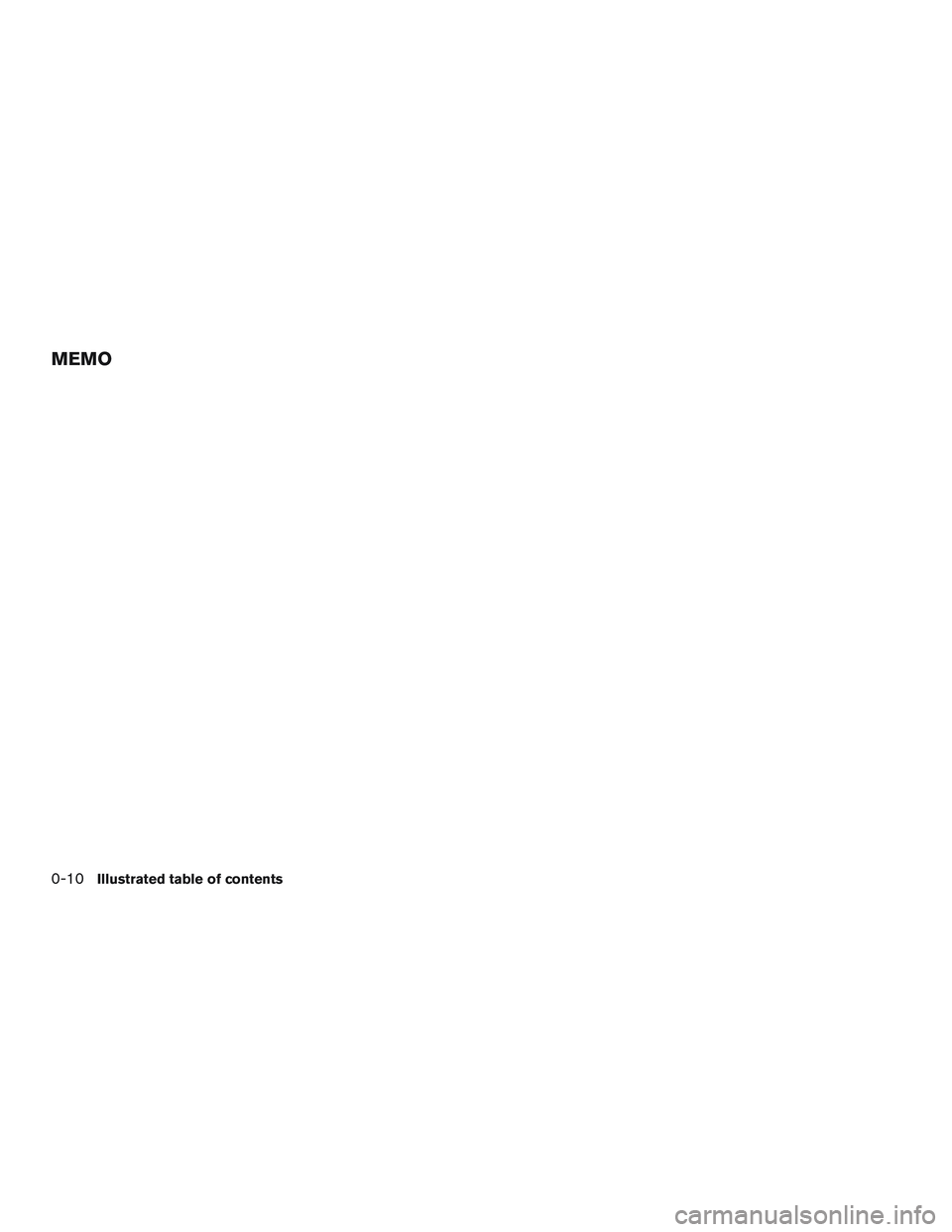

MEMO
0-10Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front power seat adjustment .....................1-3
2nd row bench seat adjustment ..................1-5
3rd row bench seat adjustment ..................1-7
Armrests ......................................1-8
Flexible seating .................................1-8
Head restraints/headrests ......................... 1-11
Adjustable head restraint/headrest
components .................................. 1-12
Non-adjustable head restraint/headrest
components .................................. 1-12
Remove ...................................... 1-13
Removable (without Dual head restraint/
headrest DVD system only) .....................1-13
Install ........................................ 1-14
Adjust ........................................ 1-14
Folding head restraint/headrest .................1-15
Seat belts ....................................... 1-16
Precautions on seat belt usage ..................1-16
Seat belt warning light ......................... 1-19
Pregnant women .............................. 1-19
Injured persons ................................ 1-19
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ....................1-19Three-point type seat belt with retractor
..........1-20
Seat belt extenders ............................ 1-23
Seat belt maintenance ......................... 1-24
Child safety ...................................... 1-24
Infants ........................................ 1-25
Small children ................................. 1-25
Larger children ................................ 1-25
Child restraints ................................... 1-26
Precautions on child restraints ..................1-26
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-28
Rear-facing child restraint installation using
LATCH....................................... 1-31
Rear-facing child restraint installation using
the seat belts ................................. 1-33
Forward-facing child restraint installation
using LATCH .................................. 1-36
Forward-facing child restraint installation
using the seat belts ............................ 1-40
Booster
seats................................. 1-45
Supplemental Restraint System (SRS) ..............1-48
Precautions on SRS ........................... 1-48
Supplemental air bag warning labels .............1-66
Supplemental air bag warning light ..............1-66
