INFINITI QX60 2015 Owner's Manual

Backing up near a projecting object
The predicted course linesAdo not touch the
object in the display. However, the vehicle may hit
the object if it projects over the actual backing up
course.
Backing up behind a projecting object
The positionCis shown farther than the position
Bin the display. However, the positionCis
actually at the same distance as the position
A.
The vehicle may hit the object when backing up to the position
Aif the object projects over the
actual backing up course.
LHA1201LHA3147
4-34Monitor, climate, audio, phone and voice recognition systems

HOW TO SWITCH THE DISPLAY
With the ignition switch in the ON position, press
the CAMERA button or move the shift lever to the
R (Reverse) position to operate the Around View
Monitor.
The Around View® Monitor can display two split
view as well as a single view of the front-wide
view or rear-wide view. Select the “Change View”
key to switch between the available views.
If the shift lever is not in the R (Reverse) position,
the available views are:● Front-view/bird’s-eye view split screen
● Front-view/front-side view split screen ●
Front-wide view
If the shift lever is in the R (Reverse) position, the
available views are: ● Rearview/bird’s-eye view split screen
● Rearview/front-side view split screen
● Rear-wide view
The display automatically changes to the Around
View Monitor displaying front-view/bird’s-eye
view when: ● The shift lever is in the D (Drive) position and
the sonar detects the vehicle is approaching
an object.
The display will switch from the Around View
Monitor screen when: ● When the shift lever is in the D (Drive) posi-
tion and the vehicle speed increases above
approximately 6 mph (10 km/h).
● When the sonar no longer detects an object
the screen will automatically switch back the
previously displayed screen.
● When a different screen is selected.
PARKING SENSOR (if so equipped)
REAR CENTER SONAR (if so
equipped)
The sonar (parking sensor) sounds a tone to
inform the driver of obstacles near the bumper.
WARNING
●The sonar (parking sensor) is a conve-
nience feature. It is not a substitute for
proper parking.
● The system is deactivated at speeds
above 10 km/h (6 mph) . It is reactivated
at lower speeds.
LHA2319LHA2320
Monitor, climate, audio, phone and voice recognition systems4-35

●The driver is always responsible for
safety during parking and other
maneuvers.
● Always look around and check that it is
safe to move before parking.
● Read and understand the limitations of
the sonar (parking sensor) as contained
in this section.
● The colors of the sonar indicators and
the distance guide lines in the front,
front-wide, rear and rear-wide views in-
dicate different distances to the object.
● Inclement weather or Ultrasonic
sources such as an automatic car wash,
a truck’s compressed-air brakes or a
pneumatic drill may affect the function
of the system; this may include reduced
performance or a false activation.
● This function is designed as an aid to
the driver in detecting large stationary
objects to help avoid damaging the
vehicle.
● The system is not designed to prevent
contact with small or moving objects. ●
The system will not detect small objects
below the bumper, and may not detect
objects close to the bumper or on the
ground.
● The system may not detect the follow-
ing objects:
– Fluffy objects such as snow, cloth, cotton, glass or wool.
– Thin objects such as rope, wire or chain.
– Wedge-shaped objects.
● If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
● Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard. ●
Keep the surface of the sonar sensors
(located on the front and rear bumper
fascia) free from accumulations of
snow, ice and dirt. Do not scratch the
surface of the sonar sensors when
cleaning. If the sensors are covered, the
accuracy of the sonar function will be
diminished.
The system gives the tone for front objects when
the shift lever is in the D (Drive) position and both
front and rear objects when the shift lever is in the
R (Reverse) position.
When the camera image is shown on the display,
the system shows the sonar indicator regardless
of the shift selector position.
The system is deactivated at speeds above
10 km/h (6 mph) . It is reactivated at lower
speeds.
When the objects are detected, the indicator
(green) appears and blinks and the tone sounds
intermittently. When the vehicle moves closer to
the object, the color of the indicator turns yellow
and the rate of the blinking and the rate of the
tone increase. When the vehicle is very close to
the object, the indicator stops blinking and turns
red, and the tone sounds continuously.
4-36Monitor, climate, audio, phone and voice recognition systems

The intermittent tone will stop after 3 seconds
when an object is detected by only the corner
sonar and the distance does not change.
The tone will stop when the object gets away
from the vehicle.When the switch
1is selected, the indicator2
will turn off and the sonar will be turned off
temporarily. The MOD system will also be turned
off at the same time. When the switch is selected
again, the indicator will turn on and the sonar will
turn back on.
In the below cases, the sonar will be turned back
on automatically:● When the shift lever is in the R (Reverse)
position.
● When the CAMERA button is pressed and a
screen other than the camera view is shown
on the display. ●
When vehicle speed decreases below ap-
proximately 10 km/h (6 mph) .
● When the ignition switch is placed in the
OFF position and turned back to the ON
position again.
To prevent the sonar system from activating alto-
gether, use the “Camera Settings” menu. For
additional information, refer to “Around View®
Monitor” in this section.
MOVING OBJECT DETECTION
(MOD)
The Moving Object Detection (MOD) system can
inform the driver of the moving objects surround-
ing the vehicle when driving out of garages, ma-
neuvering into parking lots and in other such
instances.
The MOD system detects moving objects by
using image processing technology on the image
shown in the display.
The MOD system operates in the following con-
ditions when the camera view is displayed: ● When the shift lever is in the P or N position
and the vehicle is stopped, the MOD system
detects the moving objects in the bird’s-eye
view. The MOD system will not operate if the
outside mirror is moving in or out or if either
door is opened.LHA2321
Monitor, climate, audio, phone and voice recognition systems4-37

●When the shift lever is in the D position and
the vehicle speed is below approximately
8 km/h (5 mph) , the MOD system detects
moving objects in the front view or front-
wide view.
● When the shift lever is in the R position and
the vehicle speed is below approximately
8 km/h (5 mph) , the MOD system detects
moving objects in the rearview or rear-wide
view. The MOD system will not operate if the
liftgate is open.
The MOD system does not detect the moving
object during the period from when the “Park-
Guide” key is pressed and the target parking
space selected.
The MOD system does not detect moving ob-
jects in the front-side view. The MOD icon is not
displayed on the screen when in this view.WARNING
● The MOD system is not a substitute for
proper vehicle operation and is not de-
signed to prevent contact with the ob-
jects surrounding the vehicle. When
maneuvering, always use the outside
mirror and rear view mirror and turn and
check the surrounding to ensure it is
safe to maneuver.
● The system is deactivated at speeds
above 6 mph (10 km/h). It is reactivated
at lower speeds.
● The system is not designed to prevent
contact with all objects.
● The MOD system does not have the
function to detect the surrounding sta-
tionary objects.
4-38Monitor, climate, audio, phone and voice recognition systems

When the MOD system detects a moving object
near the vehicle, the yellow frame will be dis-
played on the view where the objects are de-
tected and a chime will sound once. While the
MOD system continues to detect moving ob-
jects, the yellow frame continues to be displayed.
In the bird’s-eye view, the yellow frame
1is
displayed on each camera image (front, rear,
right, left) depending on where moving objects
are detected.
The yellow frame
2is displayed on each view in
the front view, front-wide view, rear view and
rear-wide view modes. While the sonar or the BCI chime is beeping, the
MOD system does not chime.
A blue MOD icon is displayed in the view where
the MOD system is operative. A gray MOD icon is
displayed in the view where the MOD system is
not operative.
When the “MOD” key
4is selected, the MOD
system will turn off temporarily and the indicator
5will turn off. At the same time a camera-aiding
sonar will also be turned OFF. When the key is
pressed again, the indicator will turn on and the
MOD system will turn back on.
If the MOD system is turned off, the MOD icon
3
is not displayed. The MOD system will turn on automatically under
the following conditions:
● When the shift lever is in the R position.
● When the CAMERA button is pressed to
switch from a different screen to the camera
view on the display
● When vehicle speed decreases below ap-
proximately 5 mph (8 km/h).
● When the ignition switch is placed in the
OFF position and then back to the ON posi-
tion.
LHA2212
Monitor, climate, audio, phone and voice recognition systems4-39

To set the MOD system so that it remains off at all
times, use the camera settings menu. For addi-
tional information, refer to “Around View® Moni-
tor” in this section.
WARNING
●Do not use the MOD system when tow-
ing a trailer. The system may not func-
tion properly.
● Excessive noise (for example, audio
system volume or open vehicle window)
will interfere with the chime sound, and
it may not be heard.
● The MOD system performance will be
limited according to environmental con-
ditions and surrounding objects such
as:
– When there is low contrast between background and the moving objects.
– When there is blinking source of light.
– When strong light such as another vehicle’s headlight or sunlight is
present.
– When camera orientation is not in its usual position, such as when mirror
is folded. – When there is dirt, water drops or
snow on the camera lens.
– When the position of the moving ob- jects in the display is not changed.
● The MOD system might detect flowing
water droplets on the camera lens,
white smoke from the muffler, moving
shadows, etc.
● The MOD system may not function
properly depending on the speed, direc-
tion, distance or shape of the moving
objects.
● If your vehicle sustains damage to the
parts where the camera is installed,
leaving it misaligned or bent, the sens-
ing zone may be altered and the MOD
system may not detect objects properly.
● When the temperature is extremely
high or low, the screen may not display
objects clearly. This is not a
malfunction.
Camera maintenance
If dirt, rain or snow accumulates on the camera,
the MOD system may not operate properly. Clean
the camera.
HOW TO ADJUST THE SCREEN
VIEW
To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the Around
View® Monitor, press the SETTING button with
the Around View® Monitor on, select the item key
and adjust the level using the INFINITI controller.
Do not adjust the Brightness, Tint, Color, Con-
trast and Black Level of the Around View® Moni-
tor while the vehicle is moving. Make sure the
parking brake is firmly applied.
4-40Monitor, climate, audio, phone and voice recognition systems

AROUND VIEW® MONITOR
SETTINGS
To set up the Around View® Monitor to your
preferred settings, press the SETTING button,
select the “Camera” key and press the ENTER
button.
Predictive Course Lines
When this item is turned to ON, the predictive
course lines are displayed in the front view, rear-
view and bird’s-eye view.Camera View Priority
The view shown on the screen at the beginning of
the Around View® Monitor operation can be
selected in order of priority.
Non-viewable Area Reminder
With this item turned to ON, the non-viewable
area is highlighted in yellow for 7 seconds after
the bird’s-eye view is displayed. It will only be
shown the first time after the ignition switch is
place in the ON position.
Buzzer Volume
Adjust the volume of the buzzer.MOD (Moving Object Detection)
When this item is turned to ON, the MOD is
activated. When this item is turned to OFF (indi-
cator turns off) , the MOD system is deactivated.
When the MOD system is deactivated, “MOD”
2will disappear on the key3and the icon1
will disappear as well. When the sonar is turned
OFF on the setting menu as well, the key
3will
disappear.
Sonar
When this item is turned ON, the front and rear
sonar is activated
1. When this item is turned to
OFF (indicator turns off) , the front and rear sonar
is deactivated. The amber markers
2are dis-
LHA2159LHA2161LHA2216
Monitor, climate, audio, phone and voice recognition systems4-41

played at the corners of the vehicle icon and the
parking sensor icon will disappear on the key
3.
When the MOD is turned OFF on the setting
menu as well, the switch
3will disappear. The
next time the ignition switch is placed in the ON
position, “Sonar is OFF” is displayed briefly.
Automatic Display with Parking Sensors
When this item is turned ON, the camera view is
automatically shown on the display in the case
that the distance to the objects measured by the
sonar is becoming short.
Towing Mode:
When this item is turned on, only the rear sonar is
off. The amber markers are displayed at the rear
corners of the vehicle icon.
Show Camera When Sonar Activates:
When this item is turned on, the camera view is
automatically shown on the display in the case
that the distance to the objects measured by the
sonar is becoming short.
Sensors Sensitivity
Adjust the sensitivity level of the corner sonar
higher (+) or lower (-) .
VIEW MALFUNCTION
When the “!” icon is displayed on the screen,
there are abnormal conditions in the Around
View® Monitor. This will not hinder normal driving
operation but the system should be inspected by
an INFINITI retailer.
LHA2160LHA2220
4-42Monitor, climate, audio, phone and voice recognition systems

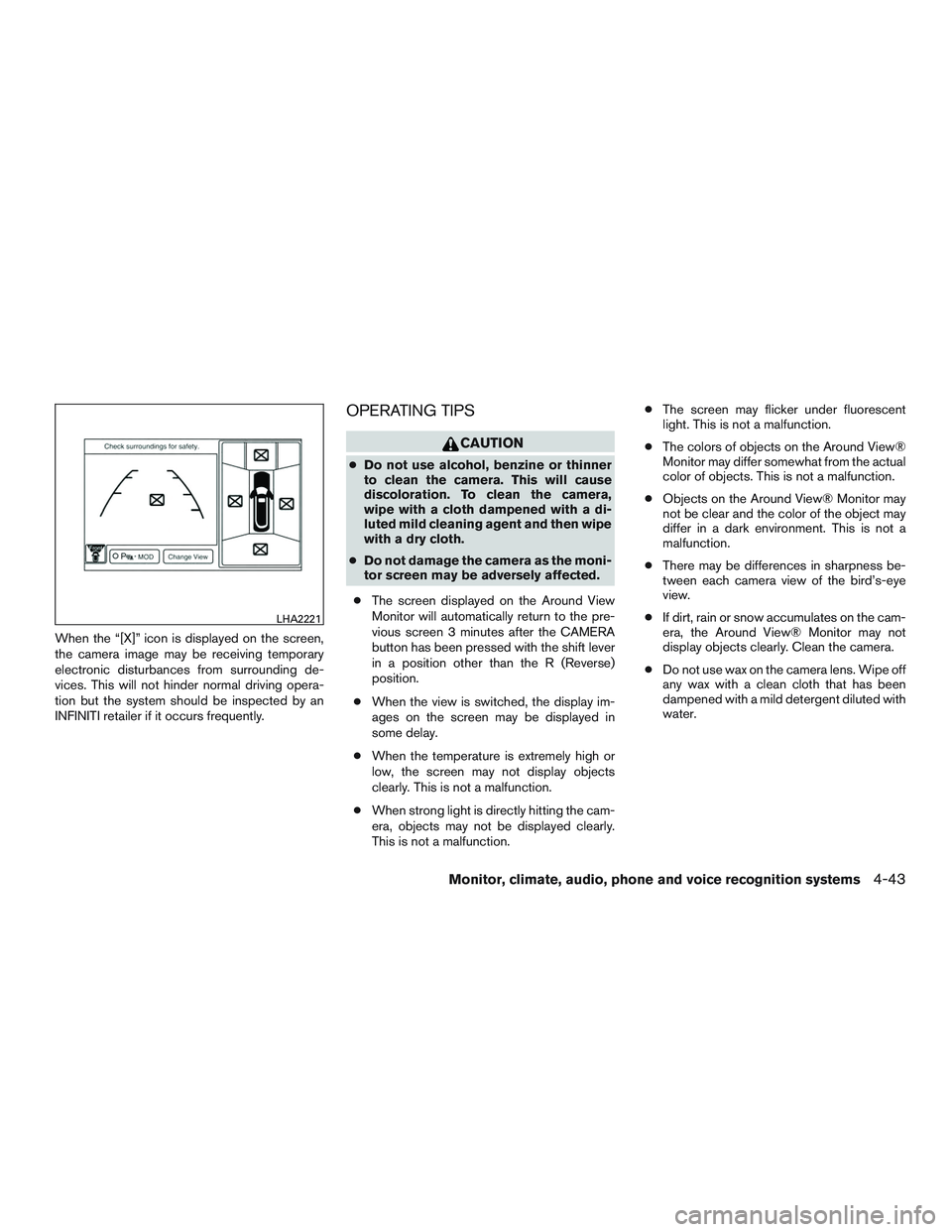

When the “[X]” icon is displayed on the screen,
the camera image may be receiving temporary
electronic disturbances from surrounding de-
vices. This will not hinder normal driving opera-
tion but the system should be inspected by an
INFINITI retailer if it occurs frequently.
OPERATING TIPS
CAUTION
●Do not use alcohol, benzine or thinner
to clean the camera. This will cause
discoloration. To clean the camera,
wipe with a cloth dampened with a di-
luted mild cleaning agent and then wipe
with a dry cloth.
● Do not damage the camera as the moni-
tor screen may be adversely affected.
● The screen displayed on the Around View
Monitor will automatically return to the pre-
vious screen 3 minutes after the CAMERA
button has been pressed with the shift lever
in a position other than the R (Reverse)
position.
● When the view is switched, the display im-
ages on the screen may be displayed in
some delay.
● When the temperature is extremely high or
low, the screen may not display objects
clearly. This is not a malfunction.
● When strong light is directly hitting the cam-
era, objects may not be displayed clearly.
This is not a malfunction. ●
The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the Around View®
Monitor may differ somewhat from the actual
color of objects. This is not a malfunction.
● Objects on the Around View® Monitor may
not be clear and the color of the object may
differ in a dark environment. This is not a
malfunction.
● There may be differences in sharpness be-
tween each camera view of the bird’s-eye
view.
● If dirt, rain or snow accumulates on the cam-
era, the Around View® Monitor may not
display objects clearly. Clean the camera.
● Do not use wax on the camera lens. Wipe off
any wax with a clean cloth that has been
dampened with a mild detergent diluted with
water.
LHA2221
Monitor, climate, audio, phone and voice recognition systems4-43
