●The BSW system operates above ap-
proximately 20 mph (32 km/h).
● The BSI system operates above ap-
proximately 37 mph (60 km/h).
BLIND SPOT WARNING (BSW)
SYSTEM/BLIND SPOT
INTERVENTION® (BSI) SYSTEMS
The Blind Spot Warning (BSW) and Blind Spot
Intervention® (BSI) systems can help alert the
driver of other vehicles in adjacent lanes when
changing lanes.
The BSW system uses radar sensors
2in-
stalled near the rear bumper to detect other ve-
hicles in an adjacent lane. In addition to the radar
sensors, the BSI system uses a camera
1in-
stalled behind the windshield to monitor the lane
markers of your traveling lane. The radar sensors can detect vehicles on either
side of your vehicle within the detection zone
shown as illustrated. This detection zone starts
from the outside mirror of your vehicle and ex-
tends approximately 10 ft (3.0 m) behind the rear
bumper, and approximately 10 ft (3.0 m) side-
ways.
The BSW system operates above approximately
20 MPH (32 km/h). If the radar sensors detect
vehicles in the detection zone, the Blind Spot
Warning indicator light illuminates. If the driver
then activates the turn signal, a chime will sound
twice and the Blind Spot Warning indicator light
will flash.
LSD2153
Detection zone
SSD1030
Starting and driving5-33

The BSI system operates above approximately
37 MPH (60 km/h). If the system detects a ve-
hicle in the detection zone and your vehicle is
approaching the lane marker, the BSI system
provides an audible warning (three times) ,
flashes the Blind Spot Warning indicator light
and slightly applies the brakes for a short period
of time on one side to help return the vehicle back
to the traveling lane. The BSI system provides an
audible warning and turns on or flashes the Blind
Spot Warning indicator light even if the BSW
system is off.
BSW SYSTEM OPERATION
If the radar sensors detect a vehicle in the detec-
tion zone, the Blind Spot Warning (BSW) indica-
tor light located by the outside mirrors illumi-
nates. If the turn signal is then activated, the
system chimes (twice) and the BSW indicator
light flashes. The BSW indicator light continues
to flash until the detected vehicles leave the
detection zone.
The BSW indicator light illuminates for a few
seconds when the ignition switch is placed in the
ON position.The brightness of the BSW indicator light is
adjusted automatically depending on the bright-
ness of the ambient light.
A chime sounds if the radar sensors have already
detected vehicles when the driver activates the
turn signal. If a vehicle comes into the detection
zone after the driver activates the turn signal, then
only the BSW indicator light flashes and no
chime sounds. For additional information, refer to
“BSW/BSI driving situations” in this section.
The BSW system automatically turns on every
time the engine is started, as long as it is acti-
vated using the settings menu on the vehicle
information display.
BSW indicator light
LSD2053
5-34Starting and driving

BSI SYSTEM OPERATION
If the radar sensors detect vehicles in the detec-
tion zone, the Blind Spot Warning indicator light
located near the outside mirrors illuminates. If
your vehicle is approaching a lane marker, the
system chimes a sound (three times) and the
Blind Spot Warning indicator light flashes. Then
the system applies the brakes on one side of the
vehicle for a moment to help return the vehicle
back to the center of the lane. BSI operates
regardless of turn signal usage.NOTE:
Warning and system application of the
brakes will only be activated if the Blind
Spot Warning indicator light is already illu-
minated when your vehicle approaches a
lane marker. If another vehicle comes into
the detection zone after your vehicle has
crossed a lane marker, no warning or brake
application will be activated. For additional
information, refer to “BSW/BSI driving
situations” in this section. The BSI system
is typically activated earlier than the Lane
Departure Prevention (LDP) system when
your vehicle is approaching a lane marker.
LSD2053LSD2154
5-36Starting and driving

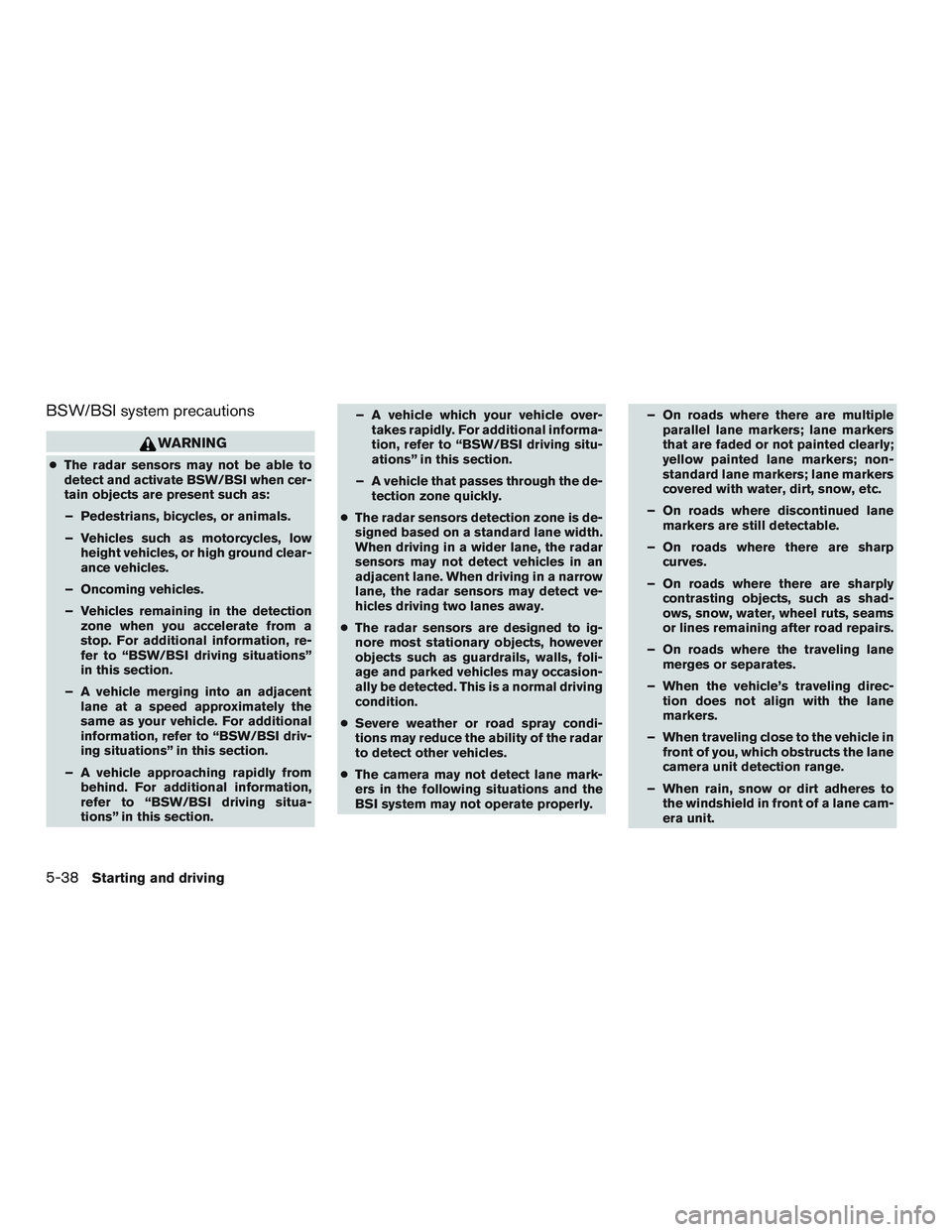

BSW/BSI system precautions
WARNING
●The radar sensors may not be able to
detect and activate BSW/BSI when cer-
tain objects are present such as:
– Pedestrians, bicycles, or animals.
– Vehicles such as motorcycles, low height vehicles, or high ground clear-
ance vehicles.
– Oncoming vehicles.
– Vehicles remaining in the detection zone when you accelerate from a
stop. For additional information, re-
fer to “BSW/BSI driving situations”
in this section.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle. For additional
information, refer to “BSW/BSI driv-
ing situations” in this section.
– A vehicle approaching rapidly from behind. For additional information,
refer to “BSW/BSI driving situa-
tions” in this section. – A vehicle which your vehicle over-
takes rapidly. For additional informa-
tion, refer to “BSW/BSI driving situ-
ations” in this section.
– A vehicle that passes through the de- tection zone quickly.
● The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an
adjacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
● The radar sensors are designed to ig-
nore most stationary objects, however
objects such as guardrails, walls, foli-
age and parked vehicles may occasion-
ally be detected. This is a normal driving
condition.
● Severe weather or road spray condi-
tions may reduce the ability of the radar
to detect other vehicles.
● The camera may not detect lane mark-
ers in the following situations and the
BSI system may not operate properly. – On roads where there are multiple
parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; lane markers
covered with water, dirt, snow, etc.
– On roads where discontinued lane markers are still detectable.
– On roads where there are sharp curves.
– On roads where there are sharply contrasting objects, such as shad-
ows, snow, water, wheel ruts, seams
or lines remaining after road repairs.
– On roads where the traveling lane merges or separates.
– When the vehicle’s traveling direc- tion does not align with the lane
markers.
– When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
– When rain, snow or dirt adheres to the windshield in front of a lane cam-
era unit.
5-38Starting and driving

Overtaking another vehicle
Illustration 5: The Blind Spot Warning indicator
light illuminates if you overtake a vehicle and that
vehicle stays in the detection zone for approxi-
mately 3 seconds.
The radar sensors may not detect slower moving
vehicles if they are passed quickly.Illustration 6: If the driver activates the turn signal
while another vehicle is in the detection zone,
then the system chimes a sound (twice) and the
Blind Spot Warning indicator light flashes.
Illustration 7: If the BSI system is on and your
vehicle approaches a lane marker while another
vehicle is in the detection zone the system
chimes a sound (three times) and the Blind Spot
Warning indicator light flashes. Then, the BSI
system slightly applies the brakes on the appro-
priate side to help return the vehicle back to the
center of the driving lane.
Illustration 5 – Overtaking another vehicle
SSD1033
Illustration 6 – Overtaking another vehicle
SSD1034
Illustration 7 – Overtaking another vehicle
LSD2072
Starting and driving5-41

NOTE:
Illustration 8: When overtaking several ve-
hicles in a row, the vehicles after the first
vehicle may not be detected if they are
traveling close together.Entering from the side
Illustration 9: The Blind Spot Warning indicator
light illuminates if a vehicle enters the detection
zone from either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detection
zone.Illustration 10: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the Blind Spot Warning indicator light
flashes and a chime will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
Blind Spot Warning indicator light will flash
but no chime will sound when another ve-
hicle is detected.
Illustration 8 – Overtaking several vehicles
SSD1036
Illustration 9 – Entering from the side
LSD2050
5-42Starting and driving

THE BACKUP COLLISION
INTERVENTION (BCI) SYSTEM
WARNING
●The BCI system is not a replacement for
proper driving procedure, is not de-
signed to prevent contact with vehicles
or objects and does not provide full
brake power. When backing out of park-
ing space, always use the side and rear
mirrors and turn and look in the direc-
tion you will move. Never rely solely on
the BCI system. ●
There is a limitation to the detection
capability of the radar or the sonar. Us-
ing the BCI systems under some road,
ground, lane marker, traffic or weather
conditions could lead to improper sys-
tem operation. Always rely on your own
operation to avoid accidents.
BCI SYSTEM DESCRIPTION
The BCI systems can help alert the driver of an
approaching vehicle or objects behind the ve-
hicle when the driver is backing out of a parking
space.
When the shift position is R (Reverse) and the
vehicle speed is less than approximately 5 MPH
(8 km/h), the BCI system operates. The BCI system uses radar sensors
1installed
on both sides near the rear bumper to detect an
approaching vehicle and sonar sensors to detect
objects in the rear.
The radar sensors
1detect an approaching
vehicle from up to approximately 49 ft. (15 m)
away. The sonar sensors
2detect stationary
objects behind the vehicle up to approximately
4.9 ft (1.5 m)
3.
LSD2025LSD2026
5-44Starting and driving

WARNING
●Always check surroundings and turn to
check what is behind you before back-
ing up. The radar sensors detect ap-
proaching (moving) vehicles. The radar
sensors cannot detect every object such
as:
– Pedestrians, bicycles, motorcycles, animals or child operated toy
vehicles
– A vehicle that is passing at speeds greater than approximately 24 km/h
(15 MPH)
● The radar sensors may not detect ap-
proaching vehicles in certain situations:
– Illustration a: When a vehicle parked next to you obstructs the beam of the
radar sensor.
– Illustration b: When the vehicle is parked in an angled parking space.
– Illustration c: When the vehicle is parked on inclined ground.
– Illustration d: When an approaching vehicle turns into your vehicle’s park-
ing lot aisle. – Illustration e: When the angle formed
by your vehicle and approaching ve-
hicle is small.
● The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice build up on the vehicle
– Frost build up on the vehicle
– Dirt up on the vehicle
● Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles.
● The sonar sensors detect stationary ob-
jects behind the vehicle. The sonar sen-
sor may not detect:
– Small or moving objects
– Wedge-shaped objects
– Object close to the bumper (less than approximately 30 cm (1 ft.)) – Thin objects such as rope, wire and
chain, etc.
● The brake engagement by the BCI sys-
tem is not as effective on a slope as it is
on flat ground. When on a steep slope
the system may not function properly.
● Do not use the BCI system under the
following conditions because the sys-
tem may not function properly.
– When driving with a tire that is not within normal tire conditions (e.g.
tire wear, low tire pressure, installa-
tion of spare tire, tire chains, non-
standard wheels) .
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
● Do not use the BCI systems when tow-
ing a trailer.
● Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.
5-46Starting and driving

BCI SYSTEM OPERATION
When the shift lever is placed in R (Reverse)
position, the BCI ON appears in the vehicle infor-
mation display.If the radar detects an approaching vehicle from
the side, the system chimes a sound (single
beep) , the Blind Spot Warning indicator light on
the side the approaching vehicle flashes and a
yellow rectangular frame appears in display
A.NOTE:
● In the case of several vehicles approaching
in a row (Illustration 1) or in the opposite
direction (Illustration 2) , a chime may not be
sounded by the BCI system after the first
vehicle passes the sensors.
LSD2134
Illustration 1
LSD2043
Starting and driving5-47

RADAR MAINTENANCE
The two radar sensors1for the BSW, BSI and
BCI systems are located near the rear bumper.
Always keep the area near the radar sensors
clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors. Check for and remove objects obstructing the
area around the radar sensors.
Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. Consult an INFINITI retailer if the
area around the radar sensors is damaged due to
a collision.
Radio frequency statement
This device complies with part 15 of the
FCC Rules and RSS-310 of Industry
Canada.
Operation is subject to the following two
conditions:
1. This device may not cause harmful in-
terference.
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Frequency of operation: 24.05GHz —
24.25GHz
Field Strength: Not greater than 2.5V/m
peak (0.25V/m average) at a distance of
3m. The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s
authority to operate the equipment.
LSD2204
5-50Starting and driving
