22. Hazard warning flasher switch (P. 6-2)
23. Push-button ignition switch (P. 5-12)
24. Cruise control main/set switches andIntelligent cruise control main/set
switches (if so equipped) (P. 5-51,
P.5-52)
25. Dynamic Driver Assistance switch
(if so equipped) (P. 5-72)
26. Tilt steering wheel control (P. 3-29)
27. Bluetooth® Hands-Free Phone System
(P. 4-109, 4-123)
28. Steering wheel switch for audio control
(P. 4-95)
29. Hood release (P. 3-22)
30. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-43)
Heated steering wheel switch
(if so equipped) (P. 2-41)
Headlight aiming control (P. 2-31)
Warning System switch
(if so equipped) (P. 6-2)
Power inverter switch (if so equipped)
(P. 2-44)
Liftgate opener switch (P. 3-23)
Power liftgate main switch (P. 3-23)
31. Control panel and Vehicle Information
Display switches (P. 4-4, 2-16)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

22. Hazard warning flasher switch (P. 6-2)
23. Push-button ignition switch (P. 5-12)
24. Cruise control main/set switches andIntelligent cruise control main/set
switches (if so equipped) (P. 5-51,
P.5-52)
25. Dynamic Driver Assistance switch
(if so equipped) (P. 5-72)
26. Tilt steering wheel control (P. 3-29)
27. Bluetooth® Hands-Free Phone System
(P. 4-109, 4-123)
28. Steering wheel switch for audio control
(P. 4-95)
29. Hood release (P. 3-22)
30. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-43)
Heated steering wheel switch
(if so equipped) (P. 2-41)
Headlight aiming control (P. 2-31)
Warning System switch
(if so equipped) (P. 6-2)
Power inverter switch (if so equipped)
(P. 2-44)
Liftgate opener switch (P. 3-23)
Power liftgate main switch (P. 3-23)
31. Control panel and Vehicle Information
Display switches (P. 4-4, 2-16)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Instruments and controls2-3

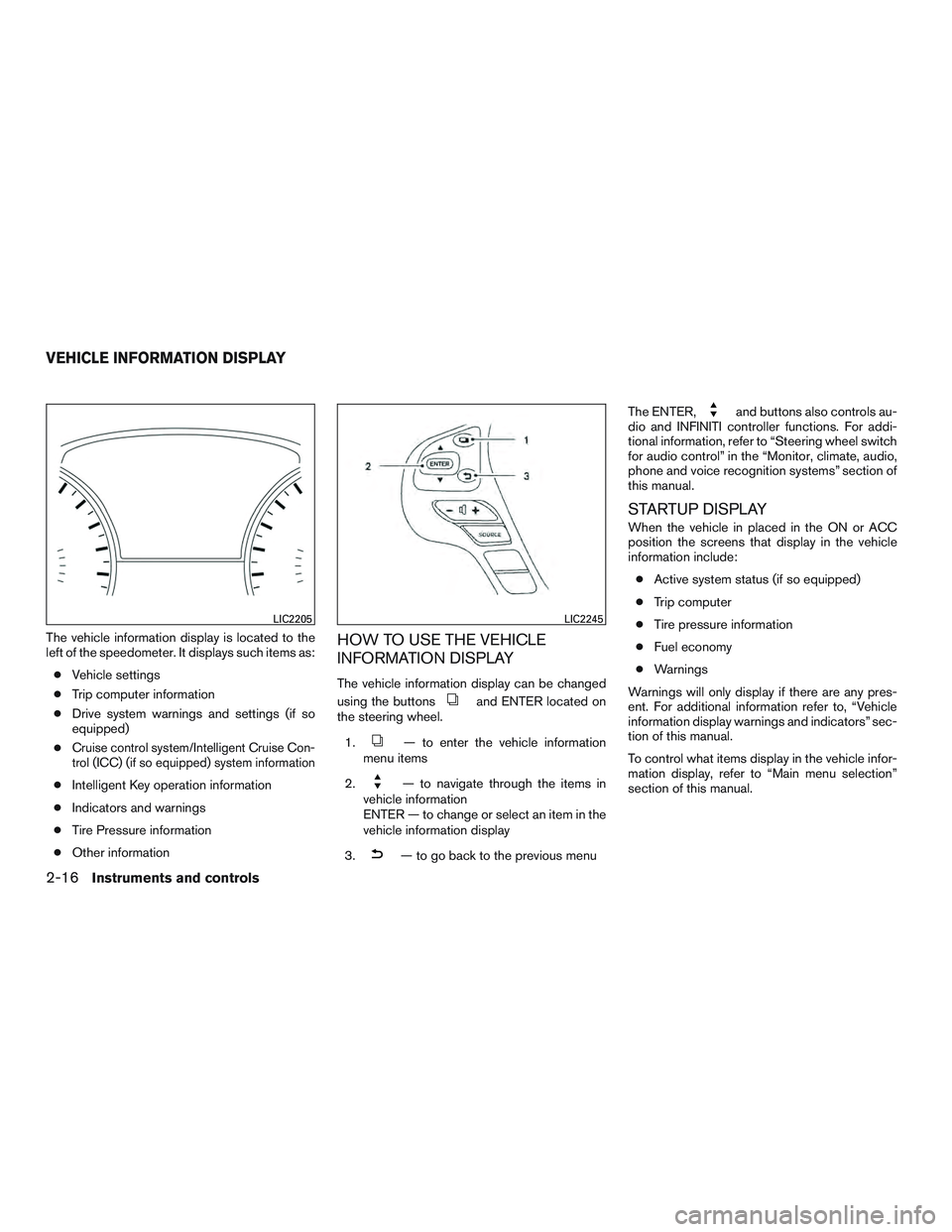

The vehicle information display is located to the
left of the speedometer. It displays such items as:● Vehicle settings
● Trip computer information
● Drive system warnings and settings (if so
equipped)
●
Cruise control system/Intelligent Cruise Con-
trol (ICC) (if so equipped) system information
● Intelligent Key operation information
● Indicators and warnings
● Tire Pressure information
● Other information
HOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be changed
using the buttons
and ENTER located on
the steering wheel.
1.
— to enter the vehicle information
menu items
2.
— to navigate through the items in
vehicle information
ENTER — to change or select an item in the
vehicle information display
3.
— to go back to the previous menu The ENTER,
and buttons also controls au-
dio and INFINITI controller functions. For addi-
tional information, refer to “Steering wheel switch
for audio control” in the “Monitor, climate, audio,
phone and voice recognition systems” section of
this manual.
STARTUP DISPLAY
When the vehicle in placed in the ON or ACC
position the screens that display in the vehicle
information include:
● Active system status (if so equipped)
● Trip computer
● Tire pressure information
● Fuel economy
● Warnings
Warnings will only display if there are any pres-
ent. For additional information refer to, “Vehicle
information display warnings and indicators” sec-
tion of this manual.
To control what items display in the vehicle infor-
mation display, refer to “Main menu selection”
section of this manual.
LIC2205LIC2245
VEHICLE INFORMATION DISPLAY
2-16Instruments and controls

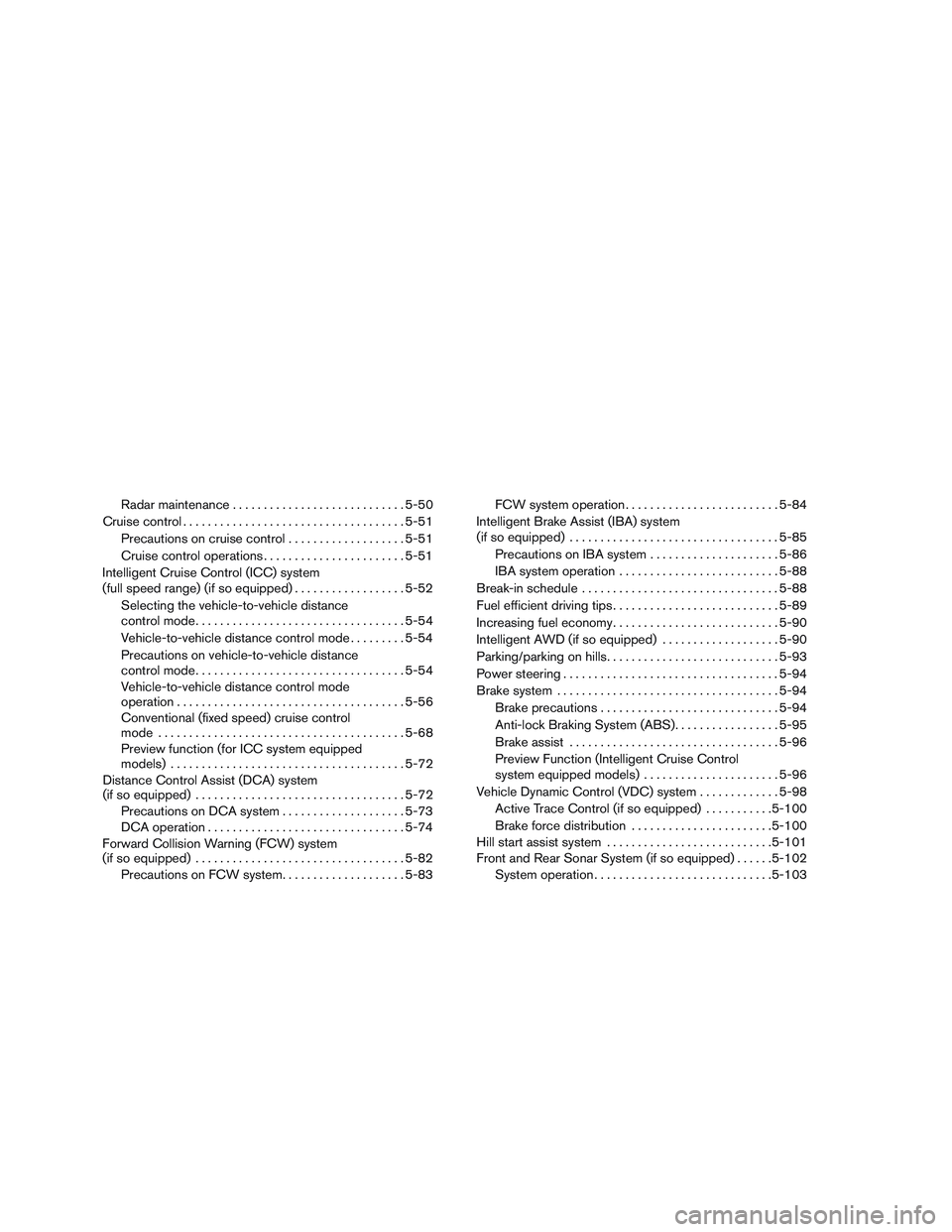

Radar maintenance............................ 5-50
Cruise control .................................... 5-51
Precautions on cruise control ...................5-51
Cruise control operations .......................5-51
Intelligent Cruise Control (ICC) system
(full speed range) (if so equipped) . . ................5-52
Selecting the vehicle-to-vehicle distance
control mode .................................. 5-54
Vehicle-to-vehicle distance control mode .........5-54
Precautions on vehicle-to-vehicle distance
control mode .................................. 5-54
Vehicle-to-vehicle distance control mode
operation ..................................... 5-56
Conventional (fixed speed) cruise control
mode ........................................ 5-68
Preview function (for ICC system equipped
models) ...................................... 5-72
Distance Control Assist (DCA) system
(if so equipped) .................................. 5-72
Precautions on DCA system ....................5-73
DCA operation ................................ 5-74
Forward Collision Warning (FCW) system
(if so equipped) .................................. 5-82
Precautions on FCW system ....................5-83FCW system operation
......................... 5-84
Intelligent Brake Assist (IBA) system
(if so equipped) .................................. 5-85
Precautions on IBA system .....................5-86
IBA system operation .......................... 5-88
Break-in schedule ................................ 5-88
Fuel efficient driving tips ........................... 5-89
Increasing fuel economy ........................... 5-90
Intelligent AWD (if so equipped) ...................5-90
Parking/parking on hills ............................ 5-93
Power steering ................................... 5-94
Brake system .................................... 5-94
Brake precautions ............................. 5-94
Anti-lock Braking System (ABS) .................5-95
Brake assist .................................. 5-96
Preview Function (Intelligent Cruise Control
system equipped models) ......................5-96
V ehicle

Dynamic Control (VDC) system .............5-98
Active Trace Control (if so equipped) ...........5-100
Brake force distribution ....................... 5-100
Hill start assist system ........................... 5-101
Front and Rear Sonar System (if so equipped) ......5-102
System operation ............................. 5-103

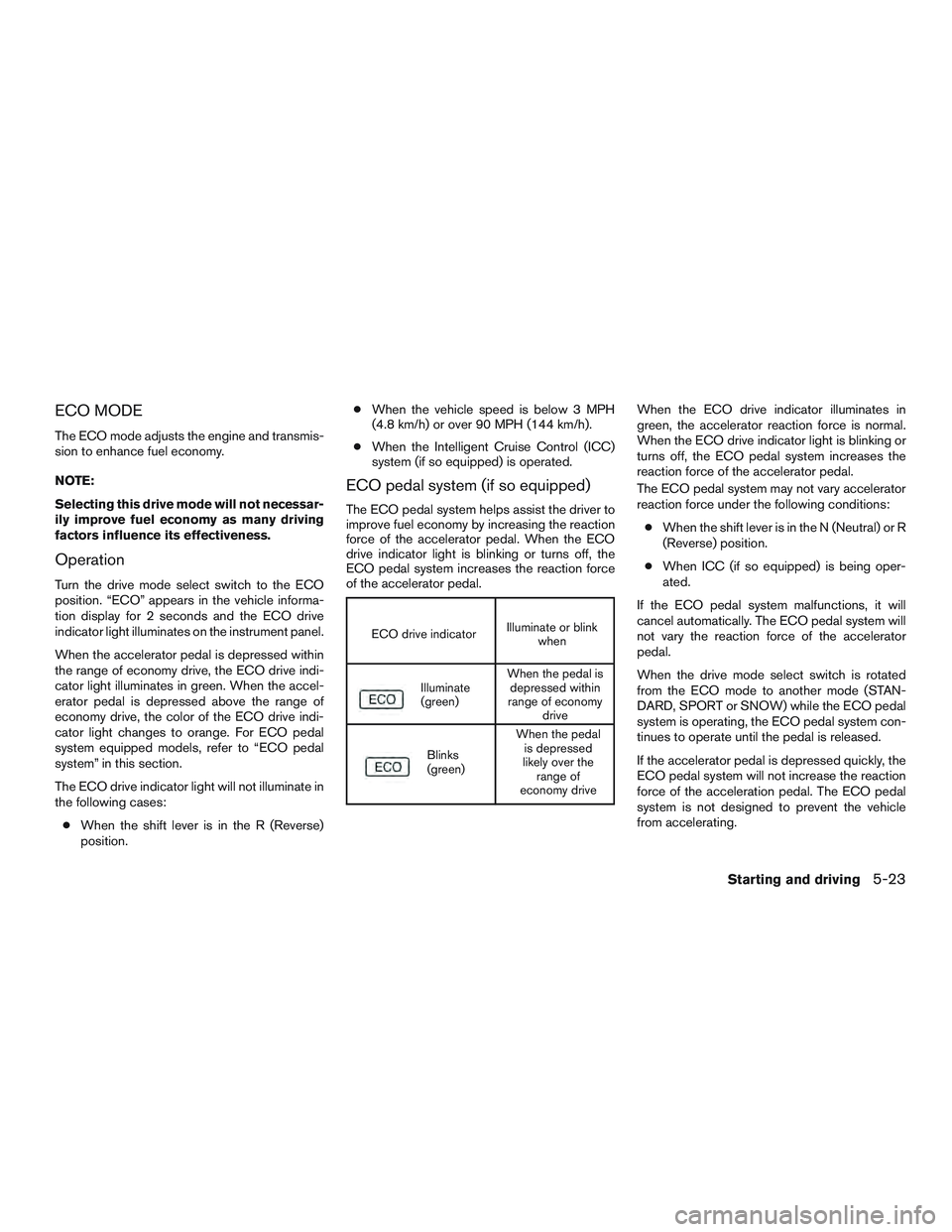

ECO MODE
The ECO mode adjusts the engine and transmis-
sion to enhance fuel economy.
NOTE:
Selecting this drive mode will not necessar-
ily improve fuel economy as many driving
factors influence its effectiveness.
Operation
Turn the drive mode select switch to the ECO
position. “ECO” appears in the vehicle informa-
tion display for 2 seconds and the ECO drive
indicator light illuminates on the instrument panel.
When the accelerator pedal is depressed within
the range of economy drive, the ECO drive indi-
cator light illuminates in green. When the accel-
erator pedal is depressed above the range of
economy drive, the color of the ECO drive indi-
cator light changes to orange. For ECO pedal
system equipped models, refer to “ECO pedal
system” in this section.
The ECO drive indicator light will not illuminate in
the following cases:● When the shift lever is in the R (Reverse)
position. ●
When the vehicle speed is below 3 MPH
(4.8 km/h) or over 90 MPH (144 km/h).
● When the Intelligent Cruise Control (ICC)
system (if so equipped) is operated.
ECO pedal system (if so equipped)
The ECO pedal system helps assist the driver to
improve fuel economy by increasing the reaction
force of the accelerator pedal. When the ECO
drive indicator light is blinking or turns off, the
ECO pedal system increases the reaction force
of the accelerator pedal.
ECO drive indicator Illuminate or blink
when
Illuminate
(green) When the pedal is
depressed within
range of economy drive
Blinks
(green) When the pedal
is depressed
likely over the range of
economy drive
When the ECO drive indicator illuminates in
green, the accelerator reaction force is normal.
When the ECO drive indicator light is blinking or
turns off, the ECO pedal system increases the
reaction force of the accelerator pedal.
The ECO pedal system may not vary accelerator
reaction force under the following conditions:
● When the shift lever is in the N (Neutral) or R
(Reverse) position.
● When ICC (if so equipped) is being oper-
ated.
If the ECO pedal system malfunctions, it will
cancel automatically. The ECO pedal system will
not vary the reaction force of the accelerator
pedal.
When the drive mode select switch is rotated
from the ECO mode to another mode (STAN-
DARD, SPORT or SNOW) while the ECO pedal
system is operating, the ECO pedal system con-
tinues to operate until the pedal is released.
If the accelerator pedal is depressed quickly, the
ECO pedal system will not increase the reaction
force of the acceleration pedal. The ECO pedal
system is not designed to prevent the vehicle
from accelerating.
Starting and driving5-23

PRECAUTIONS ON CRUISE
CONTROL
1. ACCEL/RES switch
2. COAST/SET switch
3. CANCEL switch
4. ON·OFF switch● If the cruise control system malfunctions, it
will cancel automatically. The SET indicator
in the vehicle information display will blink to
warn the driver. ●
If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the SET indicator blinks, turn the cruise
control main switch off and have the system
checked by your INFINITI retailer.
● The SET indicator may sometimes blink
when the cruise control main switch is
turned on while pushing the ACCEL/RES,
COAST/SET or CANCEL switch. To prop-
erly set the cruise control system, perform
the steps below.
WARNING
Do not use the cruise control when driving
under the following conditions:
●when it is not possible to keep the ve-
hicle at a set speed
● in heavy traffic or in traffic that varies in
speed
● on winding or hilly roads
● on slippery roads (rain, snow, ice, etc.)
● in very windy areas
Doing so could cause a loss of vehicle
control and result in an accident.
CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed be-
tween 25 - 89 MPH (40 - 144 km/h) without
keeping your foot on the accelerator pedal.
To turn on the cruise control, push the
ON·OFF switch on. The CRUISE indicator light in
the vehicle information display will illuminate.
To set cruising speed, accelerate the vehicle to
the desired speed, push the COAST/SET switch
and release it. The SET indicator light in the
vehicle information display will illuminate. Take
your foot off the accelerator pedal. Your vehicle
maintains the set speed.
● To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle returns to the previously
set speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, drive without the cruise control.
To cancel the preset speed, use one of the
following three methods:
● Push the CANCEL button; the SET indicator
light in the vehicle information display goes
out.
● Tap the brake pedal; the SET indicator light
goes out.
LSD2202
CRUISE CONTROL
Starting and driving5-51

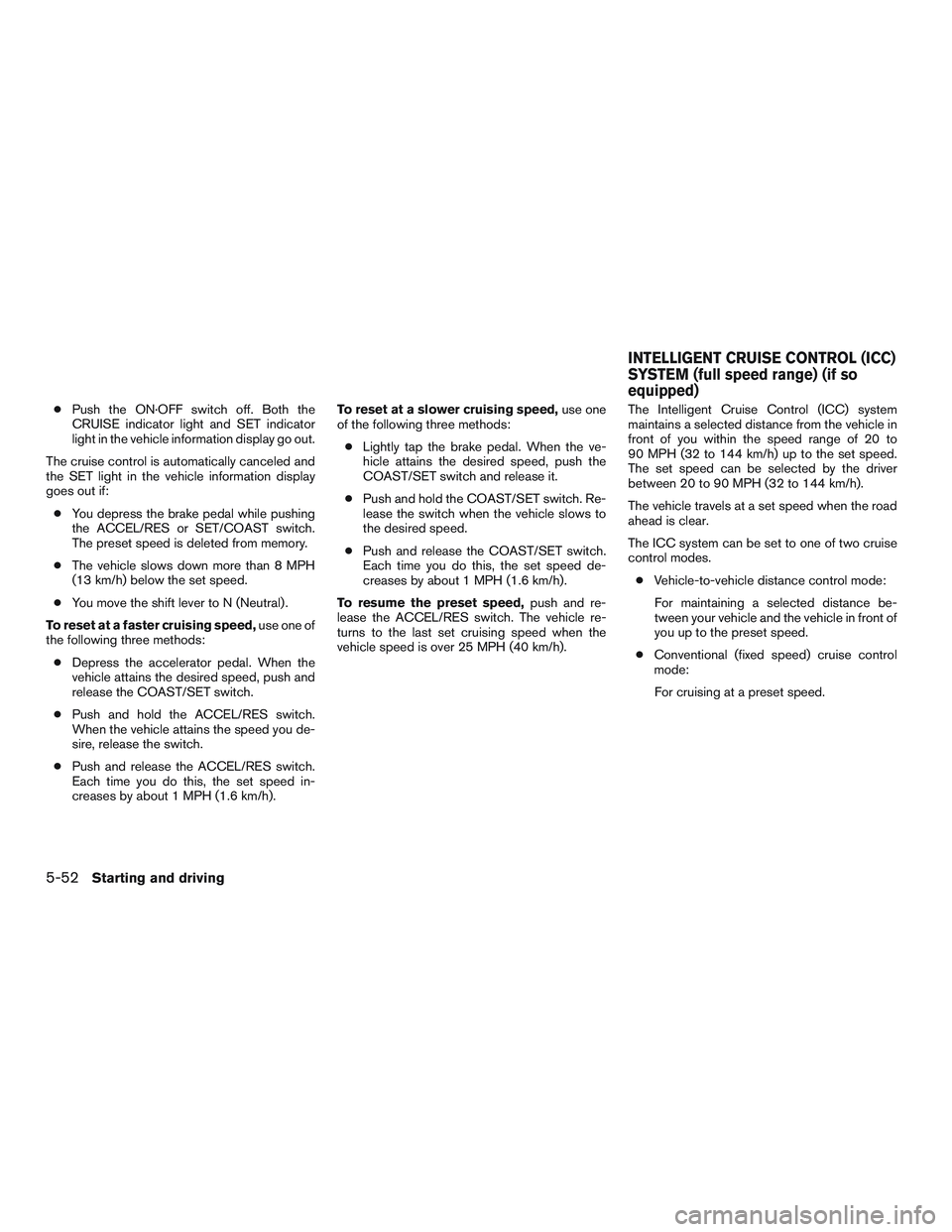

●Push the ON·OFF switch off. Both the
CRUISE indicator light and SET indicator
light in the vehicle information display go out.
The cruise control is automatically canceled and
the SET light in the vehicle information display
goes out if: ● You depress the brake pedal while pushing
the ACCEL/RES or SET/COAST switch.
The preset speed is deleted from memory.
● The vehicle slows down more than 8 MPH
(13 km/h) below the set speed.
● You move the shift lever to N (Neutral) .
To reset at a faster cruising speed, use one of
the following three methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
● Push and hold the ACCEL/RES switch.
When the vehicle attains the speed you de-
sire, release the switch.
● Push and release the ACCEL/RES switch.
Each time you do this, the set speed in-
creases by about 1 MPH (1.6 km/h). To reset at a slower cruising speed,
use one
of the following three methods:
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
COAST/SET switch and release it.
● Push and hold the COAST/SET switch. Re-
lease the switch when the vehicle slows to
the desired speed.
● Push and release the COAST/SET switch.
Each time you do this, the set speed de-
creases by about 1 MPH (1.6 km/h).
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle re-
turns to the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h). The Intelligent Cruise Control (ICC) system
maintains a selected distance from the vehicle in
front of you within the speed range of 20 to
90 MPH (32 to 144 km/h) up to the set speed.
The set speed can be selected by the driver
between 20 to 90 MPH (32 to 144 km/h).
The vehicle travels at a set speed when the road
ahead is clear.
The ICC system can be set to one of two cruise
control modes.
● Vehicle-to-vehicle distance control mode:
For maintaining a selected distance be-
tween your vehicle and the vehicle in front of
you up to the preset speed.
● Conventional (fixed speed) cruise control
mode:
For cruising at a preset speed.
INTELLIGENT CRUISE CONTROL (ICC)
SYSTEM (full speed range) (if so
equipped)
5-52Starting and driving

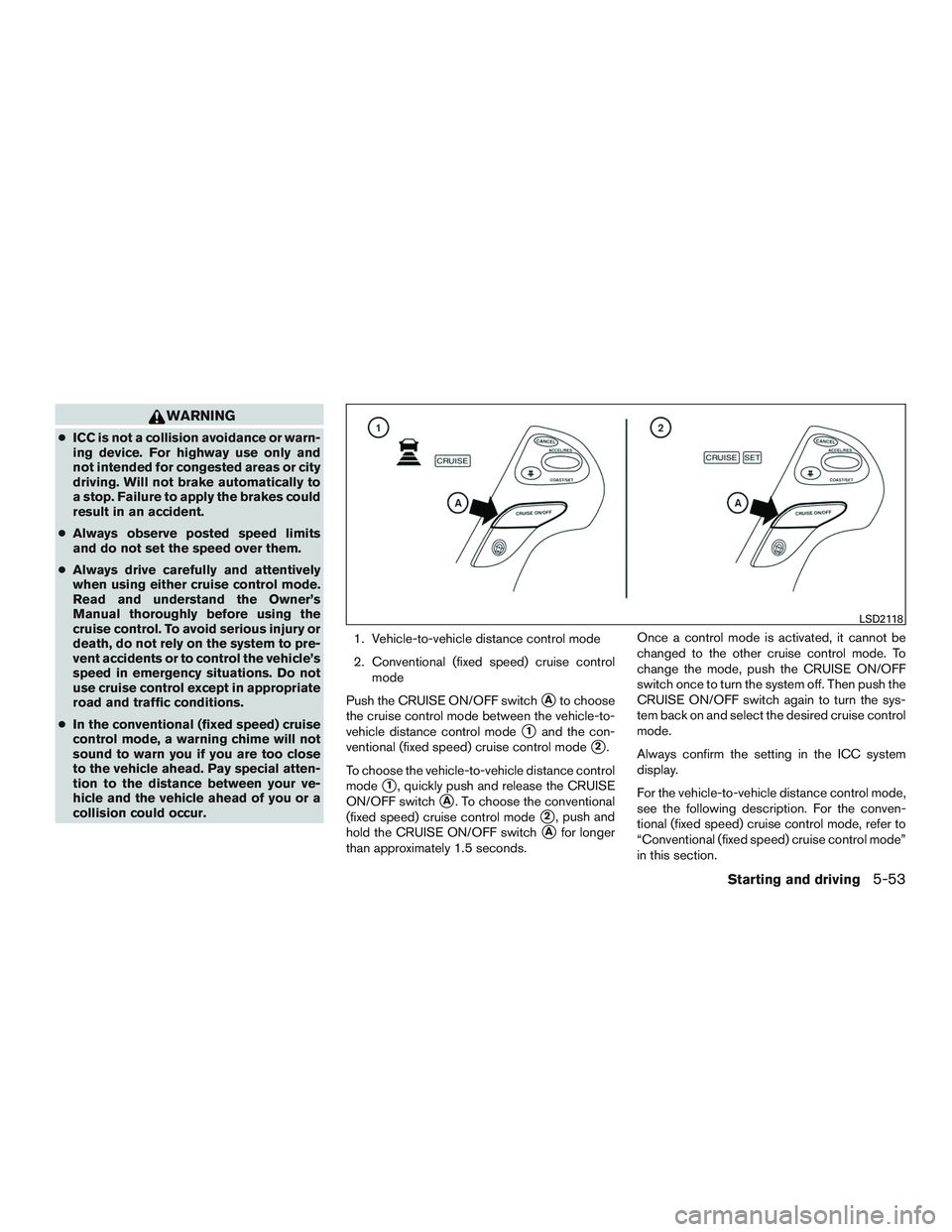

WARNING
●ICC is not a collision avoidance or warn-
ing device. For highway use only and
not intended for congested areas or city
driving. Will not brake automatically to
a stop. Failure to apply the brakes could
result in an accident.
● Always observe posted speed limits
and do not set the speed over them.
● Always drive carefully and attentively
when using either cruise control mode.
Read and understand the Owner’s
Manual thoroughly before using the
cruise control. To avoid serious injury or
death, do not rely on the system to pre-
vent accidents or to control the vehicle’s
speed in emergency situations. Do not
use cruise control except in appropriate
road and traffic conditions.
● In the conventional (fixed speed) cruise
control mode, a warning chime will not
sound to warn you if you are too close
to the vehicle ahead. Pay special atten-
tion to the distance between your ve-
hicle and the vehicle ahead of you or a
collision could occur. 1. Vehicle-to-vehicle distance control mode
2. Conventional (fixed speed) cruise control
mode
Push the CRUISE ON/OFF switch
Ato choose
the cruise control mode between the vehicle-to-
vehicle distance control mode
1and the con-
ventional (fixed speed) cruise control mode
2.
To choose the vehicle-to-vehicle distance control
mode
1, quickly push and release the CRUISE
ON/OFF switch
A. To choose the conventional
(fixed speed) cruise control mode
2, push and
hold the CRUISE ON/OFF switch
Afor longer
than approximately 1.5 seconds. Once a control mode is activated, it cannot be
changed to the other cruise control mode. To
change the mode, push the CRUISE ON/OFF
switch once to turn the system off. Then push the
CRUISE ON/OFF switch again to turn the sys-
tem back on and select the desired cruise control
mode.
Always confirm the setting in the ICC system
display.
For the vehicle-to-vehicle distance control mode,
see the following description. For the conven-
tional (fixed speed) cruise control mode, refer to
“Conventional (fixed speed) cruise control mode”
in this section.
LSD2118
Starting and driving5-53

SELECTING THE VEHICLE-TO-
VEHICLE DISTANCE CONTROL
MODE
To choose the vehicle-to-vehicle distance control
mode
1, quickly push and release the CRUISE
ON/OFF switch
A.
VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE
In the vehicle-to-vehicle distance control mode,
the ICC system automatically maintains a se-
lected distance from the vehicle traveling in front
of you according to that vehicle’s speed (up to
the set speed) , or at the set speed when the road
ahead is clear.
With ICC, the driver can maintain the same
speed as other vehicles without the constant
need to adjust the set speed as you would with a
normal cruise control system.
PRECAUTIONS ON VEHICLE-TO-
VEHICLE DISTANCE CONTROL
MODE
The system is intended to enhance the operation
of the vehicle when following a vehicle traveling in
the same lane and direction.
If the distance sensor
Adetects a slower mov-
ing vehicle ahead, the system will reduce the
vehicle speed so that your vehicle follows the
vehicle in front at the selected distance.
The system automatically controls the throttle
and applies the brakes (up to 40% of vehicle
braking power) if necessary. The detection range of the sensor is approxi-
mately 490 ft (150 m) ahead.
WARNING
●
This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s re-
sponsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
● The system is primarily intended for use
on straight, dry, open roads with light
traffic. It is not advisable to use the
system in city traffic or congested areas.
● This system will not adapt automatically
to road conditions. This system should
be used in evenly flowing traffic. Do not
use the system on roads with sharp
curves, or on icy roads, in heavy rain or
in fog.
The distance sensor will not detect the following
objects: ● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane
● Motorcycles traveling offset in the travel lane
LSD2098
5-54Starting and driving

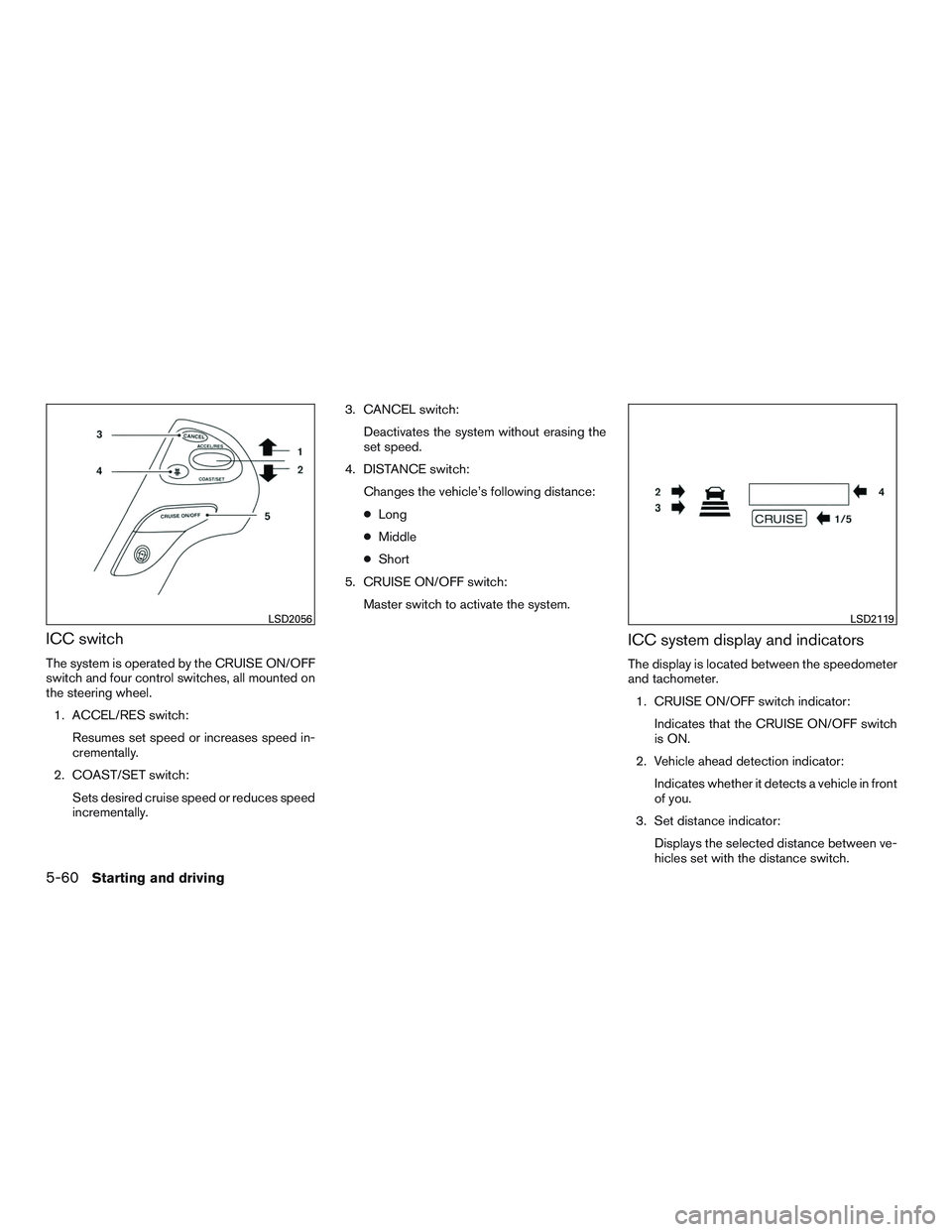

ICC switch
The system is operated by the CRUISE ON/OFF
switch and four control switches, all mounted on
the steering wheel.1. ACCEL/RES switch: Resumes set speed or increases speed in-
crementally.
2. COAST/SET switch: Sets desired cruise speed or reduces speed
incrementally. 3. CANCEL switch:
Deactivates the system without erasing the
set speed.
4. DISTANCE switch: Changes the vehicle’s following distance:
●Long
● Middle
● Short
5. CRUISE ON/OFF switch: Master switch to activate the system.
ICC system display and indicators
The display is located between the speedometer
and tachometer.1. CRUISE ON/OFF switch indicator: Indicates that the CRUISE ON/OFF switch
is ON.
2. Vehicle ahead detection indicator: Indicates whether it detects a vehicle in front
of you.
3. Set distance indicator: Displays the selected distance between ve-
hicles set with the distance switch.
LSD2056LSD2119
5-60Starting and driving
