4. Push the ignition switch while depressing
the brake pedal within 10 seconds after the
chime sounds. The engine will start.
After Step 3 is performed, when the ignition
switch is pushed without depressing the brake
pedal, the ignition switch position will change to
ACC.
NOTE:
●When the ignition switch is pushed to the
ACC or ON position or the engine is started
by the above procedure, the Intelligent Key
battery discharge indicator appears in the
vehicle information display even when the
Intelligent Key is inside the vehicle. This is
not a malfunction. To turn off the Intelligent
Key battery discharge indicator, touch the
ignition switch with the Intelligent Key again.
●If the Intelligent Key battery discharge indi-
cator appears, replace the battery as soon
as possible. For additional information, refer
to “Battery replacement” in the “Mainte-
nance and do-it-yourself” section of this
manual.INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using the registered key,
it may be due to interference caused by another
registered key, an automated toll road device or
automated payment device on the key ring. Re-
start the engine using the following procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 5 seconds.
3. Repeat Step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered key.
If the no start condition re-occurs, INFINITI rec-
ommends placing the registered key on a sepa-
rate key ring to avoid interference from other
devices.●Make sure the area around the vehicle is
clear.
●Check fluid levels such as engine oil, cool-
ant, brake fluid, and windshield-washer fluid
as frequently as possible, or at least when-
ever you refuel.
●Check that all windows and lights are clean.
●Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
●Check that all doors are closed.
●Position seat and adjust head
restraints/headrests.
●Adjust inside and outside mirrors.
●Fasten seat belts and ask all passengers to
do likewise.
●Check the operation of warning lights when
the ignition switch is placed in the ON posi-
tion. For additional information, refer to
“Warning lights, indicator lights and audible
reminders” in the “Instruments and controls”
section of this manual.
BEFORE STARTING THE ENGINE
5-16Starting and driving

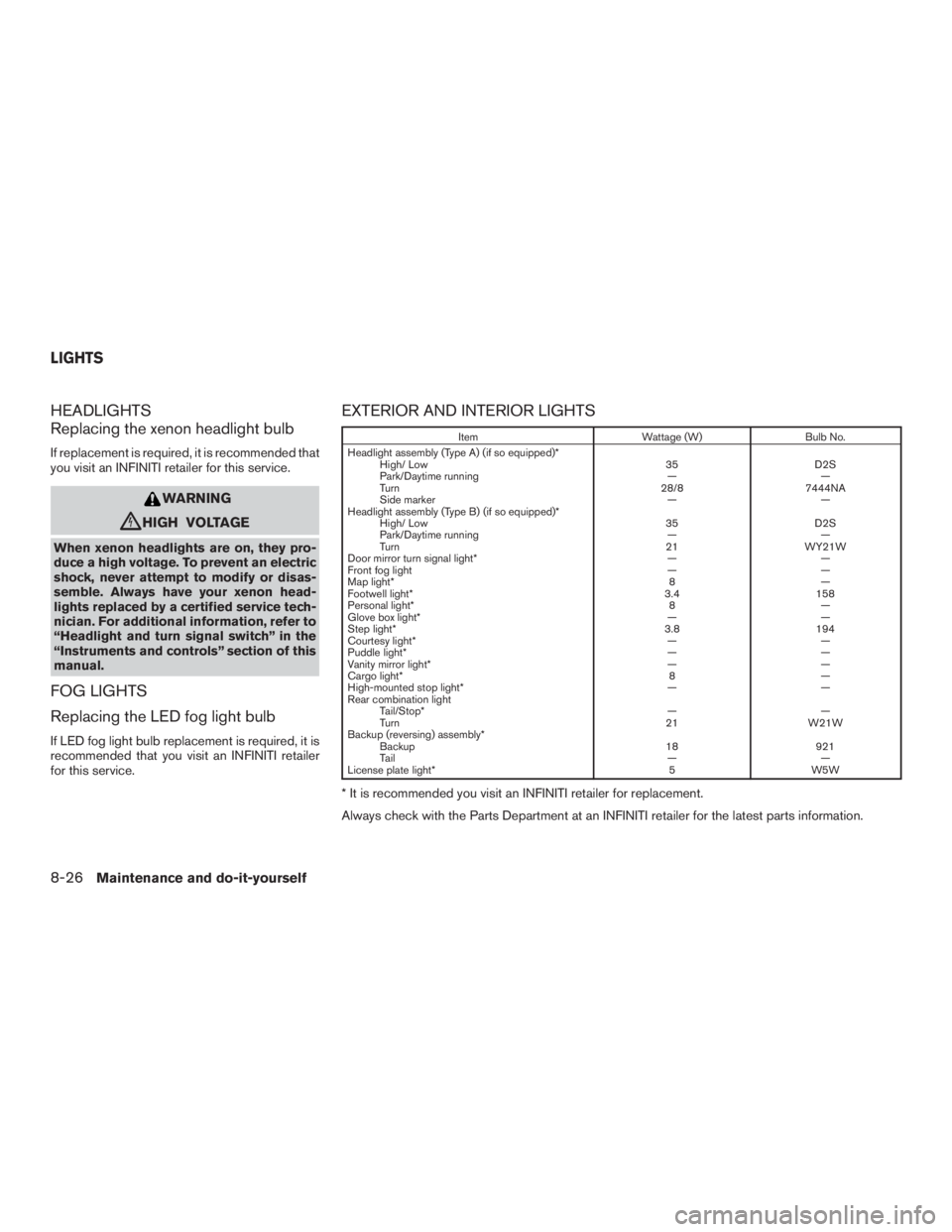

HEADLIGHTS
Replacing the xenon headlight bulb
If replacement is required, it is recommended that
you visit an INFINITI retailer for this service.
WARNING
cHIGH VOLTAGE
When xenon headlights are on, they pro-
duce a high voltage. To prevent an electric
shock, never attempt to modify or disas-
semble. Always have your xenon head-
lights replaced by a certified service tech-
nician. For additional information, refer to
“Headlight and turn signal switch” in the
“Instruments and controls” section of this
manual.
FOG LIGHTS
Replacing the LED fog light bulb
If LED fog light bulb replacement is required, it is
recommended that you visit an INFINITI retailer
for this service.
EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W) Bulb No.
Headlight assembly (Type A) (if so equipped)*
High/ Low 35 D2S
Park/Daytime running — —
Turn 28/8 7444NA
Side marker — —
Headlight assembly (Type B) (if so equipped)*
High/ Low 35 D2S
Park/Daytime running — —
Turn 21 WY21W
Door mirror turn signal light* — —
Front fog light — —
Map light* 8 —
Footwell light* 3.4 158
Personal light* 8 —
Glove box light* — —
Step light* 3.8 194
Courtesy light* — —
Puddle light* — —
Vanity mirror light* — —
Cargo light* 8 —
High-mounted stop light* — —
Rear combination light
Tail/Stop* — —
Turn 21 W21W
Backup (reversing) assembly*
Backup 18 921
Ta i l — —
License plate light* 5 W5W
* It is recommended you visit an INFINITI retailer for replacement.
Always check with the Parts Department at an INFINITI retailer for the latest parts information.
LIGHTS
8-26Maintenance and do-it-yourself

10 Index
2nd row bench seat adjustment......1-5,1-7
A
Aiming control, headlights...........2-39
Air bag (See supplemental restraint
system) .....................1-49
Air bag system
Front (See supplemental front impact air
bag system).................1-56
Airbagwarninglabels.............1-67
Airbagwarninglight...........1-67,2-12
Air bag warning light, supplemental . .1-67, 2-12
AirCleaner ...................8-18
Air cleaner housing filter............8-18
Air conditioner
Air conditioner specification label.....9-12
Air conditioner system refrigerant and
oil recommendations.............9-7
Heater and air conditioner (automatic)
(if so equipped)...............4-48
Heater and air conditioner controls....4-49
Servicing air conditioner..........4-56
Alarm system
(See vehicle security system).........2-30
Anchor point locations.............1-32
Antenna....................4-100
Anti-lock brake warning light..........2-9
Anti-lock Braking System (ABS).......5-135
Armrests .....................1-8
Around View® Monitor.............4-30
Audible reminders...............2-15Audio system..................4-56
AMradioreception.............4-57
Bluetooth®audio..............4-95
Bluetooth® streaming audio........4-95
Compact disc (CD) player.........4-76
Digital Versatile Disc (DVD) Player
Operation..................4-80
FM/AM/SAT radio with compact disc
(CD) player.................4-72
FMradioreception.............4-56
iPod® Player.............4-88,4-90
iPod® player operation.......4-88,4-90
Radio ....................4-56
Steering wheel audio control switch . . .4-99
Autolight switch.................2-37
Automatic
Automatic drive positioner.........3-34
Automatic power window switch.....2-60
Automatic anti-glare inside mirror.......3-32
Automatic door locks..............3-6
Automatic drive positioner...........3-34
B
Backup Collision Intervention (BCI) system .5-58
Backup Collision Warning (BCW) system . .5-58
Battery.................5-144, 8-15
Chargewarninglight.............2-9
Battery replacement..............8-24
INFINITI Intelligent Key...........8-24
Keyfob ...................8-24Before starting the engine...........5-16
Belt (See drive belt)..............8-17
Blind Spot Intervention (BSI) system.....5-46
Blind Spot Warning (BSW) warning
system......................5-37
Block heater
Engine...................5-145
Bluetooth® audio................4-95
Bluetooth® hands-free phone
system.................4-113, 4-127
Boosterseats..................1-46
Brake
Anti-lock Braking System (ABS).....5-135
Brake fluid..................8-14
Brakelight(Seestoplight).........8-26
Brake system...............5-134
Brakewarninglight..............2-9
Brakewearindicators........2-15,8-21
Parking brake operation..........5-22
Self-adjusting brakes............8-21
Brake fluid....................8-14
Brakes......................8-21
Brake system.................5-134
Break-inschedule...............5-128
Brightness/contrast button.......4-10,4-20
Brightness control
Instrument panel..............2-40
Bulb check/instrument panel..........2-8
Bulbreplacement................8-26

C
Capacities and recommended fuel/lubricants . .9-2
Cargoareastoragebin.............2-57
Cargo(Seevehicleloadinginformation)....9-14
Car phone or CB radio.............4-113
CD care and cleaning..............4-98
CD player (See audio system).........4-76
Check tire pressure...............2-28
Child restraints.......1-25,1-25,1-27,1-29
LATCH (Lower Anchors and Tethers for
CHildren) System..............1-29
Precautions on child
restraints.........1-27,1-34,1-40,1-46
Top tether strap anchor point locations . .1-32
Child restraint with top tether strap.......1-31
Child safety rear door lock............3-6
Chimes, audible reminders...........2-15
Cleaningexteriorandinterior........7-2,7-4
Climatecontrolseatswitch...........2-44
Clock setting
(models with Navigation System)........4-18
Clock setting
(models without Navigation System).......4-9
C.M.V.S.S. certification label..........9-11
Cold weather driving..............5-144
Compact disc (CD) player...........4-76
Consolebox...................2-52
Consolelight...................2-65
Continuously Variable Transmission (CVT) . . .5-18
Continuously Variable Transmission (CVT)
fluid......................8-13
Driving with Continuously Variable
Transmission (CVT).............5-18
Control panel buttons..............4-11Brightness/contrast button......4-10,4-20
Enterbutton...............4-4,4-11
Without navigation system..........4-4
Controls
Audio controls (steering wheel).......4-99
Heater and air conditioner controls.....4-49
Coolant
Capacities and recommended
fuel/lubricants.................9-2
Changingenginecoolant...........8-9
Checking engine coolant level........8-9
Engine coolant temperature gauge.....2-6
Corrosion protection...............7-6
Cruisecontrol...............5-74,5-75
Cupholders...................2-54
D
Daytime running light system (Canada only) . .2-39
Defroster switch
Rear window and outside mirror defroster
switch.....................2-36
Digital Versatile Disc (DVD) player.......4-80
Dimensionsandweights.............9-9
Dimmer switch for instrument panel......2-40
Display......................2-16
Display controls
(seecontrolpanelbuttons) ........4-4,4-11
Distance Control Assist (DCA) system.....5-95
Doors........................3-4
Drive belt.....................8-17
Drive positioner, Automatic...........3-34
Driving
Cold weather driving............5-144Driving with Continuously Variable
Transmission (CVT).............5-18
Precautions when starting and driving....5-4
Driving the vehicle................5-18
Dual head restraint DVD system.......4-101
Dual power moonroof...........2-62,2-62
E
Economy-fuel.................5-130
Emergency engine shutoff.........5-15,6-3
Emission control information label.......9-11
Emission control system warranty.......9-31
Engine
Before starting the engine..........5-16
Blockheater ................5-145
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant...........8-9
Changingengineoil.............8-11
Changing engine oil filter..........8-12
Checking engine coolant level........8-9
Checking engine oil level..........8-10
Engine compartment check locations....8-7
Engine coolant temperature gauge.....2-6
Engine cooling system............8-8
Engineoil...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity..............9-7
Engine serial number............9-11
Engine specifications.............9-8
Starting the engine.............5-17
Engine coolant temperature gauge.......2-6
Enter button.................4-4,4-11
Event Data recorders..............9-33
