INFINITI QX60 2016 Owner's Guide

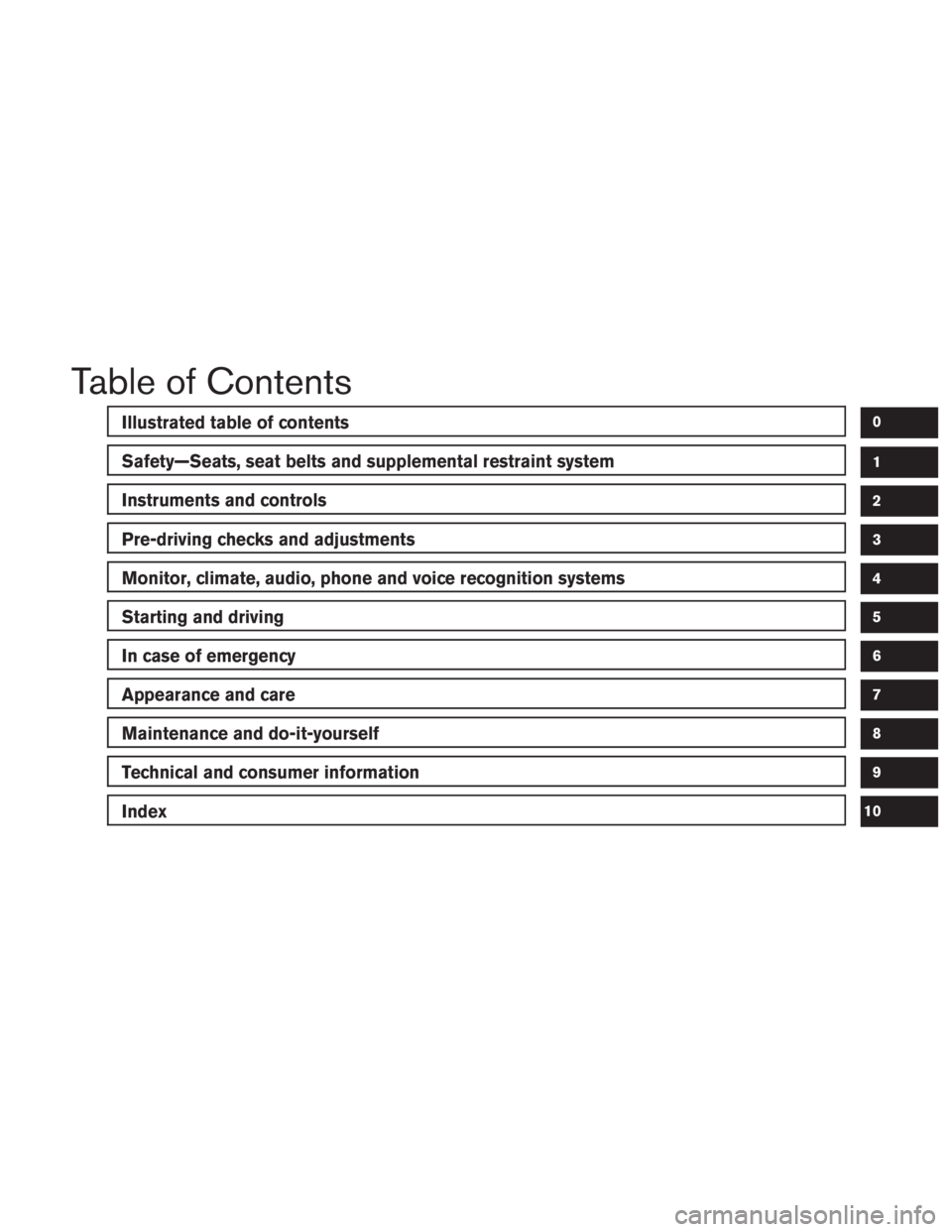

Table of Contents
Illustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Monitor, climate, audio, phone and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10

0 Illustrated table of contents
Air bags, seat belts and child restraints..............0-2
Exterior front......................................0-3
Exterior rear.......................................0-4
Passenger compartment...........................0-5Instrument panel...................................0-6
Engine compartment check locations . ...............0-8
Warning and indicator lights........................0-9

1. Folding 3rd row bench (P. 1-2)
2. Folding 2nd row bench (P. 1-2)
3. Roof-mounted curtain side-impact and
rollover supplemental air bag (P. 1-49)
4. Head restraints/headrests (P.1-11)
5. Front seat belt with pretensioner(s) and
shoulder height adjuster (P. 1-16, 1-49)
6. Supplemental air bags (P.1-49)
7. Occupant classification sensor
(weight sensor) (P.1-49)
8. Front seats (P. 1-2)
9. Front seat-mounted side-impact supple-
mental air bag (P. 1-49)
10. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-27)
11. 2nd row seat top tether strap anchor
(located on bottom of seatback)
(P. 1-27)
12. 3rd row bench seat top tether strap
anchor (located on bottom of seatback)
(P. 1-27)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2420
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1. Engine hood (P. 3-21)
2. Wiper and washer switch (P. 2-32)
Wiper blades (P. 8-19)
3. Windshield (P. 8-19)
4. Power windows (P. 2-58)
5. Door locks (P. 3-4)
INFINITI Intelligent Key (P. 3-7)
Remote engine start (if so equipped)
(P. 3-19)
Keys (P. 3-2)
6. Mirrors (P. 3-32)
Side camera (if so equipped) (P. 4-30)
7. Tire pressure (P. 8-28)
Flat tire (P. 6-3)
Tire chains (P. 8-28)
8. Replacing bulbs (P. 8-26)
Headlight and turn signal switch
(P. 2-36)
9. Fog light switch (P. 2-36)
10. Sonar sensors (if so equipped)
(P. 5-140)
11. Front camera (if so equipped) (P. 4-30)
See the page number indicated in paren-
theses for operating details.
LII2417
EXTERIOR FRONT
Illustrated table of contents0-3

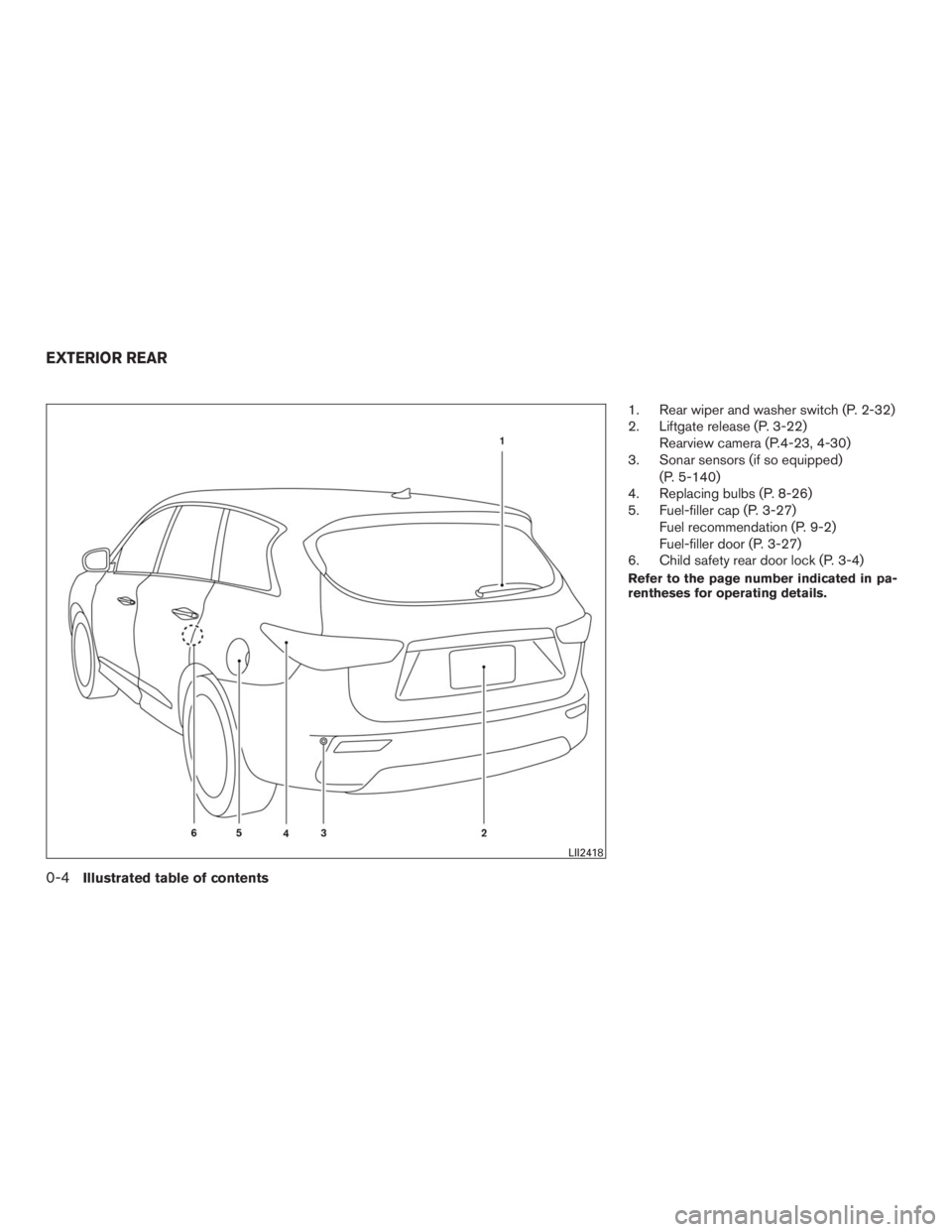

1. Rear wiper and washer switch (P. 2-32)
2. Liftgate release (P. 3-22)
Rearview camera (P.4-23, 4-30)
3. Sonar sensors (if so equipped)
(P. 5-140)
4. Replacing bulbs (P. 8-26)
5. Fuel-filler cap (P. 3-27)
Fuel recommendation (P. 9-2)
Fuel-filler door (P. 3-27)
6. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2418
EXTERIOR REAR
0-4Illustrated table of contents

1. Power moonroof (P. 2-61)
Panoramic sunshade (if so equipped)
(P. 2-62)
2. Console box (P. 2-51)
3. Map lights (P. 2-65)
4. Sun visors (P. 3-31)
5. Glove box (P. 2-51)
6. Cup holders (P. 2-51)
7. Luggage hooks (P. 2-51)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2419
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vent (P. 4-47)
2. Headlight/fog light/turn signal switch
(P. 2-40)
3. Instrument brightness control (P. 2-36)
4. Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-49)
Horn (P. 2-41)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-58)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-32)
Rear wiper and washer switch
(P. 2-32)
9. Rear window and outside mirror
defroster switch (P. 2-36)
10. Center display (P. 4-4)
Navigation system* (if so equipped)
(P. 4-11)
11. Automatic heater and air conditioning
controls (P. 4-48)
12. Front passenger supplemental air bag
(P. 1-56)
13. Glove box (P. 2-52)
LII2408
INSTRUMENT PANEL
0-6Illustrated table of contents

14. Center multi-function control buttons
(P. 4-5, 4-12)
15. Power outlet (P. 2-48)
16. Shift lever (P. 5-18)
17. Audio system controls (P. 4-56)
Front passenger air bag status light
(P. 2-13)
18. Hazard warning flasher switch (P. 6-2)
19. Push-button ignition switch (P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-74)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-76)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-95)
22. Tilt steering wheel control (P. 3-29)
23. Bluetooth® Hands-Free Phone System
(P. 4-113, 4-127)
24. Steering wheel switch for audio control
(P. 4-99)25. Hood release (P. 3-21)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Heated steering wheel switch
(if so equipped) (P. 2-45)
Headlight aiming control (P. 2-36)
Warning Systems switch (if so
equipped) (P. 2-46)
Power inverter switch (if so equipped)
(P. 2-47)
Liftgate release switch (P. 3-22)
Power liftgate main switch (P. 3-22)
Front and rear sonar system switch
(if so equipped) (P. 5-140)
26. Control panel and Vehicle information
display switches (P. 4-14, 2-16)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

VQ35DE engine
1. Power steering fluid reservoir (P. 8-13)
2. Engine coolant reservoir (P. 8-8)
3. Drive belt location (P. 8-17)
4. Fuse box (P. 8-22)
5. Engine oil filler cap (P. 8-10)
6. Brake fluid reservoir (P. 8-14)
7. Air cleaner (P. 8-18)
8. Fuse box (P. 8-22)
9. Fuse/Fusible link box (P. 8-22)
10. Fuse/Fusible link box(P. 8-22)
11. Battery (P. 8-15)
12. Engine oil dipstick (P. 8-10)
13. Radiator cap (P. 8-8)
14. Windshield-washer fluid reservoir
(P. 8-14)
Refer to the page number indicated in pa-
rentheses for operating details.
LDI2498
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents
