Entering from the side
Illustration 9: The BSW indicator light illuminates
if a vehicle enters the detection zone from either
side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detection
zone.Illustration 10: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the BSW indicator light flashes and a
chime will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
BSW indicator light will flash but no chime
will sound when another vehicle is de-
tected.Illustration 11: If the BSI system is on and your
vehicle approaches the lane marker while another
vehicle is in the detection zone, the BSW indica-
tor light flashes and a chime will sound three
times. Then, the BSI system slightly applies the
brakes on the appropriate side to help return the
vehicle back to the center of the driving lane.
Illustration 9 – Entering from the side
LSD2050
Illustration 10 – Entering from the side
SSD1038
Illustration 11 – Entering from the side
SSD1094
Starting and driving5-55

NOTE:
●Illustration 12: The BSI system will not oper-
ate if your vehicle is on a lane marker when
another vehicle enters the detection zone. In
this case, only the BSW system operates.
●BSI braking will not operate or will stop
operating and only a warning chime will
sound under the following conditions:
– When the brake pedal is depressed.
– When the vehicle is accelerated during
BSI system operation.
– When steering quickly.– When the ICC, DCA, FCW or FEB warn-
ings sound.
– When the hazard warning flashers are
operated.
– When driving on a curve at a high speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear on
the vehicle information display, a chime will sound
and the BSI system will be turned off automati-
cally.
●“Unavailable Road is slippery”:
When the VDC system (except traction con-
trol system function) or ABS operates.
●“Unavailable VDC OFF”:
When the VDC system is turned off.
●“Unavailable Snow mode active”:
When the drive mode select switch is turned
to the SNOW mode.
●“Unavailable High Cabin Temp.”:
When the camera detects that the interior
temperature is high (over approximately
104°F (40°C)) .
●“Unavailable Side Radar Obstruction”:
When side radar blockage is detected.Turn off the BSI system and turn it on again when
the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound and
the BSI system warning light (orange) will illumi-
nate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the engine off
and restart the engine. If the warning light (or-
ange) continues to illuminate, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
Illustration 12 – Entering from the side
LSD2051
5-56Starting and driving

SYSTEM MAINTENANCE
The lane camera unit1for the BSI system is
located above the inside mirror. The two radar
sensors
2for the BSI system are located near
the rear bumper. To keep the proper operation of
the BSI system and prevent a system malfunc-
tion, be sure to observe the following:
●Always keep the windshield and the area
near the radar sensors clean.●The radar sensors may be blocked by tem-
porary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors.
●Do not attach stickers (including transparent
material) , install accessories or apply addi-
tional paint near the camera unit or radar
sensors.
●Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
●Do not strike or damage the area around the
radar sensors. Do not touch the camera lens
or remove the screw located on the camera
unit. It is recommended that you visit an
INFINITI retailer if the camera unit and/or
area around the radar sensors is damaged
due to a collision.
Radio frequency statement
For USA
FCC: OAYSRR2BThis device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful inter-
ference, and (2) this device must accept any
interference received, including interfer-
ence that may cause undesired operation.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada
Applicable law: Canada 310
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
Frequency bands: 24.05GHz — 24.25GHz
Output power: less than 20 milliwatts
LSD2153
Starting and driving5-57

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the BCI system
could result in serious injury or death.
●The BCI system is not a replacement for
proper driving procedure, is not de-
signed to prevent contact with vehicles
or objects and does not provide full
brake power. When backing out of park-
ing space, always use the side and rear
mirrors and turn and look in the direc-
tion you will move. Never rely solely on
the BCI system.●There is a limitation to the detection
capability of the radar or the sonar. Us-
ing the BCI systems under some road,
ground, lane marker, traffic or weather
conditions could lead to improper sys-
tem operation. Always rely on your own
operation to avoid accidents.
The BCI systems can help alert the driver of an
approaching vehicle or objects behind the ve-
hicle when the driver is backing out of a parking
space.
When the shift position is R (Reverse) and the
vehicle speed is less than approximately 5 mph
(8 km/h), the BCI system operates.
The BCI system uses radar sensors
1installed
on both sides near the rear bumper to detect an
approaching vehicle and sonar sensors to detect
objects in the rear.
The radar sensors
1detect an approaching
vehicle from up to approximately 49 ft (15 m)
away. The sonar sensors
2detect stationary
objects behind the vehicle up to approximately
4.9 ft (1.5 m)
3.
LSD2025LSD2026
BACK-UP COLLISION INTERVENTION
(BCI) (if so equipped)
5-58Starting and driving

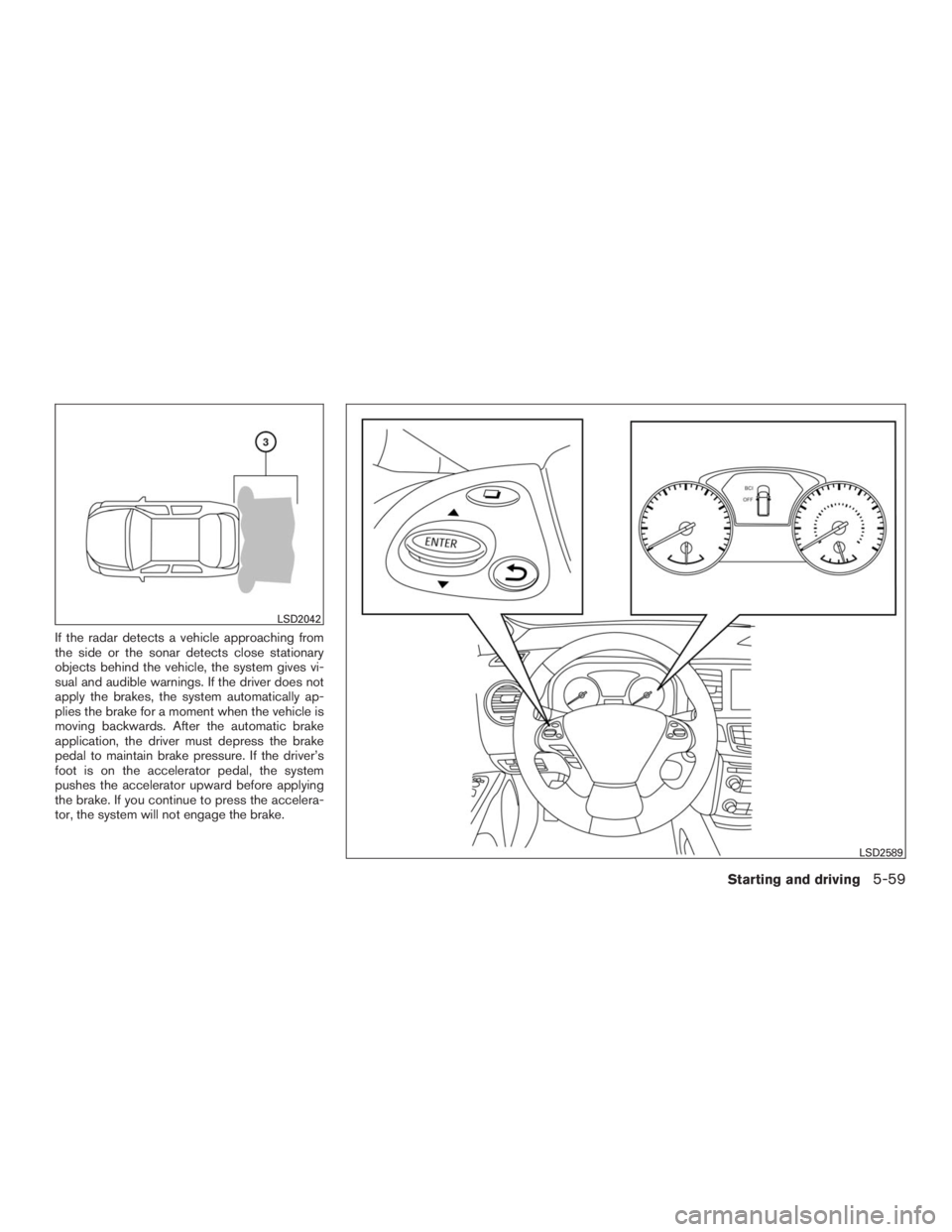

If the radar detects a vehicle approaching from
the side or the sonar detects close stationary
objects behind the vehicle, the system gives vi-
sual and audible warnings. If the driver does not
apply the brakes, the system automatically ap-
plies the brake for a moment when the vehicle is
moving backwards. After the automatic brake
application, the driver must depress the brake
pedal to maintain brake pressure. If the driver’s
foot is on the accelerator pedal, the system
pushes the accelerator upward before applying
the brake. If you continue to press the accelera-
tor, the system will not engage the brake.
LSD2042
LSD2589
Starting and driving5-59

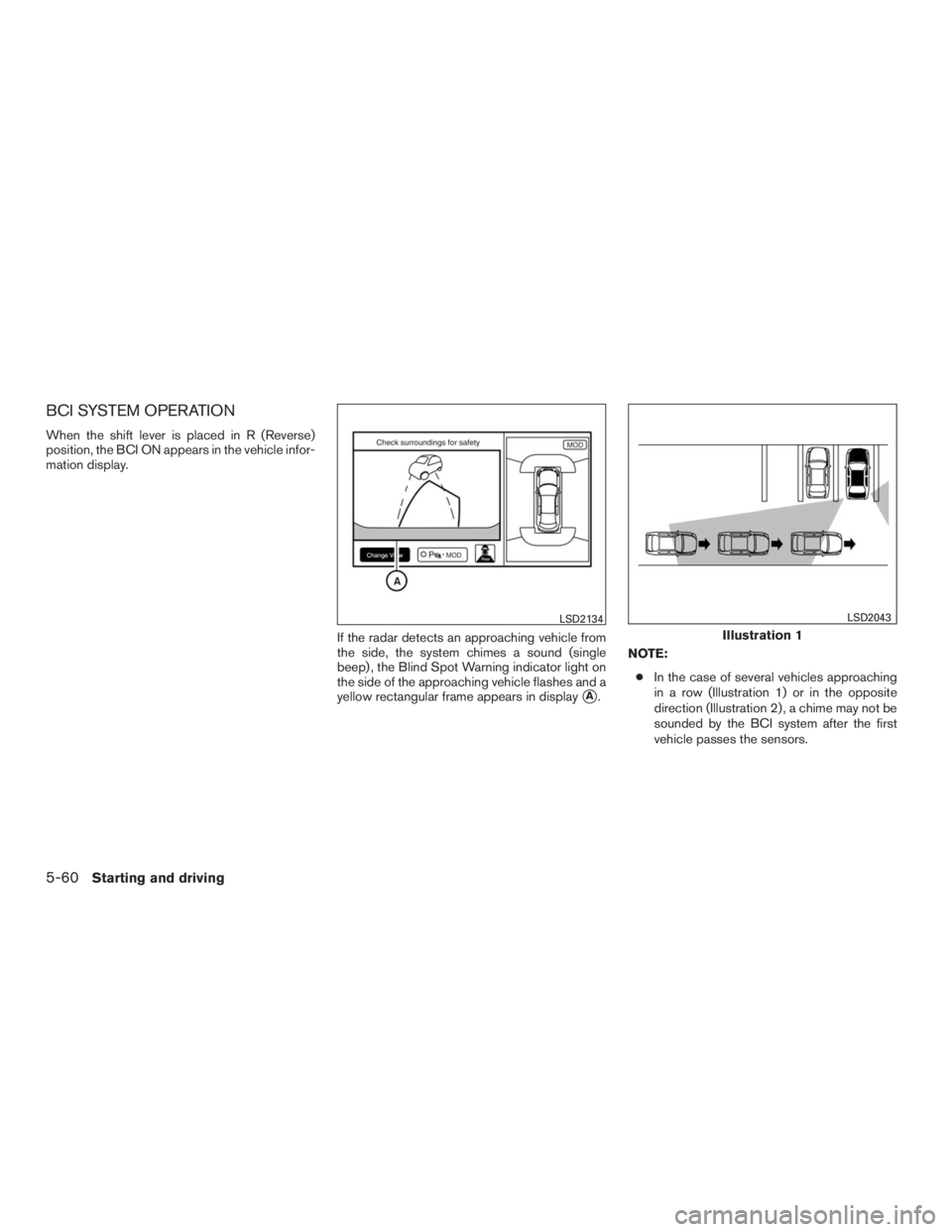

BCI SYSTEM OPERATION
When the shift lever is placed in R (Reverse)
position, the BCI ON appears in the vehicle infor-
mation display.
If the radar detects an approaching vehicle from
the side, the system chimes a sound (single
beep) , the Blind Spot Warning indicator light on
the side of the approaching vehicle flashes and a
yellow rectangular frame appears in display
A.NOTE:
●In the case of several vehicles approaching
in a row (Illustration 1) or in the opposite
direction (Illustration 2) , a chime may not be
sounded by the BCI system after the first
vehicle passes the sensors.
LSD2134
Illustration 1
LSD2043
5-60Starting and driving

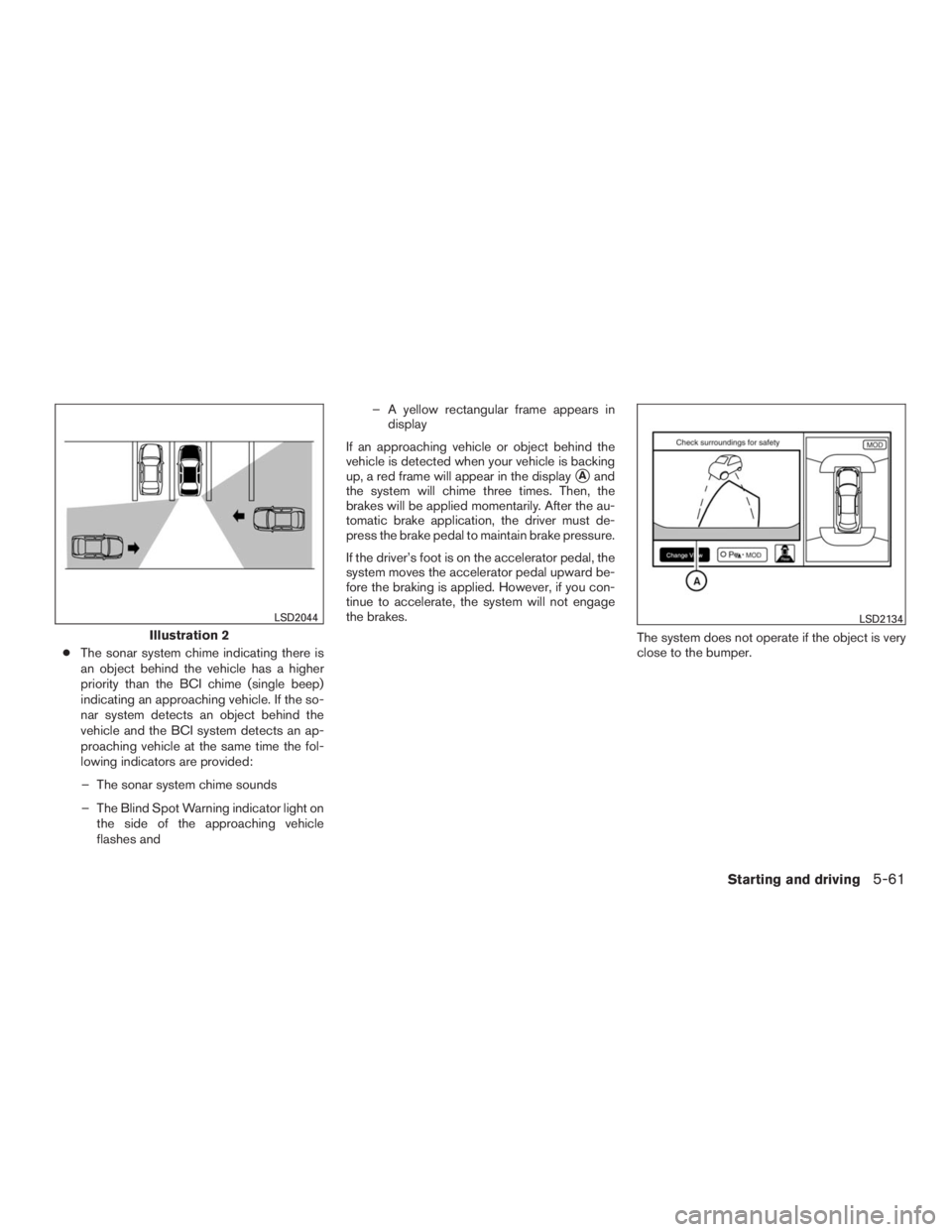

●The sonar system chime indicating there is
an object behind the vehicle has a higher
priority than the BCI chime (single beep)
indicating an approaching vehicle. If the so-
nar system detects an object behind the
vehicle and the BCI system detects an ap-
proaching vehicle at the same time the fol-
lowing indicators are provided:
– The sonar system chime sounds
– The Blind Spot Warning indicator light on
the side of the approaching vehicle
flashes and– A yellow rectangular frame appears in
display
If an approaching vehicle or object behind the
vehicle is detected when your vehicle is backing
up, a red frame will appear in the display
Aand
the system will chime three times. Then, the
brakes will be applied momentarily. After the au-
tomatic brake application, the driver must de-
press the brake pedal to maintain brake pressure.
If the driver’s foot is on the accelerator pedal, the
system moves the accelerator pedal upward be-
fore the braking is applied. However, if you con-
tinue to accelerate, the system will not engage
the brakes.
The system does not operate if the object is very
close to the bumper.
Illustration 2
LSD2044LSD2134
Starting and driving5-61

TURNING THE BCI SYSTEM
ON/OFF
The BCI system automatically turns on every time
the engine is started.
The BCI system can be turned off temporarily by
pushing the BCI switch. The BCI OFF display
appears on the vehicle information display. When
the shift lever is placed into the R (Reverse)
position again the BCI system is turned on.
Perform the following steps to enable or disable
the BCI system.
1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button.
2. Select “Back-up Collision Interv.”, and press
the ENTER button.
3. To set the BCI system to on or off, use the
buttons to navigate in the menu and use the
ENTER button to select or change an item.
LSD2589
5-62Starting and driving

BCI SYSTEM LIMITATIONSWARNING
Failure to follow the warnings and instruc-
tions for proper use of the BCI system
could result in serious injury or death.●Always check surroundings and turn to
check what is behind you before back-
ing up. The radar sensors detect ap-
proaching (moving) vehicles. The radar
sensors cannot detect every object such
as:
– Pedestrians, bicycles, motorcycles,
animals or child operated toy
vehicles
– A vehicle that is passing at speeds
greater than approximately 15 mph
(24 km/h)
●The radar sensors may not detect ap-
proaching vehicles in certain situations:
– Illustration a: When a vehicle parked
next to you obstructs the beam of the
radar sensor.
– Illustration b: When the vehicle is
parked in an angled parking space.
– Illustration c: When the vehicle is
parked on inclined ground.
– Illustration d: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
LSD2173
Starting and driving5-63

– Illustration e: When the angle formed
by your vehicle and approaching ve-
hicle is small.
●The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice build up on the vehicle
– Frost build up on the vehicle
– Dirt up on the vehicle
●Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles.
●The sonar sensors detect stationary ob-
jects behind the vehicle. The sonar sen-
sor may not detect:
– Small or moving objects
– Wedge-shaped objects
– Object close to the bumper (less than
approximately 1 ft (30 cm))– Thin objects such as rope, wire and
chain, etc.
●The brake engagement by the BCI sys-
tem is not as effective on a slope as it is
on flat ground. When on a steep slope
the system may not function properly.
●Do not use the BCI system under the
following conditions because the sys-
tem may not function properly:
– When driving with a tire that is not
within normal tire conditions (e.g.
tire wear, low tire pressure, installa-
tion of spare tire, tire chains, non-
standard wheels) .
– When the vehicle is equipped with
non-original brake parts or suspen-
sion parts.
●Do not use the BCI systems when tow-
ing a trailer.
●Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.SYSTEM TEMPORARILY NOT
AVAILABLE
If the following messages appear on the vehicle
information display, a chime will sound and the
BCI system will be turned off automatically.
●“Unavailable High Accelerator Temp.”:
If the vehicle is parked in direct sunlight
under high temperature conditions (over ap-
proximately 104°F (40°C)) and then started,
the BCI system may be deactivated auto-
matically and the “Unavailable High Accel-
erator Temp” message will appear in the
vehicle information display for a period of
time.
When the interior temperature is reduced,
turn off the BCI system and turn it on again.
●“Unavailable Side Radar Obstruction”:
When side radar blockage is detected.
When the blockage is removed, turn off the
BCI system and turn it on again.
5-64Starting and driving
