navigation INFINITI QX60 2016 Owner's Manual

For descriptions specified for all-wheel drive
models, anAWDmark is placed at the beginning
of the applicable sections/items.
As with other vehicles with features for
off-road use, failure to operate all-wheel
drive models correctly may result in loss of
control or an accident. Be sure to read
“Driving safety precautions” in the “Start-
ing and driving” section of this manual.
ON-PAVEMENT AND OFF-ROAD DRIV-
ING
This vehicle will handle and maneuver
differently from an ordinary passenger
car because it has a higher center of
gravity for off-road use. As with other
vehicles with features of this type, fail-
ure to operate this vehicle correctly may
result in loss of control or an accident.
For additional information, refer to “On-
pavement and off-road driving
precautions”, “Avoiding collision and
rollover” and “Driving safety precau-
tions” in the “Starting and driving” sec-
tion of this manual.
MODIFICATION OF YOUR VEHICLE
This vehicle should not be modified.
Modification could affect its
performance, safety or durability and may
even violate governmental regulations. In
addition, damage or performance prob-
lems resulting from modifications may
not be covered under INFINITI warranties.This manual includes information for all features
and equipment available on this model. Features
and equipment in your vehicle may vary depend-
ing on model, trim level, options selected, order,
date of production, region or availability. There-
fore, you may find information about features or
equipment that are not included or installed on
your vehicle.
All information, specifications and illustrations in
this manual are those in effect at the time of
printing. INFINITI reserves the right to change
specifications, performance, design or compo-
nent suppliers without notice and without obliga-
tion. From time to time, INFINITI may update or
revise this manual to provide Owners with the
most accurate information currently available.
Please carefully read and retain with this manual
all revision updates sent to you by INFINITI to
ensure you have access to accurate and up-to-
date information regarding your vehicle. Current
versions of vehicle Owner’s Manuals and any
updates can also be found in the Owner section
of the INFINITI website at
https://owners.infinitiusa.com/owners/
navigation/manualsandGuides. If you have
questions concerning any information in your
Owner’s Manual, contact INFINITI Consumer Af-
fairs. See the INFINITI CUSTOMER CARE PRO-
GRAM page in this Owner’s Manual for contact
information.
WHEN READING THE MANUAL

1. Vent (P. 4-47)
2. Headlight/fog light/turn signal switch
(P. 2-40)
3. Instrument brightness control (P. 2-36)
4. Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-49)
Horn (P. 2-41)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-58)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-32)
Rear wiper and washer switch
(P. 2-32)
9. Rear window and outside mirror
defroster switch (P. 2-36)
10. Center display (P. 4-4)
Navigation system* (if so equipped)
(P. 4-11)
11. Automatic heater and air conditioning
controls (P. 4-48)
12. Front passenger supplemental air bag
(P. 1-56)
13. Glove box (P. 2-52)
LII2408
INSTRUMENT PANEL
0-6Illustrated table of contents

14. Center multi-function control buttons
(P. 4-5, 4-12)
15. Power outlet (P. 2-48)
16. Shift lever (P. 5-18)
17. Audio system controls (P. 4-56)
Front passenger air bag status light
(P. 2-13)
18. Hazard warning flasher switch (P. 6-2)
19. Push-button ignition switch (P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-74)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-76)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-95)
22. Tilt steering wheel control (P. 3-29)
23. Bluetooth® Hands-Free Phone System
(P. 4-113, 4-127)
24. Steering wheel switch for audio control
(P. 4-99)25. Hood release (P. 3-21)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Heated steering wheel switch
(if so equipped) (P. 2-45)
Headlight aiming control (P. 2-36)
Warning Systems switch (if so
equipped) (P. 2-46)
Power inverter switch (if so equipped)
(P. 2-47)
Liftgate release switch (P. 3-22)
Power liftgate main switch (P. 3-22)
Front and rear sonar system switch
(if so equipped) (P. 5-140)
26. Control panel and Vehicle information
display switches (P. 4-14, 2-16)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

1. Vent (P. 4-47)
2. Headlight/fog light/turn signal switch
(P. 2-40)
3. Instrument brightness control (P. 2-36)
4. Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-49)
Horn (P. 2-41)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-58)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-32)
Rear wiper and washer switch
(P. 2-32)
9. Rear window and outside mirror
defroster switch (P. 2-36)
10. Center display (P. 4-4)
Navigation system* (if so equipped)
(P. 4-11)
11. Automatic heater and air conditioning
controls (P. 4-48)
12. Front passenger supplemental air bag
(P. 1-56)
13. Glove box (P. 2-52)
LII2408
INSTRUMENT PANEL
2-2Instruments and controls

14. Center multi-function control buttons
(P. 4-5, 4-12)
15. Power outlet (P. 2-48)
16. Shift lever (P. 5-18)
17. Audio system controls (P. 4-56)
Front passenger air bag status light
(P. 2-13)
18. Hazard warning flasher switch (P. 6-2)
19. Push-button ignition switch (P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-74)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-76)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-95)
22. Tilt steering wheel control (P. 3-29)
23. Bluetooth® Hands-Free Phone System
(P. 4-113, 4-127)
24. Steering wheel switch for audio control
(P. 4-99)
25. Hood release (P. 3-21)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Heated steering wheel switch
(if so equipped) (P. 2-45)
Headlight aiming control (P. 2-36)Warning Systems switch
(if so equipped) (P. 2-46)
Power inverter switch (if so equipped)
(P. 2-47)
Liftgate release switch (P. 3-22)
Power liftgate main switch (P. 3-22)
Front and rear sonar system switch
(if so equipped) (P. 5-140)
26. Control panel and Vehicle information
display switches (P. 4-14, 2-16)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Instruments and controls2-3

Alarms
The Alarms menu allows the user to set various
alerts.
Menu itemResult
Outside Temp. Allows user to turn the Outside Temp. alarm ON/OFF
Timer Alert Allows user to set the Timer Alert for a specific interval
Navigation (if so equipped) Allows user to turn the Navigation alarm ON/OFF
Language
The language menu allows the user to change the
languages displayed in the vehicle information
display.
The language of the center display/navigation
can be changed independently of the vehicle
information display. For additional information re-
fer to “How to use the Setting Button” in the
“Monitor, climate, audio, phone and voice recog-
nition systems” section of this manual.
Menu itemResult
Language Displays available languages that can be used in the vehicle information display
2-22Instruments and controls

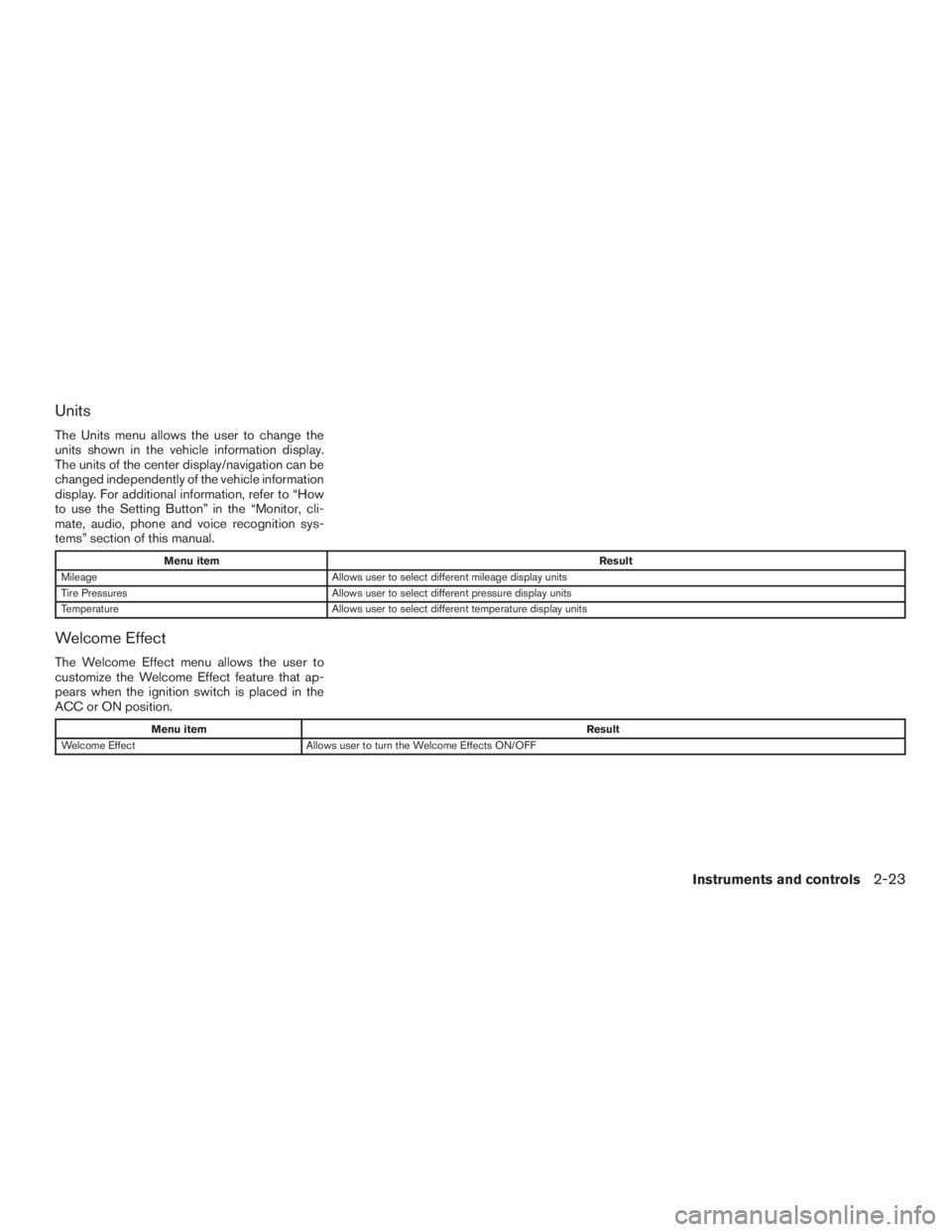

Units
The Units menu allows the user to change the
units shown in the vehicle information display.
The units of the center display/navigation can be
changed independently of the vehicle information
display. For additional information, refer to “How
to use the Setting Button” in the “Monitor, cli-
mate, audio, phone and voice recognition sys-
tems” section of this manual.
Menu itemResult
Mileage Allows user to select different mileage display units
Tire Pressures Allows user to select different pressure display units
Temperature Allows user to select different temperature display units
Welcome Effect
The Welcome Effect menu allows the user to
customize the Welcome Effect feature that ap-
pears when the ignition switch is placed in the
ACC or ON position.
Menu itemResult
Welcome Effect Allows user to turn the Welcome Effects ON/OFF
Instruments and controls2-23

WARNING
●Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
●The Intelligent Key transmits radio
waves when the buttons are pressed.
The FAA advises the radio waves may
affect aircraft navigation and communi-
cation systems. Do not operate the In-
telligent Key while on an airplane. Make
sure the buttons are not operated unin-
tentionally when the unit is stored for a
flight.
The Intelligent Key system can operate all the
door locks using the remote control function or
pushing the request switch on the vehicle without
taking the key out from a pocket or purse. The
operating environment and/or conditions may af-
fect the Intelligent Key system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
●Be sure to carry the Intelligent Key with
you when operating the vehicle.
●Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The Intel-
ligent Key system transmits weak radio waves.
Environmental conditions may interfere with the
operation of the Intelligent Key system under the
following operating conditions:
●When operating near a location where
strong radio waves are transmitted, such as
a TV tower, power station and broadcasting
station.
●When in possession of wireless equipment,
such as a cellular telephone, transceiver or a
CB radio.
●When the Intelligent Key is in contact with or
covered by metallic materials.
●When any type of radio wave remote control
is used nearby.
●When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter.●When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depending
on the operating conditions, the battery’s life is
approximately two years. If the battery is dis-
charged, replace it with a new one.
When the Intelligent Key battery is low, an indi-
cator illuminates in the vehicle information dis-
play. For additional information, refer to “Vehicle
information display” in the “Instruments and con-
trols” section of this manual.
Since the Intelligent Key is continuously receiving
radio waves, if the key is left near equipment
which transmits strong radio waves, such as sig-
nals from a TV and personal computer, the bat-
tery life may become shorter.
For additional information, refer to “Battery re-
placement” in the “Maintenance and do-it-
yourself” section of this manual.
As many as four Intelligent Keys can be regis-
tered and used with one vehicle. For information
about the purchase and use of additional Intelli-
gent Keys, it is recommended that you visit an
INFINITI retailer.
INFINITI INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments3-7

Restarting the entry/exit function
If the battery cable is disconnected, or if the fuse
opens, the stored memory positions will be lost
and some of the functions will be restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR
2. Open and close the driver’s door more than
two times with the ignition switch in the OFF
position.
The entry/exit function should now work properly.
SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memorized
settings can be available for each Intelligent Key.
●Climate control system
●Navigation system (if so equipped)
●Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s pre-
ferred settings. Lock the doors with the Intelligent
Key. Each Intelligent Key may be set with the
driver’s individual preferences. When a new In-
telligent Key is used, “Connection with the key
has been done” will be displayed on the screen
and the memorized settings are available.To engage the memorized settings, perform the
following:
1. Carry the Intelligent Key that is linked to the
memorized settings.
2. Unlock the doors by pushing the driver’s
door handle request switch or the
UNLOCK
button on the Intelligent
Key.
3. Place the ignition switch in the ON position.
The settings linked to the Intelligent Key will
start.
For additional information on using the Climate
control system, refer to “Heater and air condi-
tioner (automatic)” in the “Monitor, climate, audio,
phone and voice recognition systems” section of
this manual.
For additional information on using the Naviga-
tion System, refer to the separate Navigation
System Owner’s Manual.
For additional information on using the Audio
system, refer to “Audio system” in the “Monitor,
climate, audio, phone and voice recognition sys-
tems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
●When the vehicle speed is above 4 mph
(7 km/h).
●When any of the memory switches are
pushed while the automatic drive positioner
is operating.
●When the adjusting switch for the driver’s
seat is turned on while the automatic drive
positioner is operating.
●When the seat has already been moved to
the memorized position.
●When no seat position is stored in the
memory switch.
●When the shift lever is moved from P (Park)
to any other position.
3-36Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen without
Navigation System (if so equipped)..................4-4
How to use the INFINITI controller................4-5
How to select menus on the screen..............4-6
How to use the STATUS button..................4-6
How to use the INFO button.....................4-7
How to use the DISP button.....................4-8
How to use the SETTING button.................4-9
OFF button.............................4-10
Control panel buttons — color screen with
Navigation System (if so equipped).................4-11
How to use the INFINITI controller...............4-12
How to use the touch-screen . ..................4-12
Menu options.................................4-14
How to select menus on the screen.............4-15
How to use the STATUS button.................4-15
How to use the INFO button....................4-16
How to use the SETTING button................4-18
OFF button.............................4-20
Image viewer (if so equipped)......................4-21
Using the image viewer........................4-21
RearView Monitor (if so equipped)..................4-23
RearView Monitor system operation.............4-24How to read the displayed lines.................4-24
Difference between predicted and actual
distances.....................................4-25
How to park with predicted course lines..........4-26
Adjusting the screen...........................4-28
How to turn on and off predicted course
lines.........................................4-28
RearView Monitor system limitations.............4-28
System maintenance...........................4-29
Around View® Monitor (if so equipped).............4-30
Around View® Monitor system operation.........4-31
Difference between predicted and actual
distances.....................................4-34
How to park with predicted course lines..........4-36
How to switch the display......................4-37
Adjusting the screen...........................4-38
Around View® Monitor system limitations........4-38
System maintenance...........................4-40
Camera Aiding Sonar (parking sensor)
(if so equipped)..................................4-41
Moving Object Detection (MOD) (if so equipped)....4-43
MOD system operation.........................4-44
Turning MOD on and off........................4-45
MOD system limitations........................4-45
