●Never shift to either the P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D
(Drive) position while the vehicle is re-
versing. This could cause an accident or
damage the transmission.
CAUTION
● When stopping the vehicle on an uphill
grade, do not hold the vehicle by de-
pressing the accelerator pedal. The foot
brake should be used for this purpose.
● Do not downshift abruptly on slippery
roads. This may cause a loss of control.
● Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.

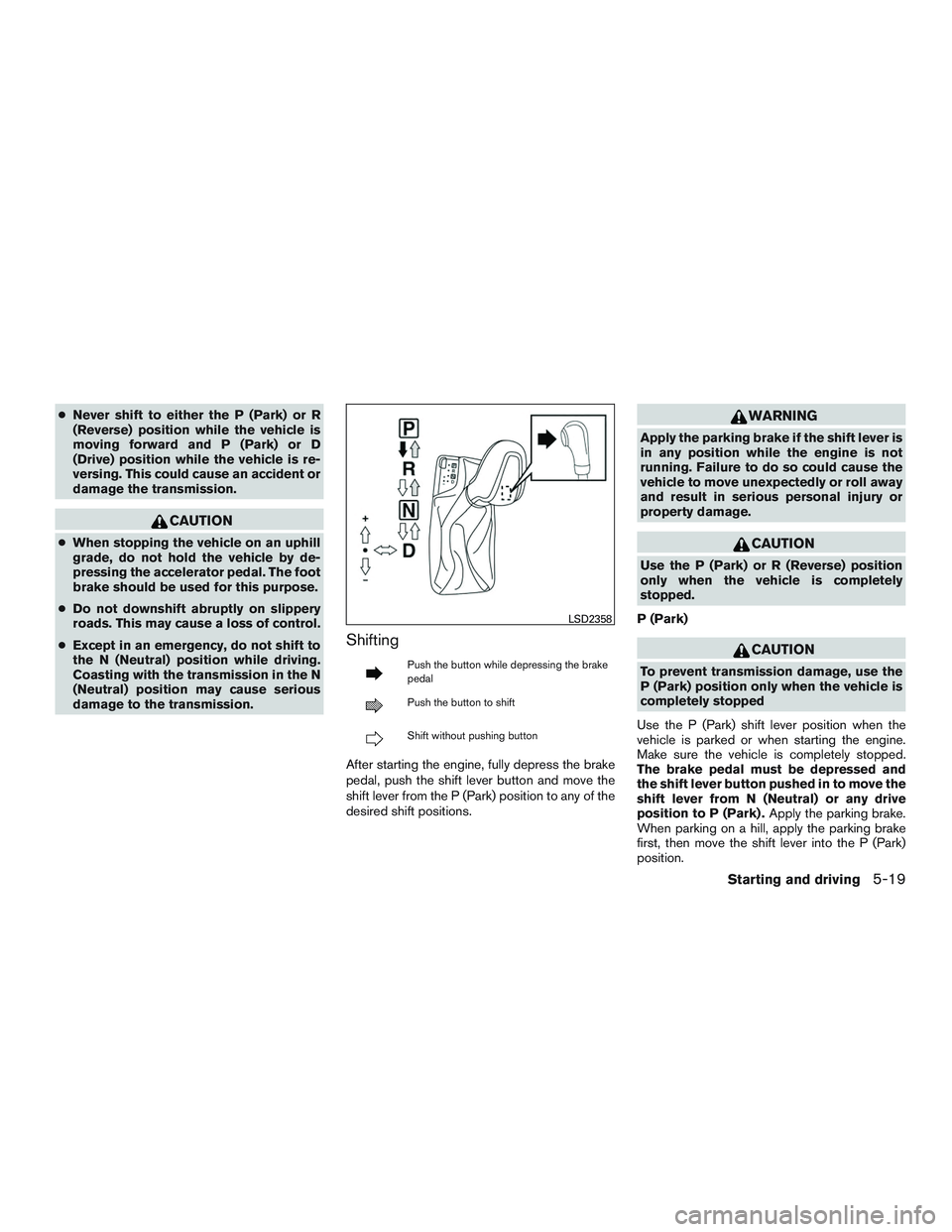

Shifting
Push the button while depressing the brake
pedal
Push the button to shift
Shift without pushing button
After starting the engine, fully depress the brake
pedal, push the shift lever button and move the
shift lever from the P (Park) position to any of the
desired shift positions.
WARNING
Apply the parking brake if the shift lever is
in any position while the engine is not
running. Failure to do so could cause the
vehicle to move unexpectedly or roll away
and result in serious personal injury or
property damage.
CAUTION
Use the P (Park) or R (Reverse) position
only when the vehicle is completely
stopped.
P (Park)
CAUTION
To prevent transmission damage, use the
P (Park) position only when the vehicle is
completely stopped
Use the P (Park) shift lever position when the
vehicle is parked or when starting the engine.
Make sure the vehicle is completely stopped.
The brake pedal must be depressed and
the shift lever button pushed in to move the
shift lever from N (Neutral) or any drive
position to P (Park) . Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the shift lever into the P (Park)
position.
LSD2358
Starting and driving5-19

R (Reverse)
CAUTION
To prevent transmission damage, use the
R (Reverse) position only when the vehicle
is completely stopped.
Use the R (Reverse) position to back up. Make
sure the vehicle is completely stopped before
selecting the R (Reverse) position. The brake
pedal must be depressed and the shift lever
button pushed in to move the shift lever
from P (Park) , N (Neutral) or any drive po-
sition to R (Reverse) .
N (Neutral)
Neither forward nor reverse gear is engaged. The
engine can be started in this position. You may
shift to N (Neutral) and restart a stalled engine
while the vehicle is moving.
D (Drive)
Use this position for all normal forward driving.
Manual shift mode
When the shift lever is in the manual shift gate,
the transmission is ready for the manual shift
mode. Shift ranges can be selected manually by
moving the shift lever up or down. To cancel manual shift mode, return the shift lever to the D
(Drive) position. The transmission returns to au-
tomatic driving mode.
When the shift lever is shifted from D (Drive) to
the manual shift gate with the vehicle stopped or
while driving, the transmission enters the manual
shift mode. Shift ranges can be selected manu-
ally. In the manual shift mode, the shift range is
displayed on the position indicator in the meter.
When shifting the shift lever to the manual shift
gate, the position indicator displays 1 (1st) up to
7 (7th) depending on vehicle speed.
Shift ranges up or down one by one as follows:
1⇔
2⇔ 3⇔ 4⇔ 5⇔ 6⇔ 7
7 (7th)
Use this position for all normal forward driving at
highway speeds.
6 (6th) and 5 (5th)
Use this position when driving up long slopes, or
for engine braking when driving down long
slopes.
4 (4th) , 3 (3rd) and 2 (2nd)
Use these positions for hill climbing or engine
braking on downhill grades. 1 (1st)
Use this position when climbing steep hills slowly
or when driving slowly, or for maximum engine
braking on steep downhill grades.
● Remember not to drive at high speeds for
extended periods of time in lower than 7th
gear. This reduces fuel economy.
When shifting up
Move the shift lever to the + (up) side. (Shifts to
higher range.)
When shifting down
Move the shift lever to the (down) side. (Shifts
to lower range.)
● The transmission will automatically down-
shift the gears. (For example, if you select the
3rd range, the transmission will shift down
between the 3rd and 1st gears.)
● Moving the shift lever rapidly to the same
side twice will shift the ranges in succession.
When canceling the manual shift mode
Return the shift lever to the D (Drive) position to
return the transmission to the normal driving
mode.
5-20Starting and driving

●In the manual shift mode, the transmis-
sion may not shift to the selected gear.
This helps maintain driving perfor-
mance and reduces the chance of ve-
hicle damage or loss of control.
● When this situation occurs, the CVT
position indicator light will blink and
the chime will sound.
● In the manual shift mode, the transmis-
sion may shift up automatically to a
higher range than selected if the en-
gine speed is too high. When the ve-
hicle speed decreases, the transmis-
sion automatically shifts down and
shifts to 1st gear before the vehicle
comes to a stop.
● CVT operation is limited to automatic drive
mode when CVT fluid temperature is ex-
tremely low even if manual shift mode is
selected. This is not a malfunction. When
CVT fluid warms up, manual mode can be
selected.
● When the CVT fluid temperature is high, the
shift range may upshift in lower rpm than
usual. This is not a malfunction.
Shift lock release
If the battery charge is low or discharged, the
shift lever may not be moved from the P (Park)
position even with the brake pedal depressed
and the shift lever button pushed. To move the
shift lever, perform the following procedure:
1. Push the ignition switch to the OFF or LOCK position.
2. Apply the parking brake.
3. Remove the shift lock release cover using a suitable tool.
4. Push down the shift lock release using a suitable tool. 5. Push the shift lever button and move the shift
lever to the N (Neutral) position while hold-
ing down the shift lock release. The vehicle
may be moved to the desired location. Re-
place the removed shift lock release cover
after the operation.
If the shift lever cannot be moved out of the P
(Park) position, have the CVT system checked as
soon as possible. It is recommended that you visit
an INFINITI retailer for this service.
WARNING
If the shift lever cannot be moved from the
P (Park) position while the engine is run-
ning and the brake pedal is depressed, the
stop lights may not work. Malfunctioning
stop lights could cause an accident injur-
ing yourself and others.
Accelerator downshift
— in D (Drive) position —
For passing or hill climbing, depress the accel-
erator pedal to the floor. This shifts the transmis-
sion down into a lower gear, depending on the
vehicle speed.
LSD2360
Starting and driving5-21

HOW TO ENABLE/DISABLE THE
BSW SYSTEM
When the BSW system is enabled in the vehicle
information display, the system can be turned off
temporarily by pushing the warning systems
switch. For additional information, refer to “Warn-
ing systems switch” in the “Instruments and con-
trols” section of this manual.
Perform the following steps to enable or disable
the BSW system.1. Press the
button until “Settings” dis-
plays in the vehicle information display and
then press ENTER. Use the
button to
select “Driver Assistance”. Then press the
ENTER button.
2. Select “Driving Aids” and press the ENTER button.
3. Select “Blind Spot” and press the ENTER button.
4. Select “Blind Spot” and press the ENTER button.
NOTE: ● When enabling/disabling the system, the
system will retain current settings even if the
engine is restarted. ●
The RCTA system (if so equipped) is inte-
grated into the BSW system. There is not a
separate selection in the vehicle information
display for the RCTA system. When the
BSW is disabled, the RCTA system is also
disabled.
● When the BSW system is turned on, the
BSW/RCTA indicator (white) in the vehicle
information display illuminates.
BSW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the BSW system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
● The BSW system cannot detect all ve-
hicles under all conditions.
● The radar sensors may not be able to
detect and activate BSW when certain
objects are present such as:
– Pedestrian, bicycles, animals.
– Vehicles such as motorcycles, low height vehicles, or high ground clear-
ance vehicles. – Oncoming vehicles.
– Vehicles remaining in the detection
zone when you accelerate from a
stop.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle.
– A vehicle approaching rapidly from behind.
– A vehicle which your vehicle over- takes rapidly.
– A vehicle that passes through the de- tection zone quickly.
– When overtaking several vehicles in a row, the vehicles after the first ve-
hicle may not be detected if they are
traveling close together.
● The radar sensors’ detection zone is
designed based on a standard lane
width. When driving in a wider lane,
the radar sensors may not detect ve-
hicles in an adjacent lane. When driv-
ing in a narrow lane, the radar sen-
sors may detect vehicles driving two
lanes away.
5-40Starting and driving

HOW TO ENABLE/DISABLE THE
BSI SYSTEM
When the BSI system is enabled in the vehicle
information display, the system can be turned off
temporarily by pushing the warning systems
switch. For additional information, refer to “Warn-
ing systems switch” in the “Instruments and con-
trols” section of this manual.
Perform the following steps to enable or disable
the BSI system.1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance”. Then press the ENTER button.
2. Select “Driving Aids” and press the ENTER button.
3. To set the BSI system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Blind Spot” and press the ENTER
button.
– To turn on the warning, use the ENTER button to check box for “Blind Spot” – To turn on the assistance system, use the
ENTER button to check box for “Assis-
tance (BSI)”
– Use the ENTER button to toggle through the brightness choices —
“Bright/STD/Dark”
BSI SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the BSI system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
●The radar sensors may not be able to
detect and activate BSI when certain
objects are present such as:
– Pedestrians, bicycles, or animals.
– Vehicles such as motorcycles, low height vehicles, or high ground clear-
ance vehicles.
– Oncoming vehicles. – Vehicles remaining in the detection
zone when you accelerate from a
stop. For additional information, re-
fer to “BSI driving situations” in this
section.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle. For additional
information, refer to “BSI driving
situations” in this section.
– A vehicle approaching rapidly from behind. For additional information,
refer to “BSI driving situations” in
this section.
– A vehicle which your vehicle over- takes rapidly. For additional informa-
tion, refer to “BSI driving situations”
in this section.
– A vehicle that passes through the de- tection zone quickly.
● The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an
adjacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
5-50Starting and driving

To shut off the engine in an emergency situation
while driving, perform the following procedure:
– Rapidly push the push-button ignition switchthree consecutive times in less than 1.5 sec-
onds, or
– Push and hold the push-button ignition switch for more than 2 seconds.TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with TPMS. It monitors
tire pressure of all tires except the spare. When
the low tire pressure warning light is lit, and the
“Tire Pressure Low - Add Air” warning appears in
the vehicle information display, one or more of
your tires is significantly under-inflated. If
equipped, the system also displays pressure of
all tires (except the spare tire) on the display
screen by sending a signal from a sensor that is
installed in each wheel. If the vehicle is being
driven with low tire pressure, the TPMS will acti-
vate and warn you of it by the low tire pressure
warning light. This system will activate only when
the vehicle is driven at speeds above 16 mph
(25 km/h). For additional information, refer to
“Warning lights, indicator lights and audible re-
minders” in the “Instruments and controls” sec-
tion and the “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” sections of
this manual.
WARNING
●Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
● If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road
to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal in-
jury. Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading Informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a spare tire as soon as
possible.
EMERGENCY ENGINE SHUT OFF FLAT TIRE
In case of emergency6-3

10 Index
2nd row bench seat adjustment......1-5,1-7
A
Aiming control, headlights ...........2-39
Air bag (See supplemental restraint
system) .....................1-49
Air bag system Front (See supplemental front impact air
bag system) .................1-56
Airbagwarninglabels.............1-67
Airbagwarninglight...........1-67,2-12
Air bag warning light, supplemental . .1-67, 2-12
AirCleaner ...................8-18
Air cleaner housing filter ............8-18
Air conditioner Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner (automatic)
(if so equipped) ...............4-48
Heater and air conditioner controls ....4-49
Servicing air conditioner ..........4-56
Alarm system
(See vehicle security system) .........2-30
Anchor point locations .............1-32
Antenna ....................4-100
Anti-lock brake warning light ..........2-9
Anti-lock Braking System (ABS) .......5-135
Armrests .....................1-8
Around View® Monitor .............4-30
Audible reminders ...............2-15 Audio system
..................4-56
AMradioreception.............4-57
Bluetooth®audio..............4-95
Bluetooth® streaming audio ........4-95
Compact disc (CD) player .........4-76
Digital Versatile Disc (DVD) Player
Operation ..................4-80
FM/AM/SAT radio with compact disc
(CD) player .................4-72
FMradioreception.............4-56
iPod® Player .............4-88,4-90
iPod® player operation .......4-88,4-90
Radio ....................4-56
Steering wheel audio control switch . . .4-99
Autolight switch .................2-37
Automatic Automatic drive positioner .........3-34
Automatic power window switch .....2-60
Automatic anti-glare inside mirror .......3-32
Automatic door locks ..............3-6
Automatic drive positioner ...........3-34
B
Backup Collision Intervention (BCI) system .5-58
Backup Collision Warning (BCW) system . .5-58
Battery .................5- 144, 8-15
Chargewarninglight.............2-9
Battery replacement ..............8-24
INFINITI Intelligent Key ...........8-24
Keyfob ...................8-24 Before starting the engine
...........5-16
Belt (See drive belt) ..............8-17
Blind Spot Intervention (BSI) system .....5-46
Blind Spot Warning (BSW) warning
system......................5-37
Block heater Engine ...................5-145
Bluetooth® audio ................4-95
Bluetooth® hands-free phone
system.................4- 113, 4-127
Boosterseats..................1-46
Brake Anti-lock Braking System (ABS) .....5-135
Brake fluid ..................8-14
Brakelight(Seestoplight).........8-26
Brake system ...............5-134
Brakewarninglight..............2-9
Brakewearindicators........2-15,8-21
Parking brake operation ..........5-22
Self-adjusting brakes ............8-21
Brake fluid ....................8-14
Brakes ......................
8-21
Brake system .................5-134
Break-inschedule...............5-128
Brightness/contrast button .......4-10,4-20
Brightness control Instrument panel ..............2-40
Bulb check/instrument panel ..........2-8
Bulbreplacement................8-26
