INFINITI QX60 2016 Owners Manual

TILT AND TELESCOPIC OPERATION
To adjust the steering wheel move the switch1
in the following directions:● Adjust the steering wheel up or down in
direction
2to the desired tilt position.
● Adjust the steering wheel forward or back-
ward in direction
3to the desired tele-
scopic position.
CAUTION
For vehicles with automatic drive posi-
tioner: Failure to reset the tilt and tele-
scoping functions of the steering wheel,
after the vehicle’s battery has been dis-
charged, may prevent the steering wheel
position from being adjusted.
For vehicles with automatic drive positioner: Both
the tilt and telescopic steering operation must be
reset after the vehicle’s battery has been dis-
charged in order to prevent the tilt and telescopic
operation from locking in one position. When the
battery has been recharged or replaced, perform
the following: ● For tilt operation: Adjust the switch
1so
the steering wheel moves to the highest
position
2that can be reached.
● For telescopic operation: Adjust the switch
1so the steering wheel moves to the most
forward and backward position
3that can
be reached.
Performing these operations resets the range of
the steering wheel’s tilt and telescopic function.
Entry/Exit function (if so equipped)
The automatic drive positioner system will make
the steering wheel move up automatically when
the driver’s door is opened and the ignition
switch is in the LOCK position. This lets the driver
get into and out of the seat more easily. The
steering wheel moves back into position when
the driver’s door is closed and the ignition switch
is pushed.
For additional information, refer to “Automatic
drive positioner” in this section.
WPD0366
3-30Pre-driving checks and adjustments

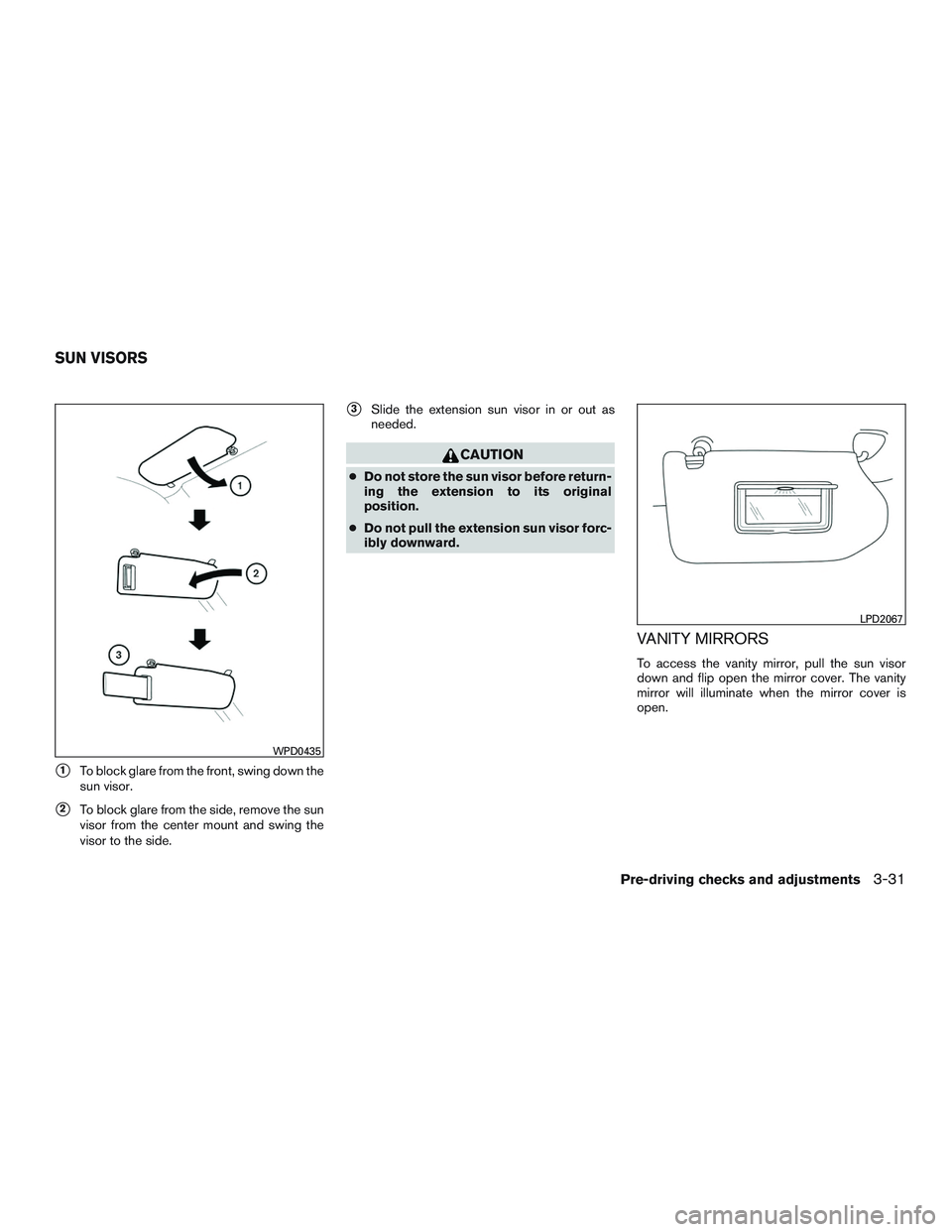

1To block glare from the front, swing down the
sun visor.
2To block glare from the side, remove the sun
visor from the center mount and swing the
visor to the side.
3Slide the extension sun visor in or out as
needed.
CAUTION
● Do not store the sun visor before return-
ing the extension to its original
position.
● Do not pull the extension sun visor forc-
ibly downward.
VANITY MIRRORS
To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. The vanity
mirror will illuminate when the mirror cover is
open.
WPD0435
LPD2067
SUN VISORS
Pre-driving checks and adjustments3-31

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR
The inside mirror is designed so that it automati-
cally dims according to the intensity of the head-
lights of the vehicle following you. The automatic
anti-glare feature operates only when the ignition
switch is in the ON position.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature, press
the O button. The indicator light will turn off. To turn on the automatic anti-glare feature, press
the | button again. The indicator light will turn
on.
For information on HomeLink® Universal Trans-
ceiver operation, refer to “HomeLink® Universal
Transceiver” in the “Instruments and controls”
section of this manual.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the left or right
mirror. Adjust each mirror to the desired position
using the large switch
2.
LPD0469LPD2269
MIRRORS
3-32Pre-driving checks and adjustments

WARNING
●Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Power folding outside mirrors
CAUTION
● Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.
● Do not drive with the mirrors stored.
You will be unable to see behind the
vehicle.
Push the switch
2to open the mirrors or the
switch
1to close the mirrors. If one of the mirrors are manually operated or
bumped, the mirror body can become loose at
the pivot point. To correct electronic mirror op-
eration, cycle the mirrors by pushing the switch
1until completely closed, then push the switch
2until the mirrors are in the open position
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn both out-
side mirror surfaces downward to provide better
rear visibility close to the vehicle when the mirror
control switch is in either the L or R position.
The mirrors automatically return to their original
position when you shift out of R (Reverse) .
The outside mirror surfaces will return to their
original position when one of the following con-
ditions has occurred:
● The shift lever is moved to any position other
than R (Reverse) .
● The outside mirror control switch is set to the
neutral or center position.
● The ignition switch is placed in the OFF
position.
LPD2303
Pre-driving checks and adjustments3-33

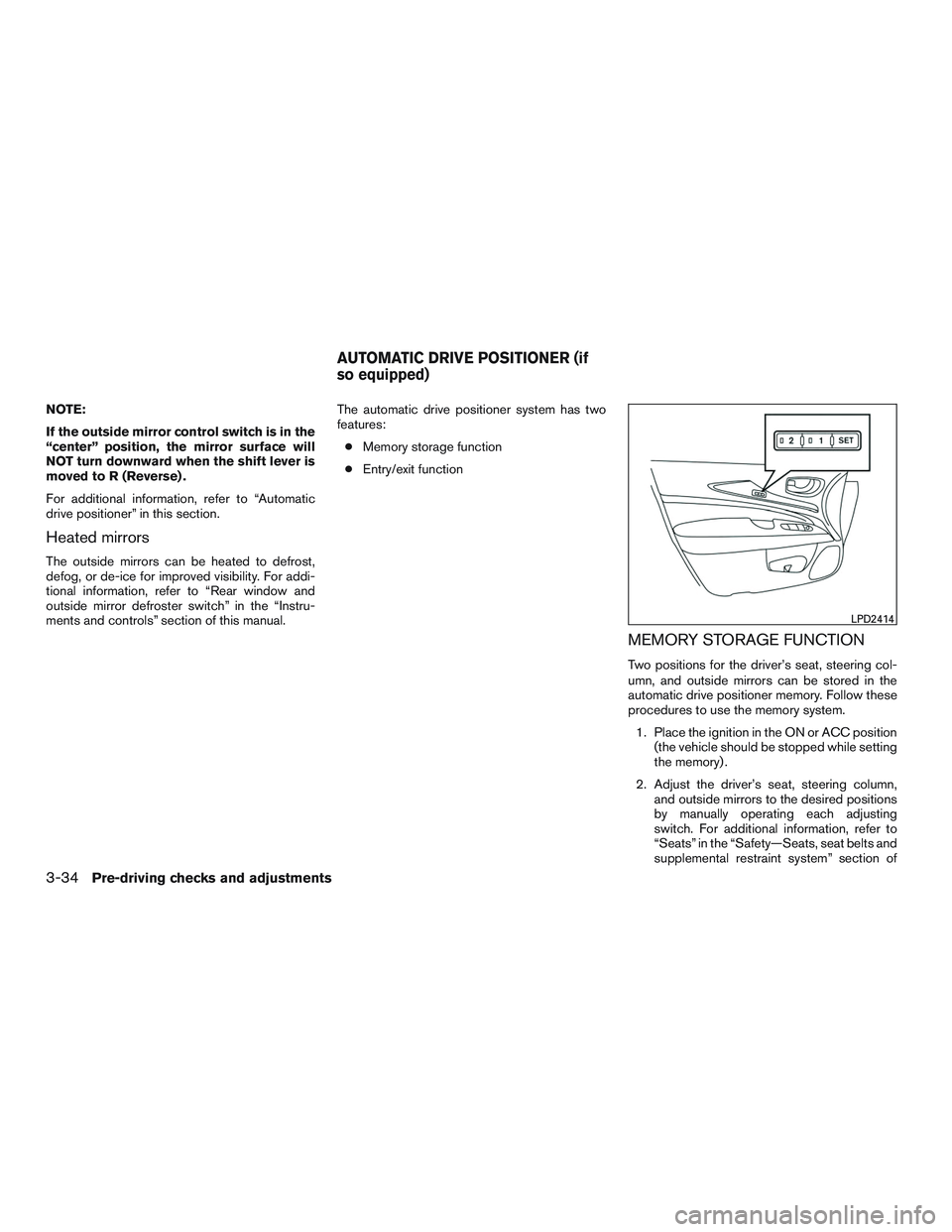

NOTE:
If the outside mirror control switch is in the
“center” position, the mirror surface will
NOT turn downward when the shift lever is
moved to R (Reverse) .
For additional information, refer to “Automatic
drive positioner” in this section.
Heated mirrors
The outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, refer to “Rear window and
outside mirror defroster switch” in the “Instru-
ments and controls” section of this manual.The automatic drive positioner system has two
features:
● Memory storage function
● Entry/exit function
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering col-
umn, and outside mirrors can be stored in the
automatic drive positioner memory. Follow these
procedures to use the memory system.
1. Place the ignition in the ON or ACC position (the vehicle should be stopped while setting
the memory) .
2. Adjust the driver’s seat, steering column, and outside mirrors to the desired positions
by manually operating each adjusting
switch. For additional information, refer to
“Seats” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
LPD2414
AUTOMATIC DRIVE POSITIONER (if
so equipped)
3-34Pre-driving checks and adjustments

this manual, and “Steering wheel” and “Out-
side mirrors” in this section.

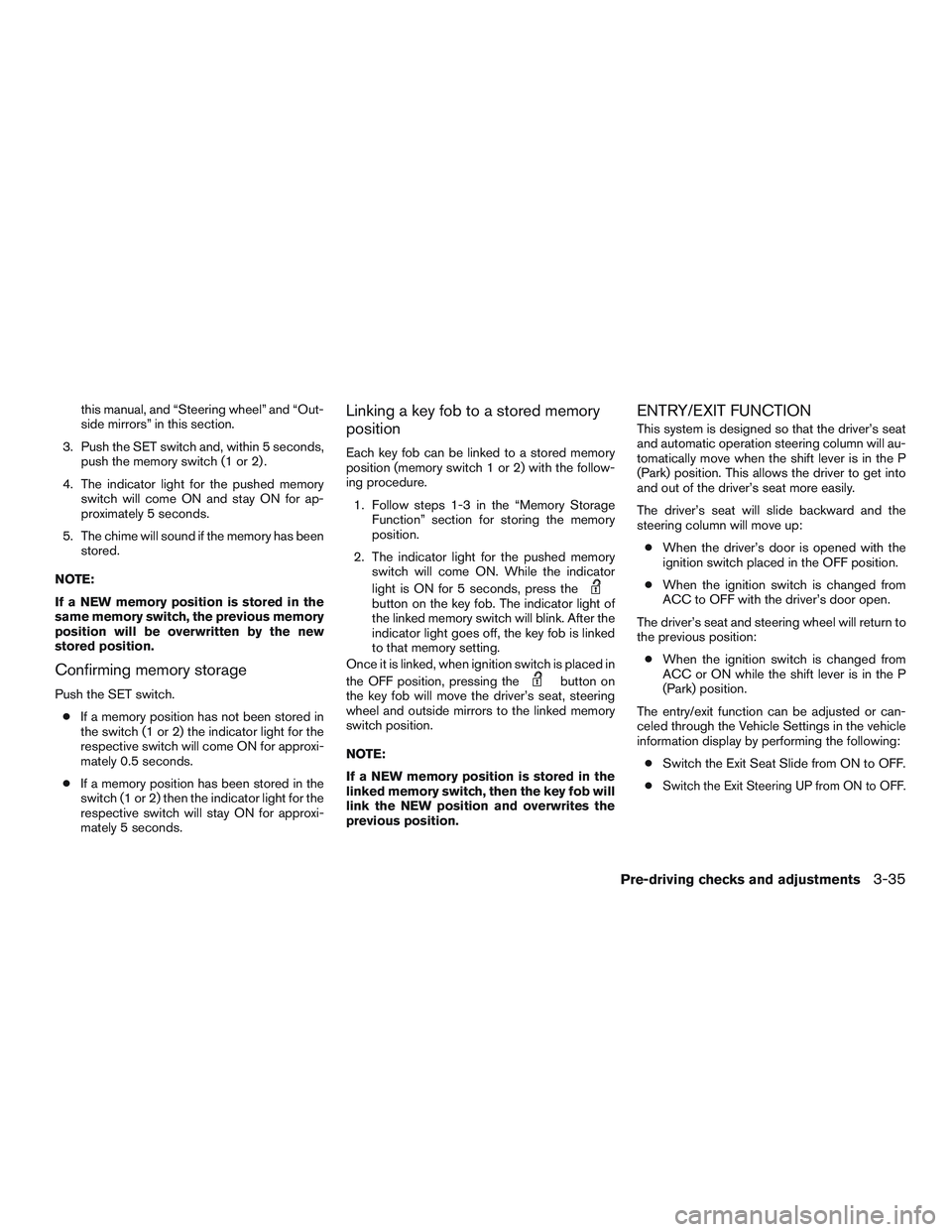

3. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2) .
4. The indicator light for the pushed memory switch will come ON and stay ON for ap-
proximately 5 seconds.
5. The chime will sound if the memory has been stored.
NOTE:
If a NEW memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.
Confirming memory storage
Push the SET switch. ● If a memory position has not been stored in
the switch (1 or 2) the indicator light for the
respective switch will come ON for approxi-
mately 0.5 seconds.
● If a memory position has been stored in the
switch (1 or 2) then the indicator light for the
respective switch will stay ON for approxi-
mately 5 seconds.
Linking a key fob to a stored memory
position
Each key fob can be linked to a stored memory
position (memory switch 1 or 2) with the follow-
ing procedure.
1. Follow steps 1-3 in the “Memory Storage Function” section for storing the memory
position.
2. The indicator light for the pushed memory switch will come ON. While the indicator
light is ON for 5 seconds, press the
button on the key fob. The indicator light of
the linked memory switch will blink. After the
indicator light goes off, the key fob is linked
to that memory setting.
Once it is linked, when ignition switch is placed in
the OFF position, pressing the
button on
the key fob will move the driver’s seat, steering
wheel and outside mirrors to the linked memory
switch position.
NOTE:
If a NEW memory position is stored in the
linked memory switch, then the key fob will
link the NEW position and overwrites the
previous position.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
and automatic operation steering column will au-
tomatically move when the shift lever is in the P
(Park) position. This allows the driver to get into
and out of the driver’s seat more easily.
The driver’s seat will slide backward and the
steering column will move up:
● When the driver’s door is opened with the
ignition switch placed in the OFF position.
● When the ignition switch is changed from
ACC to OFF with the driver’s door open.
The driver’s seat and steering wheel will return to
the previous position: ● When the ignition switch is changed from
ACC or ON while the shift lever is in the P
(Park) position.
The entry/exit function can be adjusted or can-
celed through the Vehicle Settings in the vehicle
information display by performing the following: ● Switch the Exit Seat Slide from ON to OFF.
●
Switch the Exit Steering UP from ON to OFF.
Pre-driving checks and adjustments3-35

Restarting the entry/exit function
If the battery cable is disconnected, or if the fuse
opens, the stored memory positions will be lost
and some of the functions will be restricted:1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch in the OFF
position.
The entry/exit function should now work properly.
SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memorized
settings can be available for each Intelligent Key. ● Climate control system
● Navigation system (if so equipped)
● Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s pre-
ferred settings. Lock the doors with the Intelligent
Key. Each Intelligent Key may be set with the
driver’s individual preferences. When a new In-
telligent Key is used, “Connection with the key
has been done” will be displayed on the screen
and the memorized settings are available. To engage the memorized settings, perform the
following:
1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
UNLOCK
button on the Intelligent
Key.
3. Place the ignition switch in the ON position. The settings linked to the Intelligent Key will
start.
For additional information on using the Climate
control system, refer to “Heater and air condi-
tioner (automatic)” in the “Monitor, climate, audio,
phone and voice recognition systems” section of
this manual.
For additional information on using the Naviga-
tion System, refer to the separate Navigation
System Owner’s Manual.
For additional information on using the Audio
system, refer to “Audio system” in the “Monitor,
climate, audio, phone and voice recognition sys-
tems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 mph
(7 km/h).
● When any of the memory switches are
pushed while the automatic drive positioner
is operating.
● When the adjusting switch for the driver’s
seat is turned on while the automatic drive
positioner is operating.
● When the seat has already been moved to
the memorized position.
● When no seat position is stored in the
memory switch.
● When the shift lever is moved from P (Park)
to any other position.
3-36Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen without
Navigation System (if so equipped)..................4-4
How to use the INFINITI controller ................4-5
How to select menus on the screen ..............4-6
How to use the STATUS button ..................4-6
How to use the INFO button .....................4-7
How to use the DISP button .....................4-8
How to use the SETTING button .................4-9
OFF button............................. 4-10
Control panel buttons — color screen with
Navigation System (if so equipped) .................4-11
How to use the INFINITI controller ...............4-12
How to use the touch-screen . . .................4-12
Menu options ................................. 4-14
How to select menus on the screen .............4-15
How to use the STATUS button .................4-15
How to use the INFO button ....................4-16
How to use the SETTING button ................4-18
OFF button............................. 4-20
Image viewer (if so equipped) ......................4-21
Using the image viewer ........................ 4-21
RearView Monitor (if so equipped) ..................4-23
RearView Monitor system operation .............4-24 How to read the displayed lines
.................4-24
Difference between predicted and actual
distances ..................................... 4-25
How to park with predicted course lines ..........4-26
Adjusting the screen ........................... 4-28
How to turn on and off predicted course
lines ......................................... 4-28
RearView Monitor system limitations .............4-28
System maintenance ........................... 4-29
Around View® Monitor (if so equipped) .............4-30
Around View® Monitor system operation .........4-31
Difference between predicted and actual
distances ..................................... 4-34
How to park with predicted course lines ..........4-36
How to switch the display ......................4-37
Adjusting the screen ........................... 4-38
Around View® Monitor system limitations ........4-38
System maintenance ........................... 4-40
Camera Aiding Sonar (parking sensor)
(if so equipped) .................................. 4-41
Moving Object Detection (MOD) (if so equipped) ....4-43
MOD system operation ......................... 4-44
Turning MOD on and off ........................ 4-45
MOD system limitations ........................ 4-45

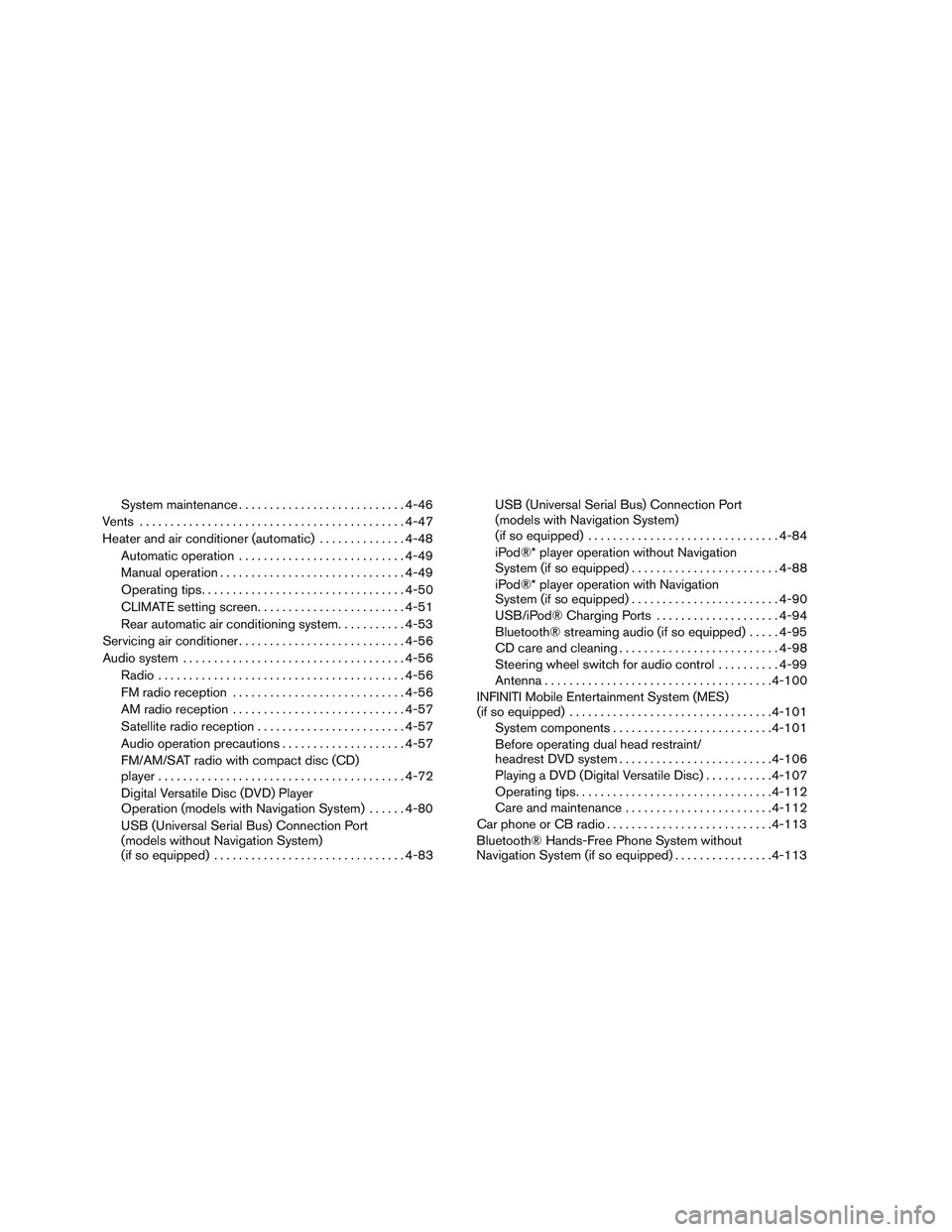

System maintenance........................... 4-46
Vents ........................................... 4-47
Heater and air conditioner (automatic) ..............4-48
Automatic operation ........................... 4-49
Manual operation .............................. 4-49
Operating tips ................................. 4-50
CLIMATE setting screen ........................ 4-51
Rear automatic air conditioning system. . .........4-53
Servicing air conditioner ........................... 4-56
Audio system .................................... 4-56
Radio ........................................ 4-56
FM radio reception ............................ 4-56
AM radio reception ............................ 4-57
Satellite radio reception ........................ 4-57
Audio operation precautions ....................4-57
FM/AM/SAT radio with compact disc (CD)
player ........................................ 4-72
Digital Versatile Disc (DVD) Player
Operation (models with Navigation System) ......4-80
USB (Universal Serial Bus) Connection Port
(models without Navigation System)
(if so equipped) ............................... 4-83USB (Universal Serial Bus) Connection Port
(models with Navigation System)
(if so equipped)
............................... 4-84
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-88
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-90
USB/iPod® Charging Ports ....................4-94
Bluetooth® streaming audio (if so equipped) .....4-95
CD care and cleaning .......................... 4-98
Steering wheel switch for audio control ..........4-99
Antenna ..................................... 4-100
INFINITI Mobile Entertainment System (MES)
(if so equipped) ................................. 4-101
System components .......................... 4-101
Before operating dual head restraint/
headrest DVD system ......................... 4-106
Playing a DVD (Digital Versatile Disc) ...........4-107
Operating tips ................................ 4-112
Care and maintenance ........................ 4-112
Car
phone or CB radio ........................... 4-113
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) ................4-113

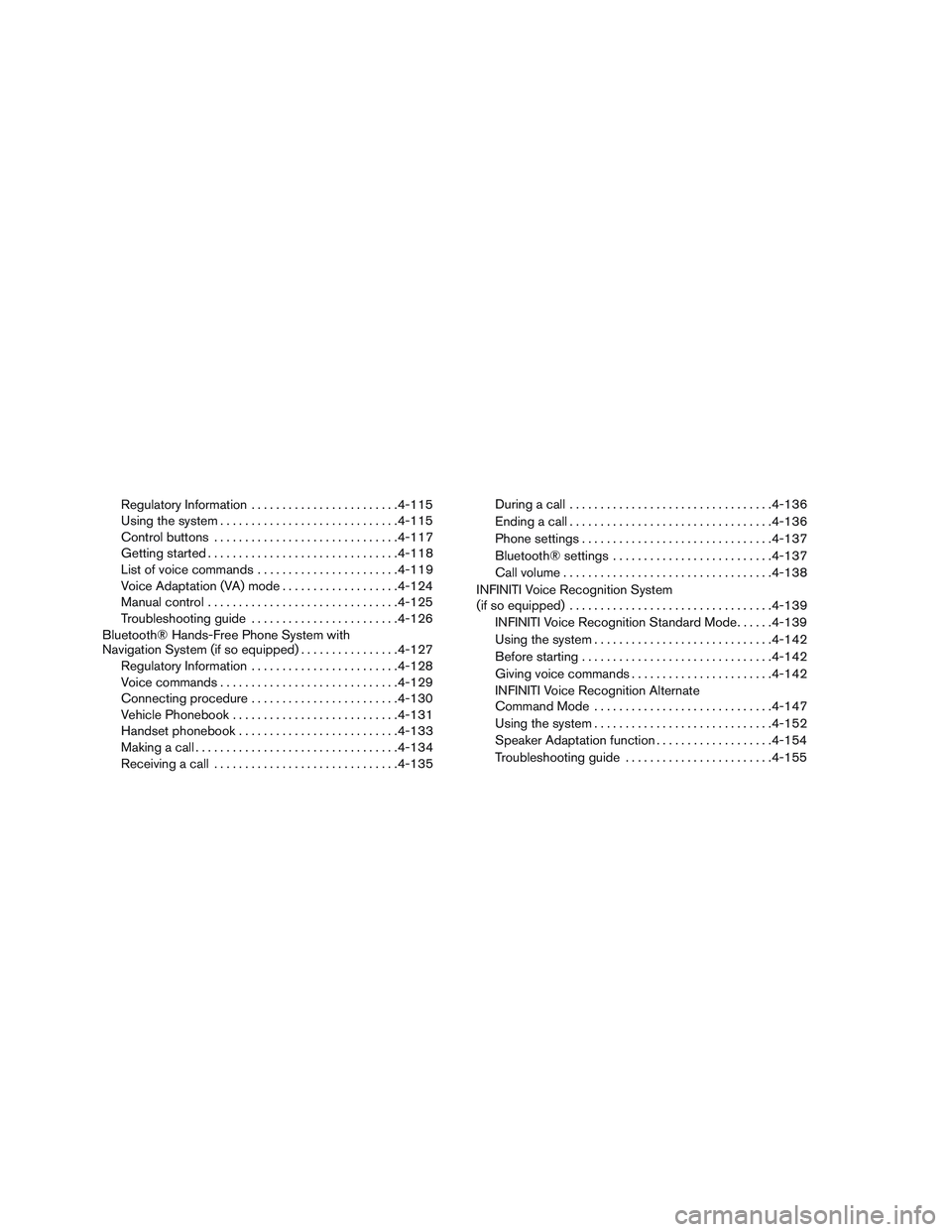

Regulatory Information........................ 4-115
Using the system ............................. 4-115
Control buttons .............................. 4-117
Getting started ............................... 4-118
List of voice commands ....................... 4-119
Voice Adaptation (VA) mode ...................4-124
Manual control ............................... 4-125
Troubleshooting guide ........................ 4-126
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ................4-127
Regulatory Information ........................ 4-128
Voice commands ............................. 4-129
Connecting procedure ........................ 4-130
Vehicle Phonebook ........................... 4-131
Handset phonebook .......................... 4-133
Making a call ................................. 4-134
Receiving a call .............................. 4-135During a call
................................. 4-136
Ending a call ................................. 4-136
Phone settings ............................... 4-137
Bluetooth® settings .......................... 4-137
Call volume .................................. 4-138
INFINITI Voice Recognition System
(if so equipped) ................................. 4-139
INFINITI Voice Recognition Standard Mode ......4-139
Using the system ............................. 4-142
Before starting . . ............................. 4-142
Giving voice commands ....................... 4-142
INFINITI Voice Recognition Alternate
Command Mode ............................. 4-147
Using the system ............................. 4-152
Speaker Adaptation function ...................4-154
Troubleshooting guide ........................ 4-155
