●While going downhill, the weight of the
trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descend-
ing a hill, as this reduces their effectiveness
and could cause overheating. Shifting to a
lower gear instead provides “engine brak-
ing” and reduces the need to brake as fre-
quently.
● If the engine coolant temperature rises to a
high temperature, refer to “If your vehicle
overheats” in the “In case of emergency”
section of this owner’s manual.
● Trailer towing requires more fuel than normal
circumstances.
● Avoid towing a trailer for your vehicle’s first
500 miles (805 km) .
● For the first 500 miles (805 km) that you do
tow, do not drive over 50 mph (80 km/h).
● Have your vehicle serviced more often than
at intervals specified in the recommended
Maintenance Schedule in the “INFINITI Ser-
vice and Maintenance Guide”. ●
When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
● Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling.
Do the following if the trailer begins to sway: 1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the ve-
hicle
– Do not correct trailer sway by steering or applying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road in a
safe area.
3. Try to rearrange the trailer load so it is bal- anced as described in this section. ●
Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer must
also pass the other vehicle before you can
safely change lanes.
● Downshift the transmission to a lower gear
for engine braking when driving down steep
or long hills. This will help slow the vehicle
without applying the brakes.
● Avoid holding the brake pedal down too long
or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
● Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
● INFINITI recommends that the cruise control
not be used while towing a trailer.
● Some states or provinces have specific
regulations and speed limits for vehicles that
are towing trailers. Obey the local speed
limits.
● Check your hitch, trailer wiring harness con-
nections, and trailer wheel lug nuts after
50 miles (80 km) of travel and at every break.
9-28Technical and consumer information

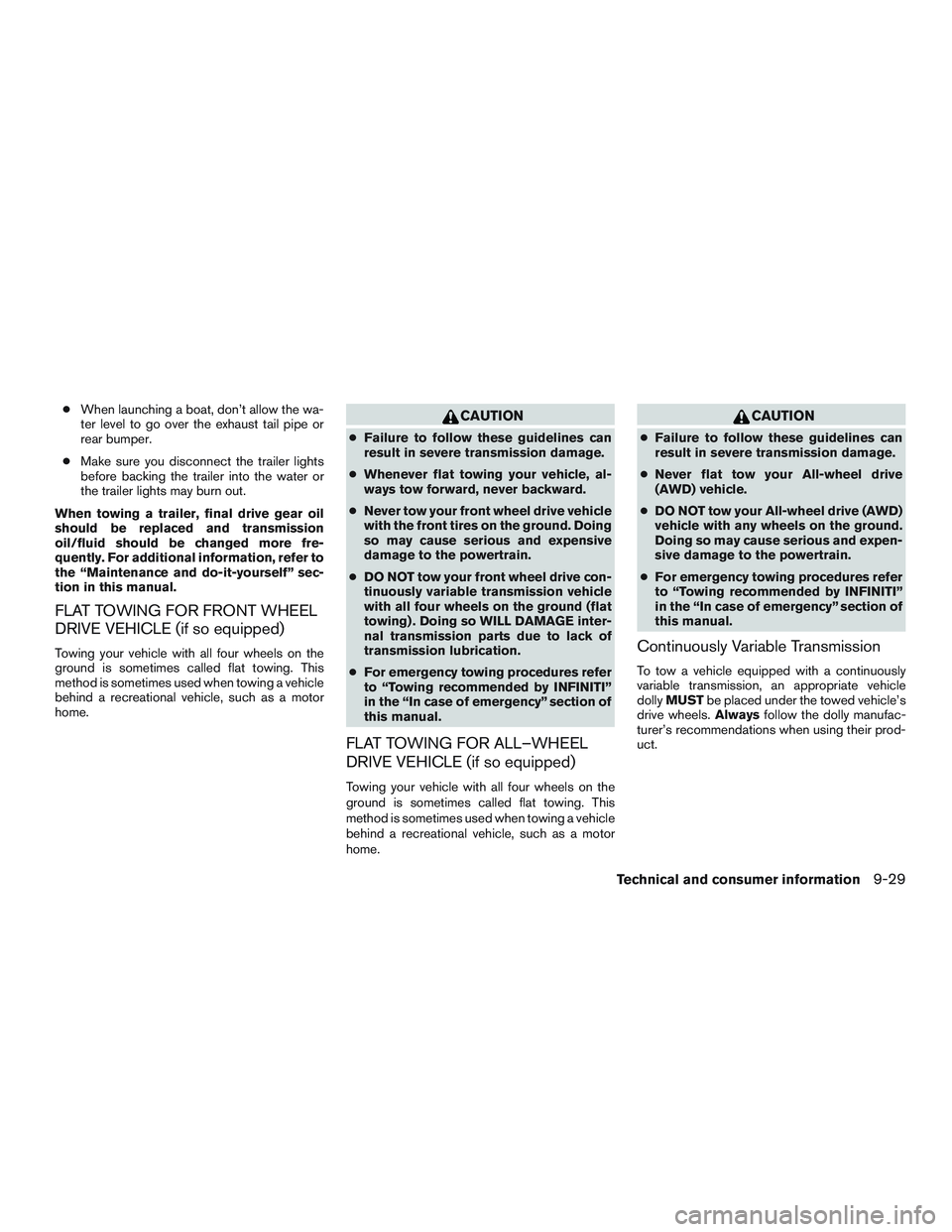

●When launching a boat, don’t allow the wa-
ter level to go over the exhaust tail pipe or
rear bumper.
● Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, final drive gear oil
should be replaced and transmission
oil/fluid should be changed more fre-
quently. For additional information, refer to
the “Maintenance and do-it-yourself” sec-
tion in this manual.
FLAT TOWING FOR FRONT WHEEL
DRIVE VEHICLE (if so equipped)
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
CAUTION
● Failure to follow these guidelines can
result in severe transmission damage.
● Whenever flat towing your vehicle, al-
ways tow forward, never backward.
● Never tow your front wheel drive vehicle
with the front tires on the ground. Doing
so may cause serious and expensive
damage to the powertrain.
● DO NOT tow your front wheel drive con-
tinuously variable transmission vehicle
with all four wheels on the ground (flat
towing) . Doing so WILL DAMAGE inter-
nal transmission parts due to lack of
transmission lubrication.
● For emergency towing procedures refer
to “Towing recommended by INFINITI”
in the “In case of emergency” section of
this manual.
FLAT TOWING FOR ALL–WHEEL
DRIVE VEHICLE (if so equipped)
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
CAUTION
● Failure to follow these guidelines can
result in severe transmission damage.
● Never flat tow your All-wheel drive
(AWD) vehicle.
● DO NOT tow your All-wheel drive (AWD)
vehicle with any wheels on the ground.
Doing so may cause serious and expen-
sive damage to the powertrain.
● For emergency towing procedures refer
to “Towing recommended by INFINITI”
in the “In case of emergency” section of
this manual.
Continuously Variable Transmission
To tow a vehicle equipped with a continuously
variable transmission, an appropriate vehicle
dolly MUST be placed under the towed vehicle’s
drive wheels. Alwaysfollow the dolly manufac-
turer’s recommendations when using their prod-
uct.
Technical and consumer information9-29

DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, however,
and may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
Traction AA, A, B and C
The traction grades, from highest to lowest, are
AA, A, B, and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
government test surfaces of asphalt and con-
crete. A tire marked C may have poor traction
performance.WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest) , B,
and C, representing the tire’s resistance to the
generation of heat, and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Safety Standard No.
109. Grades B and A represent higher levels of
performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in combination, can
cause heat build-up and possible tire
failure.
UNIFORM TIRE QUALITY GRADING
9-30Technical and consumer information

Your INFINITI is covered by the following emis-
sion warranties:
For USA1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty Infor-
mation Booklet which comes with your INFINITI. If
you did not receive a Warranty Information Book-
let, or it is lost, you may obtain a replacement by
writing to: ● INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003 For Canada
Emission Control System Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty Infor-
mation Booklet which comes with your INFINITI. If
you did not receive a Warranty Information Book-
let, or it is lost, you may obtain a replacement by
writing to:
● Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5For USA
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying INFINITI.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your retailer, or INFINITI.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
EMISSION CONTROL SYSTEM
WARRANTY REPORTING SAFETY DEFECTS
Technical and consumer information9-31

You may notify INFINITI by contacting our
Consumer Affairs Department, toll-free, at
1-800-662-6200.
For Canada
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform Transport Canada in addition
to notifying INFINITI.
If Transport Canada receives complaints,
it may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that INFINITI con-
duct a recall campaign. However, Trans-
port Canada cannot become involved in
individual problems between you, your re-
tailer, or INFINITI.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division
toll free at 1-800-333-0510. You may
also report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-Sur/
7/PCDB-BDPP/fc-cp.aspx?lang=eng
(English speakers) orhttps://wwwapps.tc.gc.ca/Saf-Sec-Sur/
7/PCDB-BDPP/fc-cp.aspx?lang=fra
(French speakers)
Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
(French speakers) .
To notify INFINITI of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122.
WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing) , or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer.
Using the wrong test equipment may re-
sult in transmission damage or unex-
pected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
9-32Technical and consumer information

If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20 sec-
onds and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not blink
after 20 seconds, the I/M test condition is
“ready”. It is recommended that you visit an
INFINITI retailer to set the “ready condition” or to
prepare the vehicle for testing.This vehicle is equipped with an EDR. The main
purpose of an EDR is to record, in certain colli-
sion or near collision-like situations, such as an
air bag deployment or hitting a road obstacle,
data that will assist in understanding how a vehi-
cle’s systems performed. The EDR is designed to
record data related to vehicle dynamics and
safety systems for a short period of time, typically
30 seconds or less. The EDR in this vehicle is
designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded. These data can help provide a better understand-
ing of the circumstances in which collisions and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial collision situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and collision location)
are recorded. However, other parties, such as
law enforcement, could combine the EDR data
with the type of personally identifying data rou-
tinely acquired during a collision investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
EVENT DATA RECORDERS (EDR) (if
so equipped)
Technical and consumer information9-33

Genuine INFINITI Service Manuals for this model
year and prior can be purchased. A Genuine
INFINITI Service Manual is the best source of
service and repair information for your vehicle.
This manual is the same one used by the factory-
trained technicians working at INFINITI retailers.
Genuine INFINITI Owner’s Manuals can also be
purchased.
For USA
For current pricing and availability of Genuine
INFINITI Service Manuals, contact:
www.infiniti-techinfo.com
For current pricing and availability of Genuine
INFINITI Owner’s Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a Genuine INFINITI Ser-
vice Manual or Owner’s Manual, for this model
year and prior, please contact your nearest
INFINITI retailer. For the phone number and loca-
tion of an INFINITI retailer in your area call the
INFINITI Satisfaction Center at 1-800-361-4792
and a bilingual INFINITI representative will assist
you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
9-34Technical and consumer information

10 Index
2nd row bench seat adjustment......1-5,1-7
A
Aiming control, headlights ...........2-39
Air bag (See supplemental restraint
system) .....................1-49
Air bag system Front (See supplemental front impact air
bag system) .................1-56
Airbagwarninglabels.............1-67
Airbagwarninglight...........1-67,2-12
Air bag warning light, supplemental . .1-67, 2-12
AirCleaner ...................8-18
Air cleaner housing filter ............8-18
Air conditioner Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner (automatic)
(if so equipped) ...............4-48
Heater and air conditioner controls ....4-49
Servicing air conditioner ..........4-56
Alarm system
(See vehicle security system) .........2-30
Anchor point locations .............1-32
Antenna ....................4-100
Anti-lock brake warning light ..........2-9
Anti-lock Braking System (ABS) .......5-135
Armrests .....................1-8
Around View® Monitor .............4-30
Audible reminders ...............2-15 Audio system
..................4-56
AMradioreception.............4-57
Bluetooth®audio..............4-95
Bluetooth® streaming audio ........4-95
Compact disc (CD) player .........4-76
Digital Versatile Disc (DVD) Player
Operation ..................4-80
FM/AM/SAT radio with compact disc
(CD) player .................4-72
FMradioreception.............4-56
iPod® Player .............4-88,4-90
iPod® player operation .......4-88,4-90
Radio ....................4-56
Steering wheel audio control switch . . .4-99
Autolight switch .................2-37
Automatic Automatic drive positioner .........3-34
Automatic power window switch .....2-60
Automatic anti-glare inside mirror .......3-32
Automatic door locks ..............3-6
Automatic drive positioner ...........3-34
B
Backup Collision Intervention (BCI) system .5-58
Backup Collision Warning (BCW) system . .5-58
Battery .................5- 144, 8-15
Chargewarninglight.............2-9
Battery replacement ..............8-24
INFINITI Intelligent Key ...........8-24
Keyfob ...................8-24 Before starting the engine
...........5-16
Belt (See drive belt) ..............8-17
Blind Spot Intervention (BSI) system .....5-46
Blind Spot Warning (BSW) warning
system......................5-37
Block heater Engine ...................5-145
Bluetooth® audio ................4-95
Bluetooth® hands-free phone
system.................4- 113, 4-127
Boosterseats..................1-46
Brake Anti-lock Braking System (ABS) .....5-135
Brake fluid ..................8-14
Brakelight(Seestoplight).........8-26
Brake system ...............5-134
Brakewarninglight..............2-9
Brakewearindicators........2-15,8-21
Parking brake operation ..........5-22
Self-adjusting brakes ............8-21
Brake fluid ....................8-14
Brakes ......................
8-21
Brake system .................5-134
Break-inschedule...............5-128
Brightness/contrast button .......4-10,4-20
Brightness control Instrument panel ..............2-40
Bulb check/instrument panel ..........2-8
Bulbreplacement................8-26

C
Capacities and recommended fuel/lubricants . .9-2
Cargoareastoragebin.............2-57
Cargo(Seevehicleloadinginformation)....9-14
Car phone or CB radio .............4-113
CD care and cleaning ..............4-98
CD player (See audio system) .........4-76
Check tire pressure ...............2-28
Child restraints .......1-25,1-25,1-27,1-29
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-29
Precautions on child
restraints.........1-27,1-34,1-40,1-46
Top tether strap anchor point locations . .1-32
Child restraint with top tether strap .......1-31
Child safety rear door lock ............3-6
Chimes, audible reminders ...........2-15
Cleaningexteriorandinterior........7-2,7-4
Climatecontrolseatswitch...........2-44
Clock setting
(models with Navigation System) ........4-18
Clock setting
(models without Navigation System) .......4-9
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-144
Compact disc (CD) player ...........4-76
Consolebox...................2-52
Consolelight...................2-65
Continuously Variable Transmission (CVT) . . .5-18 Continuously Variable Transmission (CVT)
fluid ......................8-13
Driving with Continuously Variable
Transmission (CVT) .............5-18
Control panel buttons ..............4-11 Brightness/contrast button
......4-10,4-20
Enterbutton...............4-4,4-11
Without navigation system ..........4-4
Controls Audio controls (steering wheel) .......4-99
Heater and air conditioner controls .....4-49
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changingenginecoolant...........8-9
Checking engine coolant level ........8-9
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-6
Cruisecontrol...............5-74,5-75
Cupholders...................2-54
D
Daytime running light system (Canada only) . .2-39
Defroster switch Rear window and outside mirror defroster
switch.....................2-36
Digital Versatile Disc (DVD) player .......4-80
Dimensionsandweights.............9-9
Dimmer switch for instrument panel ......2-40
Display......................2-16
Display controls
(seecontrolpanelbuttons) ........4-4,4-11
Distance Control Assist (DCA) system .....5-95
Doors ........................3-4
Drive belt .....................8-17
Drive positioner, Automatic ...........3-34
Driving Cold weather driving ............5-144 Driving with Continuously Variable
Transmission (CVT)
.............5-18
Precautions when starting and driving ....5-4
Driving the vehicle ................5-18
Dual head restraint DVD system .......4-101
Dual power moonroof ...........2-62,2-62
E
Economy-fuel.................5-130
Emergency engine shutoff .........5-15,6-3
Emission control information label .......9-11
Emission control system warranty .......9-31
Engine Before starting the engine ..........5-16
Blockheater ................5-145
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant ...........8-9
Changingengineoil.............8-11
Changing
engine oil filter ..........8-12
Checking engine coolant level ........8-9
Checking engine oil level ..........8-10
Engine compartment check locations ....8-7
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-8
Engineoil...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-7
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-17
Engine coolant temperature gauge .......2-6
Enter button .................4-4,4-11
Event Data recorders ..............9-33
10-2

Exhaust gas (Carbon monoxide).........5-4
Explanation of maintenance items ........8-2
Extendedstorageswitch ............2-50
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-14
Capacities and recommended
fuel/lubricants .................9-2
Continuously Variable Transmission (CVT)
fluid......................8-13
Engine coolant .................8-8
Engine oil ...................8-10
Power steering fluid .............8-13
Windshield-washerfluid...........8-14
F.M.V.S.S. certification label ...........9-11
Foglightswitch .................2-41
Forward Emergency Braking (FEB) .......2-10
Front air bag system
(See supplemental restraint system) ......1-56
Front power seat adjustment ...........1-3
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-130
Fuel-filler door and cap ...........3-27
Fuel gauge ...................2-7
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Loose fuel cap warning ...........2-30 Fuel Cell Vehicle (FCV) System
Tirepressure.................8-28
Fuel-filler door ..................3-27
Fuelgauge.....................2-7
Fuses.......................8-22
Fusiblelinks ...................8-22
G
Garage door opener, HomeLink® Universal
Transceiver .............2-67,2-69,2-70
Gascap .....................3-27
Gauge Engine coolant temperature gauge .....2-6
Fuel gauge ...................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer ..................2-6
Trip odometer .................2-5
General maintenance ...............8-2
Glovebox.....................2-52
Gloveboxlock..................2-52
H
Hands-free phone system,
Bluetooth®...............4- 113, 4-127
Hazard warning flasher switch ..........6-2
Headlight aiming control ............2-39
Headlight and turn signal switch ........2-36
Headlight control switch ............2-37
Headlights ....................8-26
Headlights, aiming control ............2-39
Head restraints ..................1-11 Heated rear seats
................2-43
Heated seats ...................2-42
Heated steering wheel .............2-45
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-48
Heater and air conditioner controls .....4-49
Heater operation ...............4-49
Heater

and air conditioner (automatic) .....4-48
Hill start assist system .............5-139
HomeLink® Universal
Transceiver.............2-67,2-69,2-70
Hood.......................3-21
Hook Luggage hook ................2-56
Horn .......................2-41
I
Ignition Switch Push-Button Ignition Switch ........5-13
Imageviewer...................4-21
Immobilizer system ................5-16
Important vehicle information label .......9-11
In-cabin microfilter ................8-19
Increasing fuel economy ............5-130
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)...............2-8,2-9,2-13
INFINITI Drive mode selector ..........5-23
INFINITI Intelligent Key System .......3-2,3-7
INFINITI vehicle immobilizer
system ................2-31,3-4,5-16
INFINITI voice recognition system .......4-139
Information display ................2-16
10-3
