turn signal INFINITI QX60 2016 Quick Reference Guide

22
23
25
24
28272616171819
1112
14
21
*See your Owner’s Manual for information.
1 INSTRUMENT BRIGHTNESS
CONTROL SWITCHES*
2 BACKUP COLLISION INTERVENTION
(BCI) SWITCH
3 TWIN TRIP ODOMETER RESET SWITCH*
4 VEHICLE INFORMATION DISPLAY
5 HEADLIGHT AND TURN SIGNAL SWITCH
6 LOW TIRE PRESSURE WARNING LIGHT
7 WIPER AND WASHER SWITCH
8 VEHICLE INFORMATION
DISPLAY SWITCH
9 STEERING WHEEL SWITCHES FOR
AUDIO*/BLUETOOTH®/NAVIGATION
10 INTELLIGENT CRUISE CONTROL
11 VEHICLE DYNAMIC CONTROL
(VDC) OFF SWITCH*
12 POWER LIFTGATE SWITCH
13 POWER LIFTGATE MAIN SWITCH
14 DISTANCE CONTROL ASSIST
(DCA) SYSTEM SWITCH*
1
4
65
8
7
2
3
15 TILT/TELESCOPIC STEERING
WHEEL SWITCH*
16 HEATED STEERING WHEEL SWITCH*
17 WARNING SYSTEMS SWITCH
18 HEADLIGHT AIMING
CONTROL SWITCH*
19 POWER INVERTER SWITCH
20 HOOD RELEASE*
21 CONTROL PANEL DISPLAY SCREEN*
22 HEATER AND AIR CONDITIONER (automatic)
23 AUDIO SYSTEM
24 FRONT PASSENGER AIR BAG
STATUS LIGHT*
25 POWER OUTLET
26 DRIVER’S CLIMATE-CONTROLLED
SEAT SWITCH*
27 INFINITI DRIVE MODE SELECTOR*
28 PASSENGER’S CLIMATE-CONTROLLED
SEAT SWITCH*
109
Behind
steering wheel
Behind
steering wheel Behind
steering wheel
15
13
20
2460934_16b_Infiniti_QX60_QRG_031716_b.indd 43/17/16 2:16 PM

16

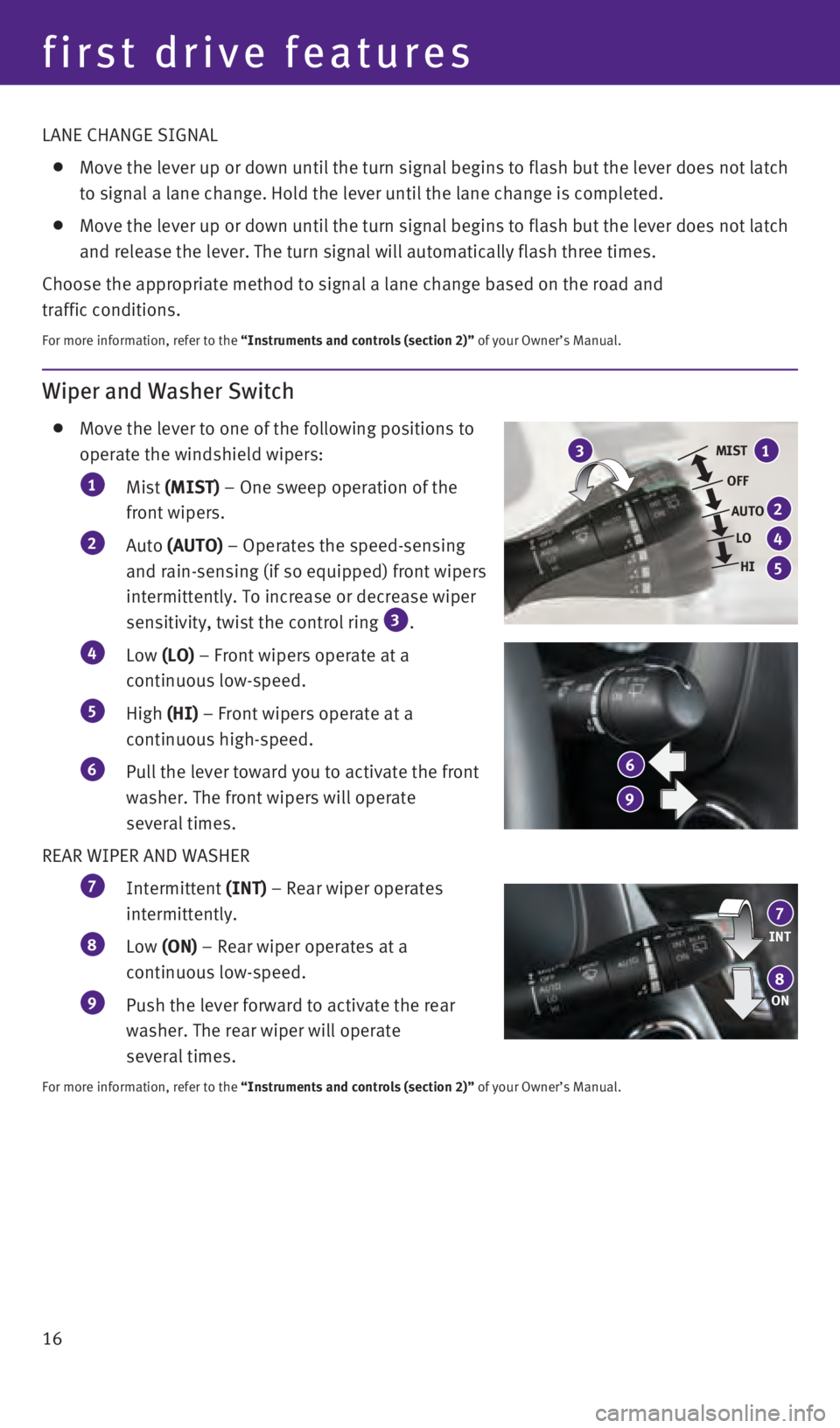

Wiper and Washer Switch
Move the lever to one of the following positions to
operate the windshield wipers:
1 Mist (MIST) – One sweep operation of the
front wipers.
2 Auto (AUTO) – Operates the speed-sensing
and rain-sensing (if so equipped) front wipers
intermittently. To increase or decrease wiper
sensitivity, twist the control ring
3.
4 Low (LO) – Front wipers operate at a
continuous low-speed.
5 High (HI) – Front wipers operate at a
continuous high-speed.
6 Pull the lever toward you to activate the front
washer. The front wipers will operate
several times.
REAR WIPER AND WASHER
7 Intermittent (INT) – Rear wiper operates
intermittently.
8 Low (ON) – Rear wiper operates at a
continuous low-speed.
9 Push the lever forward to activate the rear
washer. The rear wiper will operate
several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
MIST
OFFAUTO LO
HI
INT
ON
1
2
4
6
7
8
5
9
3
LANE CHANGE SIGNAL
Move the lever up or down until the turn signal begins to flash but the \
lever does not latch
to signal a lane change. Hold the lever until the lane change is complet\
ed.
Move the lever up or down until the turn signal begins to flash but the \
lever does not latch
and release the lever. The turn signal will automatically flash three ti\
mes.
Choose the appropriate method to signal a lane change based on the road \
and
traffic conditions.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
