Rear window and outside mirror defroster switch INFINITI QX60 2017 Owner's Manual

1. Vent (P. 4-47)
2. Headlight/fog light/turn signal switch(P. 2-42)
3. Instrument brightness control (P. 2-37)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-50) Horn (P. 2-43)
6. Back-up Collision Intervention (BCI) system switch (if so equipped)
(P. 5-58)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-33) Rear wiper and washer switch
(P. 2-33)
9. Rear window and outside mirror defroster switch (P. 2-36)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air conditioning controls (P. 4-48)
12. Front passenger supplemental air bag (P. 1-58)
13. Glove box (P. 2-54)
14. Center multi-function control buttons*
15. Power outlet (P. 2-50)
16. Shift lever (P. 5-17)
LII2408
INSTRUMENT PANEL
0-6Illustrated table of contents

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-4
Speedometer and odometer .....................2-4
Tachometer ....................................2-6
Engine coolant temperature gauge ...............2-6
Fuel gauge ....................................2-7
Warning lights, indicator lights and audible
reminders .........................................2-8
Checking lights ................................2-8
Warning lights .................................2-9
Indicator lights ................................ 2-13
Audible reminders ............................. 2-15
Vehicle information display ......................... 2-16
How to use the vehicle information display .......2-17
Startup display ................................ 2-17
Resetting the trip computer .....................2-17
Settings ...................................... 2-17
Vehicle information display warnings and
indicators ..................................... 2-25
Security systems ................................. 2-30
Vehicle security system ......................... 2-30
INFINITI vehicle immobilizer system ..............2-31
Wiper and washer switch ......................... 2-33Switch operation
.............................. 2-33
Rain-sensing auto wiper system
(if so equipped) ............................... 2-34
Rear switch operation .......................... 2-35
Rear window and outside mirror defroster switch .....2-36
Headlight and turn signal switch ....................2-37
Xenon headlights .............................. 2-37
Headlight control switch ........................ 2-37
Daytime running light system ....................2-41
Instrument brightness control ...................2-42
Turn signal switch ............................. 2-42
Fog light switch ............................... 2-43
Horn ............................................ 2-43
Climate controlled seat switches (if so equipped) ....2-44
Heated seat switches (if so equipped) ..............2-45
Heated 2nd row seat switches (if so equipped) ......2-46
Heated steering

wheel switch (if so equipped) .......2-47
Warning systems switch (if so equipped) ............2-47
Vehicle Dynamic Control (VDC) off switch ...........2-48
E-call (SOS) switch (if so equipped) ................2-49
Power inverter switch (if so equipped) ..............2-49
Power outlets .................................... 2-50
12v outlets ................................... 2-50

1. Vent (P. 4-47)
2. Headlight/fog light/turn signal switch(P. 2-42)
3. Instrument brightness control (P. 2-37)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-50) Horn (P. 2-43)
6. Back-up Collision Intervention (BCI) system switch (if so equipped)
(P. 5-58)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-33) Rear wiper and washer switch
(P. 2-33)
9. Rear window and outside mirror defroster switch (P. 2-36)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air conditioning controls (P. 4-48)
12. Front passenger supplemental air bag (P. 1-58)
13. Glove box (P. 2-54)
14. Center multi-function control buttons*
15. Power outlet (P. 2-50)
16. Shift lever (P. 5-17)
LII2408
INSTRUMENT PANEL
2-2Instruments and controls

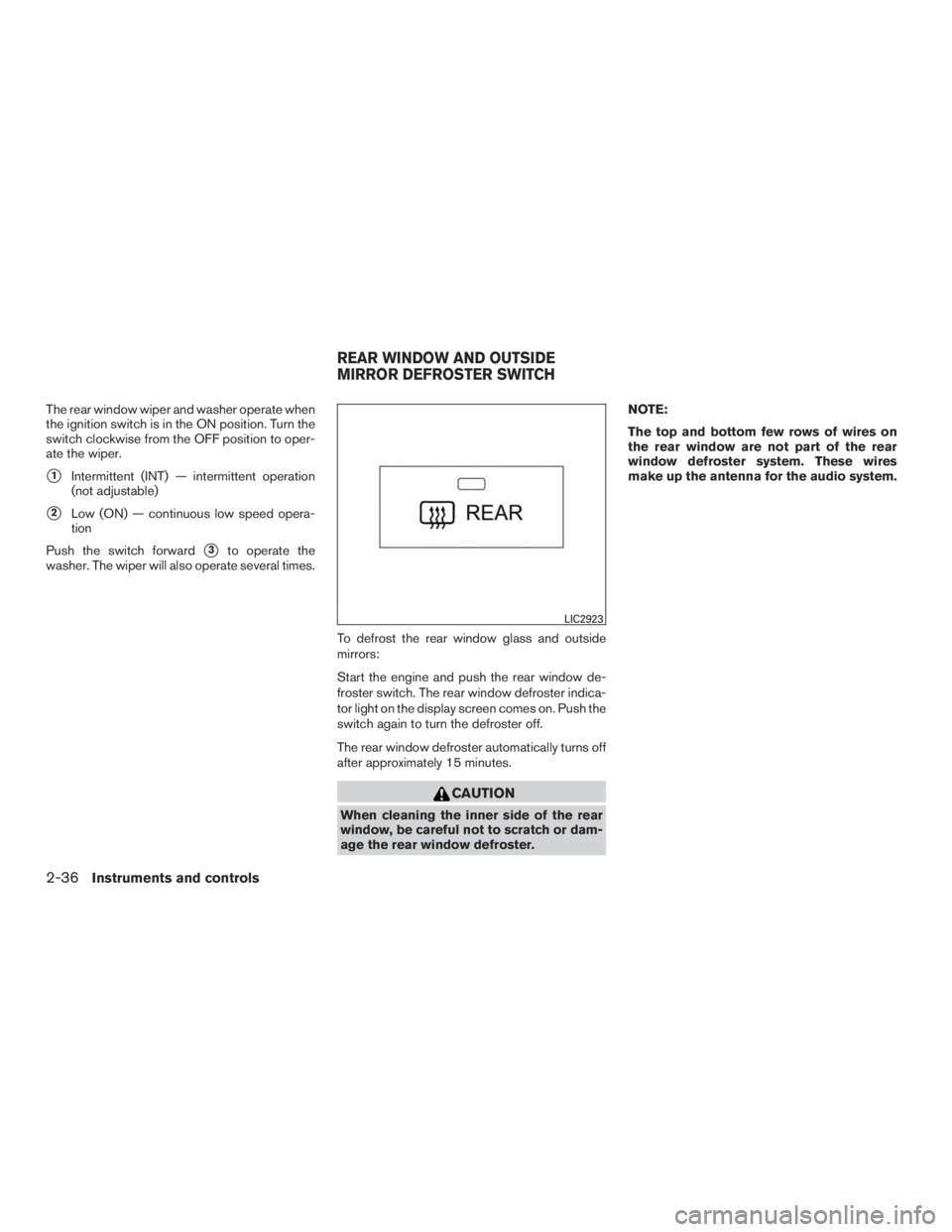

The rear window wiper and washer operate when
the ignition switch is in the ON position. Turn the
switch clockwise from the OFF position to oper-
ate the wiper.
1Intermittent (INT) — intermittent operation
(not adjustable)
2Low (ON) — continuous low speed opera-
tion
Push the switch forward
3to operate the
washer. The wiper will also operate several times.
To defrost the rear window glass and outside
mirrors:
Start the engine and push the rear window de-
froster switch. The rear window defroster indica-
tor light on the display screen comes on. Push the
switch again to turn the defroster off.
The rear window defroster automatically turns off
after approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.NOTE:
The top and bottom few rows of wires on
the rear window are not part of the rear
window defroster system. These wires
make up the antenna for the audio system.
LIC2923
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
2-36Instruments and controls

Heated mirrors
The outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, refer to “Rear window and
outside mirror defroster switch” in the “Instru-
ments and controls” section of this manual.The automatic drive positioner system has two
features:
● Memory storage function
● Entry/exit function
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering col-
umn, and outside mirrors can be stored in the
automatic drive positioner memory. Follow these
procedures to use the memory system.
1. Place the ignition in the ON or ACC position (the vehicle should be stopped while setting
the memory) .
2. Adjust the driver’s seat, steering column, and outside mirrors to the desired positions
by manually operating each adjusting
switch. For additional information, refer to
“Seats” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
LPD2414
AUTOMATIC DRIVE POSITIONER (if
so equipped)
3-36Pre-driving checks and adjustments

1.Front defroster button
2.
Rear window and outside mirror
defroster switch
3. OFF button
4.
(Fan speed) decrease button 5.
(Fan speed) increase button
6. AUTO climate control ON button
7. REAR (ON-OFF) button
8.
Air recirculation button
9. CLIMATE button 10.
Temperature control (increase)
button (passenger’s side)
11.
Temperature control (decrease)
button (passenger’s side)
12. DUAL button
13.
Manual air flow control button
14.
Temperature control (decrease)
button (driver’s side)
15.
Temperature control (increase)
button (driver’s side)
WARNING
● The air conditioner cooling function op-
erates only when the engine is running.
● Do not leave children or adults who
would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
LHA4250
HEATER AND AIR CONDITIONER
(automatic)
4-48Monitor, climate, audio, phone and voice recognition systems

MANUAL OPERATION
Fan speed control
Press thefan speed control buttons to
manually control the fan speed.
Press the AUTO button to return to automatic
control of the fan speed.
Temperature control
Press the temperature control buttons up or
down to set the desired temperature.
The temperature can be set within the following
range:
● For U.S.: 60 to 90ºF (16 to 32ºC)
● For Canada: 64 to 90ºF (18 to 32ºC)
Air recirculation
Press theair recirculation button to recir-
culate interior air inside the vehicle. The
indicator light on the button will come on.
The air recirculation cannot be activated when
the air conditioner is in the
front defrosting
mode.
Automatic intake air control
In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the in-
take air, press the
air recirculation button. To return to the automatic control mode, press
and hold the
air recirculation button for
about 2 seconds. The indicator light will flash
twice, and then the intake air will be controlled
automatically.
Air flow control
Press thebutton to manually control air
flow. Pressing the button repeatedly will cycle
through the available modes and display the cor-
responding icon on the center display:
— Air flows from center and side
vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from foot outlets.
— Air flows from defroster and footoutlets.
— Air flows from defroster outlets.
To turn system off
Press the OFF button.
Rear window and outside mirror
defroster switch
For additional information, refer to “Rear window
and outside mirror defroster switch” in the “In-
struments and controls” section of this manual.
OPERATING TIPS
●When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate for a
maximum of 150 seconds. However, this is
not a malfunction. After the coolant tempera-
ture warms up, air flow from the foot outlets
will operate normally.
4-50Monitor, climate, audio, phone and voice recognition systems

C
Capacities and recommended
fuel/lubricants ..................10-2
Cargoareastoragebin.............2-58
Cargo (See vehicle loading information) . . .10-13
Car phone or CB radio .............4-115
CD care and cleaning ..............4-95
CD player (See audio system) .........4-78
Check tire pressure ...............2-27
Child restraints .......1-26,1-26,1-28,1-30
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-30
Precautions on child
restraints.........1-29,1-36,1-42,1-47
Top tether strap anchor point locations . .1-33
Child restraint with top tether strap .......1-33
Child safety rear door lock ............3-6
Chimes, audible reminders ...........2-15
Cleaningexteriorandinterior........7-2,7-4
Climatecontrolseatswitch...........2-44
Clock set/adjustment ..............4-15
C.M.V.S.S. certification label .........10-11
Cold weather driving ..............5-142
Compact disc (CD) player ...........4-78
Consolebox...................2-55
Continuously Variable Transmission (CVT) . . .5-17 Continuously Variable Transmission (CVT)
fluid .......................8-9
Driving with Continuously Variable
Transmission (CVT) .............5-17
Control panel buttons Backbutton..................4-5
Brightness/contrast button ..........4-5
Clockset...................4-15 Setting button
.................4-5
Controls Audio controls ................4-70
Audio controls (steering wheel) ....4-7,4-71
Heater and air conditioner controls .....4-49
Coolant Capacities and recommended
fuel/lubricants ................10-2
Changingenginecoolant...........8-5
Checking engine coolant level ........8-5
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-7
Cruisecontrol...............5-74,5-75
Cupholders...................2-56
D
Daytime Running Light System .........2-41
Defroster switch Rear window and outside mirror defroster
switch.....................2-36
Digital Versatile Disc (DVD) player .......4-89
Dimensionsandweights ............10-9
Dimmer switch for instrument panel ......2-42
Display......................2-17
Display controls (see control panel buttons) . .4-5, 4-8
Distance Control Assist (DCA) system .....5-96
Doors ........................3-4
Drive belt .....................8-13
Drive positioner, Automatic ........3-36,3-38
Driving Cold weather driving ............5-142
Driving with Continuously Variable
Transmission (CVT) .............5-17 Precautions when starting and driving
....5-4
Driving the vehicle ................5-17
Dual panel moonroof ..............2-64
Dual power moonroof ...........2-64,2-64
E
Economy-fuel.................5-128
Emergency engine shutoff .........5-15,6-3
Emission control information label ......10-11
Emission control system warranty .......10-30
Engine Before starting

the engine ..........5-16
Blockheater ................5-143
Capacities and recommended
fuel/lubricants ................10-2
Changing engine coolant ...........8-5
Changingengineoil..............8-7
Changing engine oil filter ...........8-8
Checking engine coolant level ........8-5
Checking engine oil level ...........8-6
Engine compartment check locations ....8-3
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-4
Engineoil ...................8-6
Engine oil and oil filter recommendation . .10-6
Engine oil viscosity ..............10-7
Engine serial number ............10-11
Engine specifications ............10-8
Starting the engine .............5-16
Engine coolant temperature gauge .......2-6
Event Data recorders .............10-32
Exhaust gas (Carbon monoxide) .........5-4
Explanation of maintenance items ........9-2
Explanation of scheduled maintenance items . .9-5
11-2

Map pocket....................2-53
Memory Seat ...............3-36,3-38
Meters and gauges ................2-4
Instrument brightness control ........2-42
Mirror Automatic anti-glare inside mirror ......3-33
Outside mirrors ...............3-34
Vanity mirror .................3-33
Mirrors ......................3-33
Mobile Entertainment System (MES) ......4-95
Moonroof ......................7-4
Moving Object Detection (MOD) ........4-43
O
Octanerating(Seefueloctanerating).....10-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants ................10-2
Changing engine oil ..............8-7
Changing engine oil filter ...........8-8
Checking engine oil level ...........8-6
Engine oil ...................8-6
Engine oil and oil filter recommendation . .10-6
Engine oil viscosity ..............10-7
Outside mirrors .................3-34
Overheat Ifyourvehicleoverheats...........6-12
Owner’s manual order form ..........10-33
Owner’s manual/service manual order
information ...................10-33 P
Parking Parking brake operation ...........5-22
Parking/parking on hills ..........5-132
Parking brake ...................5-22
Personallights..................2-68
Power Power door locks ............3-5,3-6
Power outlet ..............2-50,2-51
Power rear windows .............2-61
Power steering fluid ..............8-9
Power steering system ...........5-132
Power windows ...............2-60
Rear power windows ............2-61
Power inverter switch ..............2-49
Power outlet ................2-50,2-51
Power steering .................5-132
Power steering fluid ................8-9
Precautions Maintenance precautions ...........8-2
On-pavement and off-road driving
precautions ..................5-8
Precautions on booster
seats...........1-29,1-36,1-42,1-47
Precautions on child
restraints .........1-29,1-36,1-42,1-47
Precautions on seat belt usage .......1-17
Precautions on supplemental restraint
system ....................1-50
Precautions when starting and driving ....5-4
Predictive Forward Collision Warning
(PFCW) .....................5-115
Push starting ...................6-12 R
Radio CarphoneorCBradio...........4-115
FM/AM radio with compact disc (CD)
player .....................4-70
Steering wheel audio control switch .4-7, 4-71
Rainsensor....................2-34
Readiness for

inspection maintenance (I/M)
test .......................10-31
Rear Cross Traffic Alert (RCTA) ........5-66
Rear power windows ..............2-61
RearView Monitor ................4-20
Rear window and outside mirror defroster
switch.......................2-36
Rear window wiper and washer switches . . .2-35
Recommended Fluids ..............10-2
Recorders EventData .................10-32
Refrigerant recommendation ..........10-7
Registering a vehicle in another country . . .10-10
Remote controller (See INFINITI mobile
entertainment system) .............4-105
Remote Start ...............3-19,5-17
Reporting safety defects (US only) ......10-30
Roadside assistance program ..........6-2
Roof rack .....................2-59
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-29,1-36,1-42,1-47
Reporting safety defects (US only) ....10-30
11-5

Seat adjustmentFront power seat adjustment .........1-3
Second row bench seats ........1-5,1-8
Seatback pockets ................2-53
Seat belt Childsafety..................1-26
Infantsandsmallchildren..........1-26
Injured Person ................1-20
Largerchildren................1-27
Precautionsonseatbeltusage.......1-17
Pregnant women ...............1-20
Seat belt extenders .............1-25
Seat belt maintenance ............1-25
Seat belts ................1-17,7-6
Three-point type with retractor .......1-21
Seat belt extenders ...............1-25
Seatbeltwarninglight..........1-20,2-12
Seats 2nd row bench seat adjustment ....1-5,1-8
Adjustment ...................1-2
Armrests....................1-8
Automatic drive positioner ......3-36,3-38
Frontseats...................1-2
Heatedseats.................2-45
Seats/floor mats ..................7-5
Security indicator light ..............2-14
Security system (INFINITI vehicle immobilizer system) ,
enginestart ...........2-31,3-4,5-16
Security systems Vehicle security system ...........2-30
Self-adjusting brakes ..............8-17
Service manual order form ...........10-33
Servicing air conditioner .............4-56
Setting button ...................4-5
Spark plug replacement .............8-14 Sparkplugs ...................8-14
Specifications
..................10-8
Speedometer ...................2-5
SRSwarninglabel................1-68
Stability control .................5-134
Standard maintenance ..............9-7
Starting Before starting the engine ..........5-16
Jump starting .............6-10,8-13
Precautions when starting and driving ....5-4
Push starting .................6-12
Starting the engine .............5-16
Starting the engine ...............5-16
Steering Heated steering wheel ...........2-47
Power steering fluid ..............8-9
Power steering system ...........5-132
Steeringwheel..................3-31
Steering wheel audio control switch . . .4-7, 4-71
Stoplight.....................8-22
Storage......................2-53
Storagebin....................2-58
Storage tray ...................2-54
Sunglassescase.................2-55
Sunglassesholder................2-55
Sunroof.......................7-4
Sun visors ....................3-32
Supplemental air bag warning labels ......1-68
Supplemental air bag warning light . . .1-69, 2-12
Supplemental front impact air bag system . . .1-58
Supplemental restraint system Information and warning labels .......1-68
Precautions on supplemental restraint
system ....................1-50
Supplemental restraint system
(Supplemental air bag system) .........1-50Switch
Autolightswitch...............2-38
Automatic power window switch ......2-62
Fog light switch ...............2-43
Hazard warning flasher switch ........6-2
Headlightandturnsignalswitch......2-37
Headlight control switch ..........2-37
Instrument brightness control ........
2
-42
Power door lock switch .........3-5,3-6
Power inverter switch ............2-49
Rear window and outside mirror defroster
switch .....................2-36
Rear window wiper and washer
switches ...................2-35
Steering wheel switch for audio
control/Bluetooth® Hands-Free Phone
System ....................4-71
Turnsignalswitch..............2-42
Vehicle dynamic control (VDC) off
switch .....................2-48
T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Theft (INFINITI vehicle immobilizer system) , engine
start ................2-31,3-4,5-16
Three-way catalyst ................5-4
Tire Flat tire .....................6-3
Spare tire ................6-5,8-34
Tire and Loading Information label ....10-12
Tire chains ..................8-31
11-6
