headrest INFINITI QX60 2018 Owner's Guide

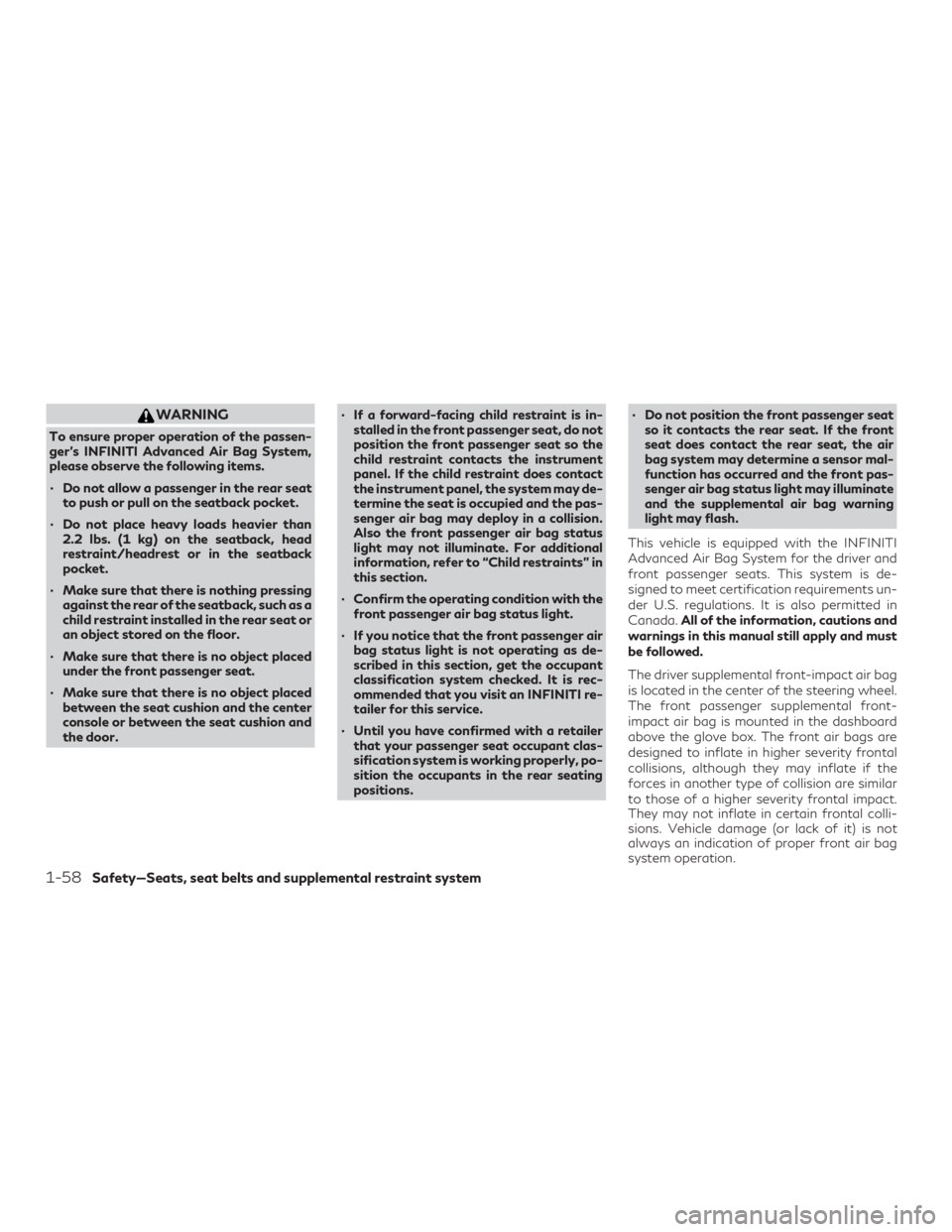

WARNING
To ensure proper operation of the passen-
ger’s INFINITI Advanced Air Bag System,
please observe the following items.
∙ Do not allow a passenger in the rear seatto push or pull on the seatback pocket.
∙ Do not place heavy loads heavier than 2.2 lbs. (1 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.
∙ Make sure that there is nothing pressing against the rear of the seatback, such as a
child restraint installed in the rear seat or
an object stored on the floor.
∙ Make sure that there is no object placed under the front passenger seat.
∙ Make sure that there is no object placed between the seat cushion and the center
console or between the seat cushion and
the door. ∙ If a forward-facing child restraint is in-
stalled in the front passenger seat, do not
position the front passenger seat so the
child restraint contacts the instrument
panel. If the child restraint does contact
the instrument panel, the system may de-
termine the seat is occupied and the pas-
senger air bag may deploy in a collision.
Also the front passenger air bag status
light may not illuminate. For additional
information, refer to “Child restraints” in
this section.
∙ Confirm the operating condition with the front passenger air bag status light.
∙ If you notice that the front passenger air bag status light is not operating as de-
scribed in this section, get the occupant
classification system checked. It is rec-
ommended that you visit an INFINITI re-
tailer for this service.
∙ Until you have confirmed with a retailer that your passenger seat occupant clas-
sification system is working properly, po-
sition the occupants in the rear seating
positions. ∙ Do not position the front passenger seat
so it contacts the rear seat. If the front
seat does contact the rear seat, the air
bag system may determine a sensor mal-
function has occurred and the front pas-
senger air bag status light may illuminate
and the supplemental air bag warning
light may flash.
This vehicle is equipped with the INFINITI
Advanced Air Bag System for the driver and
front passenger seats. This system is de-
signed to meet certification requirements un-
der U.S. regulations. It is also permitted in
Canada. All of the information, cautions and
warnings in this manual still apply and must
be followed.
The driver supplemental front-impact air bag
is located in the center of the steering wheel.
The front passenger supplemental front-
impact air bag is mounted in the dashboard
above the glove box. The front air bags are
designed to inflate in higher severity frontal
collisions, although they may inflate if the
forces in another type of collision are similar
to those of a higher severity frontal impact.
They may not inflate in certain frontal colli-
sions. Vehicle damage (or lack of it) is not
always an indication of proper front air bag
system operation.
1-58Safety—Seats, seat belts and supplemental restraint system

INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will
not allow the engine to start without the use
of the registered key.
If the engine fails to start using the registered
key, it may be due to interference caused by
another registered key, an automated toll
road device or automated payment device on
the key ring. Restart the engine using the
following procedures:1. Leave the ignition switch in the ON po- sition for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position and wait approximately
5 seconds.
3. Repeat Step 1 and 2 again.
4. Restart the engine while holding the de- vice (which may have caused the inter-
ference) separate from the registered
key.
If the no start condition re-occurs, INFINITI
recommends placing the registered key on a
separate key ring to avoid interference from
other devices. ∙ Make sure the area around the vehicle is
clear.
∙ Check fluid levels such as engine oil, cool- ant, brake fluid, and windshield-washer
fluid as frequently as possible, or at least
whenever you refuel.
∙ Check that all windows and lights are clean.
∙ Visually inspect tires for their appearance and condition. Also check tires for proper
inflation.
∙ Check that all doors are closed.
∙ Position seat and adjust head restraints/headrests.
∙ Adjust inside and outside mirrors.
∙ Fasten seat belts and ask all passengers to do likewise.
∙ Check the operation of warning lights when the ignition switch is placed in the
ON position. For additional information,
refer to “Warning lights, indicator lights
and audible reminders” in the “Instru-
ments and controls” section of this
manual. 1. Apply the parking brake.
2. Move the shift lever to P (Park) or N
(Neutral). P (Park) is recommended.
The starter is designed not to operate if
the shift lever is in any of the driving
positions.
3. Push the ignition switch to the ON posi- tion. Depress the brake pedal and push
the ignition switch to start the engine.
To start the engine immediately, push
and release the ignition switch while de-
pressing the brake pedal with the ignition
switch in any position.
∙ If the engine is very hard to start in extremely cold weather or when re-
starting, depress the accelerator pedal
a little (approximately 1/3 to the floor)
and while holding, crank the engine.
Release the accelerator pedal when
the engine starts.
∙ If the engine is very hard to start be- cause it is flooded, depress the accel-
erator pedal all the way to the floor
and hold it. Push the ignition switch to
the ON position to start cranking the
engine. After 5 or 6 seconds, stop
cranking by pushing the ignition switch
to the LOCK position. After cranking
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving5-17

Seats:Check seat position controls such as
seat adjusters, seatback recliner, etc., to en-
sure they operate smoothly and all latches
lock securely in every position. Check that the
head restraints/headrests move up and
down smoothly and the locks (if so equipped)
hold securely in all latched positions.
Steering wheel: Check for changes in the
steering system, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure all
warning lights and chimes are operating
properly.
Windshield defroster: Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating the
heater or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly and
that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel). Battery*:
Check the fluid level in each cell.
The fluid should be at the bottom of the filler
opening. Vehicles operated in high tempera-
tures or under severe conditions require fre-
quent checks of the battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of elec-
tronic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.).
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines
on the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belt*: Make sure the drive belt is
not frayed, worn, cracked or oily. Engine oil level*:
Check the level after parking
the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil
to drain back into the oil pan.
Exhaust system: Make sure there are no
loose supports, cracks or holes. If the sound
of the exhaust seems unusual or there is a
smell of exhaust fumes, immediately have the
exhaust system inspected. It is recommended
that you visit an INFINITI retailer for this
service. For additional information, refer to
“Exhaust gas (carbon monoxide)” in the
“Starting and driving” section of this manual.
Fluid leaks: Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping
from the air conditioner after use is normal. If
you should notice any leaks or if fuel fumes
are evident, check for the cause and have it
corrected immediately.
Power steering fluid level* and lines: Check
the level when the fluid is cold, with the en-
gine off. Check the lines for proper attach-
ment, leaks, cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure
the hoses have no cracks, deformation, rot or
loose connections.
9-4Maintenance and schedules
