Page 18 of 532
16. Shift lever (P. 5-19)
17. Audio system controls*Front passenger air bag status light
(P. 1-50)
18. Hazard warning flasher switch
(P. 6-2)
19. Push-button ignition switch
(P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-76)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-78)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-98)
22. Tilt and telescopic steering wheel
control (P. 3-33)
23. Bluetooth® Hands-Free Phone
System*
24. Steering wheel switch for audio
control* 25. Hood release (P. 3-23)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-51)
Heated steering wheel switch
(if so equipped) (P. 2-49)
Warning Systems switch
(if so equipped) (P. 2-50)
Power inverter switch (if so
equipped) (P. 2-53)
Liftgate release switch (P. 3-23)
Power liftgate main switch
(if so equipped) (P. 3-23)
26. Control panel and vehicle informa-
tion display switches (P. 2-17)
*: Refer to the separate Infiniti InTouchTM
Owner’s Manual (if so equipped).
Refer to the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7
Page 94 of 532
16. Shift lever (P. 5-19)
17. Audio system controls*Front passenger air bag status light
(P. 1-50)
18. Hazard warning flasher switch
(P. 6-2)
19. Push-button ignition switch
(P. 5-13)
20. Cruise control main/set switches
(if so equipped) (P. 5-76)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-78)
21. Dynamic Driver Assistance switch
(if so equipped) (P. 5-98)
22. Tilt and telescopic steering wheel
control (P. 3-33)
23. Bluetooth® Hands-Free Phone
System*
24. Steering wheel switch for audio
control* 25. Hood release (P. 3-23)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-51)
Heated steering wheel switch
(if so equipped) (P. 2-49)
Warning Systems switch
(if so equipped) (P. 2-50)
Power inverter switch
(if so equipped) (P. 2-53)
Liftgate release switch (P. 3-23)
Power liftgate main switch
(if so equipped) (P. 3-23)
26. Control panel and vehicle informa-
tion display switches (P. 2-17)
*: Refer to the separate Infiniti InTouchTM
Owner’s Manual (if so equipped).
Refer to the page number indicated in paren-
theses for operating details.
Instruments and controls2-3
Page 107 of 532
For additional information, refer to “Lane
Departure Warning (LDW) system” or “Lane
Departure Prevention (LDP) system” in the
“Starting and driving” section of this manual.
Light reminder chime
With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.
Turn the headlight control switch off before
leaving the vehicle.
Intelligent Key door buzzer
The Intelligent Key door buzzer sounds if any one
of the following improper operations is found.
∙ The ignition switch is not returned to theLOCK position when locking the doors.
∙ The Intelligent Key is left inside the ve- hicle when locking the doors.
∙ The Intelligent Key is taken outside the vehicle when operating the vehicle.
∙ Any doors are not closed securely when locking the doors.
When the buzzer sounds, be sure to check both
the vehicle and the Intelligent Key System. For
additional information, refer to “INFINITI Intel-
ligent Key” in the “Pre-driving checks and ad-
justments” section of this manual.
The vehicle information display is located to
the left of the speedometer. It displays such
items as:
∙ Vehicle settings
∙ Trip computer information
∙ Drive system warnings and settings (if so equipped)
∙ Cruise control system information (if so equipped)
∙ Intelligent Cruise Control (ICC) (if so equipped) system information
∙ Intelligent Key operation information ∙ Indicators and warnings
∙ Tire Pressure information
∙ Other information
LIC2205
VEHICLE INFORMATION DISPLAY
2-16Instruments and controls
Page 117 of 532
VEHICLE INFORMATION
DISPLAY WARNINGS AND
INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Key Battery Low
4. I-Key System Error: See Owner’sManual
5. Key Registration Complete
6. Push brake and start switch to drive
7. Push Ignition to OFF
8. Shift to Park
9. Engine start operation for Intelligent Key system (if I-Key battery level is low)
10. Release Parking Brake
11. Low Fuel
12. Loose Fuel Cap
13. Low Oil Pressure: See Owner’s Manual
14. Low Washer Fluid
15. Tire Pressure Low - Add Air
16. TPMS Error: See Owner’s Manual 17. AWD Error: See Owner’s Manual (if so
equipped)
18. AWD High Temp. Stop vehicle (if so equipped)
19. Tire Size Incorrect: See Owner’s Manual (if so equipped)
20. Door Open
21. Liftgate Open
22. Timer Alert – Have a break?
23. Low Outside Temperature
24. Power will turn off to save the battery
25. Turn off the lights
26. Parking Sensor Error: See Owner’s Manual
27. Predictive Forward Collision Warning (PFCW) indicator (if so equipped)
28. Lane Departure Warning (LDW) indica- tor (if so equipped)
29. Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA) indicator (if so
equipped)
30. Malfunction: See Owner’s Manual (if so equipped) 31. Intelligent Cruise Control (ICC) indica-
tors (if so equipped)
32. Cruise control indicators (if so equipped)
33. INFINITI Drive Mode Selector indicators
34. Unavailable: Road is slippery (if so equipped)
35. Unavailable: Snow Mode Active (if so equipped)
36. Unavailable: VDC OFF (if so equipped)
37. Unavailable: High Cabin Temp. (if so equipped)
38. Unavailable: Side Radar Obstruction (if so equipped)
39. Unavailable: High Accelerator Temp. (if so equipped)
40. Unavailable: Front Radar Obstruction (if so equipped)
41. BCI OFF (if so equipped)
42. Shipping Mode On Push Storage Fuse
43. CVT Error: See Owner’s Manual
44. Rear Door Alert is activated
45. Check Back Seat For All Articles
2-26Instruments and controls
Page 121 of 532
Malfunction: See Owner’s Manual (if so
equipped)
This warning appears when one or more of
the following systems (if so equipped) is not
functioning properly:∙ Forward Emergency Braking (FEB) with Pedestrian Detection
∙ Lane Departure Warning (LDW)
∙ Blind Spot Warning (BSW)
∙ Backup Collision Intervention (BCI)
∙ Blind Spot Intervention® (BSI)
∙ Intelligent Cruise Control (ICC)
∙ Distance Control Assist (DCA)
If one or more of these warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
Intelligent Cruise Control (ICC) indicators
(if so equipped)
These indicators show the Intelligent Cruise
Control (ICC) system status. For additional
information, refer to “Intelligent Cruise Con-
trol (ICC)” in the “Starting and driving” section
of this manual. Cruise control indicators (if so equipped)
These indicators show the cruise control sys-
tem status.
For additional information, refer to “Cruise
control” in the “Starting and driving” section
of this manual.
INFINITI Drive Mode Selector indicators
These indicators show the current drive
mode of the vehicle.
For additional information, refer to “INFINITI
Drive Mode Selector” in the “Starting and
driving” section of this manual.
Unavailable: Road is slippery (if so
equipped)
This message appears when the Distance
Control Assist (DCA), Lane Departure Pre-
vention (LDP), or Blind Spot Intervention®
(BSI) systems become unavailable because
the road is slippery. For additional informa-
tion, refer to “Distance Control Assist (DCA)”,
“Lane Departure Prevention (LDW)”, or “Blind
Spot Intervention® (BSI)” in the “Starting and
driving” section of this manual.
Unavailable: Snow Mode Active (if so
equipped)
This message appears when the Distance
Control Assist (DCA), Lane Departure Pre-
vention (LDP), or Blind Spot Intervention®
(BSI) systems become unavailable because
the Snow Mode is selected. For additional
information, refer to “Distance Control Assist
(DCA)”, “Lane Departure Prevention (LDW)”,
or “Blind Spot Intervention® (BSI)” in the
“Starting and driving” section of this manual.
Unavailable: VDC OFF (if so equipped)
This message appears when the Distance
Control Assist (DCA), Lane Departure Pre-
vention (LDP), or Blind Spot Intervention®
(BSI) systems become unavailable because
the Vehicle Dynamic Control (VDC) is turned
off. For additional information, refer to “Dis-
tance Control Assist (DCA)”, “Lane Departure
Prevention (LDW)”, or “Blind Spot Interven-
tion® (BSI)” in the “Starting and driving” sec-
tion of this manual.
Unavailable: High Cabin Temp. (if so
equipped)
This message appears when the camera de-
tects an interior temperature of more than
40°C (104°F). For additional information, re-
fer to “Distance Control Assist (DCA)”, “Lane
2-30Instruments and controls
Page 122 of 532
Departure Prevention (LDW)”, “Lane Depar-
ture Prevention (LDP)” or “Blind Spot Inter-
vention® (BSI)” in the “Starting and driving”
section of this manual.
Unavailable: Side Radar Obstruction (if so
equipped)
This message appears when the Blind Spot
Warning (BSW), Rear Cross Traffic Alert
(RCTA), Blind Spot Intervention® (BSI), or
Backup Collision Intervention systems be-
come unavailable because a radar blockage is
detected. For additional information, refer to
“Blind Spot Warning (BSW)”, “Rear Cross
Traffic Alert (RCTA)”, “Blind Spot Interven-
tion® (BSI)”, or “Backup Collision Interven-
tion” in the “Starting and driving” section of
this manual.
Unavailable: High Accelerator Temp. (if so
equipped)
This message appears when the Backup Col-
lision Intervention (BCI) system becomes un-
available because of an interior temperature
greater than approximately 104°F (40°C).
For additional information, refer to “Backup
Collision Intervention (BCI)” in the “Starting
and driving” section of this manual.Unavailable: Front Radar Obstruction (if so
equipped)
This message appears when the Intelligent
Cruise Control (ICC), Distance Control Assist
(DCA), Forward Emergency Braking (FEB)
with Pedestrian Detection, or Predictive For-
ward Collision Warning (PFCW) systems be-
come unavailable because the front radar is
obstructed. For additional information, refer
to “Intelligent Cruise Control (ICC)”, “Distance
Control Assist (DCA)”, “Forward Emergency
Braking (FEB) with Pedestrian Detection”, or
“Predictive Forward Collision Warning
(PFCW)” in the “Starting and driving” section
of this manual.
BCI OFF (if so equipped)
This message appears when the Backup Col-
lision Intervention (BCI) system is turned off
using the BCI switch. For additional informa-
tion, refer to “Backup Collision Intervention
(BCI)” in the “Starting and driving” section of
this manual.
Shipping Mode On Push Storage Fuse
This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended stor-
age switch to turn off the warning. For addi-tional information, refer to “Extended stor-
age switch” in this section.
CVT Error: See Owner’s Manual
This warning illuminates when there is a
problem with the CVT system. If this warning
comes on, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.
Rear Door Alert is activated
When the system is enabled, this message
appears when the rear door alert system is
active and can remind the driver to check the
back seat.
∙ Using the steering wheel switch, a driver can select “Dismiss Message” to clear the
display for a period of time. If no selection
is made, this message automatically turns
off after a period of time.
∙ Using the steering wheel switch, a driver can select “Disable Alert” to disable the
horn alert for the remainder of the cur-
rent trip.
Instruments and controls2-31
Page 259 of 532
BSW system limitations.....................5-41
BSW driving situations ......................5-42
System temporarily unavailable ..............5-45
System maintenance ........................ 5-46
Blind Spot Intervention® (BSI) (if so equipped) . . . 5-47 BSI system operation ........................ 5-49
How to enable/disable the BSI system .......5-50
BSI system limitations ....................... 5-51
BSI driving situations ........................ 5-52
System temporarily unavailable ..............5-57
System malfunction ......................... 5-57
System maintenance ........................ 5-58
Backup Collision Intervention (BCI)
(if so equipped) ................................. 5-59
BCI system operation ....................... 5-61
Turning the BCI system on/off ...............5-64
BCI system limitations ....................... 5-65
System temporarily not available .............5-66
System malfunction ......................... 5-67
System maintenance ........................ 5-67
Rear Cross Traffic Alert (RCTA) (if so equipped). . . 5-68
RCTA system operation .....................5-69
How to enable/disable the RCTA system .....5-71 RCTA system limitations
.....................5-72
System temporarily unavailable ..............5-75
System maintenance ........................ 5-75
Cruise control (if so equipped) ..................5-76
Precautions on cruise control ................5-76
Cruise control operations .....................5-77
Intelligent Cruise Control (ICC) (if so equipped) . . 5-78 ICC system operation ....................... 5-79
The ICC switch .............................. 5-82
Operating ICC .............................. 5-86
Operating conventional (fixed speed)
cruise control mode ......................... 5-90
ICC system limitations ....................... 5-92
System temporarily unavailable ..............5-95
System maintenance ........................ 5-97
Distance Control Assist (DCA) (if so equipped) . . . 5-98 DCA system operation ......................5-98
How to enable/disable the DCA system .....5-101
DCA system limitations .....................5-102
DCA driving situations ......................5-104
System temporarily unavailable .............5-106
System maintenance ....................... 5-108
Forward Emergency Braking (FEB) with
Pedestrian Detection system (if so equipped) . . . 5-109
Page 282 of 532
ECO MODE
The ECO mode adjusts the engine and trans-
mission to enhance fuel economy.
NOTE:
Selecting this drive mode will not necessarily
improve fuel economy as many driving fac-
tors influence its effectiveness.
Operation
Turn the Drive Mode Selector switch to the
ECO position. “ECO” appears in the vehicle
information display for 2 seconds and the
ECO drive indicator light illuminates on the
instrument panel.
When the accelerator pedal is depressed
within the range of economy drive, the ECO
drive indicator light illuminates in green.
When the accelerator pedal is depressed
above the range of economy drive, the color
of the ECO drive indicator light changes to
orange. For ECO pedal system equipped
models, refer to “ECO pedal system” in this
section.
The ECO drive indicator light will not illumi-
nate in the following cases:∙ When the shift lever is in the R (Reverse) position. ∙ When the vehicle speed is below 3 mph
(4.8 km/h) or over 90 mph (144 km/h).
∙ When the Intelligent Cruise Control sys- tem (if so equipped) is operated.
ECO pedal system (if so equipped)
The ECO pedal system helps assist the driver
to improve fuel economy by increasing the
reaction force of the accelerator pedal. When
the ECO drive indicator light is blinking or
turns off, the ECO pedal system increases
the reaction force of the accelerator pedal.
ECO drive indicator Illuminates or
blinks when
Illuminates
(green) When the pedal
is depressed
within range of economy drive
Blinks
(green) When the pedal
is depressed
likely over the range of
economy drive
When the ECO drive indicator illuminates in
green, the accelerator reaction force is nor-
mal. When the ECO drive indicator light is
blinking or turns off, the ECO pedal system
increases the reaction force of the accelera-
tor pedal.
The ECO pedal system may not vary accel-
erator reaction force under the following
conditions:
∙ When the shift lever is in the N (Neutral) or R (Reverse) position.
∙ When Intelligent Cruise Control (if so equipped) is being operated.
If the ECO pedal system malfunctions, it will
cancel automatically. The ECO pedal system
will not vary the reaction force of the accel-
erator pedal.
When the Drive Mode Selector switch is ro-
tated from the ECO mode to another mode
(STANDARD, SPORT or SNOW) while the
ECO pedal system is operating, the ECO
pedal system continues to operate until the
pedal is released.
If the accelerator pedal is depressed quickly,
the ECO pedal system will not increase the
reaction force of the acceleration pedal. The
ECO pedal system is not designed to prevent
the vehicle from accelerating.
Starting and driving5-25
Page 293 of 532
The LDP system may or may not operate
properly under the following conditions:
∙ On roads where there are multiple paral-lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; or lane markers covered with
water, dirt, snow, etc.
∙ On roads where discontinued lane mark- ers are still detectable.
∙ On roads where there are sharp curves.
∙ On roads where there are sharply con- trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDP system
could detect these items as lane
markers.)
∙ On roads where the traveling lane merges or separates.
∙ When the vehicle’s traveling direction does not align with the lane marker.
∙ When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
∙
When rain, snow or dirt adheres to the
windshield in front of the lane camera unit.
∙ When the headlights are not bright due to dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
∙ When a sudden change in brightness oc- curs. (For example, when the vehicle en-
ters or exits a tunnel or under a bridge.)
While the LDP system is operating, you may
hear a sound of brake operation. This is nor-
mal and indicates that the LDP system is
operating properly.
SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
The warning and assist functions of the LDP
system are not designed to work under the
following conditions: ∙ When you operate the lane change signal and change the traveling lanes in the di-
rection of the signal. (The LDP system will
be deactivated for approximately 2 sec-
onds after the lane change signal is
turned off.) ∙ When the vehicle speed lowers to less
than approximately 45 mph (70 km/h).
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the warning and assist functions will
resume.
Condition B:
The assist function of the LDP system is not
designed to work under the following condi-
tions (warning is still functional): ∙ When the brake pedal is depressed.
∙ When the steering wheel is turned as far as necessary for the vehicle to change
lanes.
∙ When the vehicle is accelerated during LDP system operation.
∙ When the Intelligent Cruise Control (ICC) approach warning occurs.
∙ When the hazard warning flashers are operated.
∙ When driving on a curve at high speed.
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the LDP system application of the
brakes will resume.
5-36Starting and driving
Page 333 of 532

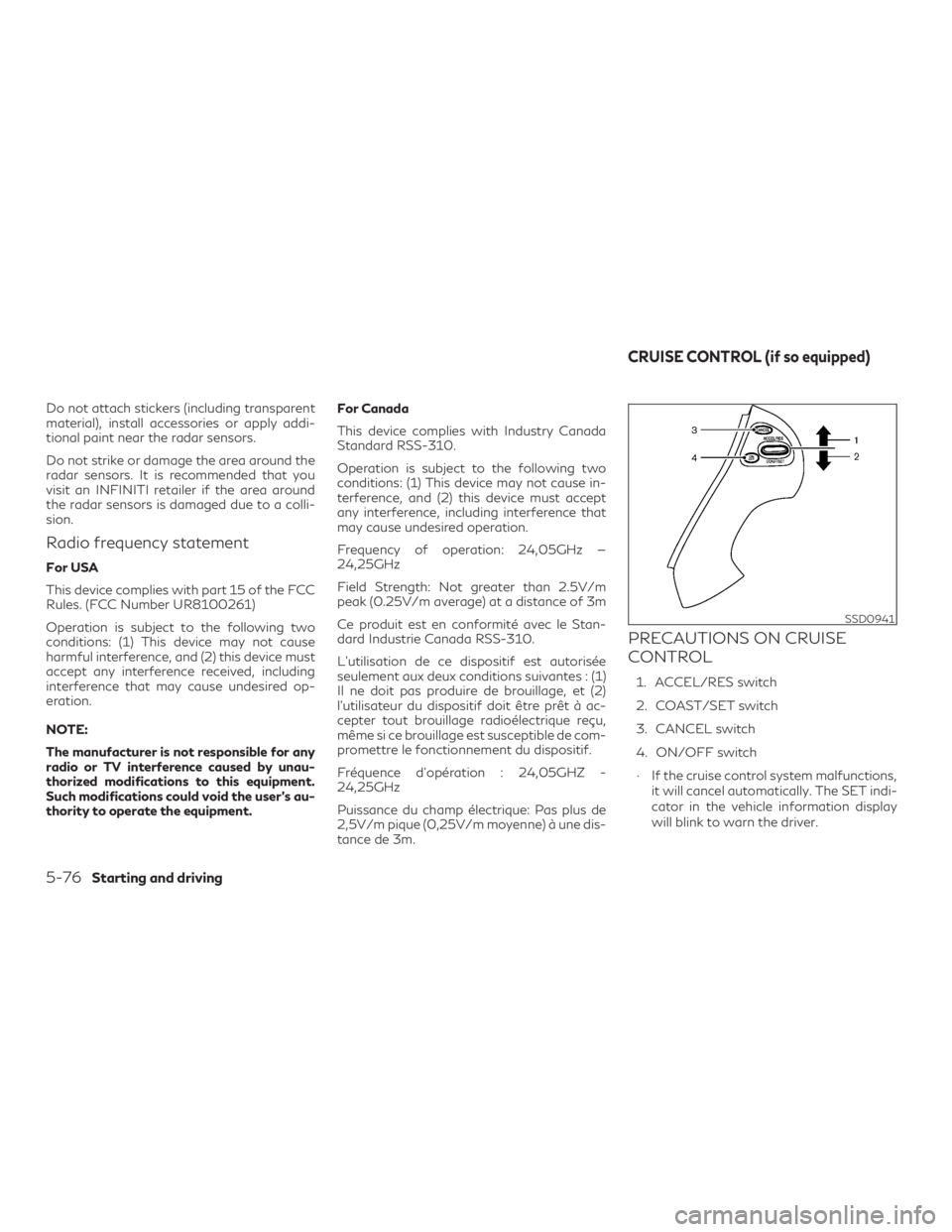

Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261)
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.For Canada
This device complies with Industry Canada
Standard RSS-310.
Operation is subject to the following two
conditions: (1) This device may not cause in-
terference, and (2) this device must accept
any interference, including interference that
may cause undesired operation.
Frequency of operation: 24,05GHz —
24,25GHz
Field Strength: Not greater than 2.5V/m
peak (0.25V/m average) at a distance of 3m
Ce produit est en conformité avec le Stan-
dard Industrie Canada RSS-310.
L’utilisation de ce dispositif est autorisée
seulement aux deux conditions suivantes : (1)
Il ne doit pas produire de brouillage, et (2)
l’utilisateur du dispositif doit être prêt à ac-
cepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de com-
promettre le fonctionnement du dispositif.
Fréquence d’opération : 24,05GHZ -
24,25GHz
Puissance du champ électrique: Pas plus de
2,5V/m pique (0,25V/m moyenne) à une dis-
tance de 3m.
PRECAUTIONS ON CRUISE
CONTROL
1. ACCEL/RES switch
2. COAST/SET switch
3. CANCEL switch
4. ON/OFF switch
∙ If the cruise control system malfunctions, it will cancel automatically. The SET indi-
cator in the vehicle information display
will blink to warn the driver.
SSD0941
CRUISE CONTROL (if so equipped)
5-76Starting and driving
