POWER LIFTGATE MAIN
SWITCH (if so equipped)
The power liftgate operation can be turned
on or off by the power liftgate main switch on
the instrument panel.
When the power liftgate main switch is
pushed to the OFF position, the power op-
eration is not available by the power liftgate
switch on the liftgate and liftgate opener
switch.Power operation is available when in the
OFF position by the key fob button.
Motion-Activated Liftgate (if so equipped)
will not function when the power liftgate
main switch is pushed in the OFF position.
LIFTGATE RELEASE
WARNING
∙ Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
∙ Do not drive with the liftgate open. This could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and driv-
ing” section of this manual.
∙ To avoid personal injury, do not attempt to activate the power liftgate if one or
both of the liftgate struts are removed.
CAUTION
∙ If the power liftgate does not stay openor if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in one
or both of the liftgate struts. It is recom-
mended that you have the liftgate in-
spected. It is recommended that you visit
an INFINITI retailer for this service.
∙ Do not activate the power liftgate if one or both of the liftgate struts are re-
moved. Damage to the liftgate or power
liftgate mechanisms may occur.
∙ Keep the power liftgate main switch (if so equipped) in the OFF position when
washing or working around the back of
the vehicle (with Intelligent Key) to pre-
vent inadvertent opening/closing.
LPD2277
3-28Pre-driving checks and adjustments

Power liftgate release
If the liftgate cannot be opened with the
instrument panel switch, liftgate opener
switch or key fob due to a discharged battery,
follow these steps:1. Remove the cover
Aon the inside of the
liftgate.
2. Move the lever
Bas illustrated to open
the liftgate.
It is recommended that you visit an INFINITI
retailer as soon as possible for repair.
LIFTGATE POSITION SETTING
The liftgate can be set to open to a specific
height by performing the following: 1. Open the liftgate using the request switch or the Intelligent Key.
2. Pull the liftgate down to the desired po- sition and hold the liftgate (the liftgate
will have some resistance when being
manually adjusted).
3. While holding the liftgate in position, push and hold the liftgate switch
located on the liftgate for approximately
5 seconds or until three beeps are heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat Steps 1-3 for setting the position of
the liftgate.
OPENING THE FUEL-FILLER
DOOR
The fuel-filler door automatically unlocks
when the driver’s door is unlocked.
1. Unlock the fuel-filler door using one of the following operations:
∙ Unlock the driver’s door with the key fob.
∙ Push the power door lock switch to the unlock position.
∙ Push the door handle request switch (with the key fob in range).
SPA2778WPD0454
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-29

2. To open the fuel-filler door, push theright side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
∙
Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the
Malfunction Indicator
Light (MIL) to come on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel con- tainers for flammable liquid.CAUTION
∙ If fuel is spilled on the vehicle body, flushit away with water to avoid paint
damage.
∙ Insert the fuel-filler cap straight into the fuel-filler tube, then tighten until the
fuel-filler cap clicks. Failure to tighten
the fuel-filler cap properly may cause
the
Malfunction Indicator Light
(MIL) to illuminate. If the
light illu-
minates because the fuel-filler cap is
loose or missing, tighten or install the cap
and continue to drive the vehicle.
The
light should turn off after a
few driving trips. If the
light does
not turn off after a few driving trips, have
the vehicle inspected. It is recommended
that you visit an INFINITI retailer for this
service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
the “Instruments and controls” section of
this manual.
3-30Pre-driving checks and adjustments

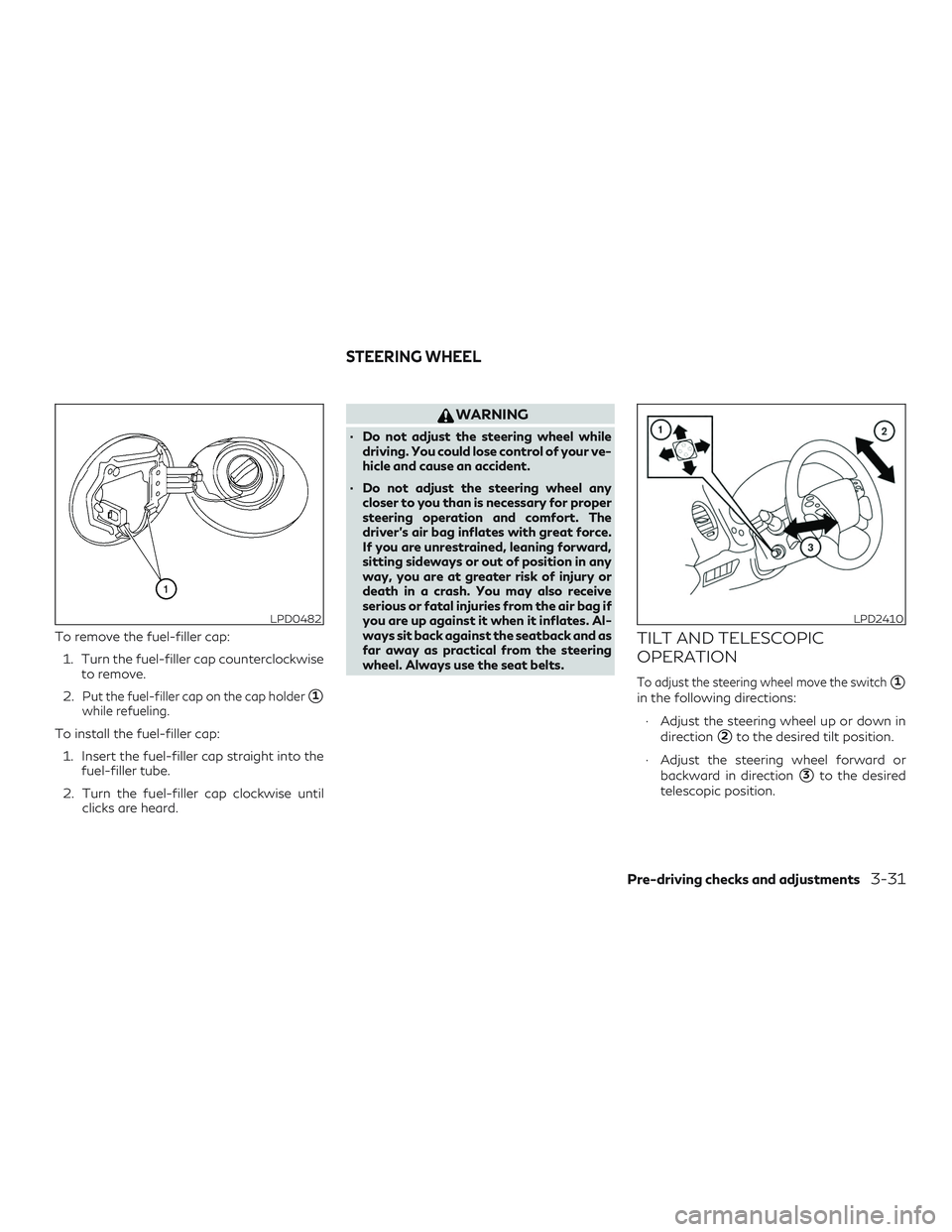

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2.
Put the fuel-filler cap on the cap holder1
while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until clicks are heard.
WARNING
∙ Do not adjust the steering wheel whiledriving. You could lose control of your ve-
hicle and cause an accident.
∙ Do not adjust the steering wheel any closer to you than is necessary for proper
steering operation and comfort. The
driver’s air bag inflates with great force.
If you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, you are at greater risk of injury or
death in a crash. You may also receive
serious or fatal injuries from the air bag if
you are up against it when it inflates. Al-
ways sit back against the seatback and as
far away as practical from the steering
wheel. Always use the seat belts.
TILT AND TELESCOPIC
OPERATION
To adjust the steering wheel move the switch1
in the following directions:
∙ Adjust the steering wheel up or down in direction
2to the desired tilt position.
∙ Adjust the steering wheel forward or backward in direction
3to the desired
telescopic position.
LPD0482LPD2410
STEERING WHEEL
Pre-driving checks and adjustments3-31

CAUTION
For vehicles with automatic drive posi-
tioner: Failure to reset the tilt and telescop-
ing functions of the steering wheel, after
the vehicle’s battery has been discharged,
may prevent the steering wheel position
from being adjusted.
For vehicles with automatic drive positioner:
Both the tilt and telescopic steering opera-
tion must be reset after the vehicle’s battery
has been discharged in order to prevent the
tilt and telescopic operation from locking in
one position. When the battery has been re-
charged or replaced, perform the following: ∙ For tilt operation: Adjust the switch
1so
the steering wheel moves to the highest
position
2that can be reached.
∙ For telescopic operation: Adjust the switch
1so the steering wheel moves to
the most forward and backward position
3that can be reached.
Performing these operations resets the range
of the steering wheel’s tilt and telescopic
function.
Entry/Exit function
The automatic drive positioner system will
make the steering wheel move up automati-
cally when the driver’s door is opened and the
ignition switch is in the LOCK position. This
lets the driver get into and out of the seat
more easily. The steering wheel moves back
into position when the driver’s door is closed
and the ignition switch is pushed.
For additional information, refer to “Auto-
matic drive positioner” in this section.
1. To block glare from the front, swingdown the sun visor
1.
2. To block glare from the side, remove the sun visor from the center mount and
swing the visor to the side
2.
WPD0435
SUN VISORS
3-32Pre-driving checks and adjustments

3. Slide the extension3sun visor in or out
as needed.
CAUTION
∙ Do not store the sun visor before return- ing the extension to its original position.
∙ Do not pull the extension sun visor forc- ibly downward.
VANITY MIRRORS

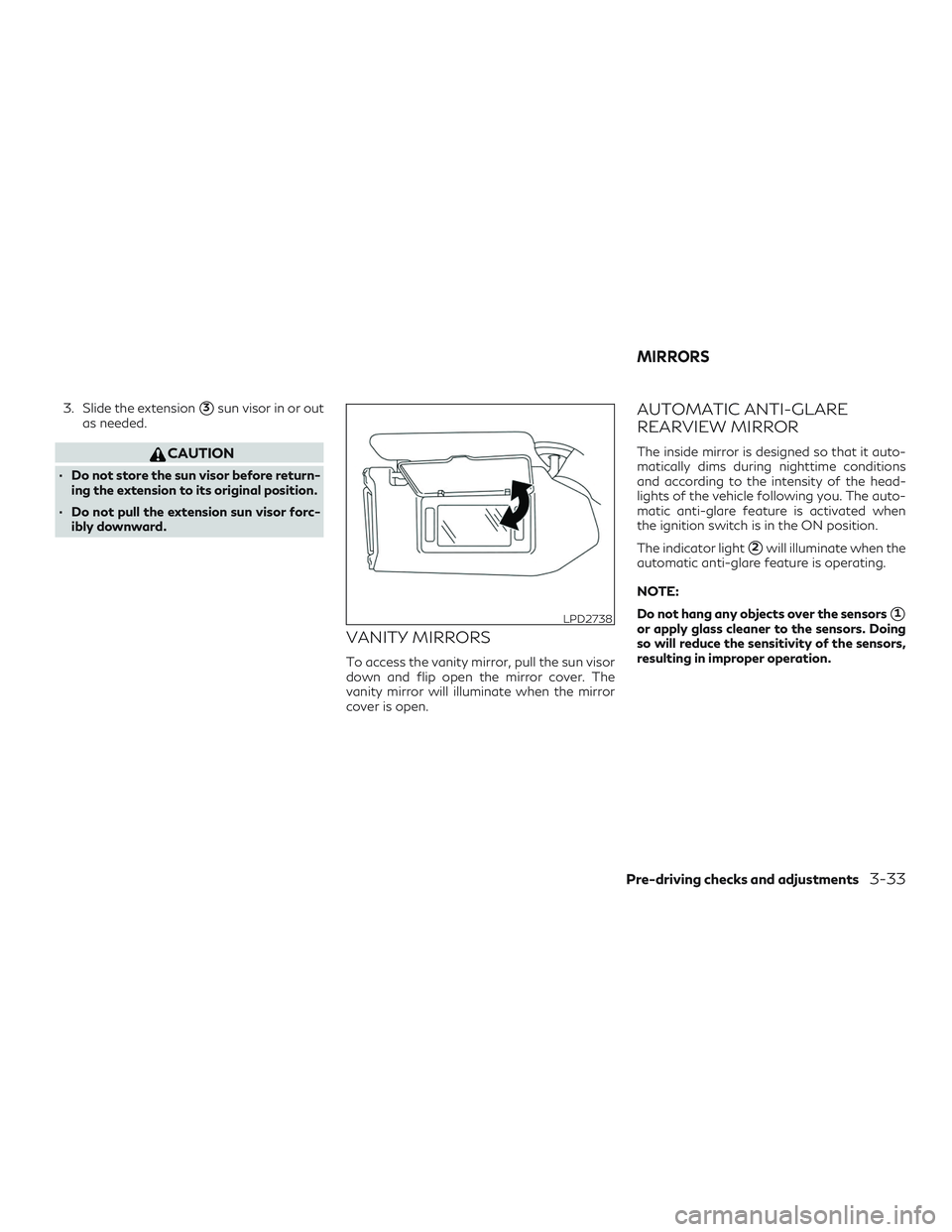

To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. The
vanity mirror will illuminate when the mirror
cover is open.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR
The inside mirror is designed so that it auto-
matically dims during nighttime conditions
and according to the intensity of the head-
lights of the vehicle following you. The auto-
matic anti-glare feature is activated when
the ignition switch is in the ON position.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
NOTE:
Do not hang any objects over the sensors
1
or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.LPD2738
MIRRORS
Pre-driving checks and adjustments3-33

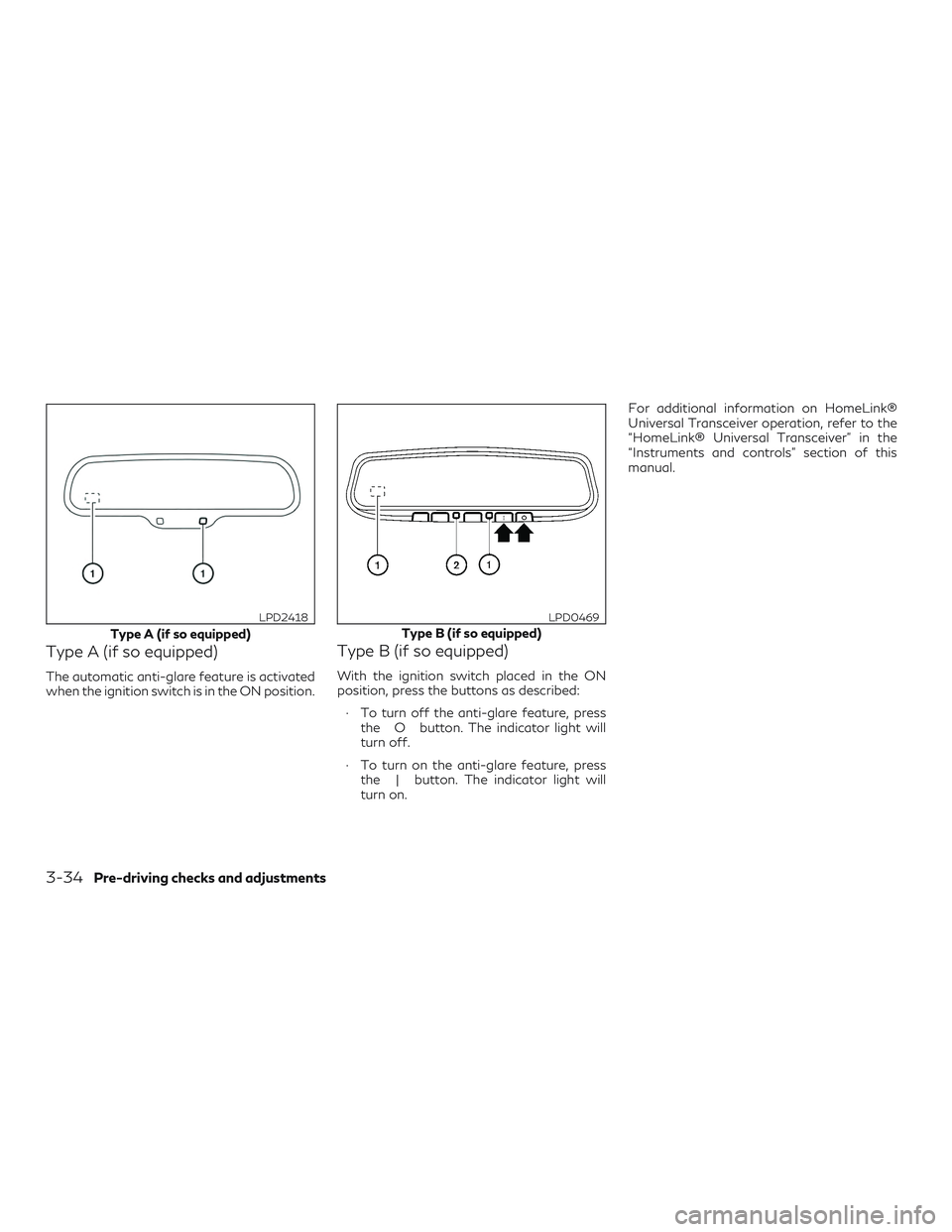

Type A (if so equipped)
The automatic anti-glare feature is activated
when the ignition switch is in the ON position.
Type B (if so equipped)
With the ignition switch placed in the ON
position, press the buttons as described:∙ To turn off the anti-glare feature, press the O button. The indicator light will
turn off.
∙ To turn on the anti-glare feature, press the | button. The indicator light will
turn on. For additional information on HomeLink®
Universal Transceiver operation, refer to the
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.
Type A (if so equipped)
LPD2418
Type B (if so equipped)
LPD0469
3-34Pre-driving checks and adjustments

OUTSIDE MIRRORS

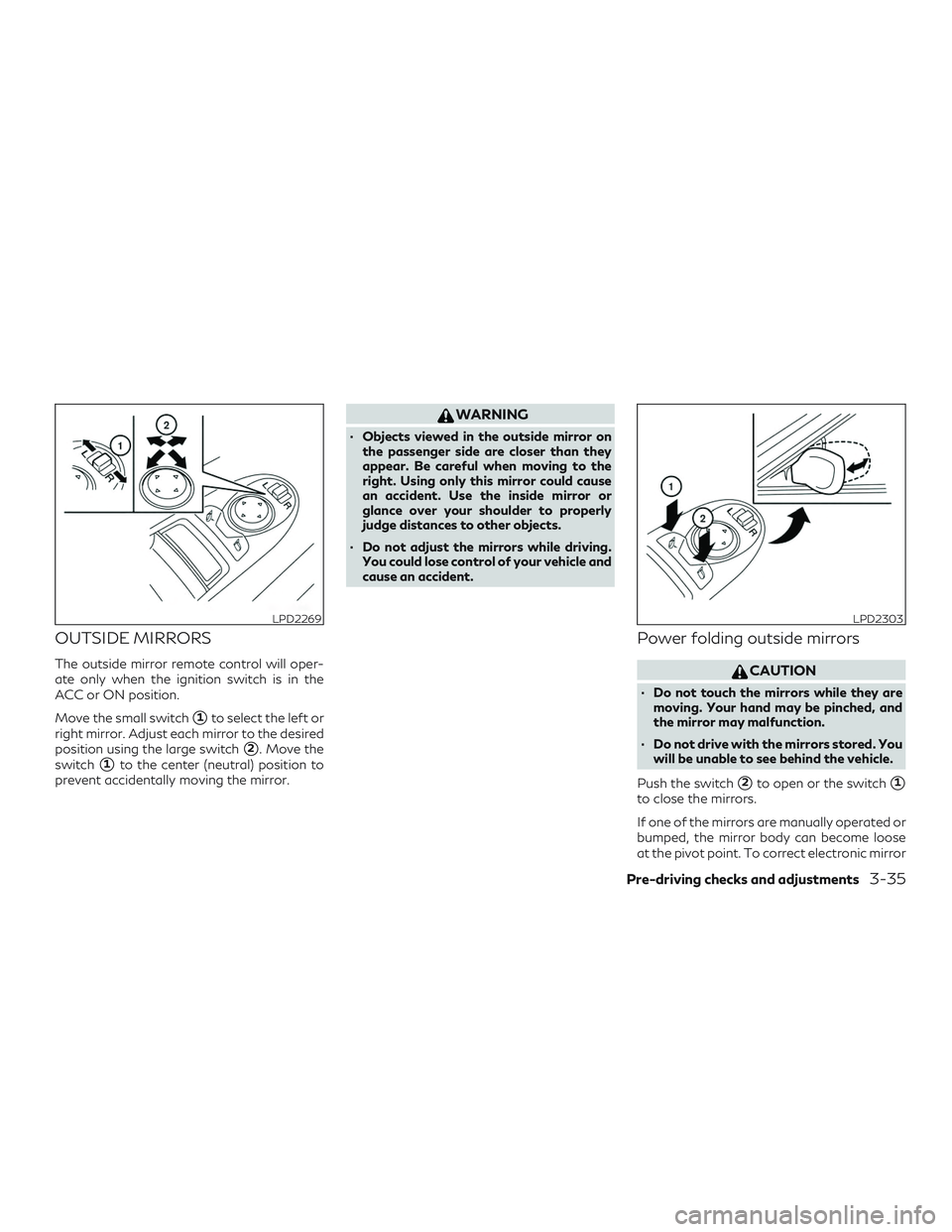

The outside mirror remote control will oper-
ate only when the ignition switch is in the
ACC or ON position.
Move the small switch
1to select the left or
right mirror. Adjust each mirror to the desired
position using the large switch
2. Move the
switch
1to the center (neutral) position to
prevent accidentally moving the mirror.
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
∙ Do not adjust the mirrors while driving. You could lose control of your vehicle and
cause an accident.
Power folding outside mirrors
CAUTION
∙ Do not touch the mirrors while they aremoving. Your hand may be pinched, and
the mirror may malfunction.
∙ Do not drive with the mirrors stored. You will be unable to see behind the vehicle.
Push the switch
2to open or the switch1
to close the mirrors.
If one of the mirrors are manually operated or
bumped, the mirror body can become loose
at the pivot point. To correct electronic mirror
LPD2269LPD2303
Pre-driving checks and adjustments3-35

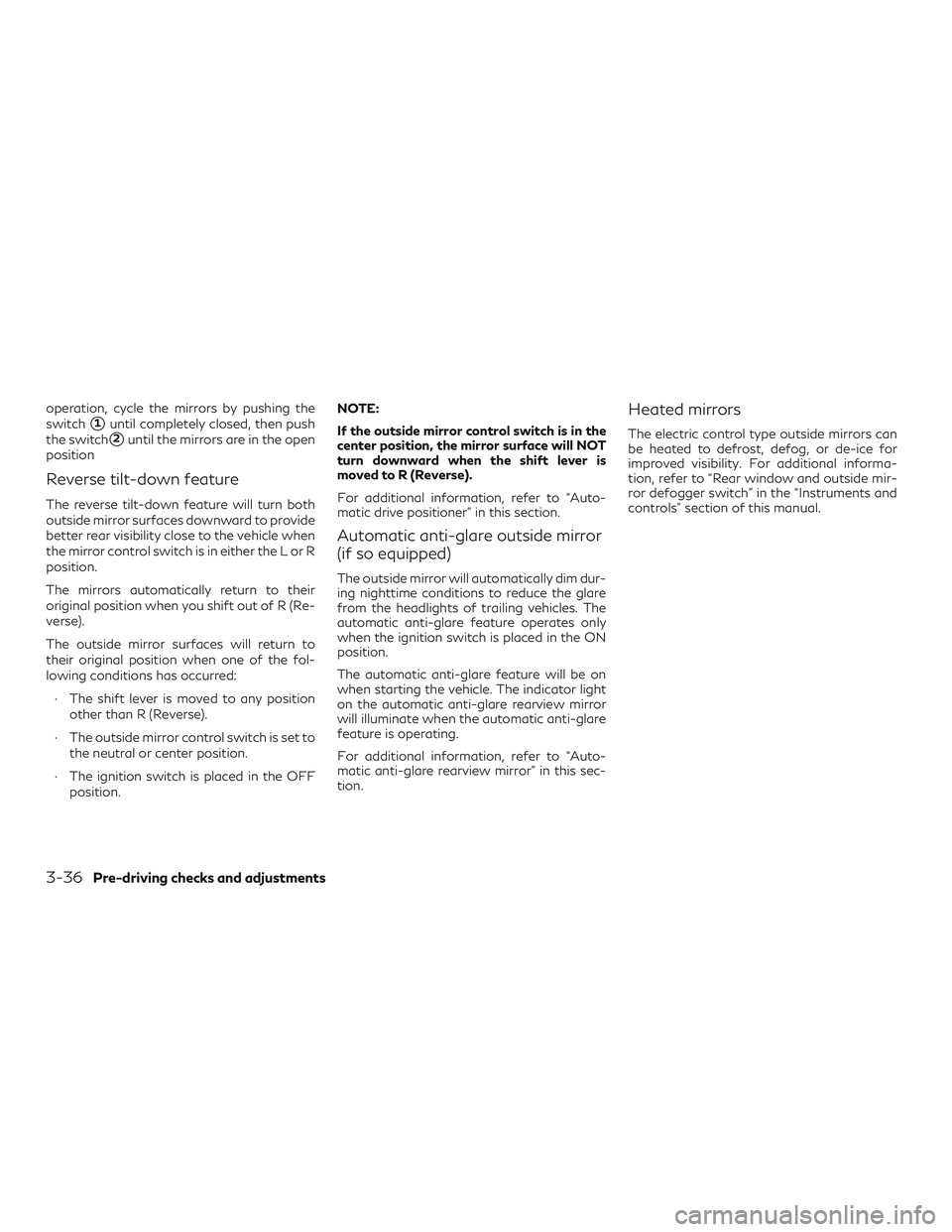

operation, cycle the mirrors by pushing the
switch
1until completely closed, then push
the switch
2until the mirrors are in the open
position
Reverse tilt-down feature
The reverse tilt-down feature will turn both
outside mirror surfaces downward to provide
better rear visibility close to the vehicle when
the mirror control switch is in either the L or R
position.
The mirrors automatically return to their
original position when you shift out of R (Re-
verse).
The outside mirror surfaces will return to
their original position when one of the fol-
lowing conditions has occurred:
∙ The shift lever is moved to any position other than R (Reverse).
∙ The outside mirror control switch is set to the neutral or center position.
∙ The ignition switch is placed in the OFF position. NOTE:
If the outside mirror control switch is in the
center position, the mirror surface will NOT
turn downward when the shift lever is
moved to R (Reverse).
For additional information, refer to “Auto-
matic drive positioner” in this section.
Automatic anti-glare outside mirror
(if so equipped)
The outside mirror will automatically dim dur-
ing nighttime conditions to reduce the glare
from the headlights of trailing vehicles. The
automatic anti-glare feature operates only
when the ignition switch is placed in the ON
position.
The automatic anti-glare feature will be on
when starting the vehicle. The indicator light
on the automatic anti-glare rearview mirror
will illuminate when the automatic anti-glare
feature is operating.
For additional information, refer to “Auto-
matic anti-glare rearview mirror” in this sec-
tion.
Heated mirrors
The electric control type outside mirrors can
be heated to defrost, defog, or de-ice for
improved visibility. For additional informa-
tion, refer to “Rear window and outside mir-
ror defogger switch” in the “Instruments and
controls” section of this manual.
3-36Pre-driving checks and adjustments

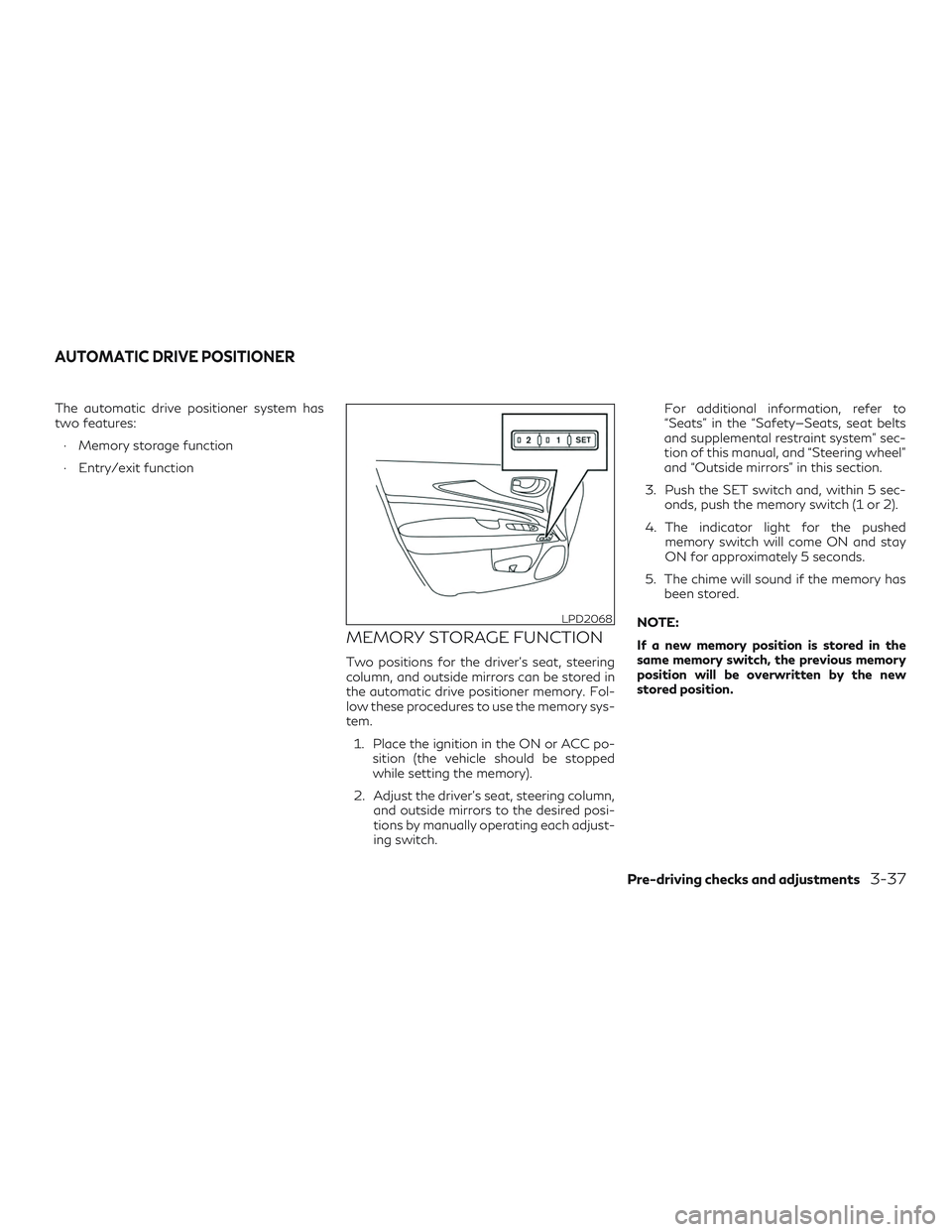

The automatic drive positioner system has
two features:∙ Memory storage function
∙ Entry/exit function
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering
column, and outside mirrors can be stored in
the automatic drive positioner memory. Fol-
low these procedures to use the memory sys-
tem. 1. Place the ignition in the ON or ACC po- sition (the vehicle should be stopped
while setting the memory).
2. Adjust the driver’s seat, steering column, and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information, refer to
“Seats” in the “Safety—Seats, seat belts
and supplemental restraint system” sec-
tion of this manual, and “Steering wheel”
and “Outside mirrors” in this section.
3. Push the SET switch and, within 5 sec- onds, push the memory switch (1 or 2).
4. The indicator light for the pushed memory switch will come ON and stay
ON for approximately 5 seconds.
5. The chime will sound if the memory has been stored.
NOTE:
If a new memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.
LPD2068
AUTOMATIC DRIVE POSITIONER
Pre-driving checks and adjustments3-37
