TIRE PRESSURE MONITORING
SYSTEM (TPMS) (if so equipped)
This vehicle is equipped with the Tire Pres-
sure Monitoring System (TPMS). It monitors
tire pressure of all tires except the spare.
When the low tire pressure warning light is lit,
and the “Tyre Pressure Low - Add Air” warn-
ing appears in the vehicle information display,
one or more of your tires is significantly
under-inflated. If equipped, the system also
displays pressure of all tires (except the spare
tire) on the display screen by sending a signal
from a sensor that is installed in each wheel. If
the vehicle is being driven with low tire pres-
sure, the TPMS will activate and warn you of
it by the low tire pressure warning light. This
system will activate only when the vehicle is
driven at speeds above 25 km/h (16 mph).
For additional information, refer to “Warning
lights, indicator lights and audible reminders”
in the “Instruments and controls” section and
“Tire Pressure Monitoring System (TPMS)” in
the “Starting and driving” section of this
manual.
WARNING
∙ Radio waves could adversely affect elec-tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
∙ If the low tire pressure warning light illu- minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the tire placard to turn the low tire pres-
sure warning light OFF. If you have a flat
tire, replace it with a spare tire as soon as
possible. ∙ When replacing a wheel without TPMS
such as the spare tire, TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
an INFINITI retailer for these services.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ Do not inject any tire liquid or aerosol tire sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions
below:
Stopping the vehicle
1. Safely move the vehicle off the road and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to
P (Park).
4. Turn off the engine.
FLAT TIRE
In case of emergency6-3

CAUTION
∙ Continuously Variable Transmission(CVT) models cannot be push-started or
tow-started. Attempting to do so may
cause transmission damage.
∙ Do not push start this vehicle. The three- way catalyst may be damaged. If your vehicle is overheating (indicated by an
extremely high temperature gauge reading
and the illumination of the engine oil pressure
message), or if you feel a lack of engine
power, detect abnormal noise, etc. take the
following steps.
WARNING
To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
1. Move the vehicle safely off the road, apply the parking brake and move the
shift lever to P (Park).
Do not stop the engine.
2. Turn off the air conditioner. Open all the windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.
3. Get out of the vehicle. Look and listen for steam or coolant escaping from the ra-
diator before opening the hood. (If
steam or coolant is escaping, turn off the
engine.) Do not open the hood further
until no steam or coolant can be seen. 4. Open the engine hood.
5. Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leak-
ing, the water pump belt is missing or
loose, or the cooling fan does not run,
stop the engine.WARNING
∙ Be careful not to allow your hands, hair,jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling
fan can start at any time.
∙ If coolant is leaking, or the cooling fan does not run, stop the engine.
6. After the engine cools down, check the coolant level in the engine coolant reser-
voir tank with the engine running. Add
coolant to the engine coolant reservoir
tank if necessary. Have your vehicle re-
paired. It is recommended that you visit
an INFINITI retailer for this service.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency6-13

8 Maintenance and do-it-yourself
Maintenance requirements.......................8-2
General maintenance .............................8-2
Explanation of general maintenance
items .........................................8-2
Maintenance precautions .........................8-5
Engine compartment check locations ..............8-6

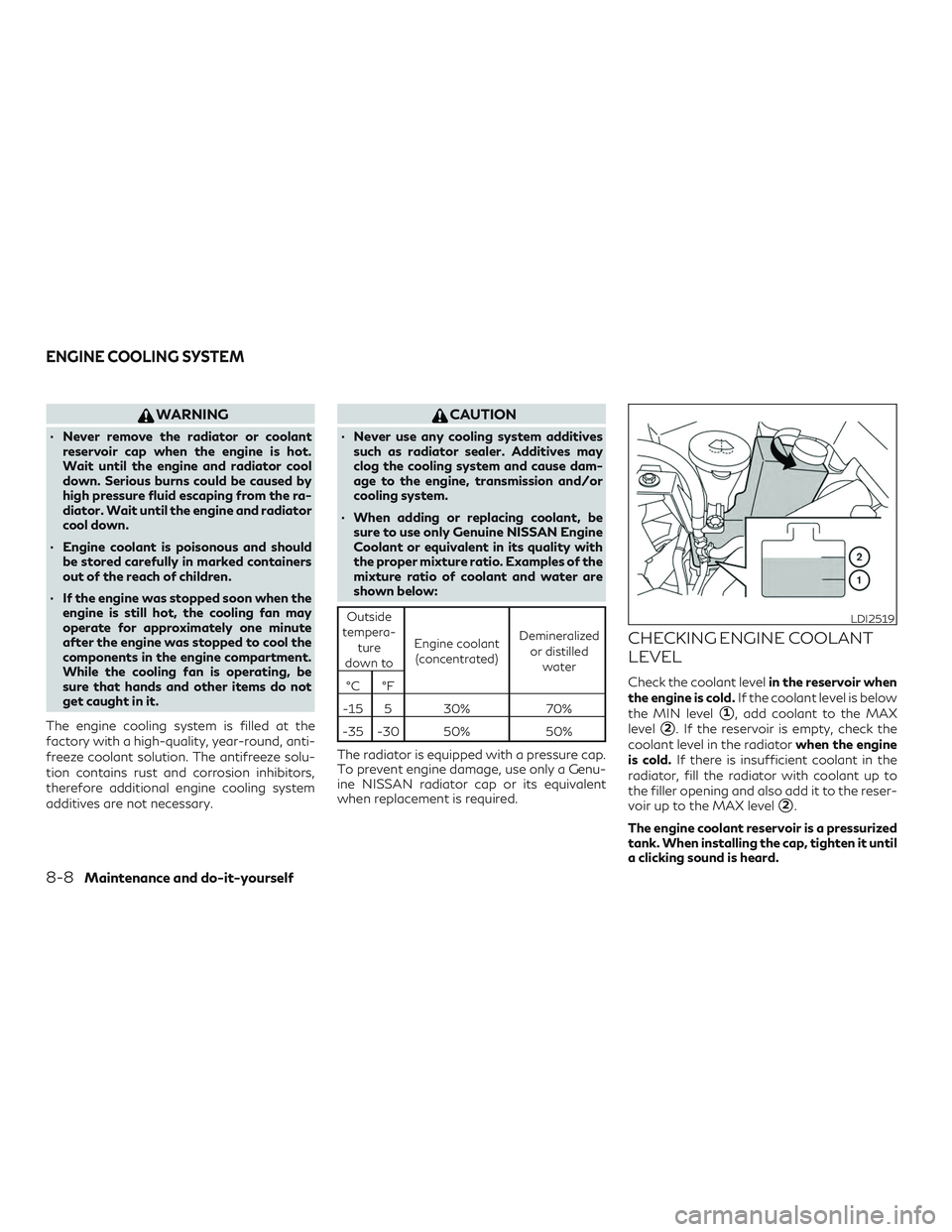

Engine cooling system ........................... 8-8
Checking engine coolant level ................. 8-8

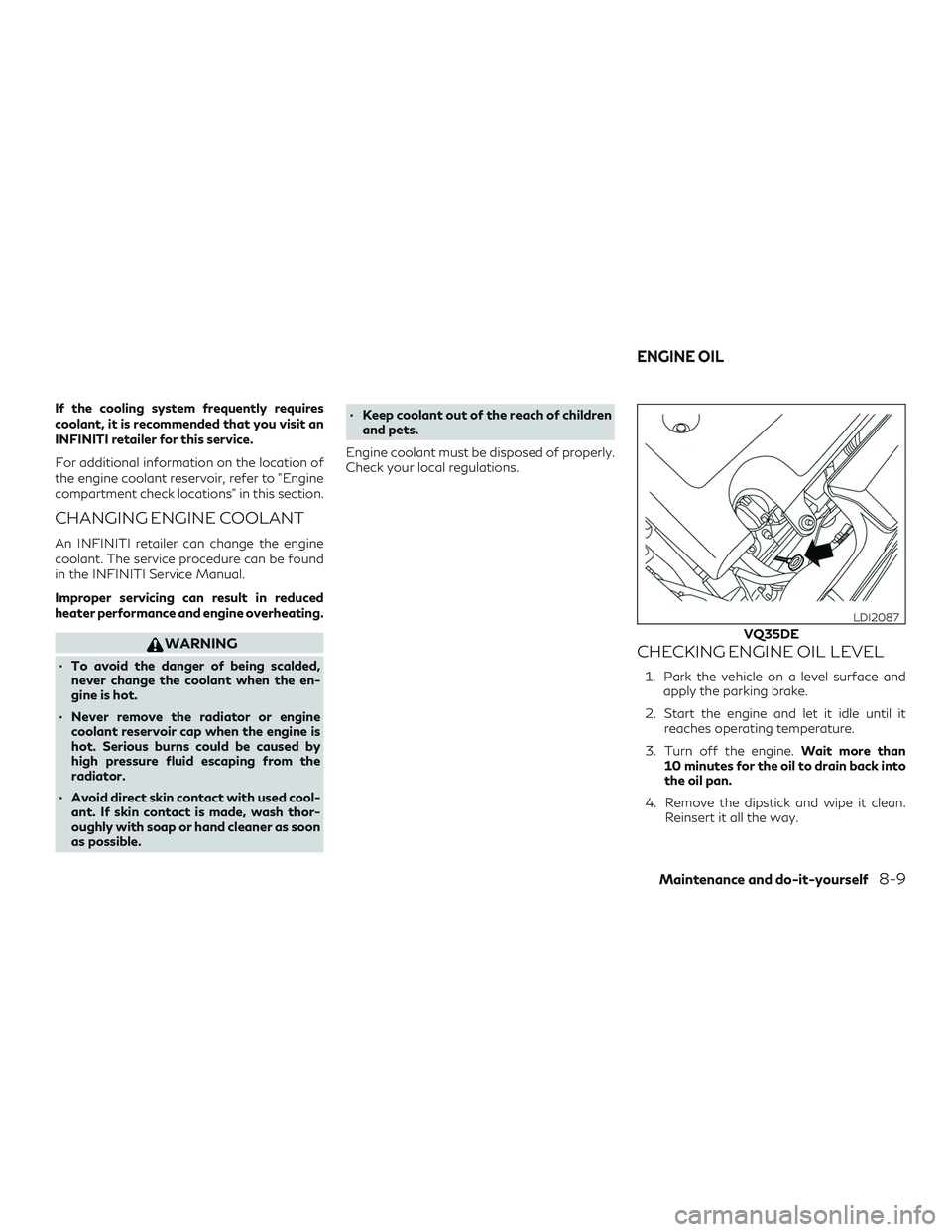

Changing engine coolant ......................8-9
Engine oil ........................................8-9
Checking engine oil level .......................8-9

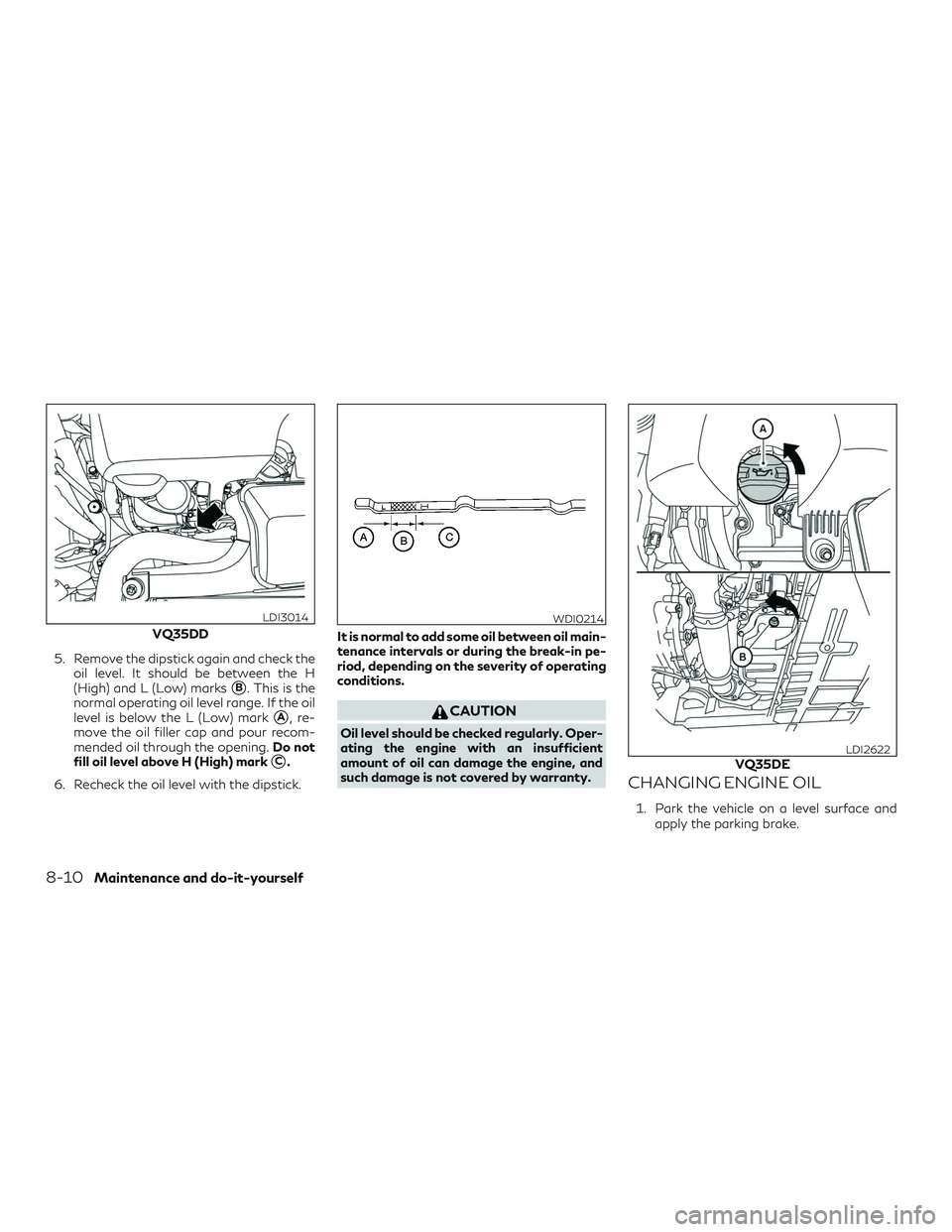

Changing engine oil ......................... 8-10
Changing engine oil filter ....................8-12
Continuously Variable Transmission (CVT) fluid . . 8-13
Power steering fluid ............................ 8-13
Brake fluid ..................................... 8-14
Windshield-washer fluid ........................ 8-14
Windshield-washer fluid reservoir ............8-14
Battery ........................................ 8-16
Jump starting ............................... 8-18
Drive belt ...................................... 8-18
Spark plugs .................................... 8-19
Replacing spark plugs ....................... 8-19Air cleaner
..................................... 8-20
Air conditioner filter ......................... 8-20
Windshield wiper blades ........................ 8-21
Cleaning .................................... 8-21
Replacing ................................... 8-21
Parking brake and brake pedal ..................8-22
Checking parking brake ......................8-22
Checking brake pedal ........................ 8-23
Brake booster ............................... 8-23
Fuses .......................................... 8-24
Engine compartment ........................ 8-24
Passenger compartment .....................8-25
Battery replacement ............................ 8-25
INFINITI Intelligent Key ......................8-26
Lights ......................................... 8-28
Headlights .................................. 8-28
Fog

lights ................................... 8-28
Exterior and interior lights ...................8-29
Wheels and tires ............................... 8-31
Tire pressure ................................ 8-31
Types of tires ............................... 8-34
Tire chains .................................. 8-35
Changing wheels and tires ...................8-35

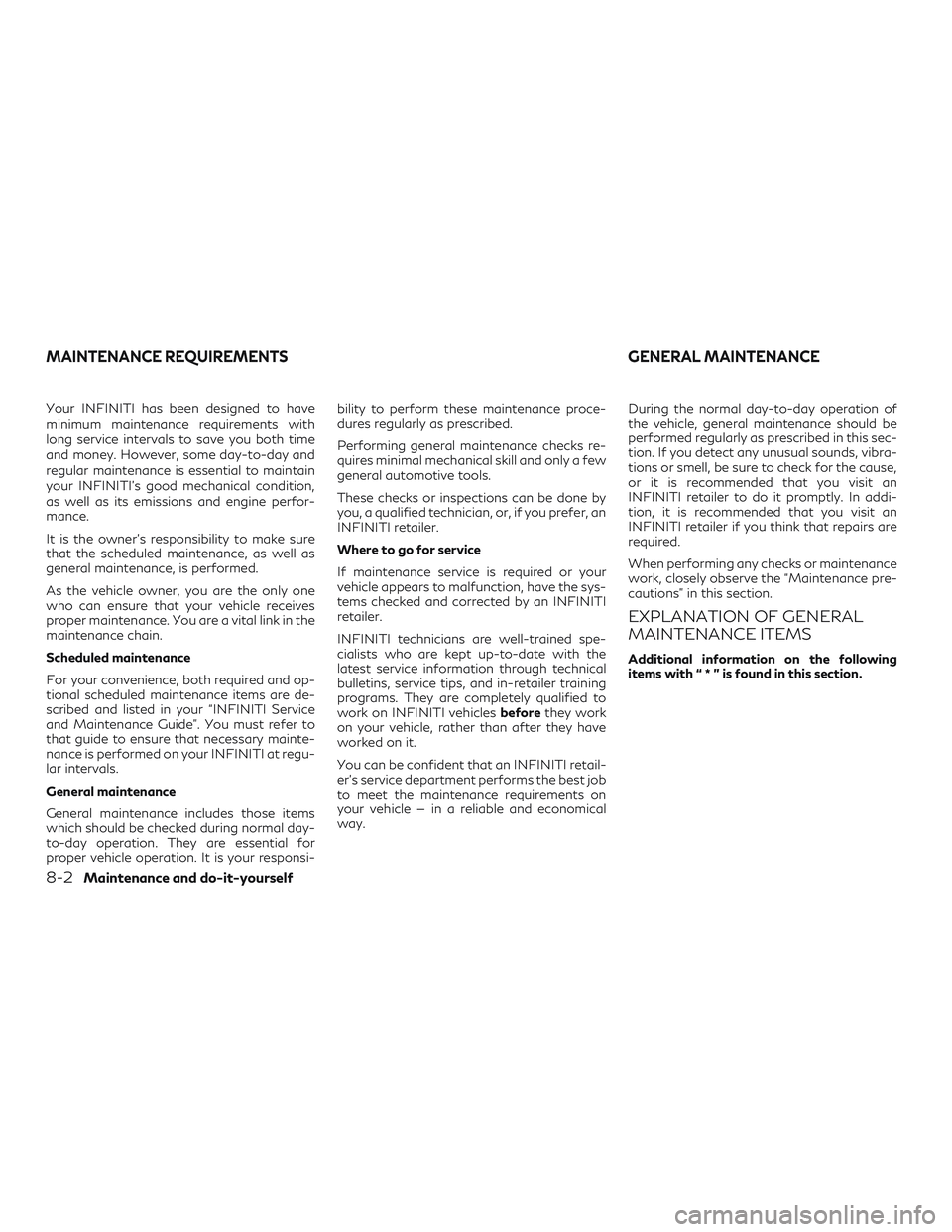

Your INFINITI has been designed to have
minimum maintenance requirements with
long service intervals to save you both time
and money. However, some day-to-day and
regular maintenance is essential to maintain
your INFINITI’s good mechanical condition,
as well as its emissions and engine perfor-
mance.
It is the owner’s responsibility to make sure
that the scheduled maintenance, as well as
general maintenance, is performed.
As the vehicle owner, you are the only one
who can ensure that your vehicle receives
proper maintenance. You are a vital link in the
maintenance chain.
Scheduled maintenance
For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your “INFINITI Service
and Maintenance Guide”. You must refer to
that guide to ensure that necessary mainte-
nance is performed on your INFINITI at regu-
lar intervals.
General maintenance
General maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for
proper vehicle operation. It is your responsi-bility to perform these maintenance proce-
dures regularly as prescribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks or inspections can be done by
you, a qualified technician, or, if you prefer, an
INFINITI retailer.
Where to go for service
If maintenance service is required or your
vehicle appears to malfunction, have the sys-
tems checked and corrected by an INFINITI
retailer.
INFINITI technicians are well-trained spe-
cialists who are kept up-to-date with the
latest service information through technical
bulletins, service tips, and in-retailer training
programs. They are completely qualified to
work on INFINITI vehicles
beforethey work
on your vehicle, rather than after they have
worked on it.
You can be confident that an INFINITI retail-
er’s service department performs the best job
to meet the maintenance requirements on
your vehicle — in a reliable and economical
way. During the normal day-to-day operation of
the vehicle, general maintenance should be
performed regularly as prescribed in this sec-
tion. If you detect any unusual sounds, vibra-
tions or smell, be sure to check for the cause,
or it is recommended that you visit an
INFINITI retailer to do it promptly. In addi-
tion, it is recommended that you visit an
INFINITI retailer if you think that repairs are
required.
When performing any checks or maintenance
work, closely observe the “Maintenance pre-
cautions” in this section.
EXPLANATION OF GENERAL
MAINTENANCE ITEMS
Additional information on the following
items with“*”isfound in this section.
MAINTENANCE REQUIREMENTS
GENERAL MAINTENANCE
8-2Maintenance and do-it-yourself

vehicle is held securely on a fairly steep hill
when only the parking brake is applied.
Seat beltsCheck that all parts of the seat belt
system (for example, buckles, anchors, ad-
justers and retractors) operate properly and
smoothly, and are installed securely. Check
the belt webbing for cuts, fraying, wear or
damage.
Steering wheel Check for changes in the
steering condition, such as excessive play,
hard steering or strange noises.
Warning lights and chimes Make sure that all
warning lights and chimes are operating
properly.
Windshield defogger Check that the air
comes out of the defogger outlets properly
and in good quantity when operating the
heater or air conditioner.
Windshield wiper and washer* Check that
the wipers and washer operate properly and
that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel). Battery* (except for maintenance free bat-
teries)
Check the fluid level in each cell. The
fluid should be at the bottom of the filler
opening. Vehicles operated in high tempera-
tures or under severe conditions require fre-
quent checks of the battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of elec-
tronic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.).
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake (and clutch) fluid level(s)* For Manual
Transmission (M/T) model; make sure that
the brake and clutch fluid levels are between
the MAX and MIN lines on the reservoirs.
Except for Manual Transmission (M/T)
model; make sure that the brake fluid level is
between the MAX and MIN lines on the res-
ervoir. Engine coolant level*
Check the coolant level
when the engine is cold. Make sure that the
coolant level is between the MAX and MIN
lines on the reservoir.
Engine drive belt(s)* Make sure the drive
belt(s) is not frayed, worn, cracked or oily.
Engine oil level* Check the level after parking
the vehicle (on level ground) and turning off
the engine.
Fluid leaks Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping
from the air conditioner after use is normal. If
you should notice any leaks or if fuel fumes
are evident, check for the cause and have it
corrected immediately.
Power steering fluid level* and lines Check
the level when the fluid is cold with the engine
off. Check the lines for proper attachment,
leaks, cracks, etc.
Windshield-washer fluid* Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself

VQ35DE engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Drive belt location
4. Fuse box
5. Engine oil filler cap
6. Brake fluid reservoir
7. Air cleaner
8. Fuse box
9. Fuse/Fusible link box
10 Fuse/Fusible link box
11. Battery
12. Engine oil dipstick
13. Radiator cap
14. Windshield-washer fluid reservoir
LDI2498
ENGINE COMPARTMENT CHECK
LOCATIONS
8-6Maintenance and do-it-yourself

WARNING
∙ Never remove the radiator or coolantreservoir cap when the engine is hot.
Wait until the engine and radiator cool
down. Serious burns could be caused by
high pressure fluid escaping from the ra-
diator. Wait until the engine and radiator
cool down.
∙ Engine coolant is poisonous and should be stored carefully in marked containers
out of the reach of children.
∙ If the engine was stopped soon when the engine is still hot, the cooling fan may
operate for approximately one minute
after the engine was stopped to cool the
components in the engine compartment.
While the cooling fan is operating, be
sure that hands and other items do not
get caught in it.
The engine cooling system is filled at the
factory with a high-quality, year-round, anti-
freeze coolant solution. The antifreeze solu-
tion contains rust and corrosion inhibitors,
therefore additional engine cooling system
additives are not necessary.
CAUTION
∙ Never use any cooling system additives such as radiator sealer. Additives may
clog the cooling system and cause dam-
age to the engine, transmission and/or
cooling system.
∙ When adding or replacing coolant, be sure to use only Genuine NISSAN Engine
Coolant or equivalent in its quality with
the proper mixture ratio. Examples of the
mixture ratio of coolant and water are
shown below:
Outside
tempera- ture
down to Engine coolant
(concentrated) Demineralized
or distilled water
°C °F
-15 5 30% 70%
-35 -30 50% 50%
The radiator is equipped with a pressure cap.
To prevent engine damage, use only a Genu-
ine NISSAN radiator cap or its equivalent
when replacement is required.
CHECKING ENGINE COOLANT
LEVEL
Check the coolant level in the reservoir when
the engine is cold. If the coolant level is below
the MIN level
1, add coolant to the MAX
level
2. If the reservoir is empty, check the
coolant level in the radiator when the engine
is cold. If there is insufficient coolant in the
radiator, fill the radiator with coolant up to
the filler opening and also add it to the reser-
voir up to the MAX level
2.
The engine coolant reservoir is a pressurized
tank. When installing the cap, tighten it until
a clicking sound is heard.
LDI2519
ENGINE COOLING SYSTEM
8-8Maintenance and do-it-yourself

If the cooling system frequently requires
coolant, it is recommended that you visit an
INFINITI retailer for this service.
For additional information on the location of
the engine coolant reservoir, refer to "Engine
compartment check locations" in this section.
CHANGING ENGINE COOLANT
An INFINITI retailer can change the engine
coolant. The service procedure can be found
in the INFINITI Service Manual.
Improper servicing can result in reduced
heater performance and engine overheating.
WARNING
∙ To avoid the danger of being scalded,never change the coolant when the en-
gine is hot.
∙ Never remove the radiator or engine coolant reservoir cap when the engine is
hot. Serious burns could be caused by
high pressure fluid escaping from the
radiator.
∙ Avoid direct skin contact with used cool- ant. If skin contact is made, wash thor-
oughly with soap or hand cleaner as soon
as possible. ∙ Keep coolant out of the reach of children
and pets.
Engine coolant must be disposed of properly.
Check your local regulations.CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and apply the parking brake.
2. Start the engine and let it idle until it reaches operating temperature.
3. Turn off the engine. Wait more than
10 minutes for the oil to drain back into
the oil pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
VQ35DE
LDI2087
ENGINE OIL
Maintenance and do-it-yourself8-9

5. Remove the dipstick again and check theoil level. It should be between the H
(High) and L (Low) marks
B. This is the
normal operating oil level range. If the oil
level is below the L (Low) mark
A, re-
move the oil filler cap and pour recom-
mended oil through the opening. Do not
fill oil level above H (High) mark
C.
6. Recheck the oil level with the dipstick. It is normal to add some oil between oil main-
tenance intervals or during the break-in pe-
riod, depending on the severity of operating
conditions.
CAUTION
Oil level should be checked regularly. Oper-
ating the engine with an insufficient
amount of oil can damage the engine, and
such damage is not covered by warranty.
CHANGING ENGINE OIL
1. Park the vehicle on a level surface and
apply the parking brake.
VQ35DD
LDI3014WDI0214
VQ35DELDI2622
8-10Maintenance and do-it-yourself

2. Start the engine and let it idle until itreaches operating temperature, then
turn it off.
3. Remove the oil filler cap
Aby turning it
counterclockwise. 4. Place a large drain pan under the drain
plug
B.
5. Remove the drain plug
Bwith a wrench
by turning it counterclockwise and com-
pletely drain the oil.
If the oil filter is to be changed, remove
and replace it at this time. For additional
information, refer to “Changing engine
oil filter” in this section.
∙ Waste oil must be disposed of properly.
∙ Check your local regulations.
WARNING
∙ Prolonged and repeated contact with
used engine oil may cause skin cancer.
∙ Try to avoid direct skin contact with used oil. If skin contact is made, wash thor-
oughly with soap or hand cleaner as soon
as possible.
∙ Keep used engine oil out of reach of children.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot. 6. Clean and reinstall the drain plug and a
new washer. Securely tighten the drain
plug with a wrench. Do not use excessive
force.
Drain plug tightening torque: 34 N·m (25 ft-lb)
7. Refill engine with recommended oil through the oil filler opening, then install
the oil filler cap securely.
For additional information on drain and
refill capacity, refer to “Recommended
fluids/lubricants and capacities” in the
“Technical and consumer information”
section of this manual.
The drain and refill capacity depends on
the oil temperature and drain time. Use
these specifications for reference only.
Always use the dipstick to determine
when the proper amount of oil is in the
engine.
8. Start the engine. Check for leakage around the drain plug and oil filter. Cor-
rect as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
VQ35DD
LDI3013
Maintenance and do-it-yourself8-11
