Menu itemResult
Auto Door Unlock (if so equipped) Allows user to turn the auto door unlock feature on or off. The auto door unlock function automatically unlocks all the doors based on the user-selected setting.
Off The doors will not unlock automatically.
IGN Off The doors will automatically unlock when the ignition is turned off.
Shift into P The doors will automatically unlock when the vehicle is shifted into P (Park).
Answer Back Horn Allows user to turn answer back horn on or off. When turned on, the horn will chirp and the hazard indicators will flash once when locking the vehicle with the Intelligent Key. For additional information, refer to “Answer back
horn feature” in the “Pre-driving checks and adjustments” section of this manual.
Remote Start (if so equipped) Allows user to turn the remote start on or off. When turned off, the vehicle cannot be started using the Intelligent Key.
Battery Saver Allows the user to turn the battery saver feature on or off. When turned on, this feature will turn off the ignition switch after a period of time if left in the ACC or ON position.
Exit Seat Slide Allows the user to turn the exit seat slide on or off. When turned on, this feature will move the driver’s seat back- ward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into the vehicle
and placing the ignition switch in the ACC position, the driver’s seat will move to the previous set position. For
additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and adjustments” section of
this manual.
Exit Steering Up Allows the user to turn the exit steering up feature on or off. When turned on, this feature will move the steering wheel upward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into
the vehicle and placing the ignition switch in the ACC position, the steering wheel moves to the previous position.
For additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and adjustments” sec-
tion of this manual.
2-20Instruments and controls

3 Pre-driving checks and adjustments
Keys.............................................3-2
INFINITI Intelligent Key ........................3-2
INFINITI Vehicle Immobilizer System
keys ..........................................3-4
Doors ............................................3-4
Locking with key ..............................3-5
Locking with inside lock knob — Type A
(if so equipped) ................................3-5
Locking with inside lock knob — Type B
(if so equipped) ................................3-5
Locking with power door lock switch ...........3-6
Automatic door locks ..........................3-6
Child safety rear door lock .....................3-6
INFINITI Intelligent Key System ...................3-7
Operating range ..............................3-8
Door locks/unlocks precaution .................3-9
INFINITI Intelligent Key operation ............3-10
How to use the remote keyless entry
function .................................... 3-14
Warning signals .............................. 3-17
Troubleshooting guide ........................ 3-17
Remote Engine Start (if so equipped) ............3-20
Remote Engine Start operating range ........3-20
Remote starting the vehicle ..................3-20Extending engine run time
...................3-21
Canceling a Remote Engine Start ............3-21
Conditions the Remote Engine Start will
not work .................................... 3-21
Hood .......................................... 3-22
Liftgate ........................................ 3-23
Operating the power liftgate ................3-23
Motion-Activated Liftgate (if so
equipped) ................................... 3-26
Power liftgate main switch (if so
equipped) ................................... 3-28
Liftgate release ............................. 3-28
Liftgate position setting .....................3-29
Fuel-filler door ................................. 3-29
Opening the fuel-filler door ..................3-29
Fuel-filler cap ............................... 3-30
Steering wheel ................................. 3-31
Tilt and telescopic operation .................3-31
Sun visors ...................................... 3-32
Vanity

mirrors ............................... 3-33
Mirrors ........................................ 3-33
Automatic anti-glare rearview mirror .........3-33
Outside mirrors ............................. 3-35
Automatic drive positioner ......................3-37

Thebutton will be on the INFINITI In-
telligent Key if the vehicle has Remote Engine
Start. This feature allows the engine to start
from outside the vehicle.
The following features may be affected
when Remote Engine Start is used:
∙ Vehicles with an automatic climate con- trol system will default to either a heating
or cooling mode depending on the out-
side temperature.
Laws in some local communities may restrict
the use of remote starters. For example,
some laws require a person using Remote
Engine Start to have the vehicle in view.
Check local regulations for any requirements. Other conditions may affect the function of
the Remote Engine Start feature. For addi-
tional information, refer to “Conditions the
Remote Engine Start will not work” in this
section.
Other conditions can affect the performance
of the Intelligent Key transmitter. For addi-
tional information, refer to “INFINITI Intelli-
gent Key System” in this section.
REMOTE ENGINE START
OPERATING RANGE
The Remote Engine Start function can only
be used when the Intelligent Key is within the
specified operating range from the vehicle.
When the Intelligent Key battery is dis-
charged or other strong radio wave sources
are present near the operating location, the
Intelligent Key operating range becomes nar-
rower, and the Intelligent Key may not func-
tion properly.
The Remote Engine Start operating range is
approximately 60 m (197 ft) from the vehicle.
REMOTE STARTING THE
VEHICLE
To use the Remote Engine Start feature to
start the engine perform the following:
1. Aim the Intelligent Key at the vehicle.
2. Press the
button to lock all
doors.
3. Within 5 seconds press and hold the
button until the turn signal
lights flash and the tail lamps turn on. If
the vehicle is not within view press and
hold the
button for at least 2 sec-
onds.
The following events will occur when the en-
gine starts:
∙ The parking lights will turn on and remain on as long as the engine is running.
∙ The doors will be locked and the climate control system may come on.
∙ The engine will continue to run for 10 minutes. Repeat the steps to extend
the time for an additional 10 minutes. For
additional information, refer to “Extend-
ing engine run time” in this section.LPD2272
REMOTE ENGINE START
(if so equipped)
3-20Pre-driving checks and adjustments

Depress and hold the brake then push the
push-button ignition switch to the ON posi-
tion before driving. For additional informa-
tion, refer to “Driving the vehicle” in the
“Starting and driving” section of this manual.
EXTENDING ENGINE RUN TIME
The Remote Engine Start feature can be ex-
tended one time by performing the steps
listed in “Remote starting the vehicle” in this
section. Run time will be calculated as fol-
lows:∙ The first 10 minute run time will start when the Remote Engine Start function
is performed.
∙ The second 10 minutes will start immedi- ately when the Remote Engine Start
function is performed again. For ex-
ample, if the engine has been running for
5 minutes, and 10 minutes are added, the
engine will run for a total of 15 minutes.
∙ Extending engine run time will bring you to the two Remote Engine Start limit.
A maximum of two Remote Engine Starts, or
a single start with an extension, are allowed
between ignition cycles. The ignition switch must be cycled to the ON
position and then back to the OFF position
before the Remote Engine Start procedure
can be used again.
CANCELING A REMOTE ENGINE
START
To cancel a Remote Engine Start, perform
one of the following:
∙ Aim the Intelligent Key at the vehicle and press
until the parking lights turn
off.
∙ Turn on the hazard warning flashers.
∙ Cycle the ignition switch ON and then OFF.
∙ The extended engine run time has ex- pired.
∙ The first 10 minute timer has expired.
∙ The engine hood has been opened.
∙ The shift lever is moved out of park.
∙ The alarm sounds due to illegal entry into the vehicle.
∙ The ignition switch is pushed without an Intelligent Key in the vehicle. ∙ The ignition switch is pushed with an In-
telligent Key in the vehicle but the brake
pedal is not depressed.
CONDITIONS THE REMOTE
ENGINE START WILL NOT WORK
The Remote Engine Start will not operate if
any of the following conditions are present:
∙ The ignition switch is placed in the ON position.
∙ The hood is not securely closed.
∙ The hazard indicator lights are on.
∙ The engine is still running. The engine must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable when
extending engine run time.
∙ The
button is not pressed and held
for at least 2 seconds.
∙ The
button is not pressed and held
within 5 seconds of pressing the
button.
∙ The brake is pressed.
∙ The doors are not closed and locked.
Pre-driving checks and adjustments3-21

∙ The liftgate is open.
∙ The I–Key indicator message is displayedin the vehicle information display.
∙ The alarm sounds due to illegal entry into the vehicle.
∙ Two Remote Engine Starts, or a single Remote Engine Start with an extension,
have already been used.
∙ The vehicle is not in P (Park).
∙ There is a detected registered key already inside of the vehicle.
∙ The Remote Engine Start function has been switched to the OFF position in
vehicle settings of the vehicle information
display. For additional information, refer
to “Vehicle information display” in the “In-
struments and controls” section of this
manual.
The Remote Engine Start function may dis-
play a warning or indicator in the vehicle in-
formation display. For additional informa-
tion, refer to “Vehicle information display” in
the “Instruments and controls” section of this
manual. 1. Pull the hood lock release handle
1lo-
cated below the driver side instrument
panel. The hood will spring up slightly.
2. Push the lever
2at the front of the
hood to the side as illustrated with your
fingertips and raise the hood.
When closing the hood, lower it slowly and
make sure it locks into place.
WARNING
∙ Make sure the hood is completely closed and latched before driving. Failure to do
so could cause the hood to fly open and
result in an accident.
∙ If you see steam or smoke coming from the engine compartment, to avoid injury
do not open the hood.
LPD2061
HOOD
3-22Pre-driving checks and adjustments

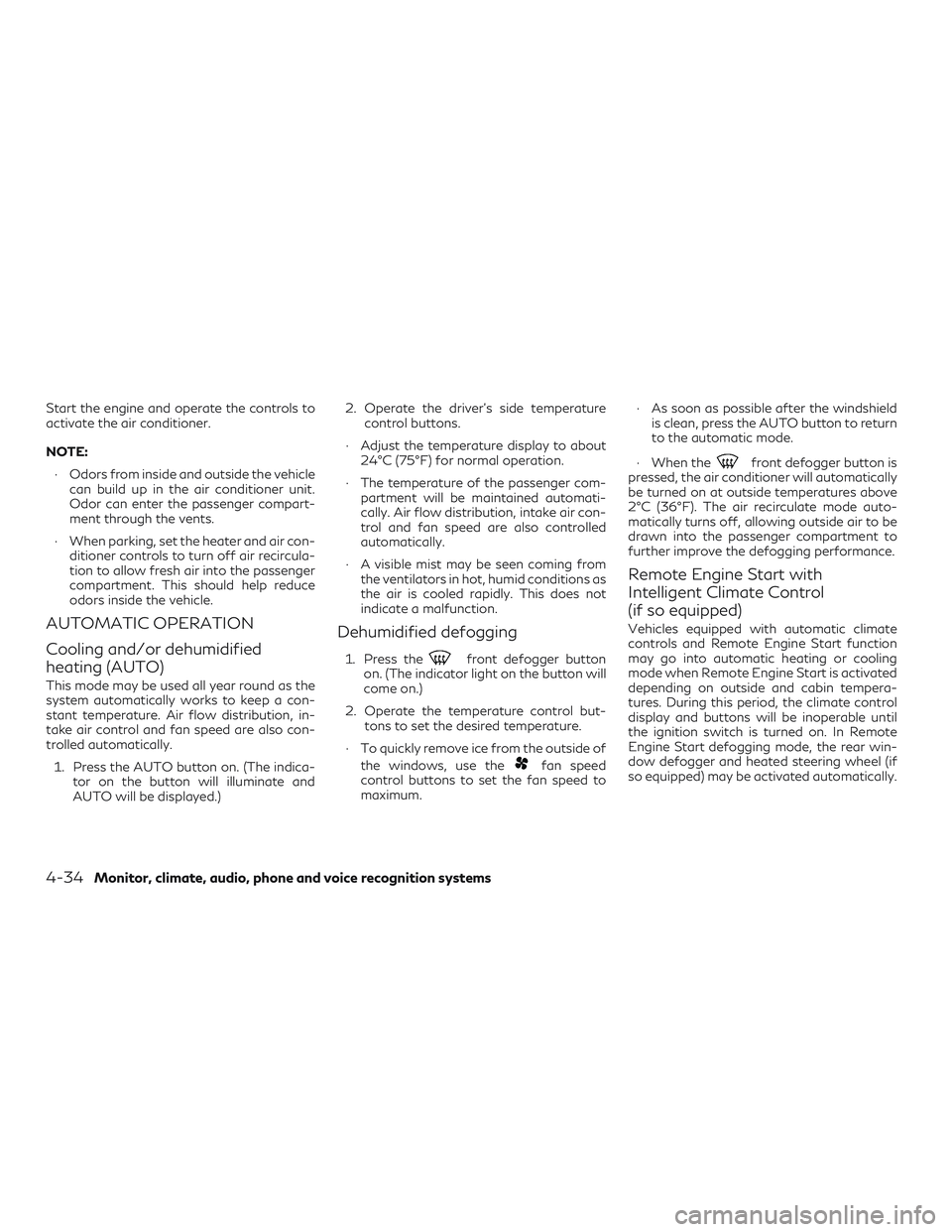

Start the engine and operate the controls to
activate the air conditioner.
NOTE:∙ Odors from inside and outside the vehicle can build up in the air conditioner unit.
Odor can enter the passenger compart-
ment through the vents.
∙ When parking, set the heater and air con- ditioner controls to turn off air recircula-
tion to allow fresh air into the passenger
compartment. This should help reduce
odors inside the vehicle.
AUTOMATIC OPERATION
Cooling and/or dehumidified
heating (AUTO)
This mode may be used all year round as the
system automatically works to keep a con-
stant temperature. Air flow distribution, in-
take air control and fan speed are also con-
trolled automatically.
1. Press the AUTO button on. (The indica- tor on the button will illuminate and
AUTO will be displayed.) 2. Operate the driver’s side temperature
control buttons.
∙ Adjust the temperature display to about 24°C (75°F) for normal operation.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution, intake air con-
trol and fan speed are also controlled
automatically.
∙ A visible mist may be seen coming from the ventilators in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.
Dehumidified defogging
1. Press thefront defogger button
on. (The indicator light on the button will
come on.)
2. Operate the temperature control but- tons to set the desired temperature.
∙ To quickly remove ice from the outside of the windows, use the
fan speed
control buttons to set the fan speed to
maximum. ∙ As soon as possible after the windshield
is clean, press the AUTO button to return
to the automatic mode.
∙ When the
front defogger button is
pressed, the air conditioner will automatically
be turned on at outside temperatures above
2°C (36°F). The air recirculate mode auto-
matically turns off, allowing outside air to be
drawn into the passenger compartment to
further improve the defogging performance.
Remote Engine Start with
Intelligent Climate Control
(if so equipped)
Vehicles equipped with automatic climate
controls and Remote Engine Start function
may go into automatic heating or cooling
mode when Remote Engine Start is activated
depending on outside and cabin tempera-
tures. During this period, the climate control
display and buttons will be inoperable until
the ignition switch is turned on. In Remote
Engine Start defogging mode, the rear win-
dow defogger and heated steering wheel (if
so equipped) may be activated automatically.
4-34Monitor, climate, audio, phone and voice recognition systems

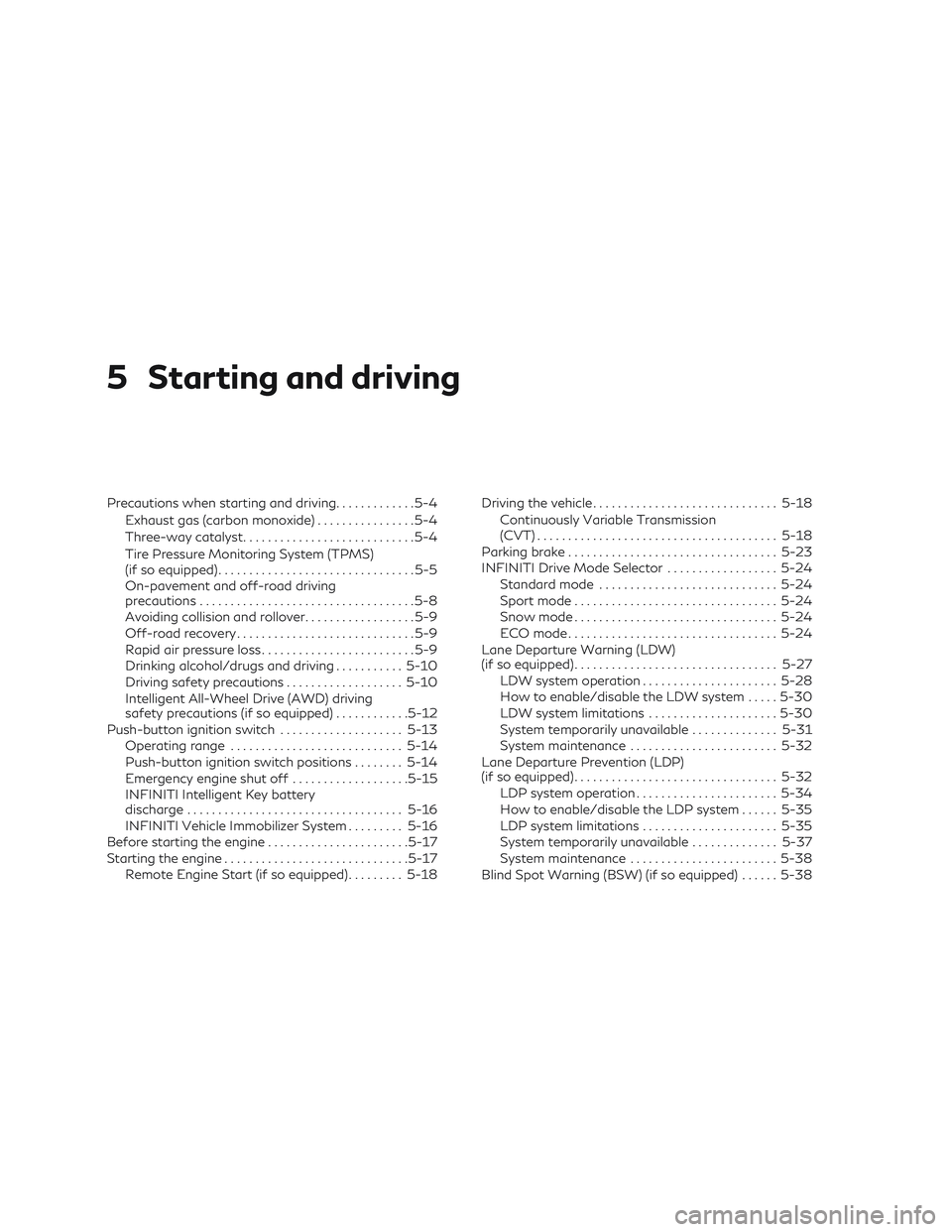

5 Starting and driving
Precautions when starting and driving.............5-4
Exhaust gas (carbon monoxide) ................5-4
Three-way catalyst ............................5-4
Tire Pressure Monitoring System (TPMS)
(if so equipped) ................................5-5
On-pavement and off-road driving
precautions ...................................5-8
Avoiding collision and rollover ..................5-9
Off-road recovery .............................5-9
Rapid air pressure loss .........................5-9
Drinking alcohol/drugs and driving ...........5-10
Driving safety precautions ...................5-10
Intelligent All-Wheel Drive (AWD) driving
safety precautions (if so equipped) ............5-12
Push-button ignition switch ....................5-13
Operating range ............................ 5-14
Push-button ignition switch positions ........5-14
Emergency engine shut off ...................5-15
INFINITI Intelligent Key battery
discharge ................................... 5-16
INFINITI Vehicle Immobilizer System .........5-16
Before starting the engine .......................5-17
Starting the engine .............................. 5-17
Remote Engine Start (if so equipped) .........5-18 Driving the vehicle
.............................. 5-18
Continuously Variable Transmission
(CVT) ....................................... 5-18
Parking brake .................................. 5-23
INFINITI Drive Mode Selector ..................5-24
Standard mode ............................. 5-24
Sport mode ................................. 5-24
Snow mode ................................. 5-24
ECO mode .................................. 5-24
Lane Departure Warning (LDW)
(if so equipped) ................................. 5-27
LDW system operation ......................5-28
How to enable/disable the LDW system .....5-30
LDW system limitations .....................5-30
System temporarily unavailable ..............5-31
System maintenance ........................ 5-32
Lane Departure Prevention (LDP)
(if so equipped) ................................. 5-32
L
DP system operation ....................... 5-34
How to enable/disable the LDP system ......5-35
LDP system limitations ......................5-35
System temporarily unavailable ..............5-37
System maintenance ........................ 5-38
Blind Spot Warning (BSW) (if so equipped) ......5-38

NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:1. Installation or extended use of electronic accessories that consume battery power
when the engine is not running (phone
chargers, GPS, DVD players, etc.).
2. Vehicle is not driven regularly and/or only driven short distances.
In these cases, the battery may need to
be charged to maintain battery health.
REMOTE ENGINE START
(if so equipped)
Vehicles started with the Remote Engine
Start require the ignition switch to be placed
in the ON position before the shift lever can
be moved from the P (Park) position. To place
the ignition switch in the ON position, follow
these steps:
1. Make sure that the Intelligent Key is on you.
2. Apply the brake.
3. Push the ignition switch once to the ON position. For additional information, refer to “INFINITI
Intelligent Key” in the “Pre-driving checks and
adjustments” section of this manual.
CONTINUOUSLY VARIABLE
TRANSMISSION (CVT)
WARNING
∙ Do not depress the accelerator pedal
while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive), or M
(Manual shift mode). Always depress the
brake pedal until shifting is completed.
Failure to do so could cause you to lose
control and have an accident.
∙ Cold engine idle speed is high, so use cau- tion when shifting into a forward or re-
verse gear before the engine has warmed
up.
∙ Do not downshift abruptly on slippery roads. This may cause a loss of control.
∙ Never shift to either the P (Park) or R (Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.
∙ Except in an emergency, do not shift to the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.
DRIVING THE VEHICLE
5-18Starting and driving

Fusiblelinks...................8-24G
Garage door opener, HomeLink® Universal
Transceiver....2-73,2-74,2-75,2-76,2-77
Gascap.....................3-30
Gauge Engine coolant temperature gauge ....2-6
Fuel gauge ..................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer .................2-6
Trip odometer ................2-5
General maintenance ..............8-2
Glovebox....................2-57
Gloveboxlock.................2-57
H
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-39
Headlight control switch ...........2-39
Headlights ...................8-28
Head restraints .................1-11
Heated 2nd row seat switches .......2-47
Heated rear seats ...............2-47
Heated seats ..................2-46
Heated seat switches .............2-46
Heated steering wheel ............2-48
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-33
Heater and air conditioner controls. . .4-34 Heater operation
.............4-35
Heater and air conditioner (automatic) . . .4-33
Hill start assist system ............5-146
HomeLink® Universal
Transceiver....2-73,2-74,2-75,2-76,2-77
Hood .......................3-22
Hook Luggage hook ...............2-61
Horn.......................2-45
I
Ignition switch Push-button ignition switch .......5-13
Immobilizer system ..............5-16
In-cabin microfilter ..............8-20
Increasing fuel economy ..........5-133
Indicator lights and audible reminders
(See warning/indicator lights and
audible reminders) ............2-9,2-13
INFINITI Drive Mode Selector ........5-24
INFINITI Intelligent Key System .....3-2,3-7
Infiniti InTouch™ Owner's Manual ......4-2
INFINITI Vehicle Immobilizer
System...............2-33,3-4,5-16
Inside automatic anti-glare mirror .....3-33
Instrument brightness control ........2-44
Instrument panel .............0-6,2-2
Instrument panel dimmer switch ......2-44
Intelligent All-Wheel Drive (AWD) .....5-133
Intelligent Cruise Control (ICC) .......5-78
Intelligent Key system Key operating range ............3-8
Key operation ...............3-10
Mechanicalkey ...............3-3 Remote keyless entry operation
.....3-14
Troubleshooting guide ..........3-17
Warningsignals ..............3-17
Interiorlight...................2-71
ISOFIX child restraints ............1-28
J
Jump starting ..............6-11, 8-18
K
K

ey.........................3-2
Key fob battery replacement ........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .......3-14
L
Labels Air conditioner specification label ....9-10
Engine serial number ............9-9
Vehicle identification number (VIN) . . .9-8
Vehicle identification number (VIN)
plate......................9-8
Warning labels (for SRS) .........1-65
Lane Departure Prevention (LDP)
system ..............5-27,5-32,5-35
Lane Departure Warning (LDW)
system ..............5-27,5-32,5-35
LATCH (Lower Anchors and Tethers
for CHildren) System .............1-28
10-3

On-pavement and off-road
driving
precautions..................5-8
Precautions on booster
seats..........1-26,1-33,1-38,1-43
Precautions on child
restraints.......1-26,1-33,1-38,1-43
Precautionsonseatbeltusage .....1-16
Precautions on supplemental restraint
system....................1-47
Precautions when starting
anddriving..............5-4,5-10
Predictive Forward Collision Warning
(PFCW) ....................5-121
Push starting ..................6-13
R
Radio Car phone or CB radio ..........4-42
Rain-sensingautowipersystem ......2-36
Rear Cross Traffic Alert (RCTA) .......5-68
Rear Door Alert .........2-31,2-32,2-50
Rear power windows .............2-64
Rear window and outside mirror
defogger switch ................2-38
Rear window wiper and washer switches .2-37
Recommended Fluids ..............9-2
Refrigerant recommendation .........9-5
Registering a vehicle in another country . . .9-8
Remote Engine Start .............5-18
Remote Start ..................3-20
Roof rack ....................2-62 S
Safety Child safety rear door lock .........3-6
Child seat belts . . .1-26, 1-33, 1-38, 1-43
Seat adjustment Front power seat adjustment .......1-3
Second row bench seats .......1-5,1-7
Seatback pockets ...............2-56
Seat belt Childsafety.................1-19
Infantsandsmallchildren ........1-20
InjuredPerson ...............1-21
Largerchildren...............1-20
Precautionsonseatbeltusage .....1-16
Pregnant women .............1-20
Seat belt extenders ............1-25
Seat belt maintenance ..........1-26
Seat belts ...............1-16,7-6
Three-pointtypewithretractor.....1-21
Seat belt extenders ..............1-25
Seat belt warning light .........1-19,2-12
Seats 2nd row bench seat adjustment . . .1-5, 1-7
Adjustment ..................1-2
Armrests ...................1-8
Automatic drive positioner ....3-37,3-39
Frontseats..................1-2
Heated seats ................2-46
Seats/floormats ................7-5
Security indicator light ............2-14
Security system (INFINITI vehicle immobilizer system),
engine start ..........2-33,3-4,5-16 Security systems
Vehicle security system ..........2-32
Self-adjusting brakes .............8-23
Servicing air conditioner ...........4-42
Spark plug replacement ............8-19
Spark plugs ...................8-19
Specifications ..................9-6
Speedometer ...................2-5
SRS warning label ...............1-65
Stability control ................5-143
Starting Before starting the engine ........5-17
Jump starting ............6-11, 8-18
Precautions when starting
anddriving..............5-4,5-10
Push starting ................6-13
Starting the engine ............5-17
Starting the engine ..............5-17
Steering Heatedsteeringwheel.......... 2-48
Power

steering fluid ............8-13
Power steering system .........5-140
Steering wheel .................3-31
Stoplight....................8-29
Storage.....................2-56
Storagebin................... 2-61
Storage tray ..................2-57
Sunglasses case ................ 2-58
Sunglasses holder ...............2-58
Sunroof (see Moonroof) ...........2-66
Sun visors ....................3-32
Supplemental air bag warning labels ....1-65
Supplemental air bag warning
light....................1-65,2-13
Supplemental front impact air bag
system ......................1-54
10-5
