Vehicle Settings
The vehicle settings allow the user to change
the settings for lights, wipers, locking, keys,
and other vehicle settings.
Menu itemResult
Welcome Light Allows the user the turn the welcome light on or off
Auto Room Lamp Allows the user to turn the auto room lamp on or off
Light Sensitivity Allows the user to change when the lights illuminate based on the brightness outside the vehicle
Light Off Delay Allows the user to change the duration of time, from 0 to 180 seconds, that the automatic headlights stay on af- ter the vehicle is shut off
Rain Sensor (if so equipped) Allows user to turn the rain sensor on or off. For additional information, refer to “Wiper and washer switch” in this section.
Wiper with Speed Allows user to turn the wiper with speed feature on or off. For additional information, refer to “Wiper and washer switch” in this section.
I-Key Door Lock Allows user to turn the I-Key door lock on or off
Selective Unlock Allows user to turn selective unlock on or off. When turned on, only the driver’s door is unlocked after the door unlock operation. When the door handle request switch on the driver’s or front passenger’s side door is pushed to
be unlocked, only the corresponding door is unlocked first. All the doors can be unlocked if the door unlock opera-
tion is performed again within 1 minute. When this item is turned off, all the doors will be unlocked after the door
unlock operation is performed once.
Auto Door Lock (if so equipped) Allows user to turn the auto door lock feature on or off. The auto door lock function automatically locks all the doors based on the user-selected setting.
Off The doors will not lock automatically.
Vehicle Speed The doors will lock automatically when the vehicle reaches a certain speed.
Shift out of P The doors will lock automatically when the vehicle is shifted out of P (Park).
Instruments and controls2-19

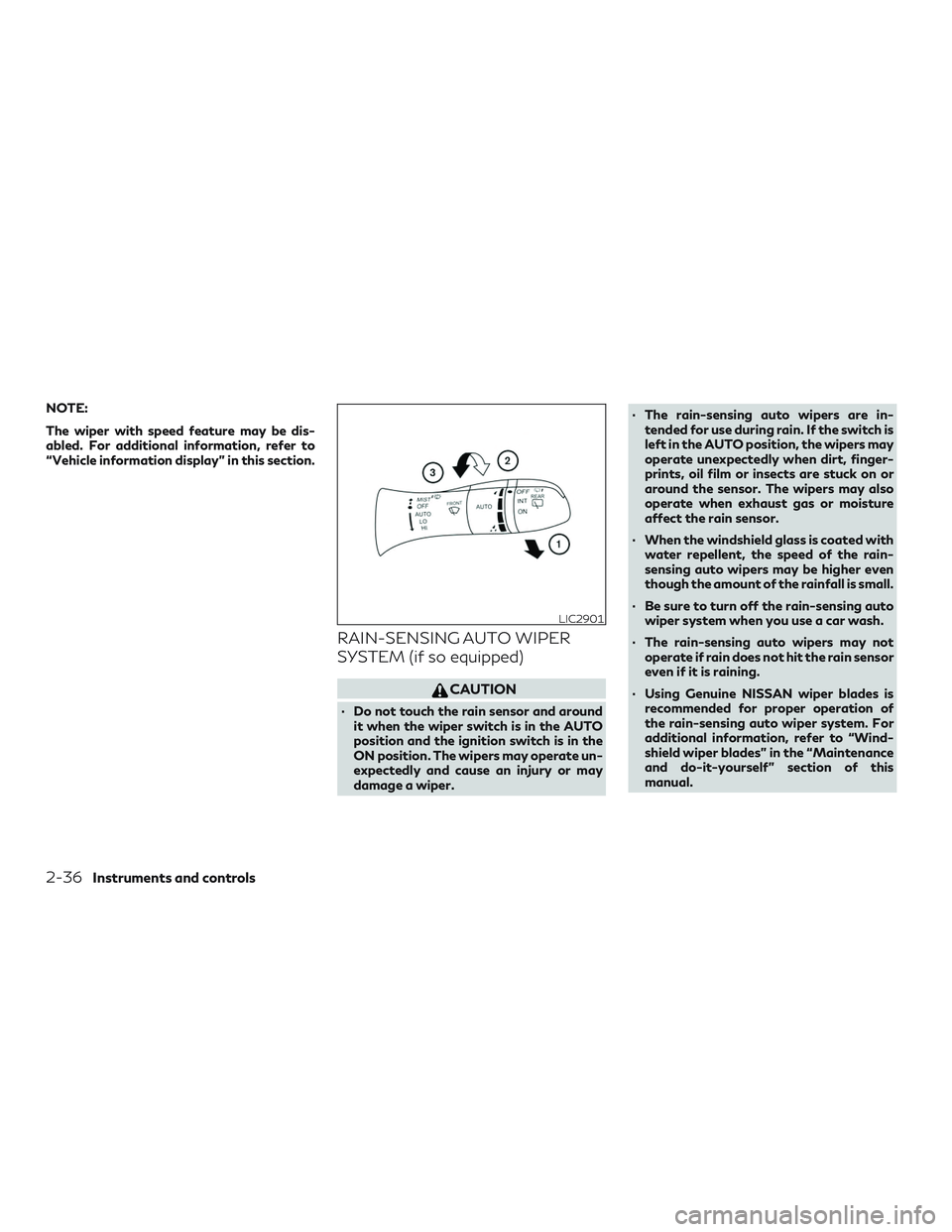

NOTE:
The wiper with speed feature may be dis-
abled. For additional information, refer to
“Vehicle information display” in this section.
RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)
CAUTION
∙ Do not touch the rain sensor and aroundit when the wiper switch is in the AUTO
position and the ignition switch is in the
ON position. The wipers may operate un-
expectedly and cause an injury or may
damage a wiper. ∙ The rain-sensing auto wipers are in-
tended for use during rain. If the switch is
left in the AUTO position, the wipers may
operate unexpectedly when dirt, finger-
prints, oil film or insects are stuck on or
around the sensor. The wipers may also
operate when exhaust gas or moisture
affect the rain sensor.
∙ When the windshield glass is coated with water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
∙ Be sure to turn off the rain-sensing auto wiper system when you use a car wash.
∙ The rain-sensing auto wipers may not operate if rain does not hit the rain sensor
even if it is raining.
∙ Using Genuine NISSAN wiper blades is recommended for proper operation of
the rain-sensing auto wiper system. For
additional information, refer to “Wind-
shield wiper blades” in the “Maintenance
and do-it-yourself” section of this
manual.
LIC2901
2-36Instruments and controls

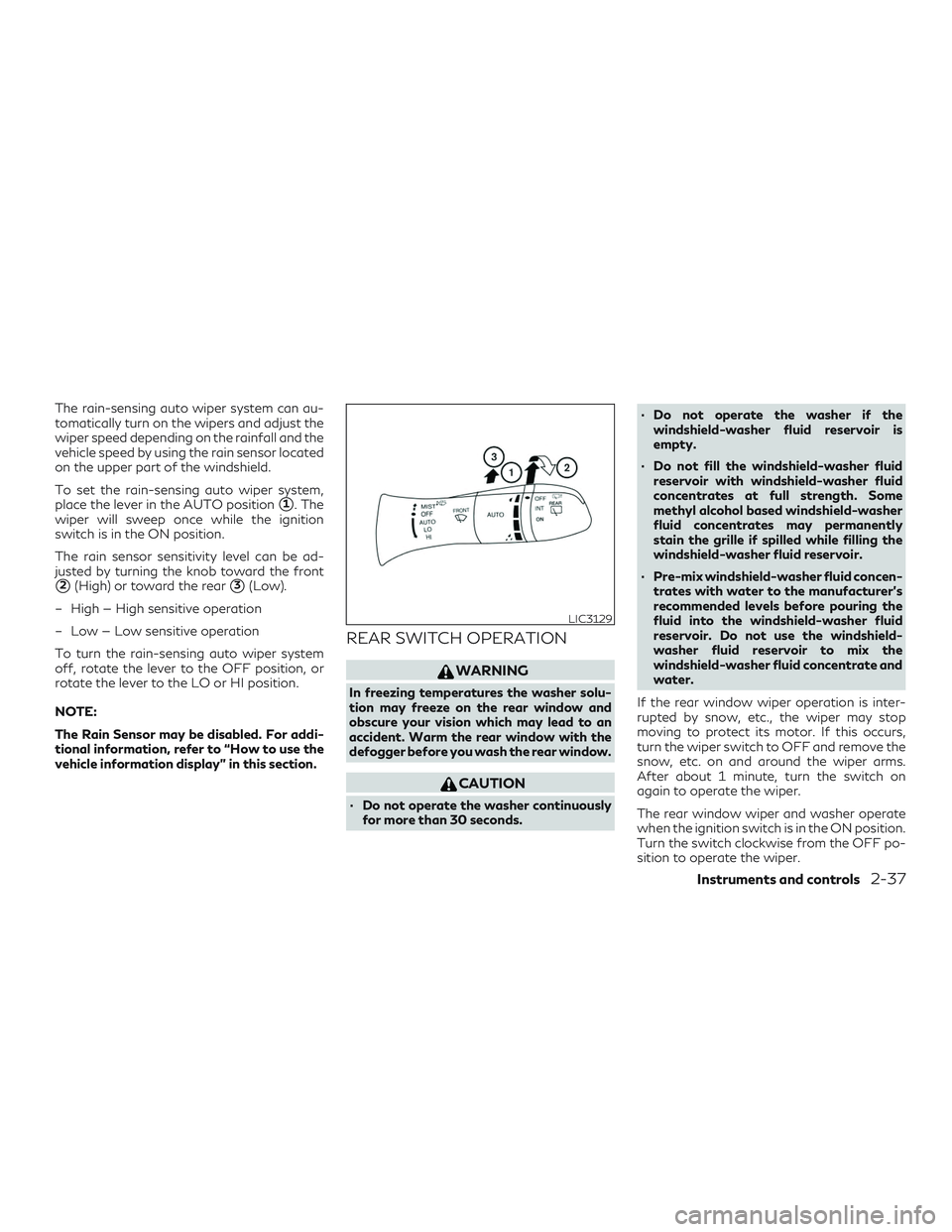

The rain-sensing auto wiper system can au-
tomatically turn on the wipers and adjust the
wiper speed depending on the rainfall and the
vehicle speed by using the rain sensor located
on the upper part of the windshield.
To set the rain-sensing auto wiper system,
place the lever in the AUTO position
1. The
wiper will sweep once while the ignition
switch is in the ON position.
The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front
2(High) or toward the rear3(Low).
– High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the LO or HI position.
NOTE:
The Rain Sensor may be disabled. For addi-
tional information, refer to “How to use the
vehicle information display” in this section.
REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the rear window and
obscure your vision which may lead to an
accident. Warm the rear window with the
defogger before you wash the rear window.
CAUTION
∙ Do not operate the washer continuously for more than 30 seconds. ∙ Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
∙ Do not fill the windshield-washer fluid reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
∙ Pre-mix windshield-washer fluid concen- trates with water to the manufacturer’s
recommended levels before pouring the
fluid into the windshield-washer fluid
reservoir. Do not use the windshield-
washer fluid reservoir to mix the
windshield-washer fluid concentrate and
water.
If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove the
snow, etc. on and around the wiper arms.
After about 1 minute, turn the switch on
again to operate the wiper.
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF po-
sition to operate the wiper.
LIC3129
Instruments and controls2-37

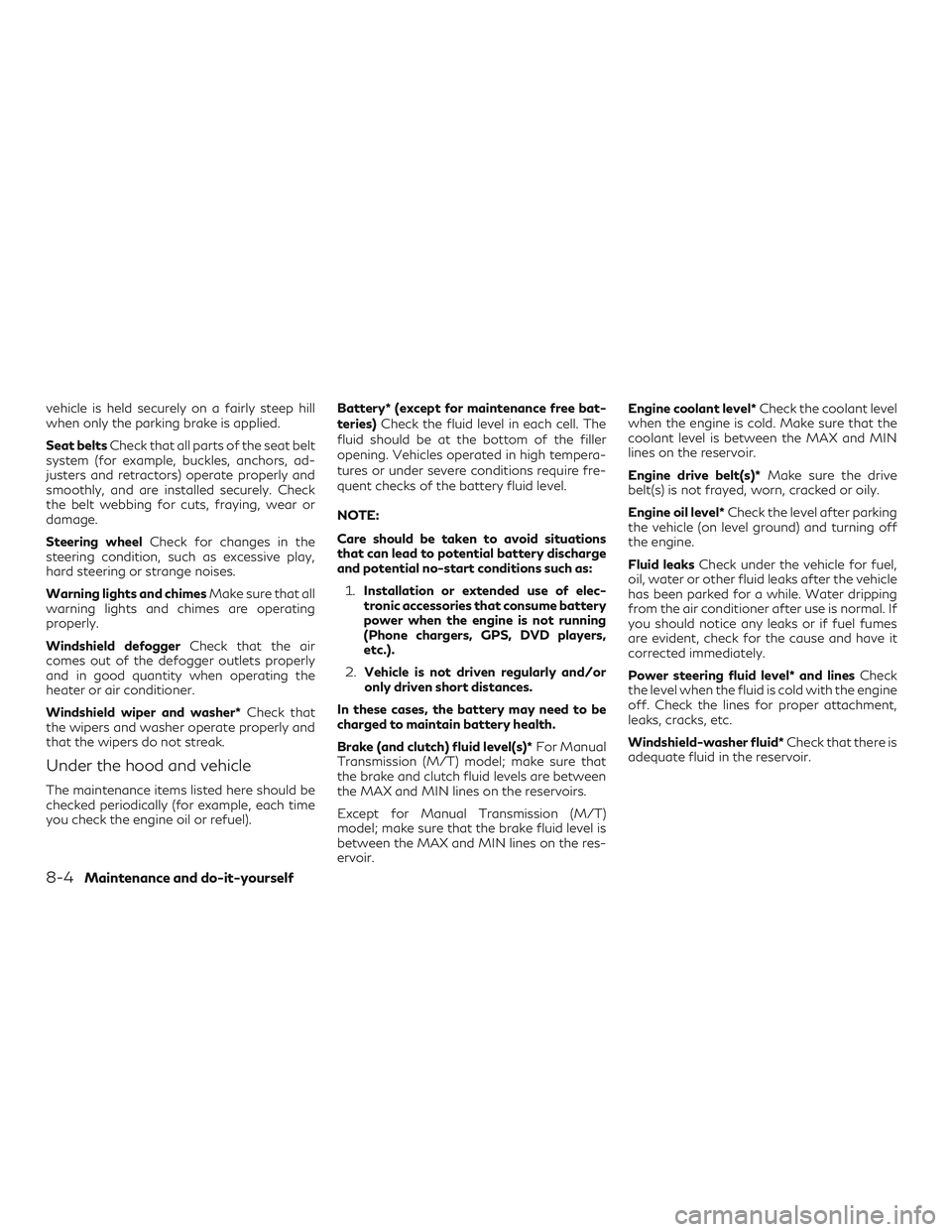

vehicle is held securely on a fairly steep hill
when only the parking brake is applied.
Seat beltsCheck that all parts of the seat belt
system (for example, buckles, anchors, ad-
justers and retractors) operate properly and
smoothly, and are installed securely. Check
the belt webbing for cuts, fraying, wear or
damage.
Steering wheel Check for changes in the
steering condition, such as excessive play,
hard steering or strange noises.
Warning lights and chimes Make sure that all
warning lights and chimes are operating
properly.
Windshield defogger Check that the air
comes out of the defogger outlets properly
and in good quantity when operating the
heater or air conditioner.
Windshield wiper and washer* Check that
the wipers and washer operate properly and
that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel). Battery* (except for maintenance free bat-
teries)
Check the fluid level in each cell. The
fluid should be at the bottom of the filler
opening. Vehicles operated in high tempera-
tures or under severe conditions require fre-
quent checks of the battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of elec-
tronic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.).
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake (and clutch) fluid level(s)* For Manual
Transmission (M/T) model; make sure that
the brake and clutch fluid levels are between
the MAX and MIN lines on the reservoirs.
Except for Manual Transmission (M/T)
model; make sure that the brake fluid level is
between the MAX and MIN lines on the res-
ervoir. Engine coolant level*
Check the coolant level
when the engine is cold. Make sure that the
coolant level is between the MAX and MIN
lines on the reservoir.
Engine drive belt(s)* Make sure the drive
belt(s) is not frayed, worn, cracked or oily.
Engine oil level* Check the level after parking
the vehicle (on level ground) and turning off
the engine.
Fluid leaks Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping
from the air conditioner after use is normal. If
you should notice any leaks or if fuel fumes
are evident, check for the cause and have it
corrected immediately.
Power steering fluid level* and lines Check
the level when the fluid is cold with the engine
off. Check the lines for proper attachment,
leaks, cracks, etc.
Windshield-washer fluid* Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself
