HOW TO ENABLE/DISABLE THE
DCA SYSTEM
To turn on the DCA system, push the dynamic
driver assistance switch
1on the steering
wheel after starting the engine. The DCA
system switch indicator light
2in the vehicle
information display will illuminate. Push the
dynamic driver assistance switch again to
turn off the DCA system. The DCA system
switch indicator light will turn off.
The system will start to operate after the
vehicle speed becomes above approximately
3 mph (5 km/h).
The dynamic driver assistance switch is used
for the LDP, DCA and BSI systems. When the
dynamic driver assistance switch is pushed,
the LDP system will also turn on or off simul-
taneously. The DCA system can be individu-
ally set to on or off on the display. If the
system is set to off, the system will not turn
on even if the dynamic driver assistance
switch is pushed to on. For additional infor-
mation, refer to “Setting DCA system to
ON/OFF” in this section.
LSD2552
Starting and driving5-101

NOTE:
The approach warning chime may sound and
the system display may blink when ICC sen-
sor detects vehicles in other lanes
Aor ob-
jects on the side of the roadA. This may
cause the DCA system to operate inappro-
priately. The ICC sensor may detect these
objects when the vehicle is driven on winding
roads, narrow roads, hilly roads or when en-
tering or exiting a curve. In these cases you
will have to manually control the proper dis-
tance ahead of your vehicle.
Also, the sensor sensitivity can be affected
by vehicle operation (steering maneuver or
driving position in the lane) or traffic or ve-
hicle condition (for example, if a vehicle is
being driven with some damage).
SYSTEM TEMPORARILY
UNAVAILABLE
Under the following conditions, the DCA sys-
tem will not operate and the DCA cancella-
tion message will pop up:
∙ When the Drive Mode Selector switch is placed in the SNOW mode (To use the
DCA system, turn off the Drive Mode
Selector switch, then turn on the dynamic
driver assistance switch.)
For additional information about the
SNOW mode on the Drive Mode Selec-
tor switch, refer to “Snow mode” in this
section. ∙ When the VDC system is off (To use the
DCA system, turn on the VDC, then push
the dynamic driver assistance switch.)
For additional information about the
VDC system, refer to “Vehicle Dynamic
Control (VDC) system” in this section.
∙ When ABS or VDC (including the TCS) is operating
When the Conventional (fixed speed) cruise
control mode is operating, the DCA system
will not operate. (To use the DCA system,
turn the Conventional [fixed speed] cruise
control mode off, then push the dynamic
driver assistance switch.)
For additional information about the Con-
ventional (fixed speed) cruise control mode,
refer to “Intelligent Cruise Control (ICC)” in
this section.
When the engine is turned off, the system is
automatically turned off.
SSD0284ALSD2080
5-106Starting and driving

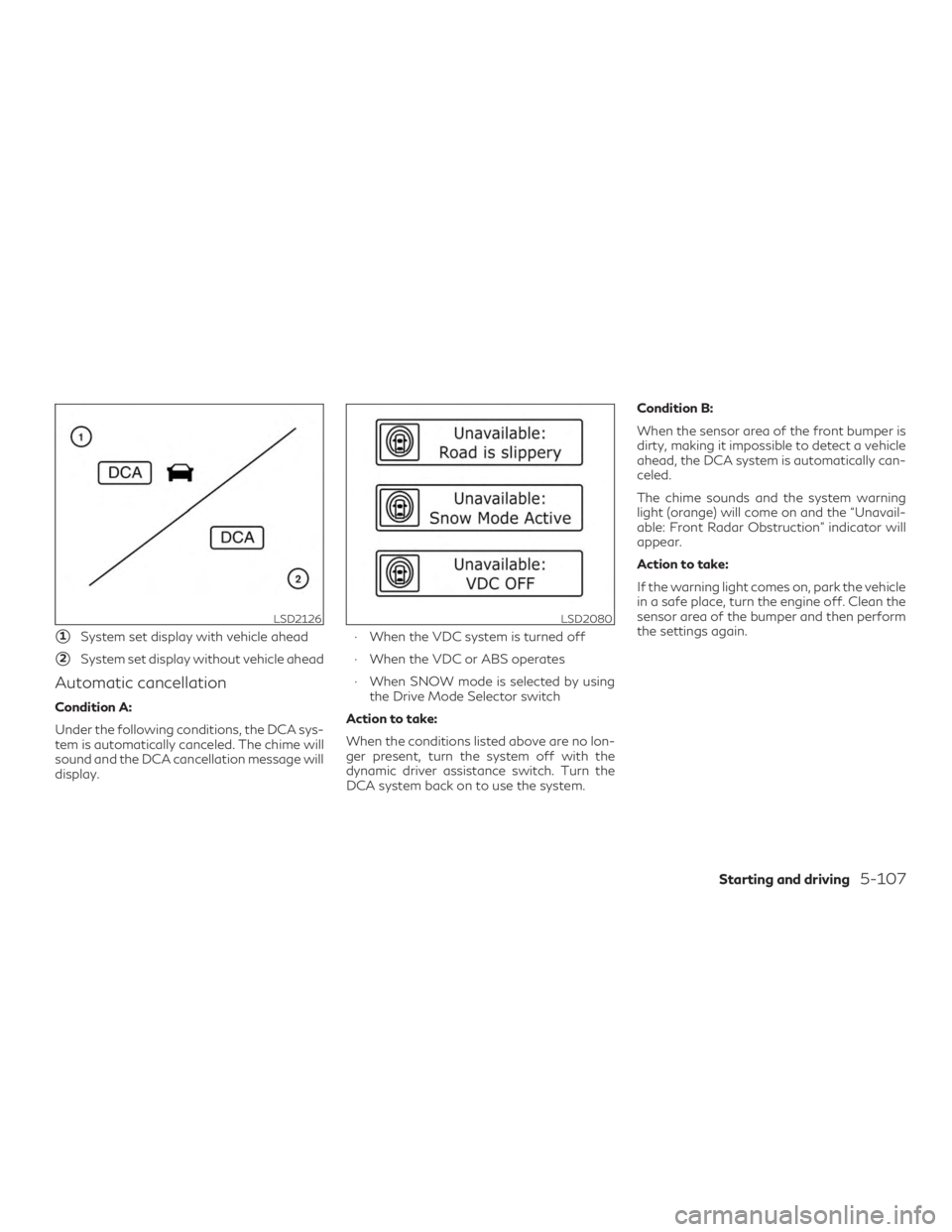

1System set display with vehicle ahead
2System set display without vehicle ahead
Automatic cancellation
Condition A:
Under the following conditions, the DCA sys-
tem is automatically canceled. The chime will
sound and the DCA cancellation message will
display.∙ When the VDC system is turned off
∙ When the VDC or ABS operates
∙ When SNOW mode is selected by using
the Drive Mode Selector switch
Action to take:
When the conditions listed above are no lon-
ger present, turn the system off with the
dynamic driver assistance switch. Turn the
DCA system back on to use the system. Condition B:
When the sensor area of the front bumper is
dirty, making it impossible to detect a vehicle
ahead, the DCA system is automatically can-
celed.
The chime sounds and the system warning
light (orange) will come on and the “Unavail-
able: Front Radar Obstruction” indicator will
appear.
Action to take:
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor area of the bumper and then perform
the settings again.
LSD2126LSD2080
Starting and driving5-107

Condition C:
When the DCA system is not operating prop-
erly, the chime sounds and the system warn-
ing light (“DCA” orange) will come on.
Action to take:
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, and turn on the DCA system
again.If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The sensor for the DCA system is common
with ICC and is located behind the front bum-
per.
For additional information, refer to “Intelli-
gent Cruise Control (ICC)” in this section.
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.For Canada
IC: 4135A-ARS3B
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1)
This device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Droit applicable : Canada 310
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1)
L’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en comprom-
ettre le fonctionnement.
DCA warning light (orange)
LSD2081
5-108Starting and driving

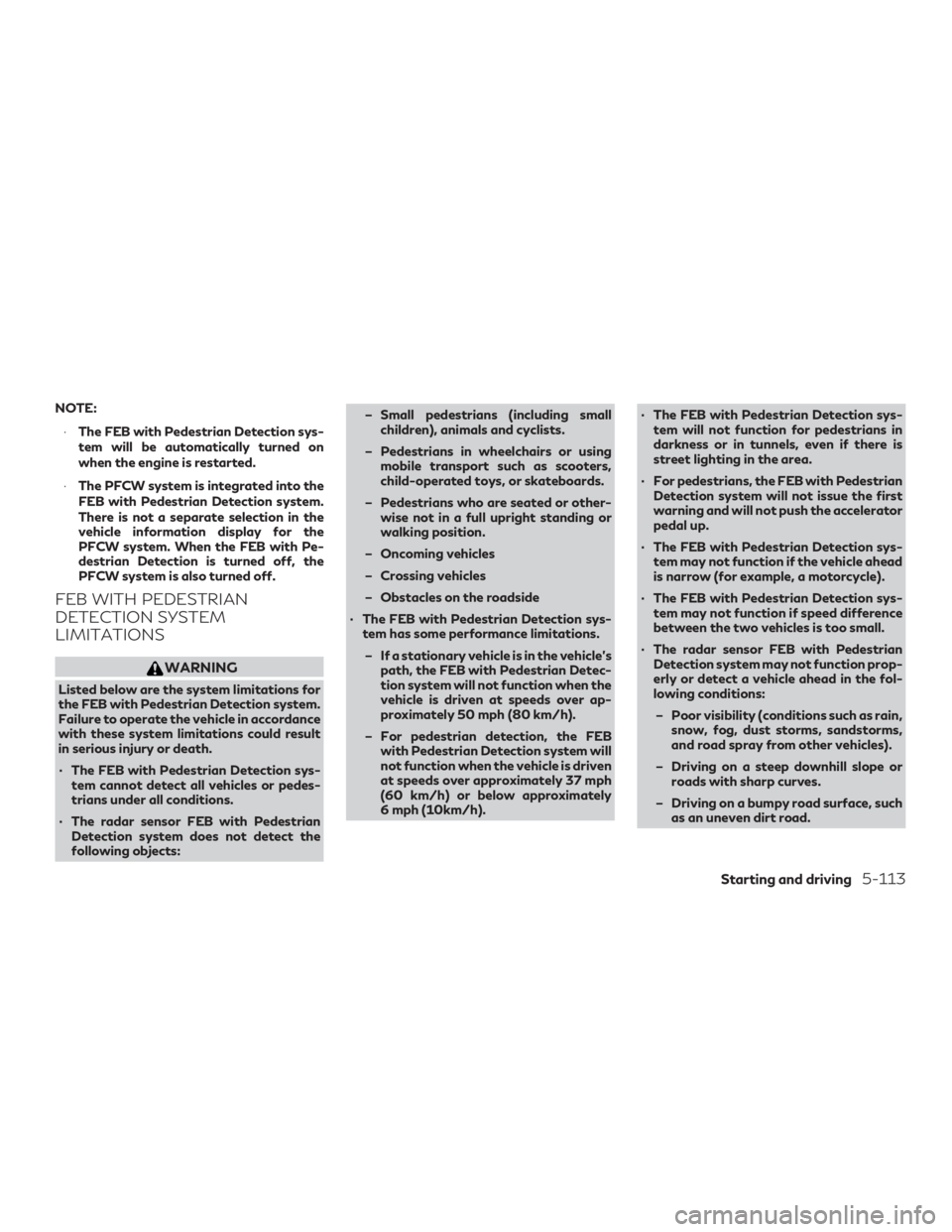

NOTE:∙ The FEB with Pedestrian Detection sys-
tem will be automatically turned on
when the engine is restarted.
∙ The PFCW system is integrated into the
FEB with Pedestrian Detection system.
There is not a separate selection in the
vehicle information display for the
PFCW system. When the FEB with Pe-
destrian Detection is turned off, the
PFCW system is also turned off.
FEB WITH PEDESTRIAN
DETECTION SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accordance
with these system limitations could result
in serious injury or death.
∙ The FEB with Pedestrian Detection sys-
tem cannot detect all vehicles or pedes-
trians under all conditions.
∙ The radar sensor FEB with Pedestrian Detection system does not detect the
following objects: – Small pedestrians (including small
children), animals and cyclists.
– Pedestrians in wheelchairs or using mobile transport such as scooters,
child-operated toys, or skateboards.
– Pedestrians who are seated or other- wise not in a full upright standing or
walking position.
– Oncoming vehicles
– Crossing vehicles
– Obstacles on the roadside
∙ The FEB with Pedestrian Detection sys- tem has some performance limitations.
– If a stationary vehicle is in the vehicle’s path, the FEB with Pedestrian Detec-
tion system will not function when the
vehicle is driven at speeds over ap-
proximately 50 mph (80 km/h).
– For pedestrian detection, the FEB with Pedestrian Detection system will
not function when the vehicle is driven
at speeds over approximately 37 mph
(60 km/h) or below approximately
6 mph (10km/h). ∙ The FEB with Pedestrian Detection sys-
tem will not function for pedestrians in
darkness or in tunnels, even if there is
street lighting in the area.
∙ For pedestrians, the FEB with Pedestrian Detection system will not issue the first
warning and will not push the accelerator
pedal up.
∙ The FEB with Pedestrian Detection sys- tem may not function if the vehicle ahead
is narrow (for example, a motorcycle).
∙ The FEB with Pedestrian Detection sys- tem may not function if speed difference
between the two vehicles is too small.
∙ The radar sensor FEB with Pedestrian Detection system may not function prop-
erly or detect a vehicle ahead in the fol-
lowing conditions:
– Poor visibility (conditions such as rain, snow, fog, dust storms, sandstorms,
and road spray from other vehicles).
– Driving on a steep downhill slope or roads with sharp curves.
– Driving on a bumpy road surface, such as an uneven dirt road.
Starting and driving5-113

NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area, have it checked. It
is recommended that you visit an INFINITI
retailer for this service.
Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate and the system will be turned off
automatically and the “Unavailable: Front
Radar Obstruction” warning message will ap-
pear in the vehicle information display.∙ The sensor area of the front bumper is covered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar sensor area of the front
bumper or the camera area of the windshield
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service. NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MAINTENANCE
The radar sensorAis located behind the
lower grille of the front bumper. The camera
Bis located on the upper side of the wind-
shield.
To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
∙ Always keep sensor areas of the front bumper and windshield clean.
∙ Do not strike or damage the areas around the sensors (ex. Bumper, windshield).
LSD2703
5-116Starting and driving

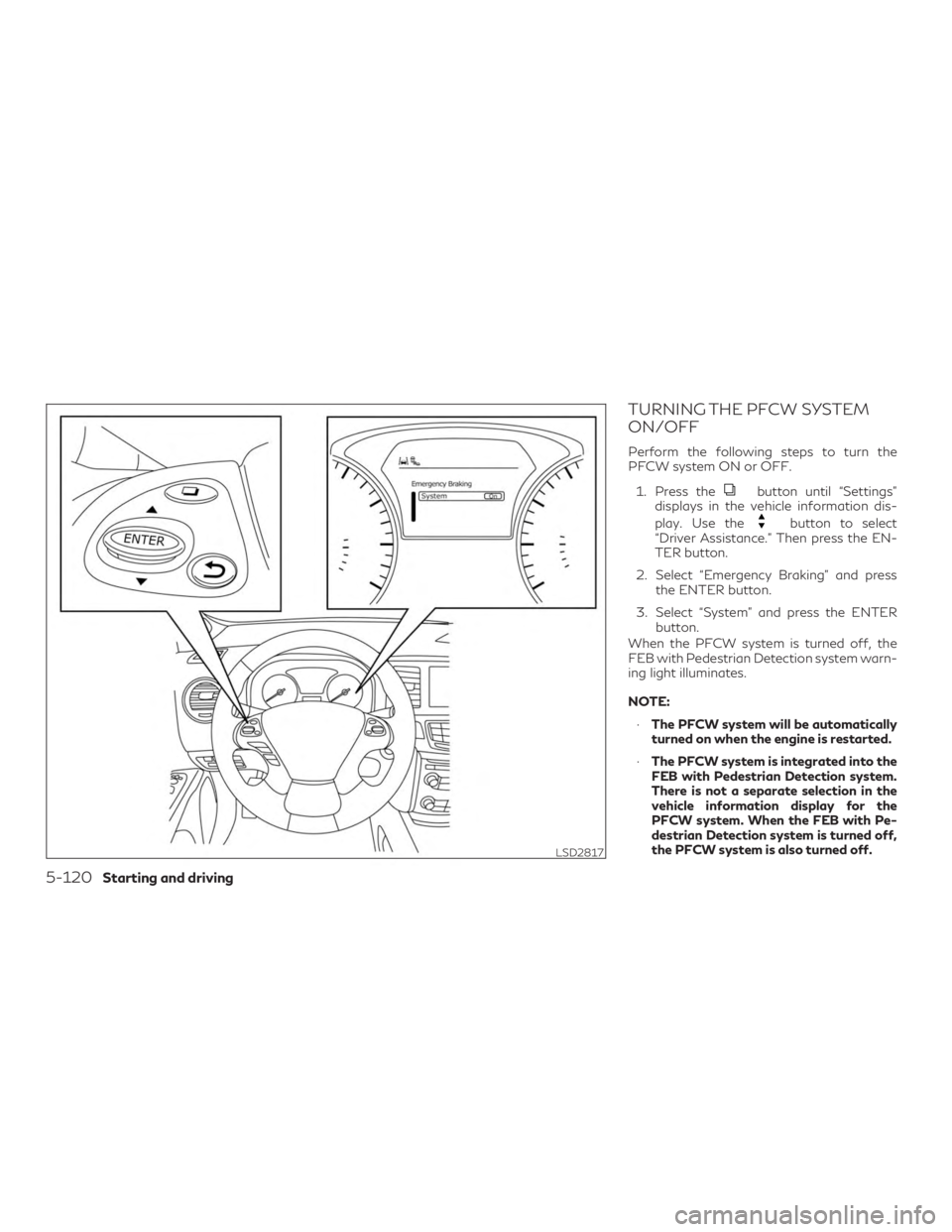

TURNING THE PFCW SYSTEM
ON/OFF
Perform the following steps to turn the
PFCW system ON or OFF.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the EN-
TER button.
2. Select “Emergency Braking” and press the ENTER button.
3. Select “System” and press the ENTER button.
When the PFCW system is turned off, the
FEB with Pedestrian Detection system warn-
ing light illuminates.
NOTE:
∙ The PFCW system will be automatically
turned on when the engine is restarted.
∙ The PFCW system is integrated into the
FEB with Pedestrian Detection system.
There is not a separate selection in the
vehicle information display for the
PFCW system. When the FEB with Pe-
destrian Detection system is turned off,
the PFCW system is also turned off.
LSD2817
5-120Starting and driving

Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar cover on the lower grille
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the PFCW system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system will also
stop working.
SYSTEM MALFUNCTION
If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
warning message [Malfunction] will appear
in the vehicle information display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the PFCW sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The sensorAis located behind the lower
grille of the front bumper.
To keep the system operating properly, be
sure to observe the following:
∙ Always keep the sensor area of the front bumper clean.
∙ Do not strike or damage the areas around the sensor.
∙ Do not cover or attach stickers or similar objects on the front bumper near the sen-
sor area. This could cause failure or mal-
function. ∙ Do not attach metallic objects near the
sensor area (brush guard, etc.). This could
cause failure or malfunction.
∙ Do not alter, remove or paint the front bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
LSD2702
Starting and driving5-127

For Canada
IC: 4135A-ARS3B
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1)
This device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Droit applicable : Canada 310
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes: (1)
L’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en comprom-
ettre le fonctionnement.CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and ensure
the future reliability and economy of your
new vehicle. Failure to follow these recom-
mendations may result in shortened engine
life and reduced engine performance.∙ Avoid driving for long periods at constant speed, either fast or slow, and do not run
the engine over 4,000 RPM.
∙ Do not accelerate at full throttle in any gear.
∙ Avoid quick starts.
∙ Avoid hard braking as much as possible.
∙ Do not tow a trailer for the first 500 miles (805 km). Your engine, axle or
other parts could be damaged. Follow these easy-to-use Fuel Efficient Driv-
ing Tips to help you achieve the most fuel
economy from your vehicle.
1. Use Smooth Accelerator and
Brake Pedal Application
∙ Avoid rapid starts and stops.
∙ Use smooth, gentle accelerator and brake application whenever possible.
∙ Maintain constant speed while com- muting and coast whenever possible.
2. Maintain Constant Speed
∙ Look ahead to try and anticipate and minimize stops.
∙ Synchronizing your speed with traffic lights allows you to reduce your num-
ber of stops.
∙ Maintaining a steady speed can mini- mize red light stops and improve fuel
efficiency.
3. Use Air Conditioning (A/C) at
Higher Vehicle Speeds
∙ Below 40 mph (64 km/h), it is more efficient to open windows to cool the
vehicle due to reduced engine load.
BREAK-IN SCHEDULE FUEL EFFICIENT DRIVING TIPS
5-128Starting and driving

∙ Above 40 mph (64 km/h), it is moreefficient to use A/C to cool the vehicle
due to increased aerodynamic drag.
∙ Recirculating the cool air in the cabin when the A/C is on reduces cooling
load.
4. Drive at Economical Speeds and
Distances
∙ Observing the speed limit and not ex- ceeding 60 mph (97 km/h) (where le-
gally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
∙ Maintaining a safe following distance behind other vehicles reduces unnec-
essary braking.
∙ Safely monitoring traffic to anticipate changes in speed permits reduced
braking and smooth acceleration
changes.
∙ Select a gear range suitable to road conditions. 5.
Use Cruise Control
∙ Using cruise control during highway driving helps maintain a steady speed.
∙ Cruise control is particularly effective in providing fuel savings when driving
on flat terrains.
6. Plan for the Shortest Route
∙ Utilize a map or navigation system to determine the best route to save time.
7. Avoid Idling
∙ Shutting off your engine when safe for stops exceeding 30–60 seconds saves
fuel and reduces emissions.
8. Buy an Automated Pass for Toll Roads
∙ Automated passes permit drivers to use special lanes to maintain cruising
speed through the toll and avoid stop-
ping and starting.
9. Winter Warm Up
∙ Limit idling time to minimize impact to fuel economy. ∙ Vehicles typically need no more than
30 seconds of idling at start-up to ef-
fectively circulate the engine oil before
driving.
∙ Your vehicle will reach its ideal operat- ing temperature more quickly while
driving versus idling.
10. Keeping your Vehicle Cool
∙ Park your vehicle in a covered parking area or in the shade whenever pos-
sible.
∙ When entering a hot vehicle, opening the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system.
Starting and driving5-129
