INFINITI QX60 2019 Owner's Manual

The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take
When the above conditions no longer exist,
the system will resume automatically.
Malfunction
When the RCTA system malfunctions, it will
turn off automatically. The system malfunc-
tion warning message with the BSW/RCTA
indicator (orange) will appear in the vehicle
information display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261)
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.
LSD2221
Starting and driving5-75

For Canada
This device complies with Industry Canada
Standard RSS-310.
Operation is subject to the following two
conditions: (1) This device may not cause in-
terference, and (2) this device must accept
any interference, including interference that
may cause undesired operation.
Frequency of operation:
24,05GHz — 24,25GHz
Field Strength: Not greater than 2.5V/m
peak (0.25V/m average) at a distance of 3m
Ce produit est en conformité avec le Stan-
dard Industrie Canada RSS-310.
L’utilisation de ce dispositif est autorisée
seulement aux deux conditions suivantes : (1)
Il ne doit pas produire de brouillage, et (2)
l’utilisateur du dispositif doit être prêt à ac-
cepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de com-
promettre le fonctionnement du dispositif.
Fréquence d’opération :
24,05GHZ - 24,25GHz
Puissance du champ électrique: Pas plus de
2,5V/m pique (0,25V/m moyenne) à une dis-
tance de 3m.
PRECAUTIONS ON CRUISE
CONTROL
1. ACCEL/RES switch
2. COAST/SET switch
3. CANCEL switch
4. ON/OFF switch
∙ If the cruise control system malfunctions, it will cancel automatically. The SET indi-
cator in the vehicle information display
will blink to warn the driver. ∙ If the engine coolant temperature be-
comes excessively high, the cruise control
system will be canceled automatically.
∙ If the SET indicator blinks, turn the ON/OFF switch off and have the system
checked. It is recommended that you visit
an INFINITI retailer for this service.
∙ The SET indicator may sometimes blink when the ON/OFF switch is turned on
while pushing the ACCEL/RES,
COAST/SET or CANCEL switch. To
properly set the cruise control system,
perform the steps below.
WARNING
Do not use the cruise control when driving
under the following conditions:
∙ When it is not possible to keep the vehicleat a set speed
∙ In heavy traffic or in traffic that varies in speed
∙ On winding or hilly roads
∙ On slippery roads (rain, snow, ice, etc.)
∙ In very windy areas
Doing so could cause a loss of vehicle con-
trol and result in an accident.
SSD0941
CRUISE CONTROL (if so equipped)
5-76Starting and driving

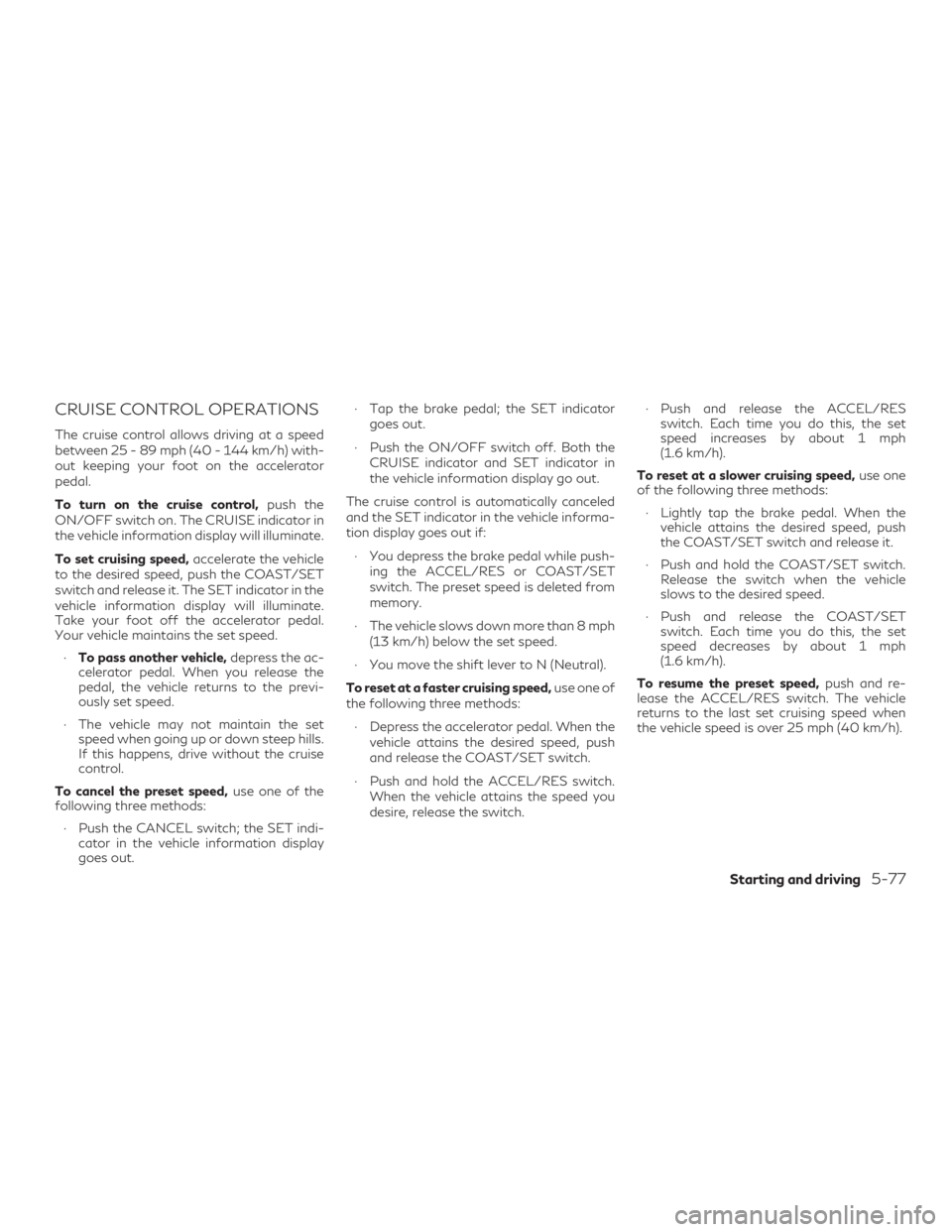

CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed
between 25 - 89 mph (40 - 144 km/h) with-
out keeping your foot on the accelerator
pedal.
To turn on the cruise control,push the
ON/OFF switch on. The CRUISE indicator in
the vehicle information display will illuminate.
To set cruising speed, accelerate the vehicle
to the desired speed, push the COAST/SET
switch and release it. The SET indicator in the
vehicle information display will illuminate.
Take your foot off the accelerator pedal.
Your vehicle maintains the set speed.
∙ To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle returns to the previ-
ously set speed.
∙ The vehicle may not maintain the set speed when going up or down steep hills.
If this happens, drive without the cruise
control.
To cancel the preset speed, use one of the
following three methods:
∙ Push the CANCEL switch; the SET indi- cator in the vehicle information display
goes out. ∙ Tap the brake pedal; the SET indicator
goes out.
∙ Push the ON/OFF switch off. Both the CRUISE indicator and SET indicator in
the vehicle information display go out.
The cruise control is automatically canceled
and the SET indicator in the vehicle informa-
tion display goes out if: ∙ You depress the brake pedal while push- ing the ACCEL/RES or COAST/SET
switch. The preset speed is deleted from
memory.
∙ The vehicle slows down more than 8 mph (13 km/h) below the set speed.
∙ You move the shift lever to N (Neutral).
To reset at a faster cruising speed, use one of
the following three methods:
∙ Depress the accelerator pedal. When the vehicle attains the desired speed, push
and release the COAST/SET switch.
∙ Push and hold the ACCEL/RES switch. When the vehicle attains the speed you
desire, release the switch. ∙ Push and release the ACCEL/RES
switch. Each time you do this, the set
speed increases by about 1 mph
(1.6 km/h).
To reset at a slower cruising speed, use one
of the following three methods:
∙ Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the COAST/SET switch and release it.
∙ Push and hold the COAST/SET switch. Release the switch when the vehicle
slows to the desired speed.
∙ Push and release the COAST/SET switch. Each time you do this, the set
speed decreases by about 1 mph
(1.6 km/h).
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle
returns to the last set cruising speed when
the vehicle speed is over 25 mph (40 km/h).
Starting and driving5-77

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the ICC system could
result in serious injury or death.
∙ The ICC system is only an aid to assist thedriver and is not a collision warning or
avoidance device. It is the driver’s re-
sponsibility to stay alert, drive safely and
be in control of the vehicle at all times.
∙ Always observe posted speed limits and do not set the speed over them.
∙ Always drive carefully and attentively when using the ICC system. Read and un-
derstand the Owner’s Manual thor-
oughly before using the ICC system. To
avoid serious injury or death, do not rely
on the system to prevent accidents or to
control the vehicle’s speed in emergency
situations. Do not use the ICC system ex-
cept in appropriate road and traffic
conditions. The ICC system is intended to enhance the
operation of the vehicle when following a
vehicle traveling in the same lane and direc-
tion.
The ICC system uses a radar sensor
Alo-
cated on the front of the vehicle to detect
vehicles traveling ahead.
If the radar sensor detects a slower moving
vehicle ahead, the system will reduce the ve-
hicle speed so that your vehicle follows the
vehicle in front at the selected distance.
The detection range of the sensor is approxi-
mately 390 ft (120 m) ahead.
LSD2702
INTELLIGENT CRUISE CONTROL
(ICC) (if so equipped)
5-78Starting and driving

ICC SYSTEM OPERATION
The ICC system maintains a selected distance
from the vehicle in front of you within the
speed range 0 to 90 mph (0 to 144 km/h) up
to the set speed. The set speed can be se-
lected by the driver between 20 to 90 mph
(32 to 144 km/h), based on road conditions.
The vehicle travels at the set speed when the
road ahead is clear.
The ICC system is designed to maintain a
selected distance from the vehicle in front of
you and can reduce the speed to match a
slower vehicle ahead. The system will decel-
erate the vehicle as necessary and if the ve-
hicle ahead comes to a stop, the vehicle de-
celerates to a standstill. However, the ICC
system can only apply up to 40% of the vehi-
cle’s total braking power.
This system should only be used when traffic
conditions allow vehicle speeds to remain
fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the
traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because
the ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
LSD3139
Starting and driving5-79

will sound a warning chime and blink the
system display to notify the driver to take
necessary action.
For additional information, refer to “Ap-
proach warning” in this section.
The following items are controlled in the ICC
system:∙ When there are no vehicles traveling ahead, the ICC system maintains the
speed set by the driver. The set speed
range is between approximately 20 and
90 mph (32 and 144 km/h).
∙ When there is a vehicle traveling ahead, the ICC system adjusts the speed to
maintain the distance, selected by the
driver, from the vehicle ahead. If the ve-
hicle ahead comes to a stop, the vehicle
decelerates to a standstill within the limi-
tations of the system. The system will
cancel once it judges a standstill with a
warning chime.
∙ When the vehicle traveling ahead has moved out from its lane of travel, the ICC
system accelerates and maintains vehicle
speed up to the set speed. The ICC system does not control vehicle
speed or warn you when you approach sta-
tionary and slow moving vehicles. You must
pay attention to vehicle operation to main-
tain proper distance from vehicles ahead
when approaching toll gates or traffic con-
gestion.
When driving on the freeway at a set speed
and approaching a slower traveling vehicle
ahead, the ICC system will adjust the speed
to maintain the distance, selected by the
driver, from the vehicle ahead. If the vehicle
ahead changes lanes or exits the freeway, the
ICC system will accelerate and maintain the
speed up to the set speed. Pay attention to
the driving operation to maintain control of
the vehicle as it accelerates to the set speed.
Normally when controlling the distance to a
vehicle ahead, this system automatically ac-
celerates or decelerates your vehicle accord-
ing to the speed of the vehicle ahead. De-
press the accelerator to properly accelerate
SSD0254
5-80Starting and driving

your vehicle when acceleration is required for
a lane change. Depress the brake pedal when
deceleration is required to maintain a safe
distance to the vehicle ahead due to its sud-
den braking or if a vehicle cuts in. Always stay
alert when using the ICC system.
ICC (Vehicle-to-vehicle distance
control) mode
In the vehicle-to-vehicle distance control
mode, the ICC system automatically main-
tains a selected distance from the vehicle
traveling in front of you according to that
vehicle’s speed (up to the set speed), or at the
set speed when the road ahead is clear.
The system is intended to enhance the opera-
tion of the vehicle when following a vehicle
traveling in the same lane and direction.
If the radar sensor detects a slower moving
vehicle ahead, the system will reduce the ve-
hicle speed so that your vehicle follows the
vehicle in front at the selected distance.
The system automatically controls the
throttle and applies the brakes (up to ap-
proximately 40% of vehicle braking power) if
necessary. The detection range of the sensor
is approximately 650 ft (200 m) ahead.Preview Function
The ICC system with the Preview Function
identifies the need to apply emergency brak-
ing by sensing a vehicle ahead in the same
lane, and the distance and relative speed
from it. The system applies the brake pre-
pressure before the driver depresses the
brake pedal and helps improve brake re-
sponse by reducing pedal free play.
∙ This system will not operate when the vehicle is moving at approximately
20 mph (32 km/h) or less.
∙ The pre-pressure function ceases when the following conditions are met:
– When the driver depresses the accel- erator pedal or the brake pedal.
– If the driver does not operate the ac- celerator or brake pedal within ap-
proximately 1 second. ∙ The sensor will not detect:
– Pedestrians or objects in the roadway
– Oncoming vehicles in the same lane
– Motorcycles traveling offset in thetravel lane as illustrated
WARNING
∙ This system is only an aid to assist brak-ing operation and is not a collision warn-
ing or avoidance device. It is the driver’s
responsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
SSD0338
Starting and driving5-81

∙ As there is a performance limit to the Pre-view Function, never rely solely on this
system. This system does not correct
careless, inattentive or absentminded
driving, or overcome poor visibility in
rain, fog, or other bad weather. Reduce
vehicle speed by depressing the brake
pedal, in order to maintain a safe distance
between vehicles.
∙ The system may not detect the vehicle in front of you in certain road or weather
conditions. The Preview Function may
not operate properly under the following
conditions. The vehicle is still driveable
under normal conditions and the Brake
Assist will operate.
– When rain or snow adhere to the bum- per around the distance sensor.
– Vehicle position in the lane may cause the sensor to temporarily not detect a
vehicle in the same lane or may detect
objects or vehicles in other lanes.
Conventional (fixed speed) cruise
control mode
This mode allows driving at a speed between
20 to 90 mph (32 to 144 km/h) without
keeping your foot on the accelerator pedal.
WARNING
∙ In the conventional (fixed speed) cruisecontrol mode, a warning chime does not
sound to warn you if you are too close to
the vehicle ahead, as neither the presence
of the vehicle ahead nor the vehicle-to-
vehicle distance is detected.
∙ Pay special attention to the distance be- tween your vehicle and the vehicle ahead
of you or a collision could occur.
∙ Always confirm the setting in the Intelli- gent Cruise Control system display.
∙ Do not use the conventional (fixed speed) cruise control mode when driving under
the following conditions:
– When it is not possible to keep the ve- hicle at a set speed
– In heavy traffic or in traffic that varies in speed
– On winding or hilly roads
– On slippery roads (rain, snow, ice, etc.)
– In very windy areas
∙ Doing so could cause a loss of vehicle con- trol and result in an accident.
THE ICC SWITCH
The system is operated by the CRUISE
ON/OFF switch and four control switches,
all mounted on the steering wheel.
1. ACCEL/RES switch:
Resumes set speed or increases speed
incrementally.
2. COAST/SET switch:
Sets desired cruise speed or reduces
speed incrementally.
LSD2056
5-82Starting and driving

3.CANCEL switch:
Deactivates the system without erasing
the set speed.
4. DISTANCE
switch*:
Changes the vehicle’s following distance:
∙ Long
∙ Middle
∙ Short
5. CRUISE ON/OFF switch:
Master switch to activate the system.
*: This switch only affects the vehicle-to-
vehicle control mode, not the conventional
(fixed speed) cruise control mode.
How to select the cruise control
mode
Selecting vehicle-to-vehicle distance
control mode
To choose the vehicle-to-vehicle distance
control mode, quickly push and release the
CRUISE ON/OFF switch. Selecting the conventional (fixed speed)
cruise control mode
To choose the conventional (fixed speed)
cruise control mode, push and hold the
CRUISE ON/OFF switch for longer than ap-
proximately 1.5 seconds. For additional infor-
mation, refer to “Operating conventional
(fixed speed) cruise control mode” in this sec-
tion.
ICC (vehicle-to-vehicle distance
control) mode display and
indicators
The display is located between the speedom-
eter and tachometer.
1. CRUISE ON/OFF switch indicator: ∙ICC system ON indicator (white):
Indicates that the CRUISE ON/OFF
switch is ON.
∙ ICC system SET indicator (green):
Indicates that the cruising speed is set.
LSD2534
Starting and driving5-83

∙ICC system warning (orange):
Indicates that there is a malfunction in
the ICC system.
2. Vehicle ahead detection indicator: Indicates whether it detects a vehicle in
front of you.
3. Set distance indicator: Displays the selected distance between
vehicles set with the distance switch.
4. Set vehicle speed indicator: Indicates the set vehicle speed.
Preview function warning light and display
When the Preview Function is not operating
properly, the chime sounds and the system
warning light (orange) will come on.
Action to take:
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine and resume driving.
If the indicator stays on, it may indicate that
the Preview Function is malfunctioning (the
brake is operative). Although the vehicle is
still drivable under normal conditions, have
the vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.
Conventional (fixed speed) cruise
control mode display and indicators
The display is located between the speedom-
eter and tachometer.1. CRUISE ON/OFF switch indicator: Indicates that the CRUISE ON/OFF
switch is on.
2. Cruise set switch indicator:
Displays while the vehicle speed is con-
trolled by the conventional (fixed speed)
cruise control mode of the ICC system.
3. Cruise system warning light:
Comes on if there is a malfunction in the
cruise control system.
LSD2067LSD2075
5-84Starting and driving
