CHANGING ENGINE OIL
WARNING
∙ Prolonged and repeated contact withused engine oil may cause skin cancer. ∙ Try to avoid direct skin contact with used
oil. If skin contact is made, wash thor-
oughly with soap or hand cleaner as soon
as possible.
∙ Keep used engine oil out of reach of children.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
1. Park the vehicle on a level surface and apply the parking brake.
2. Start the engine and let it idle until it reaches operating temperature, then
turn it off.
3. Remove the oil filler cap
Aby turning it
counterclockwise.
4. Place a large drain pan under the drain plug
B.
5. Remove the drain plug
Bwith a wrench
by turning it counterclockwise and com-
pletely drain the oil. If the oil filter is to be changed, remove
and replace it at this time. For additional
information, refer to “Changing engine
oil filter” in this section.
∙ Waste oil must be disposed of properly.
∙ Check your local regulations.
6. Clean and reinstall the drain plug and a new washer. Securely tighten the drain
plug with a wrench. Do not use excessive
force.
Drain plug tightening torque: 25 ft-lb (34 N·m)
7. Refill engine with recommended oil through the oil filler opening, then install
the oil filler cap securely.
For additional information on drain and
refill capacity, refer to “Recommended
fluids/lubricants and capacities” in the
“Technical and consumer information”
section of this manual.
The drain and refill capacity depends on
the oil temperature and drain time. Use
these specifications for reference only.
Always use the dipstick to determine
when the proper amount of oil is in the
engine.LDI3278
Do-it-yourself8-7

10 Technical and consumer information
Recommended fluids/lubricants and capacities . . 10-2Fuel recommendation ....................... 10-3
Engine oil and oil filter recommendations .....10-6
Air conditioner system refrigerant and oil
recommendations ........................... 10-7
Specifications .................................. 10-8
Engine ...................................... 10-8
Wheels and tires ............................ 10-9
Dimensions and weights .....................10-9
When traveling or registering in another
country ....................................... 10-10
Vehicle identification .......................... 10-10
Vehicle Identification Number (VIN) plate . . . 10-10
Vehicle identification number
(chassis number) ........................... 10-10
Engine serial number ....................... 10-11
F.M.V.S.S./C.M.V.S.S. certification label .....10-11
Emission control information label ..........10-11
Tire and Loading Information label ..........10-12
Air conditioner specification label ...........10-12
Installing front license plate ....................10-12Vehicle loading information
....................10-13
Terms ..................................... 10-13
Vehicle load capacity ....................... 10-14
Securing the load ........................... 10-16
Loading tips ............................... 10-17
Measurement of weights ...................10-17
Towing a trailer ............................... 10-17
Maximum load limits ....................... 10-18
Towing load/specification ..................10-21
Towing safety ............................. 10-21
Flat towing for all–wheel drive vehicle
(if so equipped) ............................. 10-28
Flat towing for front wheel drive vehicle
(if so equipped) ............................. 10-28
Uniform tire quality grading ....................10-29
Emission control system warranty .............10-30
Reporting safety defects ......................10-31
Readiness for Inspection/Maintenance (I/M)
test ........................................... 10-32
Event Data

Recorders (EDR) ................... 10-32
Owner’s Manual/Service Manual order
information ................................... 10-33

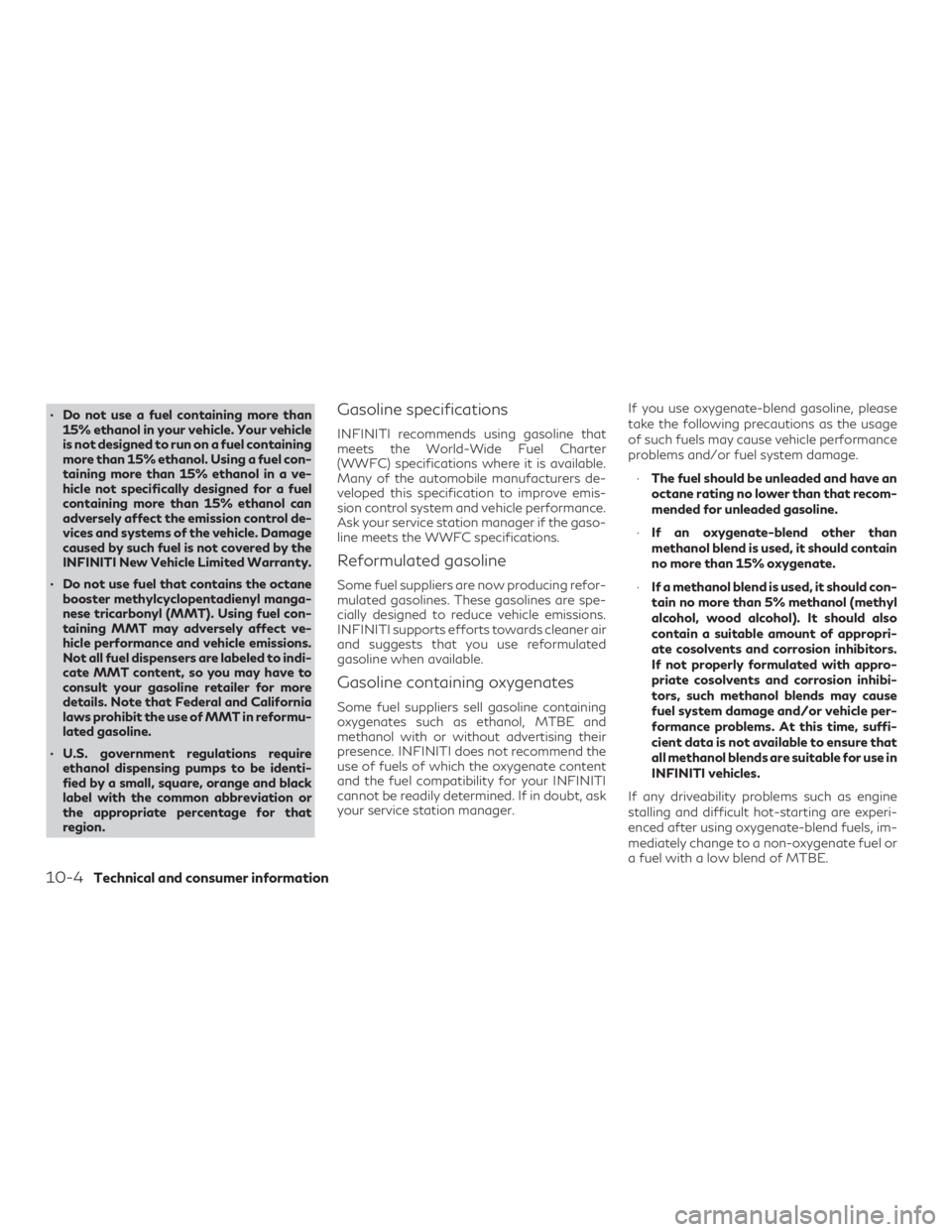

∙ Do not use a fuel containing more than15% ethanol in your vehicle. Your vehicle
is not designed to run on a fuel containing
more than 15% ethanol. Using a fuel con-
taining more than 15% ethanol in a ve-
hicle not specifically designed for a fuel
containing more than 15% ethanol can
adversely affect the emission control de-
vices and systems of the vehicle. Damage
caused by such fuel is not covered by the
INFINITI New Vehicle Limited Warranty.
∙ Do not use fuel that contains the octane booster methylcyclopentadienyl manga-
nese tricarbonyl (MMT). Using fuel con-
taining MMT may adversely affect ve-
hicle performance and vehicle emissions.
Not all fuel dispensers are labeled to indi-
cate MMT content, so you may have to
consult your gasoline retailer for more
details. Note that Federal and California
laws prohibit the use of MMT in reformu-
lated gasoline.
∙ U.S. government regulations require ethanol dispensing pumps to be identi-
fied by a small, square, orange and black
label with the common abbreviation or
the appropriate percentage for that
region.Gasoline specifications
INFINITI recommends using gasoline that
meets the World-Wide Fuel Charter
(WWFC) specifications where it is available.
Many of the automobile manufacturers de-
veloped this specification to improve emis-
sion control system and vehicle performance.
Ask your service station manager if the gaso-
line meets the WWFC specifications.
Reformulated gasoline
Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are spe-
cially designed to reduce vehicle emissions.
INFINITI supports efforts towards cleaner air
and suggests that you use reformulated
gasoline when available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and
methanol with or without advertising their
presence. INFINITI does not recommend the
use of fuels of which the oxygenate content
and the fuel compatibility for your INFINITI
cannot be readily determined. If in doubt, ask
your service station manager. If you use oxygenate-blend gasoline, please
take the following precautions as the usage
of such fuels may cause vehicle performance
problems and/or fuel system damage.
∙ The fuel should be unleaded and have an
octane rating no lower than that recom-
mended for unleaded gasoline.
∙ If an oxygenate-blend other than
methanol blend is used, it should contain
no more than 15% oxygenate.
∙ If a methanol blend is used, it should con-
tain no more than 5% methanol (methyl
alcohol, wood alcohol). It should also
contain a suitable amount of appropri-
ate cosolvents and corrosion inhibitors.
If not properly formulated with appro-
priate cosolvents and corrosion inhibi-
tors, such methanol blends may cause
fuel system damage and/or vehicle per-
formance problems. At this time, suffi-
cient data is not available to ensure that
all methanol blends are suitable for use in
INFINITI vehicles.
If any driveability problems such as engine
stalling and difficult hot-starting are experi-
enced after using oxygenate-blend fuels, im-
mediately change to a non-oxygenate fuel or
a fuel with a low blend of MTBE.
10-4Technical and consumer information

ENGINE
ModelVQ35DD
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 6-cylinder, V-block, Slanted at 60°
Bore x Stroke in (mm) 3.780 x 3.189 (96 x 81)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order 1–2–3–4–5–6
Idle speed
No adjustment is necessary.
CVT in N (Neutral) position
Ignition timing (degree B.T.D.C. at idle speed)
CO%atidle
Spark plug
FXE22HR-11
Spark plug gap (Nominal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
SPECIFICATIONS
10-8Technical and consumer information

When planning to drive your INFINITI ve-
hicle in another country,you should first find
out if the fuel available is suitable for your
vehicle's engine.
Using fuel with an octane rating that is too
low may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your vehicle
to areas where appropriate fuel is not avail-
able.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and reg-
istered, its modifications, transportation,
and registration are the responsibility of the
user. INFINITI is not responsible for any in-
convenience that may result.
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
The VIN plate is located as shown. This num-
ber is the identification for your vehicle and is
used in the vehicle registration.
The VIN number is also available through the
center display screen. For additional informa-
tion, refer to your INFINITI InTouch™ Own-
er’s Manual.
VEHICLE IDENTIFICATION
NUMBER (chassis number)
The vehicle identification number is located
as shown.
LTI2050LTI2028
WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY VEHICLE IDENTIFICATION
10-10Technical and consumer information

Sway control device
Sudden maneuvers, wind gusts, and buffet-
ing caused by other vehicles can affect trailer
handling. Sway control devices may be used
to help control these affects. If you choose to
use one, contact a reputable trailer hitch sup-
plier to make sure the sway control device will
work with the vehicle, hitch, trailer and the
trailer’s brake system. Follow the instructions
provided by the manufacturer for installing
and using the sway control device.
Class I hitch
Class I trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 2,000 lbs.
(907 kg).
Class II hitch
Class II trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 3,500 lbs.
(1,587 kg).
Class III hitch
Class III trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 5,000 lbs.
(2,268 kg).
Tire pressures
∙ When towing a trailer, inflate thevehicle tires to the recommended
cold tire pressure indicated on the
Tire and Loading Information la-
bel.
∙ Trailer tire condition, size, load rat- ing and proper inflation pressure
should be in accordance with the
trailer and tire manufacturer’s
specifications.
Safety chains
Always use suitable safety chains between
your vehicle and the trailer. The safety chains
should be crossed and should be attached to
the hitch, not to the vehicle bumper or axle.
The safety chains can be attached to the
bumper if the hitch ball is mounted to the
bumper. Be sure to leave enough slack in the
chains to permit turning corners.
Trailer lights
CAUTION
When splicing into the vehicle electrical
system, a commercially available power-
type module/converter must be used to
provide power for all trailer lighting. This
unit uses the vehicle battery as a direct
power source for all trailer lights while us-
ing the vehicle tail light, stop light and turn
signal circuits as a signal source. The
module/converter must draw no more than
15 milliamps from the stop and tail lamp
circuits. Using a module/converter that ex-
ceeds these power requirements may dam-
age the vehicle’s electrical system. See a
reputable trailer retailer to obtain the
proper equipment and to have it installed.
Trailer lights should comply with federal
and/or local regulations. For assistance in
hooking up trailer lights, contact an INFINITI
retailer or reputable trailer retailer. Vehicles
equipped with the optional trailer tow pack-
age are equipped with a 7-pin trailer harness
connector. If your trailer is equipped with a
flat 4-pin connector, an adapter will be
needed to connect the trailer lights to the
vehicle. Adapters are available at auto parts
stores and hitch retailers.
Technical and consumer information10-23
