instruments and controls INFINITI QX60 2019 Owner's Manual

Vehicle Settings
The vehicle settings allow the user to change
the settings for lights, wipers, locking, keys,
and other vehicle settings.
Menu itemResult
Rear Door Alert Displays available Rear Door Alert options. Off When selected, no alert or horn will be active.
Alert & Horn When selected, the alert is displayed and horn sounds.
Alert Only When selected, only the alert is displayed.
Welcome Light (if so equipped) Allows the user the turn the welcome light on or off.
Auto Room Lamp Allows the user to turn the auto room lamp on or off.
Light Sensitivity Allows the user to change when the lights illuminate based on the brightness outside the vehicle.
Light Off Delay Allows the user to change the duration of time, from 0 to 180 seconds, that the automatic headlights stay on af-
ter the vehicle is shut off.
Rain Sensor (if so equipped) Allows user to turn the rain sensor on or off. For additional information, refer to “Wiper and washer switch” in this
section.
Wiper with Speed (if so equipped) Allows user to turn the wiper with speed feature on or off. For additional information, refer to Wiper and washer
switch” in this section.
I-Key Door Lock Allows user to turn the I-Key door lock on or off. When this item is turned on, the request switch on the door is
activated.
Selective Unlock Allows user to turn selective unlock on or off. When turned on, only the driver’s door is unlocked after the door
unlock operation. When the door handle request switch on the driver’s or front passenger’s side door is pushed to
be unlocked, only the corresponding door is unlocked first. All the doors can be unlocked if the door unlock opera-
tion is performed again within 1 minute. When this item is turned off, all the doors will be unlocked after the door
unlock operation is performed once.
Auto Door Unlock Displays the options for the auto door unlock.
Off Doors will have to be manually unlocked.
IGN Off Doors will unlock when the ignition is turned off.
Shift into P Doors will unlock when the vehicle is shifted into P (Park).
Instruments and controls2-19

Menu itemResult
Answer Back Horn Allows user to turn answer back horn on or off. When turned on, the horn will chirp and the hazard indicators will flash once when locking the vehicle with the Intelligent Key. For additional information, refer to “Answer back
horn feature” in the “Pre-driving checks and adjustments” section of this manual.
Remote Start (if so equipped) Allows user to turn the Remote Engine Start on or off. When turned off, the vehicle cannot be started using the
Intelligent Key.
Battery Saver Allows the user to turn the battery saver feature on or off. When turned on, this feature will turn off the ignition
switch after a period of time if left in the ACC or ON position.
Exit Seat Slide (if so equipped) Allows the user to turn the exit seat slide on or off. When turned on, this feature will move the driver’s seat back-
ward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into the vehicle
and placing the ignition switch in the ACC position, the driver’s seat will move to the previous set position. For
additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and adjustments” section of
this manual.
Exit Steering Up (if so equipped) Allows the user to turn the exit steering up feature on or off. When turned on, this feature will move the steering
wheel upward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into
the vehicle and placing the ignition switch in the ACC position, the steering wheel moves to the previous position.
For additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and adjustments” sec-
tion of this manual.
2-20Instruments and controls

Main Menu Selection
The main menu selection menu allows the
user to customize the information that ap-
pears in the vehicle information display when
the ignition is placed in the ON position.
Menu itemResult
Tire Pressures Allows user to turn the tire pressures display on or off in the vehicle information display.
Trip Computer Allows user to turn the trip computer display on or off in the vehicle information display.
Audio Allows user to turn the audio display on or off in the vehicle information display.
Navigation (if so equipped) Allows user to turn the navigation display on or off in the vehicle information display.
Driver Assistance (if so equipped) Allows user to turn the driver assistance display on or off in the vehicle information display.
Fuel Economy Allows user to turn the fuel economy display on or off in the vehicle information display.
Body Color
The body color menu allows the user to select
the color of vehicle that appears in the vehicle
information display.
Menu item Result
Body Color Displays the available colors for the vehicle in the vehicle information display.
Instruments and controls2-21

Maintenance
The maintenance menu allows the user to set
reminders for various vehicle maintenance
items.
WARNING
The tire replacement indicator is not a sub-
stitute for regular tire checks, including tire
pressure checks. For additional informa-
tion, refer to “Changing wheels and tires” in
the “Do-it-yourself” section of this manual.
Many factors including tire inflation, align-
ment, driving habits and road conditions
affect tire wear and when tires should be
replaced. Setting the tire replacement indi-
cator for a certain driving distance does notmean your tires will last that long. Use the
tire replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks, in-
cluding tire pressure checks could result in
tire failure. Serious vehicle damage could
occur and may lead to a collision, which
could result in serious personal injury or
death.
Menu item
Result
Service This indicator appears when the customer set distance is reached for checking or replacing maintenance items other
than the engine oil, oil filter and tires. Other maintenance items can include such things as air filter or tire rotation. You
can set or reset the distance for checking or replacing the items. You can set or reset the distance for service type
items.
For scheduled maintenance items and intervals, refer to the “Maintenance and schedules” section of this manual.
Tire This indicator appears when the customer set distance is reached for replacing tires. You can set or reset the distance
for replacing tires.
Other This indicator appears when the customer set distance is reached for checking or replacing maintenance items other
than the engine oil, oil filter and tires. Other maintenance items can include such things as air filter or tire rotation. The
distance for checking or replacing the items can be set or reset.
2-22Instruments and controls

Alarms
The alarms menu allows the user to set vari-
ous alerts.
Menu itemResult
Outside Temp. Allows user to turn the outside temp. alarm on or off.
Timer Alert Allows user to set the timer alert for a specific interval.
Navigation (if so equipped) Allows user to turn the navigation alarm on or off.
Language
The language menu allows the user to
change the languages displayed in the vehicle
information display.
Menu item Result
Language Displays available language options for the vehicle information display.
Unit
The unit menu allows the user to customize
the information that appears in the vehicle
information display.
Menu item Result
Mileage Displays available mileage options shown in the vehicle information display.
Tire Pressures (if so equipped) Displays available tire pressures options shown in the vehicle information display.
Temperature Displays available temperature options shown in the vehicle information display.
Instruments and controls2-23

Welcome Effect
The welcome effect menu allows the user to
control the welcome effect feature.
Menu itemResult
Welcome Effect Allows user to turn the welcome effect feature on or off.
Factory Reset
The factory reset menu allows the user to
restore the vehicle information display set-
tings to factory status.
Menu item Result
Factory Reset Allows user to reset the vehicle information display settings to the original factory settings. Once selected, the user can confirm or cancel the reset.
2-24Instruments and controls

LIC4105
Instruments and controls2-25

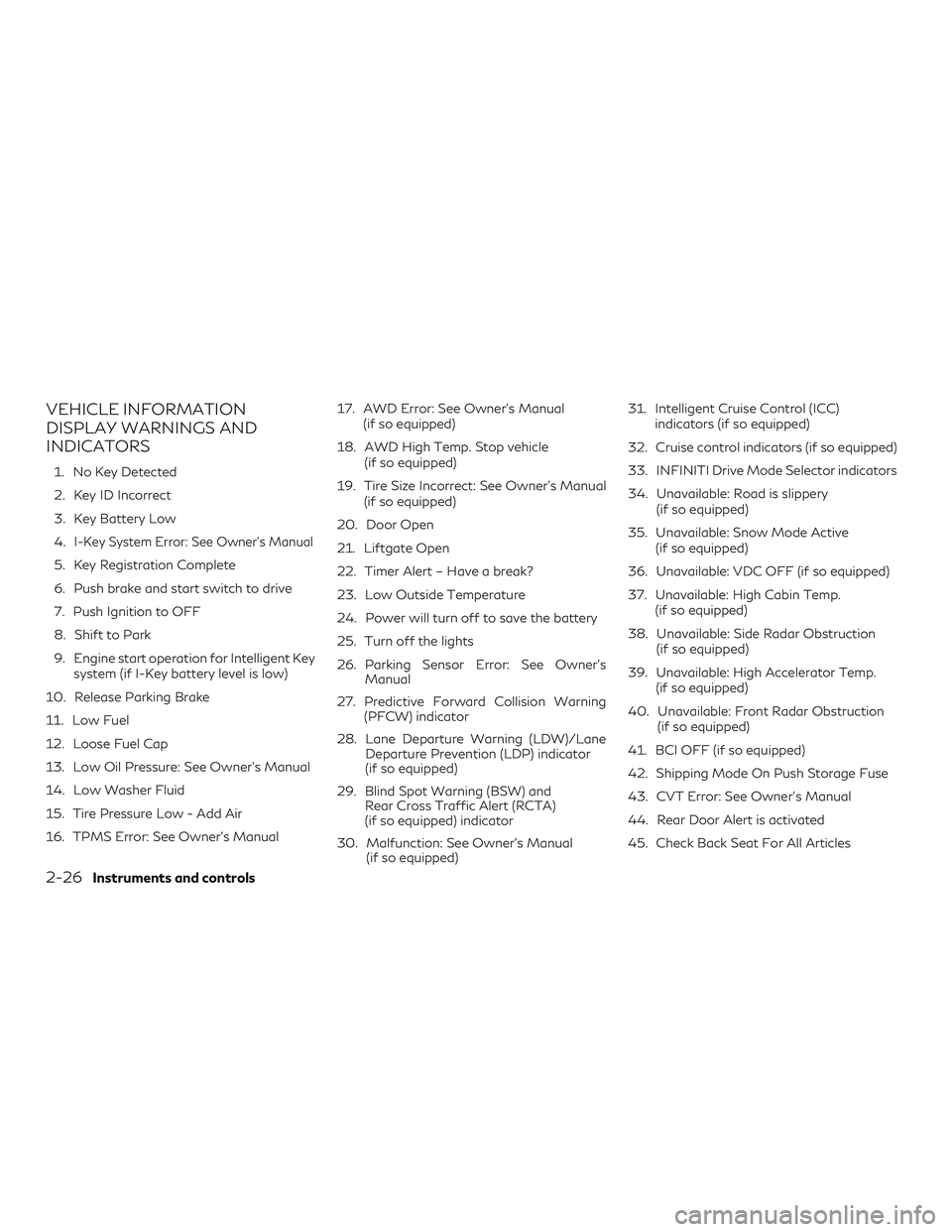

VEHICLE INFORMATION
DISPLAY WARNINGS AND
INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Key Battery Low
4.
I-Key System Error: See Owner’s Manual
5. Key Registration Complete
6. Push brake and start switch to drive
7. Push Ignition to OFF
8. Shift to Park
9. Engine start operation for Intelligent Keysystem (if I-Key battery level is low)
10. Release Parking Brake
11. Low Fuel
12. Loose Fuel Cap
13. Low Oil Pressure: See Owner’s Manual
14. Low Washer Fluid
15. Tire Pressure Low - Add Air
16. TPMS Error: See Owner’s Manual 17. AWD Error: See Owner’s Manual
(if so equipped)
18. AWD High Temp. Stop vehicle (if so equipped)
19. Tire Size Incorrect: See Owner’s Manual (if so equipped)
20. Door Open
21. Liftgate Open
22. Timer Alert – Have a break?
23. Low Outside Temperature
24. Power will turn off to save the battery
25. Turn off the lights
26. Parking Sensor Error: See Owner’s Manual
27. Predictive Forward Collision Warning (PFCW) indicator
28. Lane Departure Warning (LDW)/Lane Departure Prevention (LDP) indicator
(if so equipped)
29. Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA)
(if so equipped) indicator
30. Malfunction: See Owner’s Manual (if so equipped) 31. Intelligent Cruise Control (ICC)
indicators (if so equipped)
32. Cruise control indicators (if so equipped)
33. INFINITI Drive Mode Selector indicators
34. Unavailable: Road is slippery (if so equipped)
35. Unavailable: Snow Mode Active (if so equipped)
36. Unavailable: VDC OFF (if so equipped)
37. Unavailable: High Cabin Temp. (if so equipped)
38. Unavailable: Side Radar Obstruction (if so equipped)
39. Unavailable: High Accelerator Temp. (if so equipped)
40. Unavailable: Front Radar Obstruction (if so equipped)
41. BCI OFF (if so equipped)
42. Shipping Mode On Push Storage Fuse
43. CVT Error: See Owner’s Manual
44. Rear Door Alert is activated
45. Check Back Seat For All Articles
2-26Instruments and controls

46. Distance Control Assist (DCA) indicators(if so equipped)
47. Power turned off to save battery
No Key Detected
This warning appears when the Intelligent
Key is left outside the vehicle with the ignition
switch in the ON or ACC position. Make sure
the Intelligent Key is inside the vehicle.
For additional information, refer to “INFINITI
Intelligent Key System” in the “Pre-driving
checks and adjustments” section of this
manual.
Key ID Incorrect
This warning appears when the ignition
switch is placed in the OFF position and the
Intelligent Key is not recognized by the sys-
tem. You cannot start the engine with an
unregistered key.
For additional information, refer to “INFINITI
Intelligent Key System” in the “Pre-driving
checks and adjustments” section of this
manual.
Key Battery Low
This indicator illuminates when the Intelligent
Key battery is running out of power. If this indicator illuminates, replace the bat-
tery with a new one. For additional informa-
tion, refer to “Battery replacement” in the
“Do-it-yourself” section of this manual.
I-Key System Error: See Owner’s Manual
After the ignition switch is pushed to the ON
position, this light comes on for a period of
time and then turns off.
The I-Key System Error message warns of a
malfunction with the Intelligent Key system.
If the light comes on while the engine is
stopped, it may be impossible to start the
engine.
If the light comes on while the engine is run-
ning, you can drive the vehicle. However, in
these cases, have the system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
Key Registration Complete
This appears when a new Intelligent Key is
registered to the vehicle.
Push brake and start switch to drive
This indicator appears when the shift lever is
in the P (Park) position.
This indicator also appears when the vehicle
has been started using the Remote Engine
Start (if so equipped) function.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed. You can start the engine
from any position of the ignition switch.
Push Ignition to OFF
After the Push Ignition to OFF warning illu-
minates, the warning will illuminate if the ig-
nition switch is placed in the ACC position
when the shift lever is moved to the P (Park)
position.
To turn off the Push warning, place the igni-
tion switch in the ON position and then in the
LOCK position.
Shift to Park
This warning illuminates when the ignition
switch is in the ACC or OFF position and the
shift lever is in any position other than P
(Park). Also, a chime sounds when the ignition
switch is in the OFF position.
If this warning illuminates, move the shift
lever to the P (Park) position or start the
engine.
Instruments and controls2-27

For additional information, refer to “INFINITI
Intelligent Key System” in the “Pre-driving
checks and adjustments” section of this
manual.
Engine start operation for Intelligent Key
system (if I-Key battery level is low)
This indicator appears when the battery of
the Intelligent Key is low and when the Intel-
ligent Key system and the vehicle are not
communicating normally.
If this appears, touch the ignition switch with
the Intelligent Key while depressing the brake
pedal. For additional information, refer to
“INFINITI Intelligent Key battery discharge” in
the “Starting and driving” section of this
manual.
Release Parking Brake
This warning illuminates in the message area
of the vehicle information display when the
parking brake is set and the vehicle is driven.
Low Fuel
This warning illuminates when the fuel level in
the fuel tank is getting low. Refuel as soon as
it is convenient, preferably before the fuel
gauge reaches 0 (Empty).There will be a
small reserve of fuel in the tank when the fuel
gauge needle reaches 0 (Empty). Loose Fuel Cap
This warning appears when the fuel-filler cap
is not tightened correctly after the vehicle has
been refueled. For additional information, re-
fer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
Low Oil Pressure: See Owner’s Manual
This warning appears in the message area of
the vehicle information display if low oil pres-
sure is detected. This gauge is not designed
to indicate low oil level.
The low oil pressure
warning is not designed to indicate a low oil
level. Use the dipstick to check the oil level.
For additional information, refer to “Engine
oil” in the “Do-it-yourself” section of this
manual.
Low Washer Fluid
This warning illuminates when the
windshield-washer fluid is at a low level. Add
windshield-washer fluid as necessary. For
additional information, refer to “Windshield-
washer fluid” in the “Do-it-yourself” section
of this manual.
Tire Pressure Low - Add Air
This warning appears when the low tire pres-
sure warning light in the meter illuminates and low tire pressure is detected. The warn-
ing appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated. If this warning appears, stop the ve-
hicle and adjust the tire pressures of all four
tires to the recommended COLD tire pres-
sure shown on the Tire and Loading Informa-
tion label. For additional information, refer to
“Low tire pressure warning light” in this sec-
tion and “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section
of this manual.
TPMS Error: See Owner’s Manual
This warning appears when there is an error
with your TPMS. If this warning comes on,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
AWD Error: See Owner’s Manual
(if so equipped)
This warning appears when the all-wheel
drive system is not functioning properly while
the engine is running.
AWD High Temp. Stop vehicle
(if so equipped)
This warning may appear while trying to free
a stuck vehicle due to increased oil tempera-
2-28Instruments and controls
