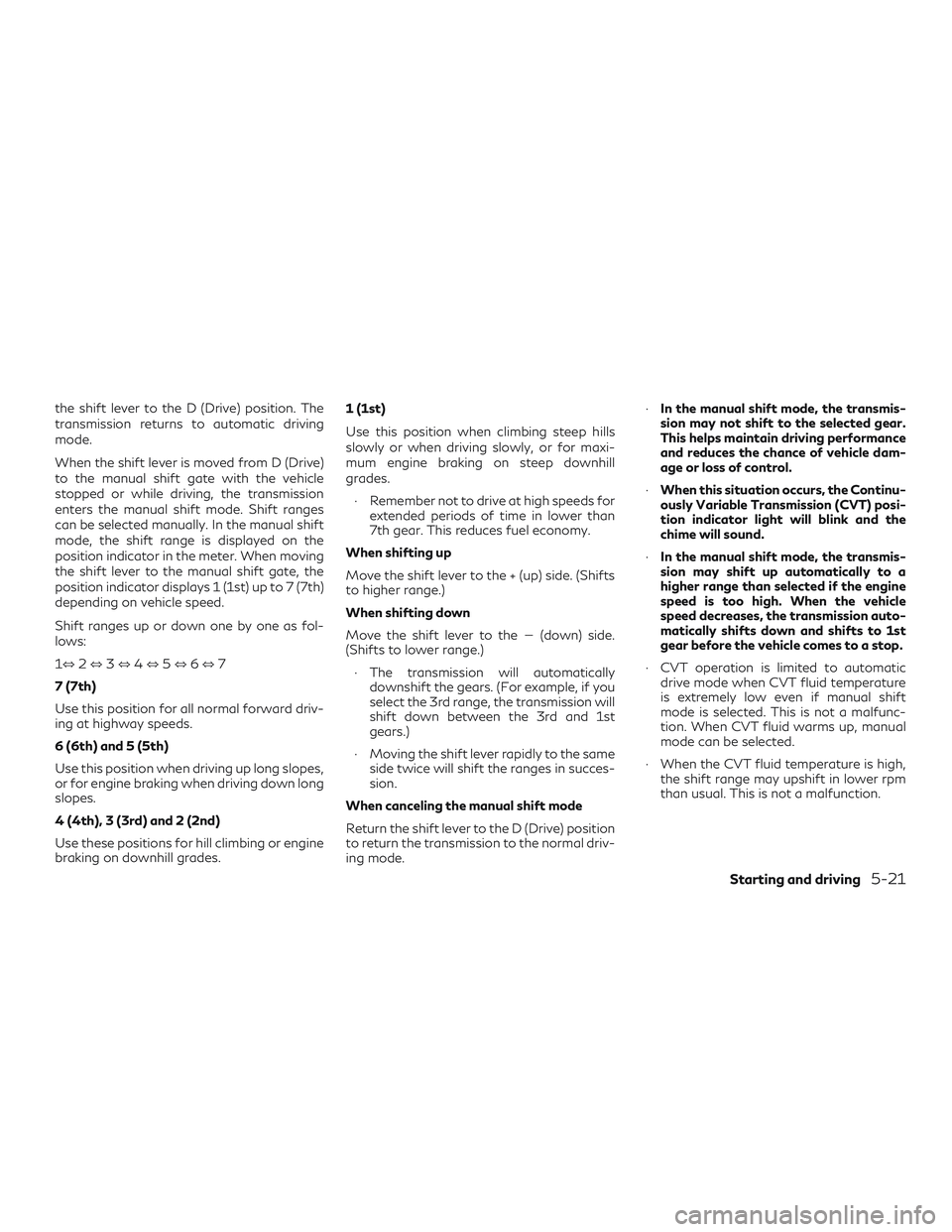

Page 287 of 540

the shift lever to the D (Drive) position. The
transmission returns to automatic driving
mode.
When the shift lever is moved from D (Drive)
to the manual shift gate with the vehicle
stopped or while driving, the transmission
enters the manual shift mode. Shift ranges
can be selected manually. In the manual shift
mode, the shift range is displayed on the
position indicator in the meter. When moving
the shift lever to the manual shift gate, the
position indicator displays 1 (1st) up to 7 (7th)
depending on vehicle speed.
Shift ranges up or down one by one as fol-
lows:
1⇔2⇔ 3⇔ 4⇔ 5⇔ 6⇔ 7
7 (7th)
Use this position for all normal forward driv-
ing at highway speeds.
6 (6th) and 5 (5th)
Use this position when driving up long slopes,
or for engine braking when driving down long
slopes.
4 (4th), 3 (3rd) and 2 (2nd)
Use these positions for hill climbing or engine
braking on downhill grades. 1 (1st)
Use this position when climbing steep hills
slowly or when driving slowly, or for maxi-
mum engine braking on steep downhill
grades.
∙ Remember not to drive at high speeds for extended periods of time in lower than
7th gear. This reduces fuel economy.
When shifting up
Move the shift lever to the + (up) side. (Shifts
to higher range.)
When shifting down
Move the shift lever to the (down) side.
(Shifts to lower range.)
∙ The transmission will automatically downshift the gears. (For example, if you
select the 3rd range, the transmission will
shift down between the 3rd and 1st
gears.)
∙ Moving the shift lever rapidly to the same side twice will shift the ranges in succes-
sion.
When canceling the manual shift mode
Return the shift lever to the D (Drive) position
to return the transmission to the normal driv-
ing mode. ∙
In the manual shift mode, the transmis-
sion may not shift to the selected gear.
This helps maintain driving performance
and reduces the chance of vehicle dam-
age or loss of control.
∙ When this situation occurs, the Continu-
ously Variable Transmission (CVT) posi-
tion indicator light will blink and the
chime will sound.
∙ In the manual shift mode, the transmis-
sion may shift up automatically to a
higher range than selected if the engine
speed is too high. When the vehicle
speed decreases, the transmission auto-
matically shifts down and shifts to 1st
gear before the vehicle comes to a stop.
∙ CVT operation is limited to automatic drive mode when CVT fluid temperature
is extremely low even if manual shift
mode is selected. This is not a malfunc-
tion. When CVT fluid warms up, manual
mode can be selected.
∙ When the CVT fluid temperature is high, the shift range may upshift in lower rpm
than usual. This is not a malfunction.
Starting and driving5-21
Page 288 of 540

Shift lock release
If the battery charge is low or discharged, the
shift lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed and the shift lever button pressed. To
move the shift lever, perform the following
procedure:1. Push the ignition switch to the OFF or LOCK position.
2. Apply the parking brake.
3. Remove the shift lock release cover us- ing a suitable tool. 4. Push down the shift lock release using a
suitable tool.
5. Press the shift lever button and move the shift lever to the N (Neutral) position
while holding down the shift lock release.
The vehicle may be moved to the desired
location. Replace the removed shift lock
release cover after the operation.
If the shift lever cannot be moved out of the P
(Park) position, have the Continuously Vari-
able Transmission system checked as soon as
possible. It is recommended that you visit an
INFINITI retailer for this service.
WARNING
If the shift lever cannot be moved from the
P (Park) position while the engine is running
and the brake pedal is depressed, the stop
lights may not work. Malfunctioning stop
lights could cause an accident injuring your-
self and others.
Accelerator downshift
— in D (Drive) position —
For passing or hill climbing, depress the ac-
celerator pedal to the floor. This shifts the
transmission down into a lower gear, de-
pending on the vehicle speed.
High fluid temperature protection
mode
This transmission has a high fluid tempera-
ture protection mode. If the fluid temperature
becomes too high (for example, when climb-
ing steep grades in high temperatures with
heavy loads, such as when towing a trailer),
engine power and, under some conditions,
vehicle speed will be decreased automatically
to reduce the chance of transmission dam-
age. Vehicle speed can be controlled with the
accelerator pedal, but the engine and vehicle
speed may be limited.
Fail-safe
If the vehicle is driven under extreme condi-
tions, such as excessive wheel spinning and
subsequent hard braking, the fail-safe sys-
tem may be activated. The Malfunction Indi-
cator Light (MIL) may come on to indicate
the fail-safe mode is activated. For addi-
tional information, refer to “Malfunction In-
dicator Light (MIL)” in the “Instruments and
controls” section of this manual. This will oc-
cur even if all electrical circuits are function-
ing properly. In this case, place the ignition
switch in the OFF position and wait for
10 seconds. Then place the ignition switch
back in the ON position. The vehicle should
return to its normal operating condition. If it
LSD3339
5-22Starting and driving

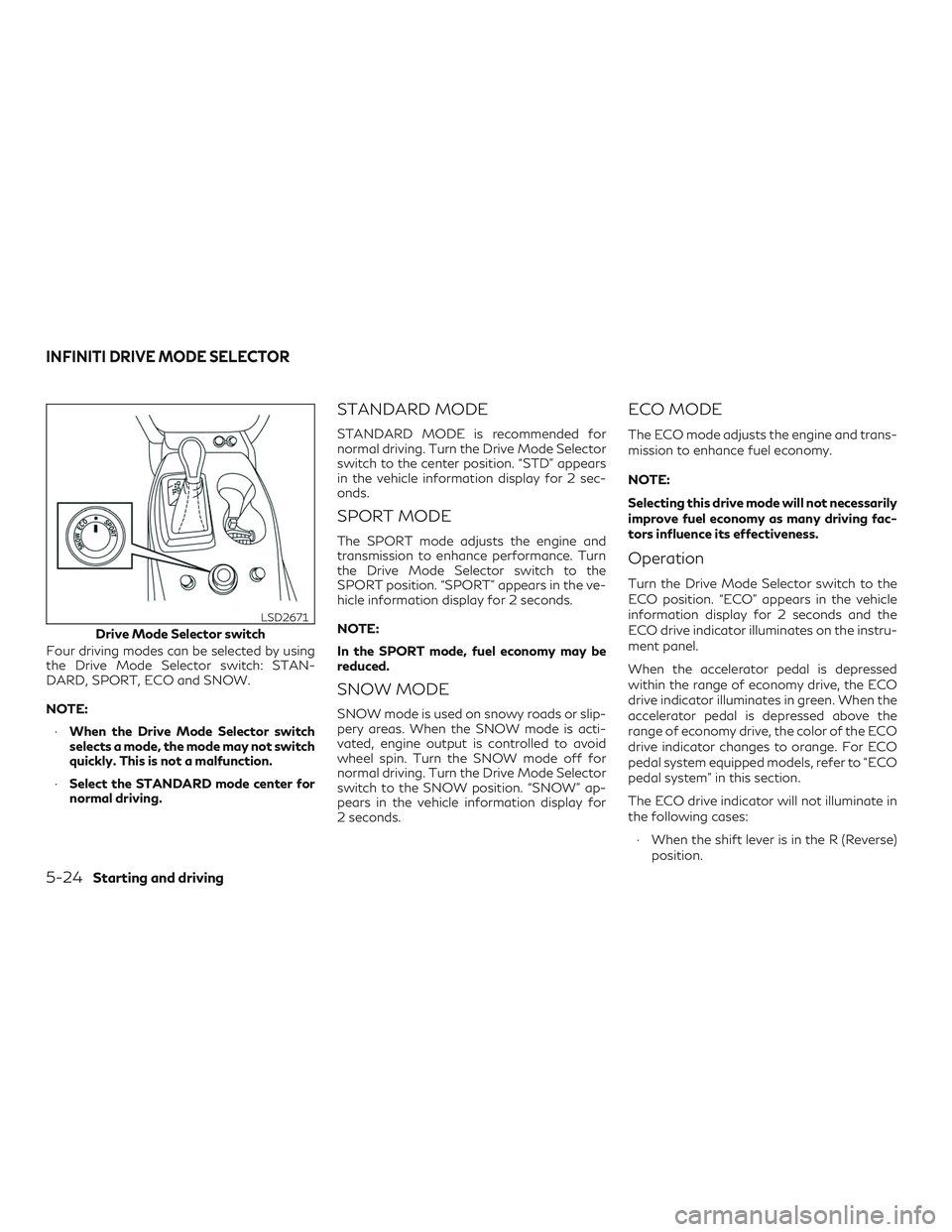

Page 290 of 540

Four driving modes can be selected by using
the Drive Mode Selector switch: STAN-
DARD, SPORT, ECO and SNOW.
NOTE:∙ When the Drive Mode Selector switch
selects a mode, the mode may not switch
quickly. This is not a malfunction.
∙ Select the STANDARD mode center for
normal driving.
STANDARD MODE
STANDARD MODE is recommended for
normal driving. Turn the Drive Mode Selector
switch to the center position. “STD” appears
in the vehicle information display for 2 sec-
onds.
SPORT MODE
The SPORT mode adjusts the engine and
transmission to enhance performance. Turn
the Drive Mode Selector switch to the
SPORT position. “SPORT” appears in the ve-
hicle information display for 2 seconds.
NOTE:
In the SPORT mode, fuel economy may be
reduced.
SNOW MODE
SNOW mode is used on snowy roads or slip-
pery areas. When the SNOW mode is acti-
vated, engine output is controlled to avoid
wheel spin. Turn the SNOW mode off for
normal driving. Turn the Drive Mode Selector
switch to the SNOW position. “SNOW” ap-
pears in the vehicle information display for
2 seconds.
ECO MODE
The ECO mode adjusts the engine and trans-
mission to enhance fuel economy.
NOTE:
Selecting this drive mode will not necessarily
improve fuel economy as many driving fac-
tors influence its effectiveness.
Operation
Turn the Drive Mode Selector switch to the
ECO position. “ECO” appears in the vehicle
information display for 2 seconds and the
ECO drive indicator illuminates on the instru-
ment panel.
When the accelerator pedal is depressed
within the range of economy drive, the ECO
drive indicator illuminates in green. When the
accelerator pedal is depressed above the
range of economy drive, the color of the ECO
drive indicator changes to orange. For ECO
pedal system equipped models, refer to “ECO
pedal system” in this section.
The ECO drive indicator will not illuminate in
the following cases:
∙ When the shift lever is in the R (Reverse) position.
Drive Mode Selector switch
LSD2671
INFINITI DRIVE MODE SELECTOR
5-24Starting and driving

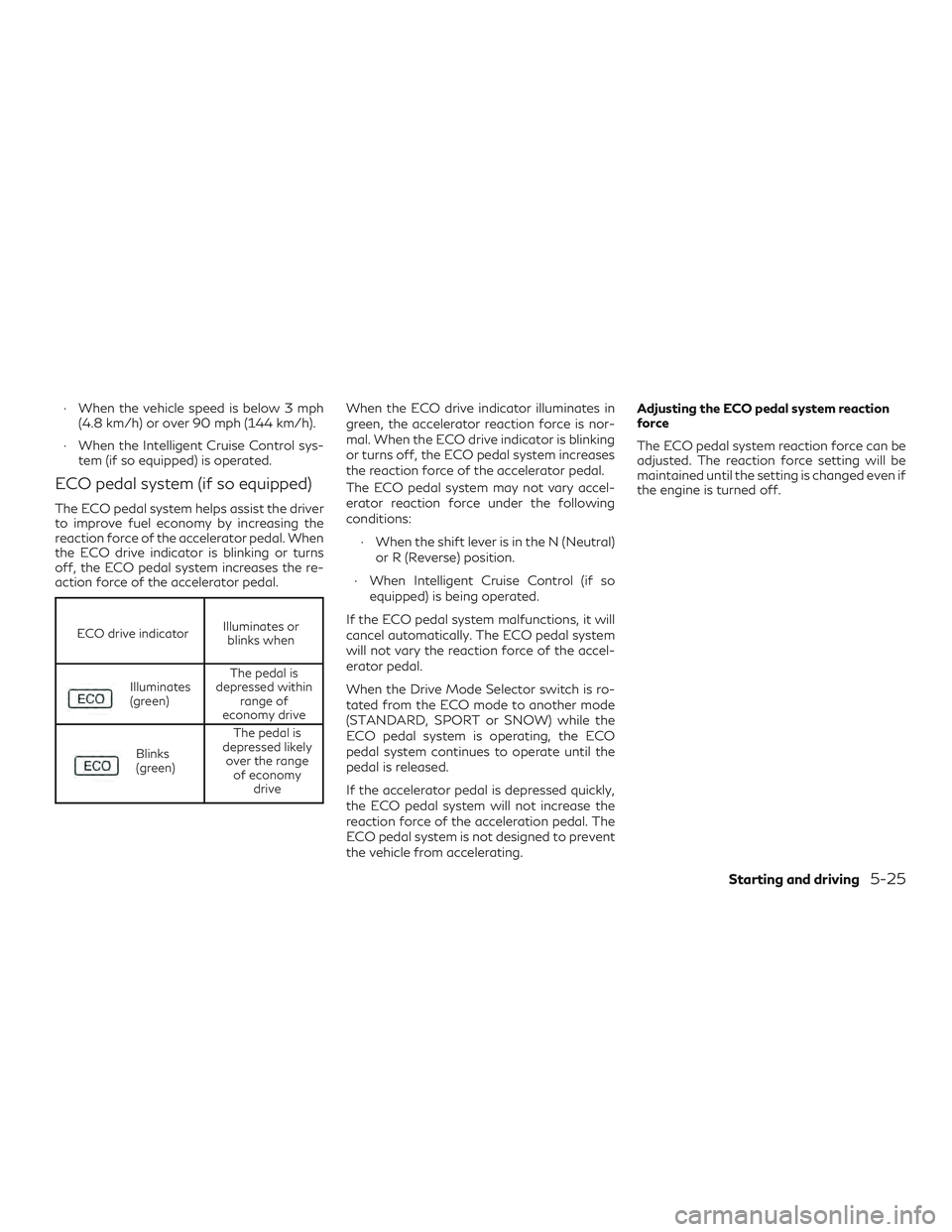

Page 291 of 540

∙ When the vehicle speed is below 3 mph(4.8 km/h) or over 90 mph (144 km/h).
∙ When the Intelligent Cruise Control sys- tem (if so equipped) is operated.
ECO pedal system (if so equipped)
The ECO pedal system helps assist the driver
to improve fuel economy by increasing the
reaction force of the accelerator pedal. When
the ECO drive indicator is blinking or turns
off, the ECO pedal system increases the re-
action force of the accelerator pedal.
ECO drive indicator Illuminates or
blinks when
Illuminates
(green) The pedal is
depressed within range of
economy drive
Blinks
(green) The pedal is
depressed likely over the range of economy drive
When the ECO drive indicator illuminates in
green, the accelerator reaction force is nor-
mal. When the ECO drive indicator is blinking
or turns off, the ECO pedal system increases
the reaction force of the accelerator pedal.
The ECO pedal system may not vary accel-
erator reaction force under the following
conditions:
∙ When the shift lever is in the N (Neutral) or R (Reverse) position.
∙ When Intelligent Cruise Control (if so equipped) is being operated.
If the ECO pedal system malfunctions, it will
cancel automatically. The ECO pedal system
will not vary the reaction force of the accel-
erator pedal.
When the Drive Mode Selector switch is ro-
tated from the ECO mode to another mode
(STANDARD, SPORT or SNOW) while the
ECO pedal system is operating, the ECO
pedal system continues to operate until the
pedal is released.
If the accelerator pedal is depressed quickly,
the ECO pedal system will not increase the
reaction force of the acceleration pedal. The
ECO pedal system is not designed to prevent
the vehicle from accelerating. Adjusting the ECO pedal system reaction
force
The ECO pedal system reaction force can be
adjusted. The reaction force setting will be
maintained until the setting is changed even if
the engine is turned off.
Starting and driving5-25
Page 296 of 540

HOW TO ENABLE/DISABLE THE
LDW SYSTEM
When the LDW system is enabled in the ve-
hicle information display, the system can be
turned off temporarily by pushing the warn-
ing systems switch. For additional informa-
tion, refer to “Warning systems switch” in the
“Instruments and controls” section of this
manual.
Perform the following steps to enable or dis-
able the LDW system:1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the EN-
TER button.
2. Select “Driving Aids” and press the EN- TER button.
3. To set the LDW system to on or off, use the
buttons to navigate in the
menu and use the ENTER button to se-
lect or change an item:
∙ Select “Lane” and press the ENTER button.
–
To turn on the warning, use the ENTER
button to check the box for “Lane.”
LDW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the LDW system. Failure to follow the
warnings and instructions for proper use of
the LDW system could result in serious in-
jury or death.
∙ This system is only a warning device to inform the driver of a potential unin-
tended lane departure. It will not steer
the vehicle or prevent loss of control. It is
the driver’s responsibility to stay alert,
drive safely, keep the vehicle in the trav-
eling lane, and be in control of the vehicle
at all times.
∙ The system will not operate at speeds be- low approximately 45 mph (70 km/h) or
if it cannot detect lane markers. ∙ If the LDW system malfunctions, it will
cancel automatically, and “Malfunction:
See Owner’s Manual” will appear in the
vehicle information display. If "Malfunc-
tion: See Owner’s Manual” appears in the
vehicle information display, pull off the
road to a safe location and stop the ve-
hicle. Place the shift lever in the P (Park)
position and the ignition switch in the
OFF position and restart the engine.If
“Malfunction: See Owner’s Manual” con-
tinues to appear in the vehicle informa-
tion display, have the system checked. It
is recommended that you visit an
INFINITI retailer for this service.
∙ Excessive noise will interfere with the warning chime sound, and the chime may
not be heard.
∙ Do not use the LDW system under the following conditions as it may not func-
tion properly:
– During bad weather (rain, fog, snow, etc.).
– When driving on slippery roads, such as on ice or snow.
– When driving on winding or uneven roads.
5-30Starting and driving
Page 300 of 540

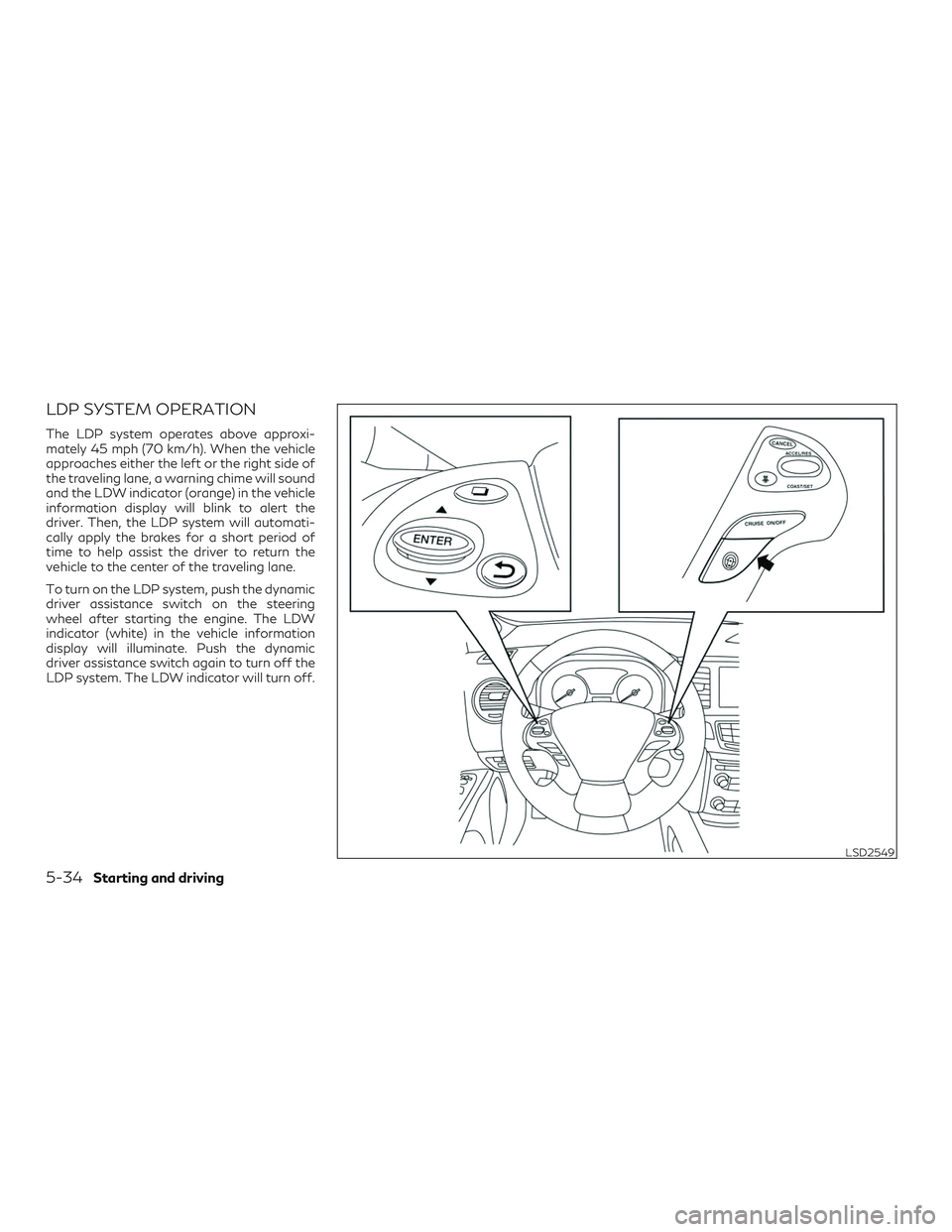

LDP SYSTEM OPERATION
The LDP system operates above approxi-
mately 45 mph (70 km/h). When the vehicle
approaches either the left or the right side of
the traveling lane, a warning chime will sound
and the LDW indicator (orange) in the vehicle
information display will blink to alert the
driver. Then, the LDP system will automati-
cally apply the brakes for a short period of
time to help assist the driver to return the
vehicle to the center of the traveling lane.
To turn on the LDP system, push the dynamic
driver assistance switch on the steering
wheel after starting the engine. The LDW
indicator (white) in the vehicle information
display will illuminate. Push the dynamic
driver assistance switch again to turn off the
LDP system. The LDW indicator will turn off.
LSD2549
5-34Starting and driving
Page 302 of 540

– When driving in a makeshift or tempo-rary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear, low
tire pressure, installation of spare tire,
tire chains, non-standard wheels).
– When the vehicle is equipped with nonoriginal brake parts or suspension
parts.
– When you are towing a trailer or other vehicle.
∙ If the LDP system malfunctions, it will cancel automatically. The LDW indicator
(orange) will illuminate and the “Mal-
function: See Owner’s Manual” warning
message will appear in the display.
∙ If the LDW indicator (orange) illuminates in the display, pull off the road to a safe
location and stop the vehicle. Turn the
engine off and restart the engine. If the
LDW indicator (orange) continues to illu-
minate, have the LDP system checked. It
is recommended that you visit an
INFINITI retailer for this service. ∙ Excessive noise will interfere with the
warning chime sound, and the chime may
not be heard.
The LDP system may or may not operate
properly under the following conditions:
∙ On roads where there are multiple paral- lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; or lane markers covered with
water, dirt, snow, etc.
∙ On roads where discontinued lane mark- ers are still detectable.
∙ On roads where there are sharp curves.
∙ On roads where there are sharply con- trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDP system
could detect these items as lane
markers.)
∙ On roads where the traveling lane merges or separates.
∙ When the vehicle’s traveling direction does not align with the lane marker. ∙ When traveling close to the vehicle in
front of you, which obstructs the lane
camera unit detection range.
∙ When rain, snow or dirt adheres to the windshield in front of the lane camera
unit.
∙ When the headlights are not bright due to dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
∙ When a sudden change in brightness oc- curs. (For example, when the vehicle en-
ters or exits a tunnel or under a bridge.)
While the LDP system is operating, you may
hear a sound of brake operation. This is nor-
mal and indicates that the LDP system is
operating properly.
5-36Starting and driving
Page 307 of 540

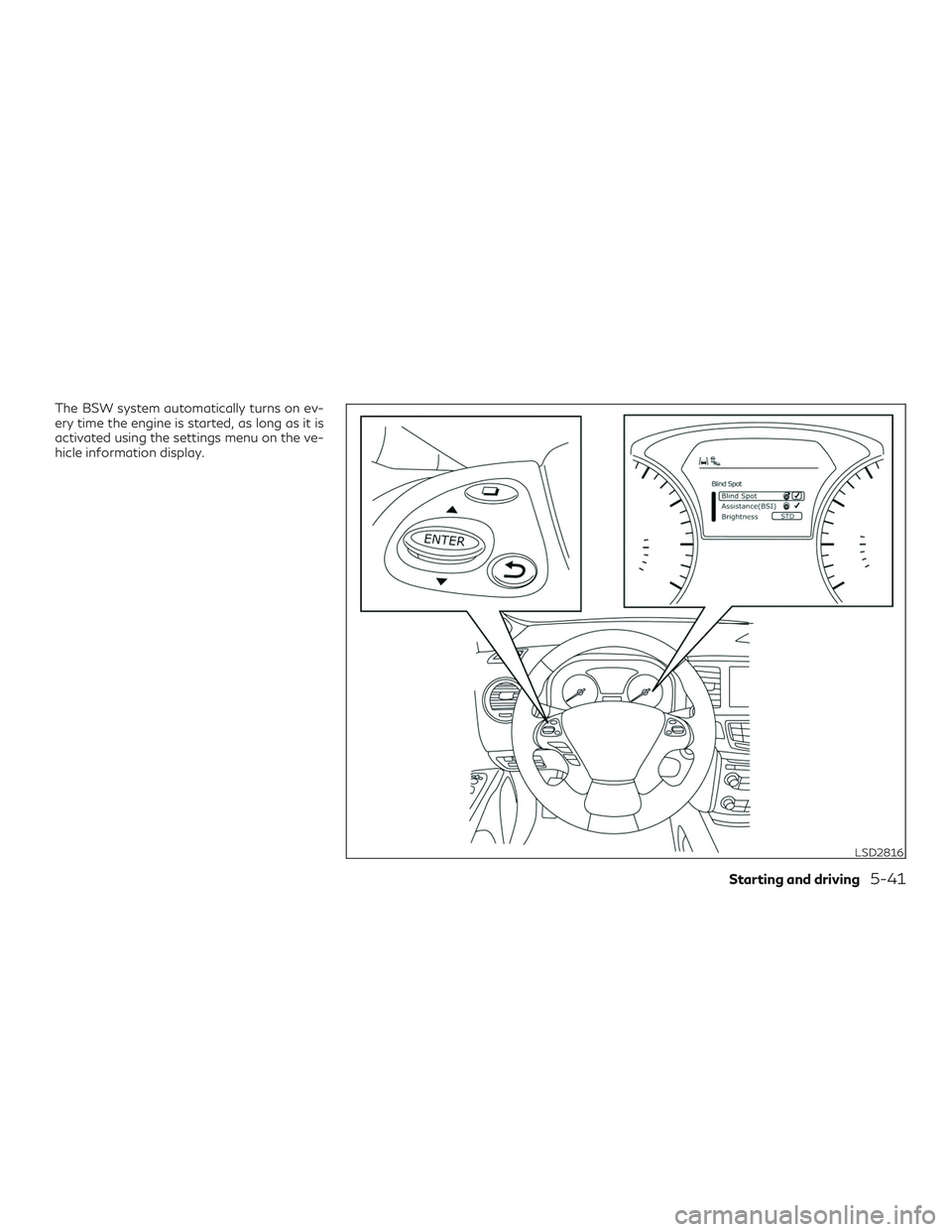

The BSW system automatically turns on ev-
ery time the engine is started, as long as it is
activated using the settings menu on the ve-
hicle information display.
LSD2816
Starting and driving5-41
Page 308 of 540

HOW TO ENABLE/DISABLE THE
BSW SYSTEM
When the BSW system is enabled in the ve-
hicle information display, the system can be
turned off temporarily by pushing the warn-
ing systems switch. For additional informa-
tion, refer to “Warning systems switch” in the
“Instruments and controls” section of this
manual.
Perform the following steps to enable or dis-
able the BSW system.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the EN-
TER button.
2. Select “Driving Aids” and press the EN- TER button.
3. Select “Blind Spot” and press the ENTER button.
4. Select “Blind Spot” and use the ENTER button to turn the system on or off. NOTE:
∙ When enabling/disabling the system,
the system will retain current settings
even if the engine is restarted.
∙ The RCTA system (if so equipped) is in-
tegrated into the BSW system. There is
not a separate selection in the vehicle
information display for the RCTA sys-
tem. When the BSW is disabled, the
RCTA system is also disabled.
∙ When the BSW system is turned on, the
BSW/RCTA indicator (white) in the ve-
hicle information display illuminates.BSW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the BSW system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.
∙ The BSW system cannot detect all ve-
hicles under all conditions.
∙ The radar sensors may not be able to de- tect and activate BSW when certain ob-
jects are present such as: – Pedestrian, bicycles, animals.
– Vehicles such as motorcycles, low
height vehicles, or high ground clear-
ance vehicles.
– Oncoming vehicles.
– Vehicles remaining in the detection zone when you accelerate from a stop.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle.
– A vehicle approaching rapidly from behind.
– A vehicle which your vehicle overtakes rapidly.
– A vehicle that passes through the de- tection zone quickly.
– When overtaking several vehicles in a row, the vehicles after the first vehicle
may not be detected if they are trav-
eling close together.
∙ The radar sensors’ detection zone is de- signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an ad-
jacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
5-42Starting and driving
Page 313 of 540

Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message with the BSW/RCTA indi-
cator (orange) will appear in the vehicle infor-
mation display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261)
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.
LSD2221
Starting and driving5-47
