INFINITI QX60 HYBRID 2014 Owner's Manual

PRECAUTIONS ON FCW SYSTEM
WARNING
●The FCW system is intended to warn
you before a collision occurs; it cannot
prevent a collision. It is the driver’s re-
sponsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
●As there is a performance limit, the sys-
tem may not provide a warning in cer-
tain conditions.●The system will not detect the following
objects:
– Pedestrians, animals or obstacles in
the roadway
– Oncoming vehicles in the same lane
●The system will not detect another ve-
hicle under the following conditions:
– When the sensor area gets dirty and
it is impossible to detect the distance
from the vehicle ahead.– When the radar signal is temporarily
interrupted
●The system may not function properly
under the following conditions:
– A preceding vehicle is with a large
amount of ground clearance or pro-
truding freight (including a small ve-
hicle such as motorcycles) .
– When the sensor area of the front
bumper gets dirty or it is impossible
to detect the distance from the ve-
hicle ahead.
– When visibility is low (such as rain,
fog, snow, etc.) .
– When snow or road spray from trav-
eling vehicles is splashed.
– When excessively heavy baggage is
loaded in the rear seat or the luggage
room of your vehicle.
– When abruptly accelerating or
decelerating.
– On a steep downhill slope or on
roads with sharp curves.
Vehicle ahead detection light
SSD0749
Warning systems switch
LSD2015
Starting and driving5-83

– When there is a highly reflective ob-
ject near the vehicle ahead (for ex-
ample, being very close to another
vehicle, signboard, etc.)
– When you are towing a trailer.
●Depending on certain road conditions
(curved or beginning of a curve) , vehicle
conditions (steering position or vehicle
position) , or the preceding vehicle’s
conditions (position in lane, etc.) , the
system may not function properly. The
system may detect highly reflective ob-
jects such as signs and other stationary
objects on the road or near the traveling
lane and provide unnecessary warning.
●The system may not function in offset
conditions.
●The system may not function when the
distance to the vehicle ahead is ex-
tremely close.●The system is designed to automatically
check the sensor’s functionality. If the
sensor area of the front bumper is cov-
ered with ice, a transparent or translu-
cent bag, etc., the system may not de-
tect them. In these instances, the
system may not be able to warn the
driver properly. Be sure to check and
clean the sensor area of the front bum-
per regularly.
●Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
●A sudden appearance of a vehicle in
front (for example, it abruptly cuts in)
may not be detected and the system
may not warn the driver soon enough.
●The system will be cancelled automati-
cally with a beep sound and a message
will pop up under the following
conditions:
– When the sensor area of the front
bumper is dirty
– When the system malfunctionsIf the system cancels and a message pops up
with a beep sound, pull off the road to a safe
location, stop the vehicle and turn the engine off.
Check to see if the sensor area of the front
bumper is blocked. If the sensor area of the front
bumper is blocked, remove the object blocking
and restart the engine.
If the sensor is malfunctioning, have the system
checked by an INFINITI retailer.
5-84Starting and driving

FCW SYSTEM OPERATION
The FCW system is active at speeds of approxi-
mately 10 MPH (15 km/h) and above, when the
system turns on.
The warning systems switch is used to turn on
and off the FCW system when it is activated
using the settings menu on the information dis-
play. See “How to enable/disable the FCW sys-
tem” using the settings menu later in this section.
When the warning systems switch is turned off,
the indicator
1on the switch is off. The indicator
will also be off if the FCW, the Lane DepartureWarning (LDW) and the Blind Spot Warning
(BSW) systems are deactivated.
When the warning systems switch is pushed, the
LDW and BSW system will also turn on or off
simultaneously. See “Lane Departure Warning
(LDW) system/Lane Departure Prevention (LDP)
system” and “Blind Spot Warning (BSW)/Blind
Spot Intervention (BSI)/Back-up Collision Inter-
vention (BCI) systems” in this section.
For the sensor maintenance, see “Intelligent
Cruise Control (ICC) system” in this section.
How to enable/disable the FCW
system
Perform the following steps to enable or disable
the FCW system.
1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button.
2. Select “Driver Aids”, and press the ENTER
button.
3. To set the DCA system to on or off, use
the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:●Select “Forward” and press the ENTER
button.
– To turn on the warning, use the ENTER
button to check box for “Warning (FCW)”
– To turn on the system, use the ENTER
button to check box for “Assistance
(DCA)”

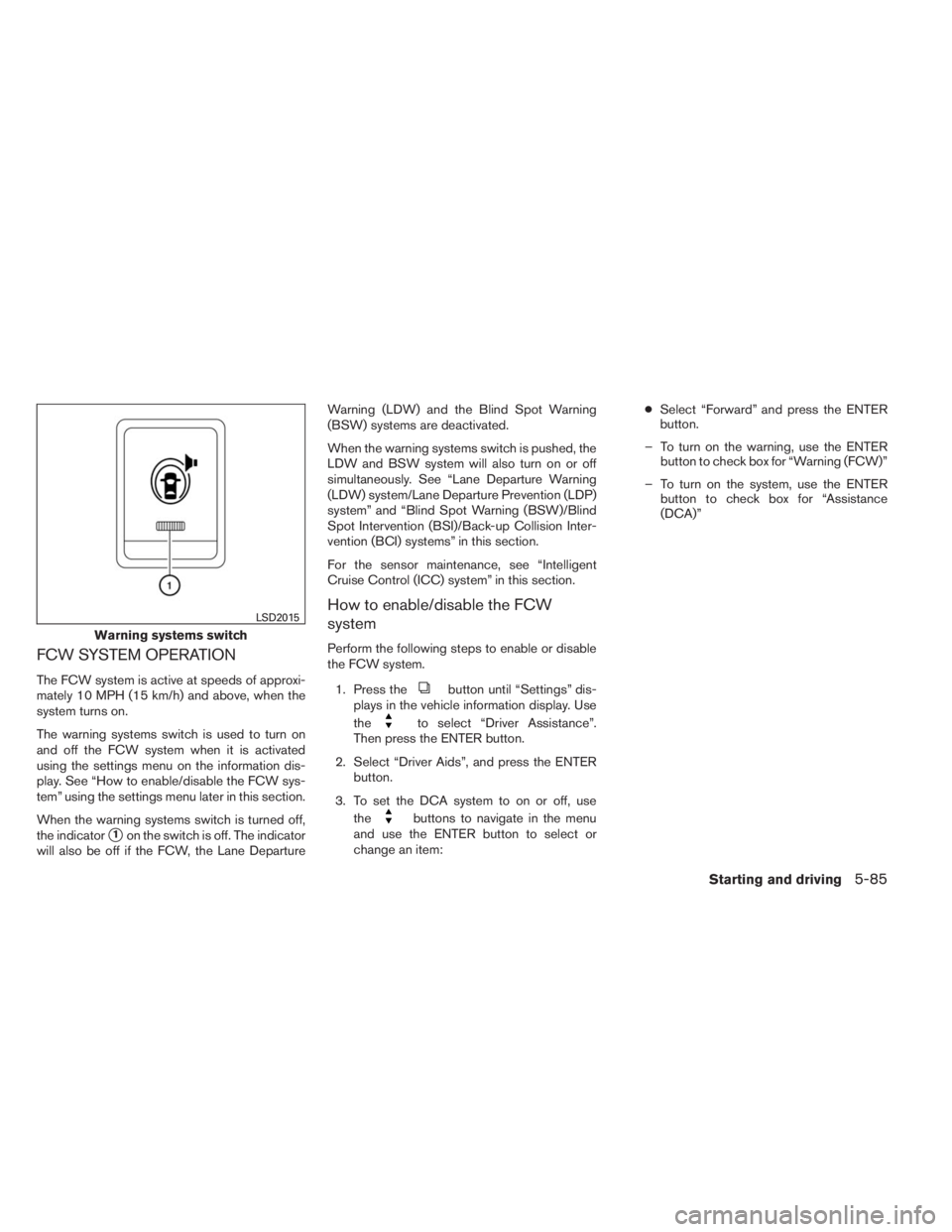

Warning systems switch
LSD2015
Starting and driving5-85

The Intelligent Brake Assist (IBA) system warns
the driver by a warning light and chime when
there is a risk of a collision with the vehicle ahead
in the traveling lane and the driver must take
avoidance action immediately. The system helps
reduce the rear-end collision speed by applying
the brakes when the system judges that the col-
lision cannot be prevented.
The IBA system will function when your vehicle is
driven at speeds of approximately 10 MPH
(15 km/h) and above, and when your vehicle is
driven at speeds approximately 10 MPH
(15 km/h) faster than the vehicle ahead.
The IBA system uses a distance sensor
Alo-
cated behind the front bumper to measure the
distance to the vehicle ahead. When the system
judges that your vehicle is getting close to the
vehicle ahead in the traveling lane, the vehicle
ahead detection indicator light on the information
display blinks and a warning chime sounds.
The IBA system can be turned on/off by in the
settings of the vehicle information display, see
“Driving aids” in the “Instrument and controls”
section.PRECAUTIONS ON IBA SYSTEM
WARNING
●The IBA system is not a collision avoid-
ance system. It is the driver’s responsi-
bility to stay alert, drive safely and be in
control of the vehicle at all times.
●As there is a performance limit, the sys-
tem may not provide a warning or brak-
ing in certain conditions.
●The system will not detect the following
objects:
LSD2098SSD0749
INTELLIGENT BRAKE ASSIST (IBA)
SYSTEM (if so equipped)
5-86Starting and driving

– Pedestrians, animals or obstacles in
the roadway
– Oncoming vehicles in the same lane
●The sensor generally detects the sig-
nals returned from the vehicle ahead.
Therefore, the system may not function
properly under the following
conditions:
– When the sensor area of the front
bumper gets dirty and it is impos-
sible to detect the distance from the
vehicle ahead.
– When radar signal is temporarily
interrupted.
– When visibility is low (such as rain,
fog, snow, etc.) .
– When snow or road spray from trav-
eling vehicles is splashed.
– When excessively heavy baggage is
loaded in the rear seat or the luggage
room of your vehicle.
– When abruptly accelerating or
decelerating.
– On a steep downhill slope or on
roads with sharp curves.– When there is a highly reflective ob-
ject near the vehicle ahead (for ex-
ample, being very close to another
vehicle, signboard, etc.)
– When you are towing a trailer.
●Depending on certain road conditions
(curved or beginning of a curve) , vehicle
conditions (steering position or vehicle
position) , or the preceding vehicle’s
conditions (position in lane, etc.) , the
system may not function properly. The
system may detect objects such as
signs and other stationary objects on
the road or near the traveling lane and
provide unnecessary warning.
●The system may not function in offset
conditions.
WARNING
●In extreme conditions, detection of
these objects may cause the system to
function.

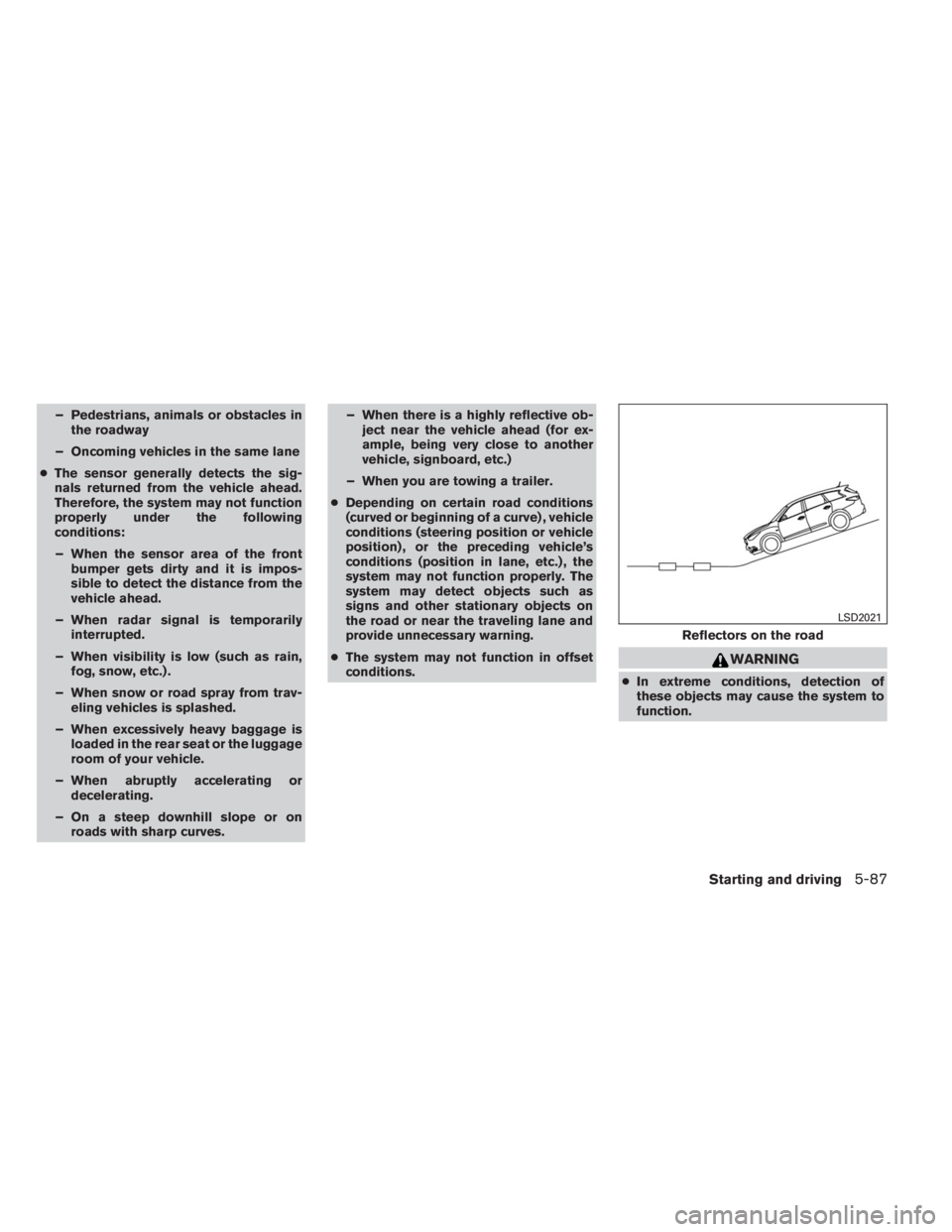

Reflectors on the road
LSD2021
Starting and driving5-87

●The system is designed to automatically
check the sensor’s functionality. When
the sensor detects an obstruction of the
radar signals due to dirt, adhesive ma-
terial, or similar objects to the front
bumper, the system will automatically
cancel. However, sensor may not detect
all obstructive material. In these in-
stances the system may not be able to
warn the driver properly. Be sure to
check and clean the sensor area of the
front bumper regularly.
●Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
●A sudden appearance of a vehicle in
front (for example, it abruptly cuts in)
may not be detected and the system
may not warn the driver soon enough.
●The system will be cancelled automati-
cally with a beep sound and the IBA
warning light will illuminate under the
following conditions:
– When the sensor area of the front
bumper is dirty
– When the system malfunctionsIf the IBA OFF indicator light illuminates with a
beep sound, pull off the road to a safe location,
stop the vehicle and turn the engine off. Check to
see if the sensor area of the front bumper is dirty.
If the sensor area of the front bumper is dirty,
clean it with a soft cloth and restart the engine. If
the sensor area of the bumper is not dirty, restart
the engine. If the IBA OFF indicator light contin-
ues to illuminate even if the IBA system is turned
on, have the system checked by an INFINITI
retailer.
IBA SYSTEM OPERATION
The IBA system will function when your vehicle is
driven at speeds of approximately 10 MPH
(15 km/h) or above, and when the vehicle’s
speed is approximately 10 MPH (15 km/h) faster
than that of the vehicle ahead.
To turn the system on/off:
1. Push the
button to enter the “Set-
tings” menu in the vehicle information dis-
play, then select using the ENTER button.
2. Use the
buttons to select “Driver As-
sistance”, then press the ENTER button.
3. Use the
buttons to select “Intelligent
Brake Assist”, using the ENTER button the
system can be turned On or Off.The IBA system will remain in the last ON or OFF
state it was left in until it is changed in the vehicle
information display, see “Driver Assistance” in the
“Instrument and controls” section.
Illumination of the IBA OFF indicator light without
the warning chime sound is an indication that the
IBA system is temporarily unavailable. It will occur
under the following conditions:
When the radar signal is temporarily interrupted.
The IBA OFF indicator light will turn off when the
system returns to its normal operating conditions.
For the sensor maintenance, see “Intelligent
Cruise Control (ICC) system (Full speed range)”.
5-88Starting and driving

CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and ensure
the future reliability and economy of your
new vehicle. Failure to follow these rec-
ommendations may result in shortened
engine life and reduced engine
performance.
●Avoid driving for long periods at constant
speed, either fast or slow, and do not run the
engine over 4,000 rpm.
●Do not accelerate at full throttle in any gear.
●Avoid quick starts.
●Avoid hard braking as much as possible.
●Do not tow a trailer for the first 500 miles
(800 km) . Your engine, axle or other parts
could be damaged.Follow these easy-to-use Fuel Efficient Driving
Tips to help you achieve the most fuel economy
from your vehicle.
1.Use Smooth Accelerator and Brake
Pedal Application
●Avoid rapid starts and stops
●Use smooth, gentle accelerator and
brake application whenever possible
●Maintain constant speed while commut-
ing and coast whenever possible
2.Maintain Constant Speed
●Look ahead to try and anticipate and mini-
mize stops
●Synchronizing your speed with traffic
lights allows you to reduce your number
of stops
●Maintaining a steady speed can minimize
red light stops and improve fuel efficiency
3.Use Air Conditioning (A/C) at Higher
Vehicle Speeds
●Below 40 MPH (64 km/h), it is more
efficient to open windows to cool the
vehicle due to reduced engine load
●Above 40 MPH (64 km/h), it is more
efficient to use A/C to cool the vehicle
due to increased aerodynamic drag●Recirculating the cool air in the cabin
when the A/C is on reduces cooling load
4.Drive at Economical Speeds and Dis-
tances
●Observing the speed limit and not ex-
ceeding 60 MPH (97 km/h) (where le-
gally allowed) can improve fuel efficiency
due to reduced aerodynamic drag
●Maintaining a safe following distance be-
hind other vehicles reduces unnecessary
braking
●Safely monitoring traffic to anticipate
changes in speed permits reduced brak-
ing and smooth acceleration changes
●Select a gear range suitable to road con-
ditions.
5.Use Cruise Control
●Using cruise control during highway driv-
ing helps maintain a steady speed
●Cruise control is particularly effective in
providing fuel savings when driving on flat
terrains
6.Plan for the Shortest Route
●Utilize a map or navigation system to de-
termine the best route to save time
BREAK-IN SCHEDULE FUEL EFFICIENT DRIVING TIPS
Starting and driving5-89

7.Avoid Idling
●Shutting off your engine when safe for
stops exceeding 30–60 seconds saves
fuel and reduces emissions
8.Buy an Automated Pass for Toll Roads
●Automated passes permit drivers to use
special lanes to maintain cruising speed
through the toll and avoid stopping and
starting
9.Winter Warm Up
●Limit idling time to minimize impact to fuel
economy
●Vehicles typically need no more than
30 seconds of idling at start-up to effec-
tively circulate the engine oil before driv-
ing
●Your vehicle will reach its ideal operating
temperature more quickly while driving
versus idling
10.Keeping your Vehicle Cool
●Park your vehicle in a covered parking
area or in the shade whenever possible
●When entering a hot vehicle, opening the
windows will help to reduce the inside
temperature faster, resulting in reduced
demand on your A/C system●Keep your engine tuned up.
●Follow the recommended scheduled main-
tenance.
●Keep the tires inflated to the correct pres-
sure. Low tire pressure increases tire wear
and lowers fuel economy.
●Keep the front wheels in correct alignment.
Improper alignment increases tire wear and
lowers fuel economy.
●Use the recommended viscosity engine oil.
See “Engine oil and oil filter recommenda-
tions” in “Technical and consumer informa-
tion” later in this manual.If any malfunction occurs in the Intelligent AWD
system while the engine is running, messages are
displayed in the meter.
INCREASING FUEL ECONOMY INTELLIGENT ALL-WHEEL DRIVE
(AWD) (if so equipped)
5-90Starting and driving

If the AWD error warning message is displayed,
there may be a malfunction in the Intelligent AWD
system. Reduce vehicle speed and have your
vehicle checked by an INFINITI retailer as soon as
possible.The AWD high temperature message may be
displayed while trying to free a stuck vehicle due
to increased oil temperature. The driving mode
may change to two-wheel drive. If this message is
displayed, stop the vehicle with the engine idling,
as soon as it is safe to do so. Then if the message
turns off, you can continue driving.The tire size message may be displayed if there is
a large difference between the diameters of front
and rear wheels. Pull off the road in a safe area,
with the engine idling. Check that all tire sizes are
the same, that the tire pressure is correct and that
the tires are not excessively worn.
If any warning messages continue to be dis-
played, have your vehicle checked by an INFINITI
retailer as soon as possible.
LSD2082LSD2083LSD2084
Starting and driving5-91

WARNING
●Do not drive beyond the performance
capability of the tires. Accelerating
quickly, sharp steering maneuvers or
sudden braking may cause loss of con-
trol, even with Intelligent AWD
engaged.
●For AWD equipped vehicles, do not at-
tempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with the
engine running. Doing so may result in
drivetrain damage or unexpected ve-
hicle movement which could result in
serious personal injury or vehicle
damage.●Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions test-
ing) or similar equipment even if the
other two wheels are raised off the
ground. Make sure that you inform the
test facility personnel that your vehicle
is equipped with AWD before it is
placed on a dynamometer. Using the
wrong test equipment may result in
drivetrain damage or unexpected ve-
hicle movement which could result in
serious personal injury or vehicle
damage.
CAUTION
●Do not operate the engine on a free
roller when any of the wheels are
raised.
●If you use the free roller, rotate 4 wheels
with the same speed without raising
any wheels.
●If an AWD warning message is dis-
played while driving there may be a
malfunction in the AWD system. Reduce
the vehicle speed immediately and have
your vehicle checked by an INFINITI re-
tailer as soon as possible.●The powertrain may be damaged if you
continue driving when the AWD tem-
perature or tire size incorrect messages
are displayed
●If the AWD high temperature message
is displayed while you are driving, pull
off the road in a safe area, and idle the
engine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning message
turns off, you can drive again.
●If the tire size incorrect message is dis-
played while you are driving, pull off the
road in a safe area with the engine
idling. Check that all tire sizes are the
same, that the tire pressure is correct
and that the tires are not excessively
worn.
●If a warning message continues to be
displayed after the above operations,
have your vehicle checked by an
INFINITI retailer as soon as possible.
5-92Starting and driving
