The current sensor is located near the battery
along the negative battery cable. If you add elec-
trical accessories to your vehicle, be sure to
ground them to a suitable body ground such as
the frame or engine block area.

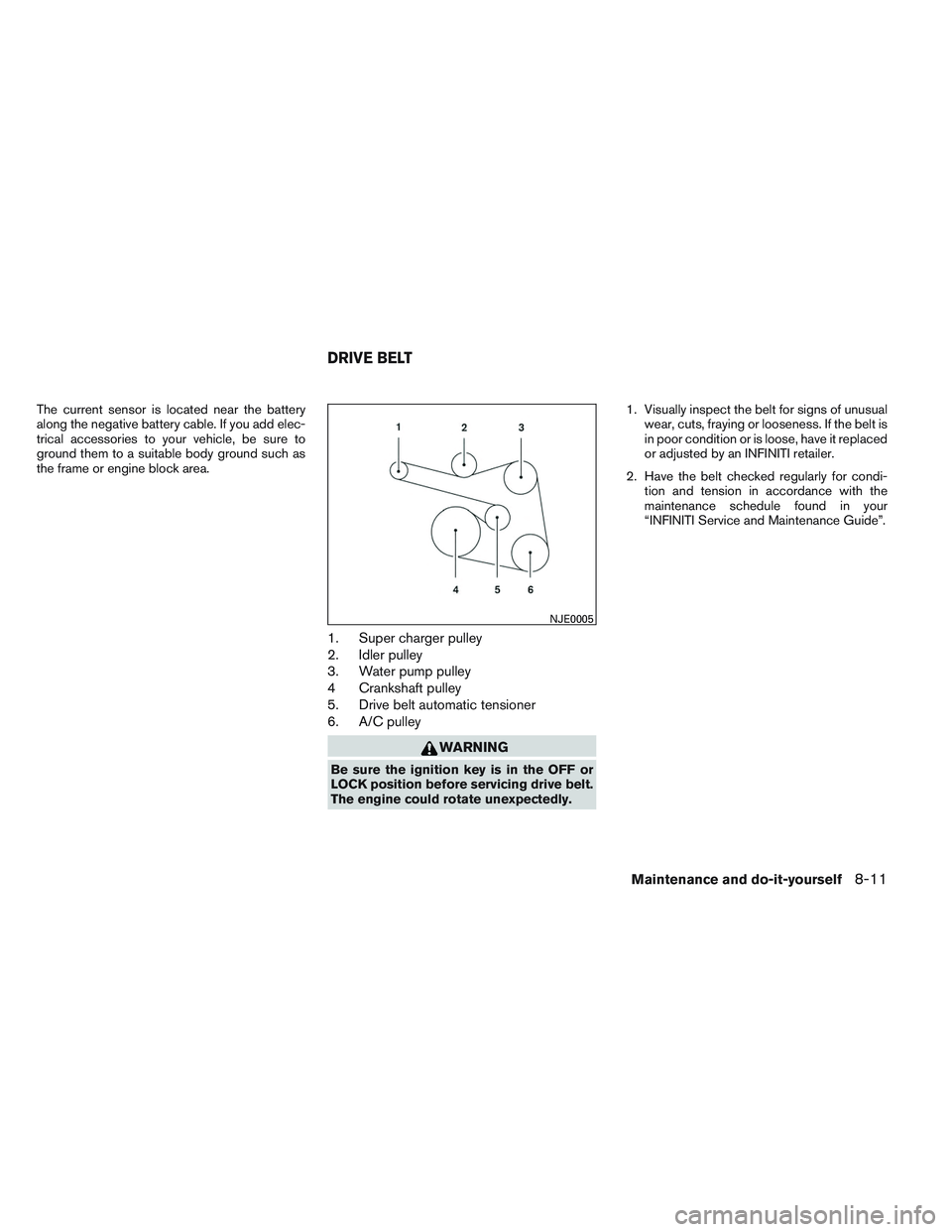

1. Super charger pulley
2. Idler pulley
3. Water pump pulley
4 Crankshaft pulley
5. Drive belt automatic tensioner
6. A/C pulley
WARNING
Be sure the ignition key is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.1. Visually inspect the belt for signs of unusual
wear, cuts, fraying or looseness. If the belt is
in poor condition or is loose, have it replaced
or adjusted by an INFINITI retailer.
2. Have the belt checked regularly for condi- tion and tension in accordance with the
maintenance schedule found in your
“INFINITI Service and Maintenance Guide”.
NJE0005
DRIVE BELT
Maintenance and do-it-yourself8-11
