warning INFINITI QX60-HYBRID 2014 Owners Manual

NOTE:
This hybrid electric supplement contains all
the information you need to safely operate
your Hybrid Electric Vehicle (HEV) . For all
other information not specific to the hybrid
electric system, please refer to your Own-
er’s Manual.
Welcome to the growing family of new INFINITI
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.
This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles (kilome-
ters) of driving pleasure. Please read through this
manual before operating your vehicle.
A separate Warranty Information Booklet
explains details about the warranties cov-
ering your vehicle. The “Warranty Informa-
tion and Maintenance Booklet” explains
details about maintaining and servicing
your vehicle.
Your INFINITI retailer knows your vehicle best.
When you require any service or have any ques-
tions, they will be glad to assist you with the
extensive resources available to them.In addition to factory installed options, your ve-
hicle may also be equipped with additional ac-
cessories installed by INFINITI or by your INFINITI
retailer prior to delivery. It is important that you
familiarize yourself with all disclosures, warnings,
cautions and instructions concerning proper use
of such accessories prior to operating the vehicle
and/or accessory. See an INFINITI retailer for
details concerning the particular accessories
with which your vehicle is equipped.
Before driving your vehicle, please read this
Owner’s Manual carefully. This will ensure famil-
iarity with controls and maintenance require-
ments, assisting you in the safe operation of your
vehicle.
WARNING
IMPORTANT SAFETY INFORMATION RE-
MINDERS FOR SAFETY!
Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!
●
NEVER drive under the influence of al-
cohol or drugs.
● ALWAYS observe posted speed limits
and never drive too fast for conditions.
●
ALWAYS give your full attention to driving
and avoid using vehicle features or taking
other actions that could distract you.
●ALWAYS use your seat belts and appro-
priate child restraint systems. Pre-teen
children should be seated in the rear seat.
● ALWAYS provide information about the
proper use of vehicle safety features to
all occupants of the vehicle.
● ALWAYS review this Owner’s Manual
for important safety information.
FOREWORD READ FIRST—THEN DRIVE SAFELY

For descriptions specified for four-wheel drive
models, a4WDmark is placed at the beginning
of the applicable sections/items.
As with other vehicles with features for
off-road use, failure to operate four-wheel
drive models correctly may result in loss of
control or an accident. Be sure to read
“Driving safety precautions” in the “Start-
ing and driving” section of this manual.
ON-PAVEMENT AND OFF-ROAD DRIV-
ING
This vehicle will handle and maneuver
differently from an ordinary passenger
car because it has a higher center of
gravity for off-road use. As with other
vehicles with features of this type, fail-
ure to operate this vehicle correctly may
result in loss of control or an accident.
Be sure to read “On-pavement and off-
road driving precautions”, and “Avoid-
ing collision and rollover”, and “Driving
safety precautions”, in the “Starting and
driving” section of this manual.
MODIFICATION OF YOUR VEHICLE
This vehicle should not be modified.
Modification could affect its
performance, safety or durability, and
may even violate governmental
regulations. In addition, damage or per-
formance problems resulting from modi-
fications may not be covered under
INFINITI warranties. This manual includes information for all options
available on this model. Therefore, you may find
some information that does not apply to your
vehicle.
All information, specifications and illustrations in
this manual are those in effect at the time of
printing. INFINITI reserves the right to change
specifications or design at any time without no-
tice.
IMPORTANT INFORMATION ABOUT
THIS MANUAL
You will see various symbols in this manual. They
are used in the following ways:
WARNING
This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the
risk, the procedures must be followed
precisely.
CAUTION
This is used to indicate the presence of a
hazard that could cause minor or moder-
ate personal injury or damage to your ve-
hicle. To avoid or reduce the risk, the pro-
cedures must be followed carefully.
WHEN READING THE MANUAL

If you see this symbol, it means“Do not do this”
or “Do not let this happen.”
If you see a symbol similar to these in an illustra-
tion, it means the arrow points to the front of the
vehicle.
Arrows in an illustration that are similar to these
indicate movement or action.
Arrows in an illustration that are similar to these
call attention to an item in the illustration.
CALIFORNIA PROPOSITION 65
WARNING
WARNING
Engine exhaust, some of its constituents,
and certain vehicle components contain or
emit chemicals known to the State of Cali-
fornia to cause cancer and birth defects or
other reproductive harm. In addition, cer-
tain fluids contained in vehicles and cer-
tain products of component wear contain
or emit chemicals known to the State of
California to cause cancer and birth de-
fects or other reproductive harm.
CALIFORNIA PERCHLORATE
ADVISORY
Some vehicle parts, such as lithium batter-
ies, may contain perchlorate material. The
following advisory is provided: “Perchlorate
Material – special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/perchlorate/”.
BLUETOOTH® is a
trademark owned by
Bluetooth SIG, Inc.
and licensed to
Visteon and Clarion.
SiriusXM Satellite
Radio requires
subscription, sold
separately. Not
available in Alaska,
Hawaii or Guam.
For more
information, visit
www.siriusxm.com.
© 2013 NISSAN NORTH AMERICA, INC.
All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a retrieval
system, or transmitted in any form, or by any
means, electronic, mechanical, photocopying,
recording or otherwise, without the prior written
permission of Nissan Motor Co., Ltd.
APD1005

The INFINITI Direct Response Hybrid® System
combines the power of a gasoline engine and an
electric motor to help minimize fuel consumption
and emissions.
Depending on driving conditions, the vehicle runs
on a combination of the gasoline engine and the
electric motor, whichever is best for those condi-
tions.
Because the gasoline engine charges the
Lithium-ion (Li-ion) battery as needed, the battery
does not have to be charged from an outside
source like an all-electric vehicle.WARNING
Your vehicle contains a sealed Lithium ion
(Li-ion) high-voltage battery. If the Li-ion
battery is disposed of improperly, there is
a risk of severe burns and electrical shock
that may result in serious injury or death
and there is also a risk of environmental
damage.
CAUTION
Do not misuse of Li-ion battery (to use the
Li-ion battery for completely another
purpose) .
The Li-ion battery is used to drive the electric
motors in the INFINITI Direct Response Hybrid®
System.
The Li-ion battery has a limited service life. Con-
tact your INFINITI retailer for information about
recycling or disposal of the battery.
WARNING
● The INFINITI Direct Response Hybrid®
System uses high voltage up to approxi-
mately 144volts. The system can be hot
while and after starting. Be careful of
both the high voltage and the high tem-
perature. Obey the warning labels at-
tached to the vehicle.
● Never disassemble, remove or replace
high-voltage parts and harnesses as
well as their connectors can cause se-
vere burns or electric shock that may
result in serious injury or death. High-
voltage harnesses are colored orange.
The vehicle high-voltage system has no
user serviceable parts. Take your ve-
hicle to an INFINITI retailer for any nec-
essary maintenance.
● Never try to remove the service plug
located in the trunk. The service plug is
used only when the vehicle is serviced
by trained technicians wearing personal
protection equipment and is part of the
high-voltage system. Touching the ser-
vice plug can cause severe burns or
electric shock that may result in serious
injury or death.
INFINITI DIRECT RESPONSE
HYBRID® SYSTEM LITHIUM-ION (Li-ion) BATTERY HIGH-VOLTAGE CAUTIONS
HEV-2HEV Overview

WARNING
In case of a collision:
●If your vehicle is drivable, pull your ve-
hicle off the road, put the transmission
in the P (Park) position, apply the park-
ing brake and turn the INFINITI Direct
Response Hybrid® System off.
● Check to see if there are exposed high-
voltage parts and cables. Never touch
the parts and cables. For their locations,
see “High-voltage components” later in
this section. To avoid personal injury,
never touch high-voltage wiring, con-
nectors, and other high-voltage parts,
such as electric motor inverter and Li-
ion battery. An electric shock may occur
if exposed electric wires are visible
when viewed from inside or outside of
your vehicle. Therefore, never touch ex-
posed electric wires.
● If the vehicle receives a strong impact to
the floor while driving, stop the vehicle
in a safe location and check the floor.
● Inspect the ground under the vehicle. If
liquid has leaked onto the ground, the
fuel system may have been damaged.
Leave the vehicle as soon as possible. ●
Leaks or damage to the Li-ion battery
may result in a fire. If you discover them,
contact emergency services immedi-
ately. Since the fluid leak may be
lithium organic electrolyte from the Li-
ion battery, never touch the fluid leak
inside or outside the vehicle. If the fluid
contacts your skin or eyes, wash it off
immediately with a large amount of wa-
ter and receive immediate medical at-
tention to help avoid serious injury.
● If a fire occurs in the hybrid vehicle,
leave the vehicle as soon as possible.
Only use a type ABC, BC or C fire extin-
guisher that is meant for use on electri-
cal fires. Using water or the incorrect
fire extinguisher can result in serious
injury or death from electrical shock.
● If you are not able to safely assess the
vehicle due to vehicle damage, do not
touch the vehicle. Leave the vehicle and
contact emergency services. Advise 1st
responders that this is a hybrid vehicle. ●
In the event of an accident that requires
body repair and painting, the vehicle
should be delivered to an INFINITI re-
tailer to have the Li-ion battery pack
and high-voltage parts such as the in-
verter, including the wiring harness, re-
moved prior to painting. Li-ion battery
packs exposed to heat in the paint
booth will experience capacity loss.
Damaged Li-ion battery packs may also
pose safety risks to untrained mechan-
ics and repair personnel.
ROAD ACCIDENT CAUTIONS
HEV OverviewHEV-3

The emergency shut-off system is activated and
the high-voltage system automatically turns off in
the following conditions:● Front and side collisions in which the air
bags are deployed.
● Certain rear collisions.
● Certain INFINITI Direct Response Hybrid®
System malfunctions
For the above collisions and the certain hybrid
system malfunctions, the READY to drive indica-
tor light will turn off. See “Warning/indicator
lights and audible reminders” in the “Instruments
and controls”.
The emergency shut-off activates for the above
collisions to minimize risk of an event that could
cause injury or an accident. If the emergency
shut-off system activates, the hybrid system may
not switch to READY to drive position, contact an
INFINITI retailer. Even if the ignition switch is
switched to READY to drive position, the system
may shut off suddenly. Therefore, drive cautiously
to the nearest INFINITI retailer or contact an
INFINITI retailer as soon as possible. To start the INFINITI Direct Response Hybrid®
System, depress the brake pedal and place the
ignition switch in the ON position when the trans-
mission is in the P (Park) position or N (Neutral)
position (P is recommended) .
The READY to drive indicator light
flashes
until hybrid system becomes the ready to drive
mode.
If starting in low temperature environment, flash-
ing time of READY lamp becomes longer. It can-
not move out from P range during flashing.
When the READY to drive indicator light
illuminates, the vehicle can be driven, even if the
gasoline engine is not running.
NOTE:
The gasoline engine starts and stops auto-
matically. It may stop during deceleration
or when the vehicle is stopped.
The gasoline engine may automatically run in the
following conditions:
● The level of remaining charge in the Li-ion
battery is low. The engine runs to charge the
Li-ion battery and to provide power to drive
the vehicle.
● The temperature of the engine coolant is
low. ●
When A/C is used.
● When opening door.
● When engine hood is opened.
● When applying brakes.
● Based on driving conditions.
● The shift lever is shifted to the P (Park)
position, the driver’s seat belt is released
and the driver’s side door is then opened.
The hybrid system operates as follows based on
driving conditions and the Li-ion battery charge.
Engine is hard to stop during these driving con-
ditions: ● Outside temperature is high/low and A/C is
on.
● When repeatedly starting and stopping the
engine.
STARTING AND SLOW SPEED
DRIVING
In some cases, the vehicle can be driven by
electric motor during extremely slow speed
creep, but the engine starts when accelerating or
taking off the brakes.
EMERGENCY SHUT-OFF SYSTEM OPERATION OF THE HYBRID SYSTEM
HEV-4HEV Overview

The Approaching Vehicle Sound for Pedestrians
(VSP) system is a function that uses sound to
help alert pedestrians of the presence of the
vehicle when it is being driven at a low speed in
the electric drive mode under the following con-
ditions:● The sound starts when the vehicle starts
accelerating.
● The sound stops when the vehicle speed is
more than 19 MPH (30 km/h) while acceler-
ating only when vehicle is powered by the
electric motor.
● The sound starts when the vehicle speed is
less than 16 MPH (25 km/h) while deceler-
ating only when vehicle is powered by the
electric motor.
● The sound stops when the vehicle stops.
● The sound does not stop with the vehicle in
the R (Reverse) position even if the vehicle
stops.
The VSP system is automatically turned on when
the vehicle is in the READY to drive mode.
If there is a malfunction in the VSP system, the
VSP OFF indicator light in the meter illuminates.
See “Approaching Vehicle Sound for Pedestri-
ans (VSP) OFF indicator light” in the “Instruments
and controls” section.WARNING
● If the sound from the VSP system is not
heard while driving, stop the vehicle in a
safe and quiet location. Open a window,
and then place the vehicle in the R (Re-
verse) position with the brake pedal
firmly depressed. Check that the oper-
ating sound can be heard from the front
side of the vehicle.
● If the sound cannot be heard, immedi-
ately contact an INFINITI retailer for
inspection.
HIGH-VOLTAGE COMPONENTS
AND THEIR LOCATIONS
WARNING
● The INFINITI Direct Response Hybrid®
System uses high voltage up to approxi-
mately 144 volts. The system can be hot
during and after starting. Be careful of
both the high voltage and the high tem-
perature. Obey the warning labels at-
tached to the vehicle.
● Never touch, disassemble, remove or
replace the high-voltage parts, har-
nesses and their connectors. High-
voltage harnesses are orange. Touch-
ing, disassembling, removing or
replacing those parts and harnesses
can cause severe burns or electric
shock that may result in serious injury
or death.
APPROACHING VEHICLE SOUND
FOR PEDESTRIANS (VSP) SYSTEM HYBRID VEHICLE PRECAUTIONS
HEV-10HEV Overview

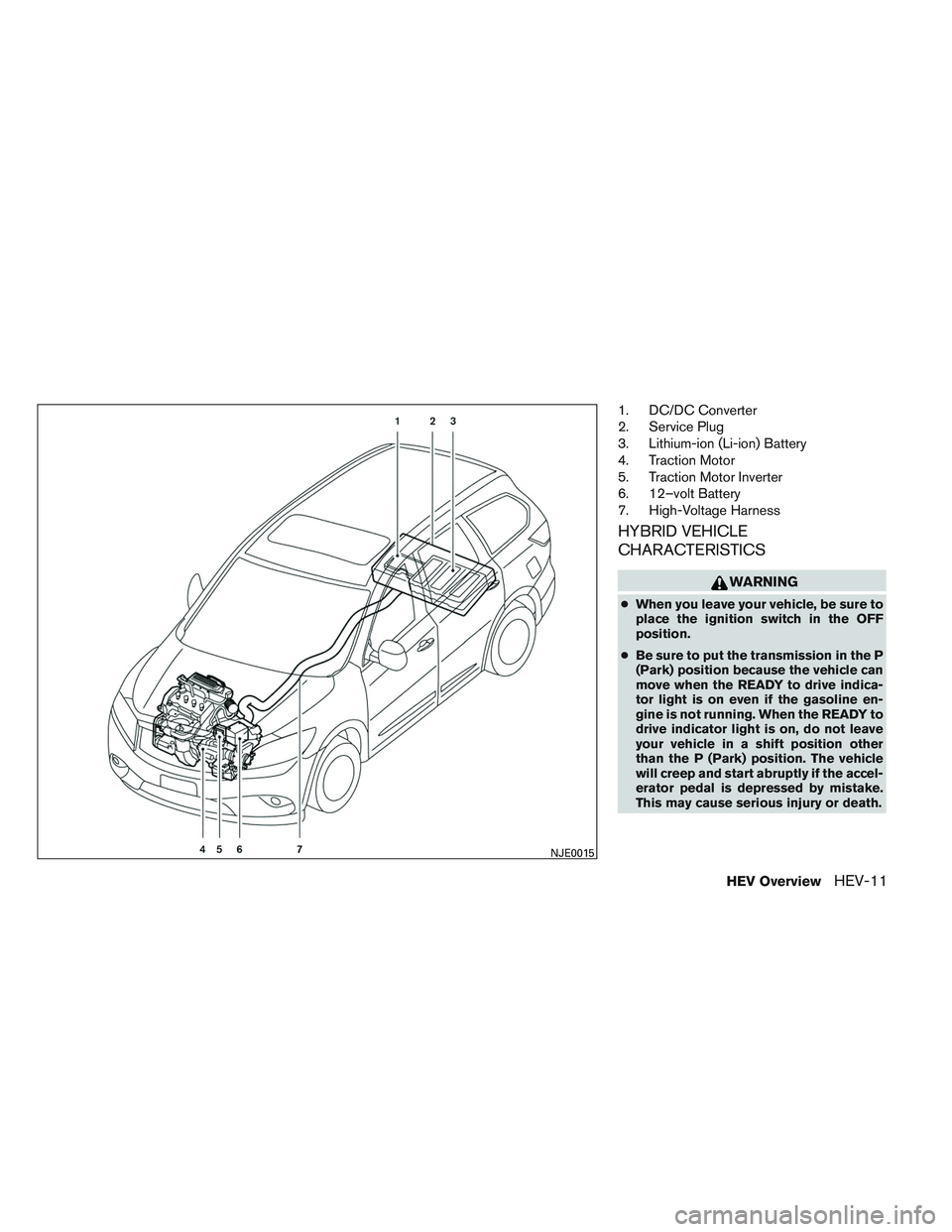

1. DC/DC Converter
2. Service Plug
3. Lithium-ion (Li-ion) Battery
4. Traction Motor
5. Traction Motor Inverter
6. 12–volt Battery
7. High-Voltage Harness
HYBRID VEHICLE
CHARACTERISTICS
WARNING
●When you leave your vehicle, be sure to
place the ignition switch in the OFF
position.
● Be sure to put the transmission in the P
(Park) position because the vehicle can
move when the READY to drive indica-
tor light is on even if the gasoline en-
gine is not running. When the READY to
drive indicator light is on, do not leave
your vehicle in a shift position other
than the P (Park) position. The vehicle
will creep and start abruptly if the accel-
erator pedal is depressed by mistake.
This may cause serious injury or death.
NJE0015
HEV OverviewHEV-11

Warninglight Name Page
Anti-lock Braking
System (ABS) warn-
ing light 2-3
or
Brake warning lights
(red)
2-3
12–volt battery
charge warning light2-4
Hybrid system warn-
ing light2-5
Brake system warn-
ing light (yellow)2-5
Indicator
light Name Page
Approaching Ve-
hicle Sound for Pe-
destrians (VSP)
OFF indicator light 2-5
EV indicator light 2-5
READY to drive indi-
cator light
2-5

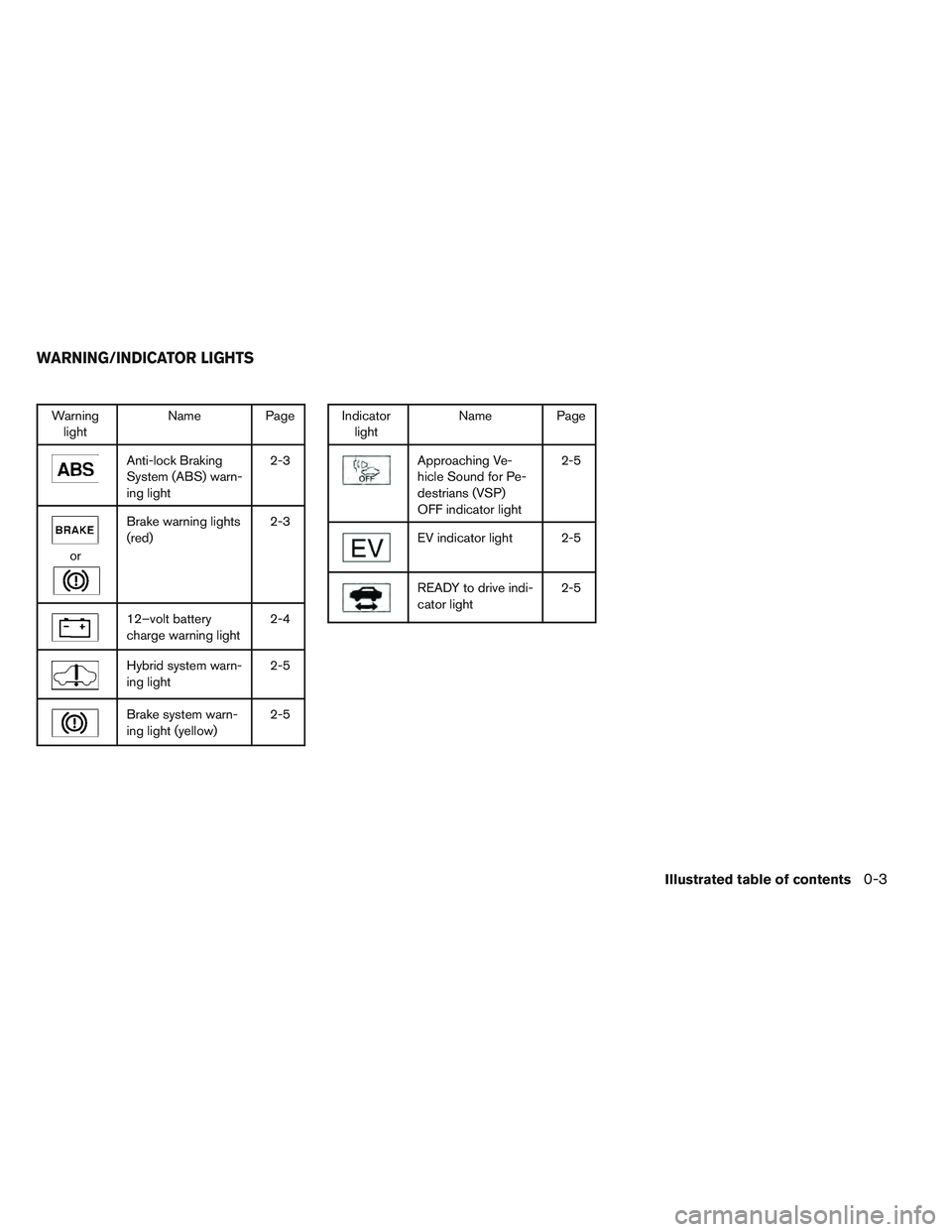

WARNING/INDICATOR LIGHTS
Illustrated table of contents0-3

FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Do not operate the power seat switch for a long
period of time when the hybrid system is not
running. This will discharge the 12–volt battery.
See “Automatic drive positioner” in “Pre-driving
checks and adjustments” for automatic drive po-
sitioner operation.
FLEXIBLE SEATING
WARNING
●Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.
● Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.
● Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seats. ●
Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace and adjust
them properly if they have been re-
moved for any reason.
● If the head restraints/headrests are re-
moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
● Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
Folding the 3rd row seats
To fold the 3rd row seats flat for maximum cargo
capacity:
1. Pull the strap
1to release the head
restraint/headrest forward.
2. Stow the 3rd row seat belts in the seat belt hooks
4found on the sides of the cargo
area.
3. Pull up on the latch
2located in the upper
corner of each seatback and lower the seat-
back forward over the seat base.
LRS2145
1-2Safety—Seats, seat belts and supplemental restraint system
