child restraint INFINITI QX60 HYBRID 2014 Quick Reference Guide

table of contents
Additional information about your vehicle is also available
in your Owner’s Manual, Navigation System Owner’s Manual and at www.InfinitiUSA.com.
new system features INFINITI Connection™ System (if so equipped) ......................2
Around View® Monitor (AVM) with Moving Object Detection (MOD)
(if so equipped) ................................................ 4
Warning Systems Switch (if so equipped) ........................... 6
Approaching Vehicle Sound for Pedestrians (VSP) System .............6
essential information Hybrid System Warning Light ..................................... 7
Hybrid Awareness .............................................. 7
Tire Pressure Monitoring System (TPMS) with Tire Inflation Indicator .....7
Loose Fuel Cap ................................................. 8
Fuel-filler Door ................................................. 8
Accessing the Front Cup Holders .................................. 8
Front Armrest/Center Console Storage Box .......................... 8
Clock Set/Adjustment ........................................... 9
first drive features INFINITI Intelligent Key System .................................. 10
Power Liftgate ................................................. 11
Power Seat Adjustments ........................................ 12
2
ND Row Seats ................................................. 12
3RD Row Manual Reclining Seatback ............................... 13
Automatic Drive Positioner (if so equipped) ........................ 13
Outside Mirror Control Switch .................................... 13
Assist Charge Gauge ........................................... 14
Starting/Stopping the Hybrid System ..............................14
Headlight Control Switch ........................................ 15
Windshield Wiper and Washer Switch ............................. 16
Automatic Climate Controls ...................................... 17
Rear Climate Controls .......................................... 19
FM/AM/XM Satellite Radio with CD/DVD Player (if so equipped) ........19
USB/iPod
® Interface ........................................... 20
Conventional (Fixed Speed) Cruise Control ......................... 20
Intelligent Cruise Control (ICC) System (if so equipped) ..............21
Power Outlets ................................................. 22
system guide Vehicle Information Display ..................................... 23
Bluetooth® Hands-free Phone System ............................. 24
System Operating Tips ....................................... 24
Bluetooth
® System without Navigation (if so equipped) .............. 25
Bluetooth® System with Navigation (if so equipped) ................. 26
Navigation System (if so equipped) ............................... 29
Theater Package (if so equipped) ................................. 30
HomeLink
® Universal Transceiver ................................. 31
Please see your Owner’s Manual for important safety
information and system operation limitations.
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat properly secur\
ed
in child restraints or seat belts according to their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)”, “Monitor, climate,
audio, phone and voice recognition systems (section 4)” and
“Starting and driving (section 5)” of your Owner’s Manual.
To view detailed
instructional videos, go to
www.infinitiownersinfo.mobi/2014/qx60 or snap this barcode with an appropriate barcode reader.
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 49/24/13 11:43 AM

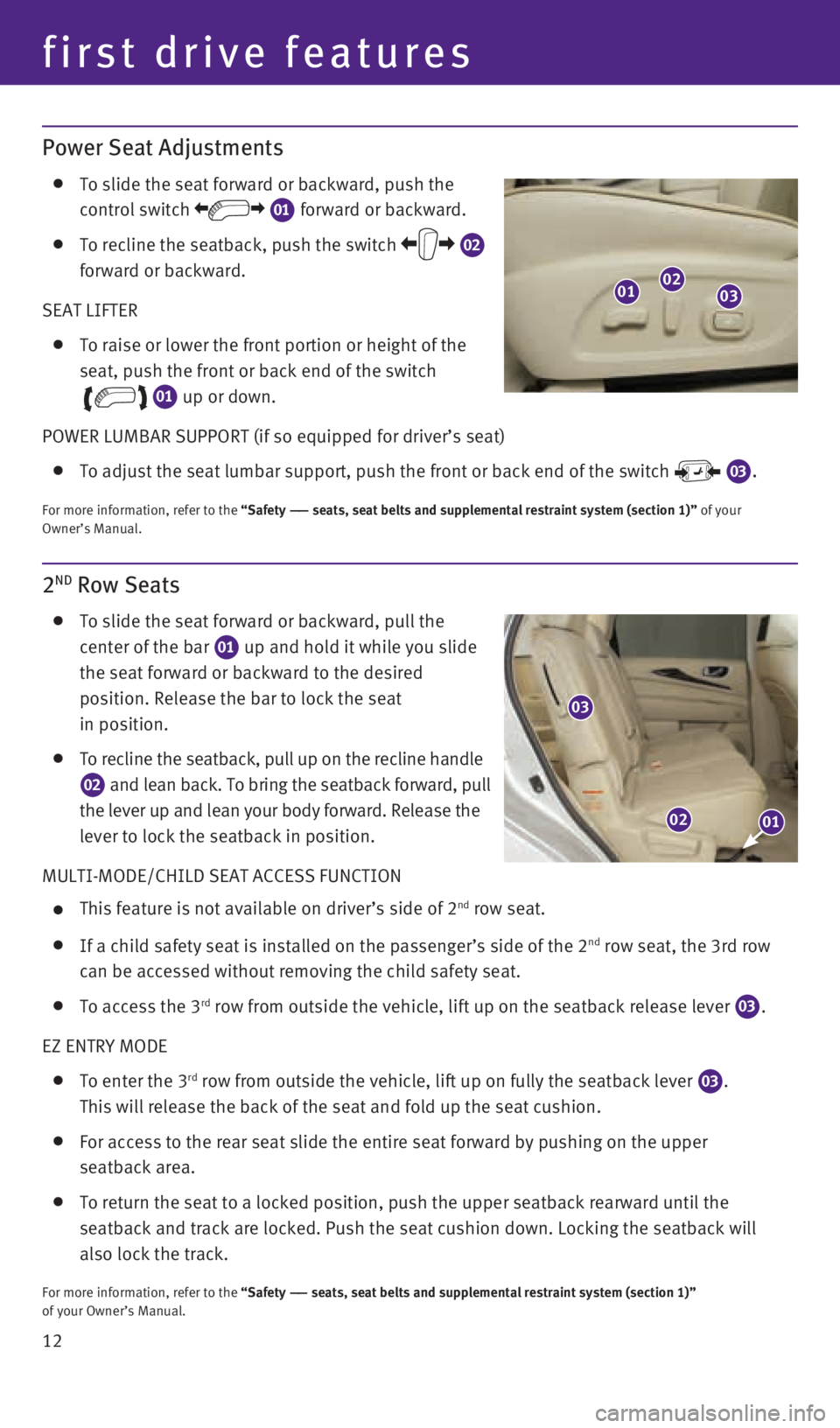

first drive features
12
Power Seat Adjustments
To slide the seat forward or backward, push the
control switch

01 forward or backward.

To recline the seatback, push the switch
02
forward or backward.
SEAT LIFTER

To raise or lower the front portion or height of the
seat, push the front or back end of the switch

01 up or down.
POWER LUMBAR SUPPORT (if so equipped for driver’s seat)

To adjust the seat lumbar support, push the front or back end of the swi\
tch
03.
For more information, refer to the “Safety —— seats, seat belts and supplemental restraint system (section 1)”\
of your
Owner’s Manual.
2ND Row Seats
To slide the seat forward or backward, pull the
center of the bar

01 up and hold it while you slide
the seat forward or backward to the desired
position. Release the bar to lock the seat
in position.

To recline the seatback, pull up on the recline handle

02 and lean back. To bring the seatback forward, pull

the lever up and lean your body forward. Release the
lever to lock the seatback in position.
MULTI-MODE/CHILD SEAT ACCESS FUNCTION

This feature is not available on driver’s side of 2nd row seat.

If a child safety seat is installed on the passenger’s side of the 2nd row seat, the 3rd row
can be accessed without removing the child safety seat.

To access the 3rd row from outside the vehicle, lift up on the seatback release lever
03.
EZ ENTRy MODE

To enter the 3rd row from outside the vehicle, lift up on fully the seatback lever
03.
This will release the back of the seat and fold up the seat cushion.

For access to the rear seat slide the entire seat forward by pushing on \
the upper
seatback area.

To return the seat to a locked position, push the upper seatback rearwar\
d until the
seatback and track are locked. Push the seat cushion down. Locking the s\
eatback will
also lock the track.
For more information, refer to the “Safety —— seats, seat belts and supplemental restraint system (section 1)”\

of your Owner’s Manual.
010203
0102
03
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 129/24/13 11:43 AM
